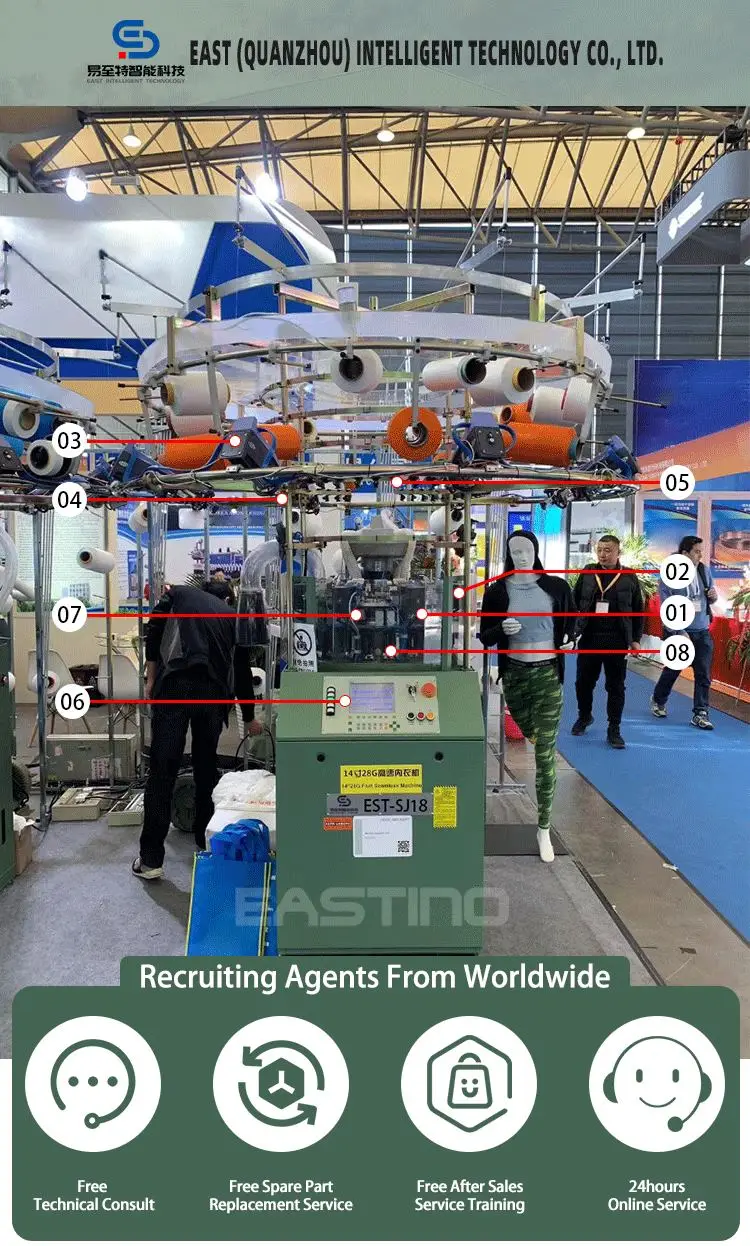

Santoni Knitting Machine Underwear Legging Machines Lonati Sock Circular Seamless

Tube Diameter

11inch-22inch

Gauge

18G  22G  26G  28G  32G  40G

Number of feeds

8 for every diameter

Maximum speed

80-130rpm(the maximum speed of 11-15inch 28g machine is 110-130 rpm/min

Needle selection device

2 pcs 16-level needle selection device for each feed

Needle selection knitting type

The 8 feeds all have 3-functions to select needles, it can also use 2-funtion to select needle and the

other 1 function is for dyed yarn, each feed can knit the plaiting organization

Rib top knitting

Use the different selection needles to knit the single tying or double tying. The rib top rubber string can

be knitted by lining or floating threads.

Stitch cam

The stepping motor regulates the sewing stitch sizl, and each feed is controlled independently

Control system

The independently developed electronic control system controls all outputs and receives programs and

data through the USB device. Programs and data can also be passed through a network device

Half-type plate rise and fall

Pneumatic control Half-type moving upwards and downwards, slight adjustment is controlled by pneumatic

and mechanical limit.

Drive system

 Servo motor,gear drive and synchronous belt drive

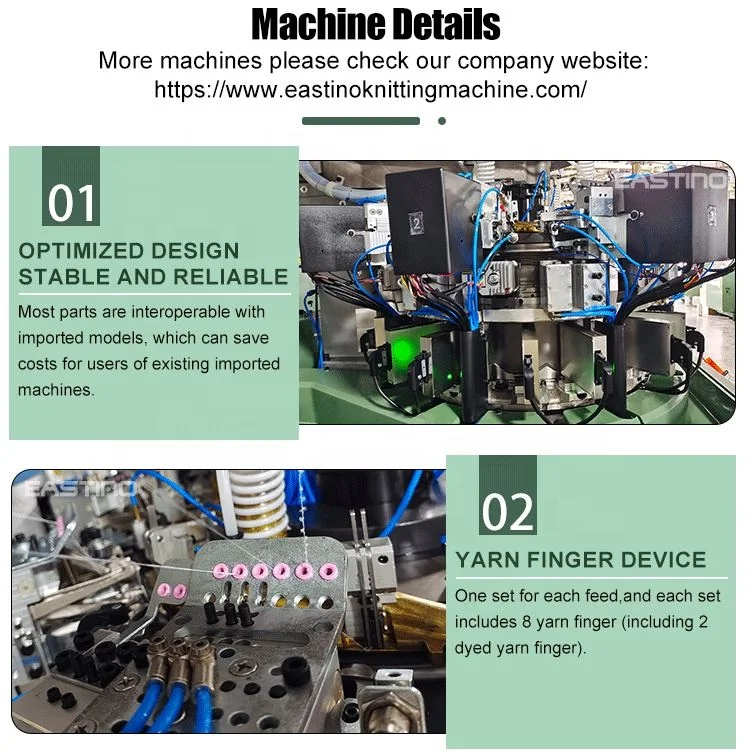

Yarn finger device

Yarn finger device

One set for each feed, and each set includes 8 yarn finger (including 2 dyed yarn finger)

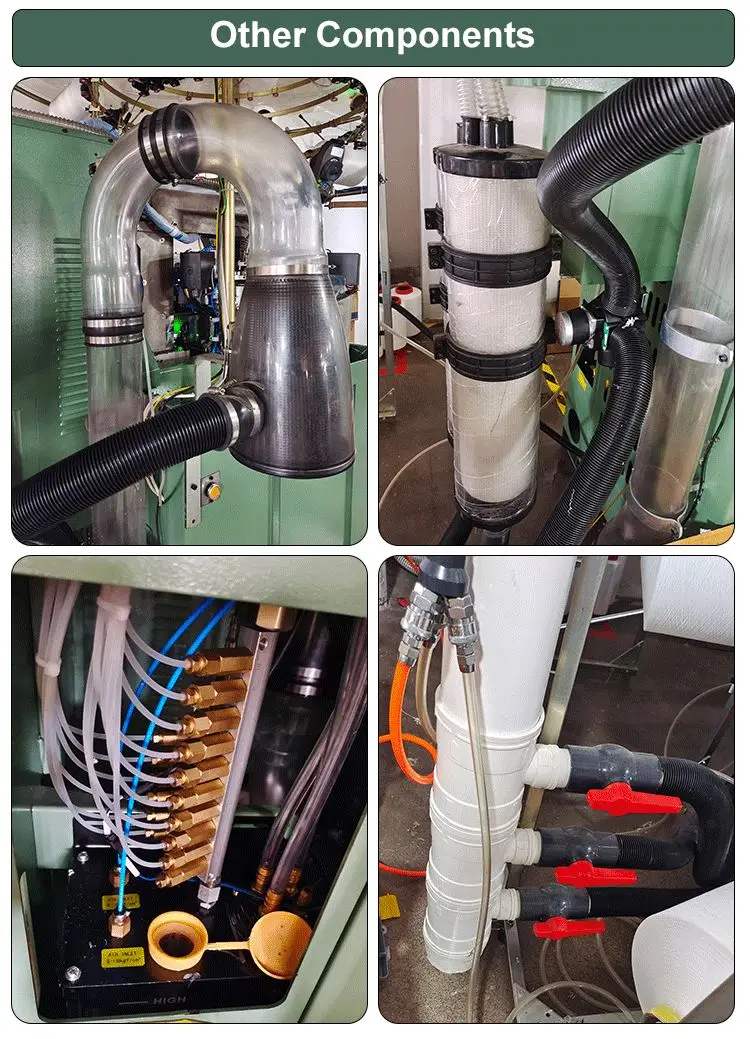

Take-down

Suction with 2 fans or central

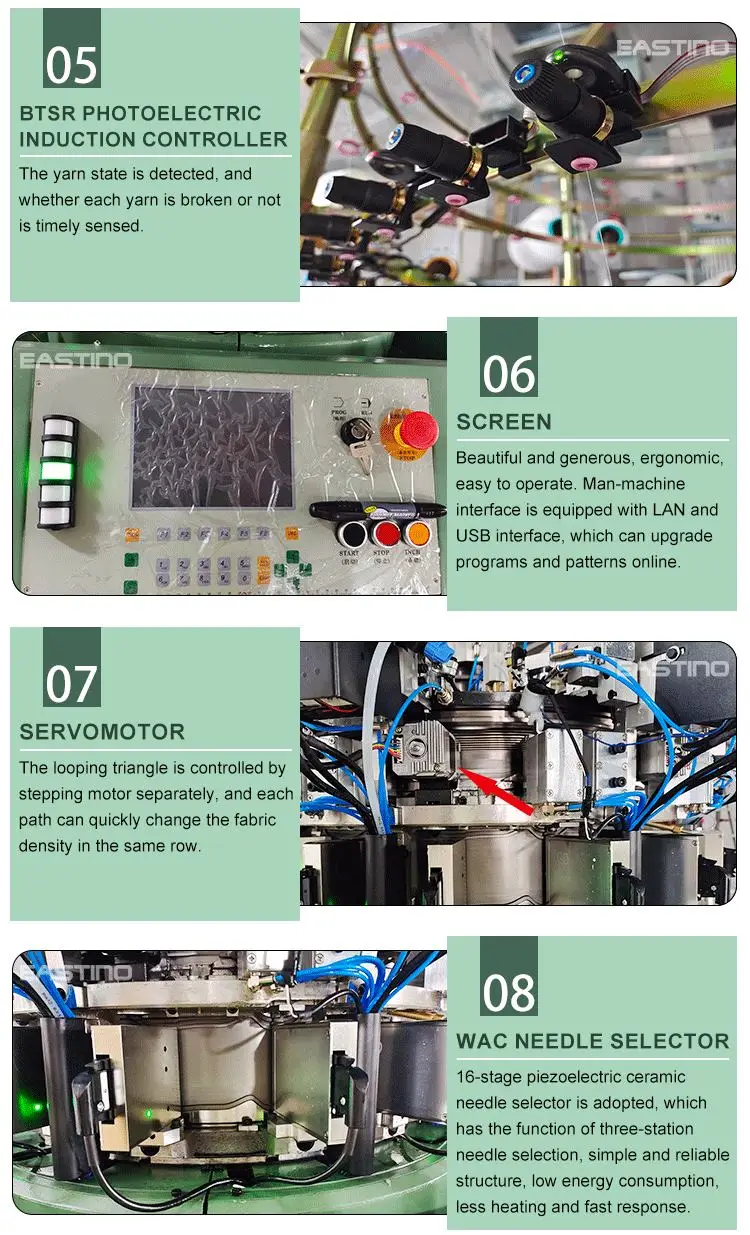

Yarn sensor

Serial photo electricity yarn sensor (the standard configuration is 43pcs, optional configuration 64pcs)

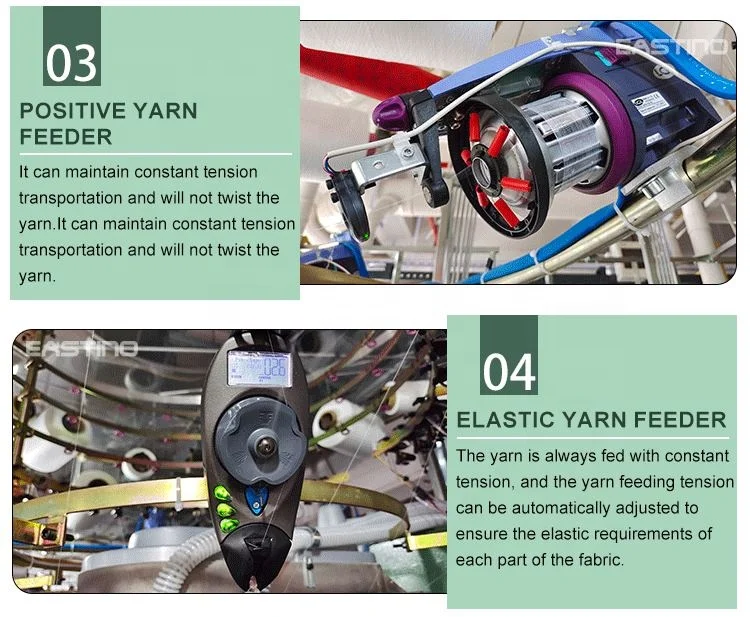

Yarn feeders

 8pcs, among which the 2.6 feed can equip with one KTF

Power dissipation

Major motor: 3KW

Induced draft

nameeeeoich-16inch:Three-phase AC 380V.50 HZ.1.3KW 2pcs or 2.6KW 1pcs draught fan.

diameter:17inch=20inch

Compressed air: 50 litre/min, 6BAR

Spandex feeders

Optional configuration 8pcs
