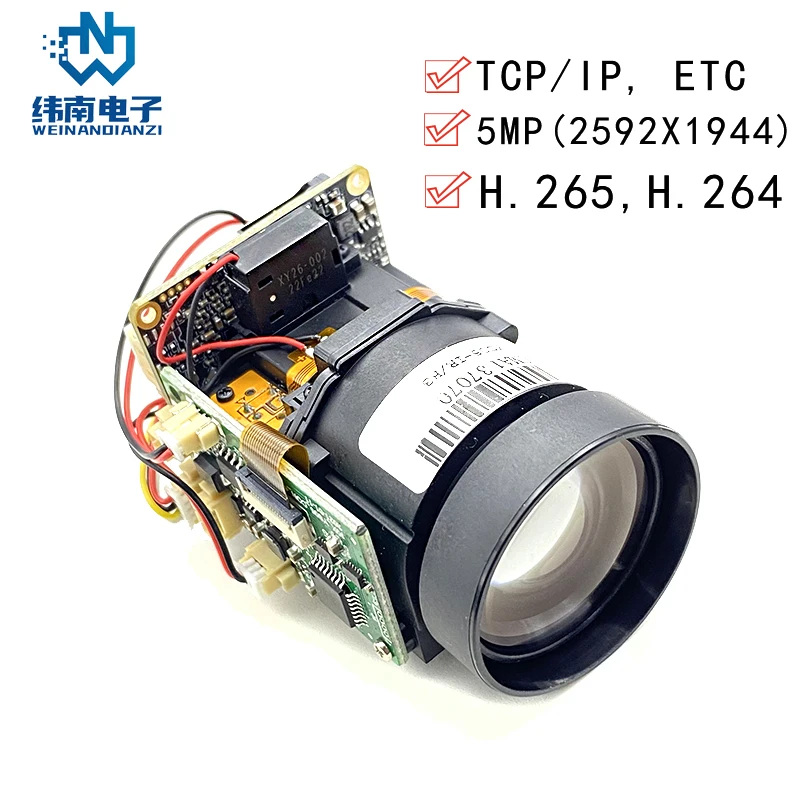

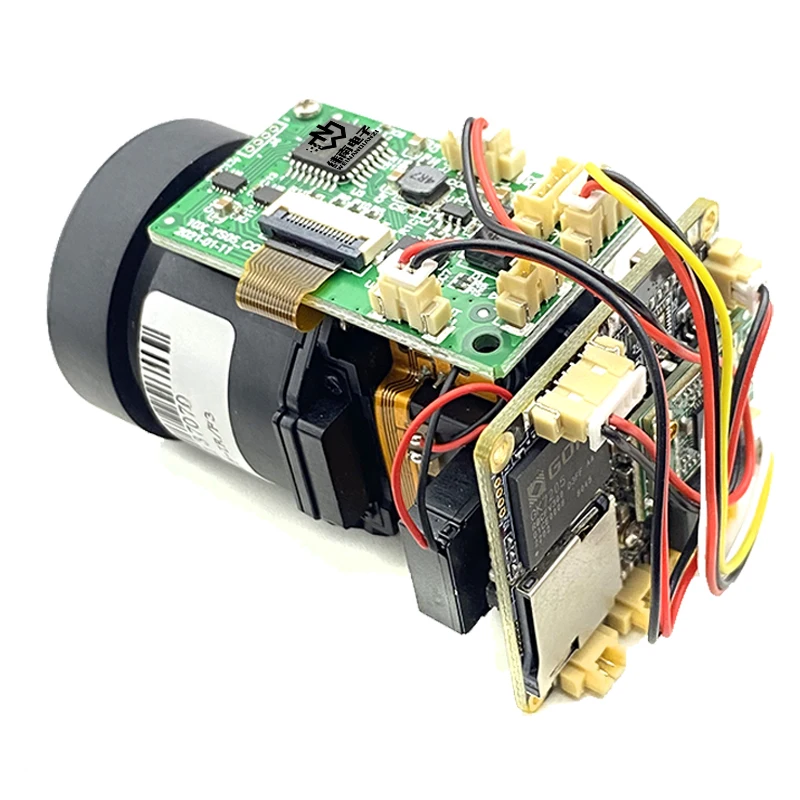

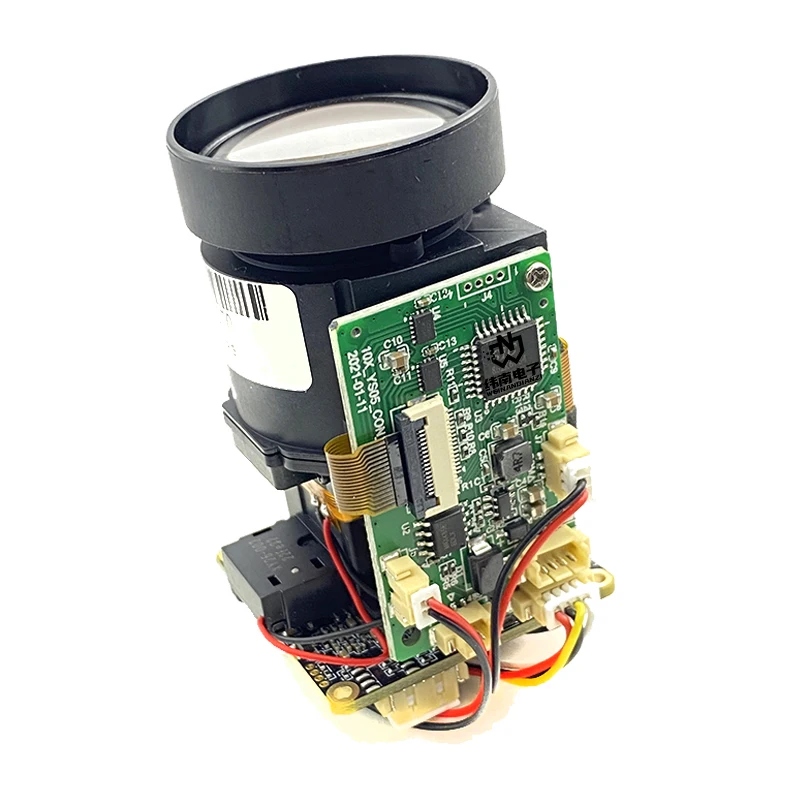

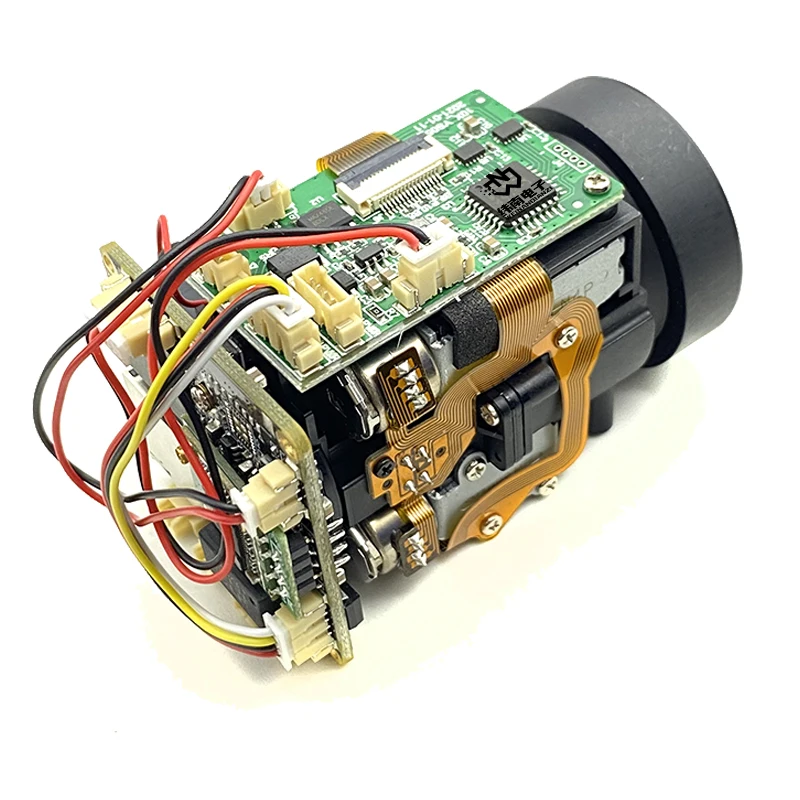

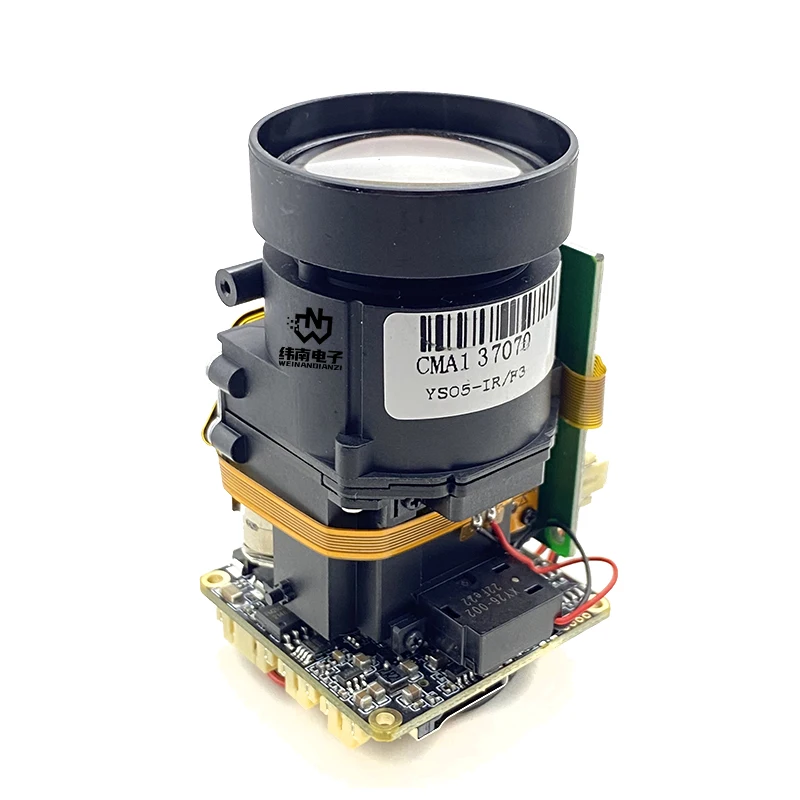

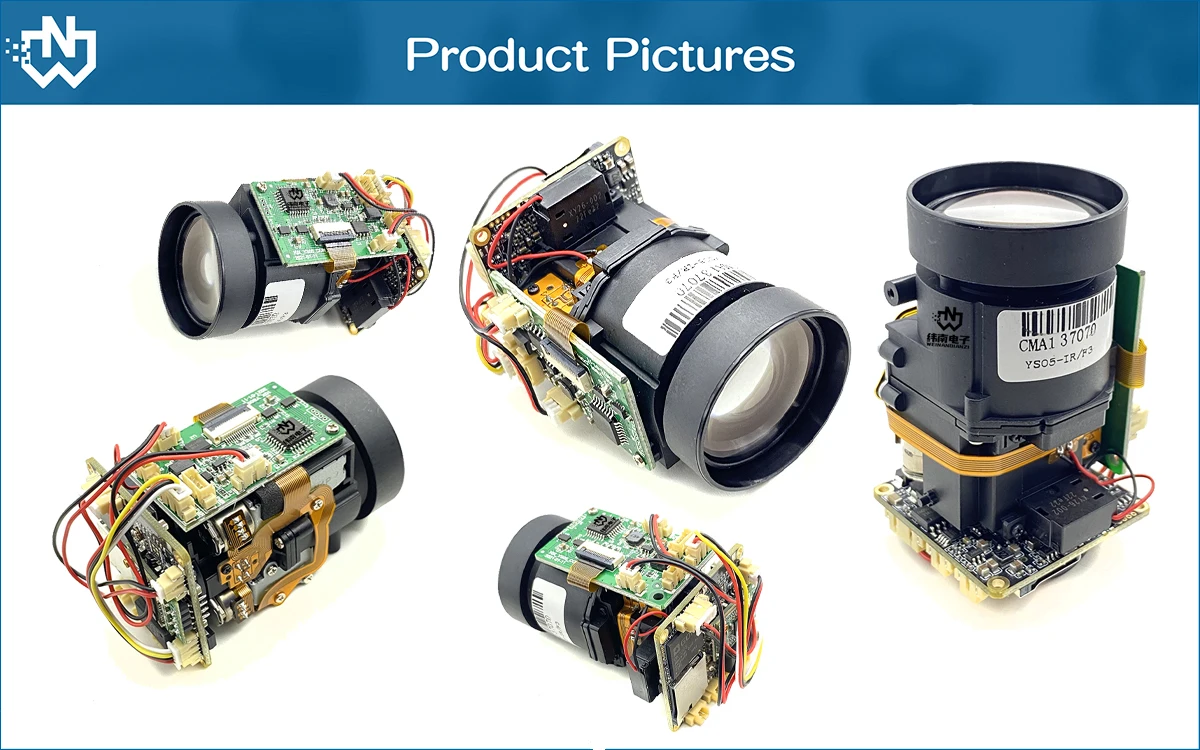

Source merchants 5MP HD 30FPS USB2.0 Optical Zoom 10X zoom camera module Autofocus
- Category: >>>
- Supplier: Shenzhen Weinan Electronics Co. Ltd.
Share on (1600825896252):
Product Overview
Description
Product Code | WN5001S-5M5D-38-AF11 | |
Operating System | Embedded Linux | |
Host Processor | GK 7205V300 | |
Image Sensor | 1/2.8 " IMX335 CMOS sensor | |
Pixels | 5MP 10X optical zoom | |
IRCUT | Support | |
Compression Standard | ||
Video Compression Algorithms | Support H.265, H.264 High Profile ,H.264 Main Profile and H.264 Baseline | |
Audio Compression Algorithm | GG.726/G.711 | |
Compressed Transmission Stream | 32Kbps-6144bps which can be customized. The default value is 1536Kbps | |
Image | ||
Max. Image Size | 5MP (2592x1944) | |
Definition | The first code stream: 8MP 4K(3840x2160) The second code stream: 720P (1280x720) | |
Frame Rate | 10/20fps(50HZ), 10/20fps(60HZ) | |
Character-overlapping | Support OSD name, time and date info. overlapping | |
Image Settings | Brightness, contrast, saturation, exposure, up and down inversion, left and right mirror adjustable | |
Network functions | ||
Memory Function | Supports a maximum of 128GB Micro SD card storage and timing video storage | |
Motion Detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) | |
Humanoid Recognition | Support humanoid recognition | |
Action with Alarm | Send alarm pictures to the designated mailbox. Upload alarm pictures and videos to FTP server. | |
Network Protocol | Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc. | |
Access Protocol | The ONVIF 2.0 protocol is supported | |
Interfaces | ||
Audio Input | 1 channel input, support MIC input/linear input (tail line support required) | |
Audio Output | 1 channel output, support to connect headphones or power amplifier (tail line support required) | |
Network Port | 10Base-T/100Base-TX Ethernet interface, WiFi 802.11b/g/n Wireless network interface | |
General specifications | ||

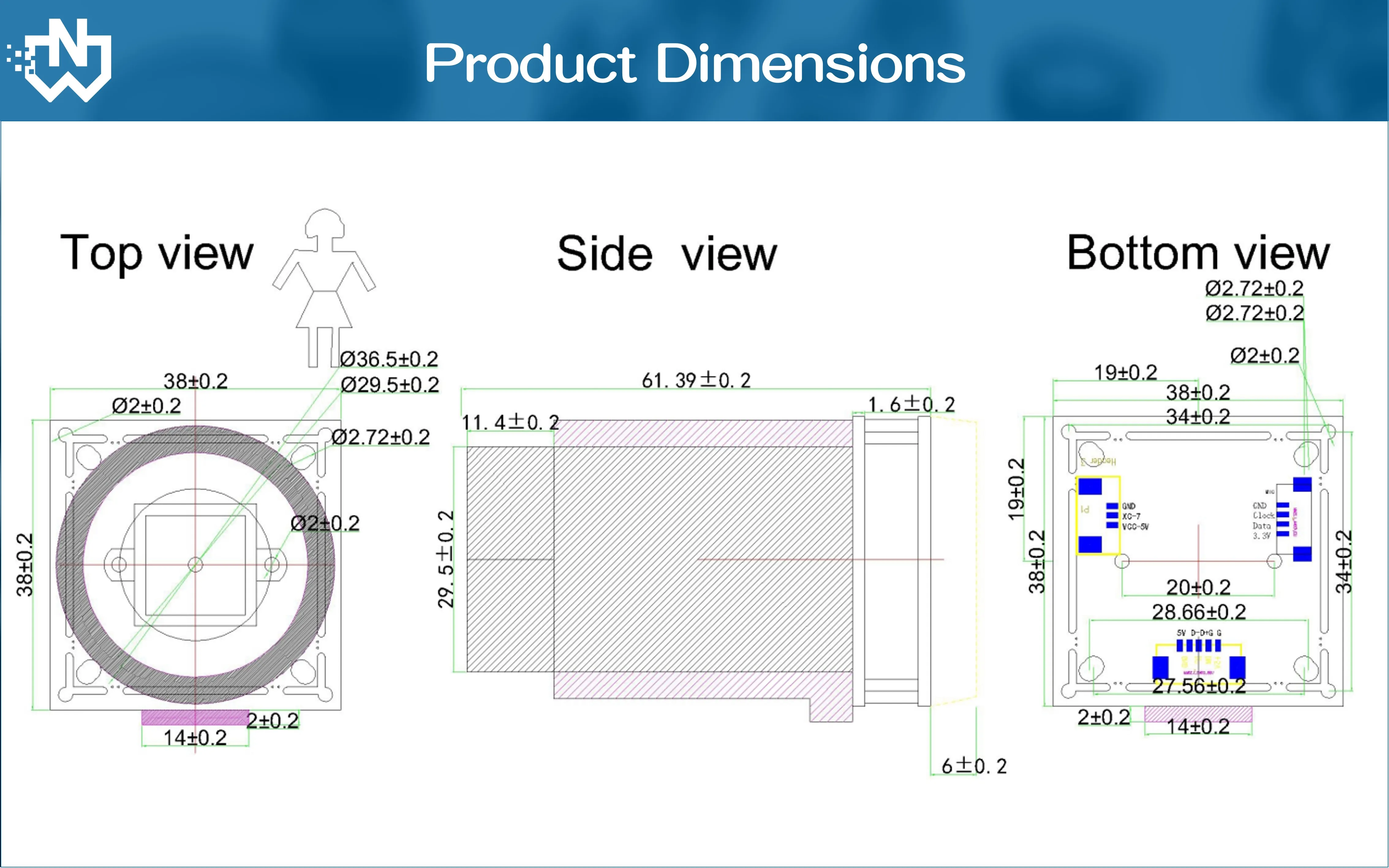

Size | 38*38mm | |
Temperature and humidity | 0℃～+50℃ 10%～95%RH | |
Power Supply | DC 12V 2A | |
Power Consumption | 2.0W | |
Weinan Electronics camera modules have a wide range of applications like ATM Machine, kiosk, automatic vending machine, robot, sanner, virtual reality, medical equipment, machinery equipment, POS equipment, smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, tablet external, on-the-spot law enforcement, recognition algorithm attendance machine, simple security system, teaching system, interactive system, credit card machine, attendance machine, voting system, high speed video shooting device, exam system, driving learning system, industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, etc.
