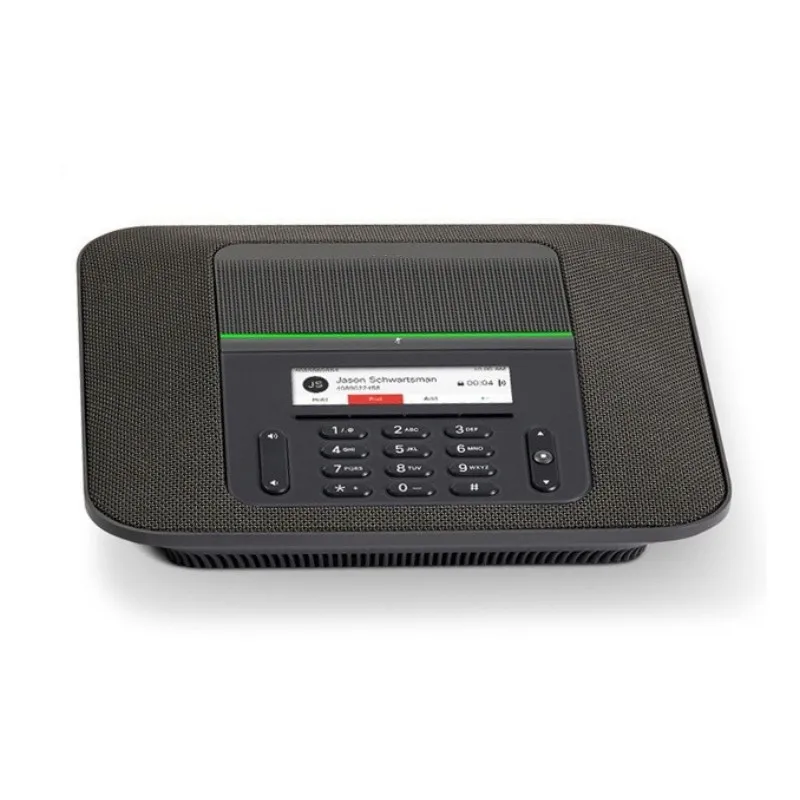

IP Conference Phone 8832 base No Radio NR SPARE in charcoal color IP Phone 8800 CP 8832 NR K9
- Category: >>>
- Supplier: Beijing Lianmai Tongchuang Technology Co. Ltd.
Share on (1600825902575):
Product Overview
Description
Product Description
CP-8832-NR-K9= Overview
CP-8832-NR-K9= is a IP Conference Phone 8832 base No-Radio (NR) SPARE in charcoal color; base unit ONLY without any Ethernet or power adapters. The IP Conference Phone 8832 enhances people-centric collaboration by delivering easy-to-use audio conferencing with astounding voice quality and clarity. Newly developed microphones and loudspeakers provide the richest sound of any conference phone on the market. Our unique acoustic design includes a “studio-monitor” full-range speaker. This loudspeaker architecture provides a dynamic, detailed sound with low distortion and low-frequency clarity, making conferencing an in-person experience with exceptionally clear and natural audio quality.
Table 1 shows the quick spec.
SKU | CP-8832-NR-K9= |
Graphical display | 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
Ethernet switch | 10/100 BASE-T via an Ethernet injector |
Keys | The phone has the following keys: Four context-sensitive soft key bars Two-way navigation bar and select button Standard keypad Volume-control bar Large mute key for ease of access |
IEEE PoE | IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet(LLDP-PoE) |
Call control support | Native support in Unified Communications Manager 12.0(1); DevPack required for Unified Communications Manager 10.5.2, 11.0, and 11.5 |
Graphical display | 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
Physical dimensions (H x W x D) | 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm) |
Weight | 4.07 lb (1.85 kg) |
Product Details

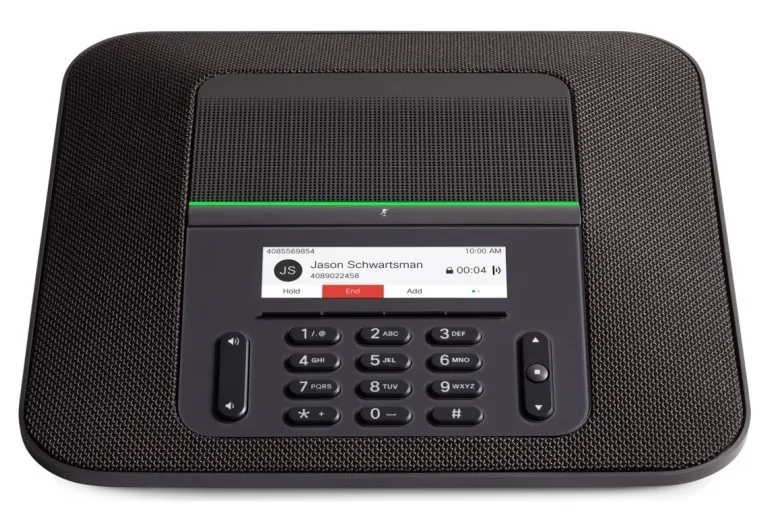

Figure 1 shows the front panel of IP Phone 8832.
CP-8832-NR-K9= Specification
CP-8832-NR-K9= Specification | |
Graphical display | 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
Ethernet switch | 10/100 BASE-T via an Ethernet injector |
Keys | The phone has the following keys: Four context-sensitive soft key bars Two-way navigation bar and select button Standard keypad Volume-control bar Large mute key for ease of access |
IEEE PoE | IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet(LLDP-PoE) |
Call control support | Native support in Unified Communications Manager 12.0(1); DevPack required for Unified Communications Manager 10.5.2, 11.0, and 11.5 |
Graphical display | 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
Physical dimensions (H x W x D) | 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm) |
Weight | 4.07 lb (1.85 kg) |
Feature | Specifications |
Audio codec support | G.711 a-law and mu-law, wideband (G.722), G.729a, G.729ab, Internet Low Bitrate Codec (iLBC), OPUS |
Acoustics | Frequency: Speaker, 100 Hz to 20 kHz; microphones, 100 Hz to 12 kHz, ±3 dB Max adjustable volume: 89 dB within 0.5 m |
Call features | + Dialing Adjustable ring tones and volume levels Barge Call forward Call history lists Call timer Call waiting Caller ID Corporate directory Conference Hold Music on Hold (MoH) Mute Predialing before sending Redial Shared line Speed dial (Favorites) Time and date display Transfer Voicemail (messages) |
Quality-of-Service (QoS) options | The phone supports Discovery Protocol and 802.1Q/p standards and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the admin VLAN ID. |
Network features | Session Initiation Protocol (SIP) for signaling Session Description Protocol (SDP) IPv4 IPv6 User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol streams) Dynamic Host Configuration Protocol (DHCP) client or static configuration Gratuitous Address Resolution Protocol (GARP) Domain Name System (DNS) Trivial File Transfer Protocol (TFTP) Secure HTTP (HTTPS) VLAN Real-Time Transport Protocol (RTP) Real-Time Control Protocol (RTCP) Discovery Protocol LLDP (including LLDP-MED) Switch speed auto-negotiation |
Physical dimensions | 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm) |
Weight | 4.07 lb (1.85 kg) |
Phone-casing composition | Acrylonitrile Butadiene Styrene (ABS) textured plastic; cosmetic class A |
Operational temperature | 32° to 104°F (0° to 40°C) |
Nonoperational temperature shock | 14° to 140°F (–10° to 60°C) |
Humidity | Operating 10% to 90%, noncondensing Nonoperating 10% to 95%, noncondensing |
