Waterproof 48v 2000w MTX wheel ebike e electric bike hub motor electric bicycle conversion kit with Optional lithium battery
- Category: >>>
- Supplier: Changzhou Ncyclebike Co. Ltd.
Share on (1600825935285):
Product Overview
Description
Product Description
Model | ENC482000 | |
Certificate | CE for EN15194 | |
motor | 48v 2000w front or rear motor brushless gearless design | |
Wheel size | 20-29 inch MTX rim with spokes assembled | |
controller | 48v 35amp FOC sine wave dual controller | |
Throttle type | Thumb / twist throttle | |
Electric brake levers | Electric brake lever / Hydraulic brake sensor | |
pas | 1:1 8 magnet intelligent pedal assistant | |
manual | Book manual,ties | |
specification | 65km/h speed,180kg max loading | |
package | Carton box with foams packing for express shipping | |
color | Black | |
Lcd display | Show multifunctions,speed ,range,time,max speed adjust,5 pas system and so no | |
Option parts | ||
tires | Kenda tire and tube | |
Lithium battery | TS 48v 17ah LG cell down tube battery with 2A charger | |
Head light | Headlighet with horn | |
Free wheel | 6 speed or 7 speed for rear motor only | |
Torque arm | Prevent the motor axle from stripping out | |

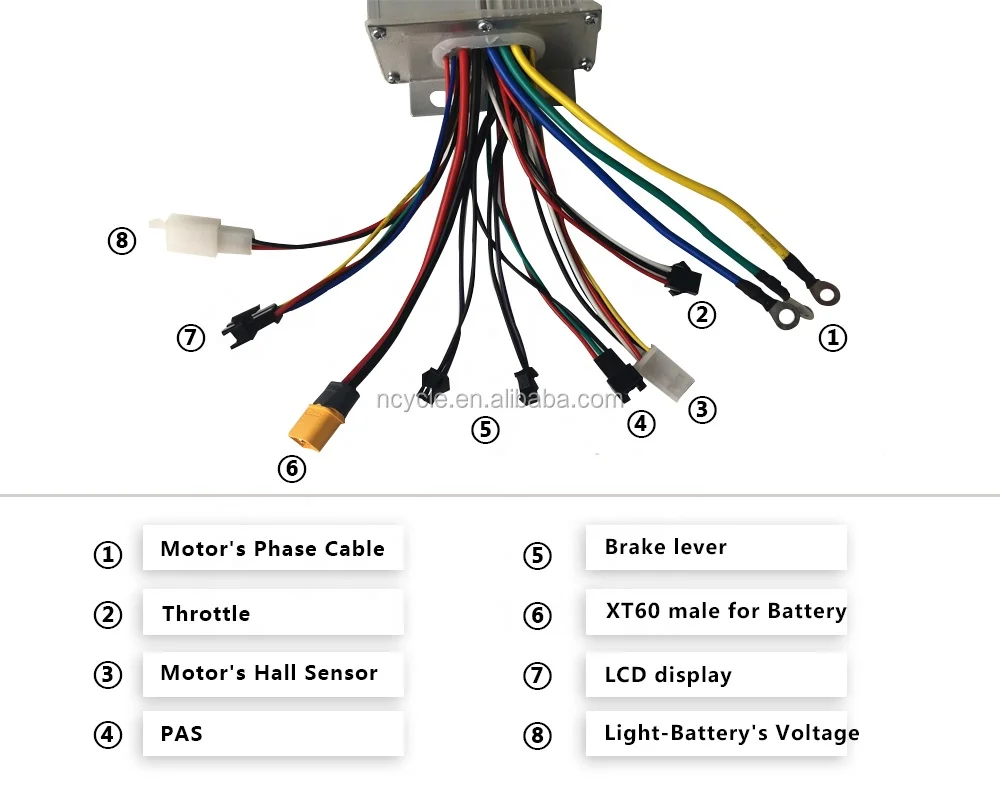

48v 35Amp FOC sine wave ebike brushless controller
1) Spec.: 48v-35Amp.
2) Size: L176mm*W82mm*H41mm
3) Functions: Low Brake, Display, Throttle, Curise, Temperature sensor, lock, 25KPH limited, Pedal
Assist Sesor. With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage,
speed, lack of phase and so on.
4) Optional Function: Front Light With Horn, Regen.Braking.
1) Spec.: 48v-35Amp.
2) Size: L176mm*W82mm*H41mm
3) Functions: Low Brake, Display, Throttle, Curise, Temperature sensor, lock, 25KPH limited, Pedal
Assist Sesor. With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage,
speed, lack of phase and so on.
4) Optional Function: Front Light With Horn, Regen.Braking.

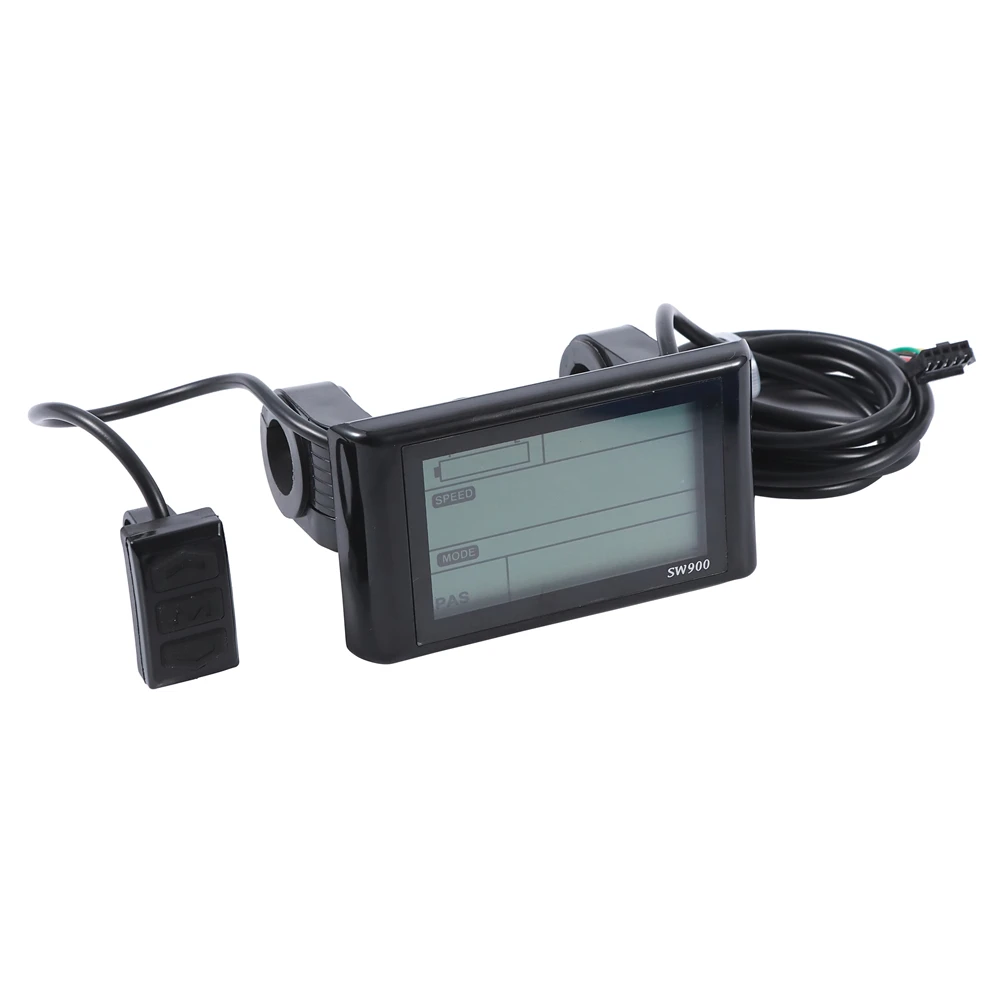

LCD SW900 display
- SW900 LCD Display compatible with 5-pin controllers.
- Compatible controllers can be found on our listings.
- Throttle also can be found on our listings.
- Turn middle button and hold for couple seconds to turn on/off.
- Manual and instructions can be found online. If need assistance let us know we will provide.
- Choose your voltage from the options.
- SW900 LCD Display compatible with 5-pin controllers.
- Compatible controllers can be found on our listings.
- Throttle also can be found on our listings.
- Turn middle button and hold for couple seconds to turn on/off.
- Manual and instructions can be found online. If need assistance let us know we will provide.
- Choose your voltage from the options.
Thumb throttle with left handbar

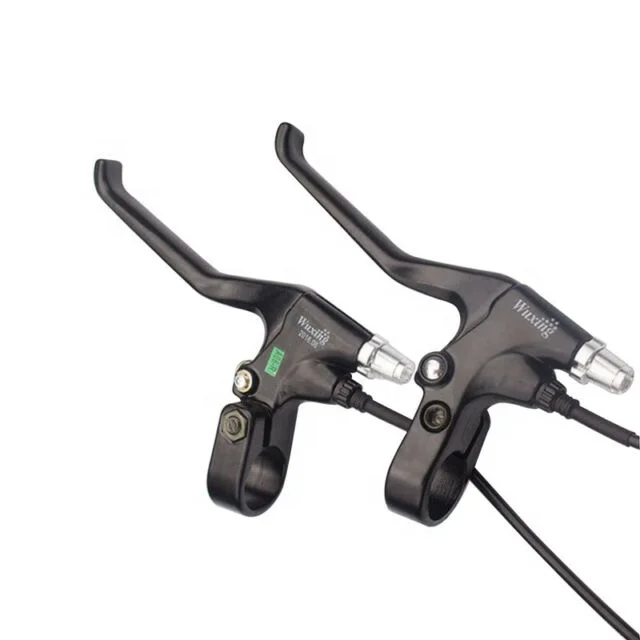

electric brake levers
8 magnets pedal assist sensor
Detailed images

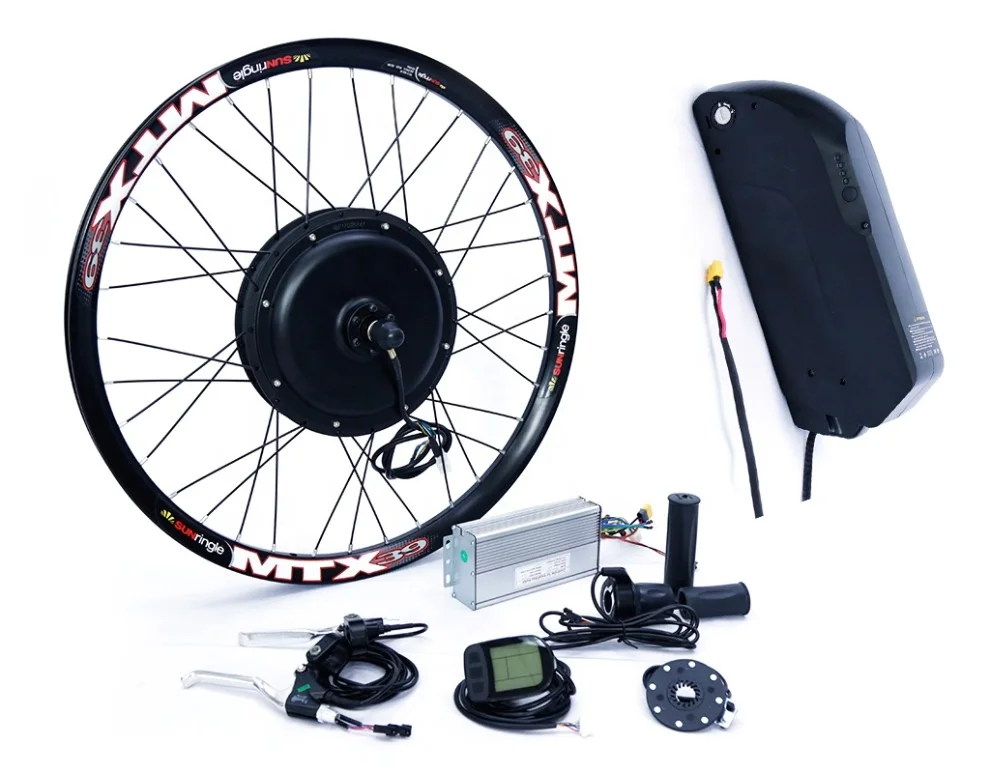

The packing list of 48v 2000w electrric bike kit :
1× 48v 2000W brushless gearless hub motor(Front or Rear wheel ) 1× 20“ 24“ 26“ 27.5“ 28“ 29“ 700C 29" MTX 33/39 Double -wall
Aluminum rim with 12G spokes assembled
1× 48v 35A FOC sine wave smart controller
1×Thumb / Twist throttle with left grip handerbar
1× Pair Electric brake levers
1× 1:1 8 magnet intelligent pedal assistant
1× LCD display with USB
1× User installation manual
1× 48v 2000W brushless gearless hub motor(Front or Rear wheel ) 1× 20“ 24“ 26“ 27.5“ 28“ 29“ 700C 29" MTX 33/39 Double -wall
Aluminum rim with 12G spokes assembled
1× 48v 35A FOC sine wave smart controller
1×Thumb / Twist throttle with left grip handerbar
1× Pair Electric brake levers
1× 1:1 8 magnet intelligent pedal assistant
1× LCD display with USB
1× User installation manual

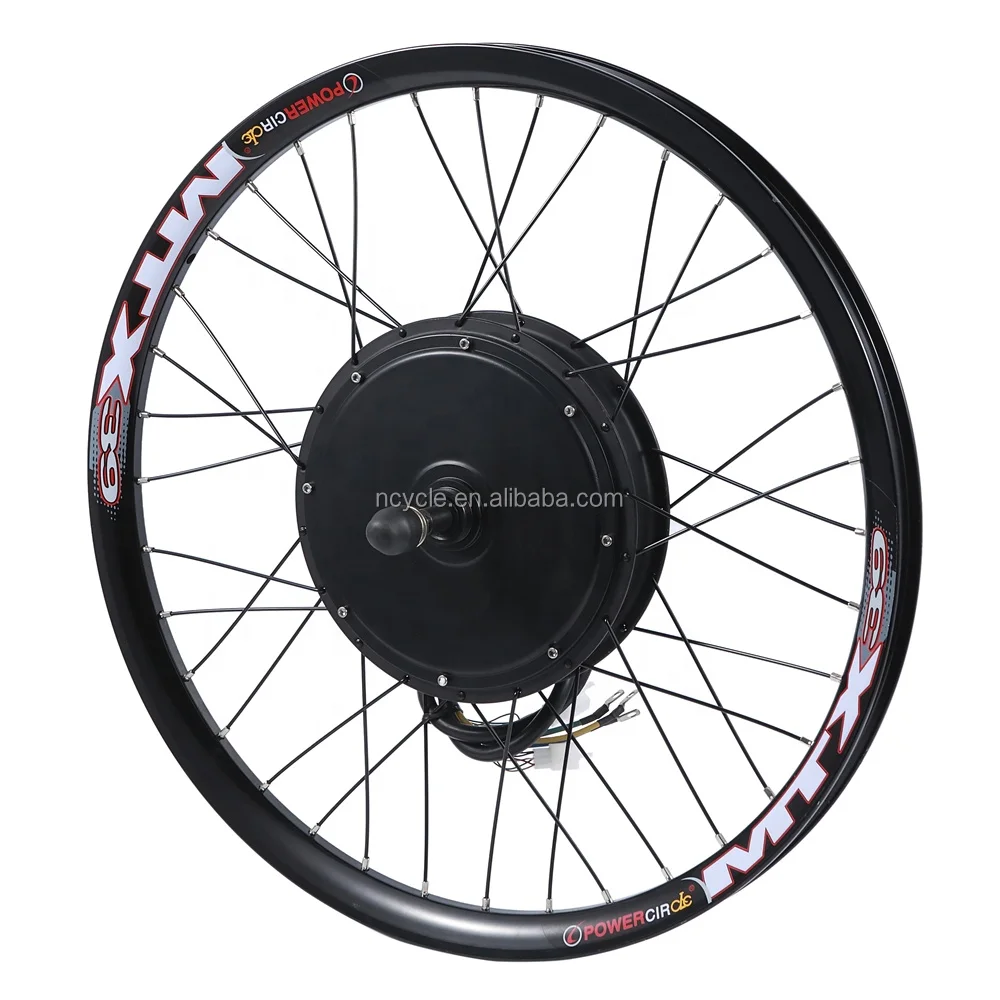

Design | Brushless gearless |
Power | 2000w |
Speed | 50-65km/h |
Torque | 50N.m |
Weight | 8kg |
Efficiency | >88% |
placement | Rear |
Wheel size | MTX 39 RIM |
Drop out width | 100mm/135mm |

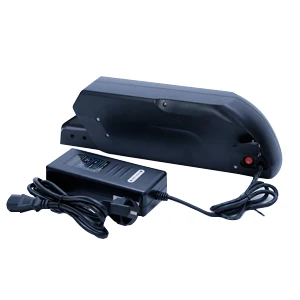

Model | TS4817 |
Certification | CE |
Normal voltage | 48v |
Rated capacity | 17Ah |
Battery Material | LG cell |
Power | 1000w-2000w |
charger | 48v 2A charger |
Cycle life | 1200 times |
Warranty | 18 months |
