busbar fillister head steel iron semi tubular rivet for hydraulic self piercing riveting machine
- Category: >>>
- Supplier: Dongguan Co-Win Machinery Eqiupment Co. Ltd.
Share on (1600825961972):
Product Overview
Description
Product Description

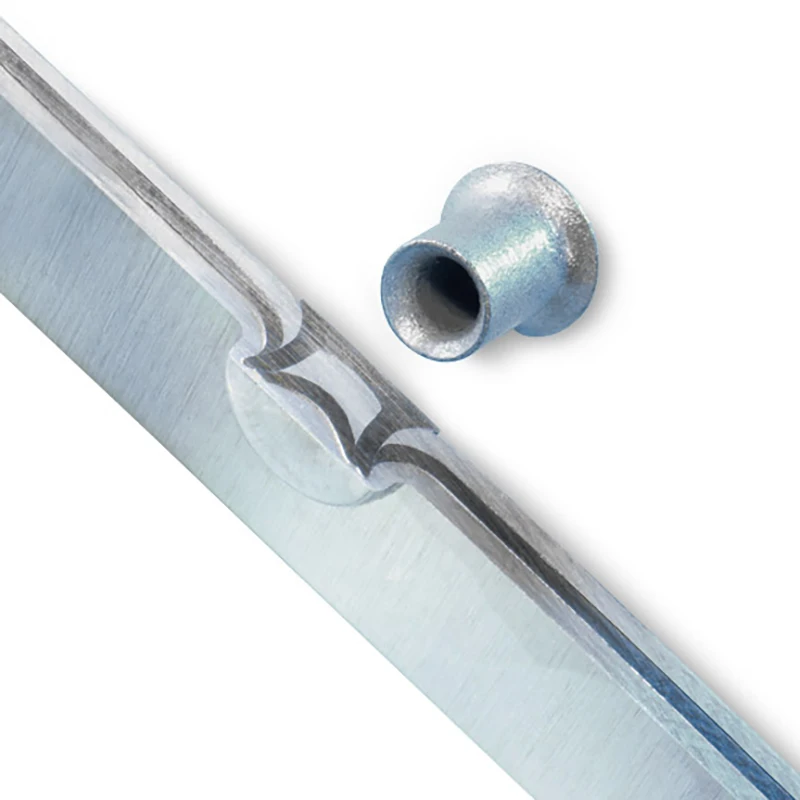

self-pierce riveting technology

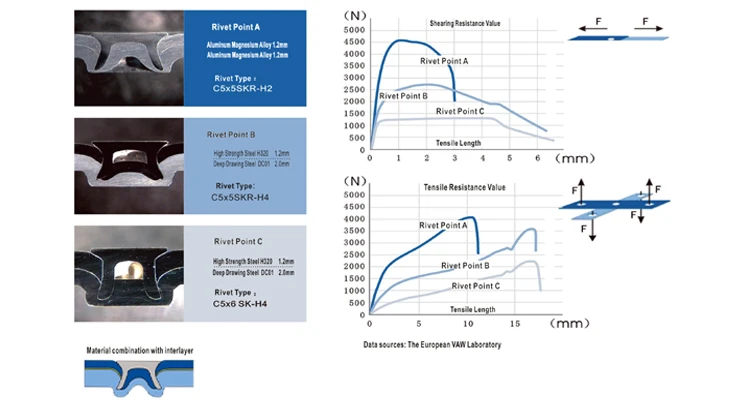

Self-pierce riveting with semi-tubular rivets is an established mechanical joining method to create high-strength
joints from similar (e.g. aluminium with aluminium) as well as dissimilar materials (e.g. steel and aluminium). Apart
from the classic two-layer joints, joints with three or more layers can also be created. They stand out due to their
high static and dynamic strength.
joints from similar (e.g. aluminium with aluminium) as well as dissimilar materials (e.g. steel and aluminium). Apart
from the classic two-layer joints, joints with three or more layers can also be created. They stand out due to their
high static and dynamic strength.

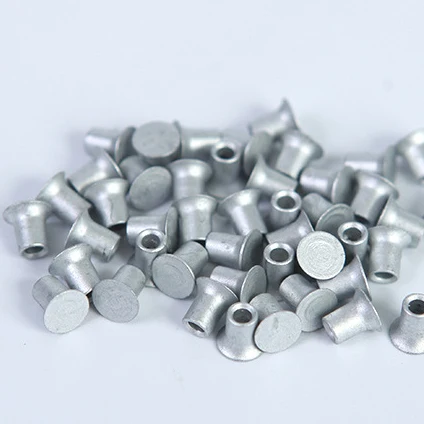

Product Name | SPR riveting, self piercing rivet, self-piercing rivet semi tubular rivet, semi-tubular rivets |
Material | SCM435 alloy steel |
Shank diameter | 3.3mm, 5.3mm |
Length | 4mm-12mm |

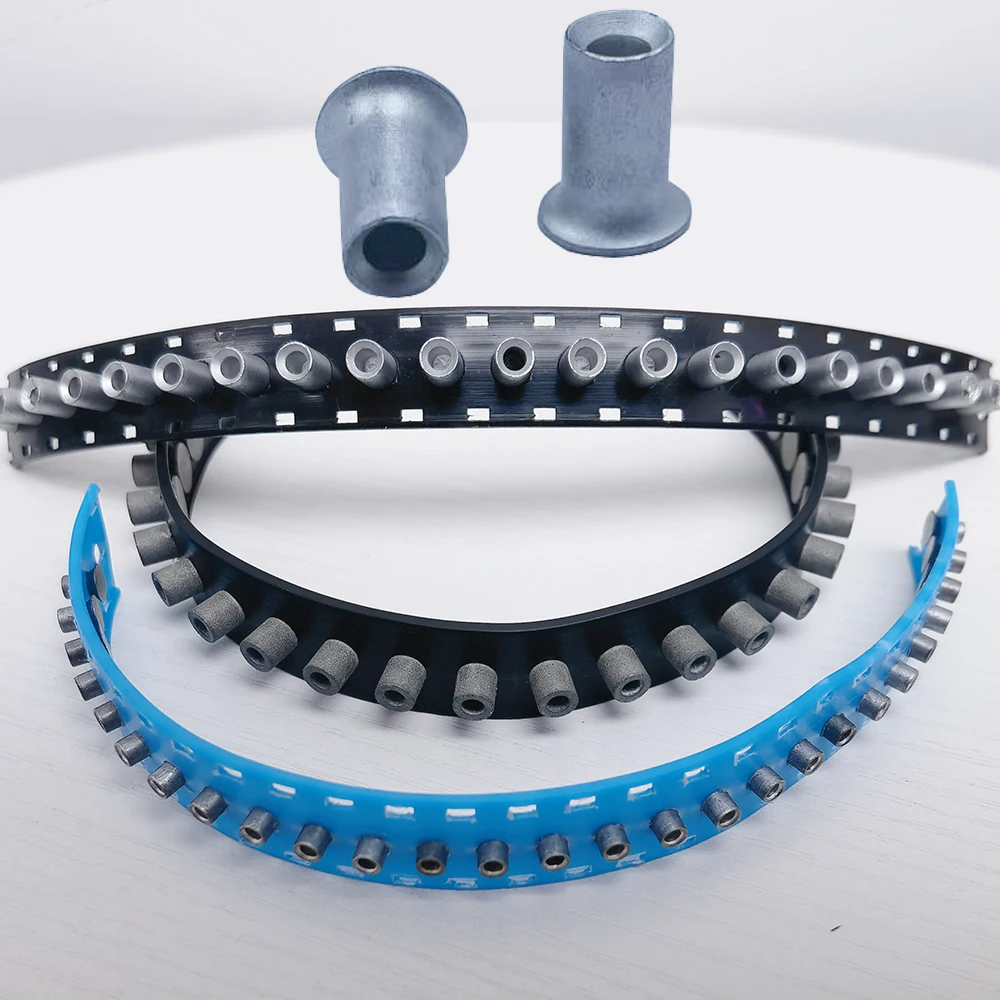

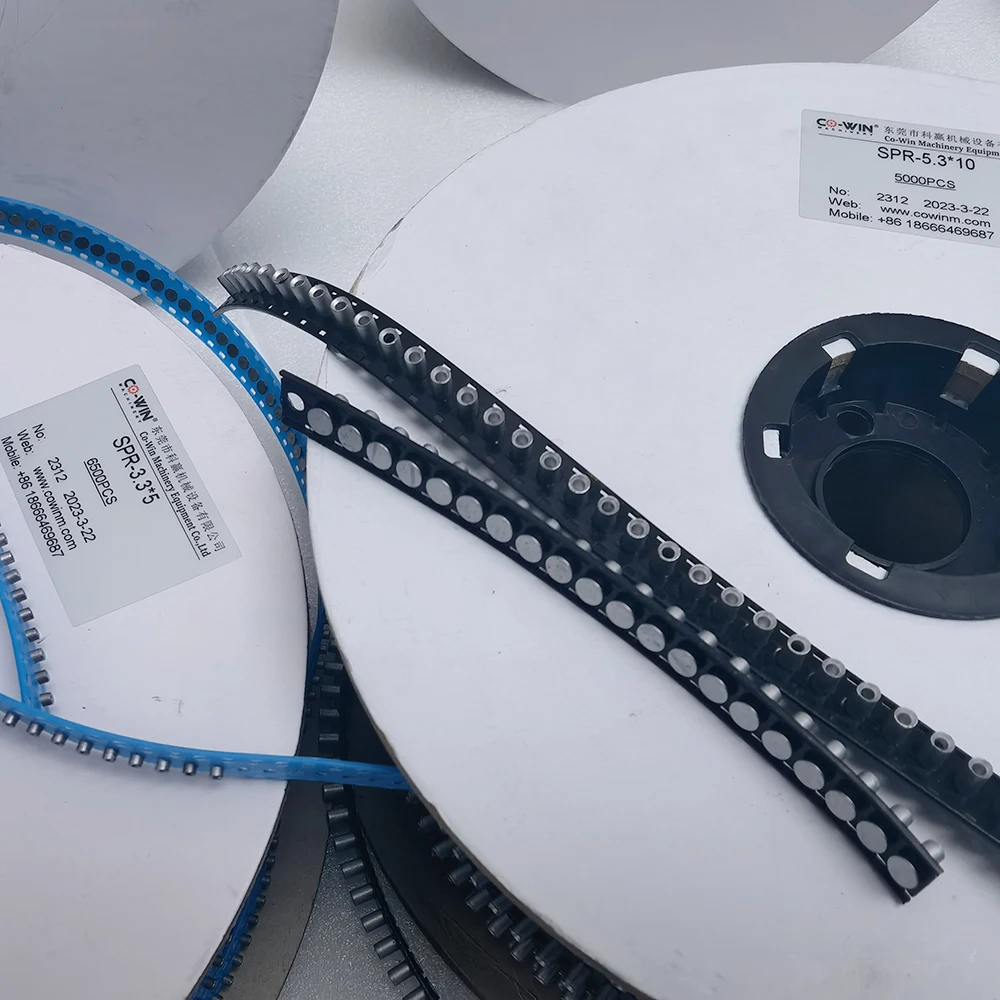

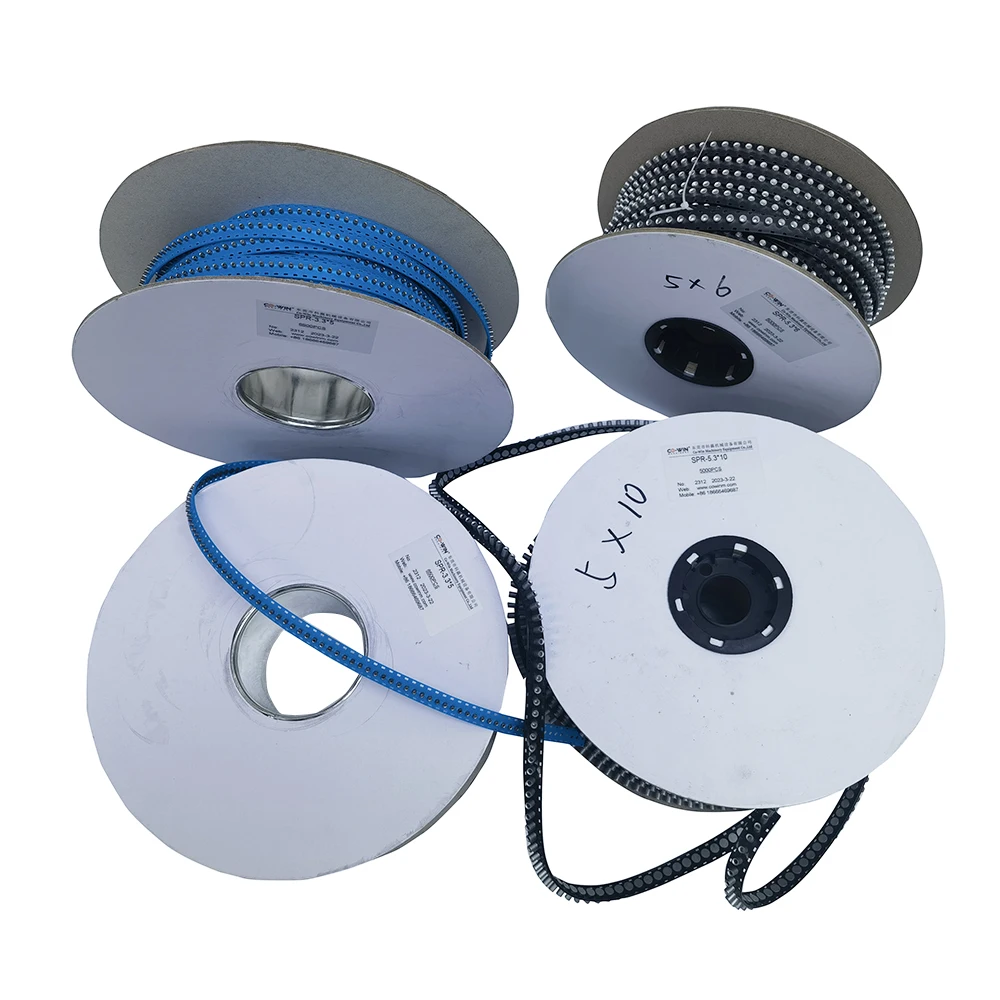

Packing | 5000 pcs per tape, or bulk in carton |
Surface Treatment | Dacromet, galvanized |
Head geometry | Countersunk |
Hole geometry | Conical |
Total thickness of riveted sheet | Steel (1-6mm) |
Aluminum (1-10mm) |

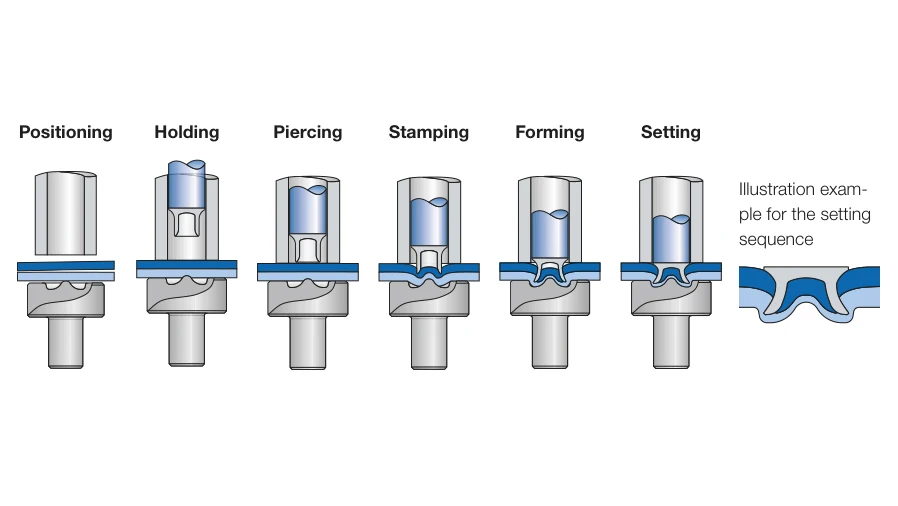

Self-pierce riveting technology – this is how it works
Fast and easy:
In a single step, the semi-tubular rivet punches through the top workpiece layer(s) and forms an undercut in the
bottom material layer. The resulting positive locking substantially influences the strength of the created joint.
bottom material layer. The resulting positive locking substantially influences the strength of the created joint.
Advantage
Wide Combinations.
Self-piercing riveting.
Combination of different material with different thickness;
Combination of different hardness and different intensity;
Combination of interlay with structural adhesive;
Multilayer material combination.
High efficiency.
Single process, efficient work;
Self-piercing riveting short time(≤3s)
It can realize automatic riveting;
Easy to integrated production process automation.
Low comprehensive cost.
No process steps are necessary before and after riveting;
No dust, spark emission, good working environment;
Simple operation, low labor costs;
Safety operation, no additional environmental protection, labor insurance investment.

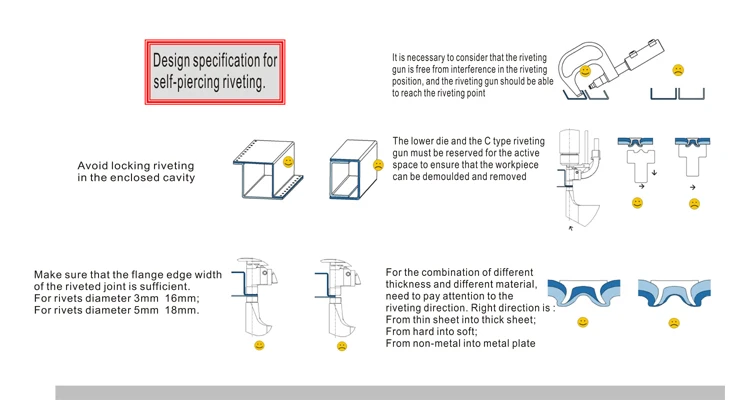

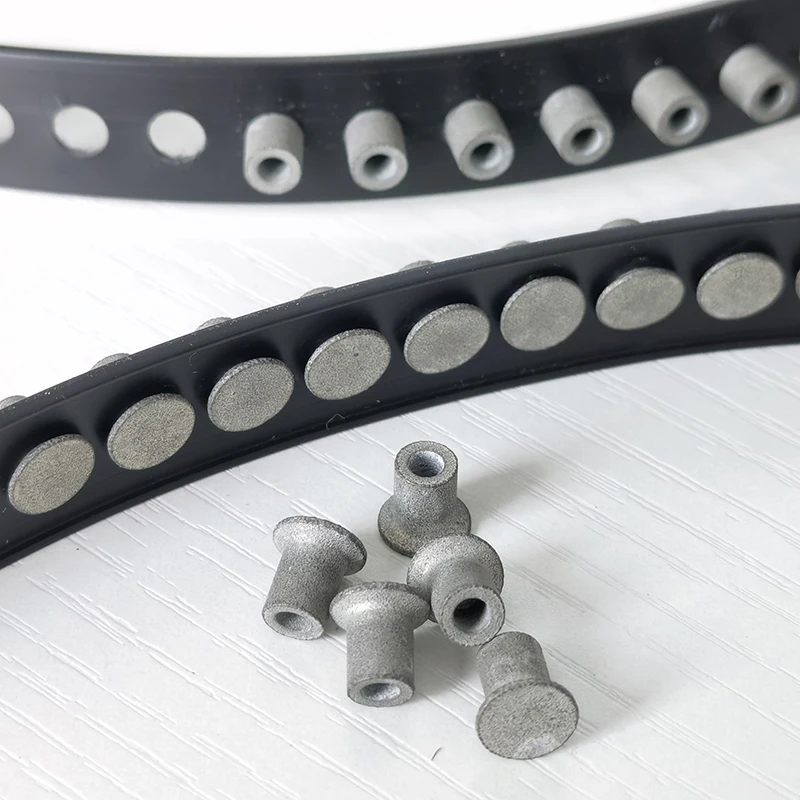

Detailed Images

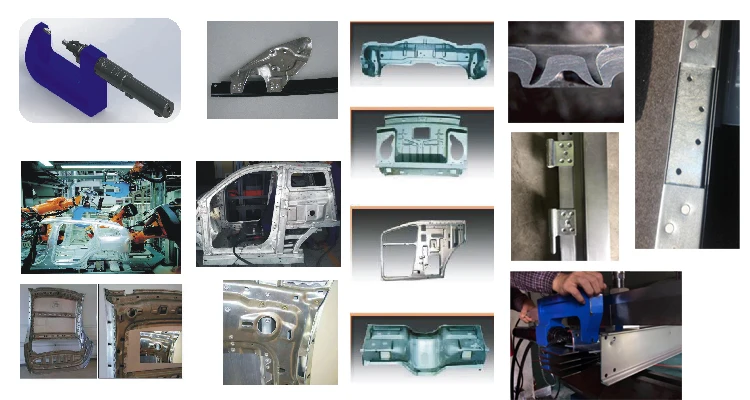

Application
Related Products
Certifications
FAQ
1.Professional technical team, nearly 30 years of industry experience;
2.Lean production management mode combines market demand, product research and development, production and manufacturing,pre-sales quality and after-sales service;
3.Advanced equipment, mature technology, with a number of independent intellectual ;
4.Complete quality control, assured quality, from raw material procurement, production process control, to finished product inspection, packaging, full field monitoring traceability, to ensure that every product qualified;
5.Has three specialized processing and manufacturing factories, sufficient inventory, short delivery time;
6.Support customized, design according to customer requirements to meet the diversified demand of customers;
7.Perfect after-sales service system and after-sales quality tracking system;
8.Professional sales system, rich experience in export related operation process.
