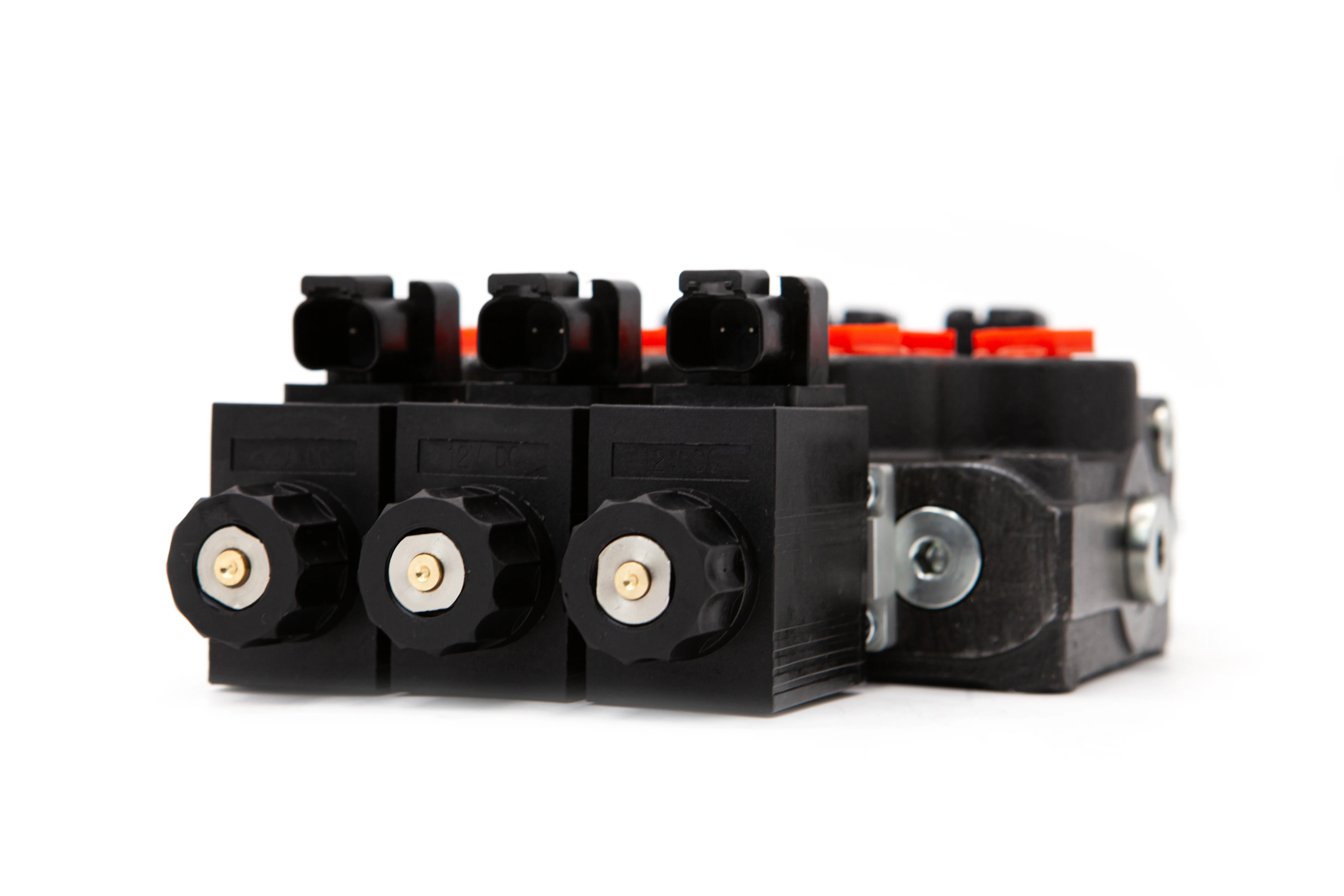

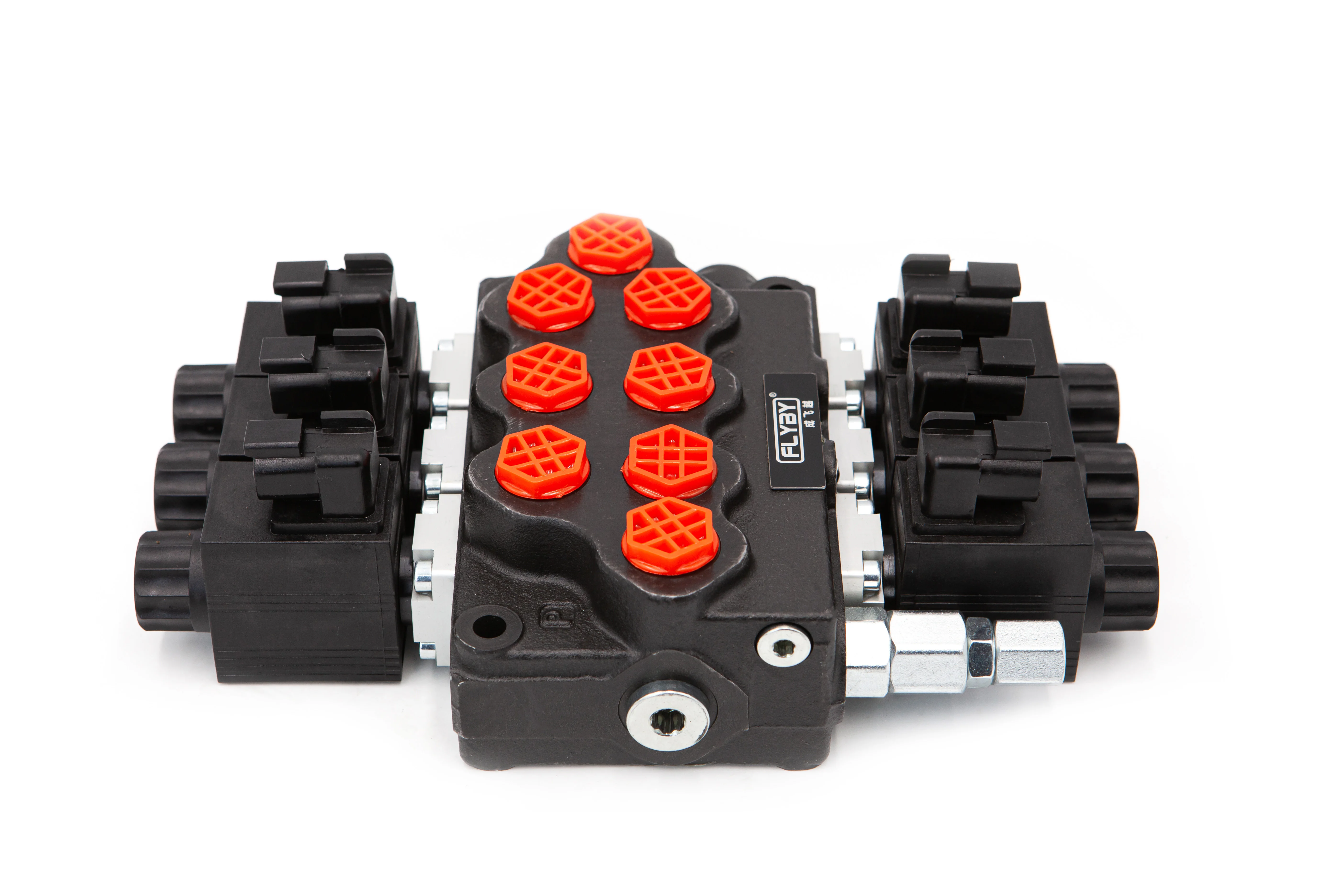

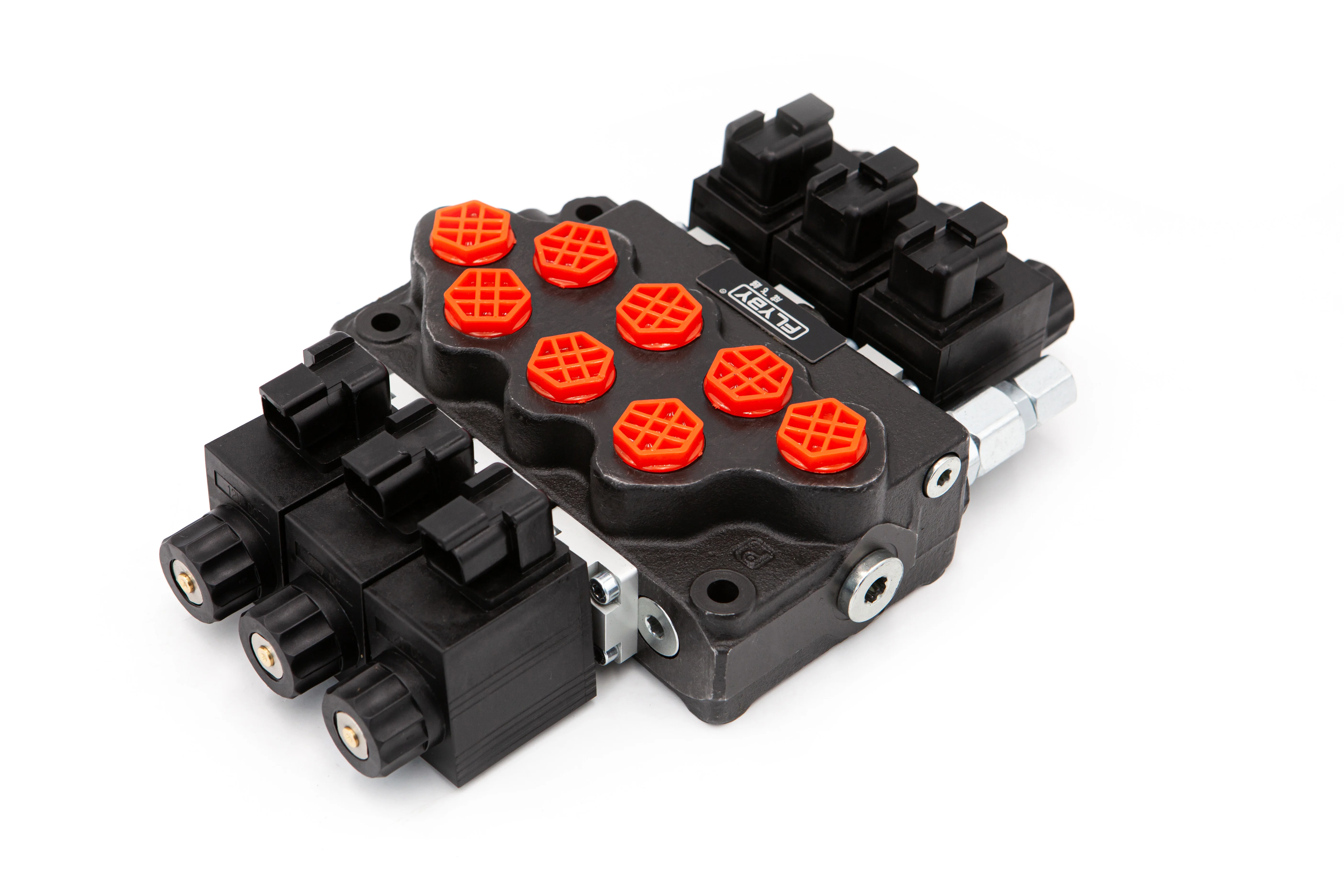

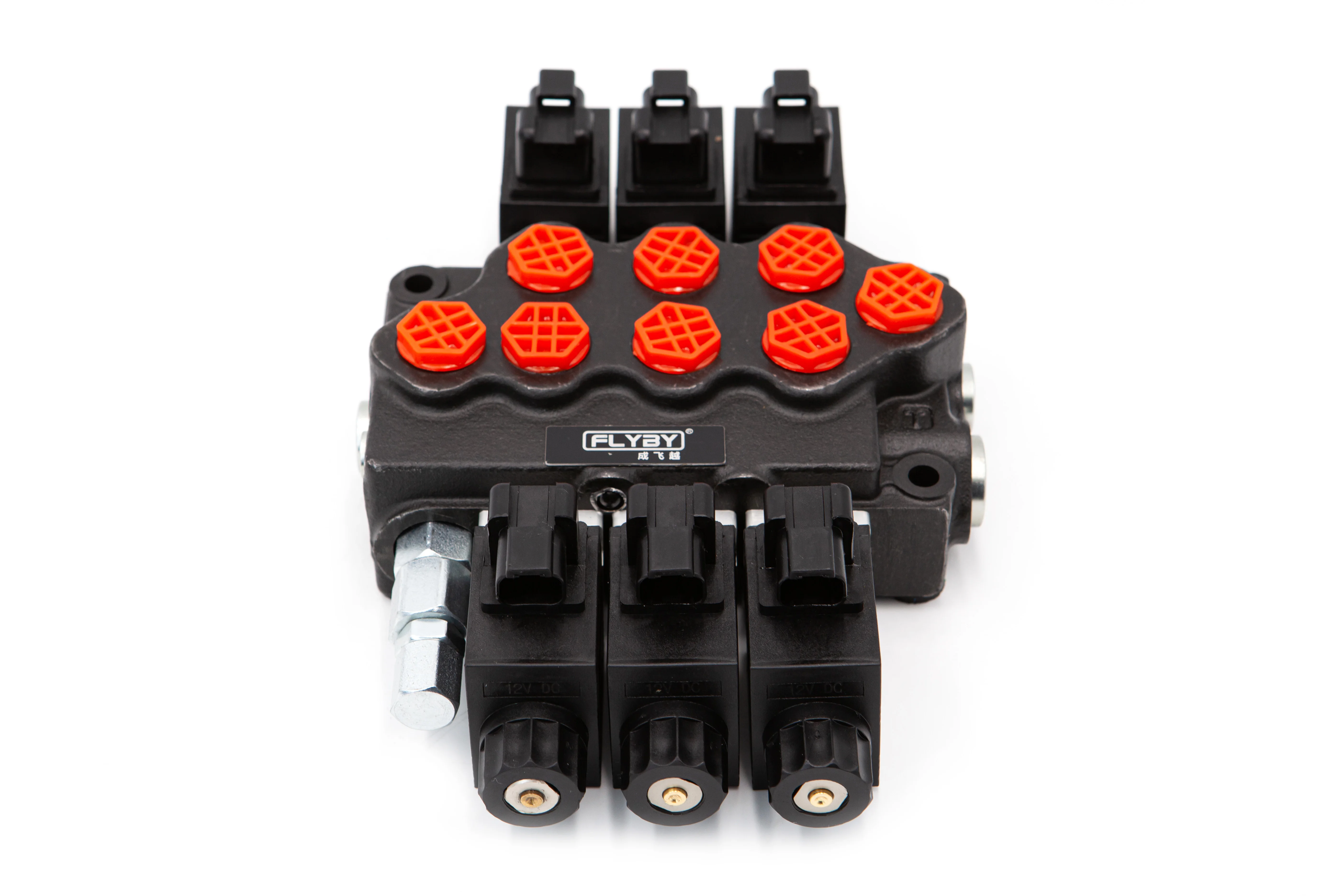

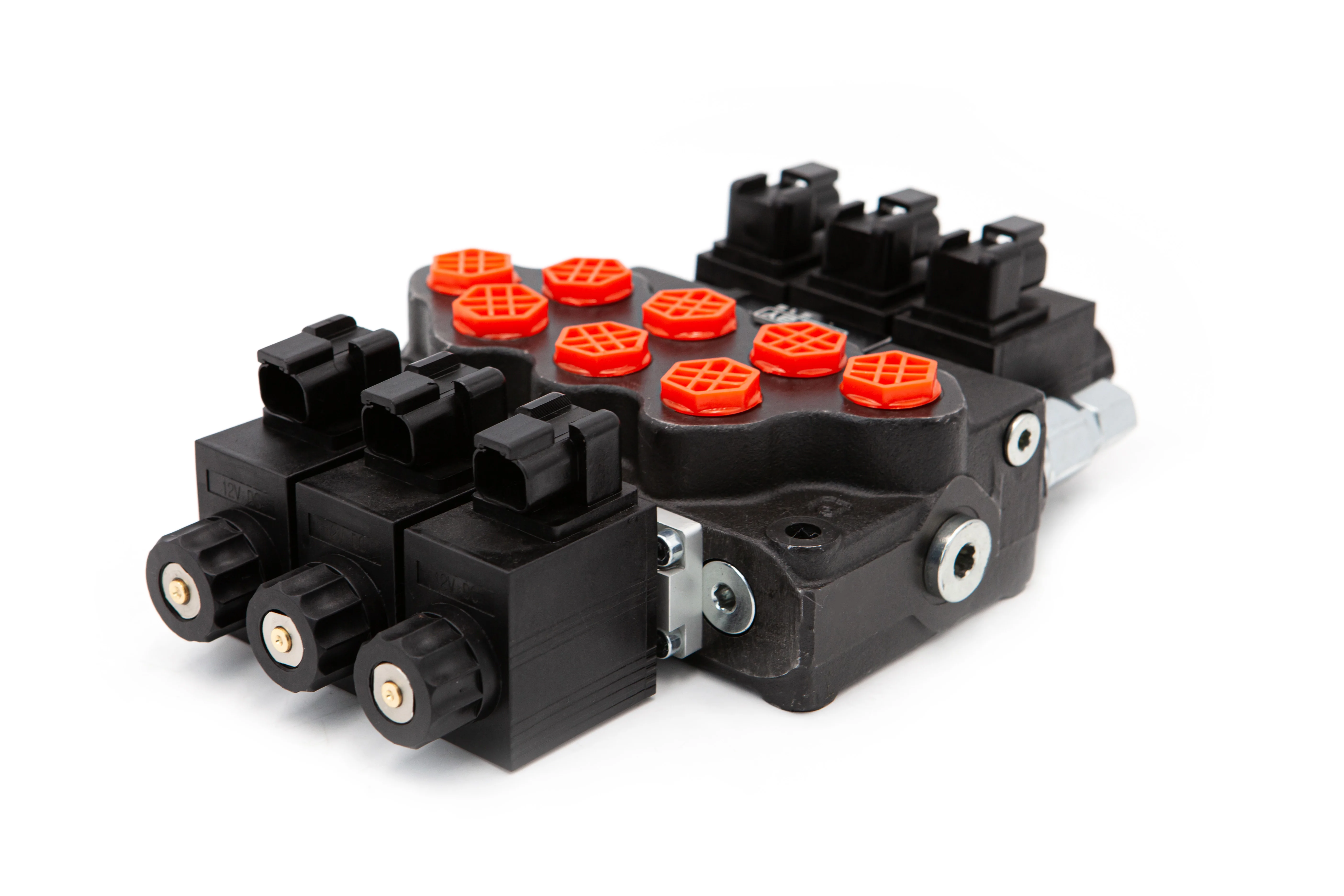

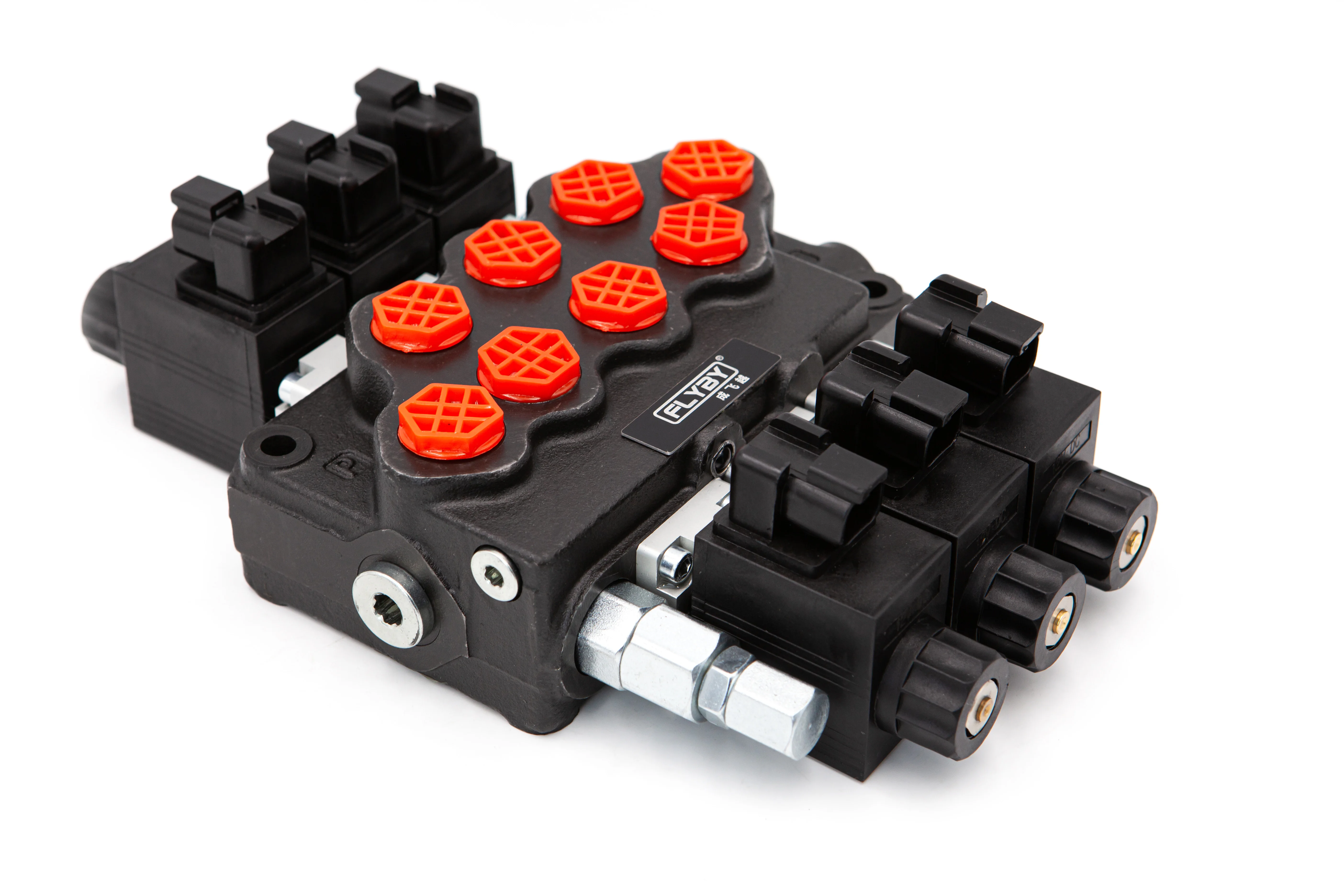

SD5 Series Solenoid directional control valve 1 7 monnoblocks
SD5 Series Solenoid directional control valve 1-7 monnoblocks
SD5 Series Solenoid directional control valve 1-7 monnoblocks
SD5 Series Solenoid directional control valve 1-7 monnoblocks
SD5 Series Solenoid directional control valve 1-7 monnoblocks
SD5 Series Solenoid directional control valve 1-7 monnoblocks
SD5 Series Solenoid directional control valve 1-7 monnoblocks

SD5 Series Solenoid directional control valve 1 7 monnoblocks

Share on (1600826308537):


Price:$230.00 - $240.00

Quantity:


Product Overview

Description



Product Overview




       Technical data:
1. Rated pressure :315bar
2. Rated flow :45 and 75L/min
3. Operating range: 15-75mm2/s
4. Working temperature :-40 to 80°C 5. Min viscosity:12mm2/s
6. Max viscosity:400mm2/s
7. Monoblock:1-7 sections
8. Control type: manual, cable, solenoid, pneumatic, electro-hydraulic, etc.



No
Item
Data
1
Maximum pressure
315Bar, 250Bar
2
Max viscosity
400mm2/s
3
maximum flow
45L and 75L
4
Nominal flow rate
40L/min
5
Operating range
15-75mm2/s








Company Profile

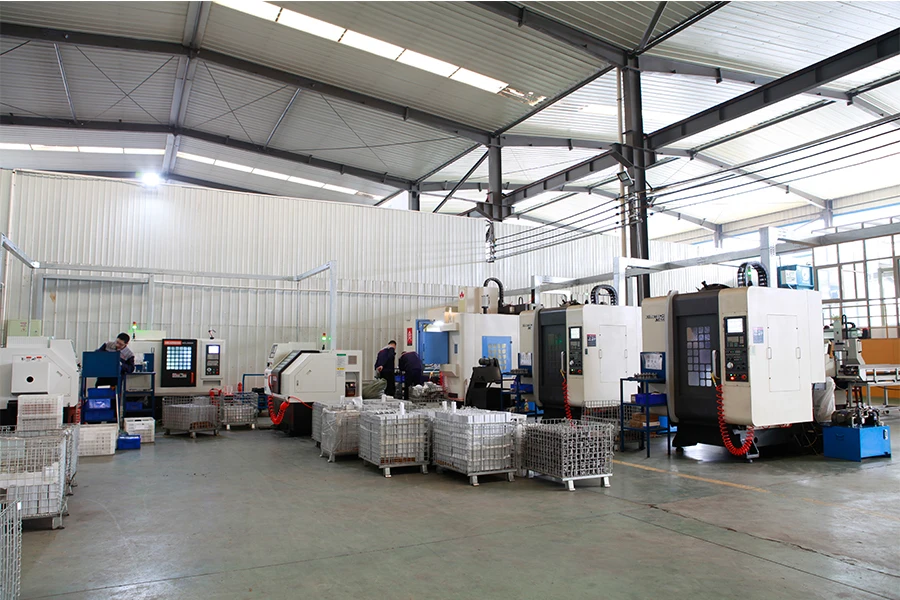

Production Process
