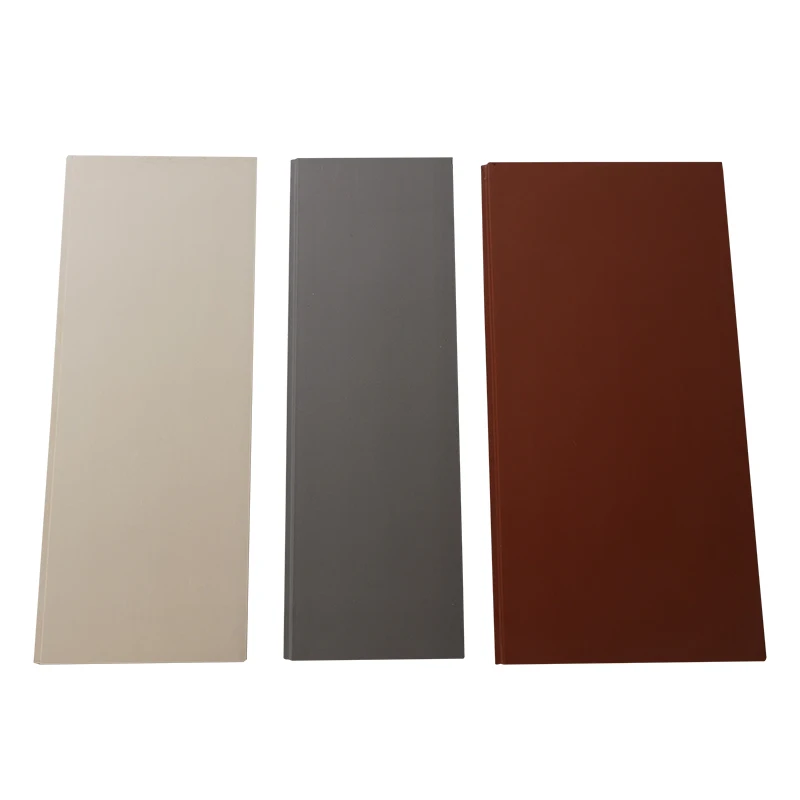

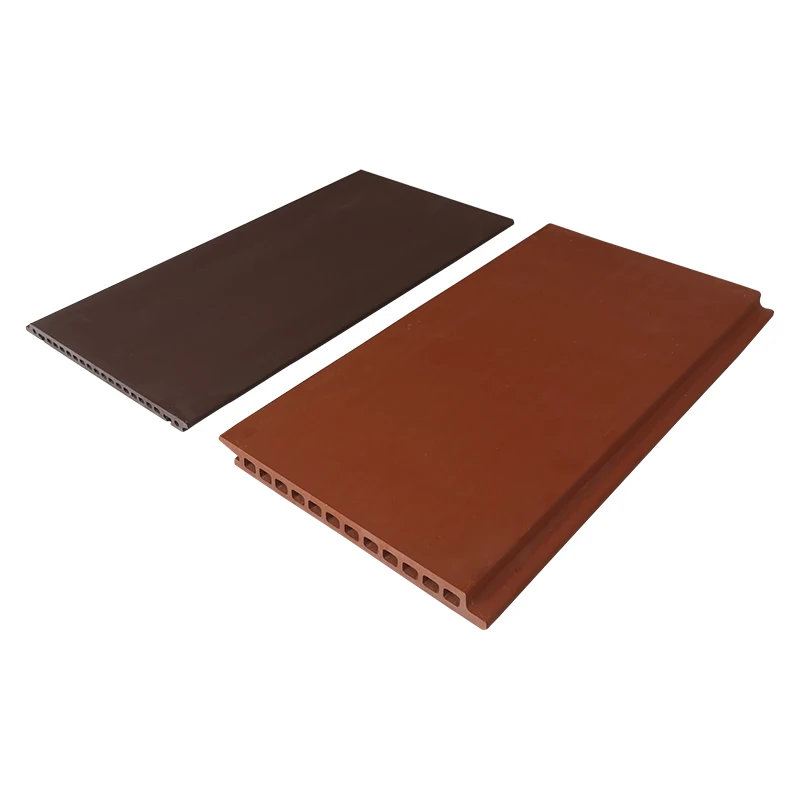

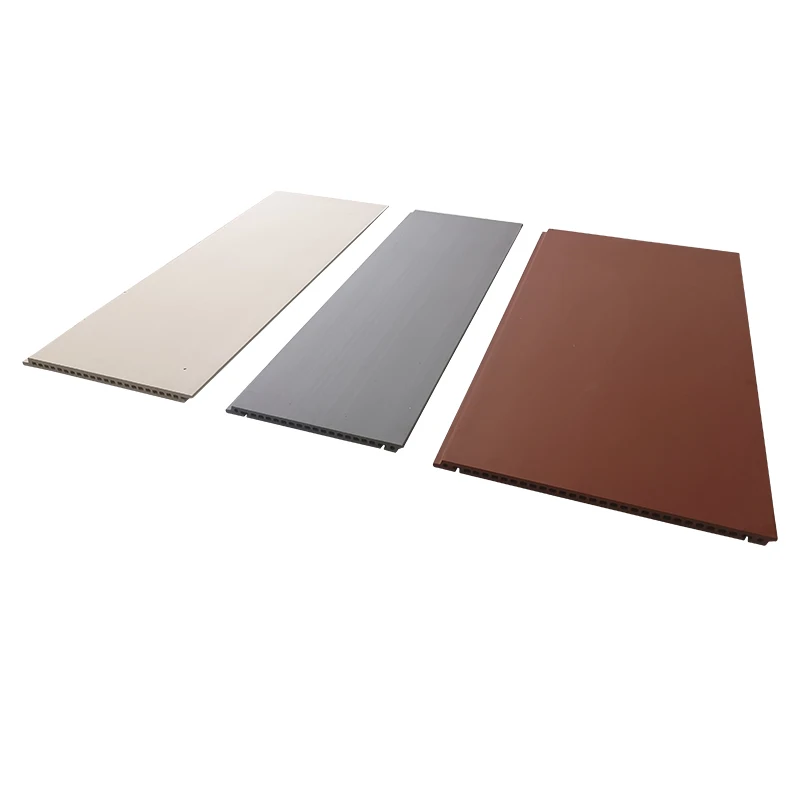

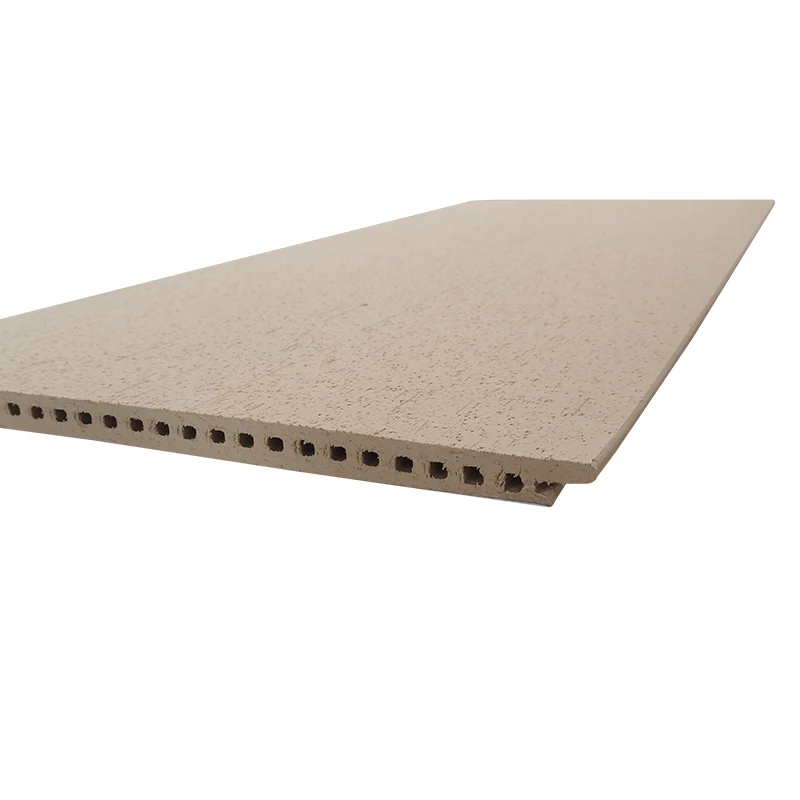

Наружные терракотовые стеновые фасадные панели для сухого подвесной фасада
- Category: Curtain Walls & Accessories >>>
- Supplier: Yixing Snail Ceramic Technology Co. Ltd.
Share on (1600826316848):
Product Overview
Description
attention
Friendly reminder, please contact customer service before placing an order
Products Advantage
1.Green and environmental protection—— Burnt with 100% natural pure purple sand clay,safe and has radiation, available for direct recycle.
2.Elegant color——Its entire body is painted by the color of natural ceramic.With an elegant color, it’s beautiful and natural in appearance, while it can effectively resist ultraviolet rays.
Thick texture——Endowed with natural texture of ceramic, it’s thick and pure, and will cause no light pollution.It can be used jointly with glass,metal and wood.
3.Robust and durable—— Burnt under high temperature of 1200 degree, it has a stable physical and chemical function.With a strict installation structure, it has a good vibration resistance and wind load resistance ability.
4.Convenient for installation——Replaceable for single board,and can be cut at will.Mature and advanced design, concise and appropriate structure, easy and convenient for installation.
Fire resistance——The purple clay has a good fire resistance itself, and is more resistant to fire after burnt in high temperature.

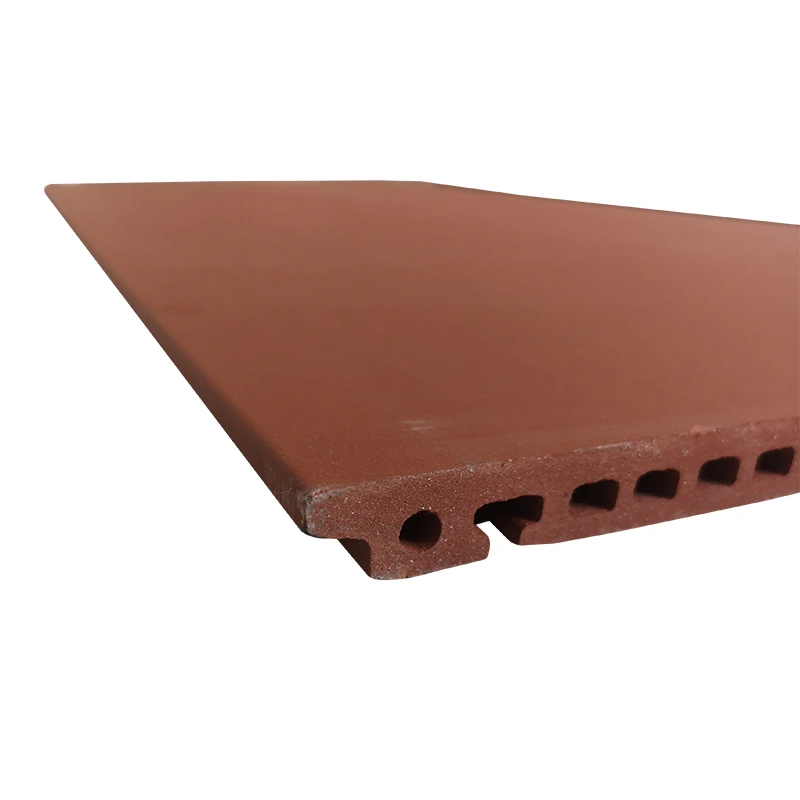

5.Heat preservation and noise reduction——Hollowed inside,the ceramic plate can effectively block heat conduction and reduce external noise.
2.Elegant color——Its entire body is painted by the color of natural ceramic.With an elegant color, it’s beautiful and natural in appearance, while it can effectively resist ultraviolet rays.
Thick texture——Endowed with natural texture of ceramic, it’s thick and pure, and will cause no light pollution.It can be used jointly with glass,metal and wood.
3.Robust and durable—— Burnt under high temperature of 1200 degree, it has a stable physical and chemical function.With a strict installation structure, it has a good vibration resistance and wind load resistance ability.
4.Convenient for installation——Replaceable for single board,and can be cut at will.Mature and advanced design, concise and appropriate structure, easy and convenient for installation.
Fire resistance——The purple clay has a good fire resistance itself, and is more resistant to fire after burnt in high temperature.
5.Heat preservation and noise reduction——Hollowed inside,the ceramic plate can effectively block heat conduction and reduce external noise.
Product Parameter
Construction ceramic board technical parameter | ||||||
Function performance | EU EN1441 1 standard | |||||
18 ceramic board | 30 ceramic board | |||||
Water absorption | 3-6% | 3-6% | Water absorption is divided into 3~6% and 6~10% | |||
Dry weight | 30kg/m2 | 42kg/m2 | ||||
Cold resistance | No fracture after 100 cycles of freeze-thaw | No fracture after 100 cycles of freeze-thaw | Report detection value | |||
Damage strength | 2707N | 6641N | >750N | |||
Modulus of rupture | Average 18MPO Minimum17.5 MPa | Average31 MPa Minimum29MP。 | Average＞9 MPa, Single value＞8MPa | |||
Poisson's ratio | 0.33 | 0.33 | ||||
Elastic modulus | 20000 MPa | 20000 MPa | ||||
Fire resistance | Al level | Al level | ||||
Acid and alkaline resistance | UA level | UA level | Report detection value | |||
Radiation | Class A decoration materials | Class A decoration materials | ||||
Vibration resistance | Vibration resistance over 10 degree | Vibration resistance over 10 degree | ||||
Water test | Reach 10kPa without destruction | Reach lOkPa without destruction | ||||
Noise reduction | Reduce noise over 9dB | Reduce noise over 9dB | ||||
Heat conduction index | 0.32w/m.k | 0.32w/m.k | ||||
Thermal shock resistance | No burst or fracture | No burst or fracture | Report detection value | |||
Pollution resistance | Level 2 | Level 2 | Lowest level 3 | |||
Impact resistance (recovery coefficient) test | 0.78 | 0.78 | Report detection value | |||
Coefficient of linear thermal expansion | 5.7x10一6 | 5.7x10P | Report detection value | |||
Product Surface

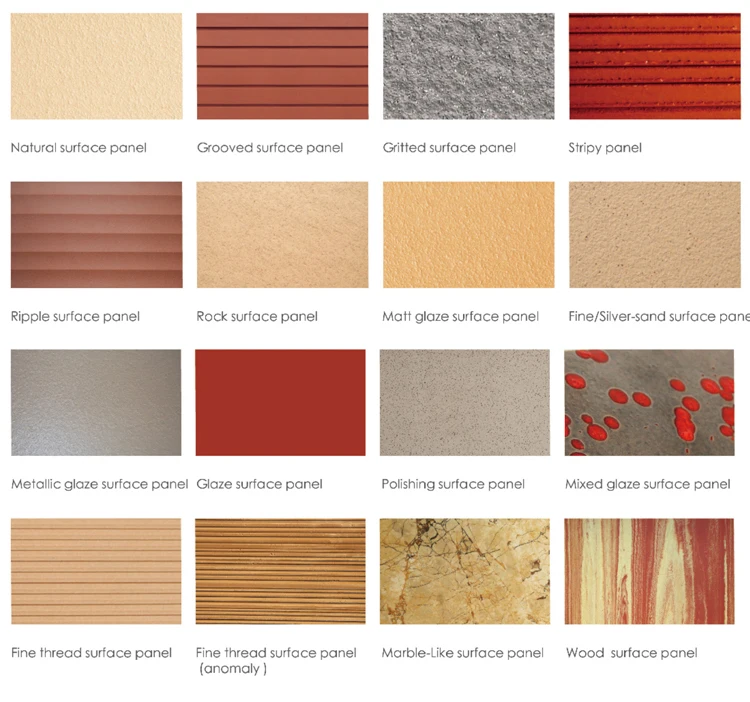

SURFACE EFFECT
The ceramic board has many surface effects to choose, which exhibit unique style of design.
The ceramic board has dozens of surface effects,including natural surface, plot surface, sand surface,roughened surface,stria surface,slate surface,glaze,matte glaze, metal glaze, combined glaze,etc.Through combination of different products, it can create an impulsive visual effect.
The ceramic board has many surface effects to choose, which exhibit unique style of design.
The ceramic board has dozens of surface effects,including natural surface, plot surface, sand surface,roughened surface,stria surface,slate surface,glaze,matte glaze, metal glaze, combined glaze,etc.Through combination of different products, it can create an impulsive visual effect.
Product Color
Rich color selections and multiple combinations, showing the vividness of the building.
The ceramic board has abundant color selections, which basically cover design requirements for mainstream colors of modern buildings.Elegant color, implicit temperament instead of explicit performance, they both make the building glow with rich artistic colors.
The ceramic board has abundant color selections, which basically cover design requirements for mainstream colors of modern buildings.Elegant color, implicit temperament instead of explicit performance, they both make the building glow with rich artistic colors.

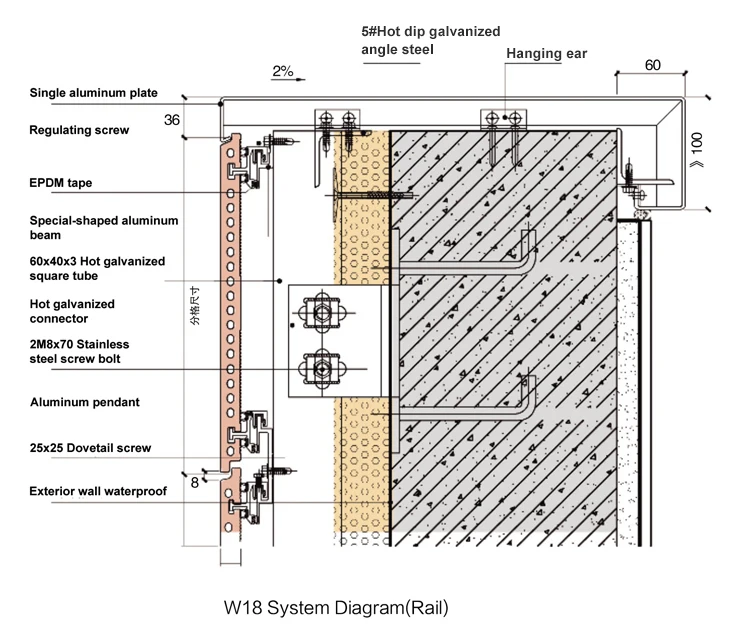

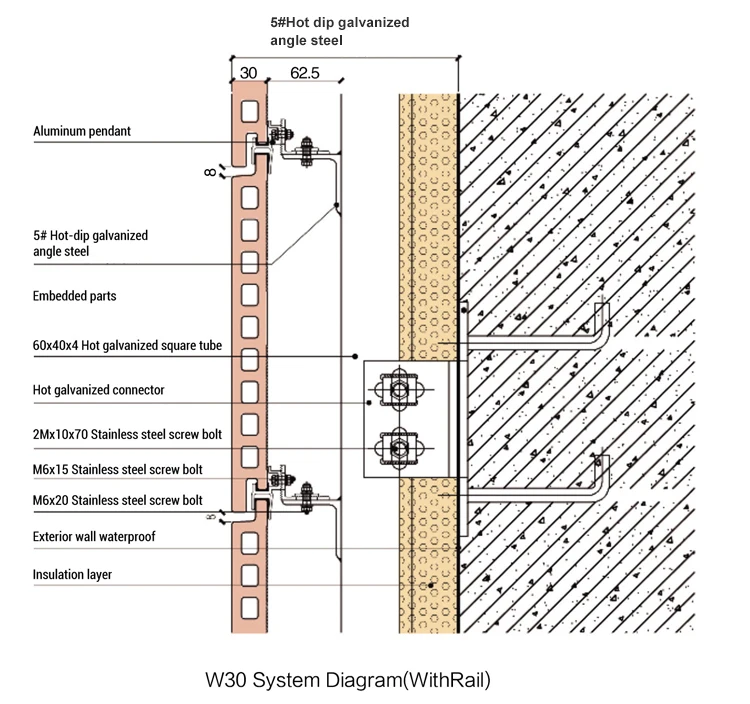

Main installation procedures
1、Surveying and setting out
Use theodolite and leveling instrument to mark the vertical and horizontal control line of keel installation on the external structure according to the elevation separation of curtain wall.
2、Pillar installation
The pillar is fixed on the main body structure through corner connection. Stainless steel screw bolt fastening is adopted to adjust the vertical degree of pillar.
3、Install beam or connecting piece
Screw bolt or nails are adopted to fix the beam(or connection piece) on the pillar, to adjust the vertical and horizontal degree of the beam.
Use theodolite and leveling instrument to mark the vertical and horizontal control line of keel installation on the external structure according to the elevation separation of curtain wall.
2、Pillar installation
The pillar is fixed on the main body structure through corner connection. Stainless steel screw bolt fastening is adopted to adjust the vertical degree of pillar.
3、Install beam or connecting piece
Screw bolt or nails are adopted to fix the beam(or connection piece) on the pillar, to adjust the vertical and horizontal degree of the beam.
4、Install ceramic board
⑴Install splicing tape on the beam(or pillar)
⑵Install ceramic board and pendant.Adjust the planeness and vertical degree of ceramic board installation through hitch;(3)Install the rest of ceramic boards from bottom to top and finish the overall curtain wall installation
⑴Install splicing tape on the beam(or pillar)
⑵Install ceramic board and pendant.Adjust the planeness and vertical degree of ceramic board installation through hitch;(3)Install the rest of ceramic boards from bottom to top and finish the overall curtain wall installation
5、Apply pipe sealant
An open system does not require pipe sealant, whereas close system is required to apply pipe sealant to the horizontal and vertical seam.
6、Curtain wall cleaning
Clean up the installed ceramic curtain wall.
An open system does not require pipe sealant, whereas close system is required to apply pipe sealant to the horizontal and vertical seam.
6、Curtain wall cleaning
Clean up the installed ceramic curtain wall.

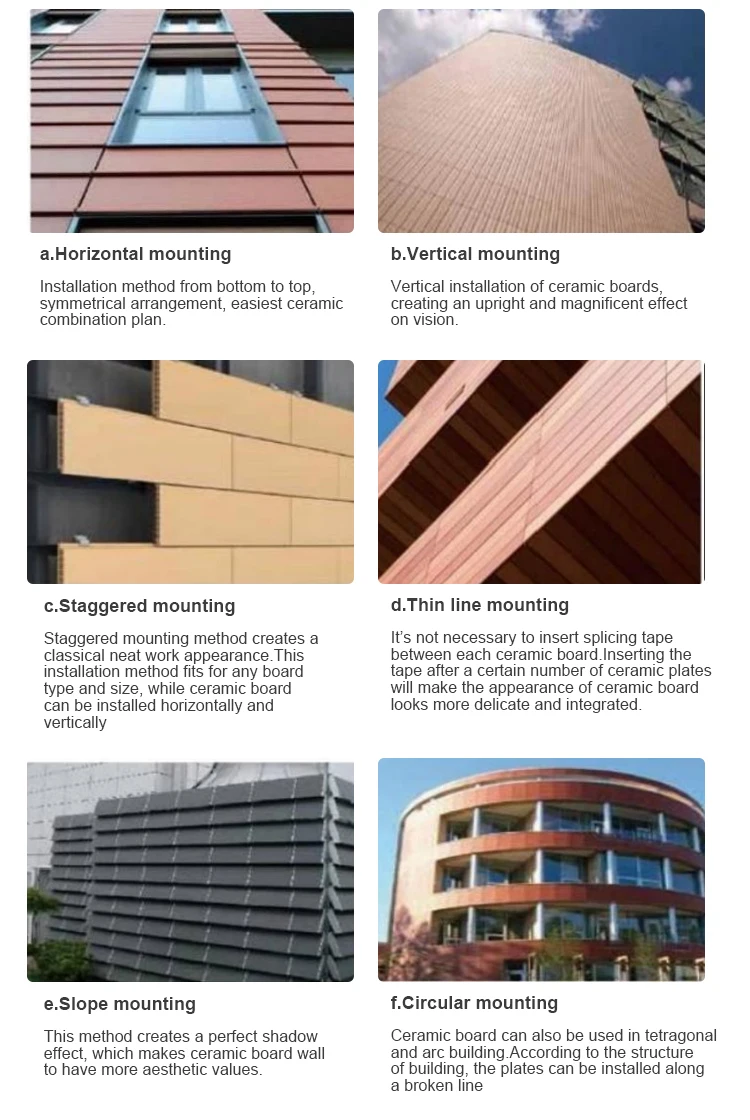

SPLICING scheme

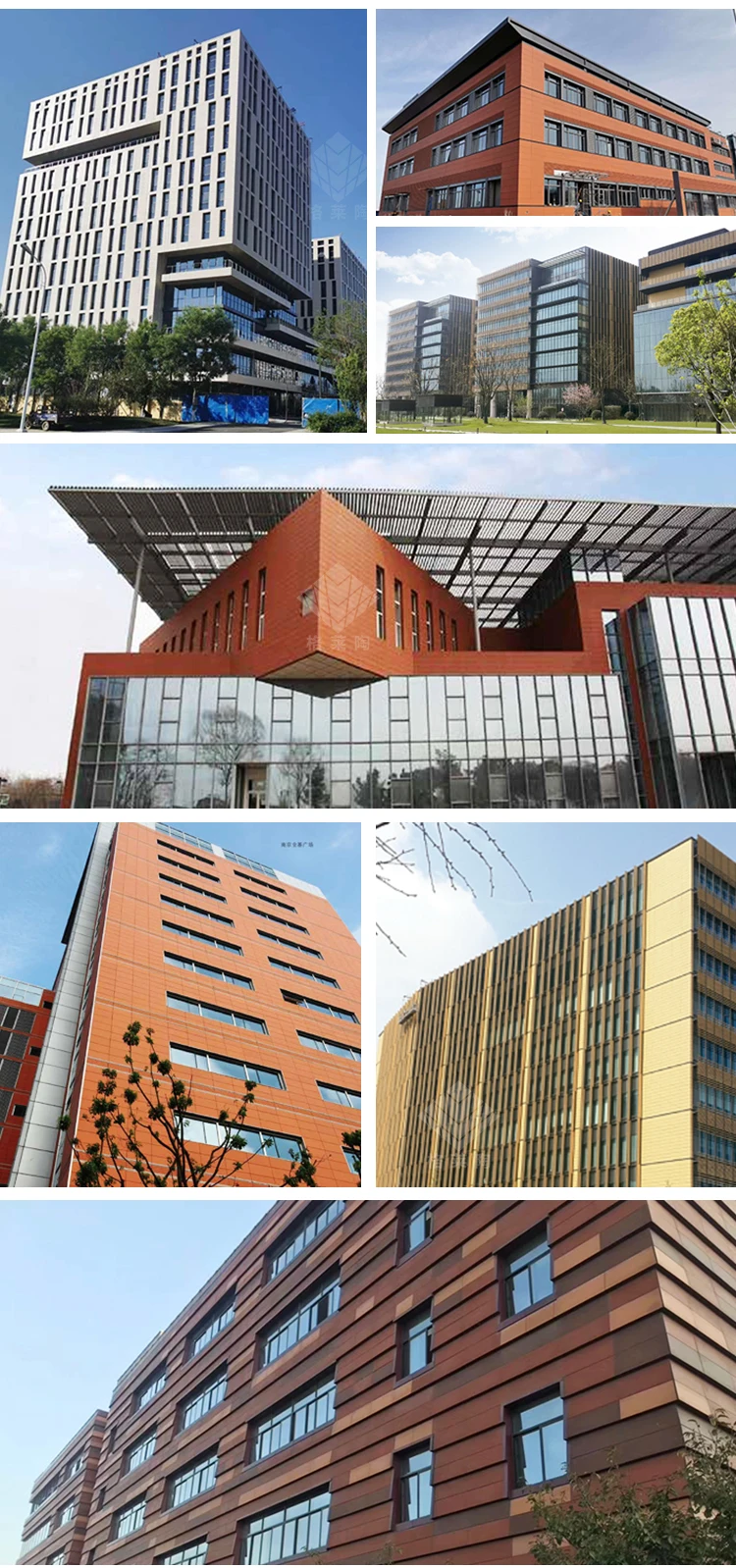

Project case
We have corresponding engineering cases in Japan, Europe and the United States and other
countries for the reference of design and owner units. If you need more engineering cases,
you can contact our customer service personnel
Foreign trade list
Project name | Color | Area | Contract volume (m2) |
Garam - KR | Orange | the republic of korea | 2500 |
Abroad 039 | Red and yellow | the republic of korea | 2800 |
Foreign SIP projects | red | U.S.A | 6200 |
Kazakhstan project | Yellow green red | Kazakhstan | 4000 |
AMERICANTOWNI | Gray | the republic of korea | 2500 |
CHEONANI | red | the republic of korea | 2000 |
SONGDOI | Yellow | the republic of korea | 3000 |
Technopark | Grey red | Russia | 6800 |
River Garden | Green yellow | Kazakhstan | 3200 |
US-Fort Lewis | red | U.S.A | 2000 |
Arhangelsk | Gray | Russia | 3000 |
KRDAEW | Red coffee | the republic of korea | 7200 |
Urbanest Student Accommodation,SYNEY University | red | Australia | 5600 |
Wakayama Court | grey | Japan | 5800 |
Office building of Hegeshan High Court | grey | Japan | 17000 |
U of I fieldhouse Villa | red | U.S.A | 6000 |
Regional Medical Center Hospital | coffee | U.S.A | 5500 |
Lafayette College | Red coffee | U.S.A | 5200 |
S-Center i Business Building | Red | the republic of korea | 5660 |
JT-Ma Mall | Red | Dominica | 6600 |
Baltiskgya Jemchuzhina | Light yellow | Russia | 7300 |
Maksidom | coffee | Russia | 5900 |
Tsarskaya Stolitsa | White | Russia | 6990 |
RUKARA | red | Russia | 1500 |

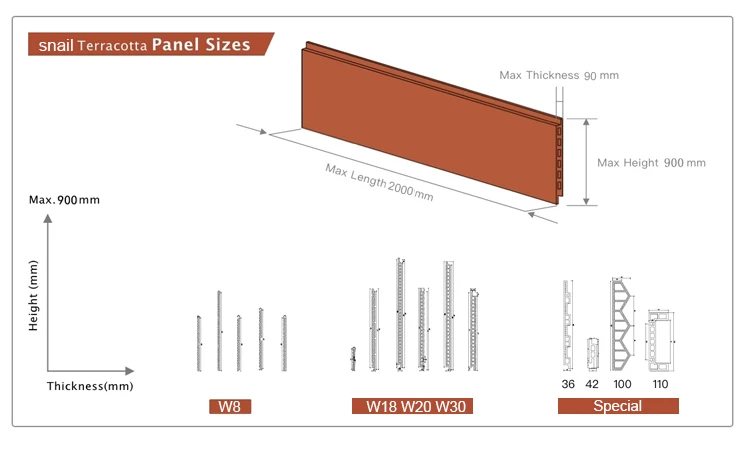

Display
System | Thickness(mm) | Length(mm) | Width(mm) | Weigh |
W18 | 18mm | 600.900.1200.1500 | 300.350.400.450.500.550.600 | ≈32kg/m² |
W20 | 20mm | 600.900.1200.1500 | 300.350.400.450.500.550.600 | ≈35kg/m² |
W30 | 30mm | 600.900.1200.1600 | 400.450.500.550.600.650.800 | ≈45kg/m² |
W40 | 40mm | 900.1200.1500.1800 | 500.550.600.650.700.800.900 | ≈58kg/m² |
W8 | 8mm | 600.900.1200.1500 | 300.350.400.450.500.550.600 | ≈16.5kg/m² |

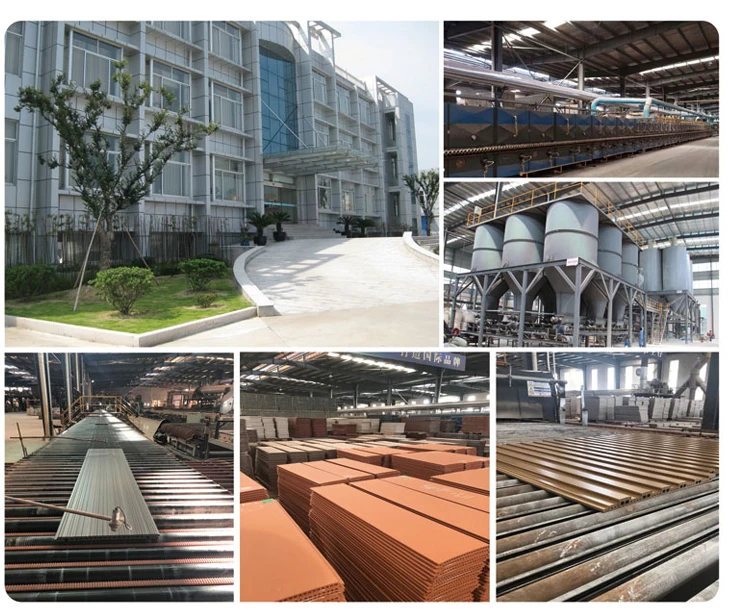

Yixing Snail Ceramic Technology Co., Ltd is located in Yixing, Jiangsu province, which is
known as the Chinese ceramic city and on the junction zone of Jiangsu, Zhejiang and Anhui provinces.The company is a modernized enterprise for professional manufacturing, developing and selling high level ceramic board and cubic ceramic curtain wall and has 2 ceramic board production lines, whose daily production reaches over 3000r.It regards advanced ceramic craftsmanship techniques of Spain,which is the origin of ceramic board, as its core, and manufactures ceramic board products of international standard with strict standard of EU products.With strong technology team, the company has several professionals from ceramic academy to direct technology and technique research, and a batch of technicians with many years of extruding ceramic experience to control the whole production process, making each product suffice for customers’ requirement on its scale, color, and type.The ceramic plate adopts Yixing purple sand clay as its ingredient and is burnt under 1200℃ temperature.When burnt in the hot fire of stove, the ceramic plate displays a natural color scale that any artificial coloring cannot match.Its pure and natural quality and implicit color shows the primitive characteristics and imagination of pottery production, and it’s currently the most ideal decoration material that has the advantages of pressure resistance,cold resistance,abrasion resistance,well durability, not fading forever, and good decoration effect.It’s the most widely used high-grade dry-hanging building materials for exterior wall of public constructions like residences, stores, schools and hospitals.
known as the Chinese ceramic city and on the junction zone of Jiangsu, Zhejiang and Anhui provinces.The company is a modernized enterprise for professional manufacturing, developing and selling high level ceramic board and cubic ceramic curtain wall and has 2 ceramic board production lines, whose daily production reaches over 3000r.It regards advanced ceramic craftsmanship techniques of Spain,which is the origin of ceramic board, as its core, and manufactures ceramic board products of international standard with strict standard of EU products.With strong technology team, the company has several professionals from ceramic academy to direct technology and technique research, and a batch of technicians with many years of extruding ceramic experience to control the whole production process, making each product suffice for customers’ requirement on its scale, color, and type.The ceramic plate adopts Yixing purple sand clay as its ingredient and is burnt under 1200℃ temperature.When burnt in the hot fire of stove, the ceramic plate displays a natural color scale that any artificial coloring cannot match.Its pure and natural quality and implicit color shows the primitive characteristics and imagination of pottery production, and it’s currently the most ideal decoration material that has the advantages of pressure resistance,cold resistance,abrasion resistance,well durability, not fading forever, and good decoration effect.It’s the most widely used high-grade dry-hanging building materials for exterior wall of public constructions like residences, stores, schools and hospitals.
1.Q:What's the shipping method?
A:By express way.such as fedex,dhl,tnt and so on; by air;by sea. Shipping cost is decided by
shipping ways& product actual weight &volume and your detailed address.
2.Q:What's the Payment method?
A: We support various payment way(T/T,Visa card,Western union, Moneygram,Secure
payment-Escrow,etc) T/T
3.Q:Can we print our own brand or logo on your products?
A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM request
4.Q: Why do some goods have difference between website picture and practical items?
A: Because difference of light and browser,also different batches ,material may be little difference.
such as lining, so note products to be previl in kind, sometime,the picture is for reference only.
these are allowed in actual case.If any question, please tell us before order and ask clearly.
A:By express way.such as fedex,dhl,tnt and so on; by air;by sea. Shipping cost is decided by
shipping ways& product actual weight &volume and your detailed address.
2.Q:What's the Payment method?
A: We support various payment way(T/T,Visa card,Western union, Moneygram,Secure
payment-Escrow,etc) T/T
3.Q:Can we print our own brand or logo on your products?
A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM request
4.Q: Why do some goods have difference between website picture and practical items?
A: Because difference of light and browser,also different batches ,material may be little difference.
such as lining, so note products to be previl in kind, sometime,the picture is for reference only.
these are allowed in actual case.If any question, please tell us before order and ask clearly.
