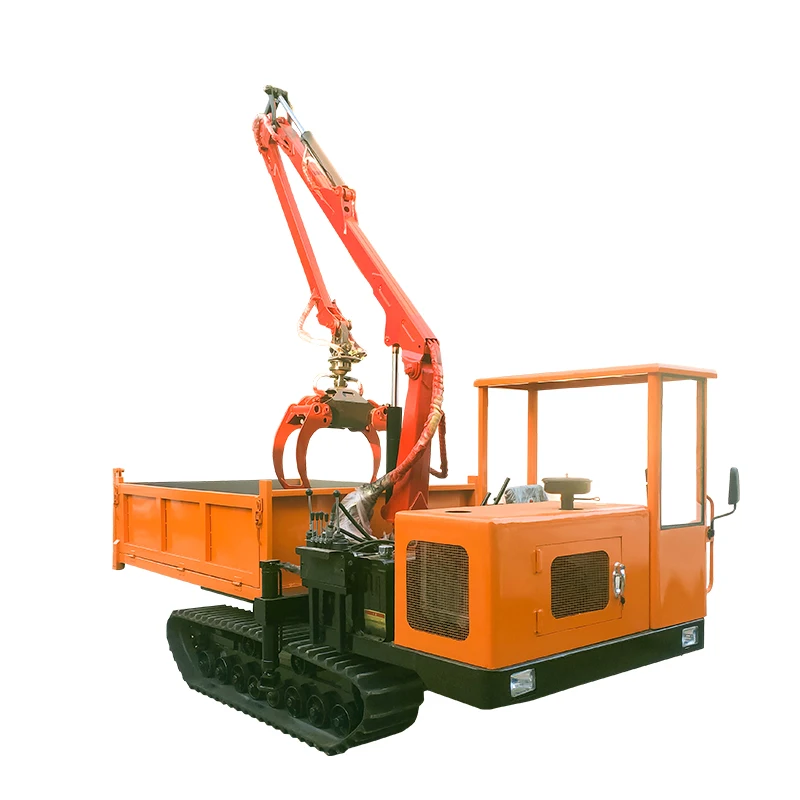

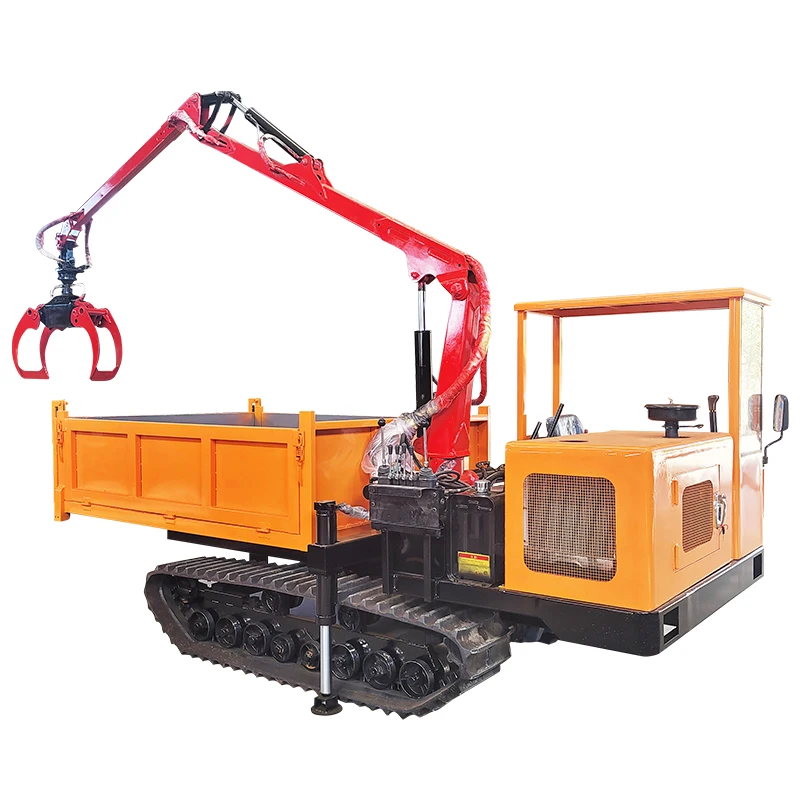

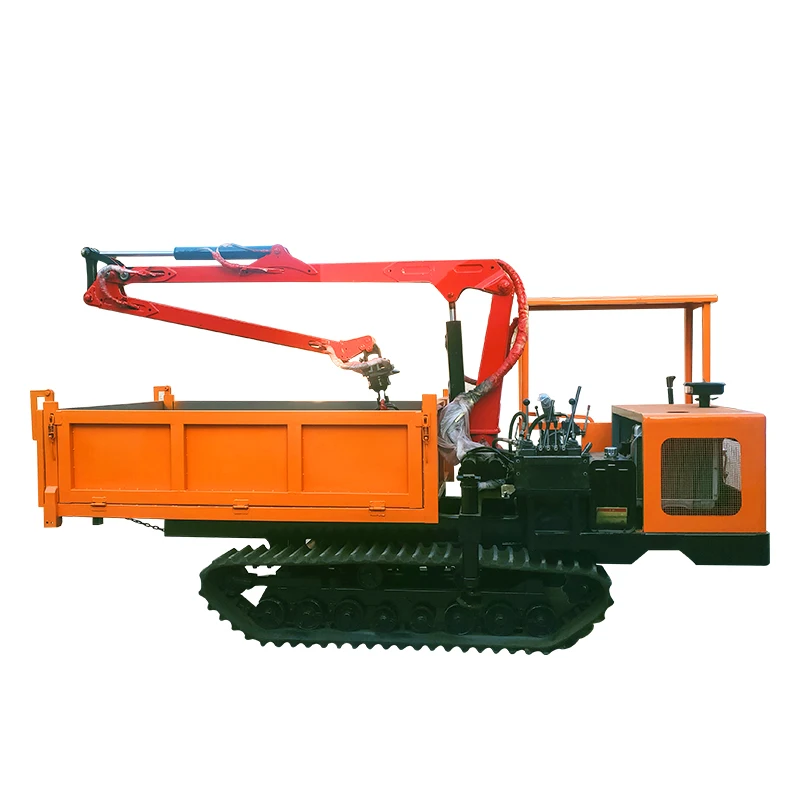

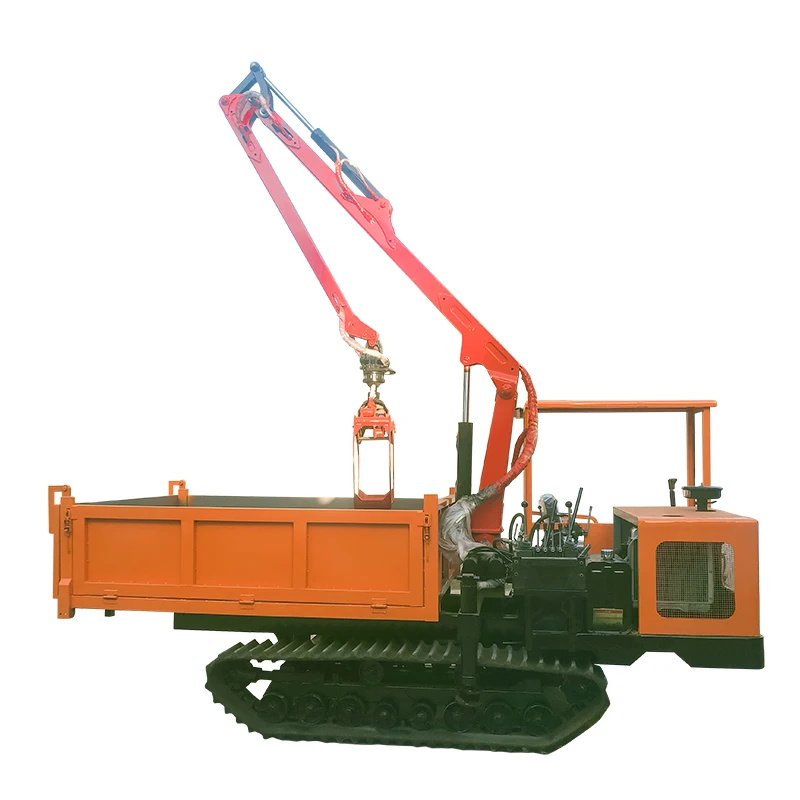

Type number | RLD-5T crawler dumper with wood grapple | |
Size(L*W*H: mm ) | 4200*1600*1600 | |
Cabin size (mm) | 2600*1600*550 | |
Box steel plate thickness( mm ) | Bottom 4 sides 3 | |
Chassis width (m) | 1.6 | |
Engine model | CHANGCHAI 490 | |
Engine power | 34KW 47HP | |
Crawler specifications | 400*90*62 | |
Crawler system | Engineering rubber track | |
Number of unilateral tugs | 7 groups | |
Tug diameter | 200 Offset tug 206 Bearing | |
Hydraulic cylinder model | 115*900 Single top dumper | |
Gearbox model | Strength 28 | |
Start method | Electric start | |
Boom Arm | 3m * 3section | |
Rated load (T) | 5 | |
Vehicle weight (kg) | 2350 | |
Gear | High/low(3+1) | |
Lifting height | 1500mm | |
Driving speed (km/h) | 0-15 | |
Special custom | ||
1. The specific size can be customized according to the requirements. 2. Multi-functional machine with a variety of optional accessories. |
