Factory Wholesale Cheap Recyclable Small Battery Li ion Battery Lithium Battery Reclaim Equipment
- Category: >>>
- Supplier: Zhengzhou Yatai Energy Environmental Protection Technology Co. Ltd.
Share on (1600826385688):
Product Overview
Description
Product Description
Lithium-ion battery recycling machine research mainly focuses on the recovery of high-value anode metals cobalt and lithium.
Copper in the negative electrode of waste lithium batteries is an important production raw material that is widely used. Toner attached to it can be used as an additive, such as plastic and rubber. According to the structural characteristics of lithium batteries, an environmentally friendly physical separation process is adopted to achieve efficient separation and recovery of waste lithium batteries. Lithium battery recycling production line is used for the disassembly and recycling of soft packaging batteries, mobile phone batteries, surgical batteries, cylindrical batteries, etc. The final products are graphite powder, lithium cobalt oxide, aluminum and copper.

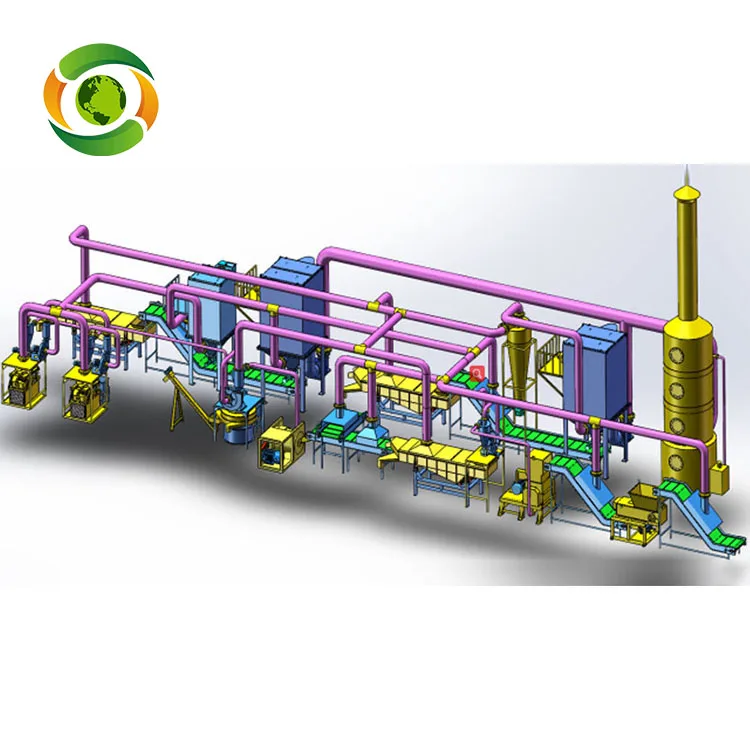

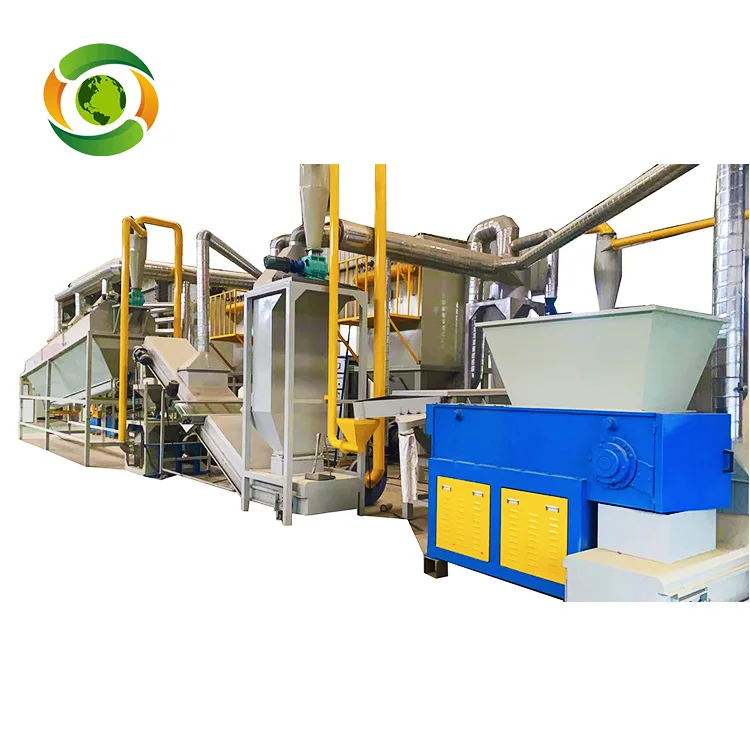

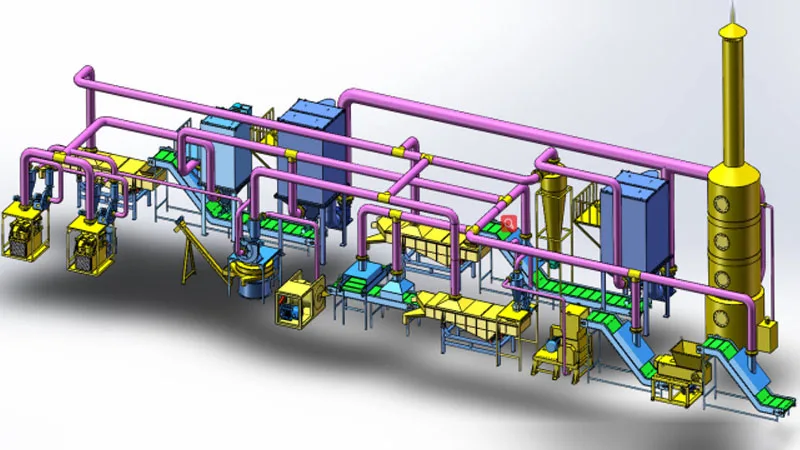

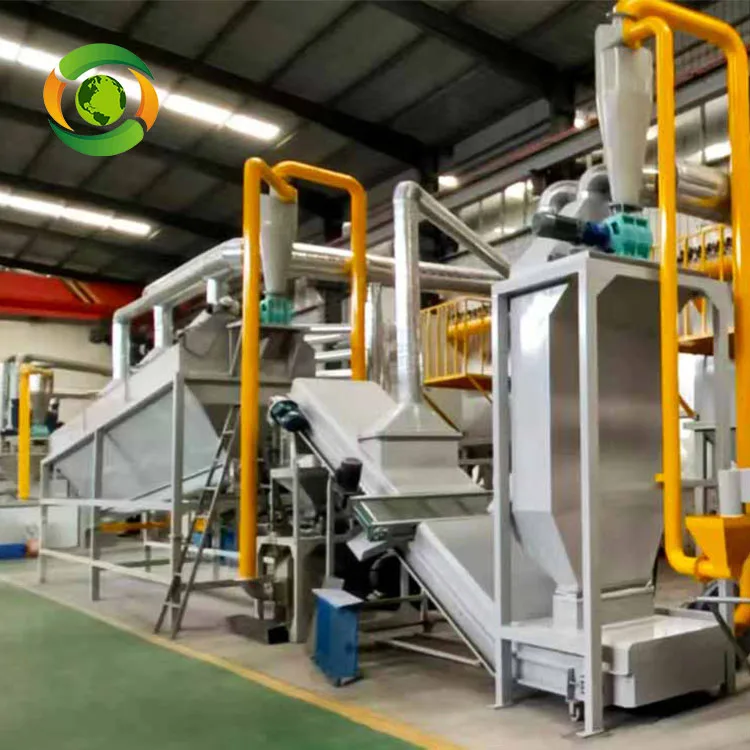

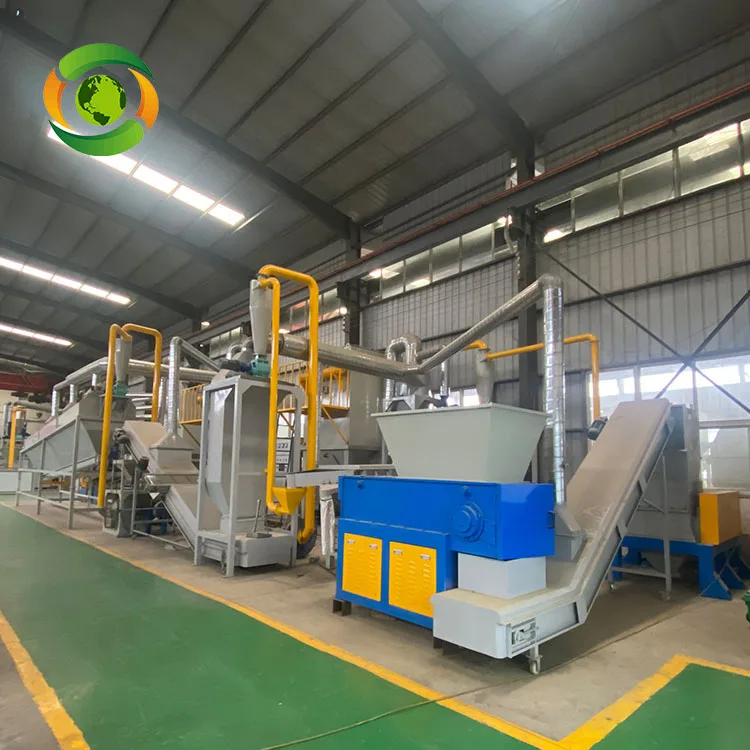

The waste lithium-ion battery recycling and processing equipment of our company will crush the materials step by step through shredders, crushers and grinders, and separate them by air separation facilities. The whole set of equipment adopts a closed negative pressure system to reduce dust pollution, and has a pulse dust collection facilities collect dust generated during the separation process and subsequent processes.
Product Paramenters
Model | Power(KW) | Size(mm) | Output(KG/H) |
YT-LDC-500 | 208 | 30000*10000*3800 | 400-500 |
YT-LDC-1000 | 310 | 40000*10000*4800 | 800-1000 |

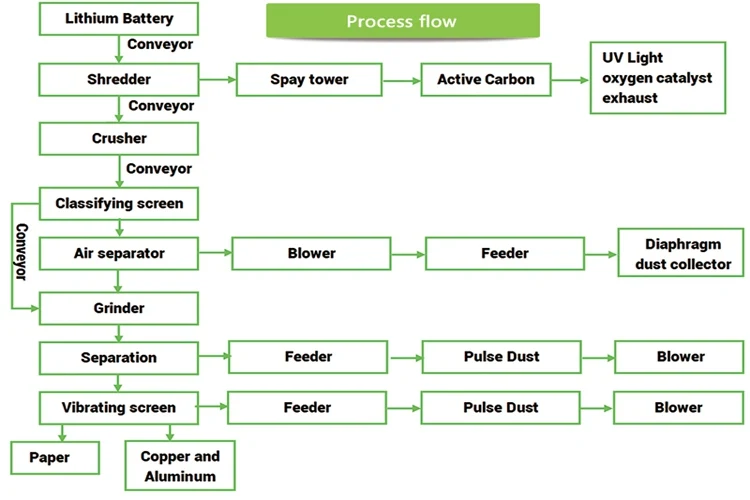

Work Flow
1. Raw materials (waste batteries): The waste batteries are transported to the shredder through the belt conveying and feeding device, and then entered into the shredder after being shredded, and the large pieces of crushed material are crushed for the second time. The crushed material enters the linear screening machine, and the lithium-cobalt powder that falls off during crushing is recovered and transported to ton bags for centralized collection; the mixed material of copper, aluminum and iron enters the magnetic separation for transportation to separate the iron shell. The remaining copper and aluminum materials enter the grinder again for grinding, and grind to 30-60 mesh particles. Then, the material enters the rotary vibrating screen for powder removal, and the lithium cobalt powder is transported to the ton bag for centralized collection. Copper and aluminum enter the gravity separation for copper and aluminum screening.
2. Dust removal equipment and deodorization equipment: The feed inlet of the shredder is provided with a dust removal pipe leading to the main dust removal pipe, and the crusher feed port is provided with a dust removal pipe leading to the main dust removal pipe. The dust and gas are collected from the linear screening machine, pulverizer, conveyor, and vibrating screen collector, and then enter the cyclone dust collector-pulse dust collector-alkali washing neutralization tower in turn for dust collection and organic gas treatment.1. Raw materials (waste batteries): The waste batteries are transported to the shredder through the belt conveying and feeding device, and then entered into the shredder after being shredded, and the large pieces of crushed material are crushed for the second time. The crushed material enters the linear screening machine, and the lithium-cobalt powder that falls off during crushing is recovered and transported to ton bags for centralized collection; the mixed material of copper, aluminum and iron enters the magnetic separation for transportation to separate the iron shell. The remaining copper and aluminum materials enter the grinder again for grinding, and grind to 30-60 mesh particles. Then, the material enters the rotary vibrating screen for powder removal, and the lithium cobalt powder is transported to the ton bag for centralized collection. Copper and aluminum enter the gravity separation for copper and aluminum screening.
2. Dust removal equipment and deodorization equipment: The feed inlet of the shredder is provided with a dust removal pipe leading to the main dust removal pipe, and the crusher feed port is provided with a dust removal pipe leading to the main dust removal pipe. The dust and gas are collected from the linear screening machine, pulverizer, conveyor, and vibrating screen collector, and then enter the cyclone dust collector-pulse dust collector-alkali washing neutralization tower in turn for dust collection and organic gas treatment.
2. Dust removal equipment and deodorization equipment: The feed inlet of the shredder is provided with a dust removal pipe leading to the main dust removal pipe, and the crusher feed port is provided with a dust removal pipe leading to the main dust removal pipe. The dust and gas are collected from the linear screening machine, pulverizer, conveyor, and vibrating screen collector, and then enter the cyclone dust collector-pulse dust collector-alkali washing neutralization tower in turn for dust collection and organic gas treatment.1. Raw materials (waste batteries): The waste batteries are transported to the shredder through the belt conveying and feeding device, and then entered into the shredder after being shredded, and the large pieces of crushed material are crushed for the second time. The crushed material enters the linear screening machine, and the lithium-cobalt powder that falls off during crushing is recovered and transported to ton bags for centralized collection; the mixed material of copper, aluminum and iron enters the magnetic separation for transportation to separate the iron shell. The remaining copper and aluminum materials enter the grinder again for grinding, and grind to 30-60 mesh particles. Then, the material enters the rotary vibrating screen for powder removal, and the lithium cobalt powder is transported to the ton bag for centralized collection. Copper and aluminum enter the gravity separation for copper and aluminum screening.
2. Dust removal equipment and deodorization equipment: The feed inlet of the shredder is provided with a dust removal pipe leading to the main dust removal pipe, and the crusher feed port is provided with a dust removal pipe leading to the main dust removal pipe. The dust and gas are collected from the linear screening machine, pulverizer, conveyor, and vibrating screen collector, and then enter the cyclone dust collector-pulse dust collector-alkali washing neutralization tower in turn for dust collection and organic gas treatment.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Service is what we know. Providing innovative recycling technology products and solutions is what we strive for. Backed by over 20 years of experience of R&D, manufacturing, marketing and distributing premium E-waste dismantling, crushing and sorting, cable wire recycling,comprehensive extraction of precious metals, waste aluminum and plastic sorting, waste tire recycling, waste lithium-ion battery recycling and other new environmental protection equipment worldwide, we're committed to providing a range of high quality, innovative, cost-effective products and solutions.
As a leading manufacturer, we design and customize various solutions for many foreign trade enterprises and do OEM for them. With more than 10 years of experience in OEM for foreign trade enterprises, cost-effective and high-reliability products supplied by us are exported to more than 30 countries and regions, which enjoys good reputation.
Possessing sophisticated production lines and inspection equipment, providing diverse lines of e waste recycling and metal refining equipment backed by expert R&D technical support, we develop closer customer relationships and taking on a larger role in the total supply and manufacturing chain. We offer a complete set of environment protection equipment with a range of products for one-stop shopping. Decades of product optimization have turned Renewable products into a highly perfected and cost-effective solution. Our ISO 9001 certification registered production facilities are emblematic of renewable ongoing commitment to quality and sustainability in the manufacture of these products.
As an experienced supplier, we now offer everything from large, medium and small production lines like waste circuit board recycling line, aluminum plastic separation and recycling line, waste cable & wire recycling line, precious metal sorting and refining production line, waste radiator recycling line, waste tire recycling line, waste lithium battery recycling line, waste photovoltaic panel recycling line to single devices like PCB dismantling machine, double shaft shredder, single shaft shredder, hammer mill crusher, knife crusher, airflow separator, electrostatic separator, pulse dust collector in the world. Our products meet and exceed the challenges of thousands of applications, and continue to be innovated. We stand for the maxims of uncompromising quality, outstanding customer service and operational dependability. We implement custom solutions with the highest flexibility and precision. Our dedicated employees, the true mechanical experts, make us successful globally.
As a leading manufacturer, we design and customize various solutions for many foreign trade enterprises and do OEM for them. With more than 10 years of experience in OEM for foreign trade enterprises, cost-effective and high-reliability products supplied by us are exported to more than 30 countries and regions, which enjoys good reputation.
Possessing sophisticated production lines and inspection equipment, providing diverse lines of e waste recycling and metal refining equipment backed by expert R&D technical support, we develop closer customer relationships and taking on a larger role in the total supply and manufacturing chain. We offer a complete set of environment protection equipment with a range of products for one-stop shopping. Decades of product optimization have turned Renewable products into a highly perfected and cost-effective solution. Our ISO 9001 certification registered production facilities are emblematic of renewable ongoing commitment to quality and sustainability in the manufacture of these products.
As an experienced supplier, we now offer everything from large, medium and small production lines like waste circuit board recycling line, aluminum plastic separation and recycling line, waste cable & wire recycling line, precious metal sorting and refining production line, waste radiator recycling line, waste tire recycling line, waste lithium battery recycling line, waste photovoltaic panel recycling line to single devices like PCB dismantling machine, double shaft shredder, single shaft shredder, hammer mill crusher, knife crusher, airflow separator, electrostatic separator, pulse dust collector in the world. Our products meet and exceed the challenges of thousands of applications, and continue to be innovated. We stand for the maxims of uncompromising quality, outstanding customer service and operational dependability. We implement custom solutions with the highest flexibility and precision. Our dedicated employees, the true mechanical experts, make us successful globally.
FAQ
1. How many models are there and the processing quantity?
YT-LDC-500,400-500kg/h;YT-LDC-1000,800-1000kg/h
2. Which raw materials can be processed?
2. Which raw materials can be processed?
All Kinds Of Lithium Batteries
3. Can we customize and design different output?
Yes
4.Are installation services provided?
Yes
5.Are training services provided?
5.Are training services provided?
Yes
6.Are after-sales maintenance services provided?
Yes
