Custom Design Industrial Mini Pc 8250U 8550U RJ45 Fanless J1900 Core I3 I5 I7 DDR3 Used Laptops I7 Refurbished Computer Desktop
- Category: >>>
- Supplier: Shenzhen Hystou Technology Co. Limited
Share on (1600826699191):
Product Overview
Description
VR
Details Images

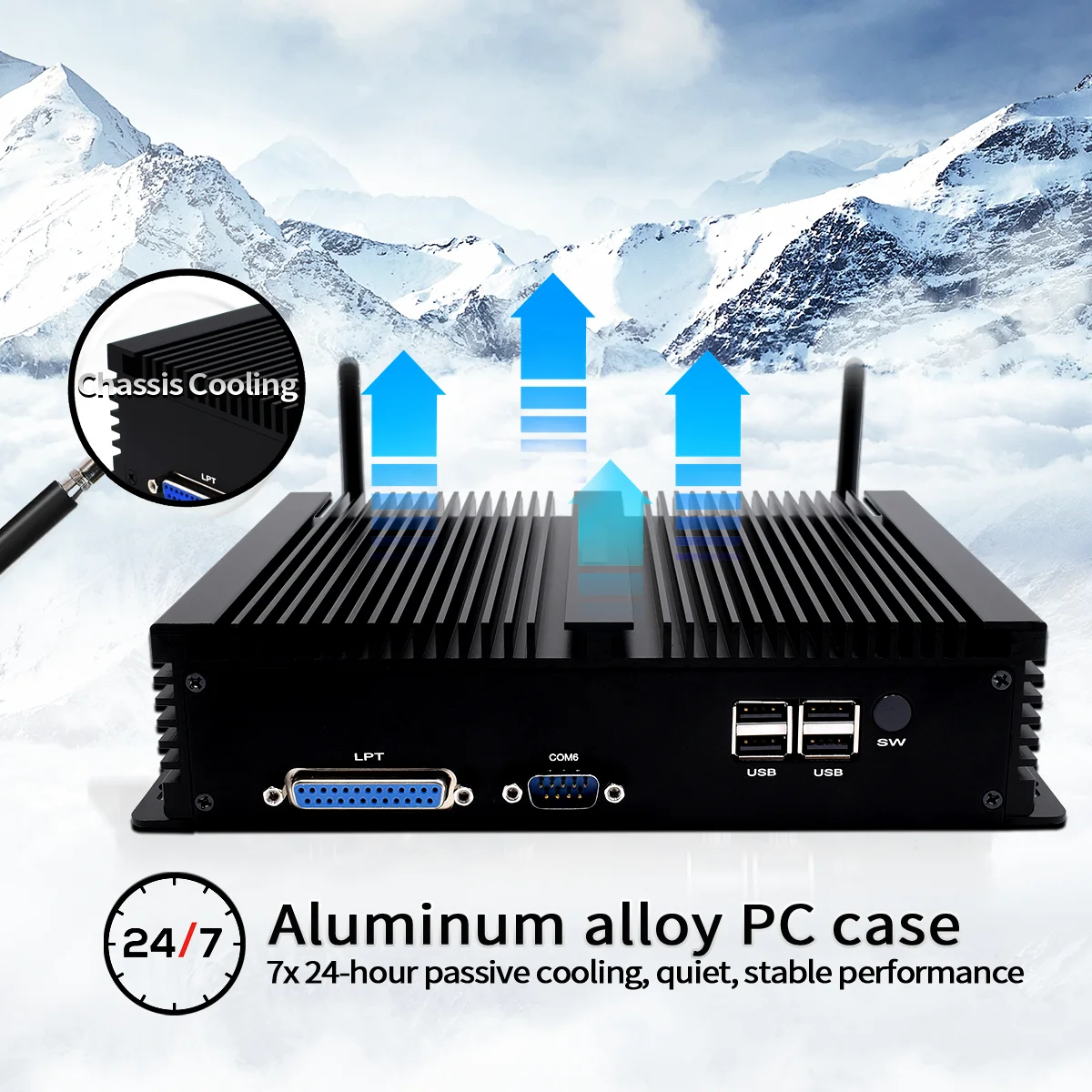

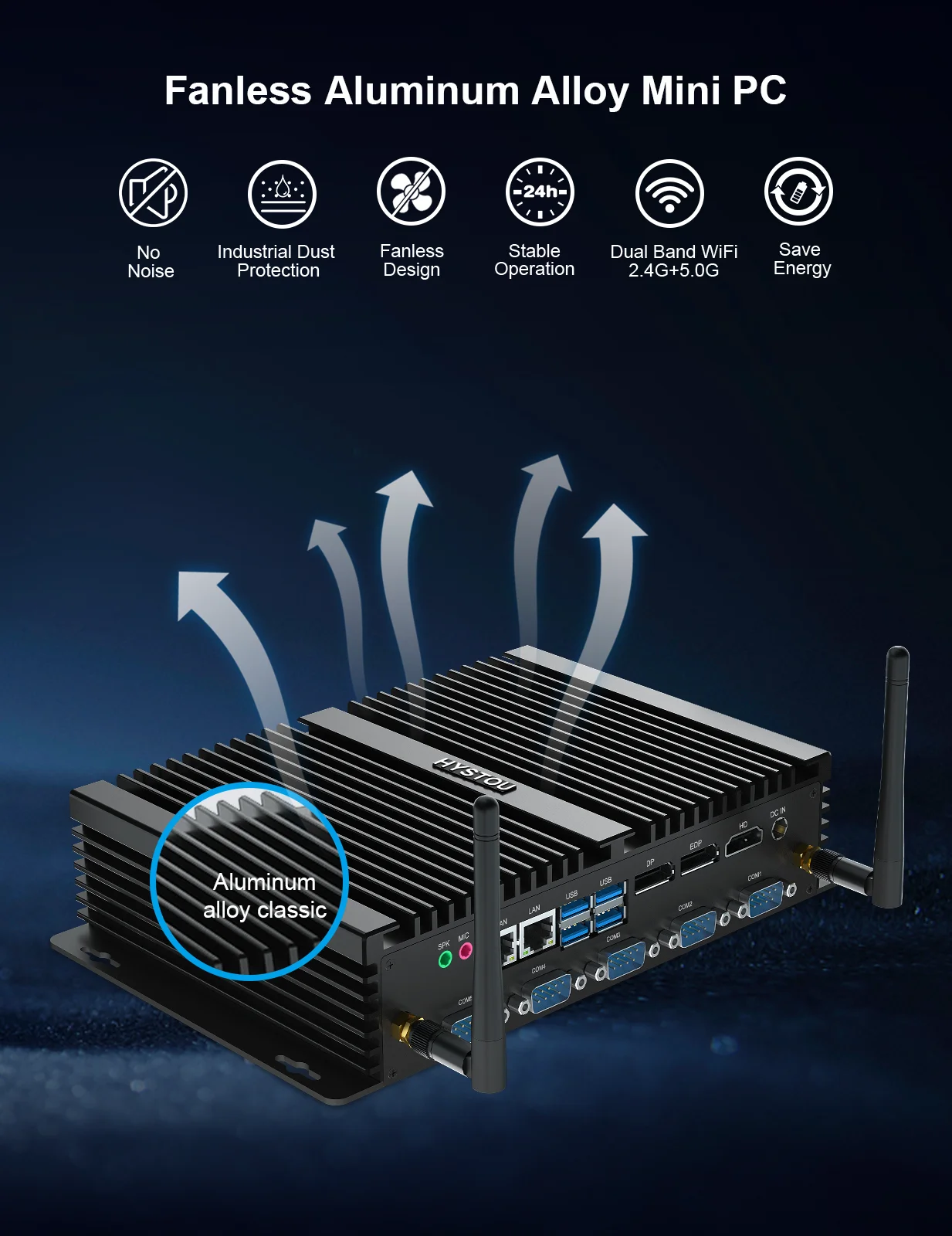

【Effective Heat Dissipation】

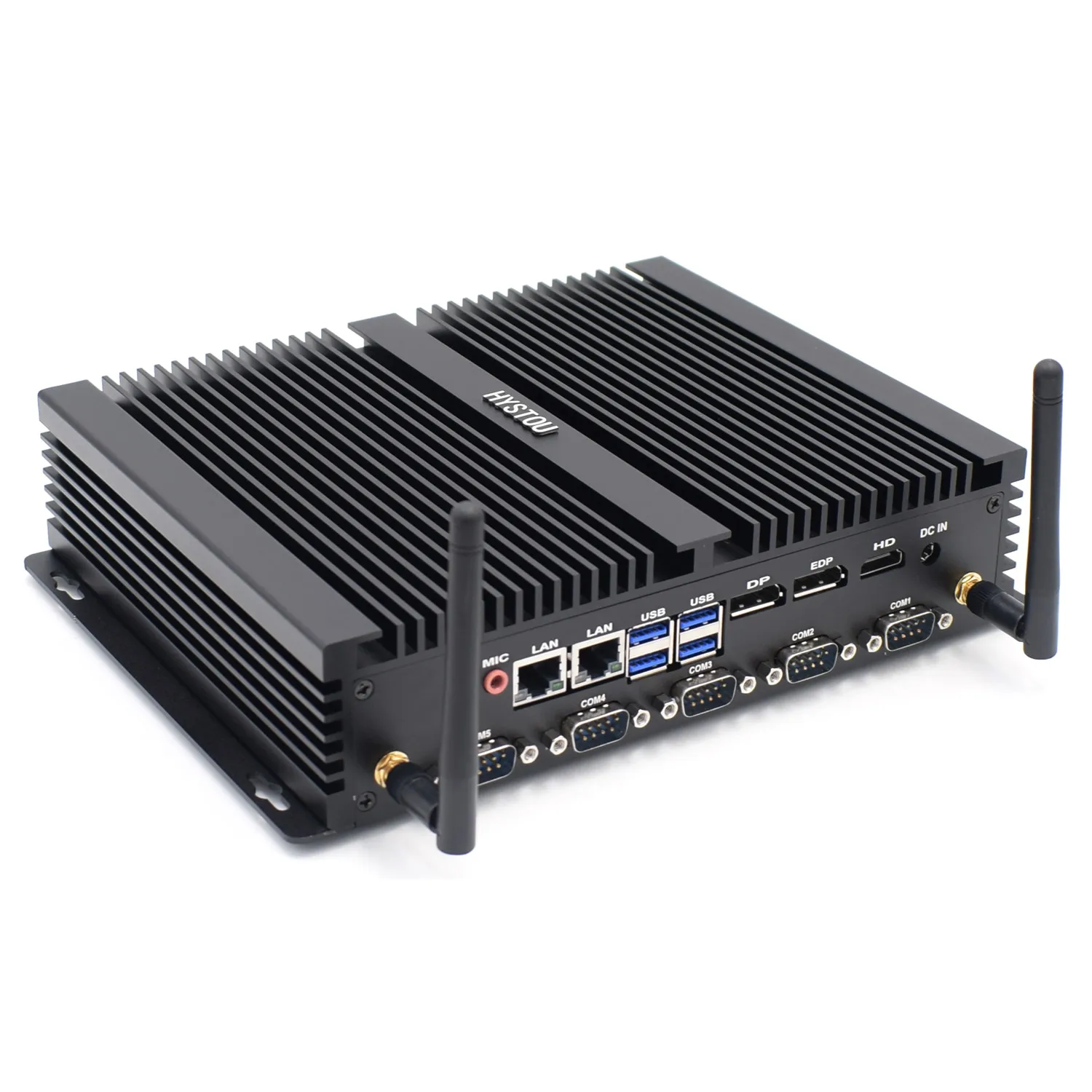

This mini computer featured by noise-free, fanless design and brushed aluminum shell has excellent durability and heat dissipation, say goodbye to the worry of heat dissipation.Pre-installed with Windows 10 Pro (64-bit), the compact size can hide a lot of power. It can easily run Microsoft Office, One Drive, Outlook and other office software, making your work easier.

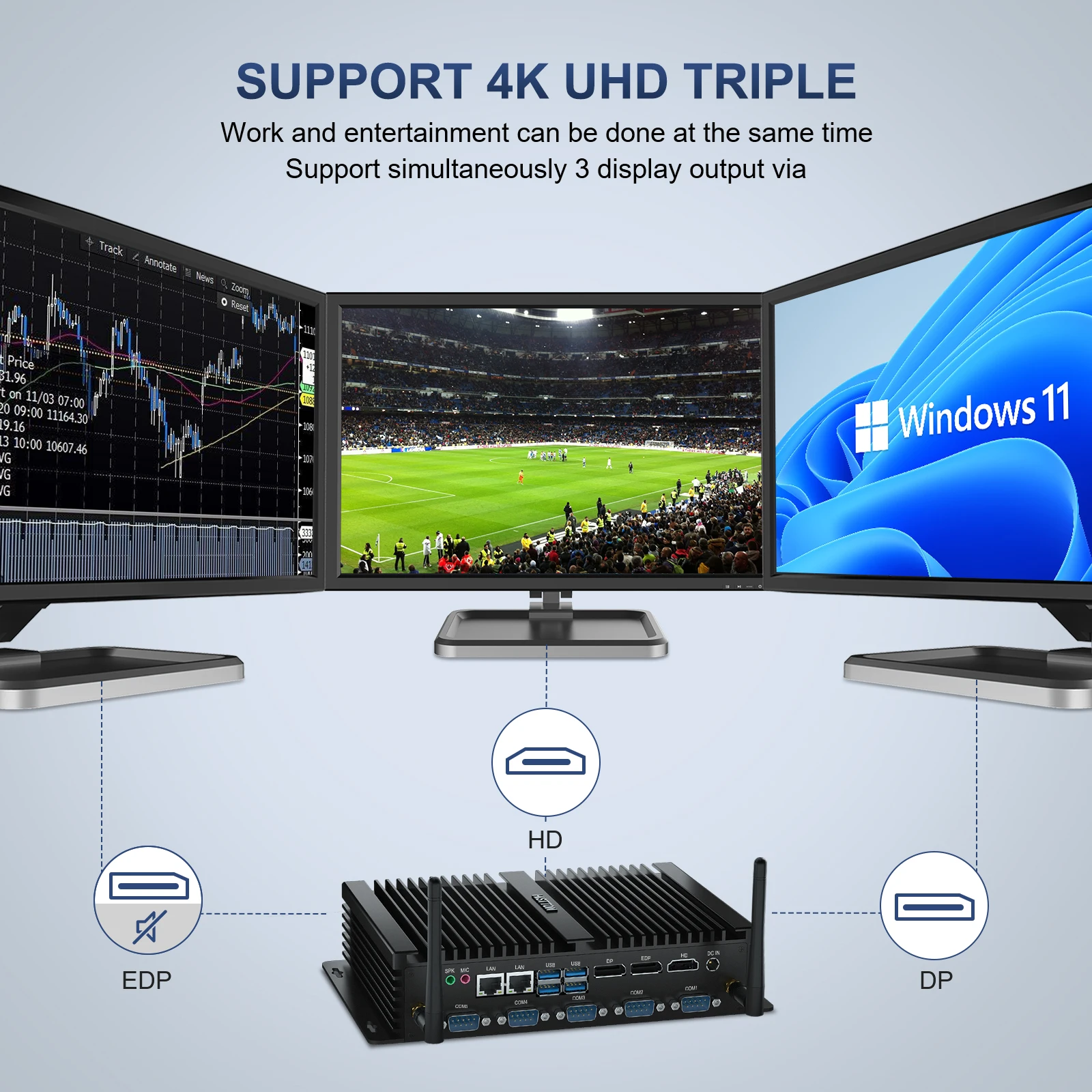

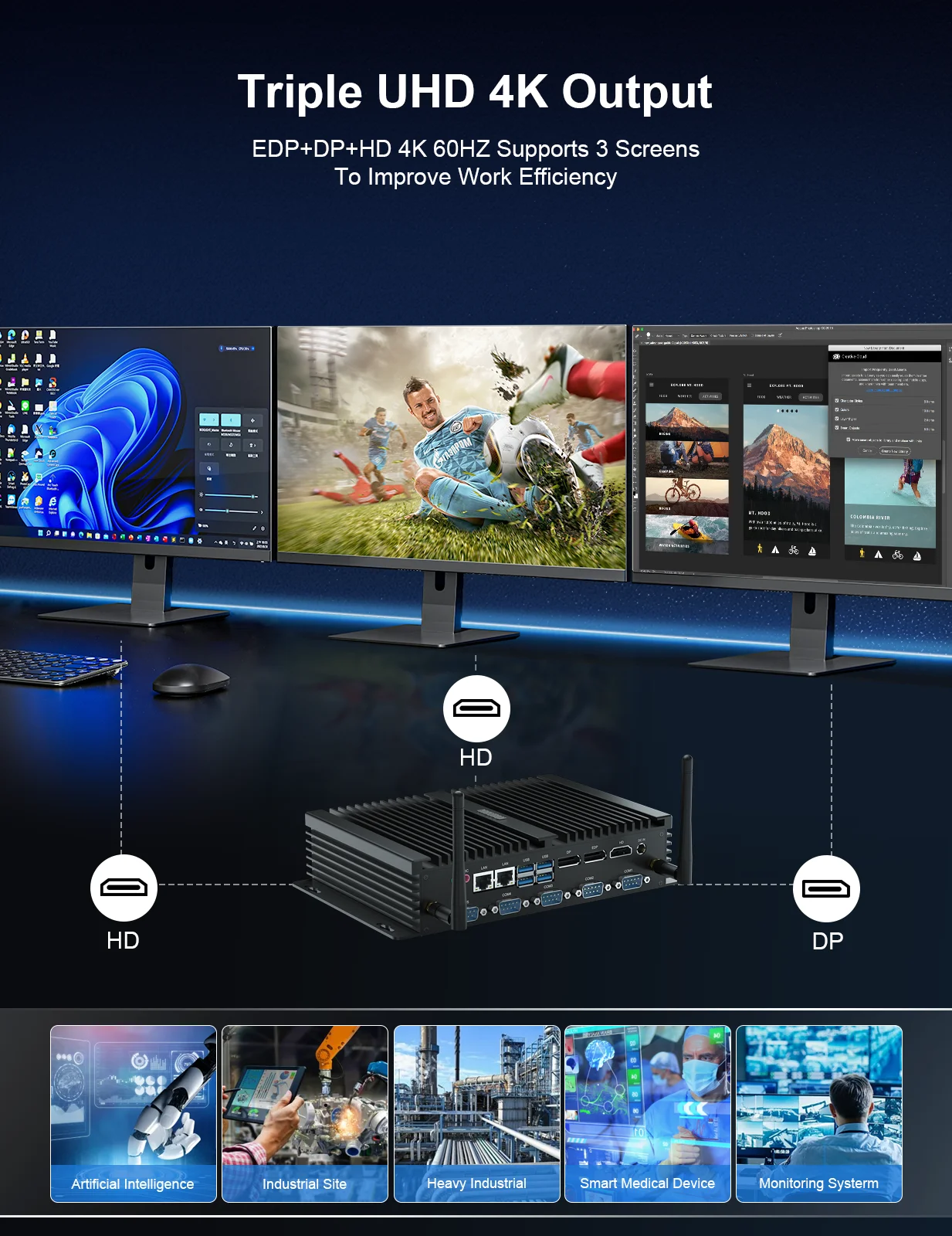

【4K Triple-Screen Display】

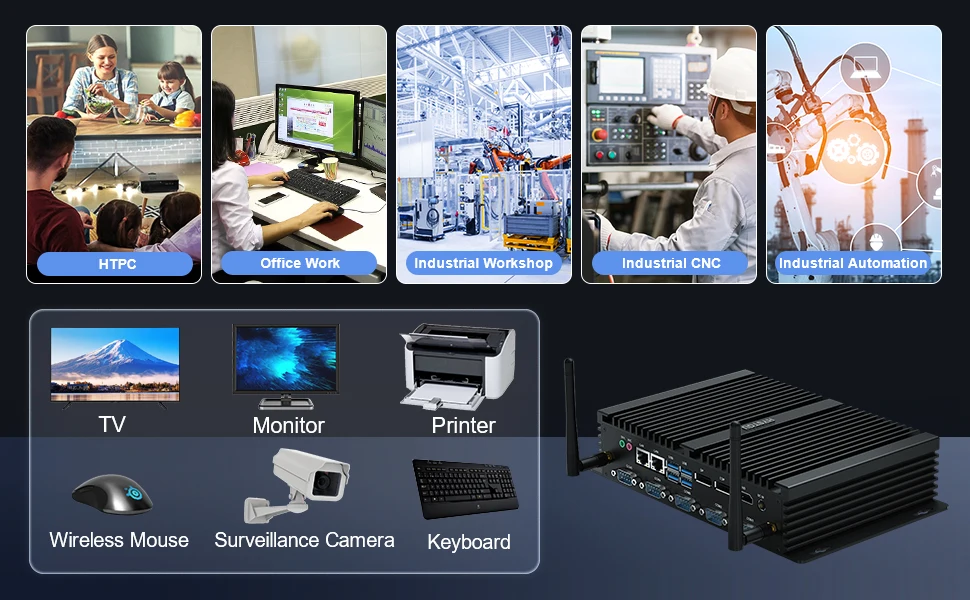

The mini desktop computer is equipped with 4K Intel UHD Graphics 620,use 1*HD-MI+1*EDP+1*DP ports. Ideal for multitasking, home theater, office work, digital security and surveillance, digital signage, media centers, meeting rooms, and more.

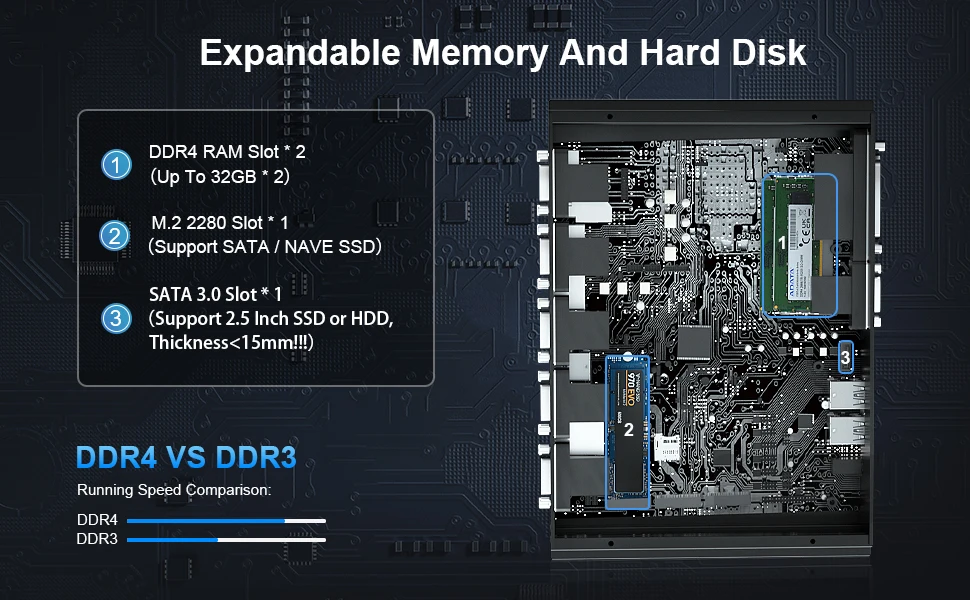

【Extended Storage Design】
This new design fanless industrial pc supports 2*DDR4 SO-DIMM 260 pin Max 64GB RAM. 1*M.2 2280 M KEY PCIE 3.0+1*SATA3.0 Slot for 2.5 inch HDD/SSD.Let you browse the web, chat, watch live video every day, for multitasking, enough to run multiple applications and browser tabs at the same time.
Product Description
Processor | ||||

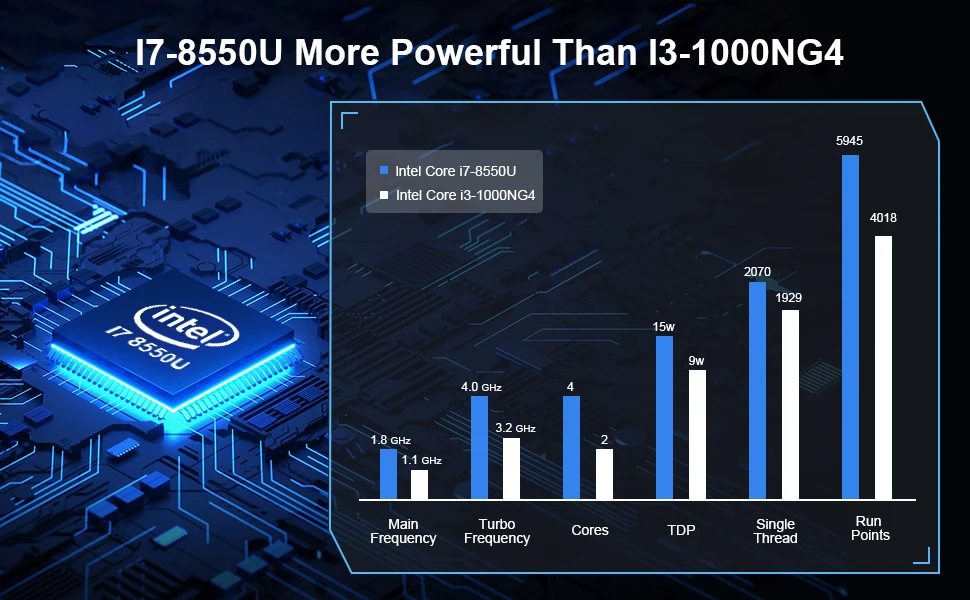

CPU | Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz) Intel Core i7-8550U (8M Cache,4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.00 GHz) | |||
TDP | 15W | |||
CPU Lithography | 14nm | |||
Memory Specifications | ||||
Max Memory Size | 64GB | |||
Memory Types | 2*DDR4 SO-DIMM 260 pin | |||
Memory Channels | Dual Channels | |||
ECC Memory | Don’t support | |||
Storage Specification | ||||
m.2 SSD | 1*M.2 2280 M KEY PCIE3.0 | |||
SATA | 1*SATA3.0 Slot for 2.5 inch HDD/SSD | |||
mSATA | 1*mSATA slot | |||
Graphics | ||||
Processor Graphics | Intel UHD Graphics 620 | |||
HD-MI | 1*HDMI 4096*2160@60Hz(4K) | |||
EDP | 1*EDP 4096*2160@60Hz(4K) | |||
DP | 1*DP 4096*2160@60Hz(4K) | |||
Power Specification | ||||
Power Adapter | DC 12V/6A | |||
Adapter Input | AC 110-240V, 50/60HZ | |||
Consumption | 52W | |||
Auto Power On | Support Auto Power On Function | |||

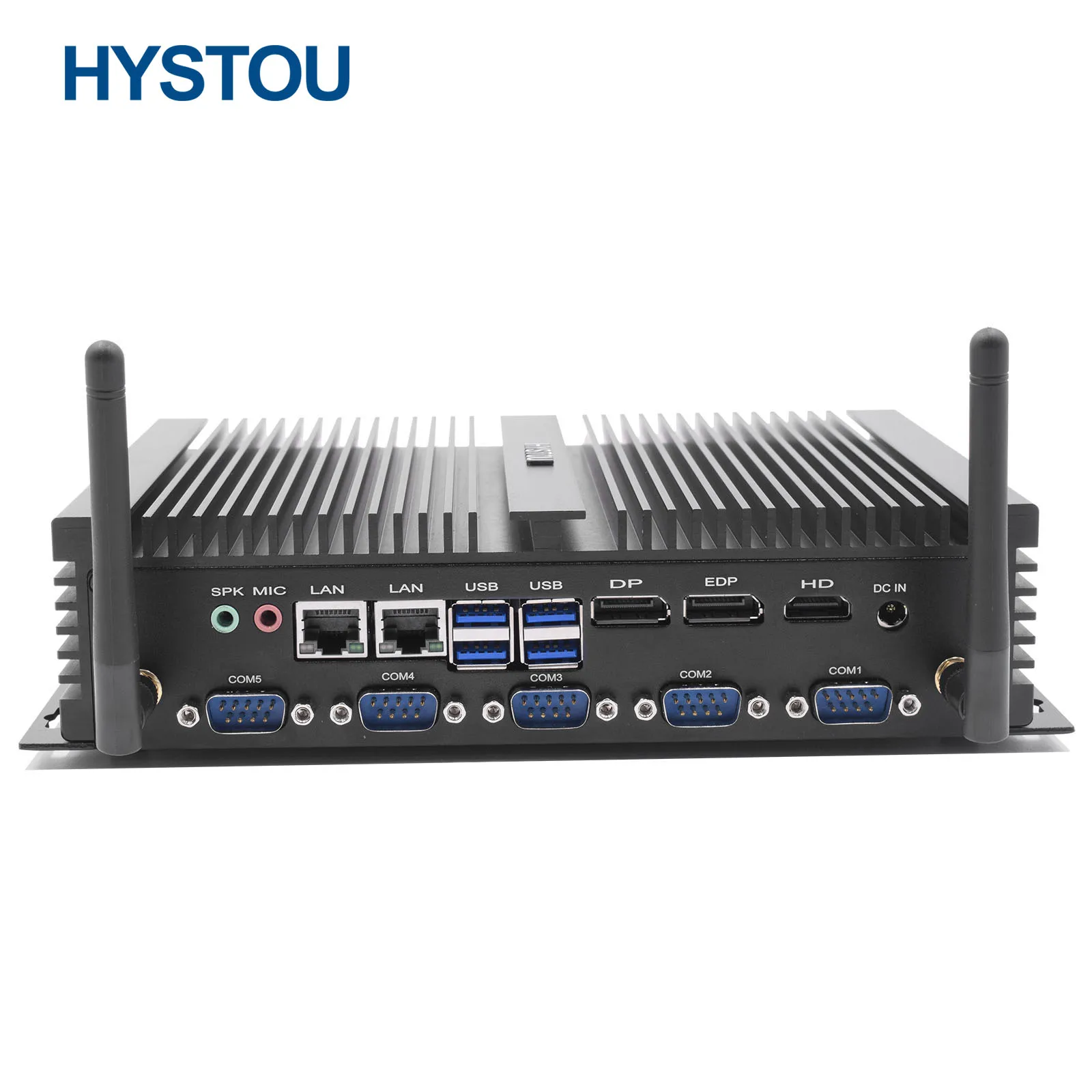

In & Out interfaces | ||||
USB Port | 4*USB 3.0 port,4*USB 2.0 port | |||
Audio | 1*3.5mm MIC in & SPK out | |||
Video | HD-MI 4096*2160@60Hz + EDP 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output | |||
Audio Cards | Realtek ALC 662/897 | |||
Lan Port | 2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211 | |||

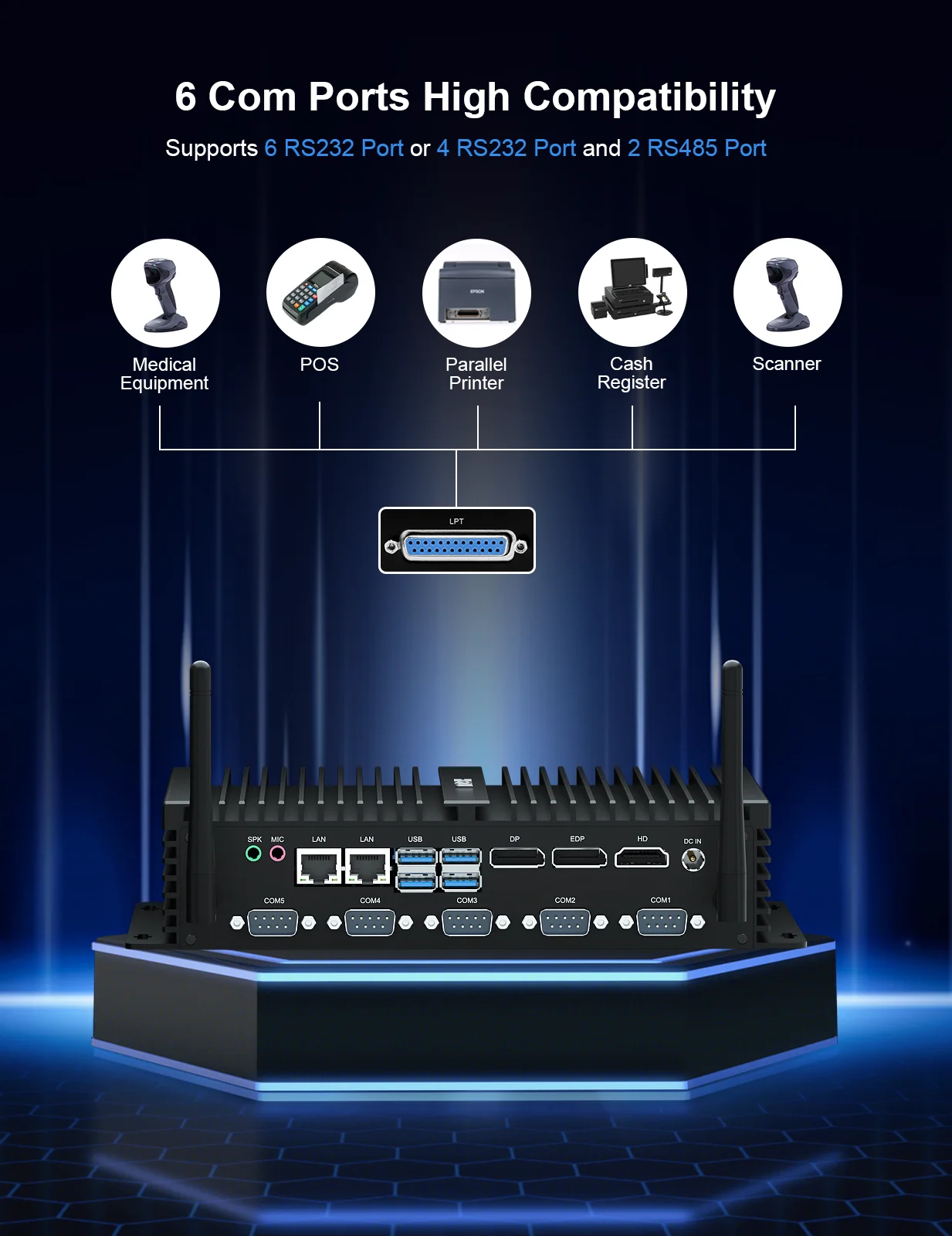

Com Port | 6*RS232 Com port/4*RS232 Com port, 2*RS485 Com port | |||

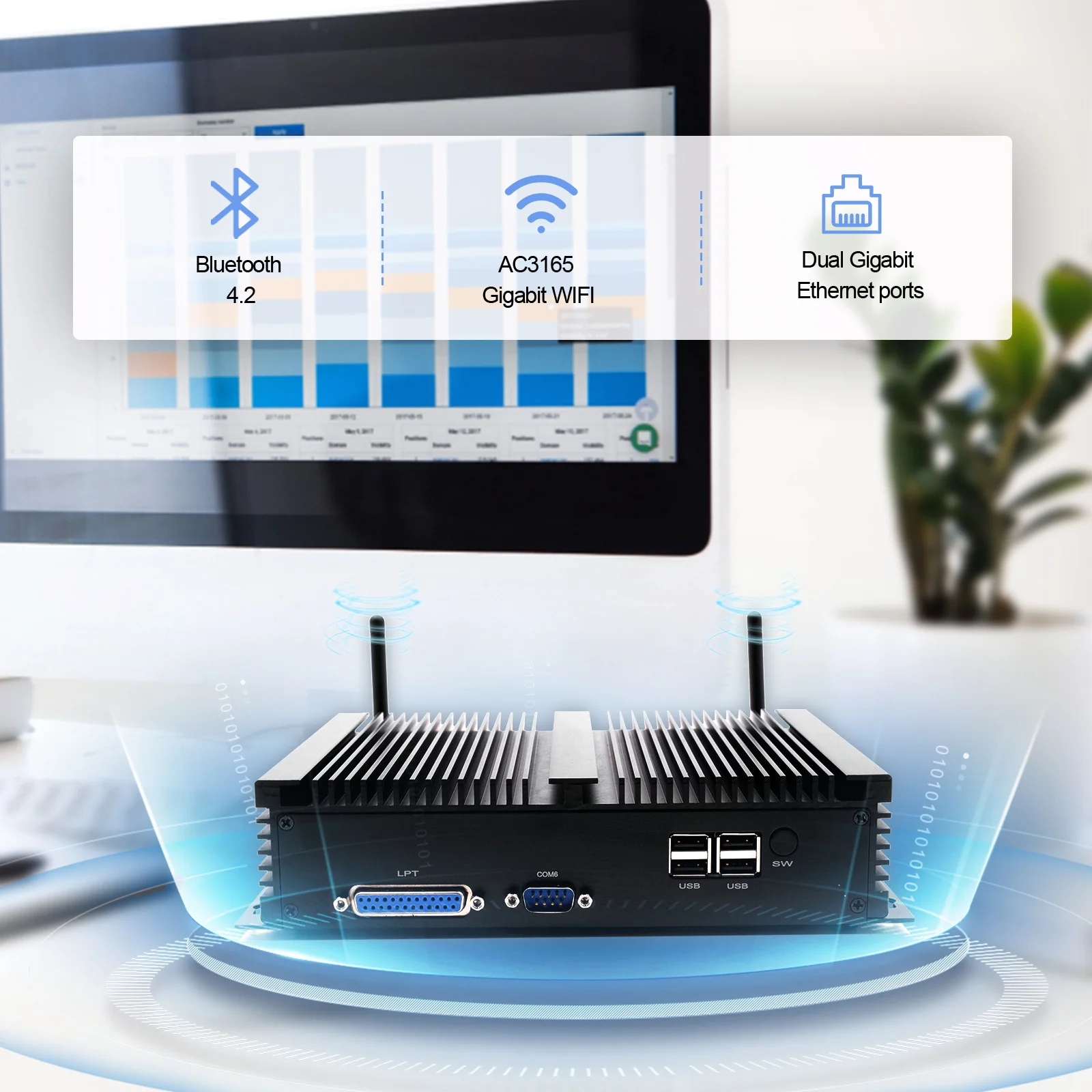

Wi-Fi | Inside Wifi & Bluetooth Combo | |||
System | Support Windows 10/11, Linux | |||
Case Material | Full Brushed Aluminum Alloy | |||
Dimension | PC size 238*182*52mm Package size 320*260*80mm | |||
Weight | Net 1.5kg; Gross 2.2kg | |||
Company Introduction
About us

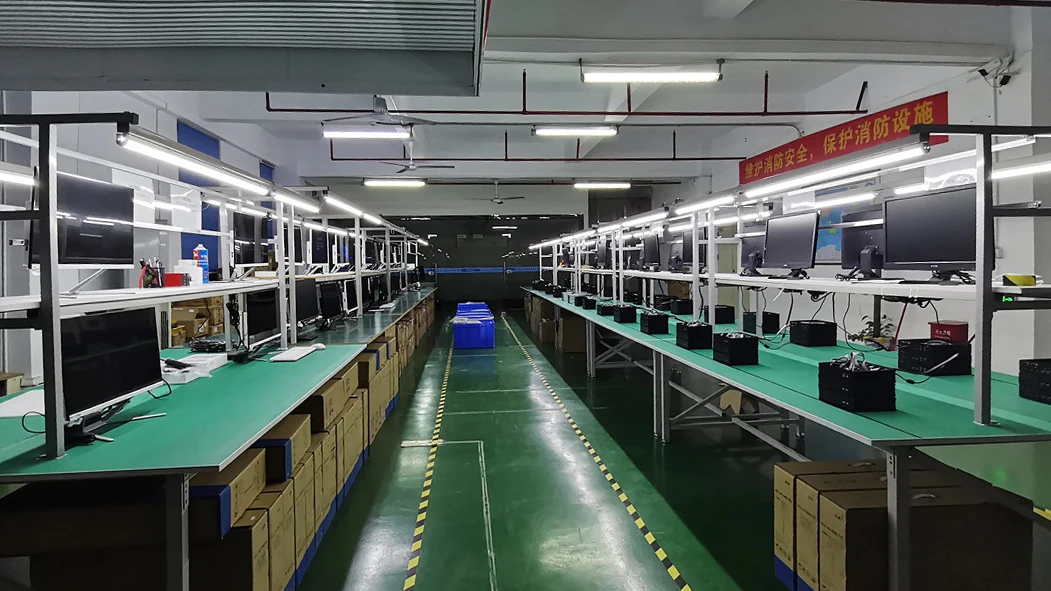

Hystou Technology Co Limited is a reliable manufacturer and exporter of fanless Mini PC, industrial PC, all in one PC and industrial panel PC. Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market. In order to supply quality products and excellent services, our company has got approvable reports and certificates of CE, FCC, RoHS, SGS, ISO9001 and so on. Our goal is "Innovation First, Quality First, Customer First, Service First".
Packing&Shipping
Product Packing
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
