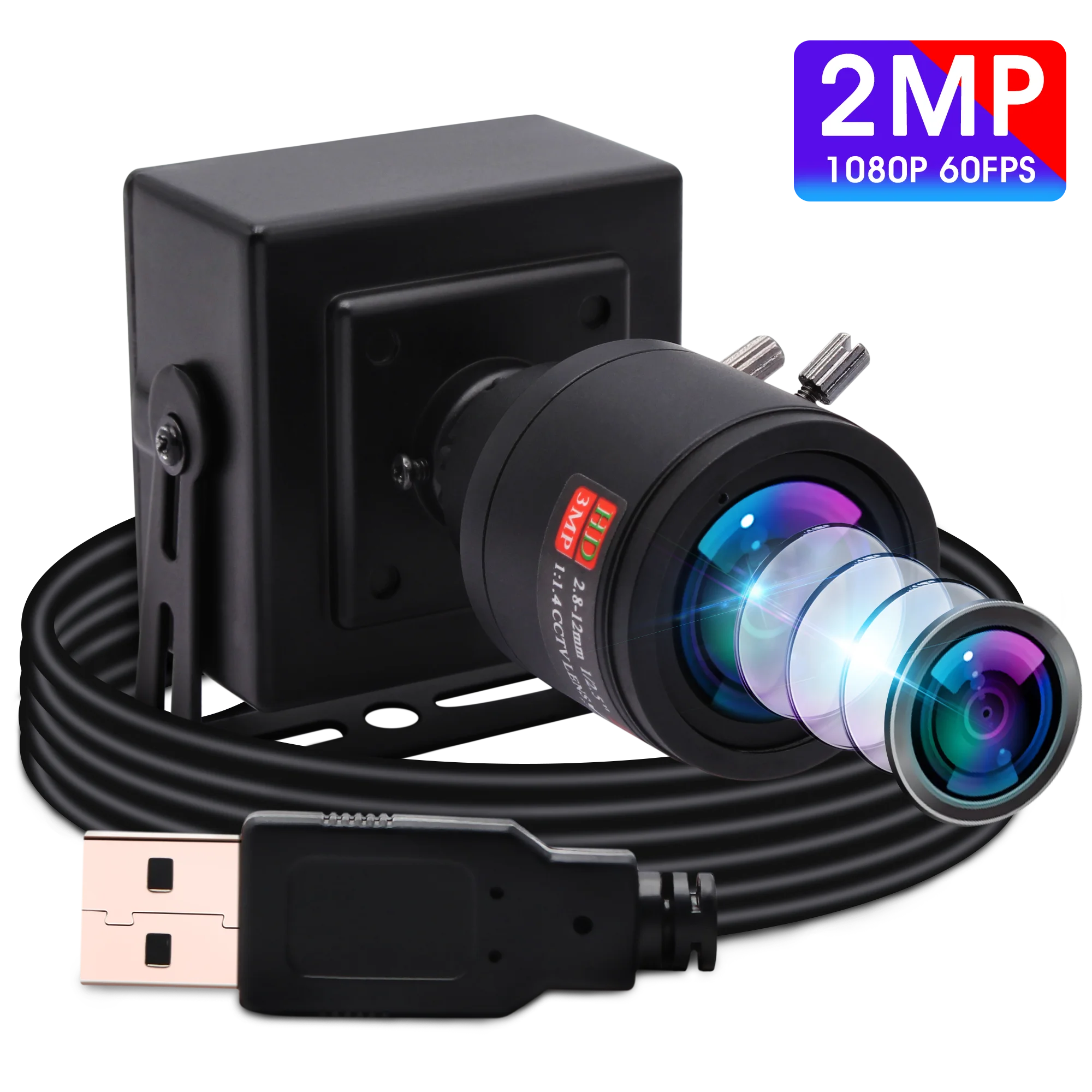

ELP 1080P 60fps PC Webcam 260fps Zoom 4x CMOS OV4689 Color PC HD Mini USB Digital Video Camera With 2.8 12mm Varifocal Lens
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600826745510):
Product Overview
Description

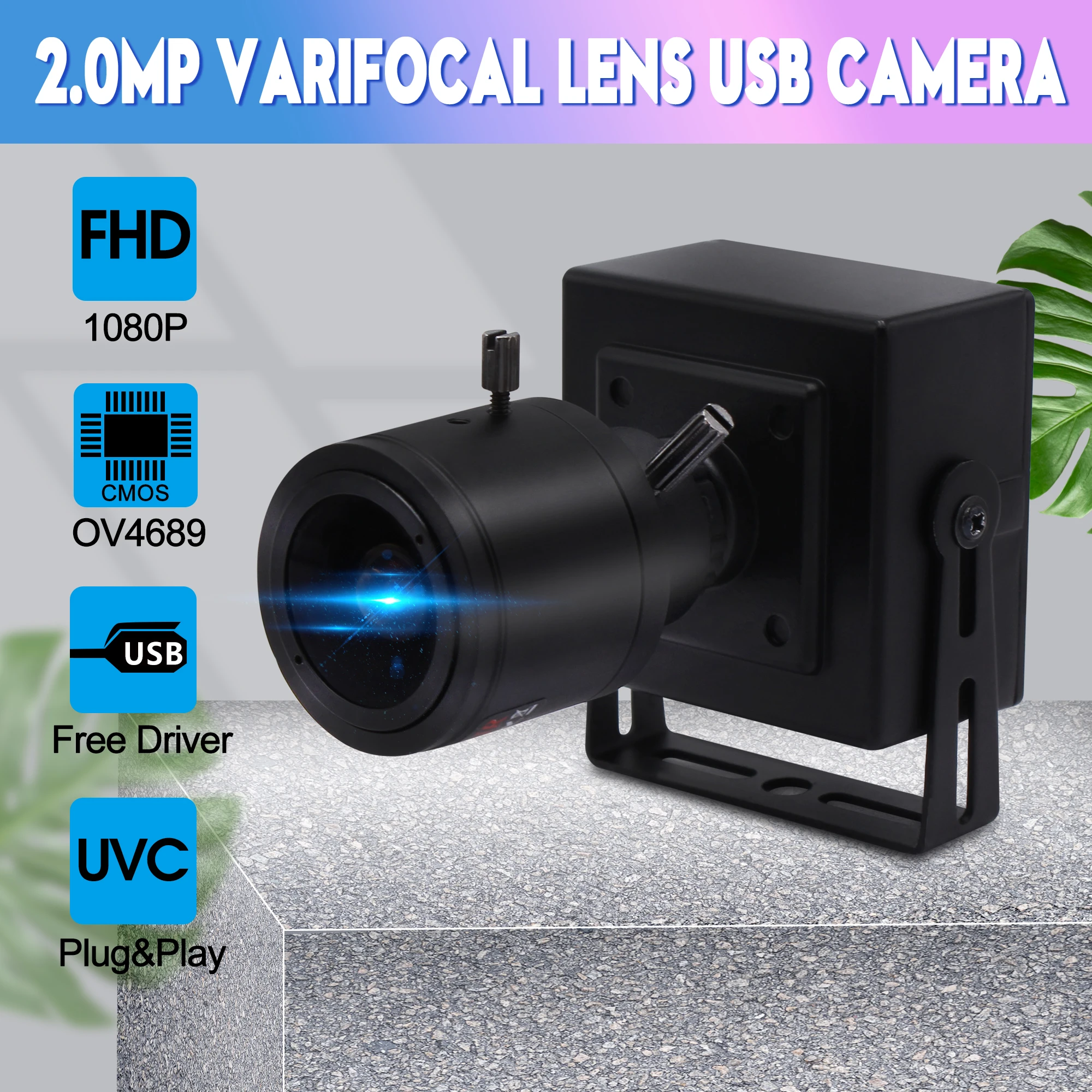

USB Camera , model: ELP-USBFHD08S-BFV
High Frame Rate 260fps Webcam 2MP 1080P USB Camera with OV4689 Sensor Webcam Mini USB Camera Manual focus Camera Zoom 2.8-12mm varifocal lens High Speed USB2.0 Webcam
Products Description
Features
*1080P 60fps HD USB2.0 Camera,
*Equiped with M12 Mount varifocal lens zoom manual focus
*Can drive 60fps@1080P and 120fps@720p, 260fps at 640x360P or Support IR Cut
*CMOS OV4689 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
*Equiped with M12 Mount varifocal lens zoom manual focus
*Can drive 60fps@1080P and 120fps@720p, 260fps at 640x360P or Support IR Cut
*CMOS OV4689 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification
Model | ELP-USBFHD08S-BFV |
Sensor | OV4689 |
Lens Size | 1/3 inch |
Pixel Size | 2.0µm X 2.0µm |
image area | 5440 µm x 3072 µm |
Max. Resolution | 1280(H)X720(V) |
Compression format | MJPEG / YUV2(YUYV) |
Resolution & frame | 1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps |
S/N Ratio | 38.3dB |
Dynamic Range | 64.6dB |
Sensitivity | 1900mV/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | 2.8-12mm lens |
Power supply | USB BUS POWER |
Operating Voltage | DC5V |
Working current | 150mA~185mA |
Working temperature | 0~70℃ |
Board size /Weight | 38*38mm |
Cable | Standard 3M |
Operating system request | Win XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Details Images

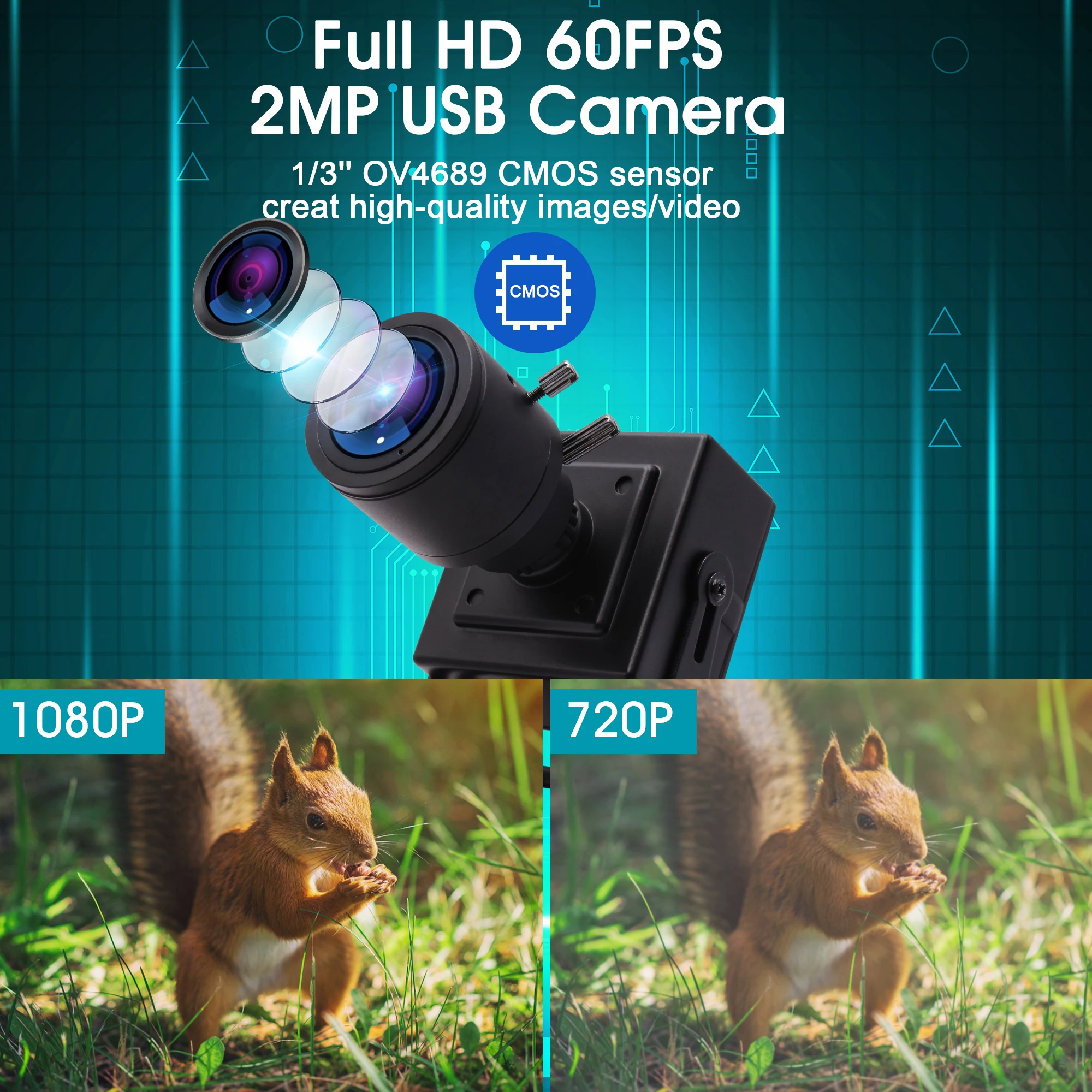

High Frame Rate 260pfs Webcam
High speed 2 MP webcam with
High speed 2 MP webcam with
high frame rate 640*360MJPE@260fps.;
1280*720 MJPEG@120fps;
1920*1080MJPEG@60fps.

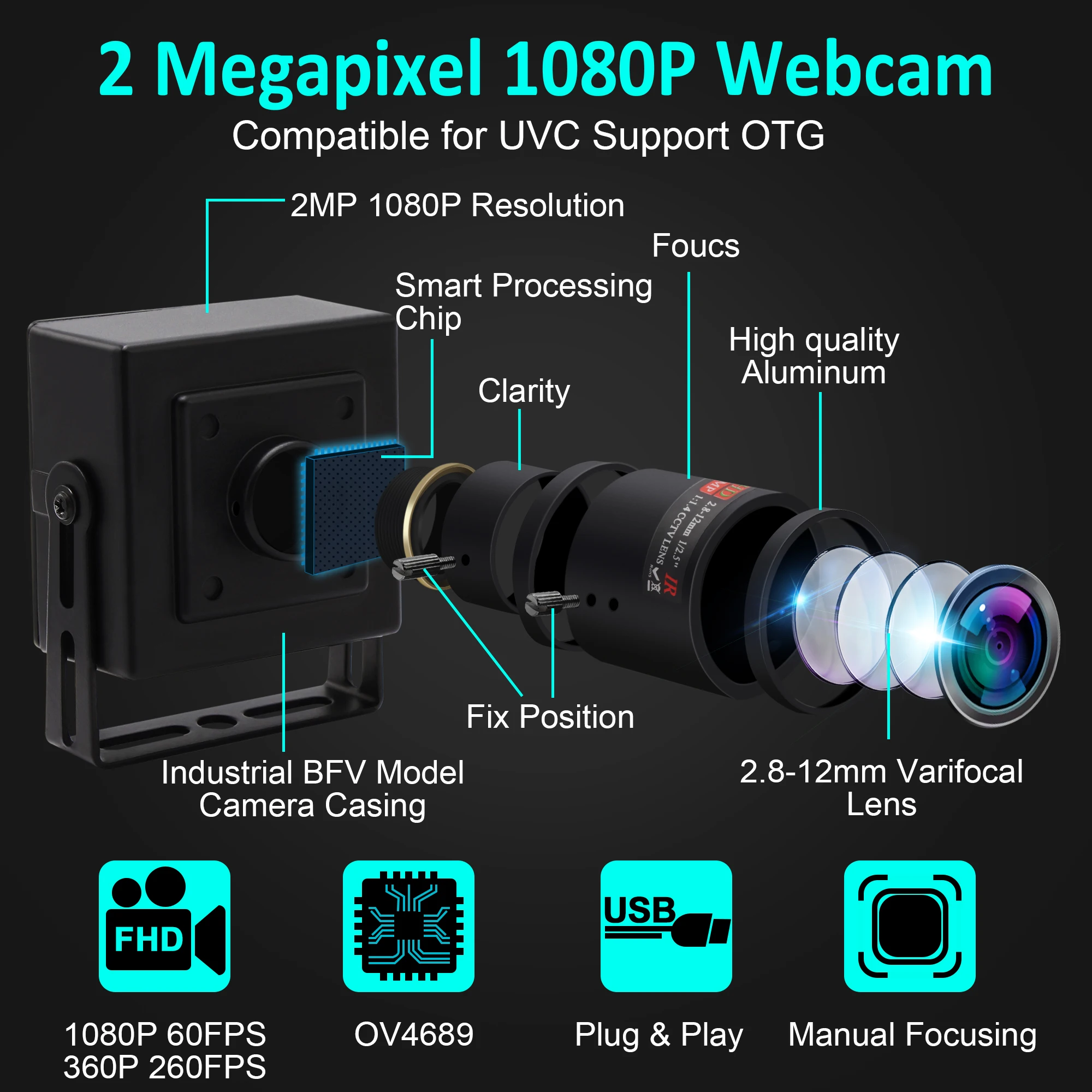

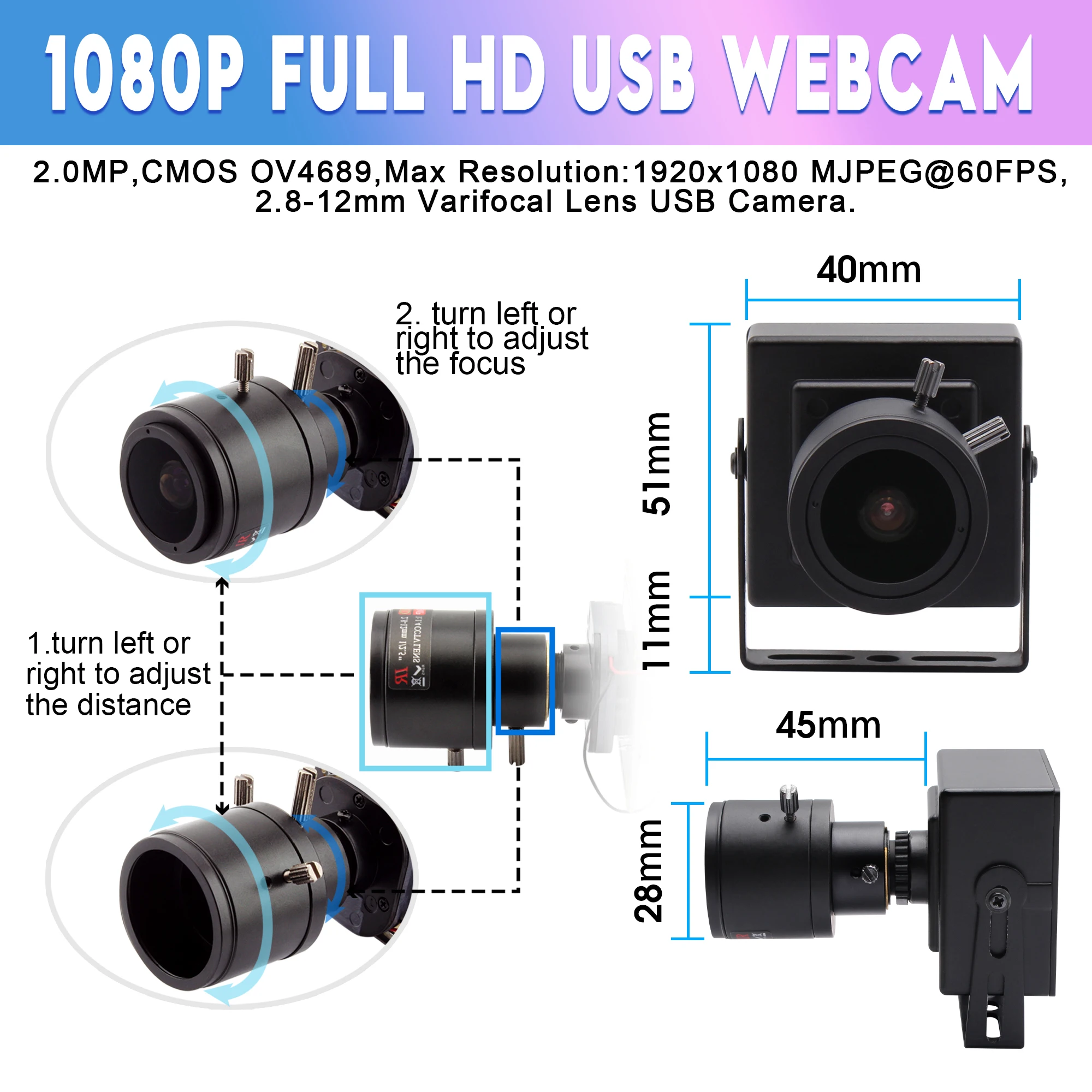

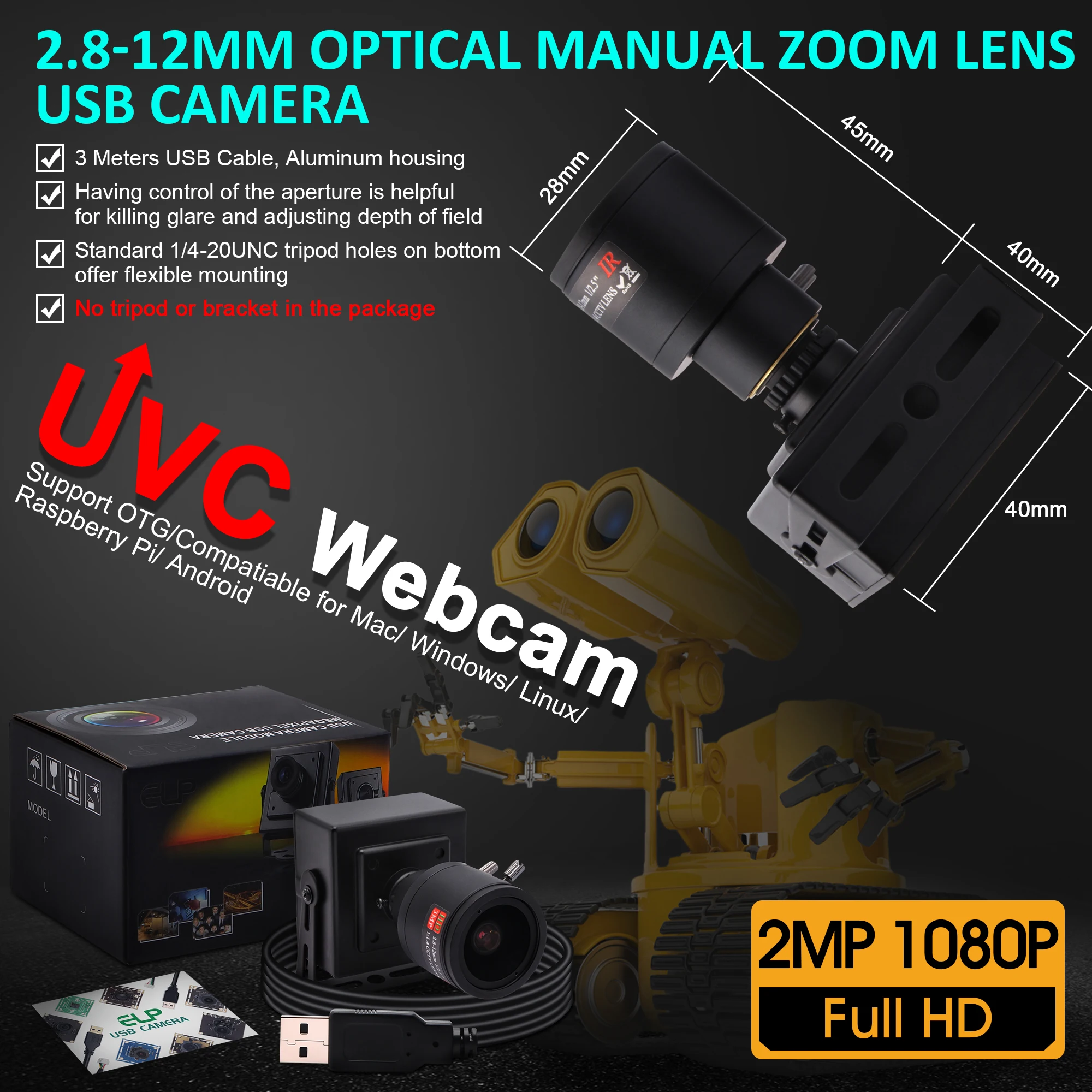

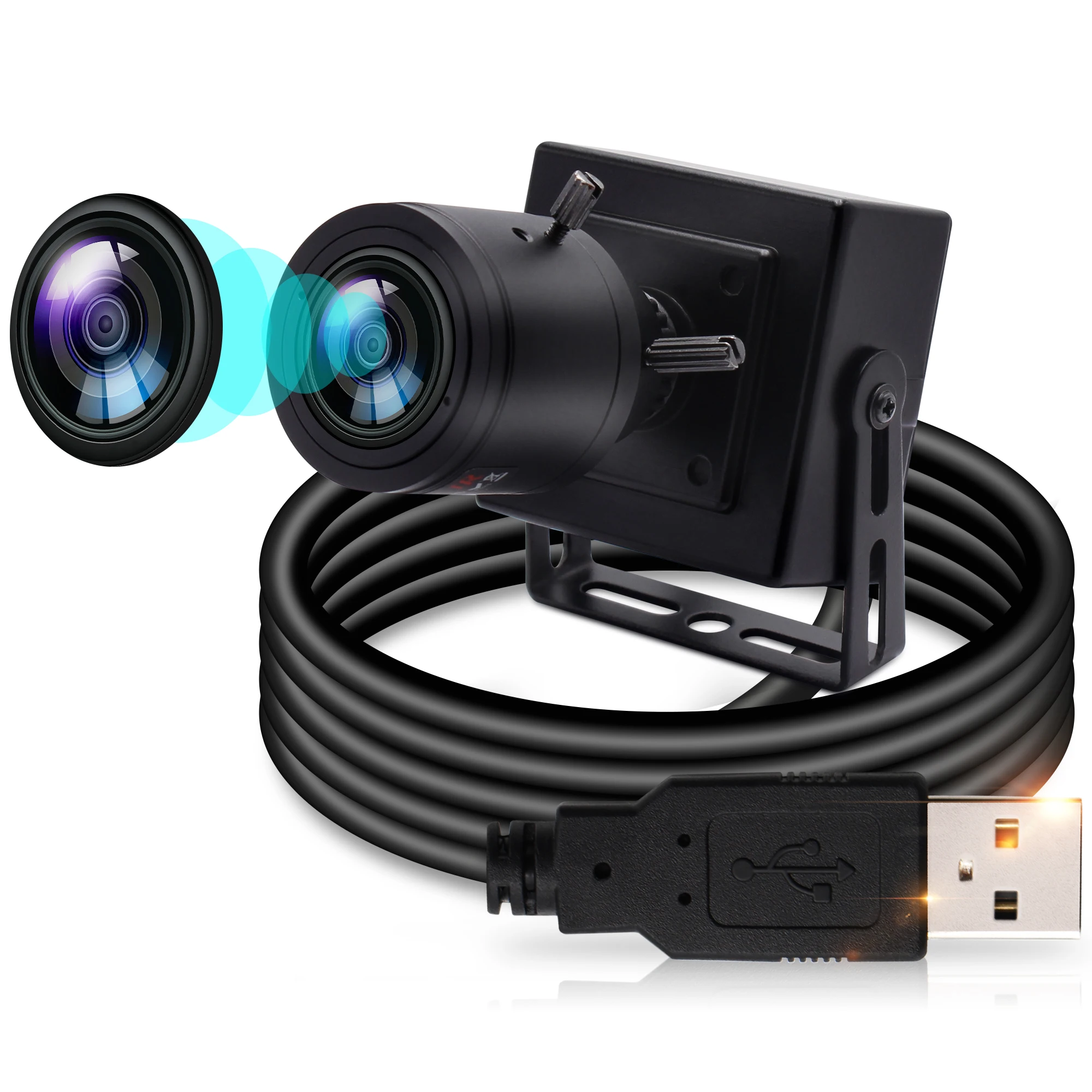

Zoom Webcam 2.8-12mm varifocal lens
High quality HD 2.8-12mm varifocal lens,manual focus ,clarity, aperture adjustabel . M12 Mount lens interchangeable.
Standard 3m USB2.0 Cable supply .
PLUG AND PLAY ,Driverless camera
This webcam is literally plug and play. It can work with most video software in various operation systems .Easy to use,easy to install.

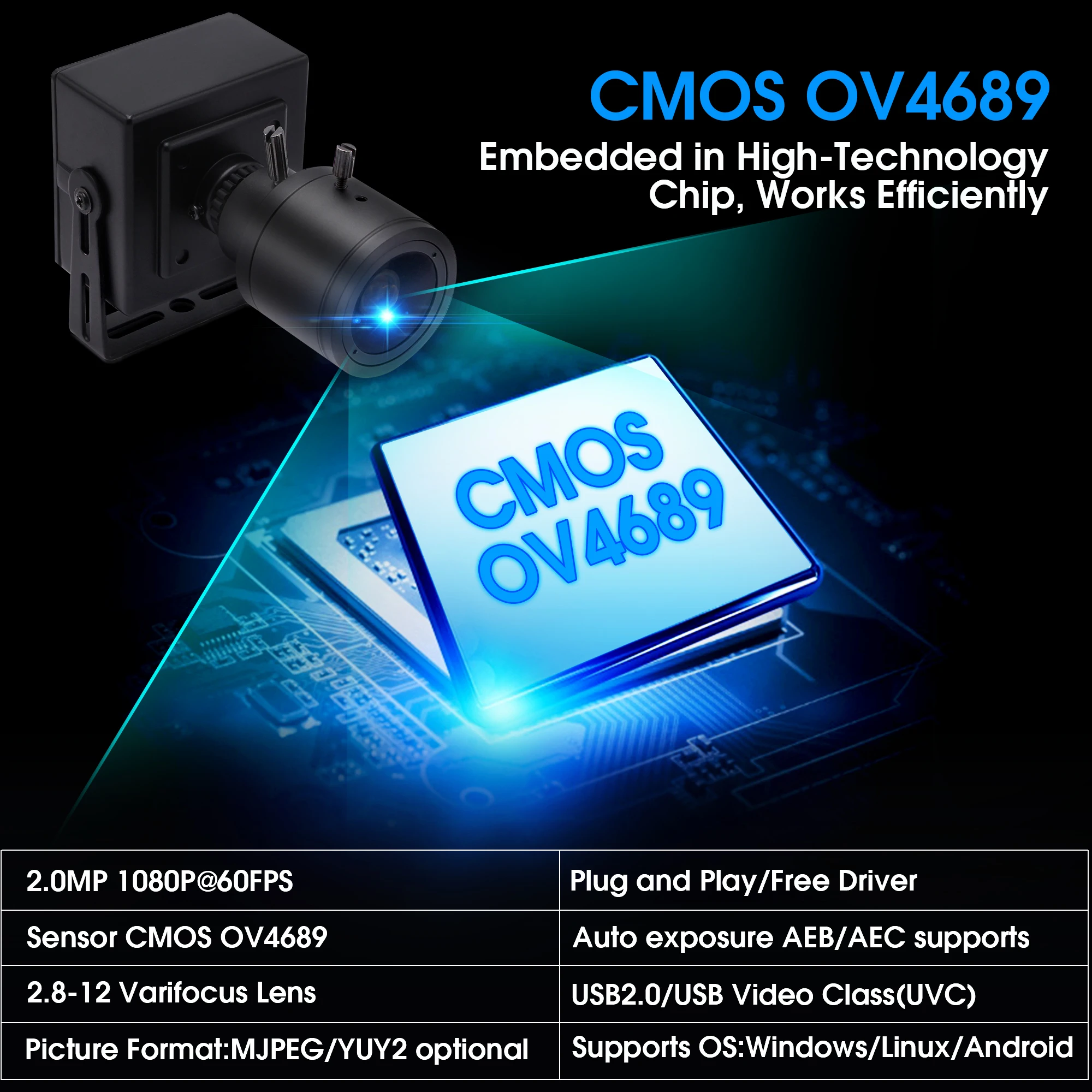

* Sensor:1/3 inch OV4689 Sensor
* Full HD Webcam 2MP Camera
Max resolution 1920x 1080P
* M12 Mount fixed focus lens,
* Default 3 meter USB cable in package
* Default 3 meter USB cable in package
* USB2.0 interface ,plug play
* Free Drive Protocol: Camera with UVC
* Auto exposure AEC Support/Auto white blance AEB Support
* Free Drive Protocol: Camera with UVC
* Auto exposure AEC Support/Auto white blance AEB Support
* Effective Pixels:
640*360MJPE@260fps.;
1280*720 MJPEG@120fps;
1920*1080MJPEG@60fps.
Company Introduction
Shenzhen Ailipu Technology Co., Ltd
Has its own brand ELP , after 16 years developing ,Ailipu now owns its own designing team ,Production Team , and also professional sales team .
We believe details and quality is essential to survival of the enterprose-resistant ,we believe Together Everyone Achieves More .
We look forward to cooperation with your esteemed company and achieve win-win together .
Our Services & Strength
Professional Team
We have a professional design team to give you the best solution
OEM& ODM
We support OEM and ODM service ,can better satisfy the customers
POWERFUL FACTORY
We have advanced production equipment , professional production line ,excellent QC team.
QUALITY SERVICE
So we provide not only goods after service ,but also best service affirmation to customer at any time .
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual
focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual
focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
