DN50 DN100 2 inch 150LB PN16 Wafer Type Pneumatic Actuators Control Butterfly Valve
- Category: >>>
- Supplier: Shanghai Bomo Electromechanical Co. Ltd.Shanghai Ltd.
Share on (1600826891532):
Product Overview
Description
Product Description
Brand:AULANS | Product Name: pneumatic wafer butterfly valve | |||||||

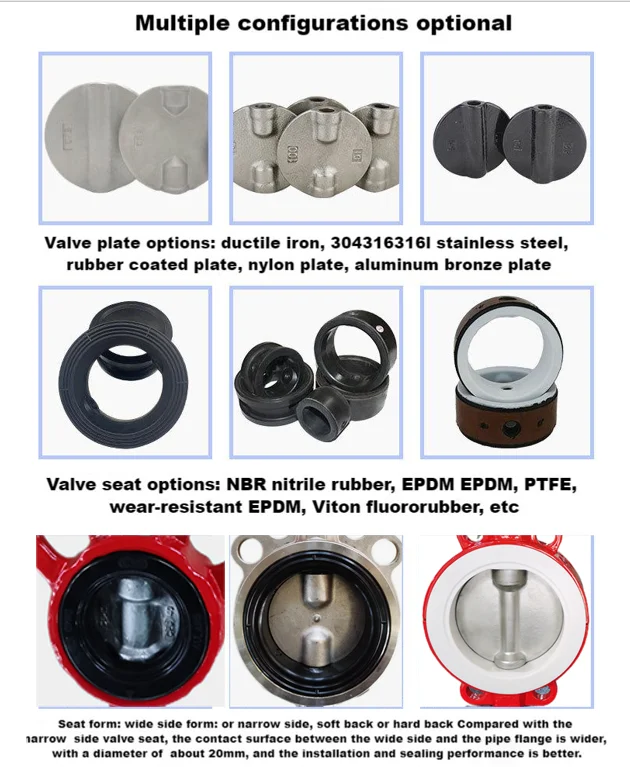

Valve body material: QT450 (304 / 316L, WCB and other materials are optional) | ||||||||
Sealing material: EPDM (PTFE, FKM, NBR) material is optional | ||||||||
Connection method: clamp, flange, clamp | ||||||||
Driving mode: manual, pneumatic, electric | ||||||||
Accessories: solenoid valve, limit switch, filter pressure reducing valve | ||||||||
Application fields: water treatment, chemical industry, petroleum, etc | ||||||||

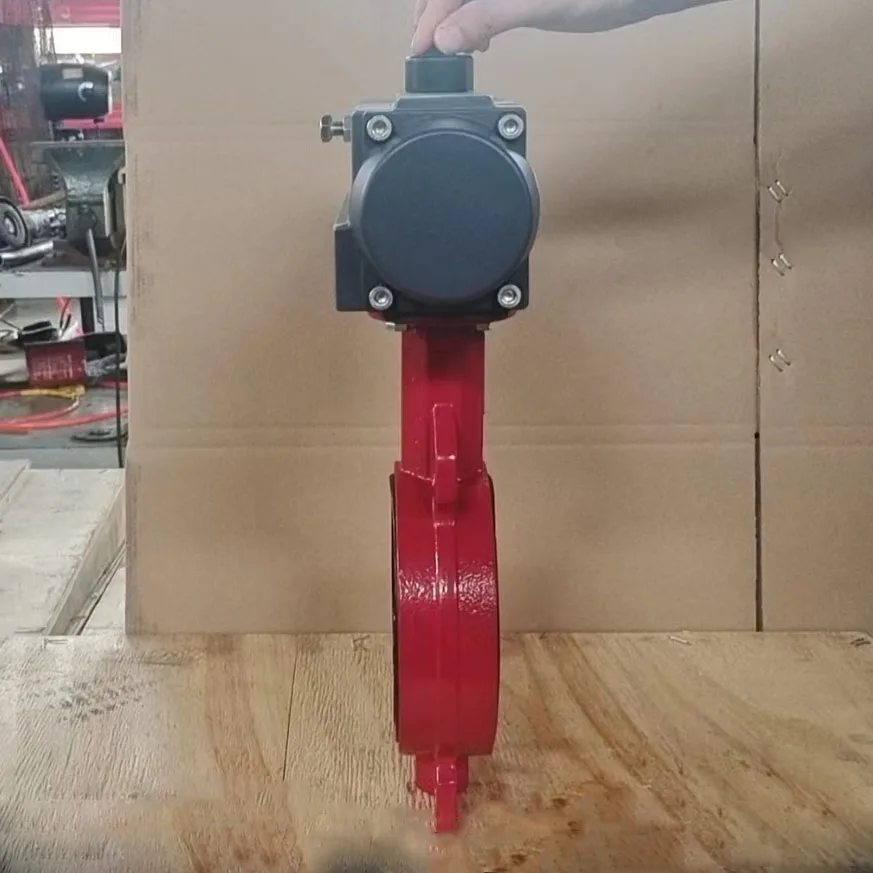

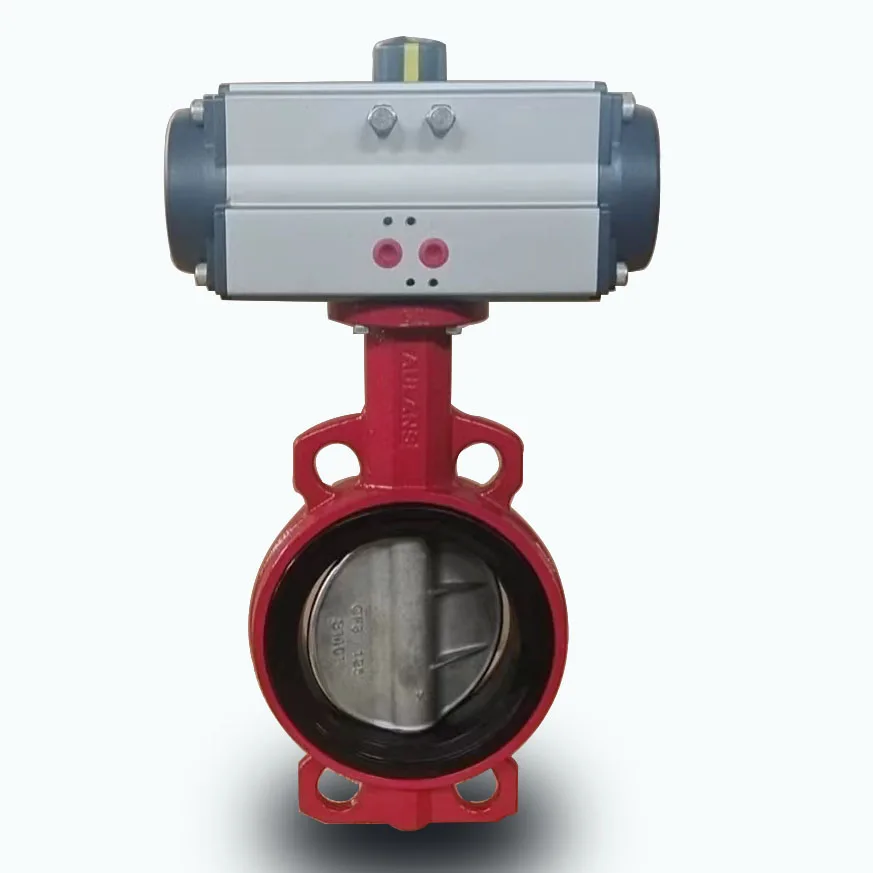

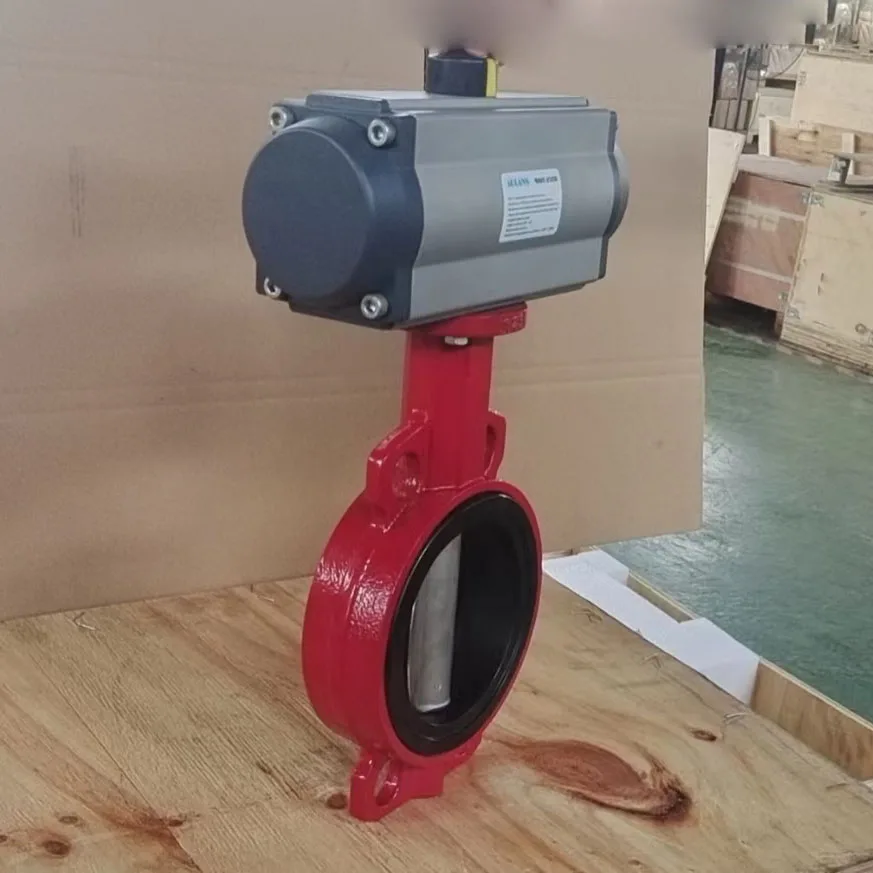

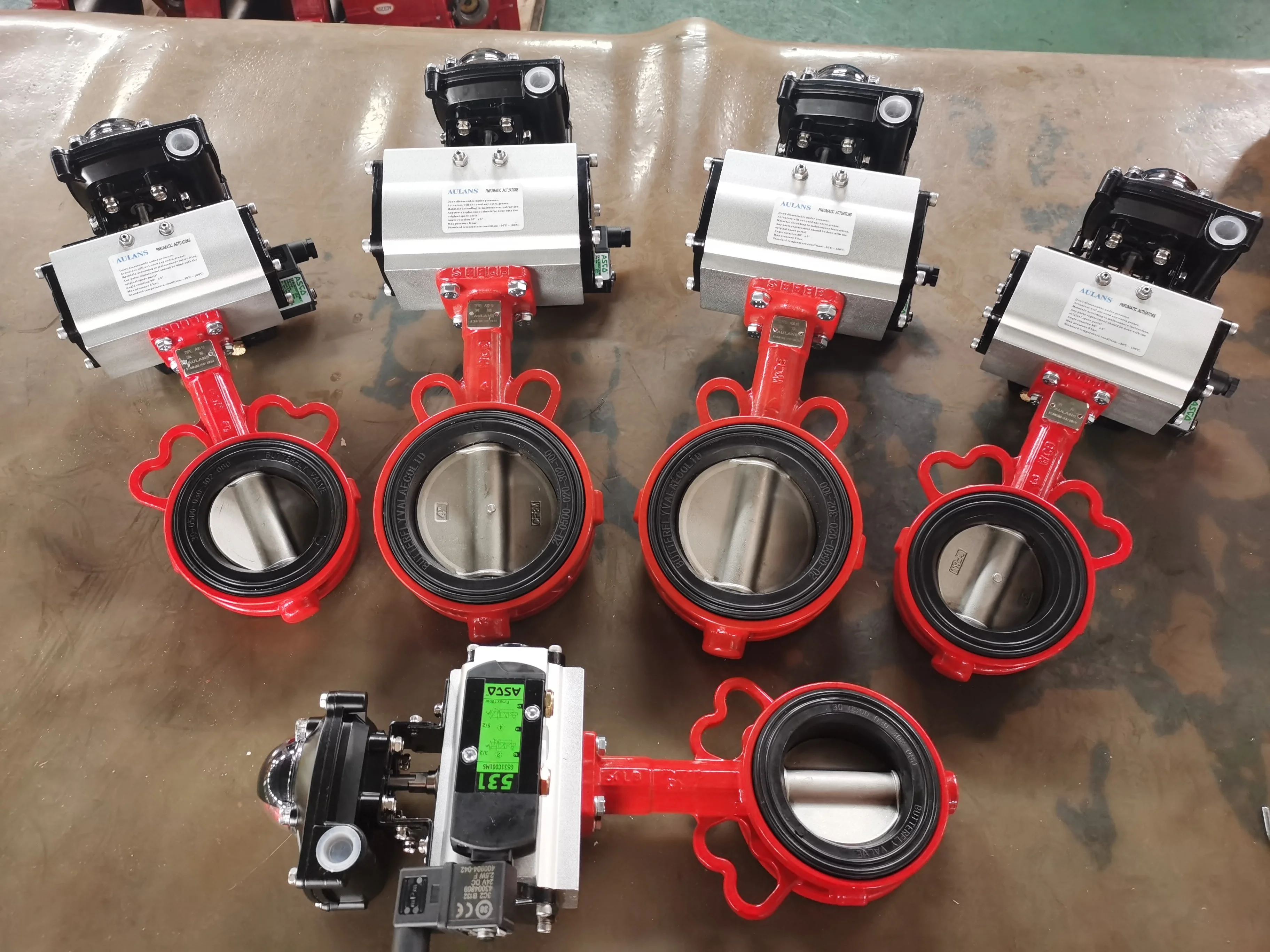

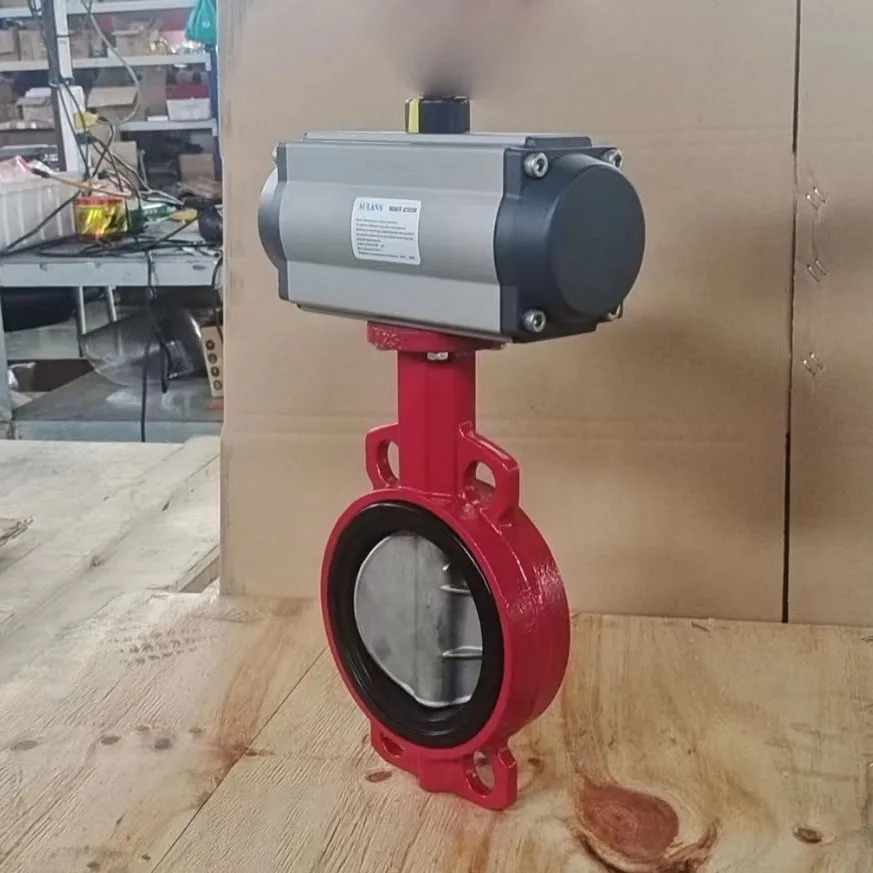

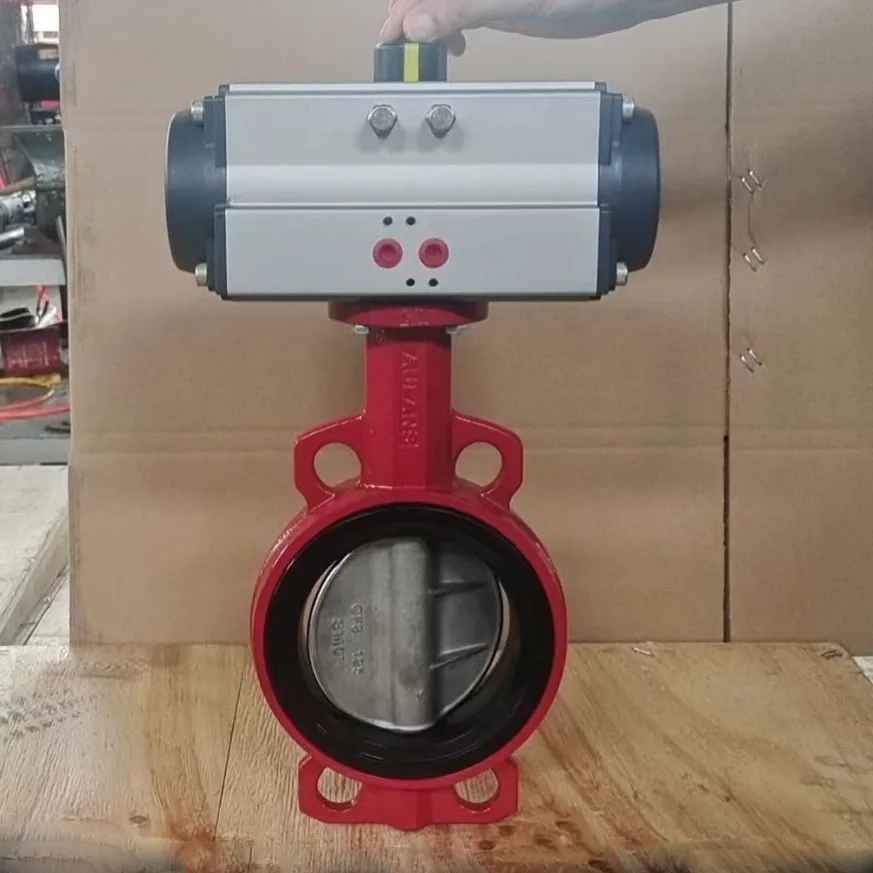

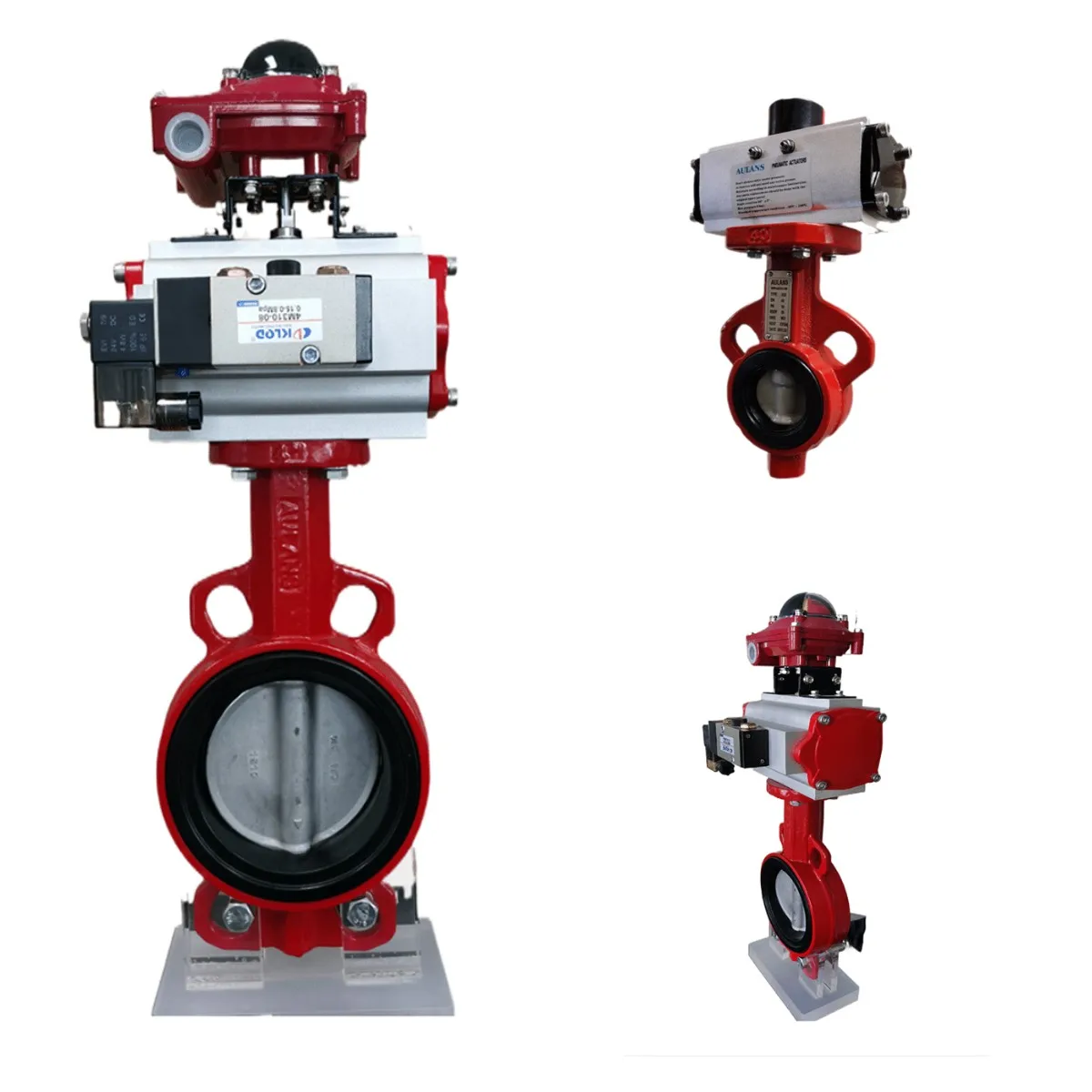

Product Photograph

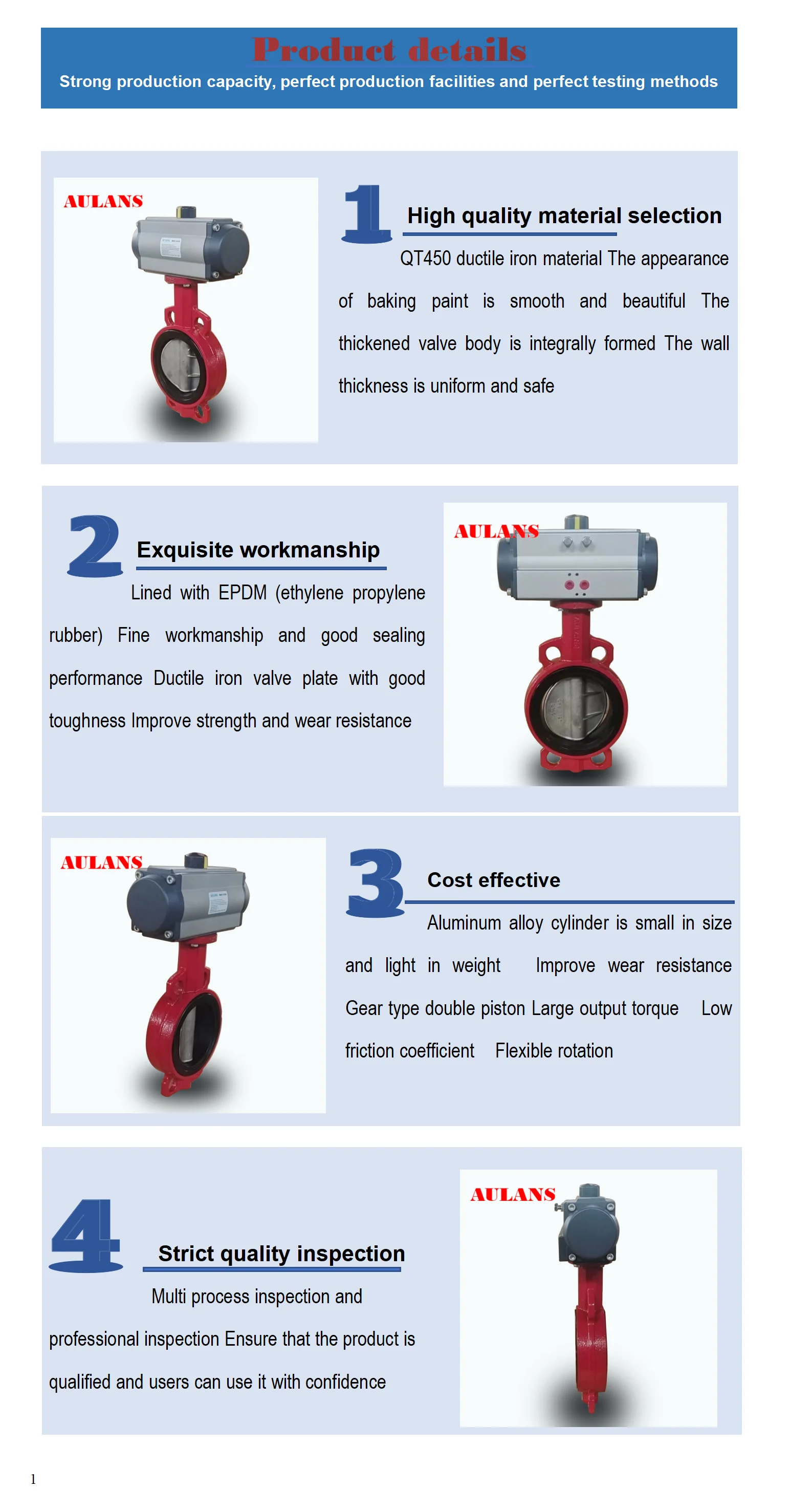

Product features
1. The pneumatic butterfly valve body only needs the minimum installation space, and the task principle is easy and reliable.
2. Pneumatic butterfly valve has great flow performance, and the pressure loss through the valve is very small.
3. Pneumatic butterfly valve has obvious economy, especially for larger diameter butterfly valve.
4. The valve body of pneumatic butterfly valve is matched with standard raised face pipe flange.
5. Pneumatic butterfly valve has approximately equal percentage flow characteristics, which can be used for regulation or on-off control.
6. The special seat seal of pneumatic butterfly valve is suitable for liquid and gas with cleaner medium.
2. Pneumatic butterfly valve has great flow performance, and the pressure loss through the valve is very small.
3. Pneumatic butterfly valve has obvious economy, especially for larger diameter butterfly valve.
4. The valve body of pneumatic butterfly valve is matched with standard raised face pipe flange.
5. Pneumatic butterfly valve has approximately equal percentage flow characteristics, which can be used for regulation or on-off control.
6. The special seat seal of pneumatic butterfly valve is suitable for liquid and gas with cleaner medium.
Pneumatic actuator
New GTD series or ATD series pneumatic actuators are used, which are double acting and single acting (spring return), gear transmission, safe and reliable; The large diameter valve adopts AW series pneumatic actuator fork drive, with reasonable structure and large output torque, including double acting and single acting.
1. Gear type double piston, large output torque and small volume.
2. The cylinder is made of aluminum, which is light in weight and beautiful in appearance.
3. Manual operation mechanism can be installed at the top and bottom.
4. Rack type connection can adjust the opening angle and rated flow.
5. The actuator can choose live signal feedback indication and various accessories to realize automatic operation.
6. Is05211 standard connection provides convenience for product installation and replacement.
7. The adjustable pitch screws at both ends can make the standard products have an adjustable range of ± 4 ° between 0 ° and 90 ° to ensure the synchronous accuracy with the valve.
1. Gear type double piston, large output torque and small volume.
2. The cylinder is made of aluminum, which is light in weight and beautiful in appearance.
3. Manual operation mechanism can be installed at the top and bottom.
4. Rack type connection can adjust the opening angle and rated flow.
5. The actuator can choose live signal feedback indication and various accessories to realize automatic operation.
6. Is05211 standard connection provides convenience for product installation and replacement.
7. The adjustable pitch screws at both ends can make the standard products have an adjustable range of ± 4 ° between 0 ° and 90 ° to ensure the synchronous accuracy with the valve.
Attachment options
The following accessories can be selected according to different controls and requirements:
Annunciator: also known as limit switch, remote feedback switch signal (optional explosion-proof).
Solenoid valve: double acting two position five way valve, single acting two position three-way valve (explosion-proof option).
Triplet: it can stabilize the pressure of the air source, filter, and add lubricating oil to the cylinder.
Handwheel mechanism: turn the handwheel mechanism to manually open and close the valve.
Electric positioner: input 4 ~ 20mA signal to realize the valve regulation function.
Annunciator: also known as limit switch, remote feedback switch signal (optional explosion-proof).
Solenoid valve: double acting two position five way valve, single acting two position three-way valve (explosion-proof option).
Triplet: it can stabilize the pressure of the air source, filter, and add lubricating oil to the cylinder.
Handwheel mechanism: turn the handwheel mechanism to manually open and close the valve.
Electric positioner: input 4 ~ 20mA signal to realize the valve regulation function.
Order description
1. Pneumatic actuator type: double acting, single acting
2. Medium type, temperature, pressure
3. Required accessories: solenoid valve, positioner, signal feedback, air source processing triplet, manual mechanism
1. Pneumatic actuator type: double acting, single acting
2. Medium type, temperature, pressure
3. Required accessories: solenoid valve, positioner, signal feedback, air source processing triplet, manual mechanism

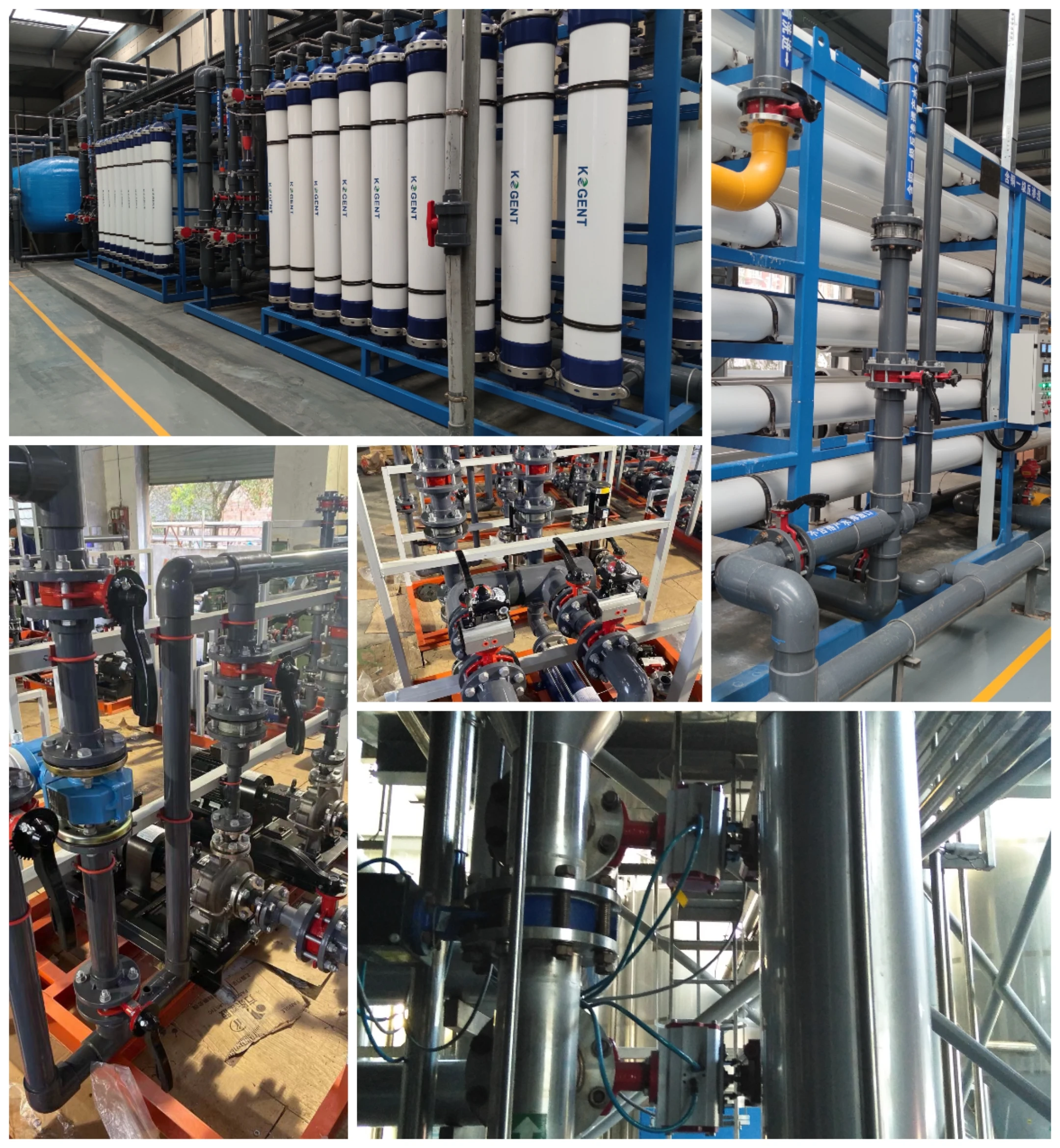

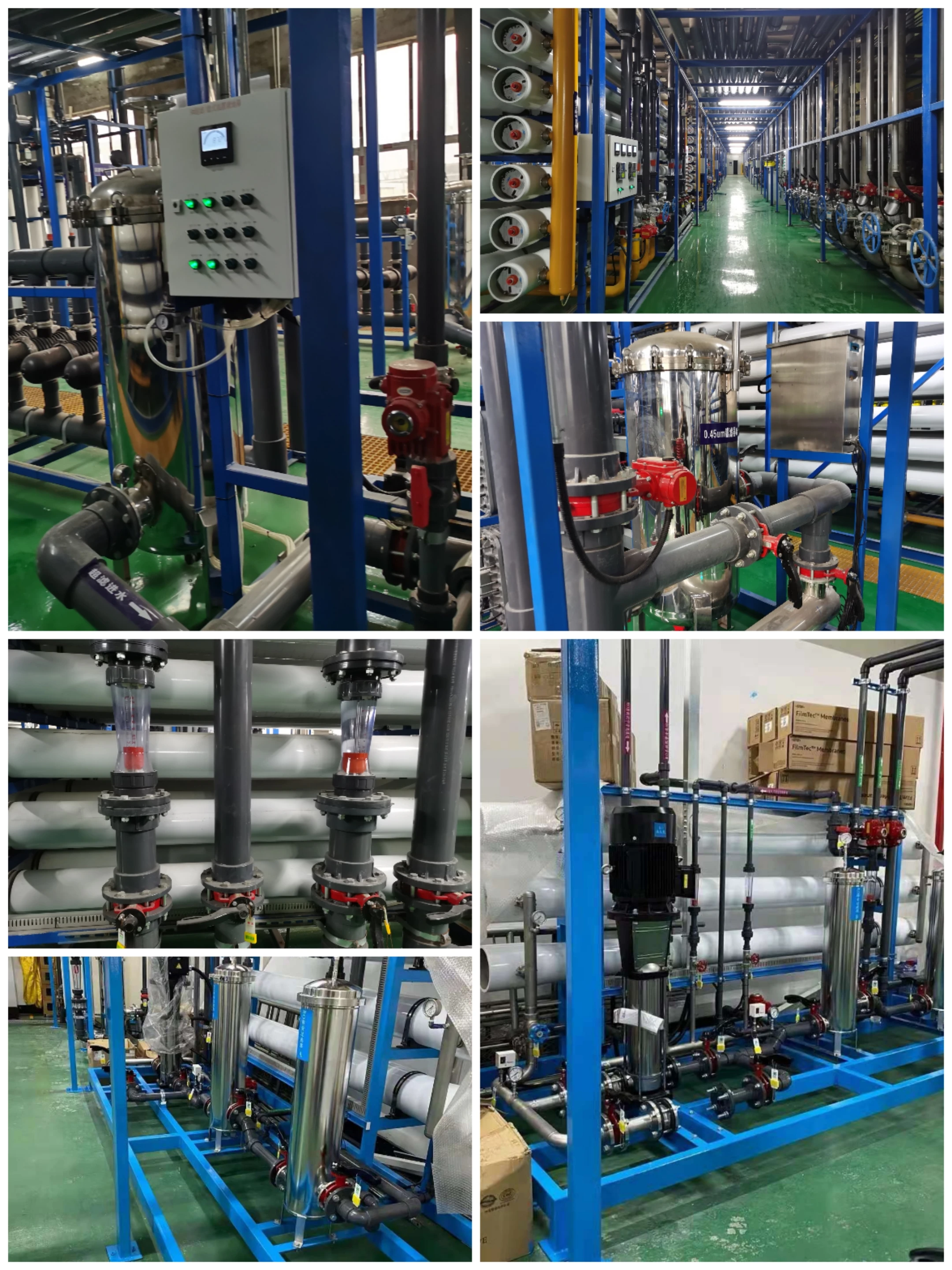

Application
Company profile
Packaging and delivery
FAQ
Q1. Can I have a sample order for valve?
A: Yes, welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 15-20 days to arrive.Airline shipping also optional.
Q3. How to proceed an order for valve?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4. The logo and the color can be customized?
A. Yes, we welcome you to sample custom.
Q5. Any other good service your company can provide?
A. Yes,we can provide good after-sale and fast delivery.
