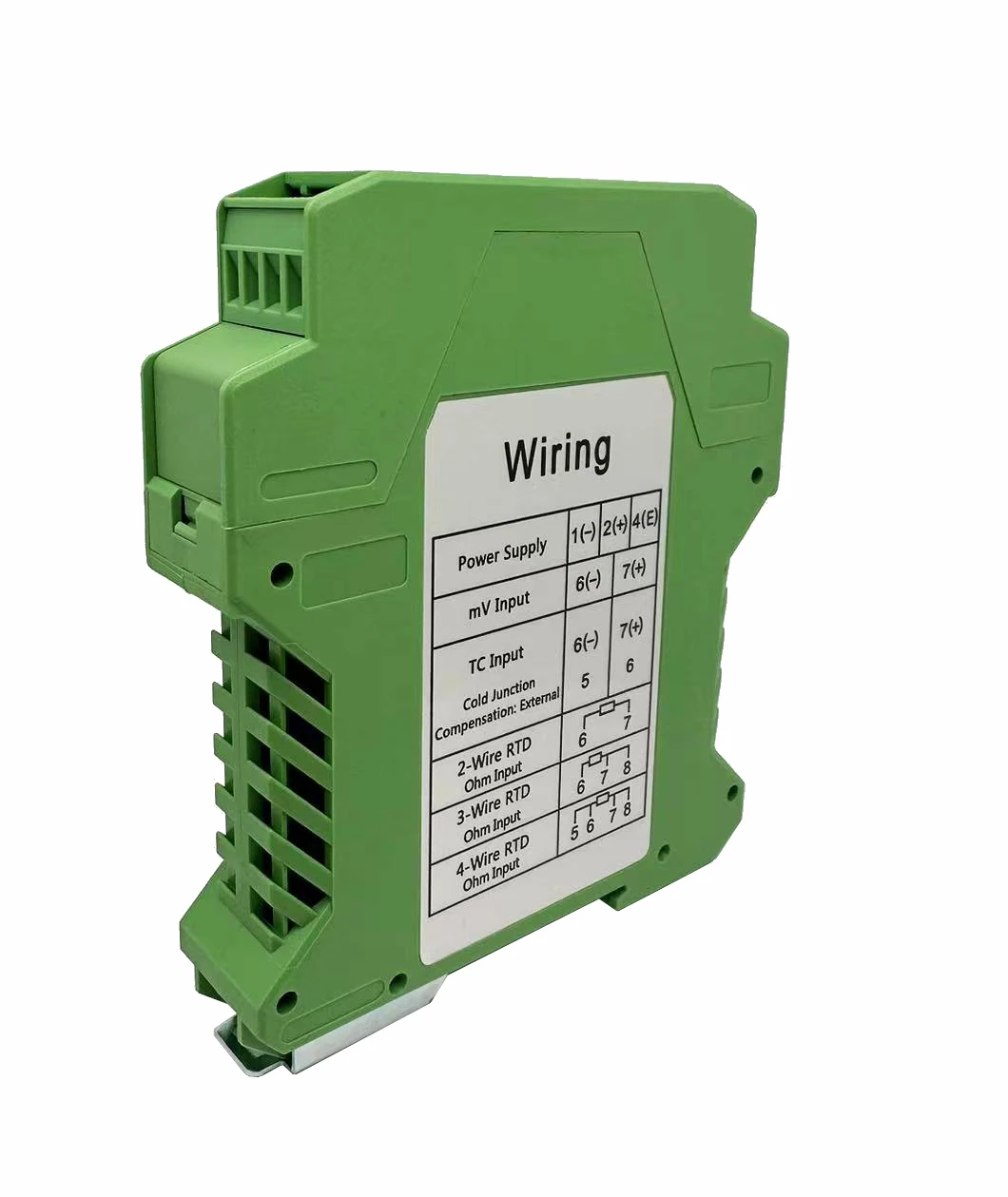

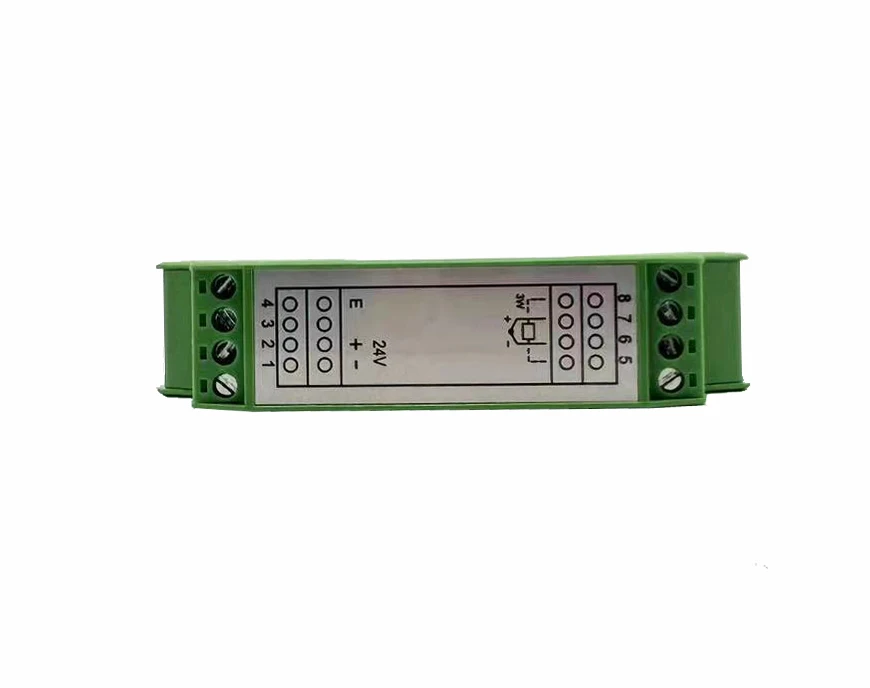

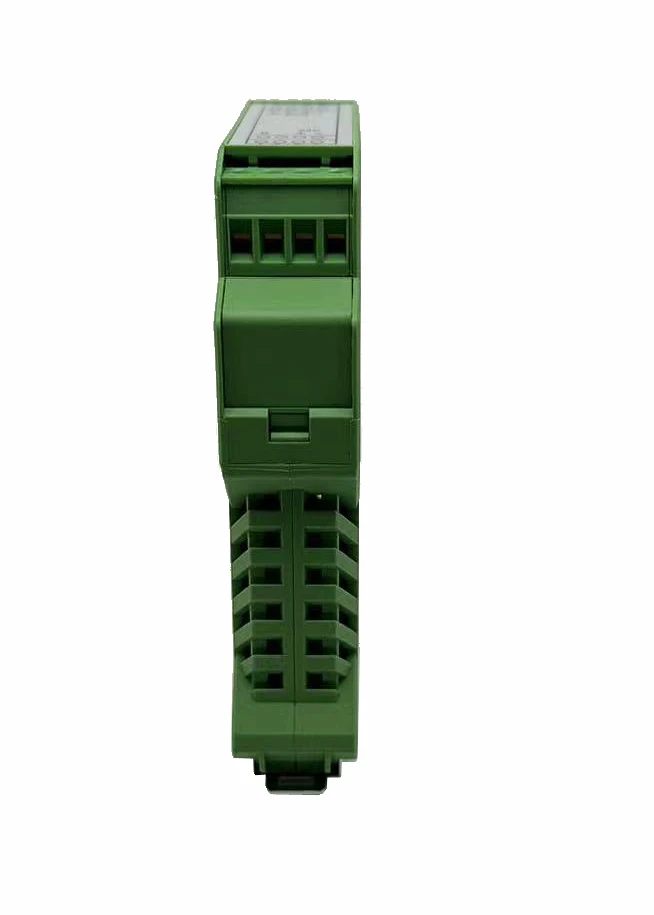

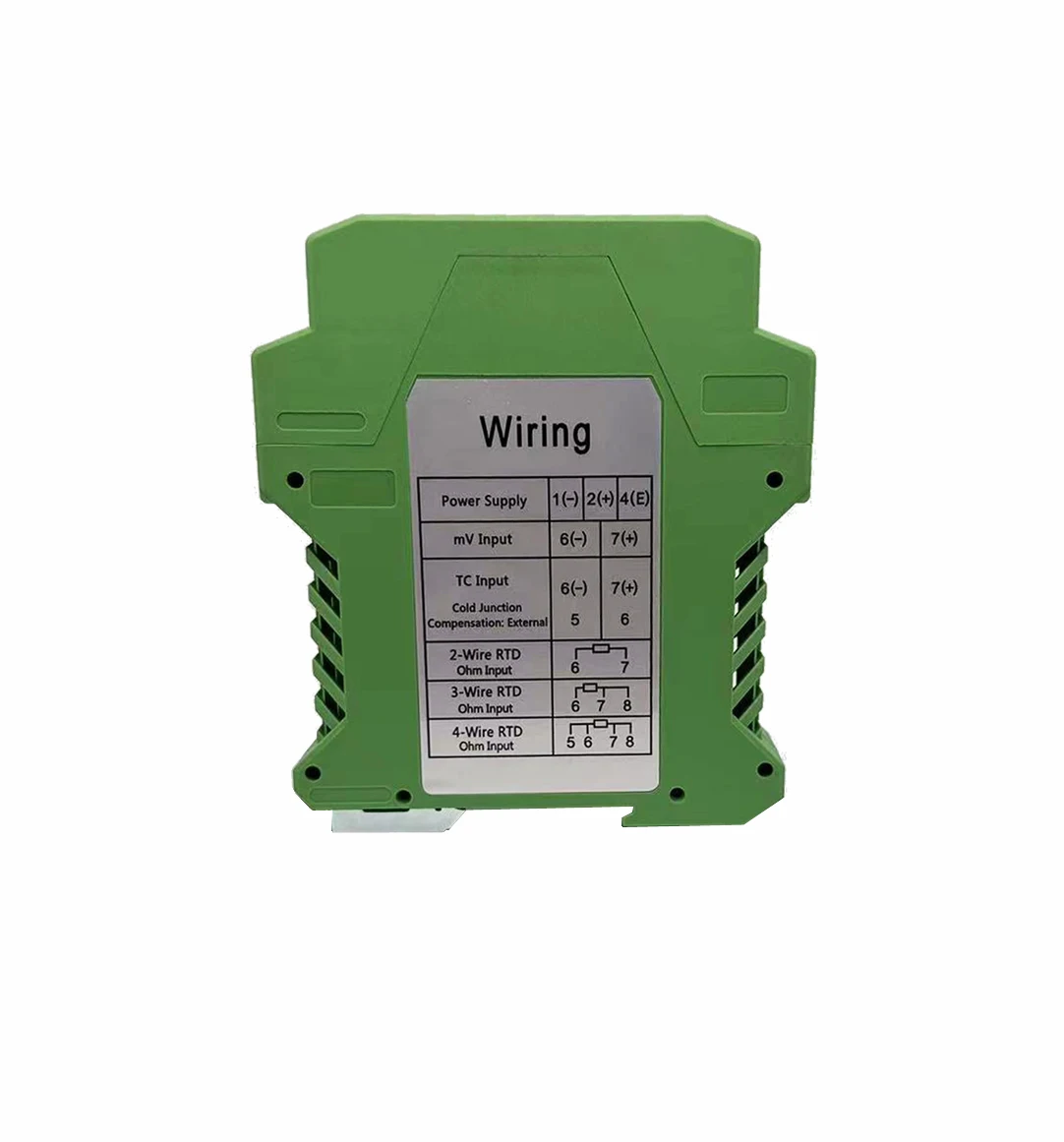

H649WD HART DIN Rail Rtd головное крепление 4 20mA PT100 датчик температуры

Product Overview

Description

H649WD HART Temperature Module



Application

  Used for RTD, TC, Ohm, mV

Specifications

  Power supply:  12-32VDC

  Output:  4~20mA with HART (2-wire)

  Stability:

0.01°C(RTD), 0.1°C(E J K N T), 0.2°C(B R S)

  Accuracy:

0.1°C(RTD), 0.5°C(E J K N T), 1.0°C(B R S)

  Operating temperature:

-40°C ~ +85°C(without LCD)





Features

  High-voltage isolation:  As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.

  High reliability: Built-in multi-level protection circuit for high reliability. Outstanding EMC performance.

  H649: DIN rail mounting and can be built completely independent of 2-channel temperature modules.

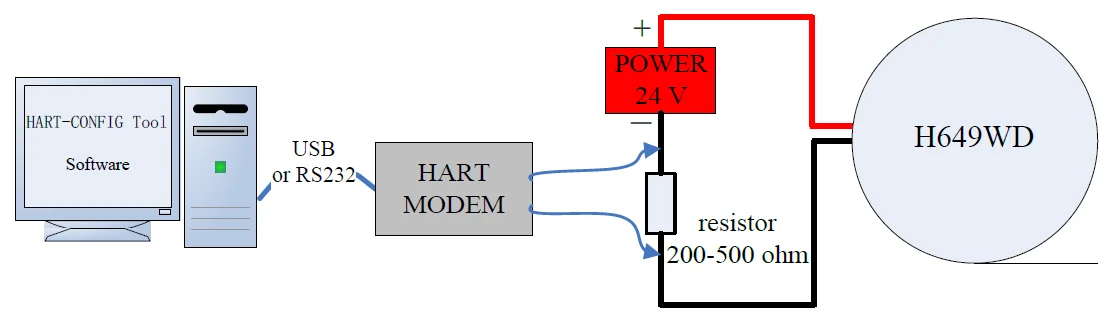

 Hart Programming System Wiring

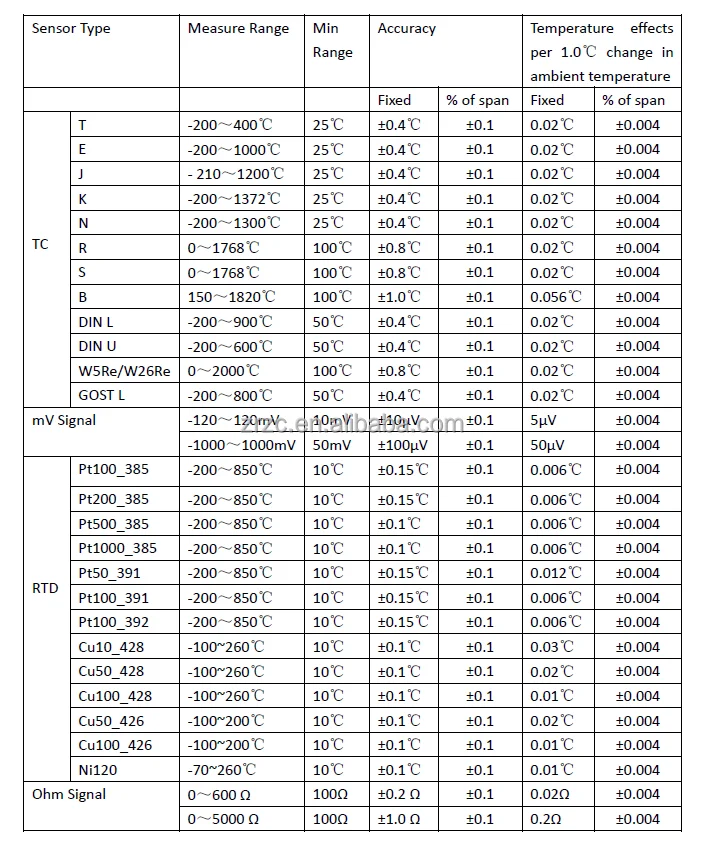

  H649WD input Options, Accuracy and Ambient Temperature Effects

 Note: D/A accuracy temperature effects: ±0.1~0.2% per 50℃ change in ambient temperature.





  1,Customer:  i want buy the samples to test, it is ok?

      Helen: of course,  not free sample, but when the next order, we will return the  samples money to your.

  2,Customer: when will you do the shippment after my payment ?
      Helen:  we have the in stock,   when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)

   3,Customer:  How to pay?

      Helen: the Western union, Paypal,  person account,  TT ,and so on.

  Samples small quantity are avaliable at any time Welcome to contact us!
