pvc rubber granules plastic vertical mixer
- Category: >>>
- Supplier: Henan Kaichuang Machinery Equipment Co. Ltd.
Share on (1600827069652):
Product Overview
Description
pvc rubber granules plastic vertical mixer
Product Description

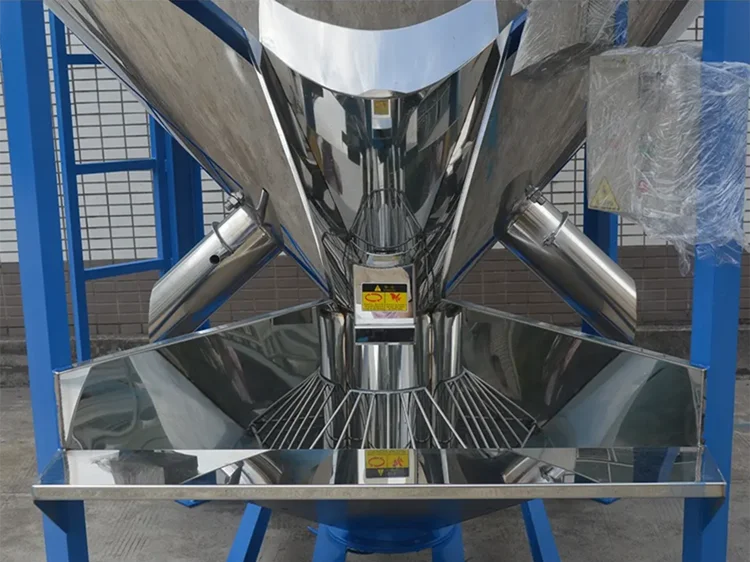

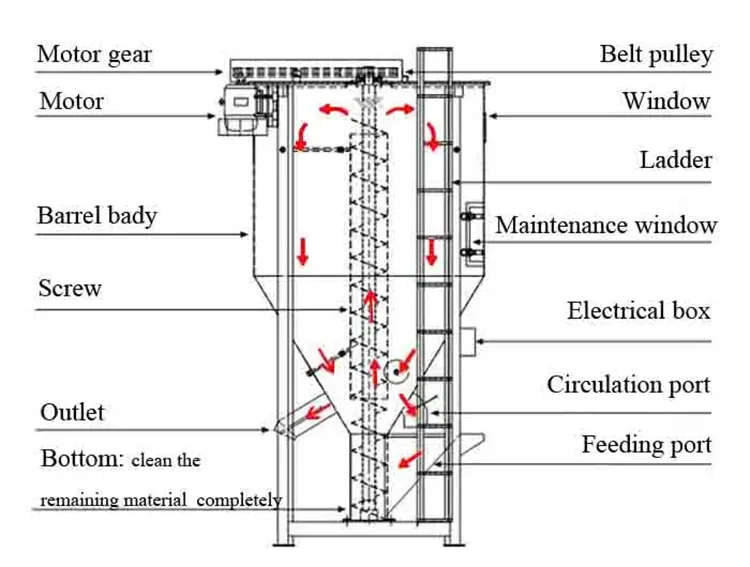

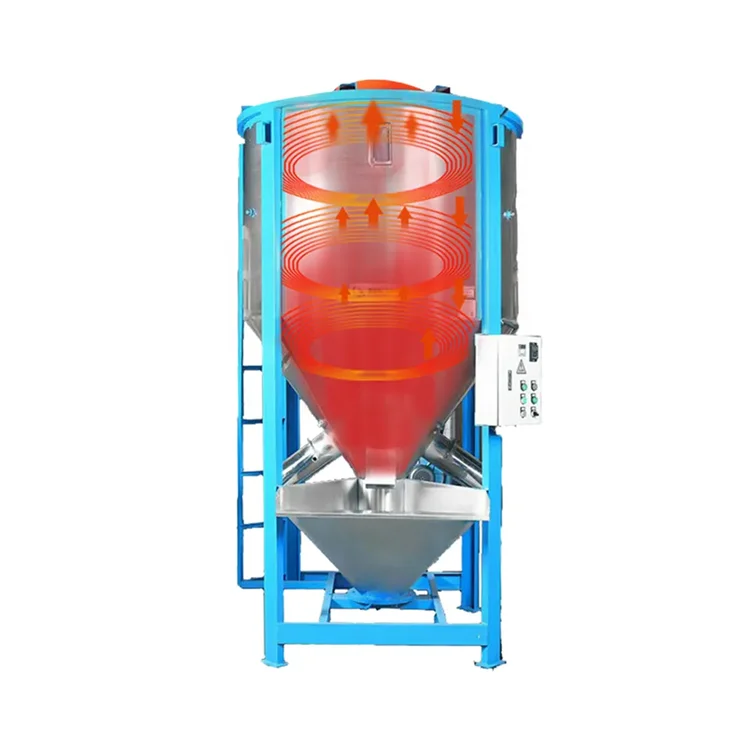

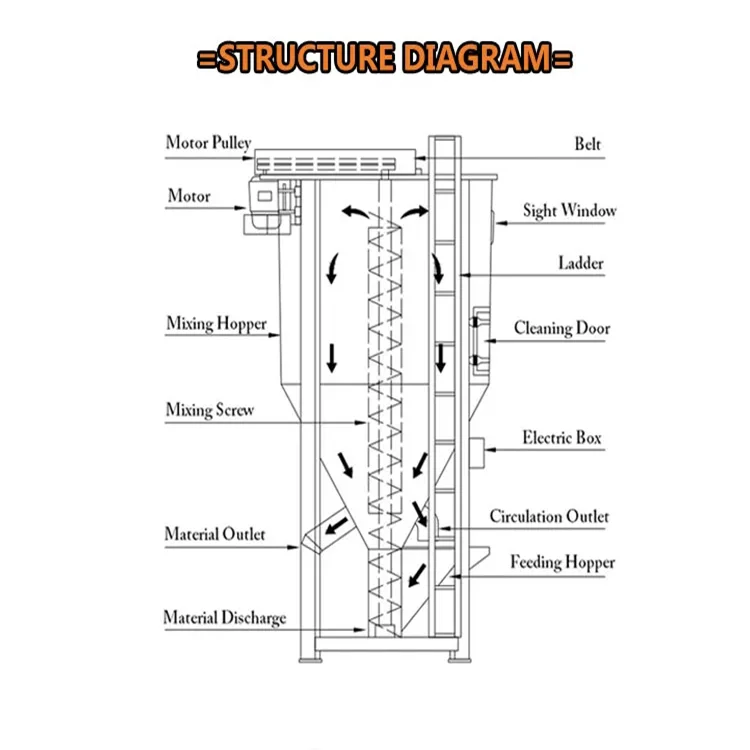

The vertical mixer is made of stainless steel, which effectively improves the cleanliness. The raw material can uniformly stir large volume of materials in a short mixing time. The rotation speed of the screw can collect the material from the bottom to the top, transport the material back to the bottom, and complete the mixing function in a short time.
Specification
Advantage
1. All made of stainless steel expect the frame(can be customized).
2. Helical circular mixing device, fast and equal stirring.
3. Materials in the tank can be completely stirred in short time.
4. Overload protection device for motor and multi-protective devices for safety of motor and operator.
5. Auto-stop design helps you more effectively and easy operating.
Model | Power of Motor | Capacity (kg) | Volume（㎡） | Voltage（V） | Speed（r/min) | Dimension （diameter * height）mm | ||
300 | 2.2kw | 3HP | 300 | 0.6 | 380 | 350 | Φ 960*2100 | |
500 | 3kw | 4HP | 500 | 1 | 380 | 350 | Φ 1300*2500 | |
1000 | 4kw | 5HP | 1000 | 2 | 380 | 350 | Φ 1500*2800 | |
2000 | 5.5kw | 7.5HP | 2000 | 4 | 380 | 350 | Φ 1900*3200 | |
3000 | 7.5kw | 7.5HP | 3000 | 6 | 380 | 350 | Φ 2100*3600 | |
5000 | 7.5kw | 10HP | 5000 | 10 | 380 | 350 | Φ 2500*4350 | |
10000 | 11kw | 15HP | 10000 | 20 | 380 | 300 | Φ 3000*5300 | |
12000 | 11kw | 15HP | 12000 | 24 | 380 | 300 | Φ 3000*56000 | |
15000 | 15kw | 20HP | 10000 | 30 | 380 | 300 | Φ 3100**65000 | |
Application
Vertical plastic powder mixer can be widely used for mixing plastic particles, powder, plastic sheet, pipe, plastic granulator, color masterbatch, plastic modification, recycled materials, recycling and processing of recycled materials, large-scale injection molding, food, rice, beans, etc.
Packing & Delivery
Packing: The normal package is wooden box. We will use pe film for packing or pack it according to customers special request.
Delivery: Delivery within 15 days after receipt of deposit.
Our Service
1. We have 24 hours team to solve the after sales problem.
2. We have free spare parts with the machine.
3. We supply long term spare parts for every customer.
4. We always up date the new technology to every customer.
Note: The machine can be customized according to your needs, and good products will satisfy customers. Please feel free to contact us for detailed information or special request.
Customer visit
Company Profile
Henan Kaichuang Machinery Equipment Co., Ltd. is a modern enterprise that integrates design, research and development, production, sales, and export, specializing in the production of clean energy equipment, energy-saving equipment, and waste recycling equipment. All products adopt international quality standards. Our company adheres to the corporate spirit of people-oriented, honest and trustworthy, technological innovation, and pioneering spirit. We always take technology as the driving force and market orientation to make our products first-class. In order to ensure customer satisfaction, our company uses service skills as a carrier to provide customized solutions for customers, continuously optimizing equipment and facilities, and relying on the most professional knowledge and comprehensive technical support, we strive to implement comprehensive quality testing measures in all aspects of production.
FAQ
What does need from me to quote a price?
1.Raw material
2.Production capacity per batch.
Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
How long does it take to produce the machine once I place my order?
Usually the delivery time is 5 working days after prepayment received.
