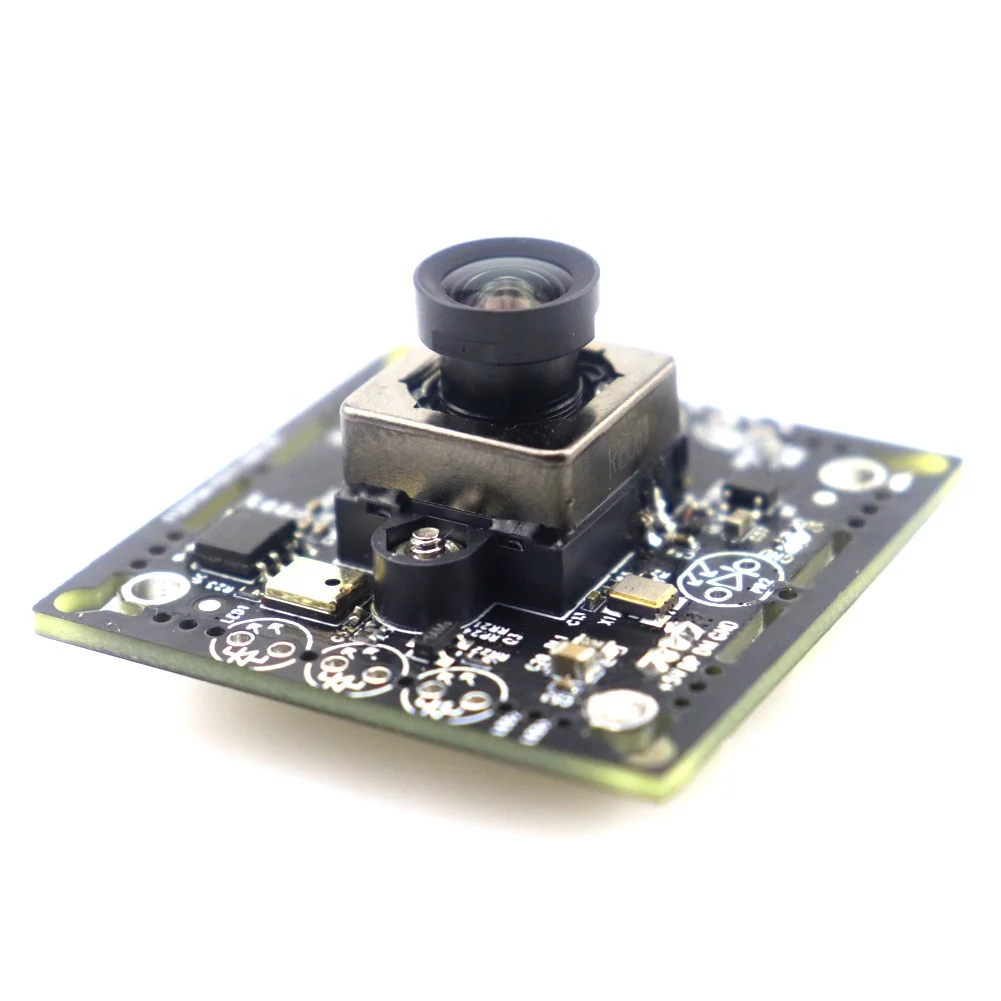

High Resolution 8MP Auto Focus Low light camera board for Industrial and Scientific Imaging Applications 4K USB Camera Module

Product Overview

Description



High-Resolution 8MP Auto Focus Low light camera board for Industrial and Scientific Imaging Applications - 4K USB Camera Module

Mini USB Camera Board Module

We are factory to design and produce camera board, main product is camera with USB and CVBS and AHD output , normally made by Sony IMX sensor and F23 and PC5510, support NTSC and PAL and OSD function. Main application area is Video door phone and inspection area and Security.

USB camera made by Sony and OV and Aptina sensor. All  easy plug and play, support MIC and instruction LED, most of them are using for Live stream directly broadcast and Industrial and Smart TV and Conference System and KIOSK and Security.

Features

1.8MP 4K Sony IMX starvis sensor

2.Support Audio MIC.

3.Standard UVC/UAC protocal, Plug in/out,Support Windows/Android/Linux system.

4. Support MJPG.YUY2.H264 image format,max 2MP/30FPS

5. adopt FH8852 DSP

6. Support Android/Linux/Mac/Windows PC with USB ports



Main Parameters



 8MP USB output:

Technical Details
SENSOR
Sensor	SONY IMX415AAQR-C STARVIS
Pixels	8.46M pixels
Resolution	3840*2160(4K) MAX
Image Size	Diagonal 6.46 mm (Type 1/2.8)
Unit Cell Size	1.45um (H)*1.45um(V)
SNR1s Value	0.24lx
ISP
YUY2 Frame Rate	1080P/7FPS,720P/12.5FPS,800*600/20FPS,640*480@30fps
MJPG Frame Rate	4K/30FPS,2560*1440/30FPS,1920*1080@25fps / 30fps, 1280*720@25fps / 30fps, 640*360@25fps / 30fps
Exposure	Auto or Manual
White Balance	Auto or Manual
Shutter	1/25(1/30)s to 1/50,000s
Slow Shutter	Coming Soon
Denoising	2Dnoise reduction
Image Setting	Brightness, Contrast, Sharpness, Saturation,Flip, Mirror
Image Enhancement	BLC, Digtal WDR, Defog
Day/Night Switch	Manual or IR-CUT filter with external trigger
Lens & IR-CUT&AUTO FOCUS
Optional-Lens Mount with IR-cut	Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16
Mounting Hole	2 screw holes with diameter of 2mm,18mm Center-to-Center Spacing
Optional-AUTO FOCUS LENS	111degree M8 interface without distortion lens(Auto focus min distance:≥8CM)
Interface
Connector	MX1.25*4,USB2.0 Interface
Communication Interface	USB2.0,UVC Protocol
IR-CUT Control	IR-CUT motor control, 3.3VDC
Day/Night External Trigger	3.3VDC to 5VDC compatibility
General
Operating Conditions	-10℃~60℃, Humidity 95% or less, non-condensing
Power Supply and Consumption	5VDC,1.5W MAX
Dimension	38mm*38mm*10mm(not include lens and lens mount)































Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.
Q3: What about payment methods?
A3: Payment terms: Online payment, T/T and Western Union etc.
Q4: Can you list the product of your company?
A4: CCTV camera board,USB Web camera board,LCD memory controller board,LCD display module,Intercom Audio Board,Video Camera board for optical fiber tester
Q5: Where can we download the user manual of your products?
A5: Datesheet will be sent to you by email after get your email.
Q6: Warranty time?
A6: 2 years.
Q7: Can you accept ODM products?
A7: Yes,ODM is our main business. We will make quotation according to your details.
Q8: Product OEM?
A8: Yes, need your Gerber file and Drawing and BOM.
Q9: Customer service?
A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
Q10: What shiping methods do you have?
A10: Since our products are small and expensive, the common shiping methods are post air mail or fast express.
