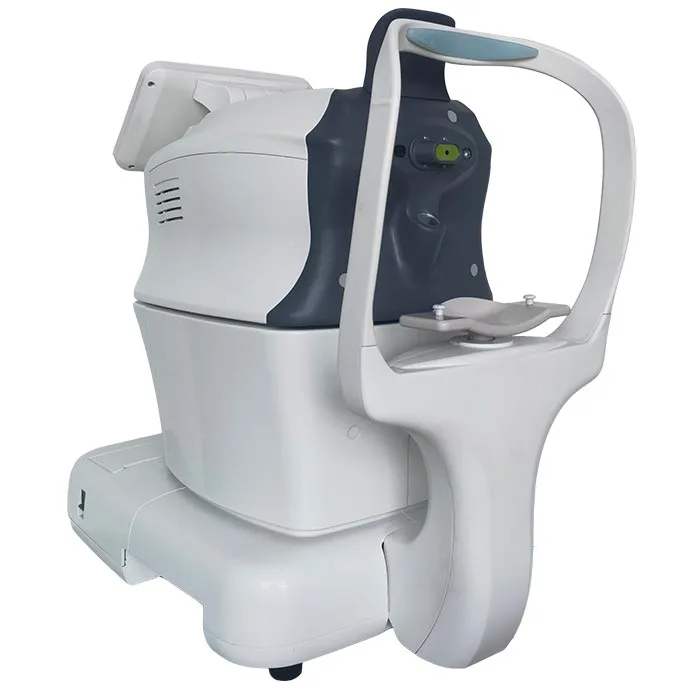

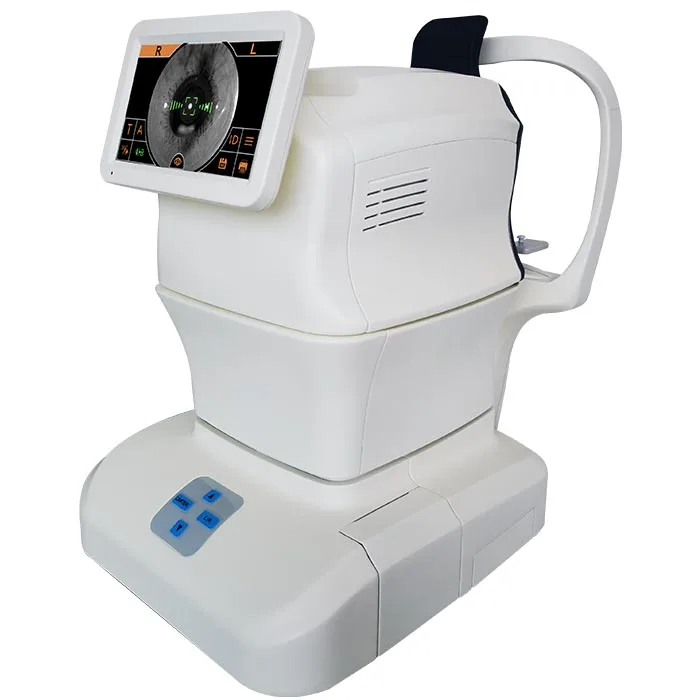

SK 5000B China best quality Ophthalmic air puff auto non contact tonometer with pachymeter

Display

7” 1024*600 color touch screen, support up and down 180°,60º left and right

Fixation lamp

1 internal fixation lamp (green LED); 2.external fixation lamps

Measuring head moving range

Uo and down stroke :45mm , left and right stroke:90mm, front and back stroke:40mm

Lifting range of lower jaw drag

68mm

Working distance

11mm(calculated from the front of nozzle)

Measurement accuracy

1mm Hg(0.133Kpa)

Measuring range

0-60mmHg (0-8kpa)(including free switching between 30/60mmHg

Power supply

AC100-240V, 50-60Hz

Ambient Temperature

50℃

Scope of operation

16mm x10mm

printer

Built-in thermal printer

Data storage

Internal memory card+optional external USB memory

Networking

DICOM3.0

Measurement mode

Full automatic/automatic/manual

Operating system

Embedded system

Mobile platform

Fully automatic platform/manual platform

Data input and output

Input:USB, output:LAN/RS232C

Focusing mode

3D full auto focus /manual focus

Jet detection

After power on , check whether the measuring system of the instrument works normally

Safety limit

Support

Intraocular pressure measurement

Each eye was measured three times continuously, and the average value was calculated

Normal intraocular pressure range :10-21mmHg(1.33kpa-2.80kpa)

Normal corneal thickness :about 550um

Full automatic measurement

Press the measurement button to complete the intraocular pressure test automatically

24 hour dynamic intraocular pressure measurement

It can monitor intracular pressure dynamically 24 hours , and print , it on the same report sheet with intraocular pressure data

Printing

Data can be printed directly after measurement

storage

10 sts of measurement data can be stored

Data export

Can be exported to PDF or JPG format

Size and weight

500*300*500 mm <25kg
