About Led Diaplay Multimedia Player HD-A6L


Product Overview.

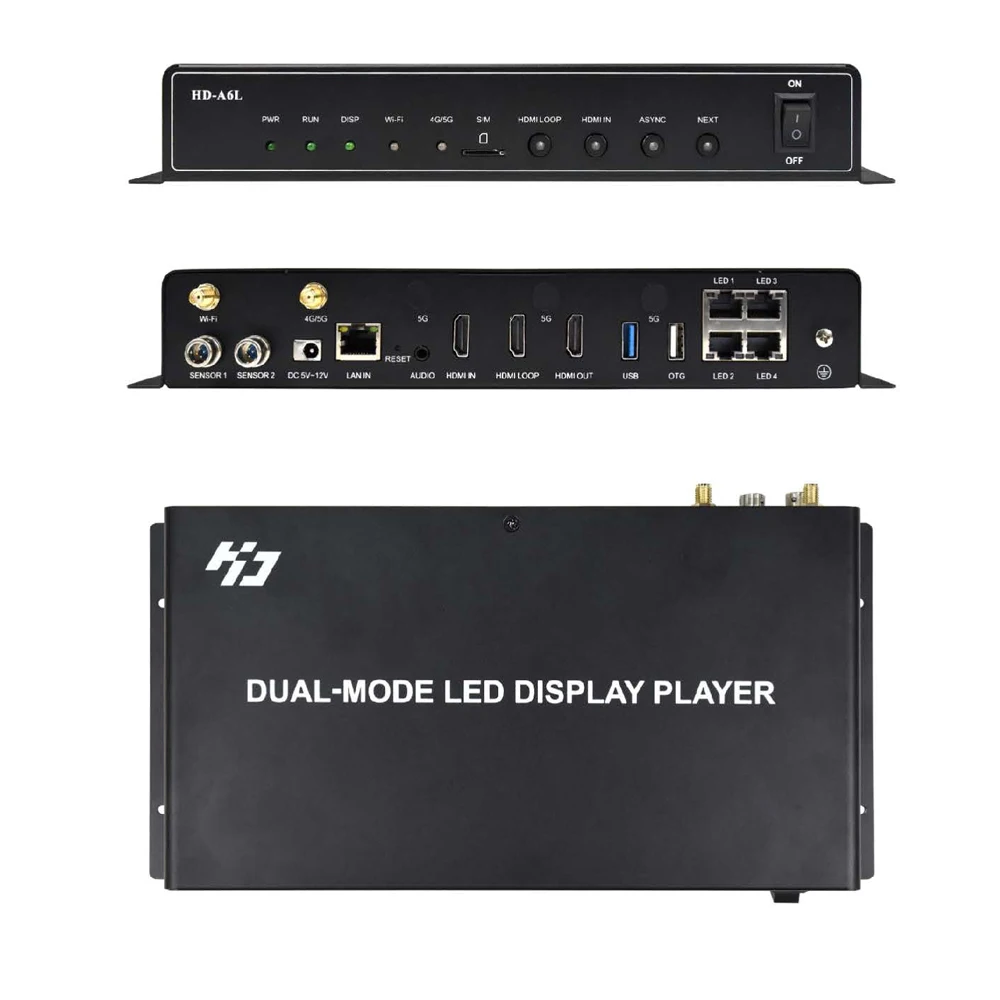

A6L is an LED display multimedia player that supports playing videos, pictures, GIF animations, texts, WPS documents, tables, clocks, timing, and other programs. It integrates functions such as asynchronous playback, synchronous playback, and HDMI splicing playback, supporting multi-terminal control and release programs.
Standard configuration of dual-band Wi-Fi, support mobile phone APP - "LedArt" wireless control; support mobile phone/tablet wireless screen display; support access to the "Xiaohui Cloud" platform, easy to achieve Internet remote cluster management; The capacity storage space makes asynchronous playback worry-free; it supports external connection of various environmental monitoring sensors to realize real-time viewing of environmental monitoring data.
A6L has high video playback performance, added terminal network security protection mechanism, simple software operation, complete functions, and ultra-high cost performance. It can be applied to LED displays in various commercial display, smart display and other fields.


Product Features.

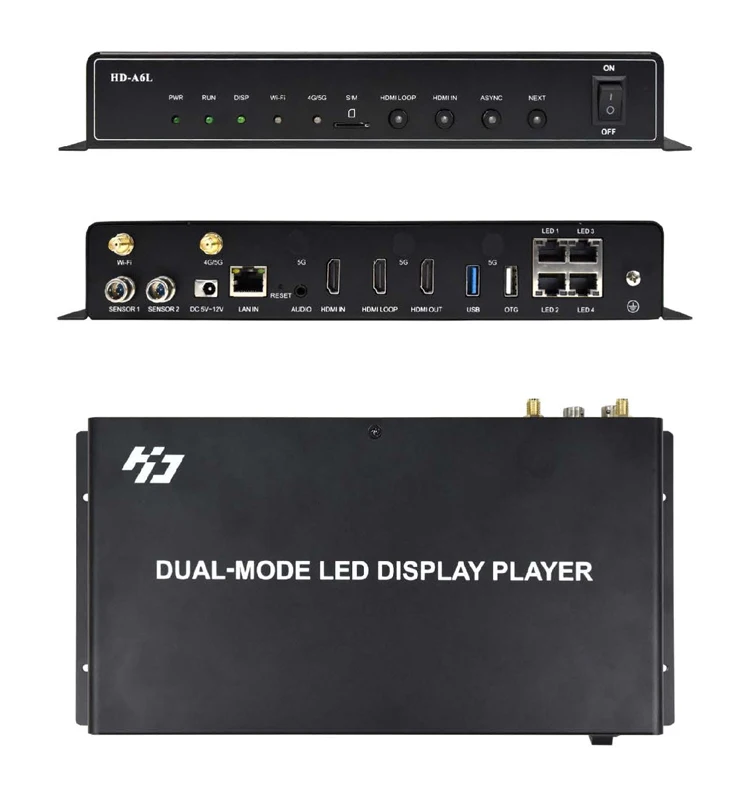

Input:
1. Support 1 Gigabit communication network port for debugging parameters, faster program sending speed;

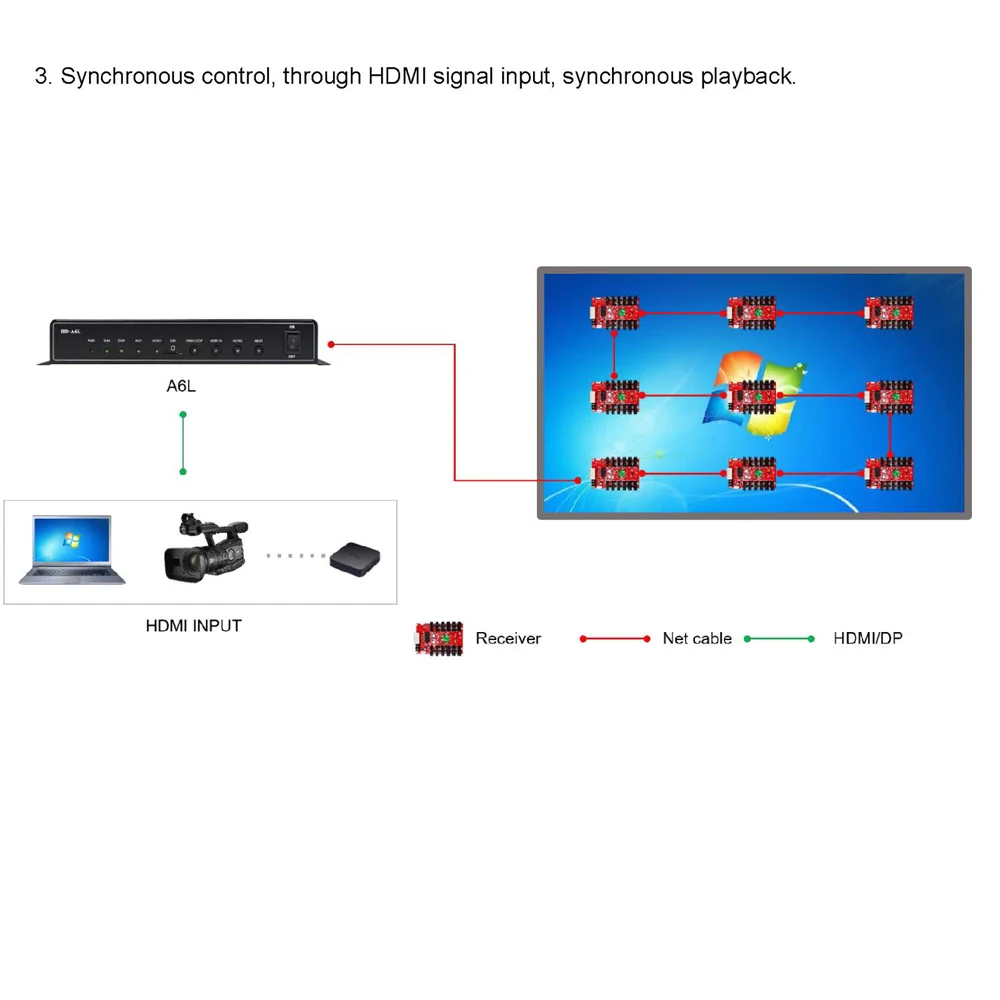

2. Support 1 HDMI IN input interface, support automatic zooming of synchronous pictures, and support synchronous and asynchronous picture-in-picture functions;
3. Support 1 channel HDMI LOOP IN input interface, support any resolution synchronous picture,support splicing and cascading;
4. Support 1 channel USB2.0 (custom OTG/USB mode), 1 channel USB3.0 communication interface,which can be used for inserting programs and expanding capacity;
5. Supports 2 channels sensor input interface, externally connected to various environmental monitoring sensors.
Output:
1. Standard 4 Gigabit output network ports, directly cascaded HD-R series receiving card control display;
2. The maximum control range is 2.3 million pixels, the maximum horizontal (discounted) support is 16384 pixels, and the maximum vertical support is 4096 pixels;
3.\t1 channel TRS 3.5mm standard two-channel audio output;
4.\t1 channel HDMI signal output, which can be used for data source or screen monitoring of HDMI input interface.

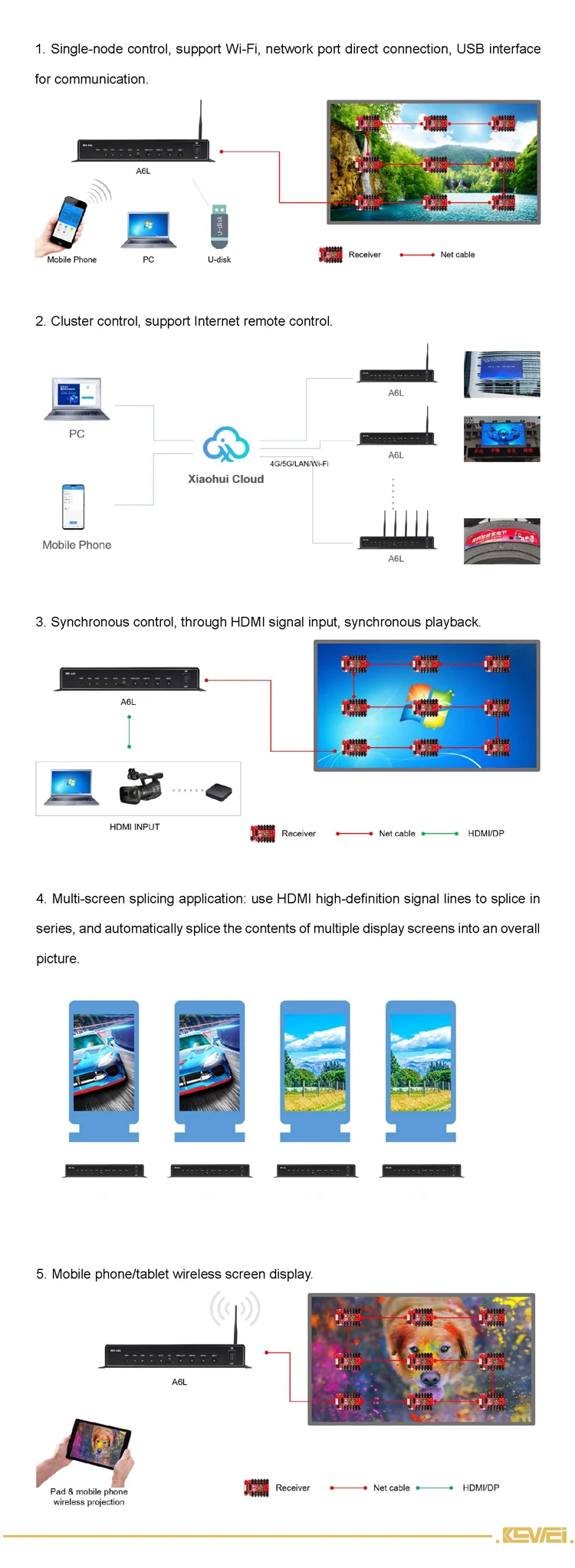

Functions:

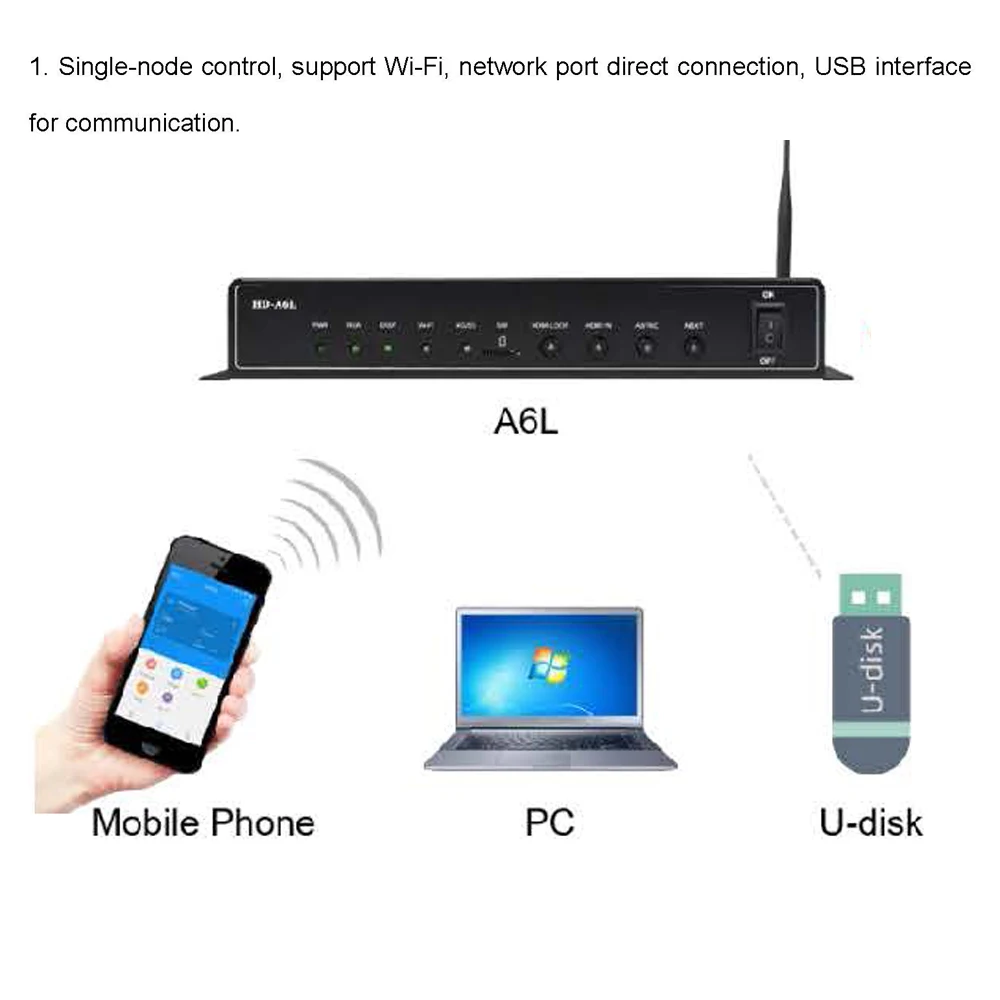

1. Standard 2.4GHz and 5GHz Wi-Fi, support mobile phone APP wireless control (support STA mode, in this mode, the device can connect to the nearby Wi-Fi network);
2. Support HDMI splicing, used for LED advertising machine to realize multi-screen splicing playback;
3. Support multi-channel video window playback (support up to 2-channel 4K or 6-channel 1080P or 10-channel 720P or 20-channel 360P);
4.\tSupport synchronous and asynchronous switching playback;
5.\tSupport 4G/5G (optional) access to Xiaohui Cloud platform to realize Internet remote cluster management;
6. Support mobile phone, tablet and computer wireless projection.


Products Description



333

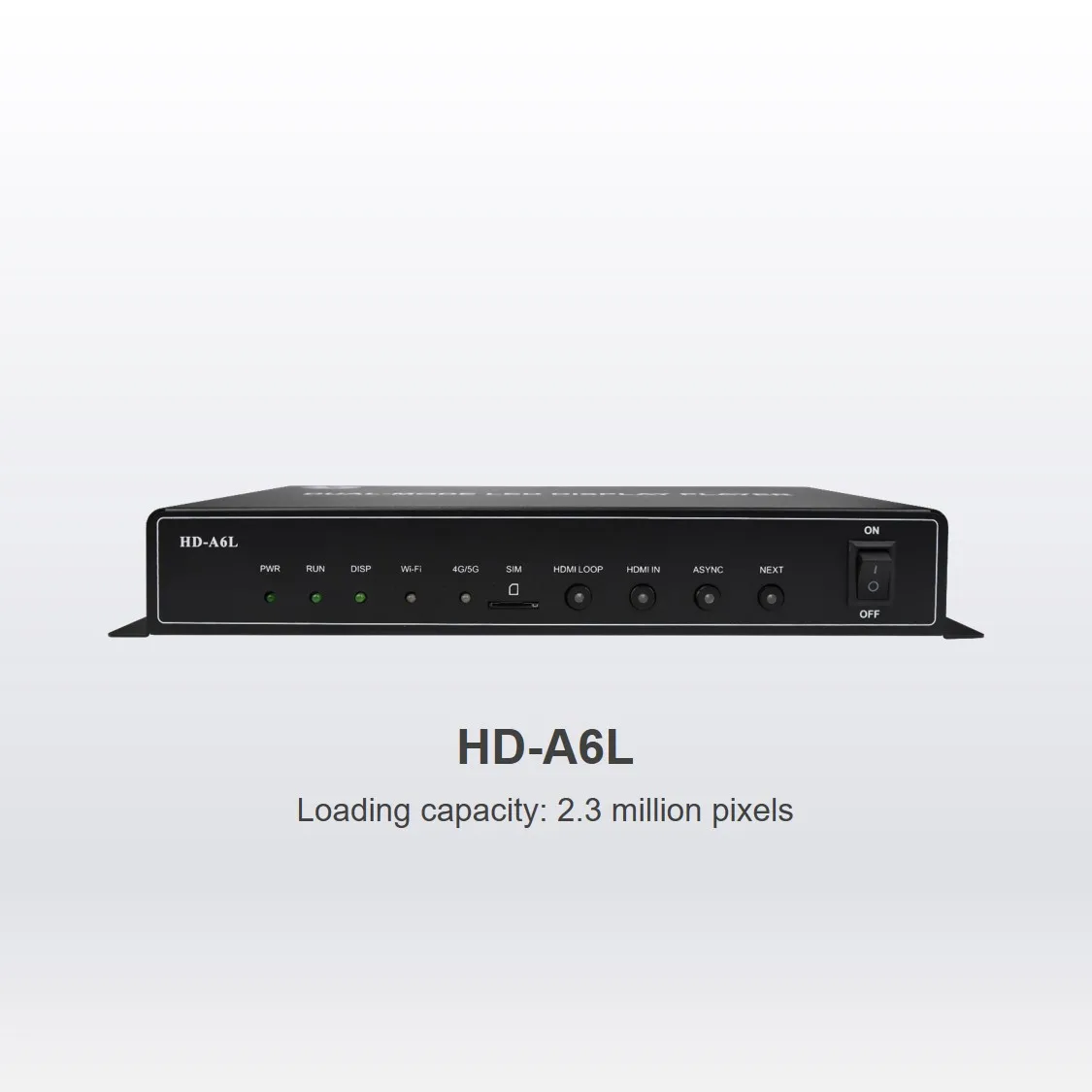

LED Display Multimedia Player HD-A6L
Device Model
HD-A6L
Loading Capacity
2.3 million pixels
Input power
DC 5V-12V
Maximum power consumption
18W
Random access memory
2GB
Internal storage
16GB

 Packing weight software
Android11.0 operating system software
Android terminal application software
FPGA software

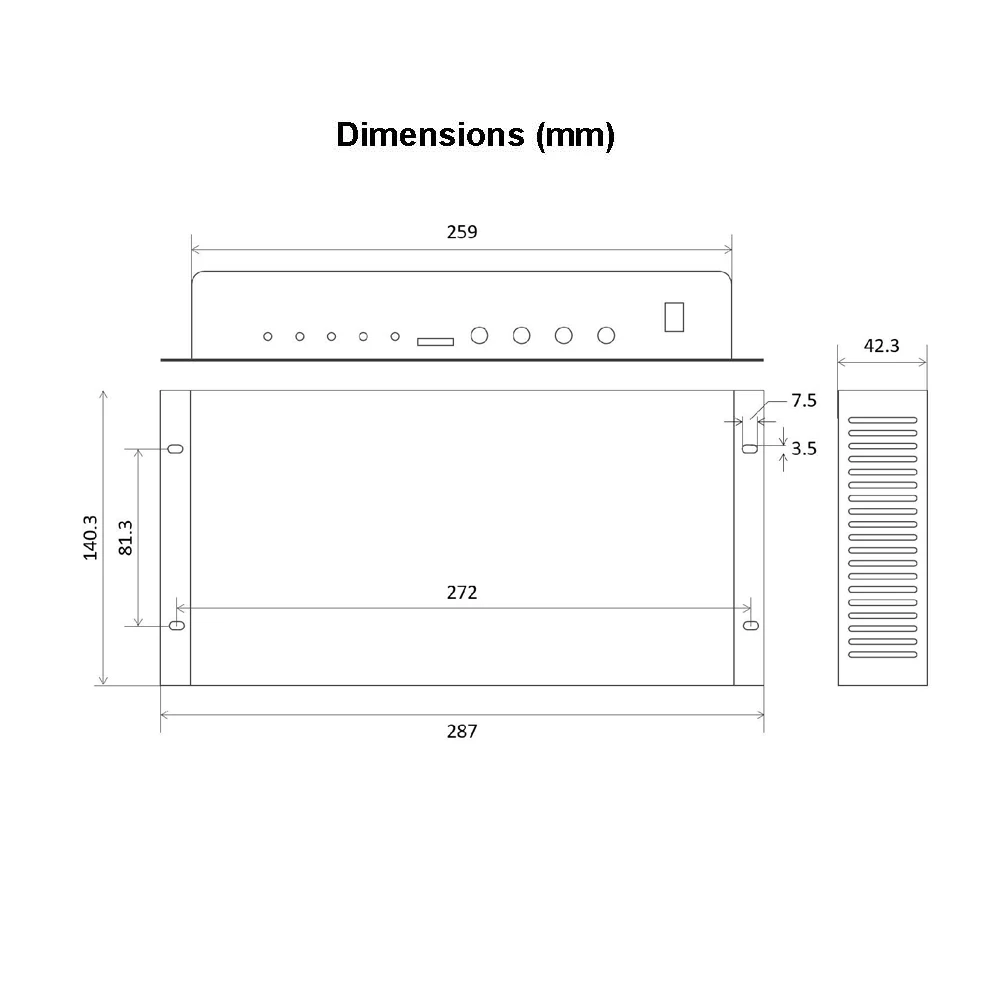

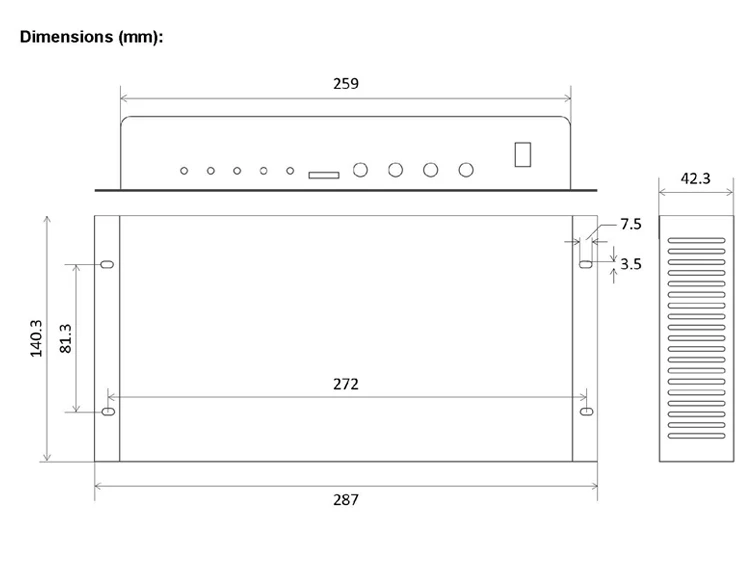

Size
287mm×140.3mm×42.3mm
Package size
387mm×241mm×143mm
Net weight
1004g
Packing weight
1500g


Packaging
1×A6L
1 x HDMI cable
1 x power adapter
1×WiFi Glue Stick Antenna
1× Certificate of qualification
Note: 4G/5G antennas are optional with 4G/5G modules 1/4
