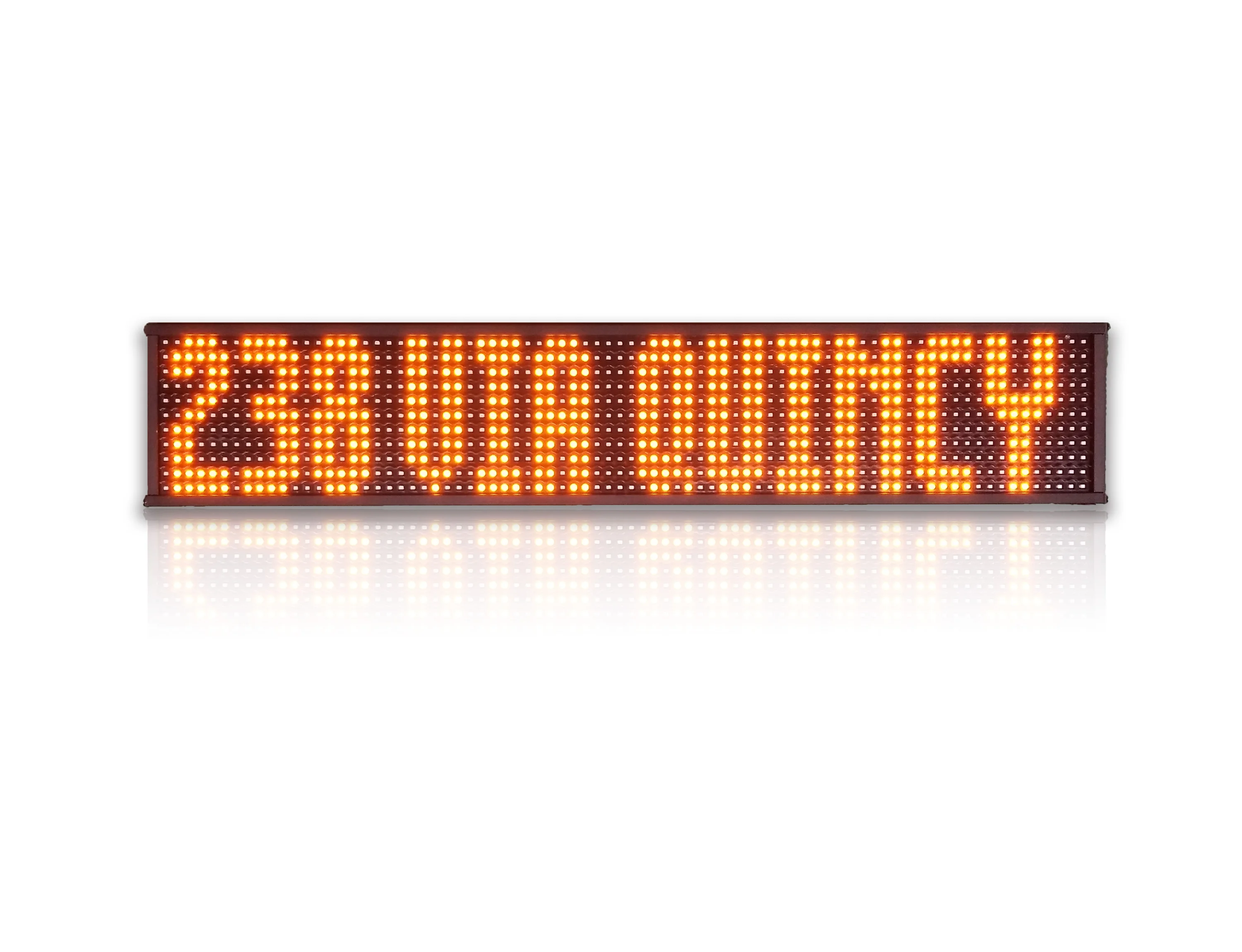

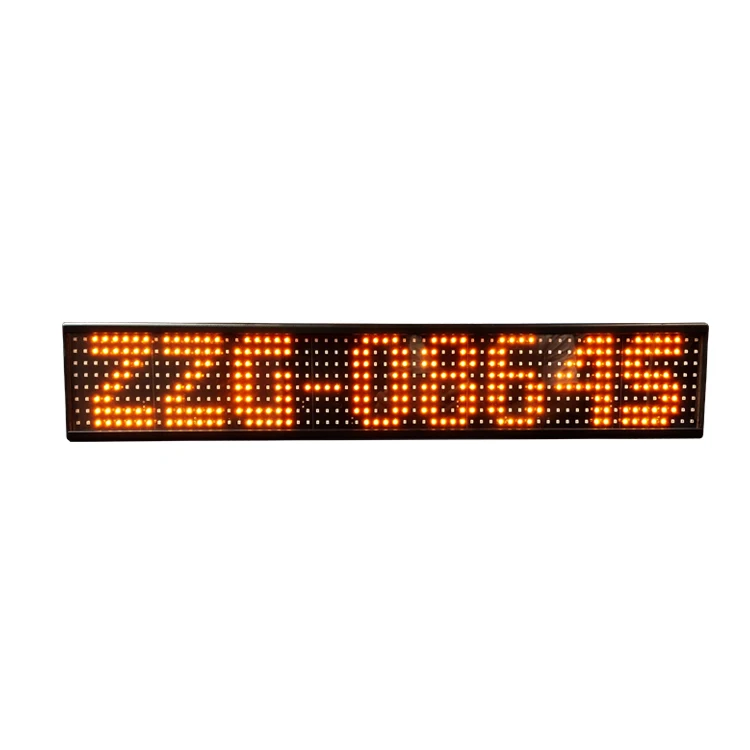

Bus Destination LED Sign Displays Bus stop LCD Screen Customized Arabic Spanish Panel on board
- Category: >>>
- Supplier: Shenzhen Zhongzhigu Electronics Technology Co. Ltd.
Share on (1600827428899):
Product Overview
Description
Product Description

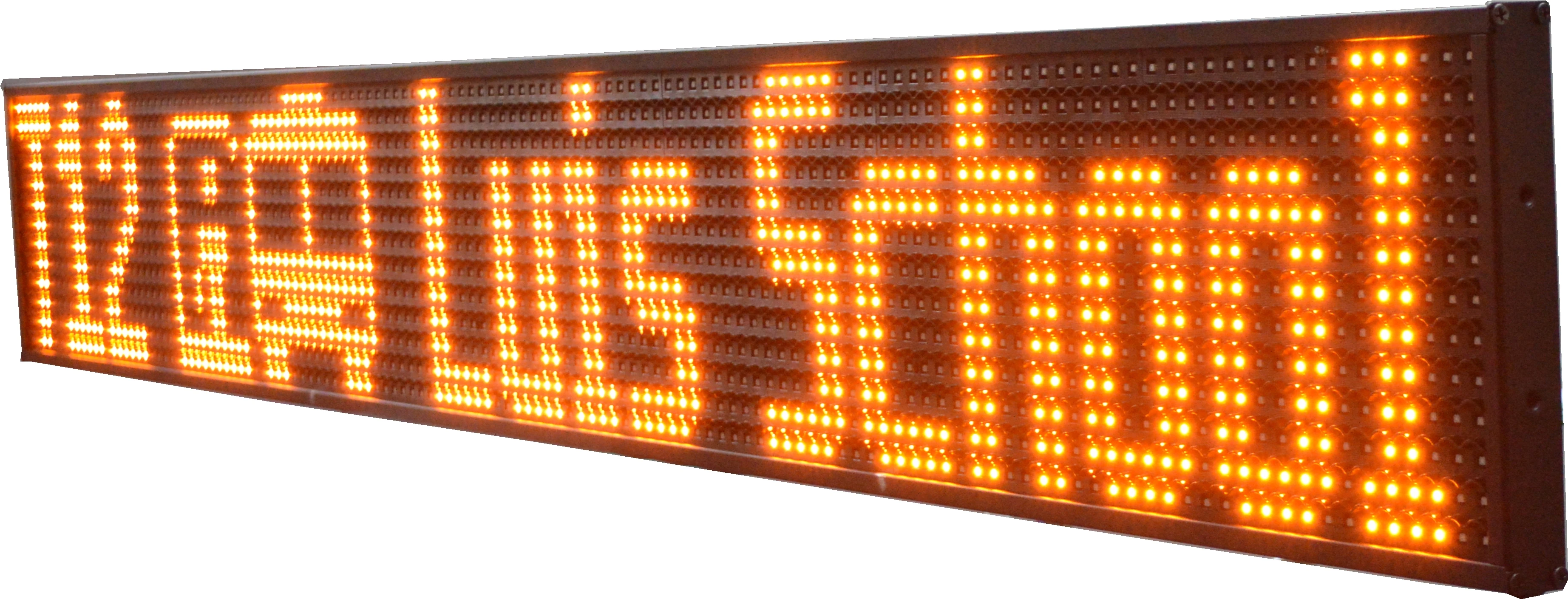

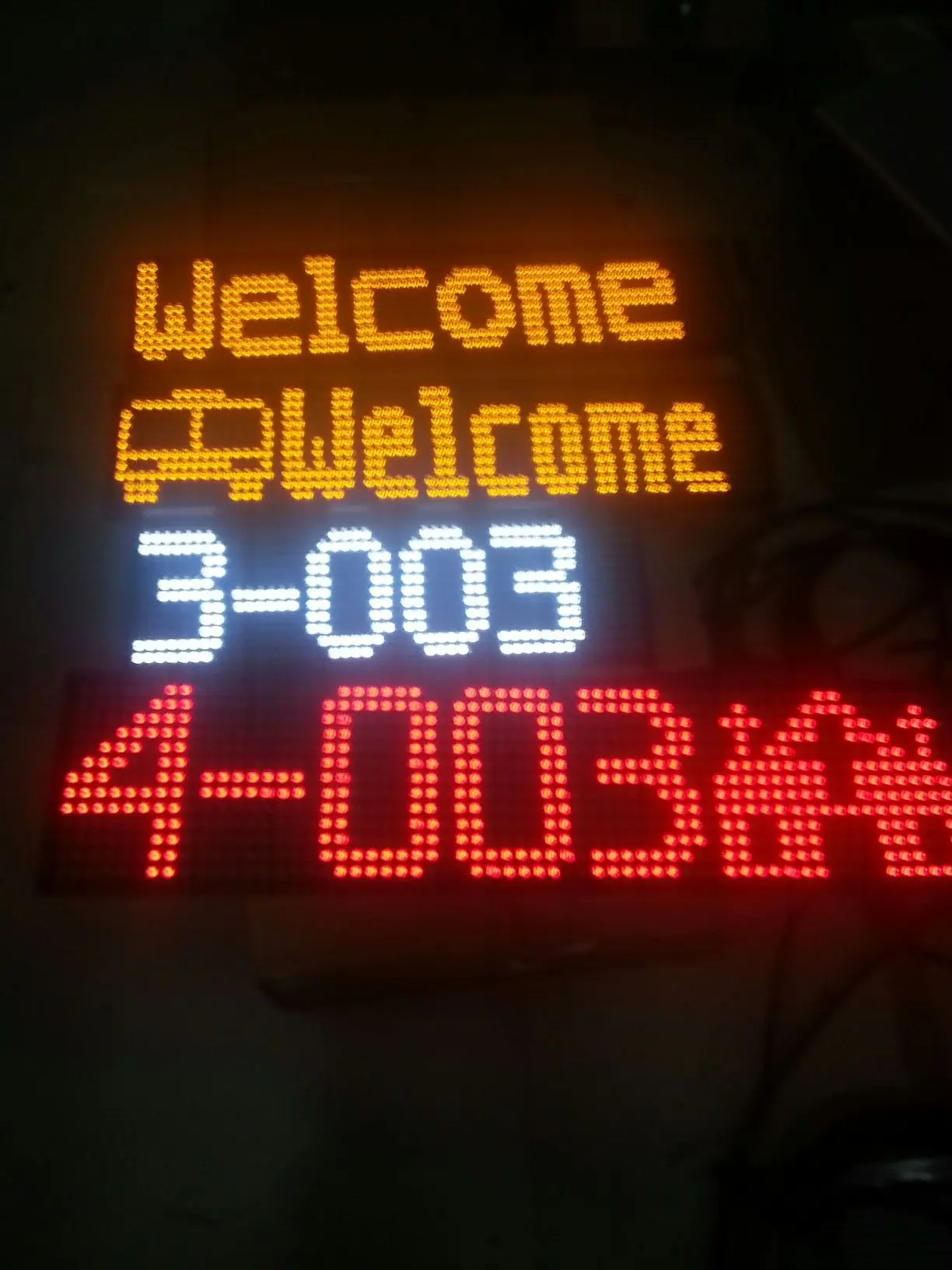

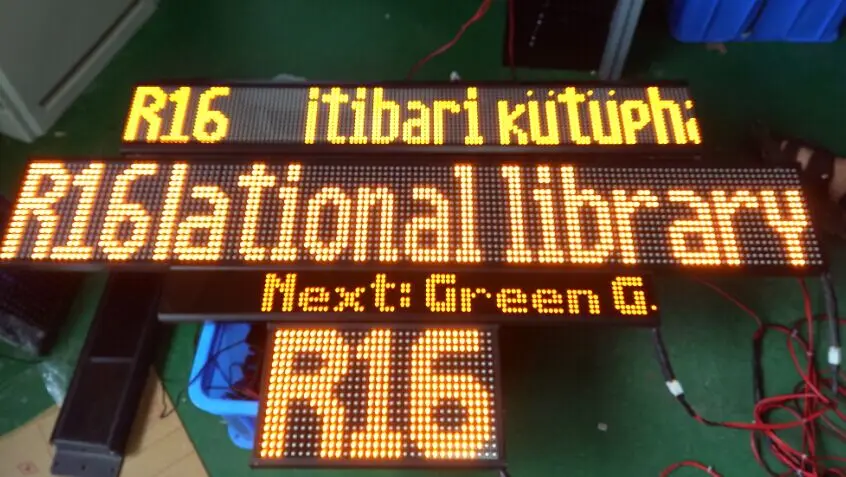

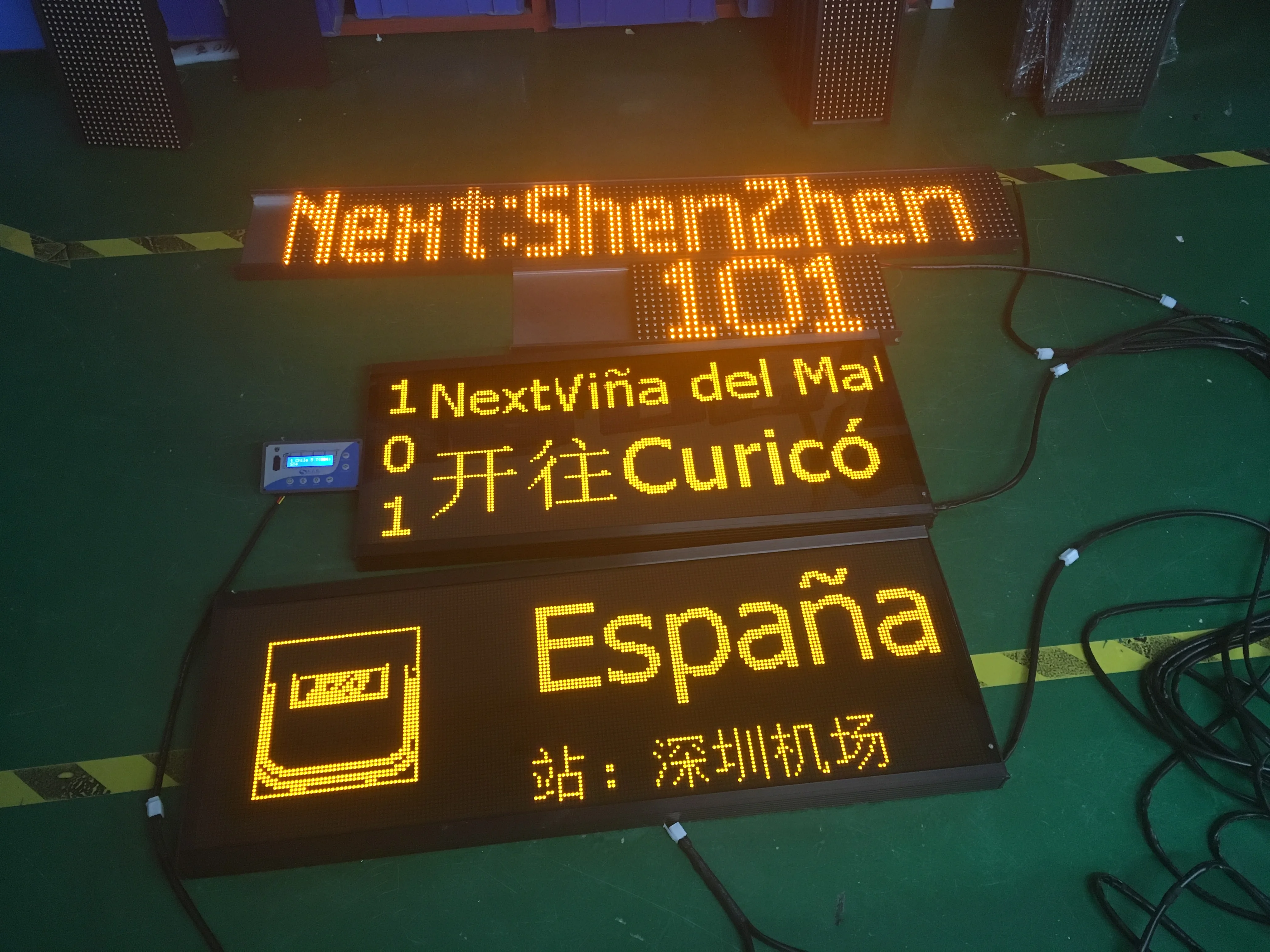

Detailed Images
Product detail and product advantages or application effect or application mode
1.SMD lamps with hight quality are adopted.
2.Ultra-thin, ultra-light and low consumption.
3.Advanced electrical design, which will lead the development trends in future.
3.Advanced electrical design, which will lead the development trends in future.
4. to meet the needs for pessengers who are color-blind.
5.We adopt original constant current driver from Taiwan.
1. Long life, high stability.

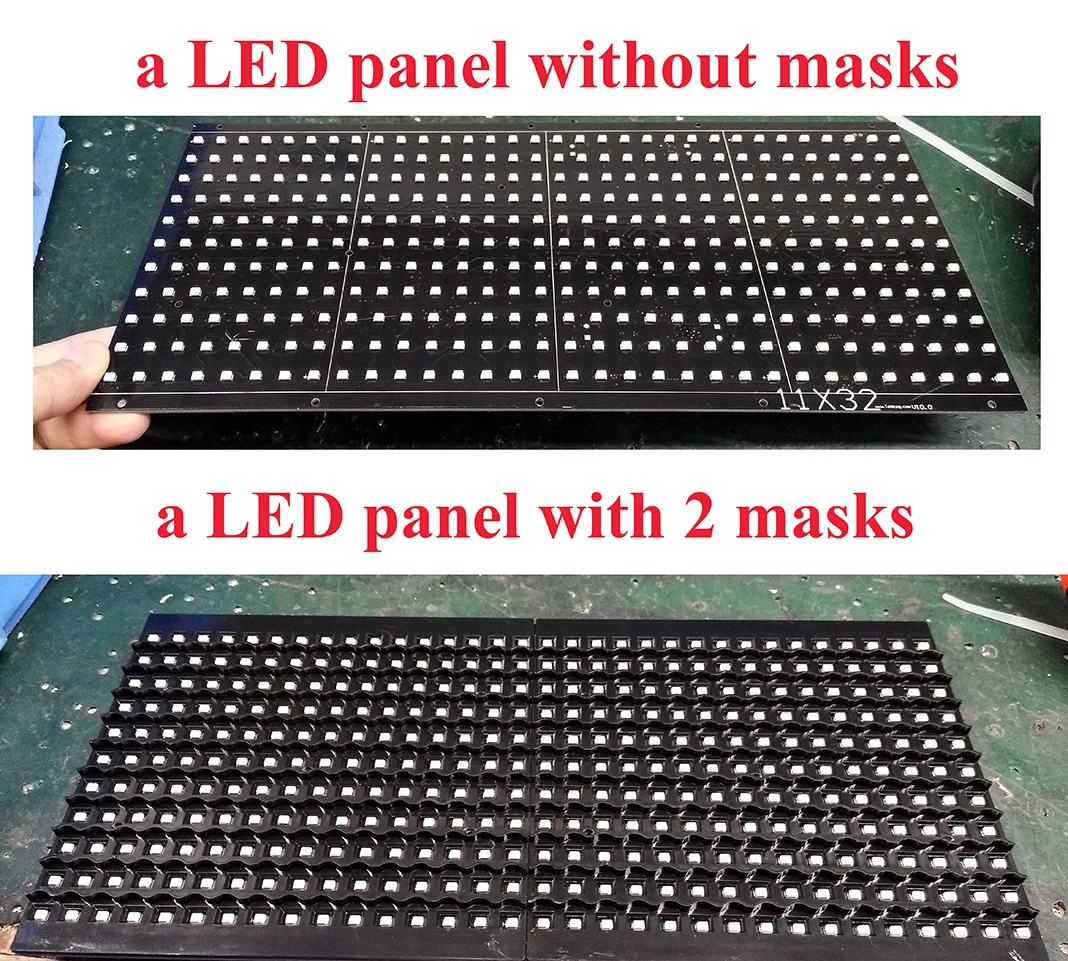

2. Aluminum alloy housing, aluminum alloy mask, ultra-strong.
3.We have opened mould to make the frame a complete item with full aluminum. LED panels and power supply are mounted to frame, which make it perfect to transfer the heat outside the frame. Easy to maintan and install. For this, our display are able to work for a very long time.

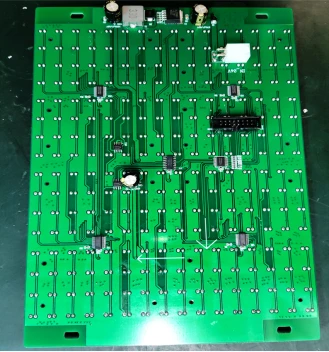

We use TI power chip from America for power supply, integrate it to LED panel, makes it offer power with high efficiency. Also, we insert the control card to the LED panel directly. In this case, there is no cable among the spare parts inside the display.It makes
our display carry good seismic behavior while lower the cost of labour and materials. The most important thing is that we develop both the software and hardware by our own, possessing the independent intellectual property rights and patents.
our display carry good seismic behavior while lower the cost of labour and materials. The most important thing is that we develop both the software and hardware by our own, possessing the independent intellectual property rights and patents.
Model | ZZG-1696S |
Type of Media | SMD3528(Taiwan brand chip) |
LED color | full colors |
Wavelength | 592 to 595 |
Pitch | 10mm horizontal, 11mm vertical |
Line Resolution | 16*96 dots |
Active Area | 960mm(W)*182mm(H) approx |
Enclosure Dimensions | 980mm(W)*200mm(H)*30mm（D） approx |
View Distance/Viewing Angle | >100m; 120oH/60oV |
Information to be displayed | destination, route, station |
Languages Supported | English/Spanish/Portuguese, other regional language |
Brightness | Auto adjusted with inbuilt light sensor, clearly visible under direct sunlight. also can be adiusted by software with 4classes, 25%, 50%, 75%, 100% |
Data Interface | RS485 |
Inbuilt Controller | 999routes/1000 stations per route |
Relative Humidity Level | No test yet |
UV Resistant | yes |
Operating Voltage Range | 24(DC9-36V) |
Ingress protection | If need IP65, will add a organic glass |
Temperature range | -40℃ to +80℃ |
Cabinet | Aluminum Alloy |
Vibration | 100% vibratior test |
Certification | CE, AIS in india |
Warranty | 5 years |

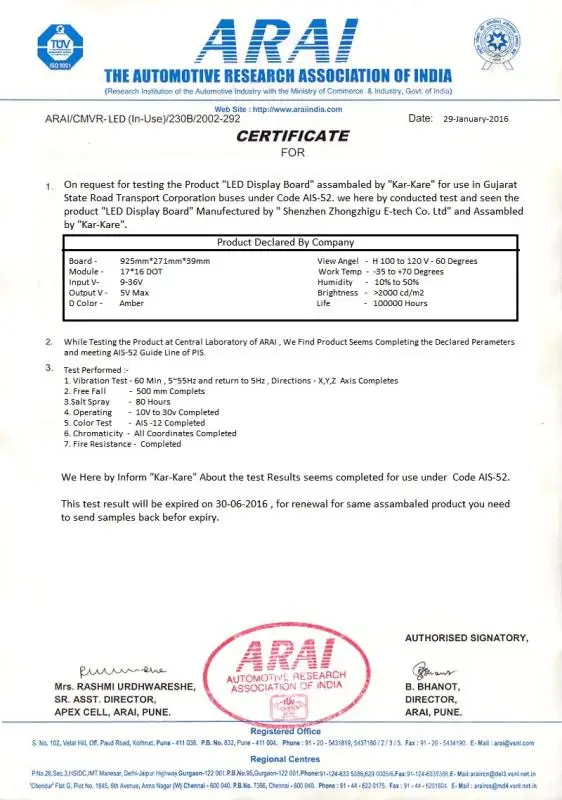

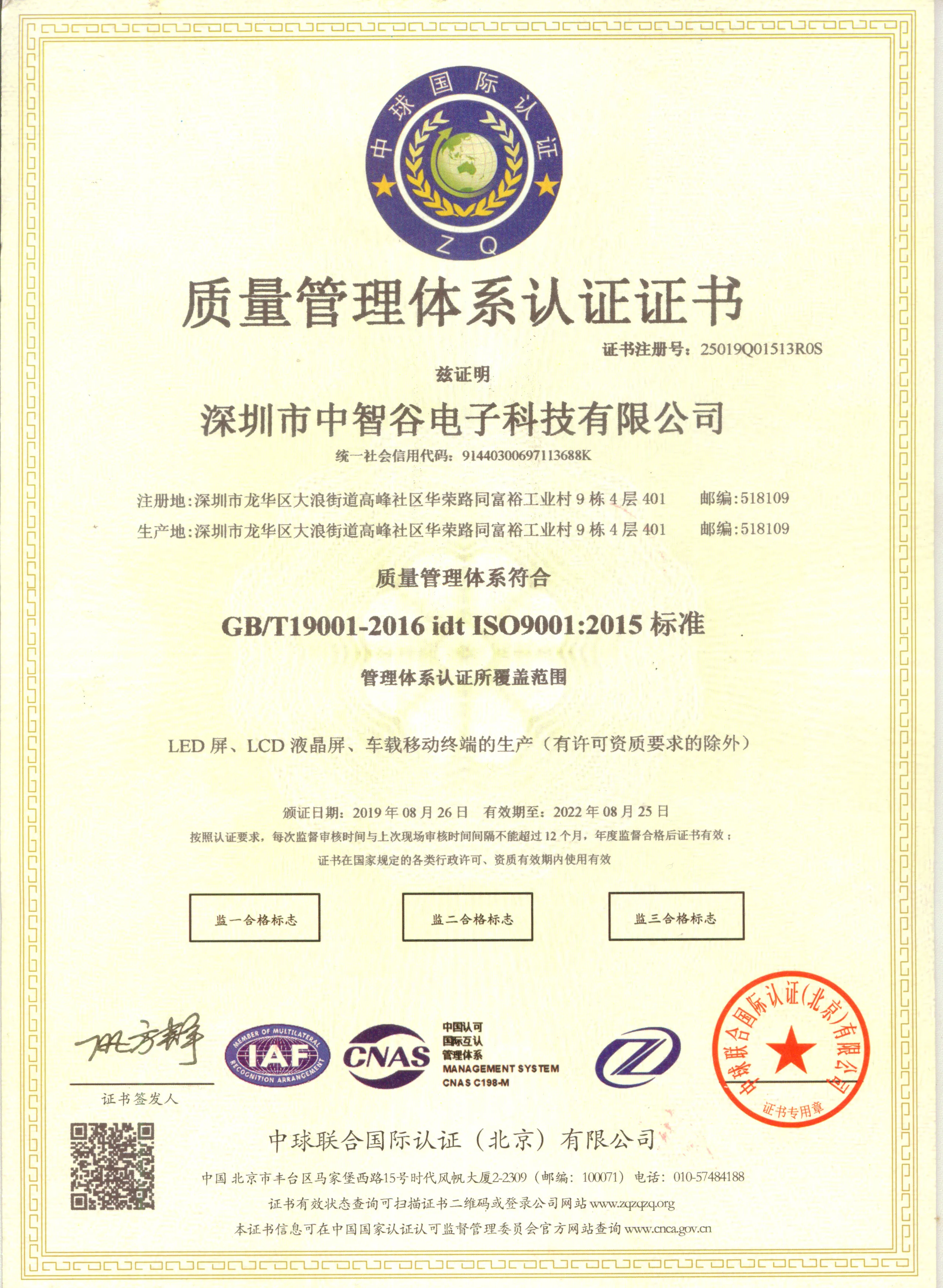

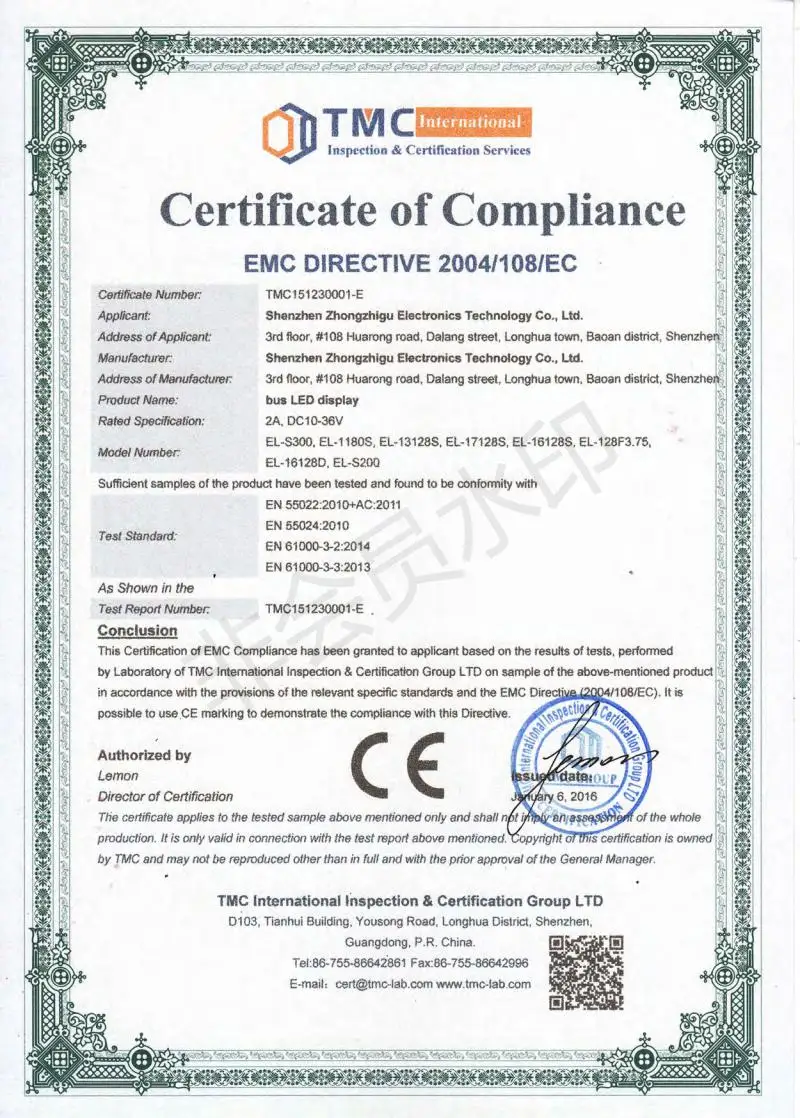

Certificate
Company Introduction
Shenzhen Zhongzhigu Eliectronic Technology Co., Ltd was established in 2009, concentrated on research & development as well as production of bus announcement system, bus LED display and parking lot LED display. We have many engineers experienced in ARM, FPGA and other embedded system. Adhering to the spirite of "concentration & innovation", we aim to provide first-class products in the world. We are not eager to become the largest, but to be the best on the market.
With years of development, we have great competitive advantages in terms of quality and price. Complete and reliable supply chain has been built, which is footstone of quality assurance and steady-state growth of company. Meanwhile, we groped and built a complete quality test system after years of supplying products to America, Europe, bus factories in South American, Southeast Asia, India, Africa etc. Our products are approved of CE certification and AIS certification etc.
Artisan spirit of excellence, with this faith, we are making tireless efforts and perseverance to make products excelsior and passing the torch to do one thing---intelligent bus stop announcer and LED display system.
With years of development, we have great competitive advantages in terms of quality and price. Complete and reliable supply chain has been built, which is footstone of quality assurance and steady-state growth of company. Meanwhile, we groped and built a complete quality test system after years of supplying products to America, Europe, bus factories in South American, Southeast Asia, India, Africa etc. Our products are approved of CE certification and AIS certification etc.
Artisan spirit of excellence, with this faith, we are making tireless efforts and perseverance to make products excelsior and passing the torch to do one thing---intelligent bus stop announcer and LED display system.
Packing&Shipping
FAQ
Q1: How long is the lead time usually?
A1: The lead time is usually 10 to 15 days after the order is placed.
Q2: What payment terms do you accept?
A2: T/T payment, West Union and PayPal are available.
Q3: Can you make OEM display?
A3: Yes, of cause we are able to do it. You just need to tell us your own idea, then we will do the rest.
Q4: Are the contents that showing on the LED display programable?
A4: Yes, we will offer soft ware and manuals for you. And then you can program it by yourselves.
Q5: Are you a factory or a trading company?
A5: We are a factory.
A1: The lead time is usually 10 to 15 days after the order is placed.
Q2: What payment terms do you accept?
A2: T/T payment, West Union and PayPal are available.
Q3: Can you make OEM display?
A3: Yes, of cause we are able to do it. You just need to tell us your own idea, then we will do the rest.
Q4: Are the contents that showing on the LED display programable?
A4: Yes, we will offer soft ware and manuals for you. And then you can program it by yourselves.
Q5: Are you a factory or a trading company?
A5: We are a factory.
