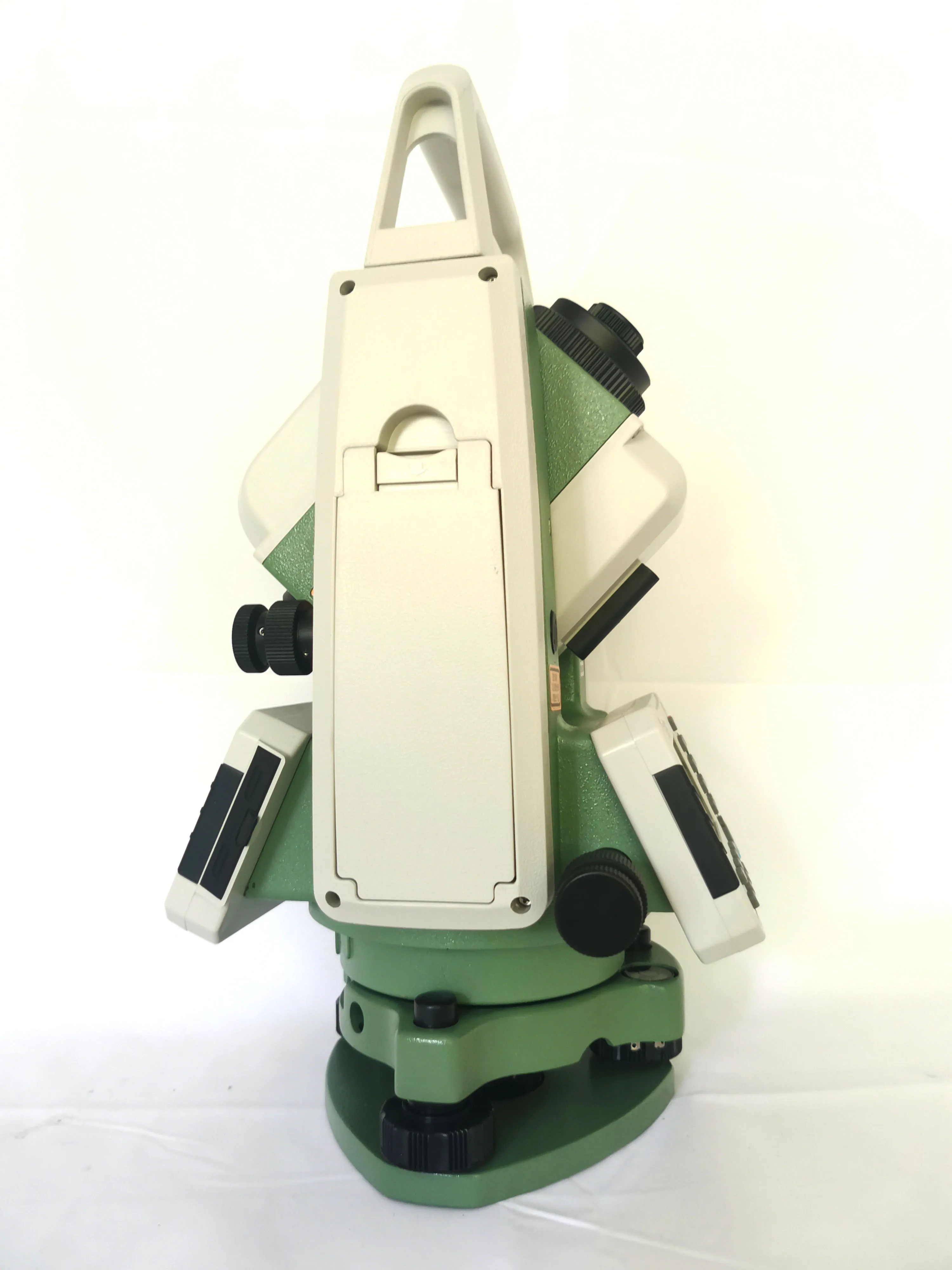

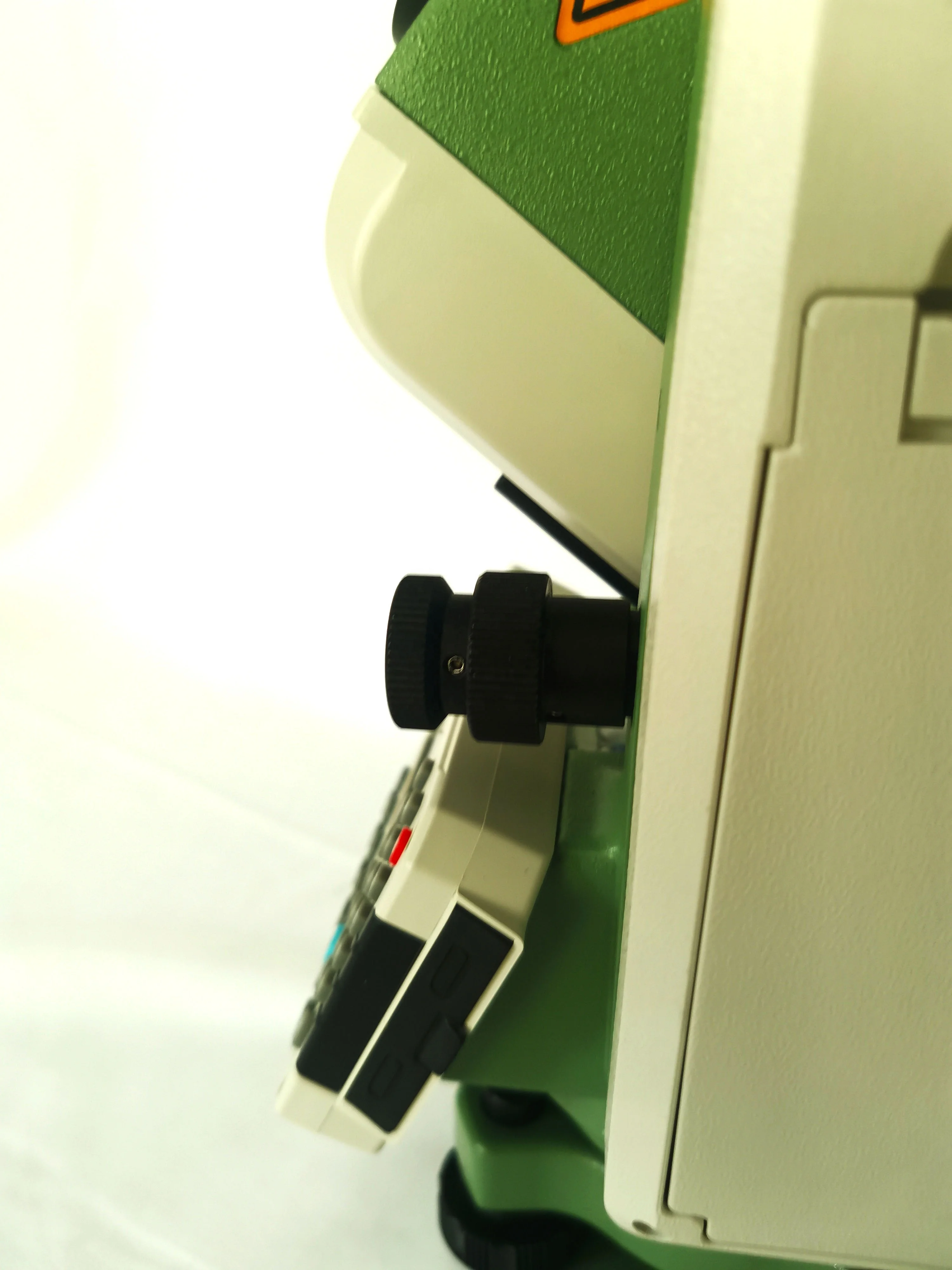

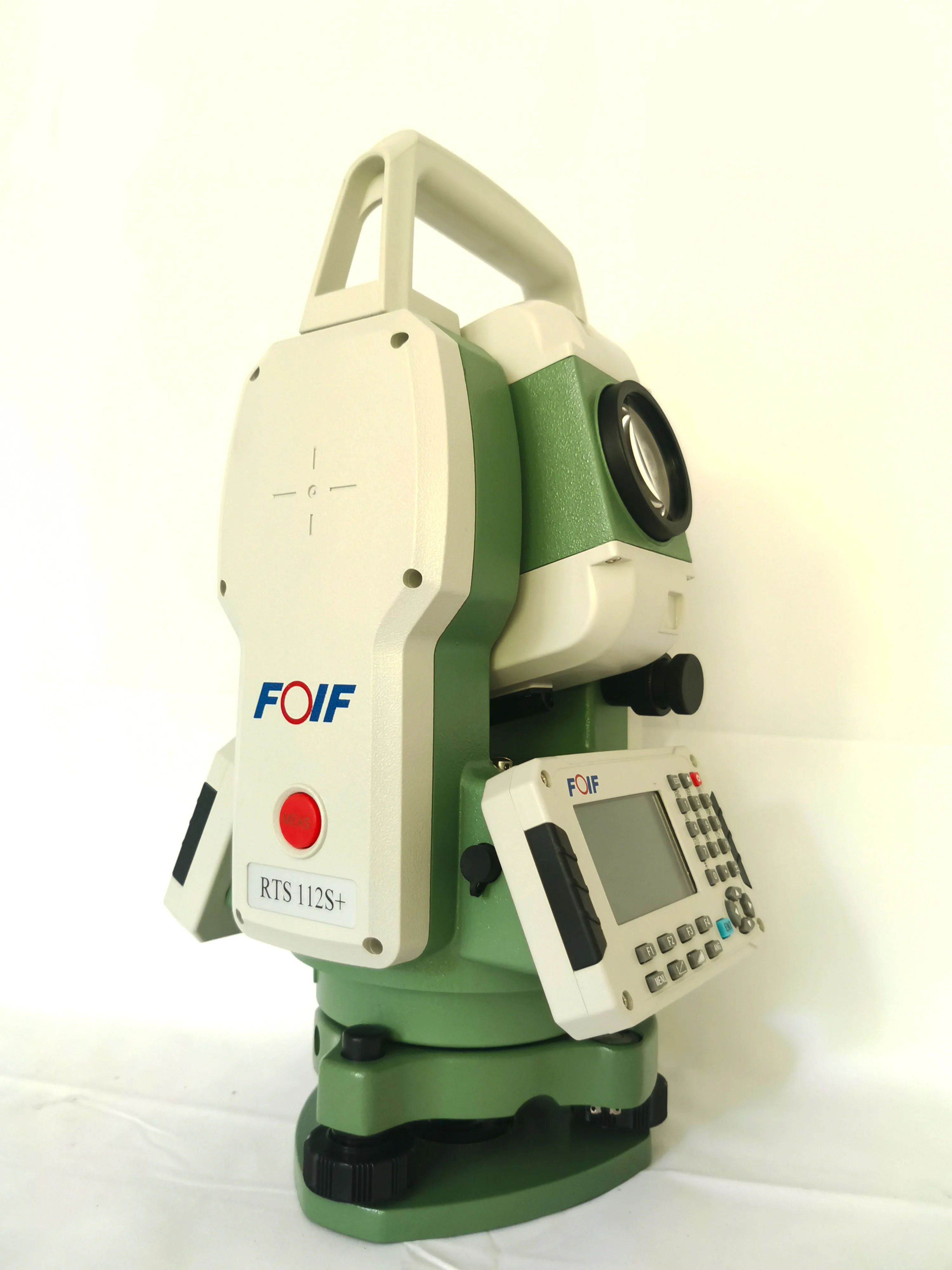

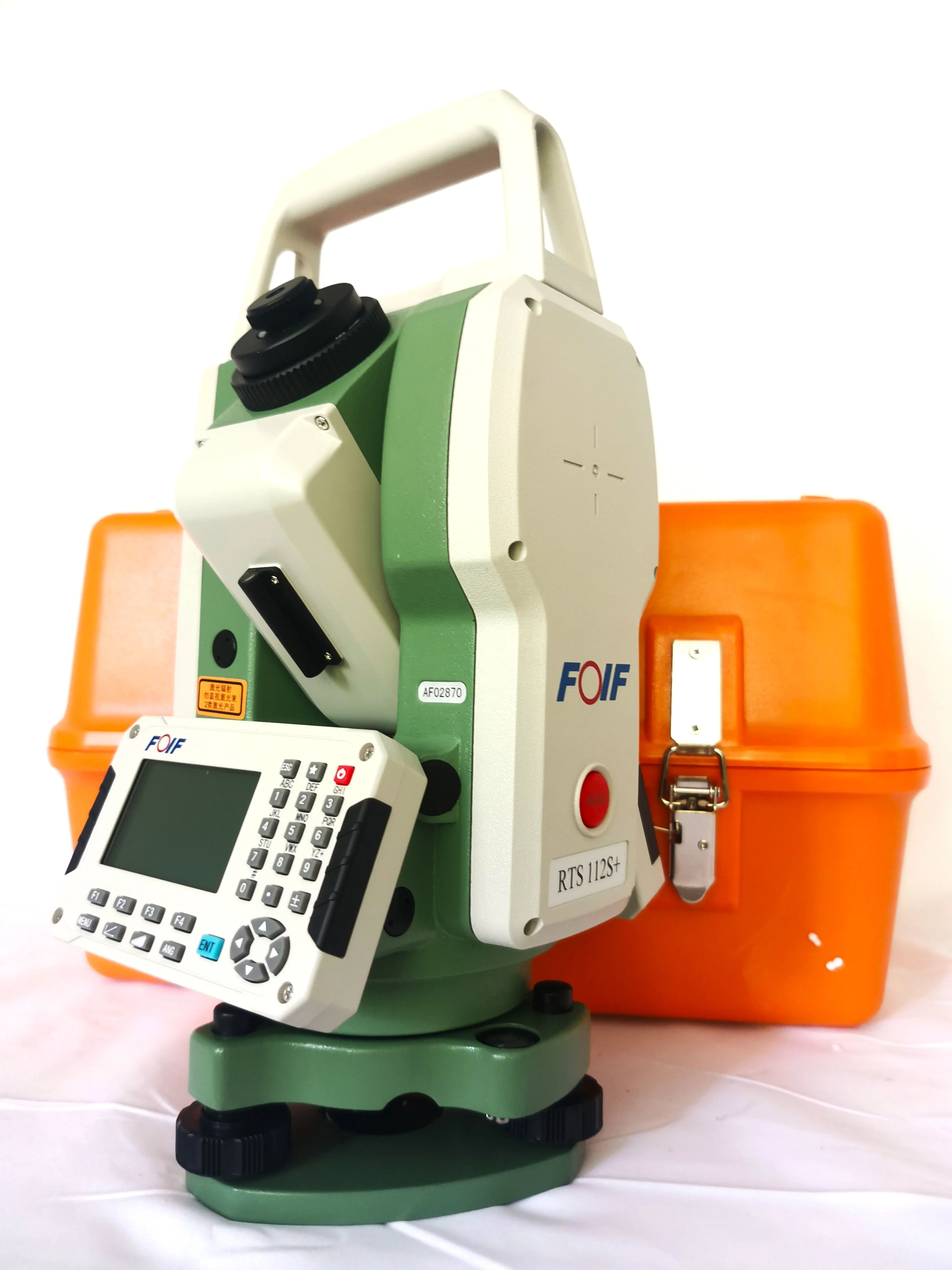

Non Prism High Grade Foif Rts112S Total Station Great Surveying Instrument
- Category: >>>
- Supplier: Nanjing Cetu Surveying Instrument Co. Ltd.
Share on (1600827684376):
Product Overview
Description
Products Description
1. New stand design
2. New fast digital distance measuring head
3. 32-bit microprocessor
4. Optimize software operation process
5. 6-line LCD display
7. SD card storage
2. New fast digital distance measuring head
3. 32-bit microprocessor
4. Optimize software operation process
5. 6-line LCD display
6. One-key quick measurement
7. SD card storage
Product Paramenters

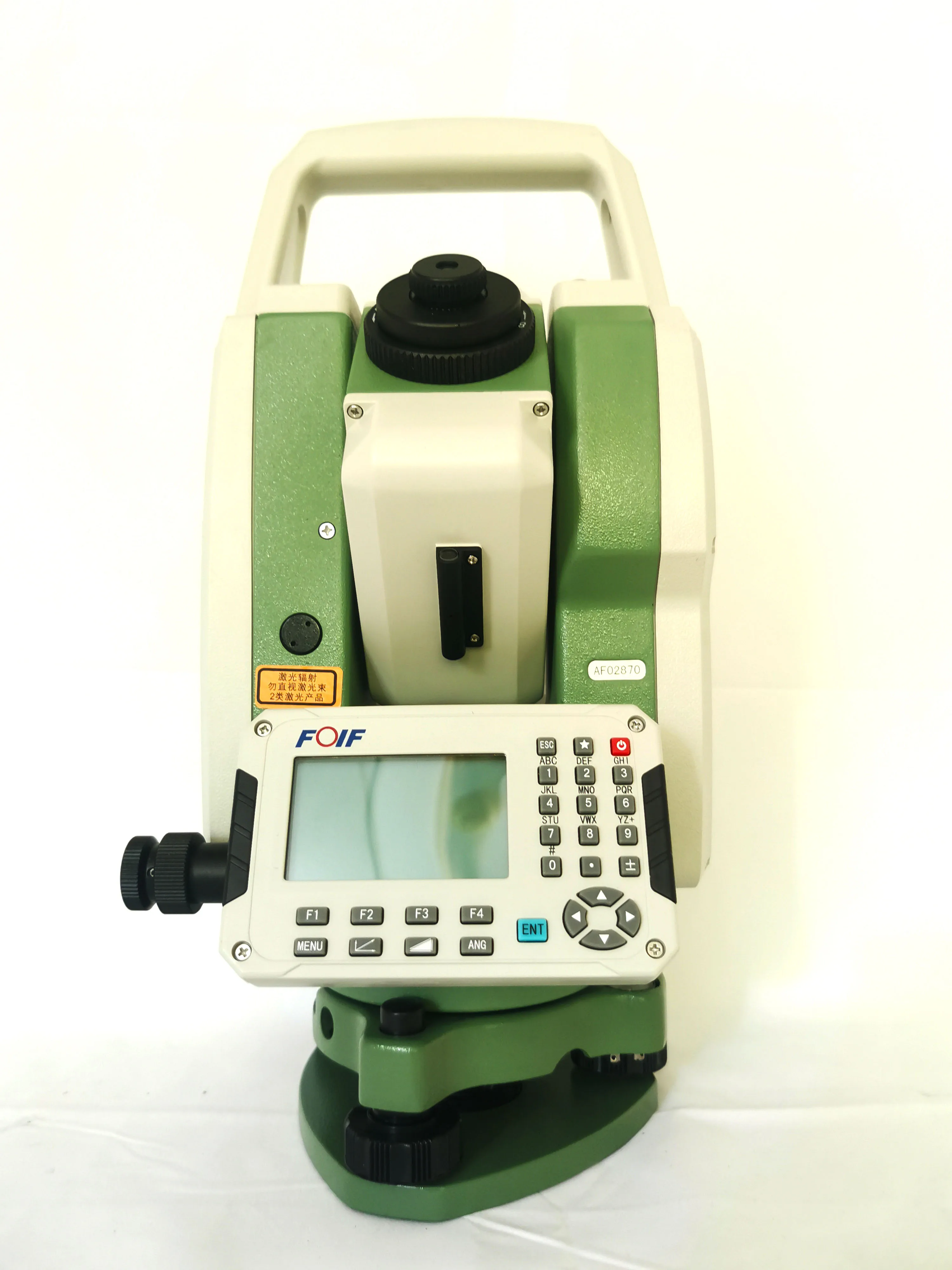

FOIF RTS112S+ Total Station | ||

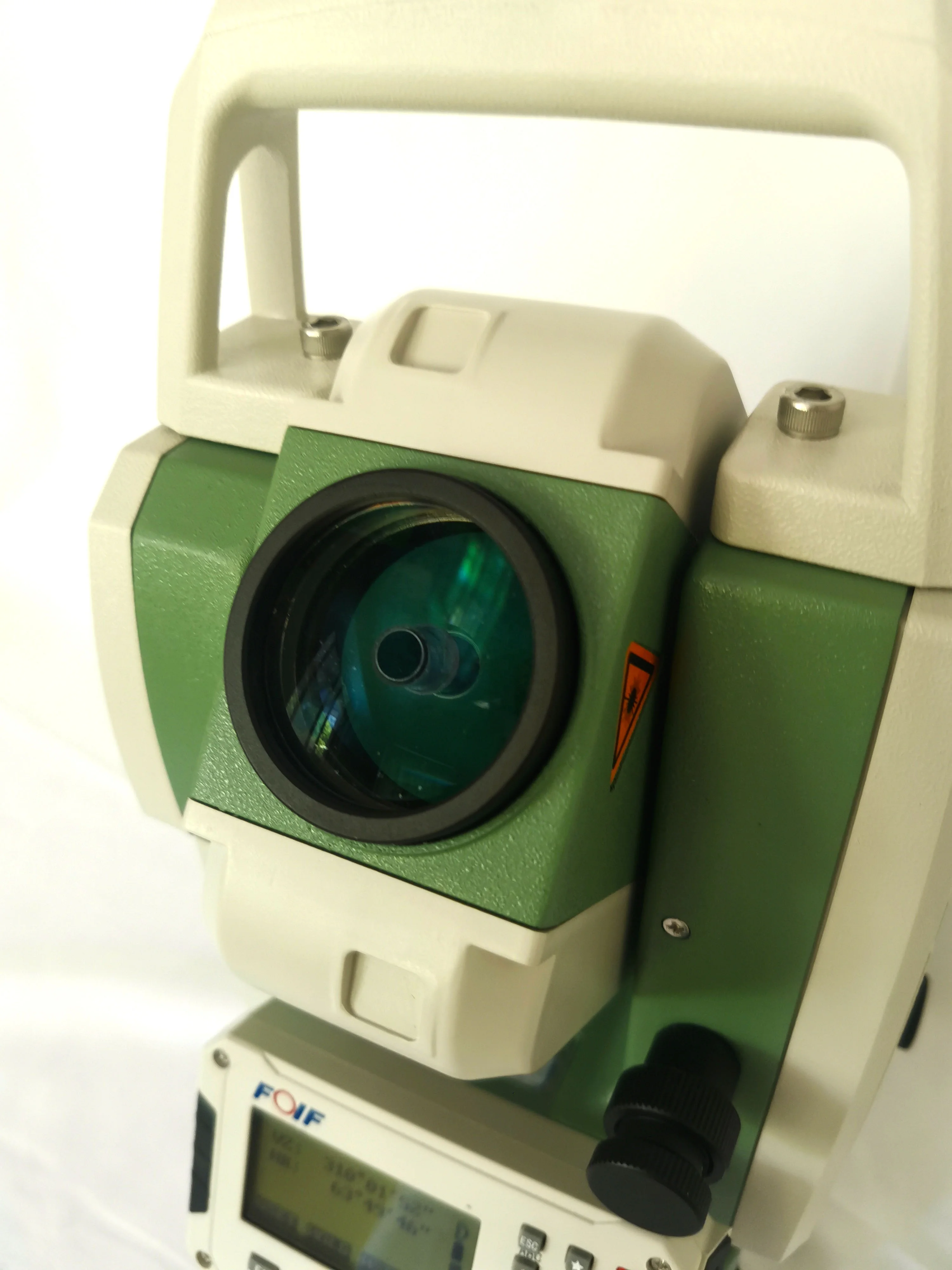

Telescope | ||
Imaging | Positive | |
Magnification | 30X | |
Objective Lens Effective Aperture | 50mm | |
Resolution | 3.75'' | |
Field Angle | 1°30′ | |
Shortest Sight Distance | 1m | |
Angle Measurement | ||
Angle Measure Method | Absolute Encode | |
Angle Measure Precision | 2″ | |
Minimum reading | 1″,5″ | |
Distance Measurement | ||
Precision | ±(2mm+2×10-6·D) | |
Distance Measurement | 8′/2mm | |
Compensation | ||
System | Liquid capacitive | |
Working Range | ±3′ | |
Resolution | 1″ | |
Plummer (Laser & Optical Optional) | ||

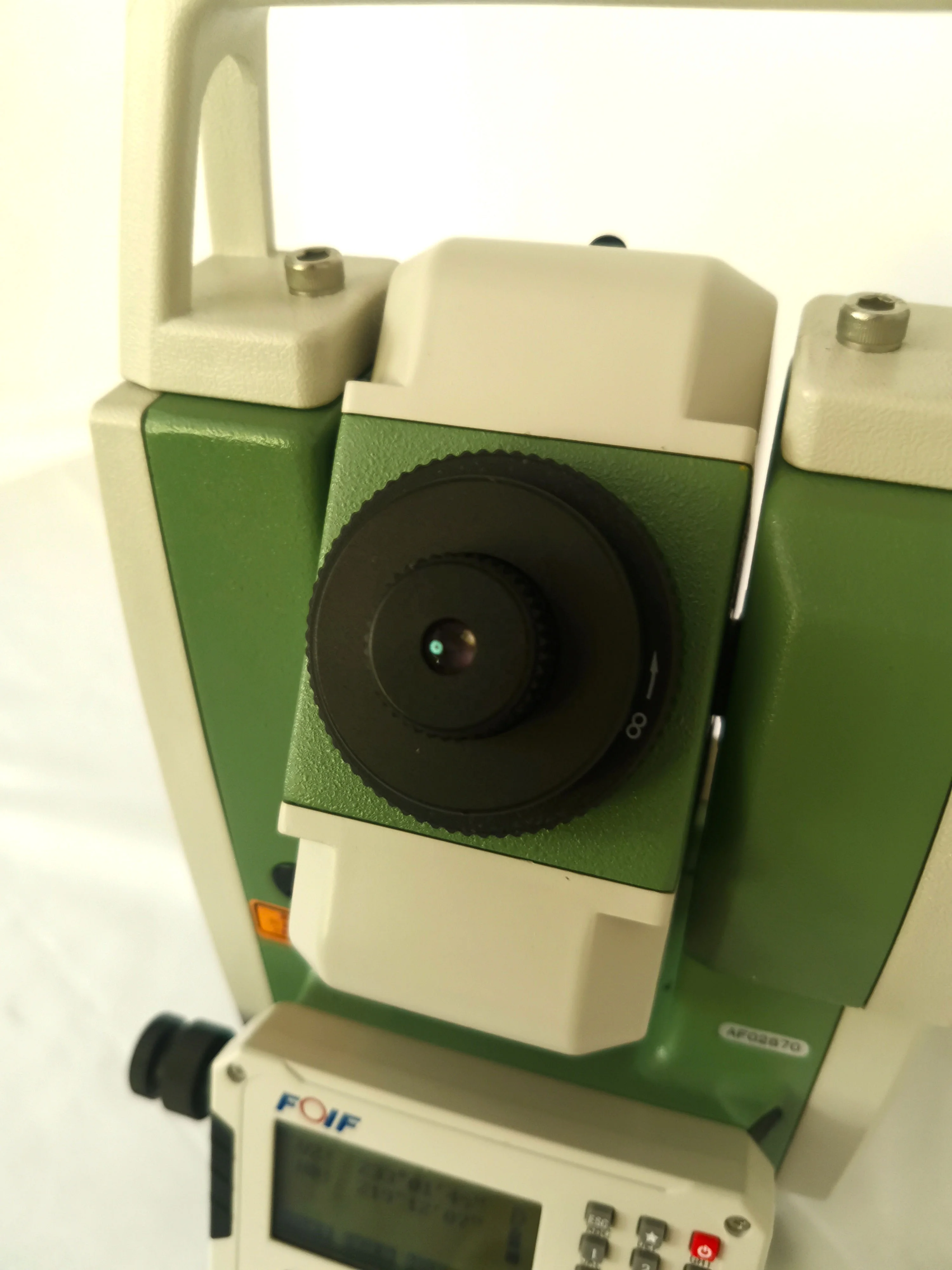

Optical Plummer | ||
Imaging | Positive | |
Magnification | 3X | |
Focus range | 0.3m~∞ | |
Field Angle | 5° | |

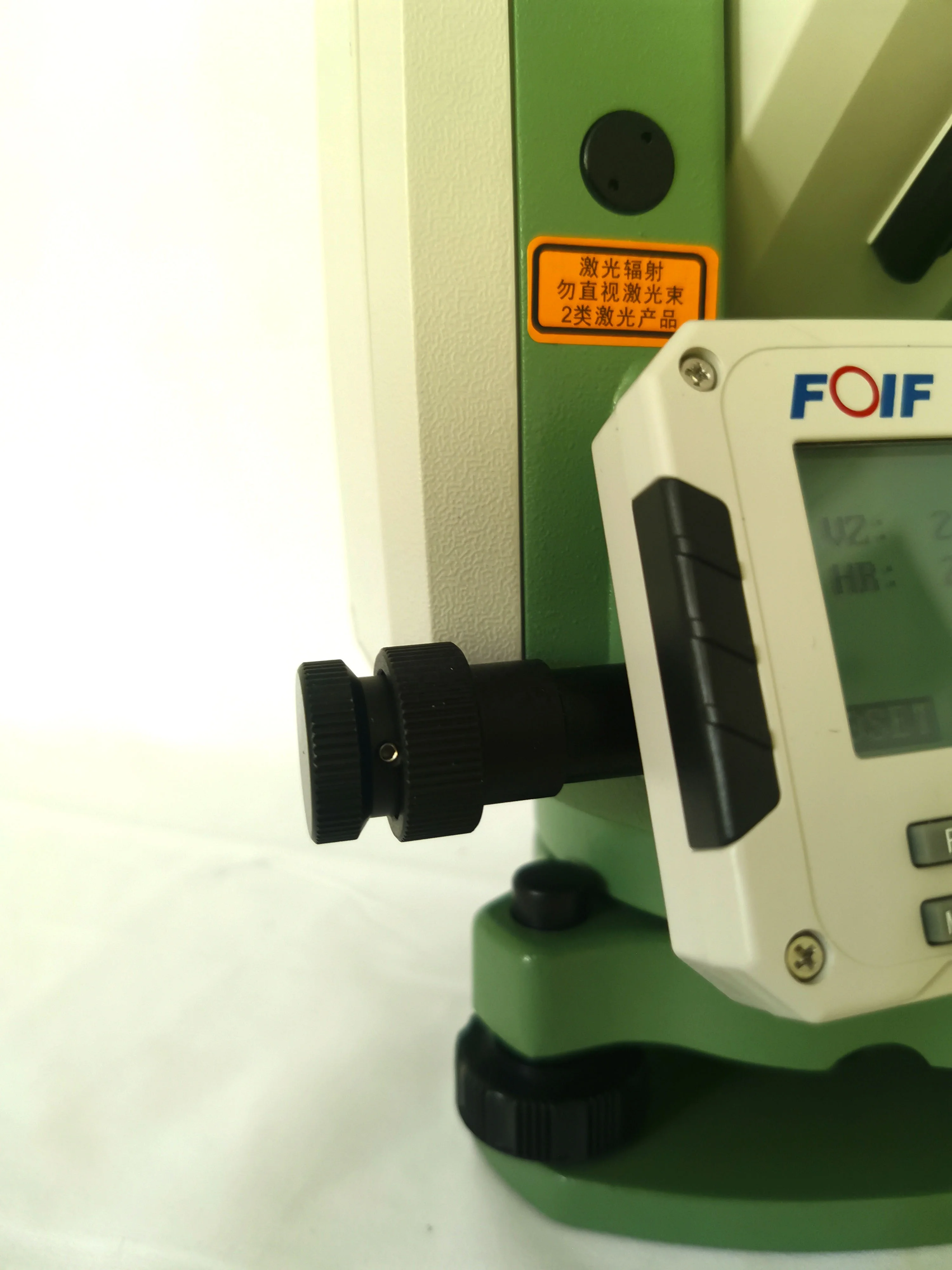

Laser Plummer | ||
Laser Wavelength | 650nm | |
Laser Power | 5mw | |
Laser Level | II | |
Effective Range | 0~3m | |
Spot Size | 1mm/1.5m | |
Battery | ||
Power Source | Rechargeable NiMH Battery | |
Voltage | DC 6V | |
Continous Working Time | BDC1800mAh About 10 hours | |
Temperature | ||
Working Temperature | -20ºC~+45ºC | |
Size & Weight | ||
Size | 180X166X355mm | |
Center High | 232mm | |
Weight | 6.5kg | |
Company Profile
Nanjing Cetu Surveying Instrument Co.,Ltd
was founded in 2015. Our company is known as Nanjing Jingwei Surveying Instrument Sales and Service Center (founded in 1992),
which was the former sales & service platform of Nanjing Surveying instrument Factory.
The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie,
etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition,
Trimble(America) authorized our company as a special contractor.
which was the former sales & service platform of Nanjing Surveying instrument Factory.
The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie,
etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition,
Trimble(America) authorized our company as a special contractor.

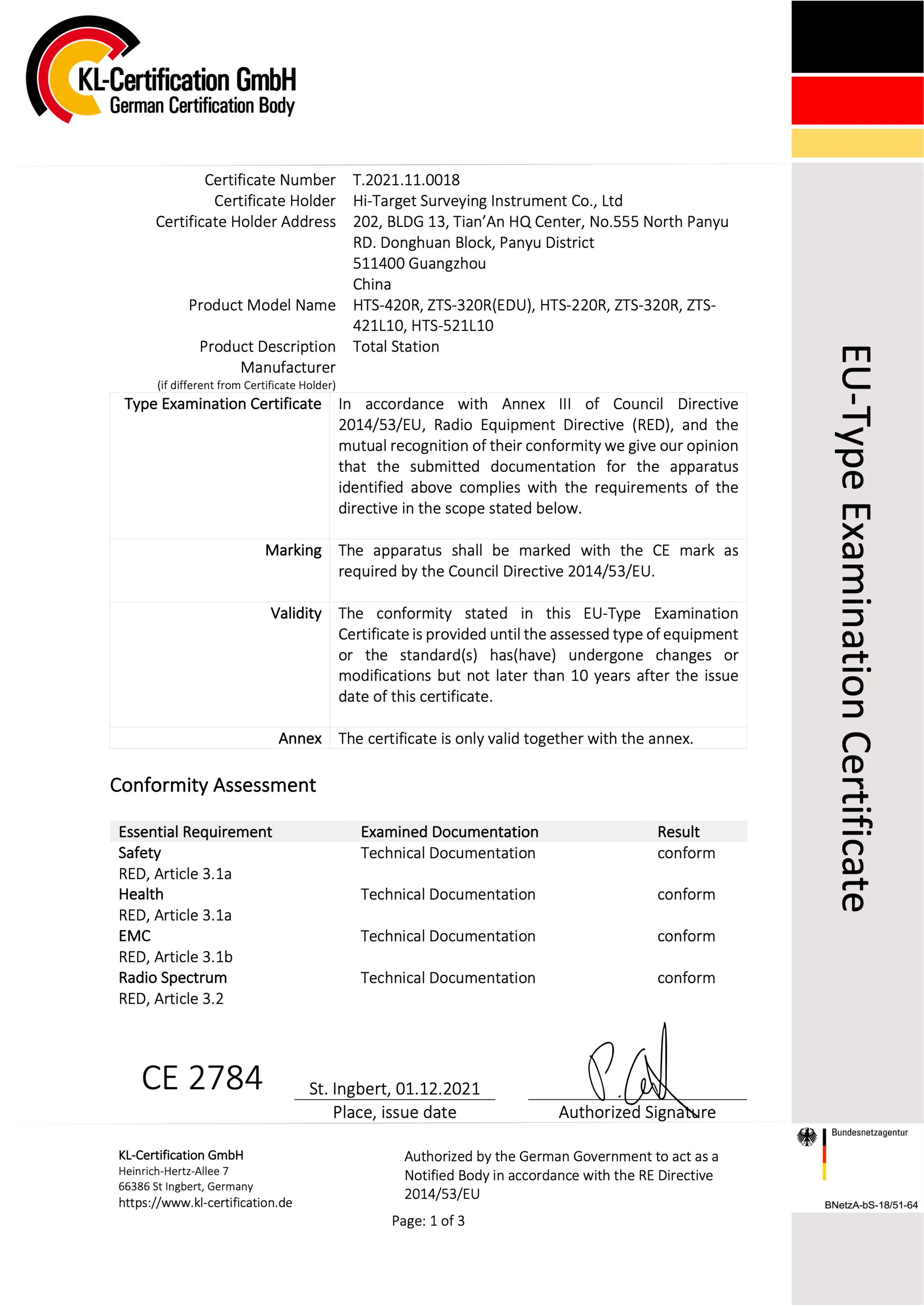

Certifications
