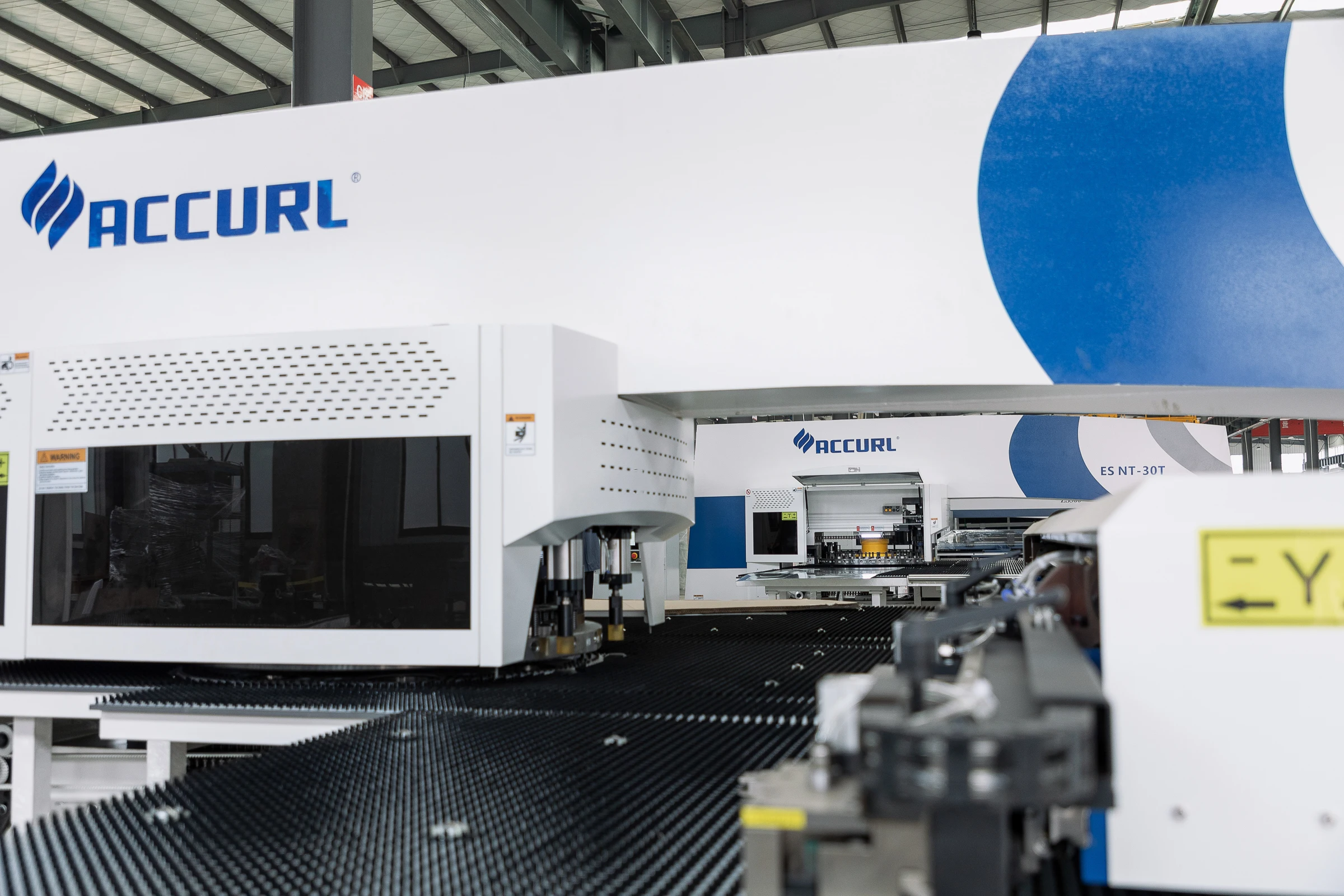

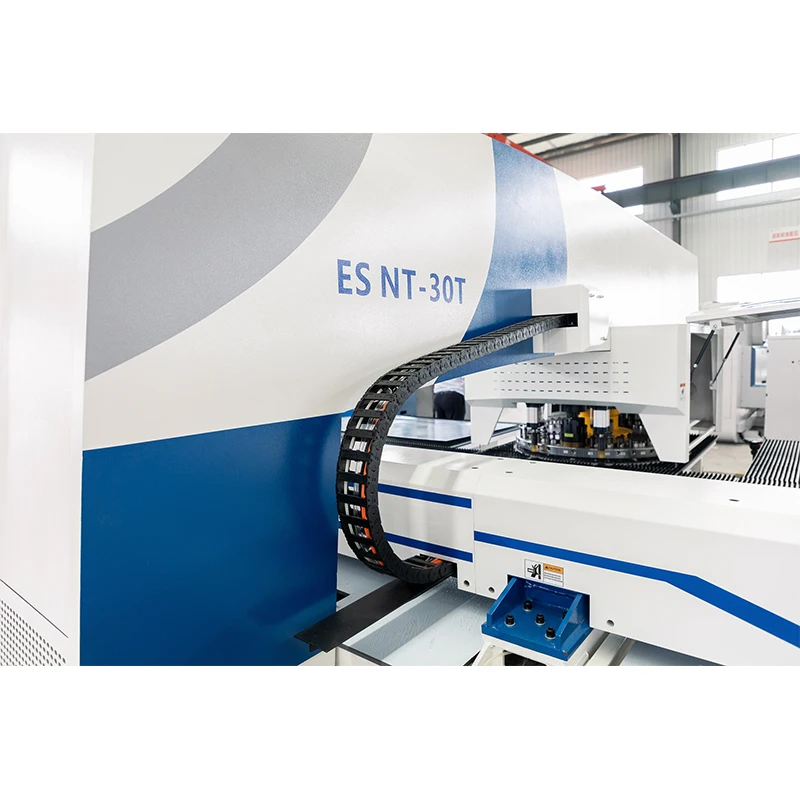

SERVO CNC TURRET PUNCH PRESS MAX SF SERIES
The new generation of ACCURL turret punch is a low energy, high efficiency turret punch with low environmental and maintenance costs. The ACCURL can be configured in 22 or 33 ton options. The ACCURL was designed with a thick turret to ensure longevity of the machine and its tools and to minimize tool deflection.ACCURL performs full punches, hovering, marking and forming operations.
The SF model can be upgraded with our Ultra Package which can decrease part processing times by up to 40%.
The SF model can be upgraded with our Ultra Package which can decrease part processing times by up to 40%.
The ACCURL comes standard with the following features:
Automatic Tool and Linear Components Lubrication System
Pneumatic Ball Transfer and Brush Table for ease of loading/unloading
Vacuum Assist System for slug removal
32 Stations 2 Auto indexing stations
One Mirror-Type Safety System to guard entire work envelope
Man-Sensors on moving tables
Sheet Jam Protectors to detect warped material
Sheet-gripper sensors to detect loose material
Pneumatic Ball Transfer and Brush Table for ease of loading/unloading
Vacuum Assist System for slug removal
32 Stations 2 Auto indexing stations
One Mirror-Type Safety System to guard entire work envelope
Man-Sensors on moving tables
Sheet Jam Protectors to detect warped material
Sheet-gripper sensors to detect loose material

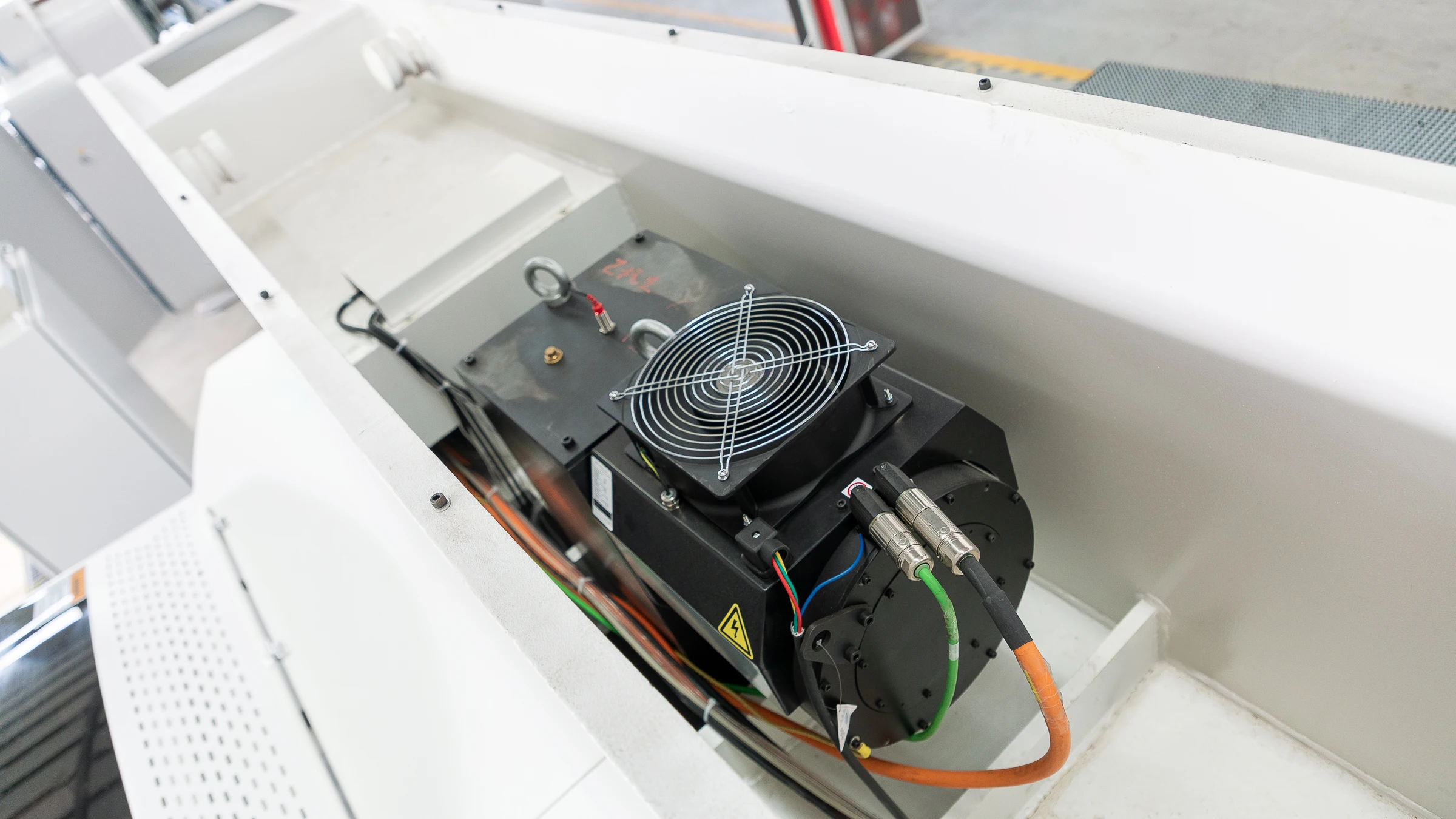

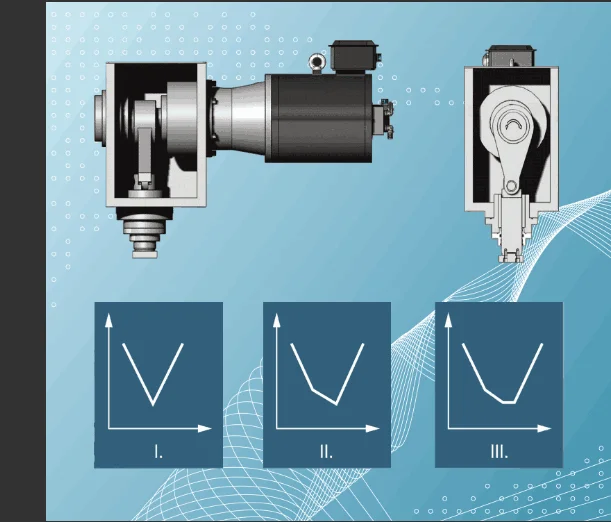

SERVO DRIVE SYSTEM
The punch servo utilizes a direct drive gearbox that supplies power and speed. This servo allows the user to steplessly adjust the
punch stroke and accommodate any pressure curve requirements.The AC punch servo motor can be programmed for various applications.
1. High speed applications.
2. Low noise applications.
3. Forming applications.
punch stroke and accommodate any pressure curve requirements.The AC punch servo motor can be programmed for various applications.
1. High speed applications.
2. Low noise applications.
3. Forming applications.

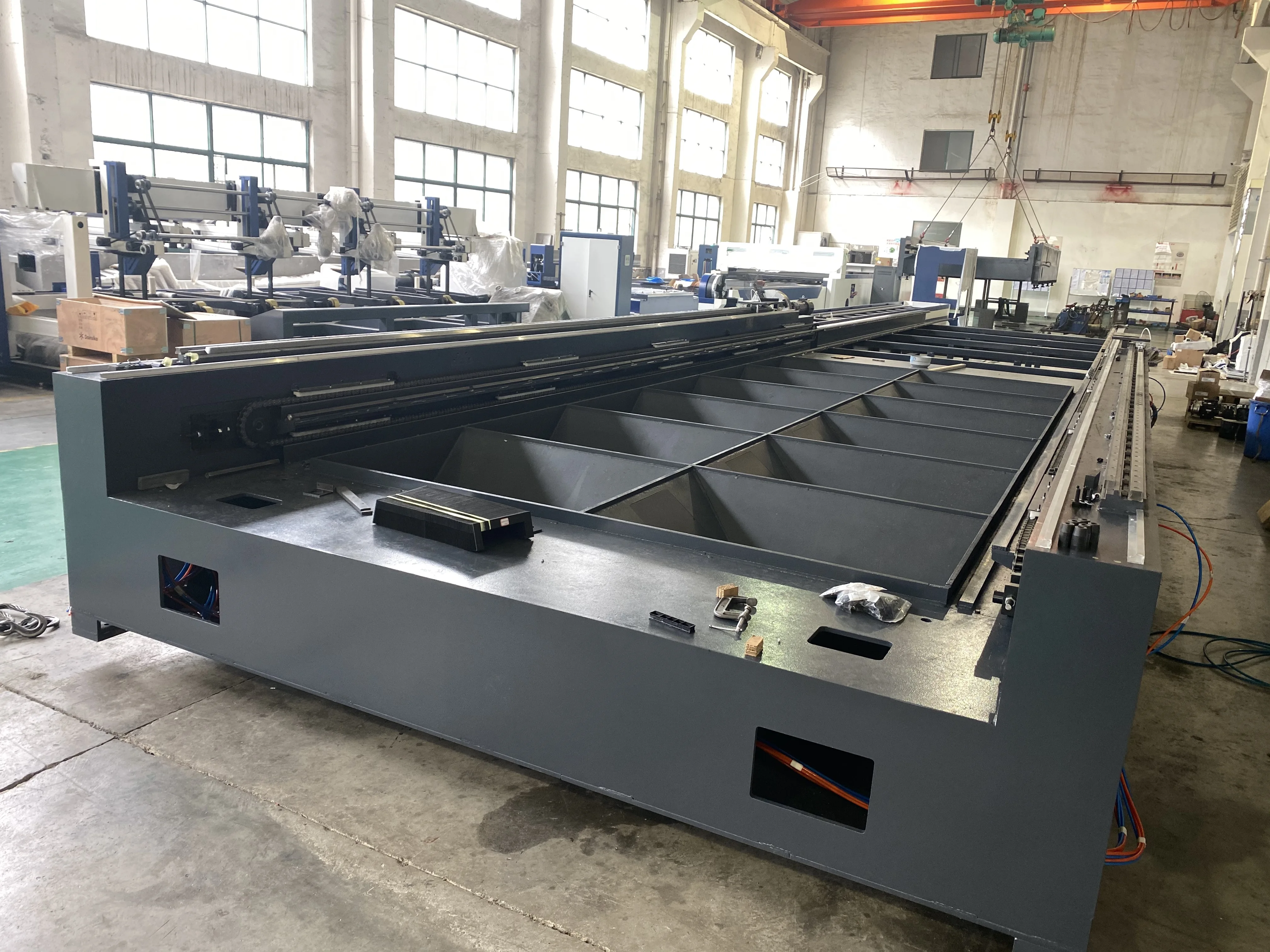

FULLY ANNEALED FRAME
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress. They are built to last years of heavy use without
distortion. Auto changing pallet system allows over 1800kg loading weight.A heavier frame means less vibration and better
accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to
the chassis by steel bars.
distortion. Auto changing pallet system allows over 1800kg loading weight.A heavier frame means less vibration and better
accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to
the chassis by steel bars.
SOLID FRAM E STRUCTURE
The ACCURL turret punch utilizes an O-frame structure for rigidity and reliability throughout the life cycle of the machine.
QUALITY ENBINEERINS

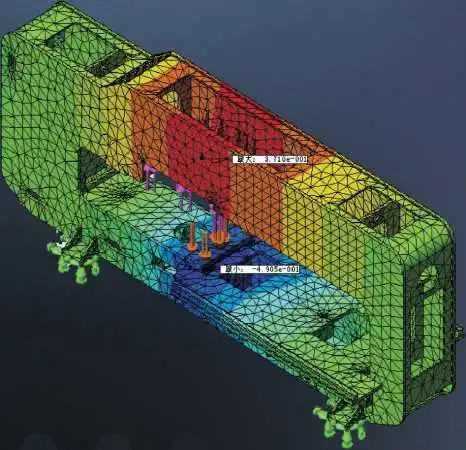

All frame configurations are field tested and engineered to last using FEA.
QUALITY ENBINEERINS
All frame configurations are field tested and engineered to last using FEA.

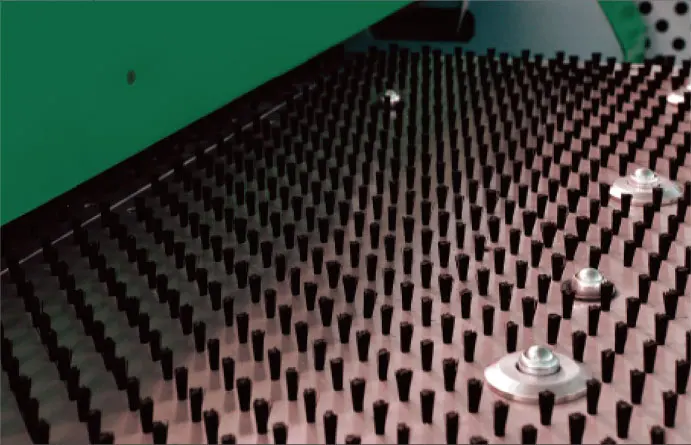

MIXED BALL AND BRUSH TABLE
The standard configuration features a mixed ball and brush table that comes with an
integrated pneumatic ball transfer table to ease loading and unloading.
integrated pneumatic ball transfer table to ease loading and unloading.

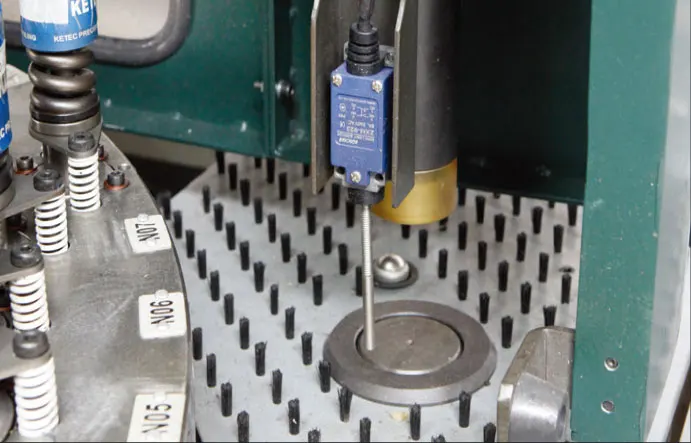

SHEET JAM PROTECTORS
Sheet Jam Protectors automatically detects deformed or buckled sheets and automatically
stops the machine when triggered.
stops the machine when triggered.
DROP CHUTE & CONVEYOR
The part Drop Chute and Conveyor options allow processing and sorting to be automated and simplified.

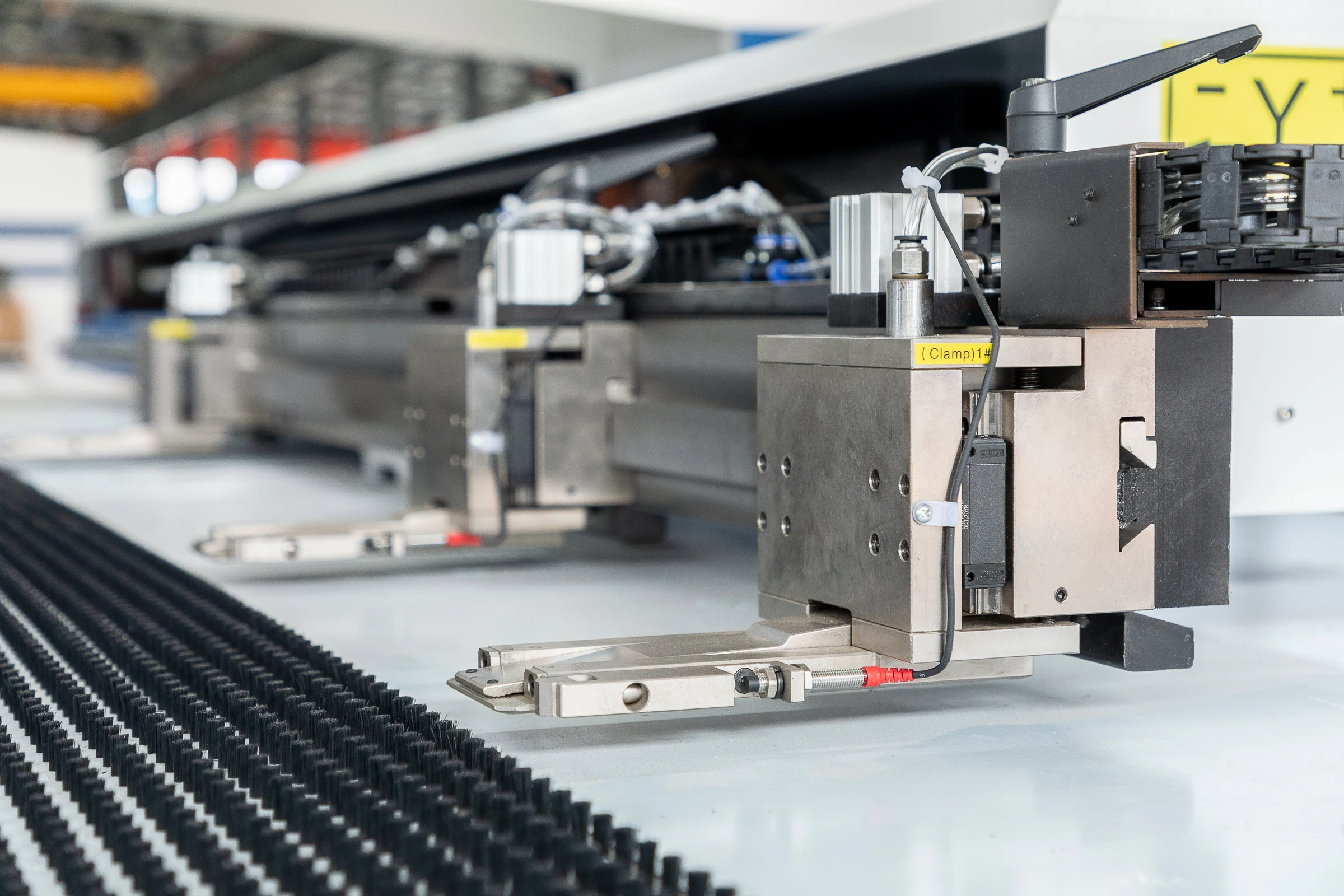

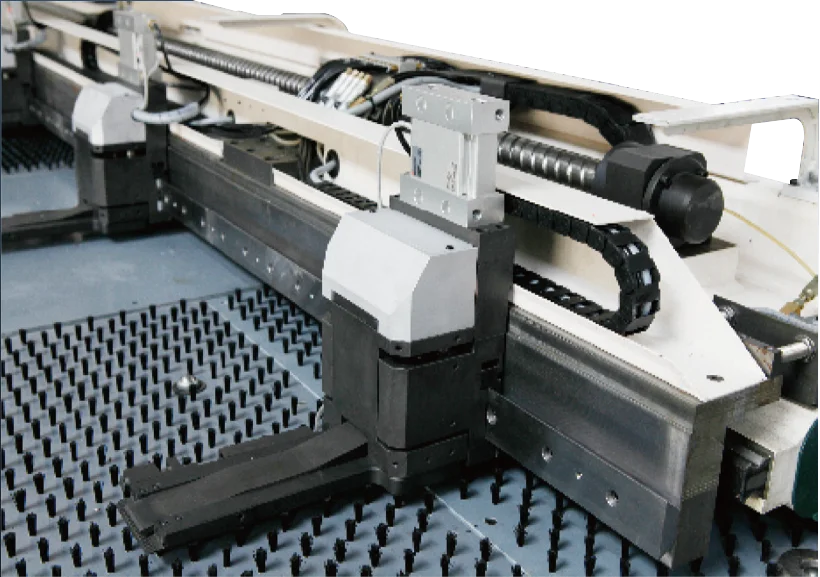

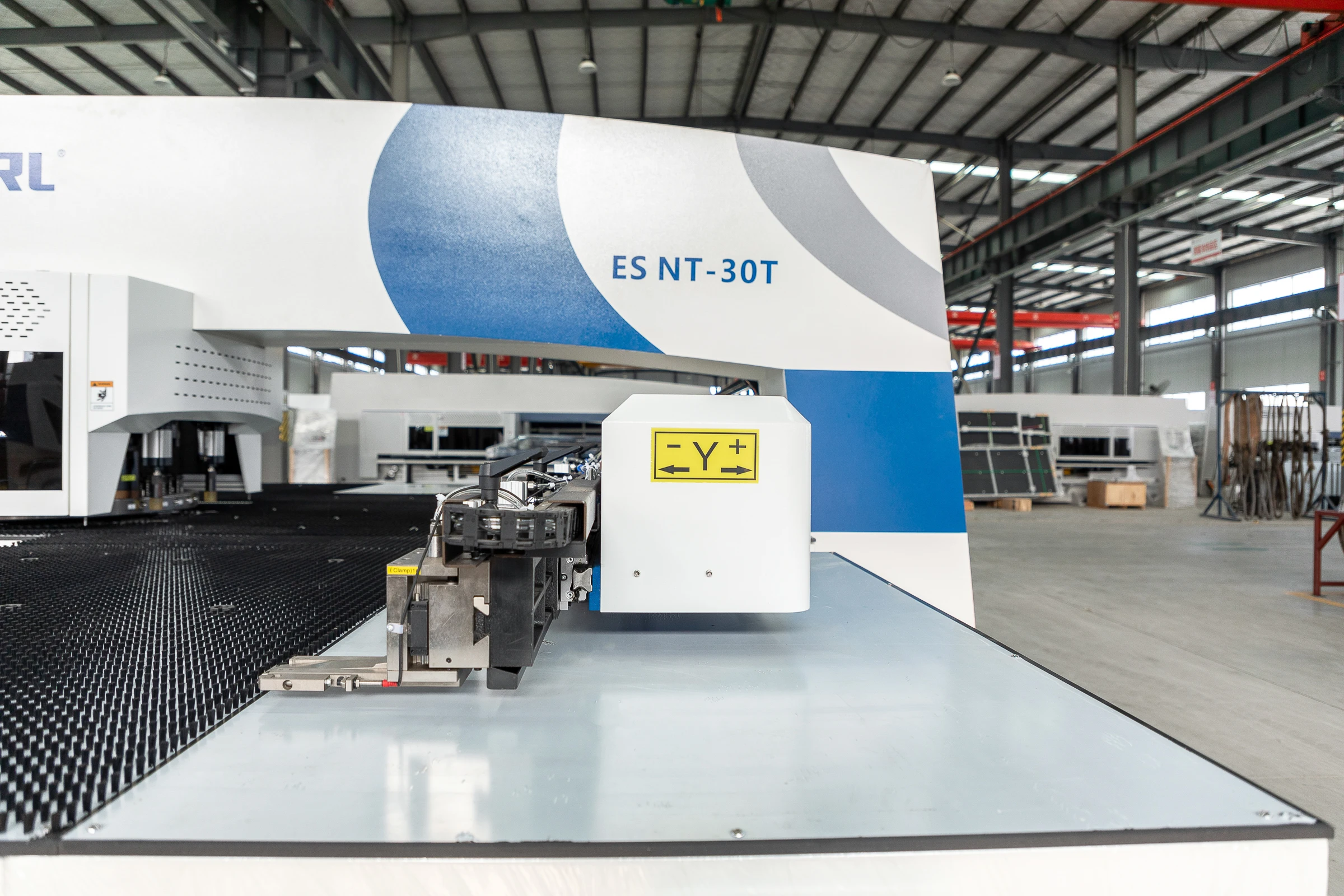

AUTOMATIC CLAMP POSITIONING
Automatic Clamp Positioning reduces set up time and errors, and provides machine run time flexibility and productivity.
MAXIMUM CONTROL

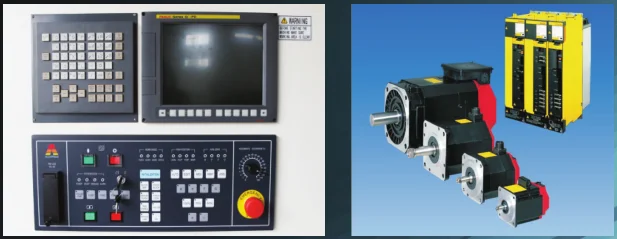

The ACCURL turret punch comes with a FANUC Oi-PD LCD mounted controller. The setup includes an ACCURL Operator panel and FANUC MDI panel.
The FANUC controller allows for precise and reliable machine control, as well as providing a way to monitor secondary systems and keep track of maintenance tasks.
The FANUC controller allows for precise and reliable machine control, as well as providing a way to monitor secondary systems and keep track of maintenance tasks.

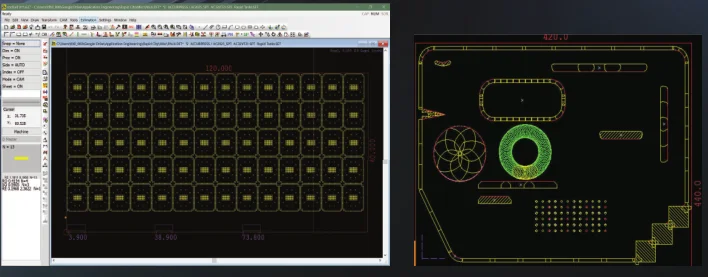

CAD/C AM NESTING SOFT WARE
The G-code for the Oi-PD controller can be generated from nesting software. The operator may nest multiple parts, maximize sheet utilization and streamline their workflow to ensure their turret punch is working in peak condition.
THICK TURRET TOOLING
The ACCURL is compatible with thick turret tooling. The wide variety of specialty tools combined with the programmable ram means the ACCURL can deliver for any application.
The D-station also is configurable with multi-tools with multiple configurations of both A(0.5”) and B (1.25").
Reduce additional operations by utlilizing ACCURL's support of tapping and other specialty tooling.
ACCURL SPECIFICATION | ||||||
Item | Unit | MAX-SF-30T | MAX-SF-50T | |||
Punching Capacity | Ton | 30 | 50 | |||
X Traverse Length | mm | 2500±10 | 2500±10 | |||
Y Traverse Length | mm | 1250±10 | 1250±10 | |||
Max Sheet Size | mm | 1250x5000 | 1250x5000 | |||
Max Sheet Thickness | mm | 6.35 | 8.35 | |||
Max Sheet Weight | kg | 110 | 160 | |||
X Axis Traverse Speed | m/min | 120 | 100 | |||
Y Axis Traverse Speed | m/min | 105 | 80 | |||
Max Traverse Speed | m/min | 128 | 105 | |||
Punching Speed at 25mm Pitch | Hist/min | 450 | 380 | |||
Nibbling Speed | Hist/min | 1200 | 1050 | |||
Tools Type | Thick Turret | |||||
Max Punching Diameter | mm | 88.9 | ||||
Number of Tool Stations | 32 / 42 / 52 | |||||
Number of Auto Index Stations | Pcs(type) | 4(2B+2C) / 3(2B+1C) / 2(1B+1C) | ||||
Turret Rotating Speed | rpm | 33 | 33 | |||
Auto Index Rotationg Speed | rpm | 100 | 100 | |||
Ram Stroke Distance | mm | 0~31 | 0~31 | |||
Working Tables Size | Brush + Supporting Ball Set | |||||
Number of Sheet Clamps | Pcs | 3 | 3 | |||
Air Supply | NL/min | 250 | 250 | |||
Air Pressure | bar | 6 | 6 | |||
Size of Control Cabinet | mm | 1350x700x2185 | ||||
CNC Controller | FANUC Oi-PD | |||||
Number of Controllable Axes | Axis | 4 | ||||
RAM Memory | KB | 512 | ||||
Serial Interface | RS232/RJ45/PCMCIA | |||||
Punching Precision | mm | ±0.1 | ||||
Machine Dimension (L x W x H) | mm | 5940x5220x2420 | 5940x5220x2420 | |||
Net Weight (approx.) | kgf | 13500 | 15800 | |||
Company Profile
Why choose us?
ACCURL is a famous manufacturer of metal sheet equipments in world market. Its Brand ¡°Accurl¡± has been leading brand for many years in the field of international metal sheet equipments. Our group devote ourselves to product development, production and sales. Our main products are: CNC Press Brake, Shears, Hydraulic press, Laser Cutter and CNC rolling machine these sheet metal processing equipments.we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton & 16m.we are with professional R&D team, and we have World-class design and manufacturing capabilities.

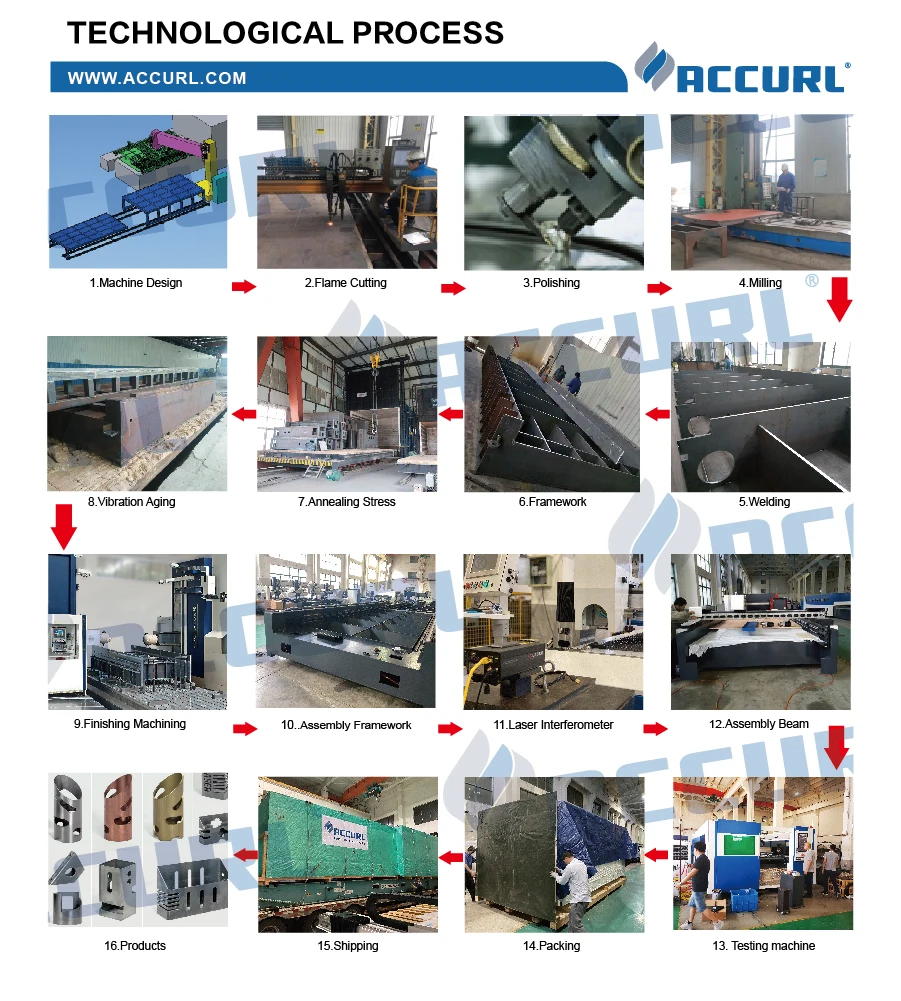

Technological Process
