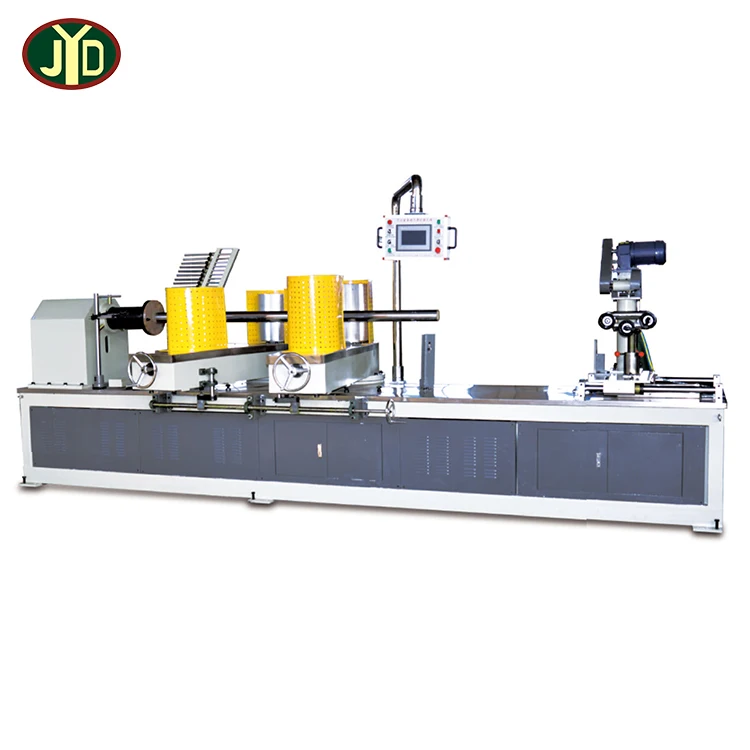

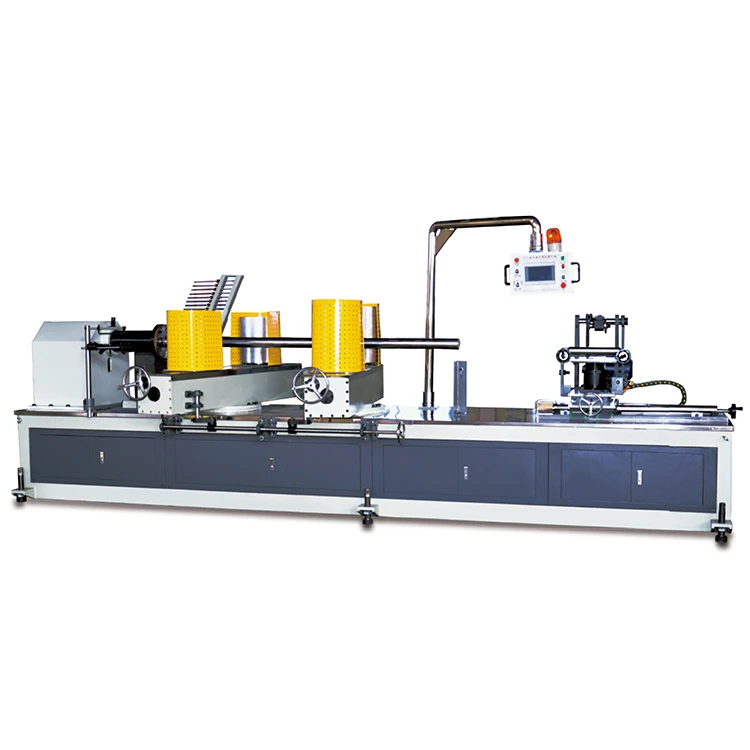

JYD 4 heads CNC paper core making machine factory outlet Automatic Spiral Paper Tube Core Winding Making Machine price for sale
- Category: >>>
- Supplier: Zhengzhou JYD Machine Co. Ltd.
Share on (1600827806963):
Product Overview
Description
Features
Paper tube making machine
1. Suitable for paper tube diameter Ø 20-200 mm; Paper tube thickness of 1-15 mm paper tube production.
2. According to different paper tubes, the winding speed is between 0-27(m/min).
3. The strength of the paper tube has been greatly improved by the four resistance-free heads.
4. The fixed-length mode of the paper tube is optically controlled, which is easy to operate and suitable for novice operators.
5. The main motor is Shanghai strong speed (15KW). The output power of this product is strong, and it has the function of regulating speed
2. According to different paper tubes, the winding speed is between 0-27(m/min).
3. The strength of the paper tube has been greatly improved by the four resistance-free heads.
4. The fixed-length mode of the paper tube is optically controlled, which is easy to operate and suitable for novice operators.
5. The main motor is Shanghai strong speed (15KW). The output power of this product is strong, and it has the function of regulating speed
Product Paramenters
Paper layers | 3-25（layer) |
Paper tube diameter | 20-200（mm） |
Paper Tube Thickness | 1-15（mm） |
hose speed | 0-27（m/min） |
Fixed Length Model | Light-operated(Frared) |
Winding head | 4 Heads |
Cutting Mode | Single round cutter cutting |
Roll Core Die Fixing Method | Flange tightening |
Gluing Method | Double gluing |
Control Mode | Frequency Control |
Input Voltage | 380V/220V |
Number Of Operators | 1-3 |
Host Power | 15kw |
Host Size:L*W*H | 5200mm*1900mm*2100mm |
Total Weight | 4460KGS |

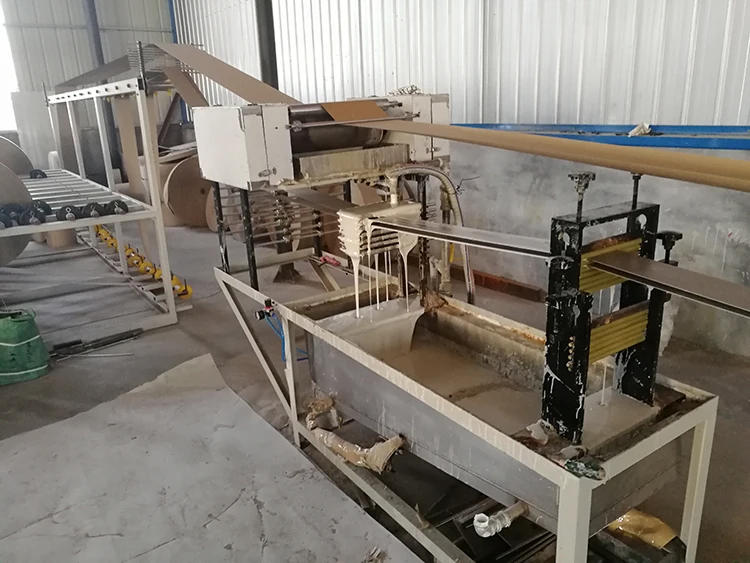

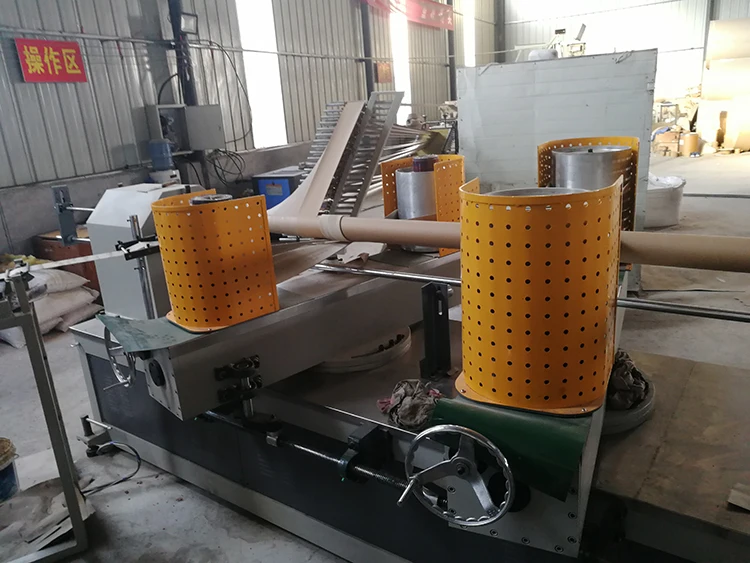

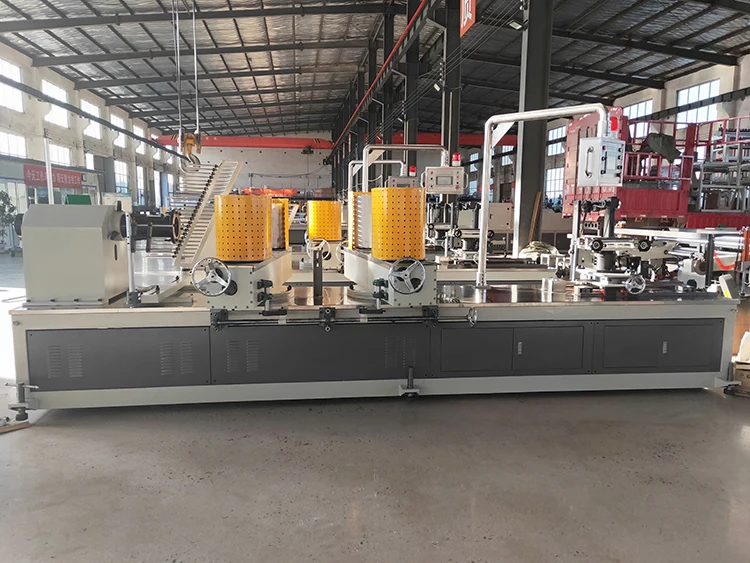

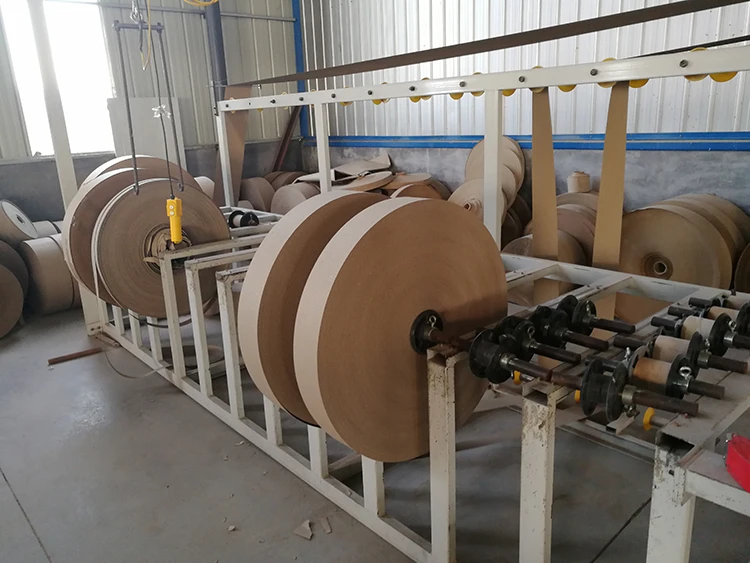

Details Images
Company Profile
Zhengzhou JYD Machine Co., Ltd. is a group company which specializes in the production of paper making machinery and pulping equipment, various paper processing equipment, packaging Machinery, filling machinery, technical research and development, sales various of mechanical equipment, professional installation and after-sales team, to provide you with high-quality technical support and perfect after-sales service.
Our factory located in Zhengzhou city , Henan province, which covers an area of 60000m2, through about 30 years development, now is has 178 staff, which including 23 engineers and technical persons.
Our factory located in Zhengzhou city , Henan province, which covers an area of 60000m2, through about 30 years development, now is has 178 staff, which including 23 engineers and technical persons.
Customer Visit
Packing & Delivery
After-sales Service
1.24 hours/day and 7 days/week for after-sales service, online guide etc.
2.Online guide to installation and commission, on-site service available if need.send rich practiced experience engineers to you to install and test the machine and train your worker for free.
3.All of our equipment contain 1 year warranty.
4.After one year,we can guide and help you to maintain the machines.
5.Every 2 years,we can help to overhaul the complete machines for free.
6.Send you spare part in lower price with fast delivery.
2.Online guide to installation and commission, on-site service available if need.send rich practiced experience engineers to you to install and test the machine and train your worker for free.
3.All of our equipment contain 1 year warranty.
4.After one year,we can guide and help you to maintain the machines.
5.Every 2 years,we can help to overhaul the complete machines for free.
6.Send you spare part in lower price with fast delivery.
