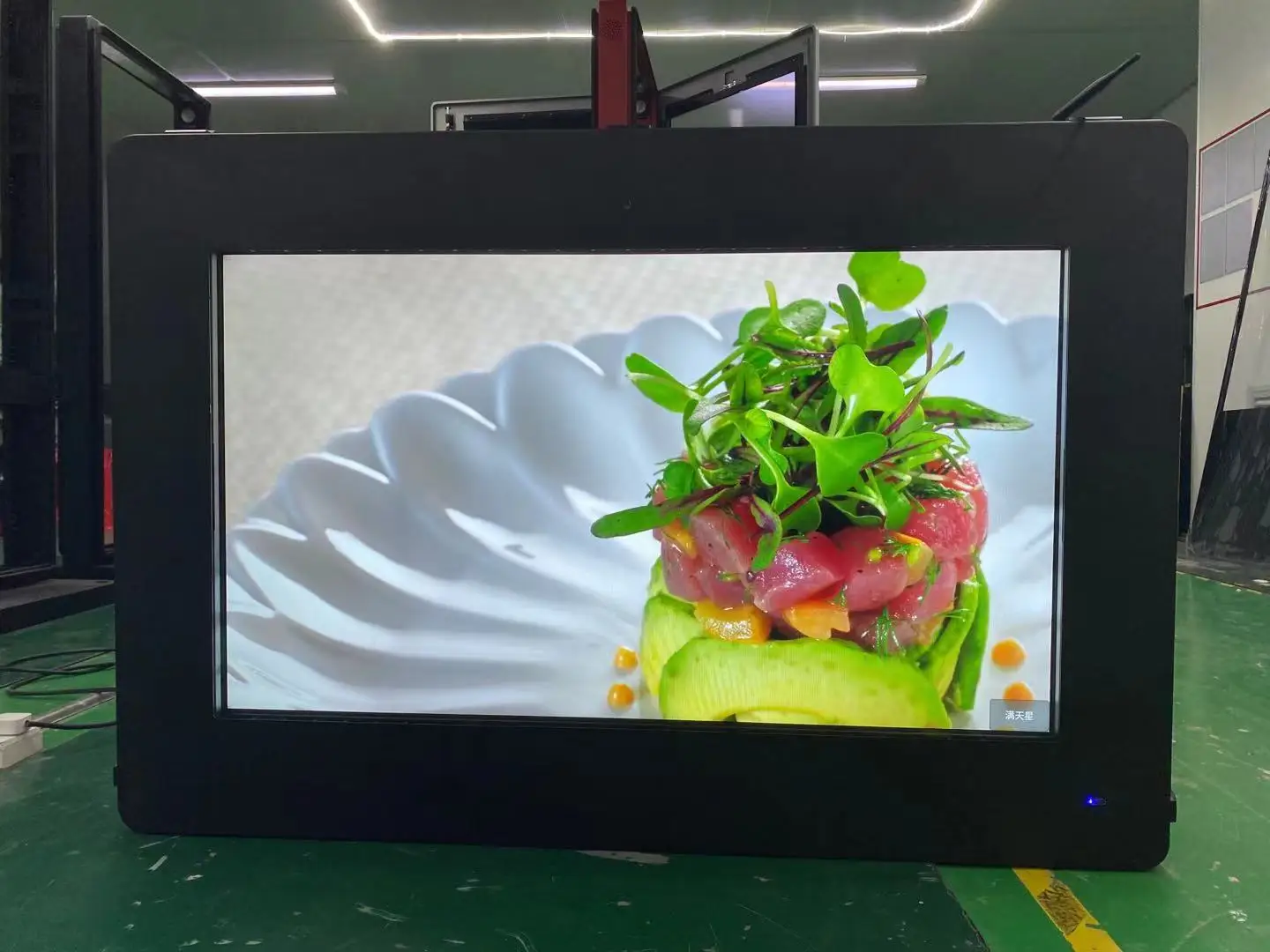

Digital Signage and Displays Wall mounted 32inch Waterproof Outdoor LCD Display

1.1 Use a 32-inch BOE/LG LCD screen.

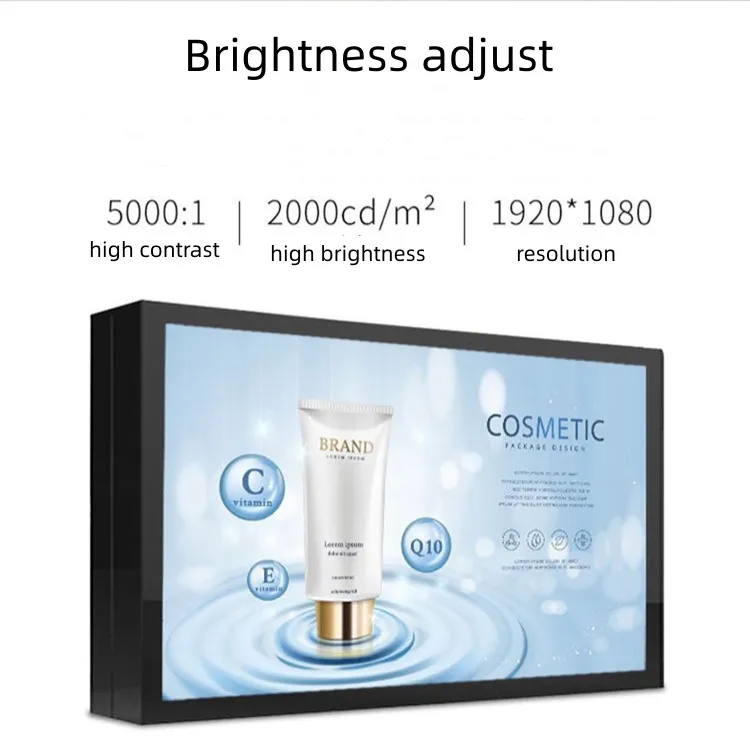

1.2 The brightness requirement is 2000cd/m2, with ambient automatic light sensing and tempered explosion-proof glass.

1.3 The internal structure is designed and reinforced with reinforcing ribs according to the requirements. The firmness of the whole

machine structure can resist typhoon level 12. The material of the machine is made of galvanized steel plate. The painting process adopts double-layer spraying outdoor powder. fixed.

1.4 The whole machine adopts high-quality cooling fans to dissipate heat, plus lightning protection, overload, overvoltage, overcurrent, and overtemperature protection equipment, and the structure is designed to prevent rain, dust, and sun exposure.

1.5 Functional requirements: Adopt industrial-grade embedded Android motherboard, support Wifi, RJ45 interface, 4G networking (optional), support simultaneous control of all machines or a single control, and support full HD 1920x1080 decoding.

2.outdoor lcd display kiosk features:

Fashionable appearance: standard shell, according to customer needs, professional design of elegant and fashionable shell, various styles, high-end extraordinary;

Timing backlight: support 10 groups of time period timing backlight control, convenient and easy to operate;

Intelligent temperature control: The intelligent temperature control system maintains a constant temperature and dry environment inside the fuselage to prevent fogging and condensation;

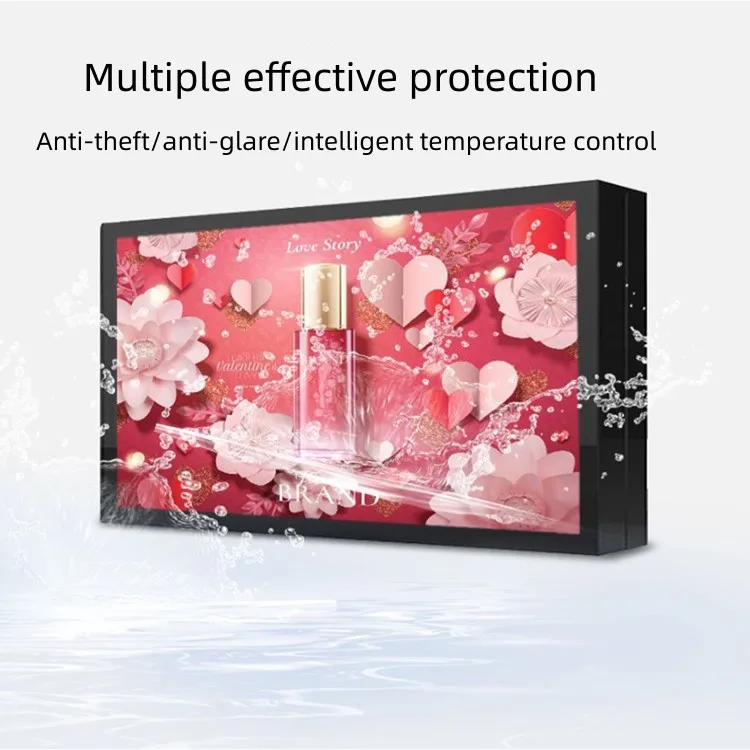

Dust-proof and waterproof: The whole machine is closed to prevent external dust and water from entering the interior, reaching the IP65 standard;

Sun-proof and explosion-proof: The shell is made of galvanized steel plate, which is treated with special outdoor powder painting, waterproof, sun-proof, anti-corrosion, and explosion-proof professional surface technology; it can be used outdoors for 10 years without fading;

 3. outdoor advertising lcd kiosk

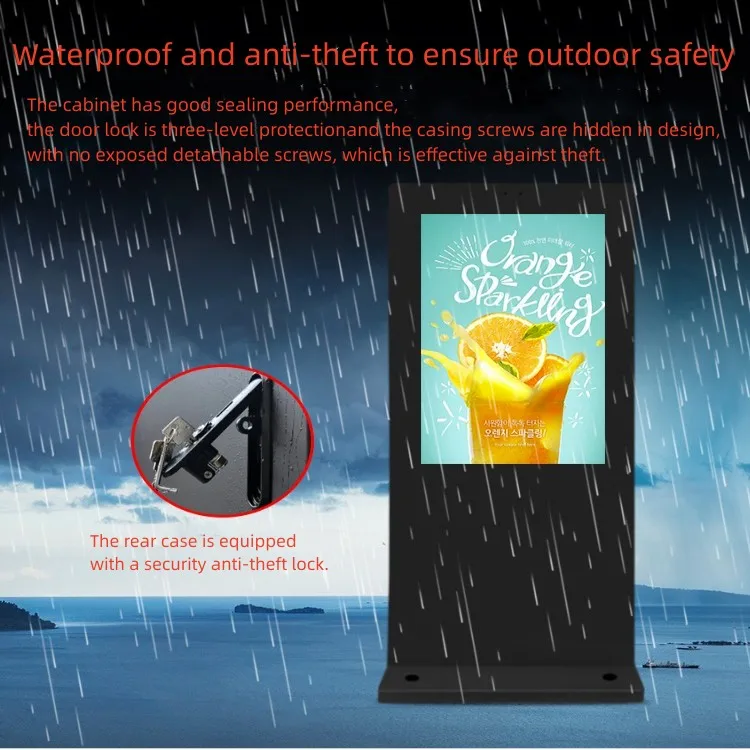

((1) The shell material is made of galvanized steel plate, the outer surface is imported metal paint, anti-magnetic, anti-static, imported waterproof material, the whole machine adopts IP55 waterproof, outdoor all-weather waterproof and dustproof, anti-theft, explosion-proof and other designs.

 (2) High reliability electrical protection: leakage, overload, overvoltage protection, lightning protection device, overtemperature protection, etc.

 (3) Audio: Two-channel, stereo surround power amplifier system, output power 8 ohms 2 × 10W.

 (4) The design standard of working environment temperature is +50°~ -30°, and the cooling adopts high-quality combined fan.

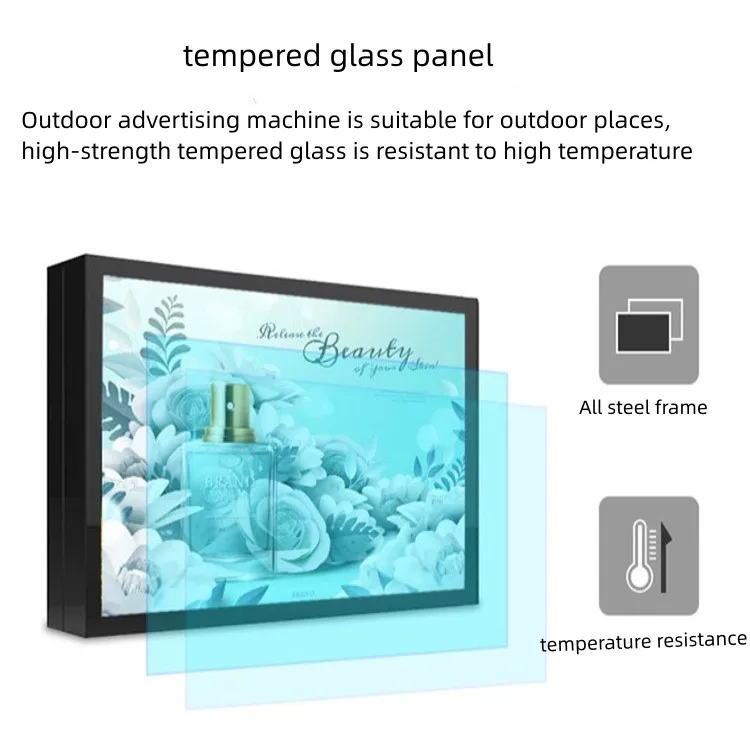

 (5) Protective glass: 6mm tempered explosion-proof glass is used.

 (6) Each system of the whole machine adopts the principle of modular design, sustainable and maintainable design.

 (7) Machine fixing method: use multiple M18-24 screw columns poured from the ground, inserted into the bottom of the machine and fixed with nuts.

(8) Light sensing and overheating protection system: The screen backlight adopts automatic ambient light sensing, which adjusts the screen brightness in real time to meet the clear image display in the direct sunlight environment, and make the screen not dazzling and energy waste at night.
