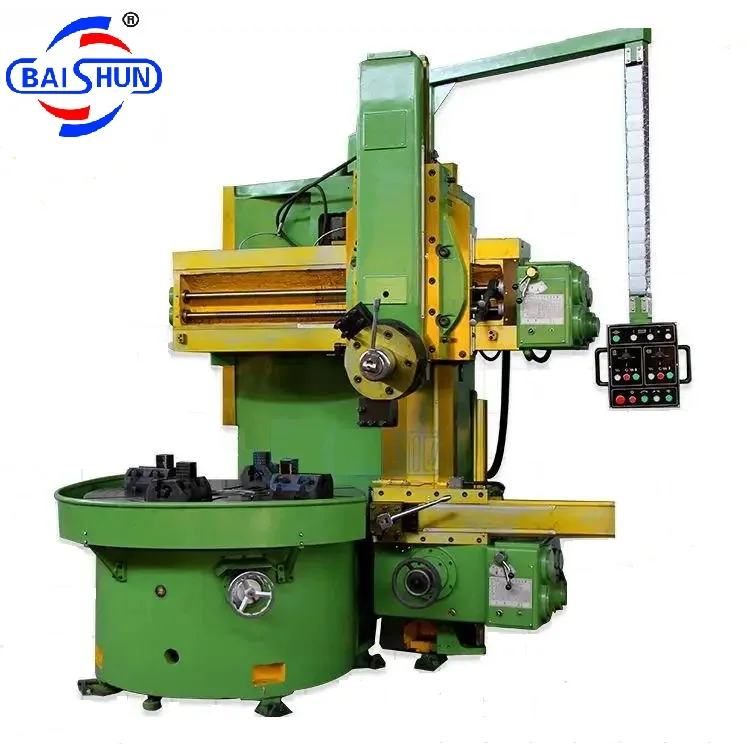

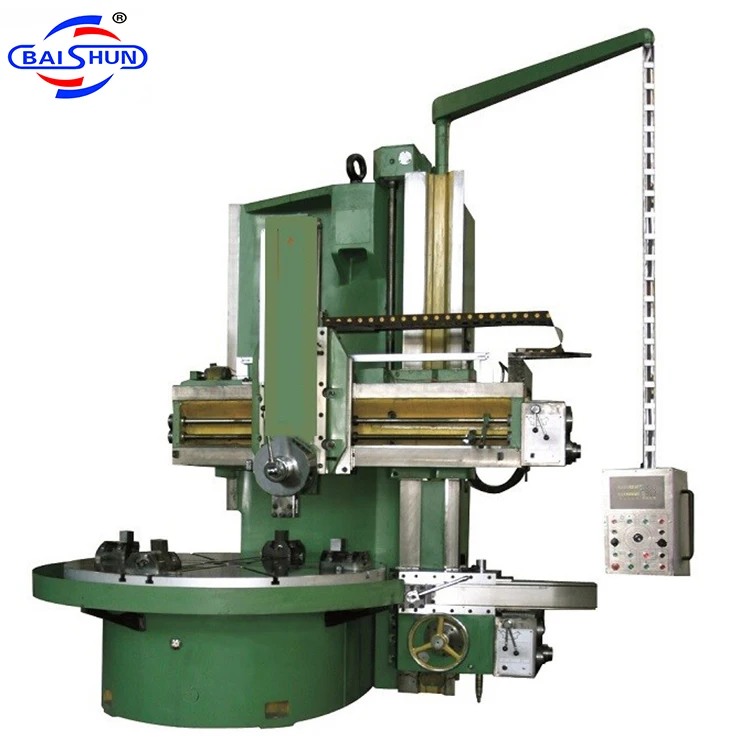

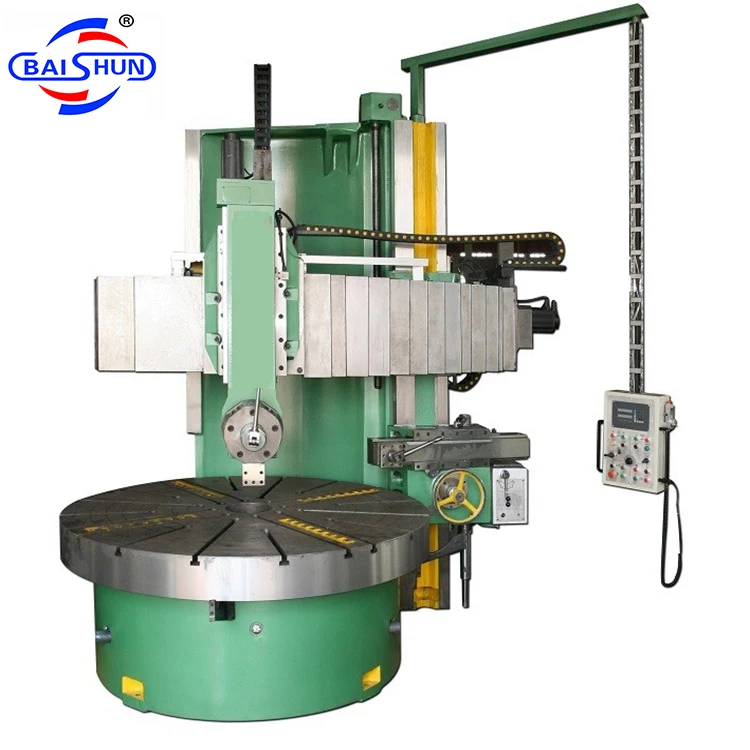

Full Size Professional Manual Lathe Machine High Precision Vertical Lathe Promotional

Share on (1600827987101):


Price:US$ 28’000.00

Quantity:


Product Overview

Description



Product Description


The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.


CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.


Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.


Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.

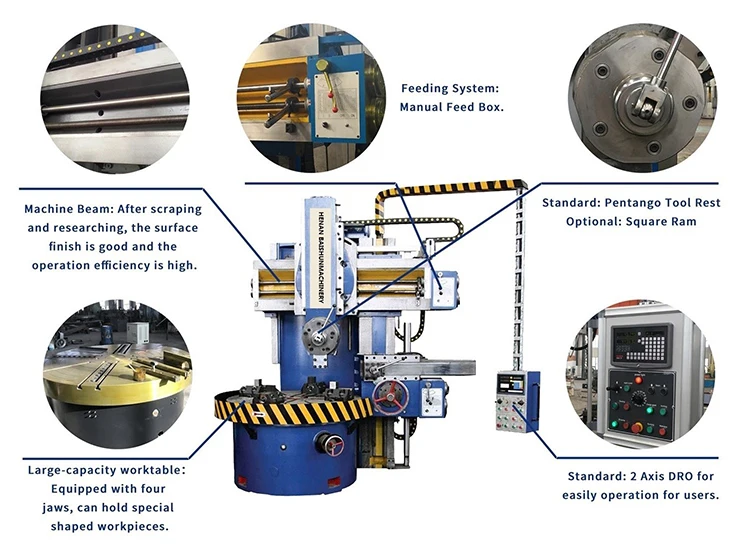

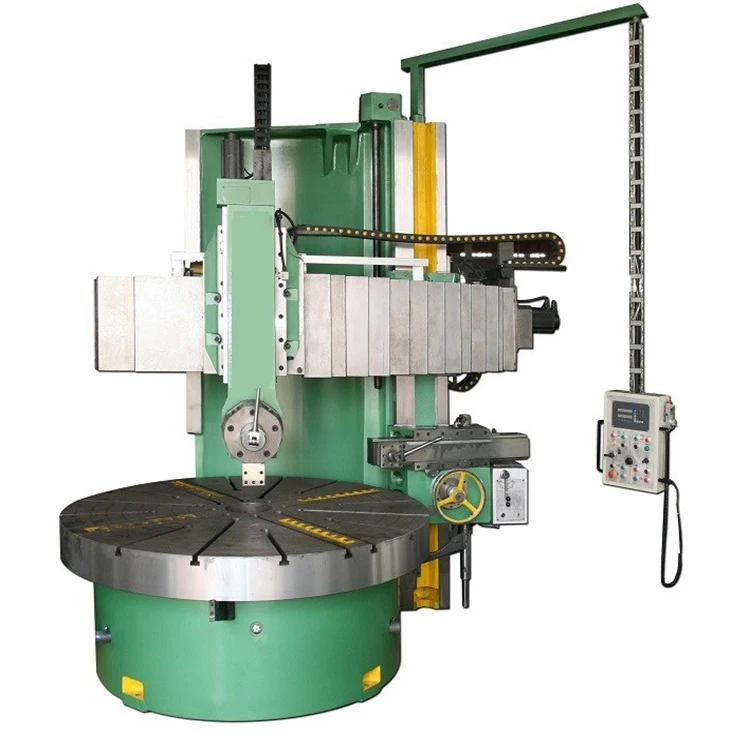

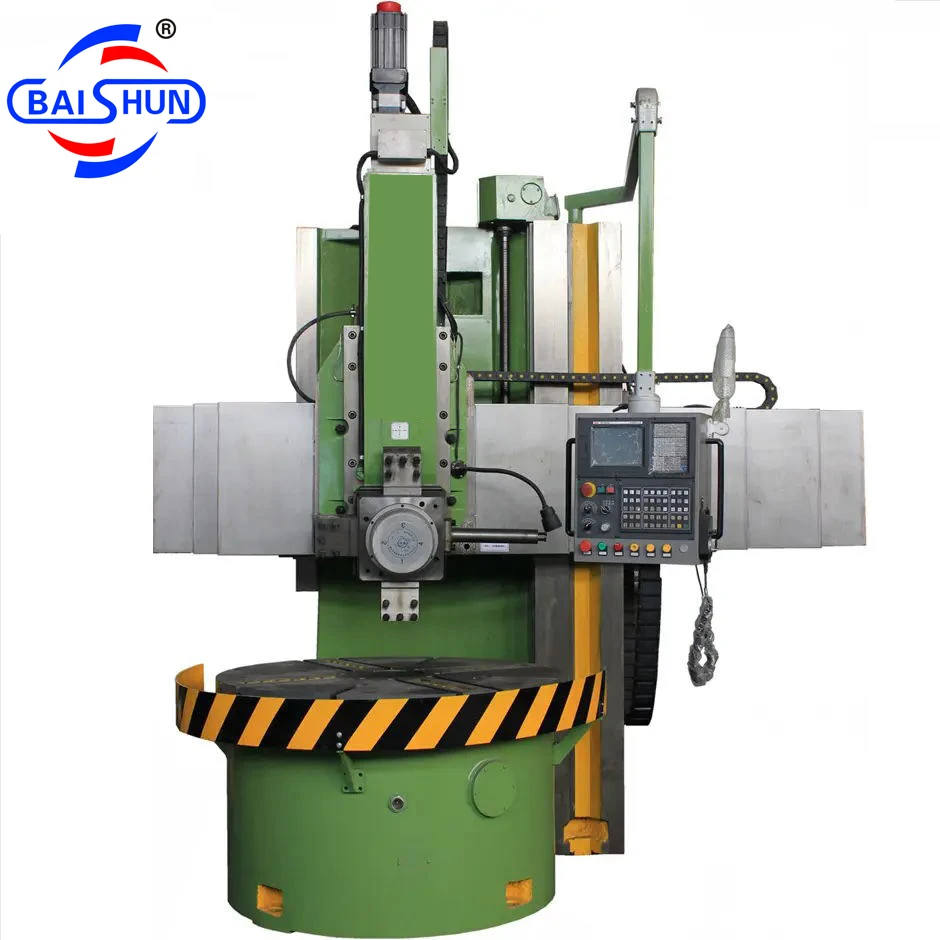

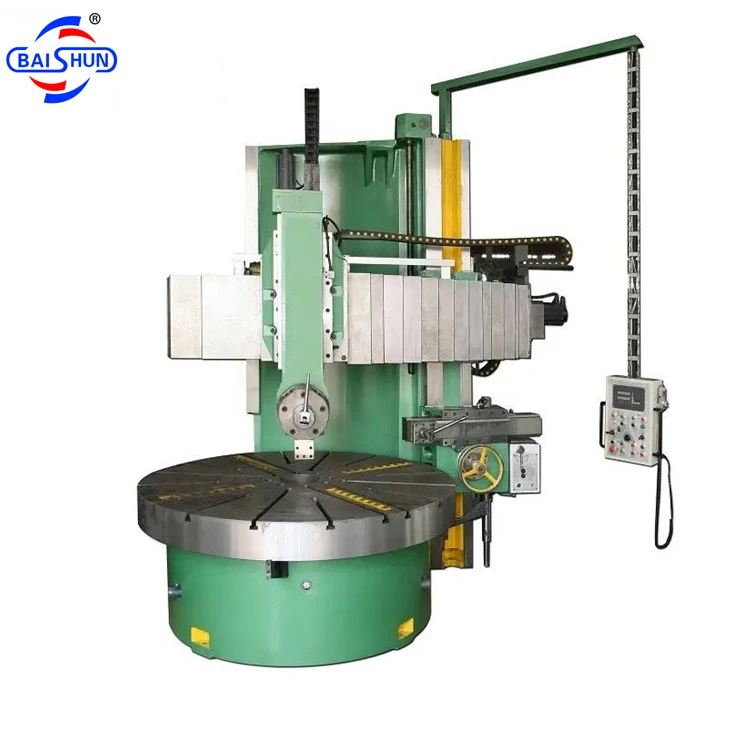

 Lathe 05.jpgDetail Lathe .jpg



Machine Parameter






































































































Model



C518



C5112



C5116



C5120



C5125



Max.turning dia.(mm)



800



1200



1600



2000



2500



Max.cutting height(mm)



800



1000



1000



1250



1250



Max.loading weight(tons)



1.2



3.2



5



8



10



Worktable diameter(mm)



720



1000



1400



1800



2250



Worktable speed range(r/min)



30-260



6.3-200



5-160



3.2-100



2-63



Max worktable torque(n.m)



1000



25000



32000



32000



35000



vertical travel of vertical tool post(mm)



650



650



800



800



1200



horizontal travel of vertical post(mm)



570



700



915



1200



1400



G.W(tons)



7



8



12.4



17



23



Dimension(L*W*Hmm)



2080*2621


*3515



2360*2280


*2800



2830*2670


*3010



3200*2800


*3250



3300*4000


*3500










Related Products


main products for lathe.jpg





Company Introduction


Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer,  which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.


Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.

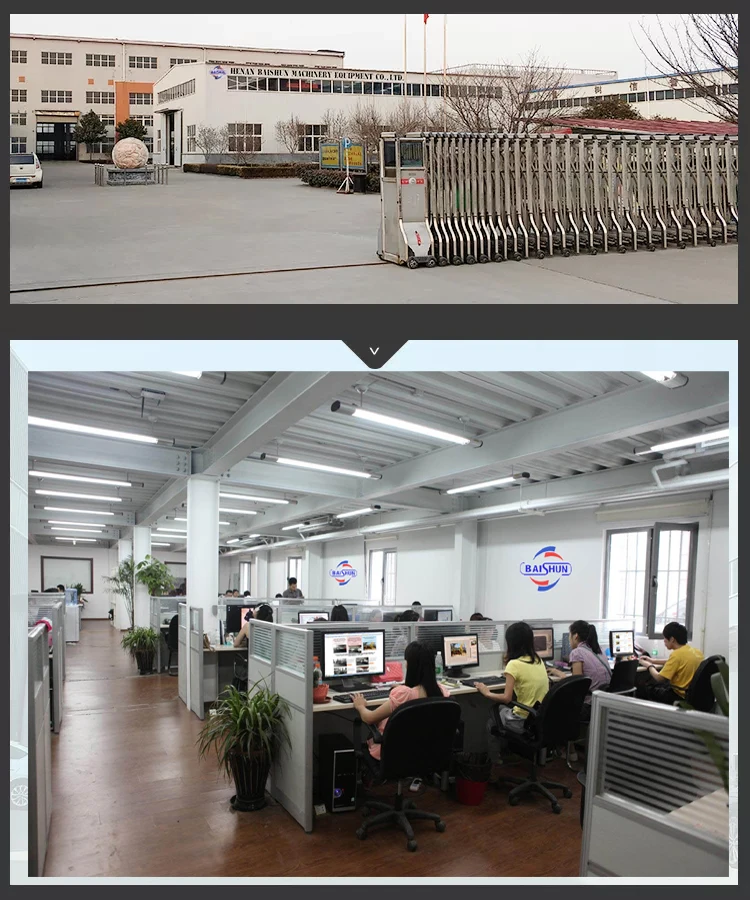

H001 .jpg

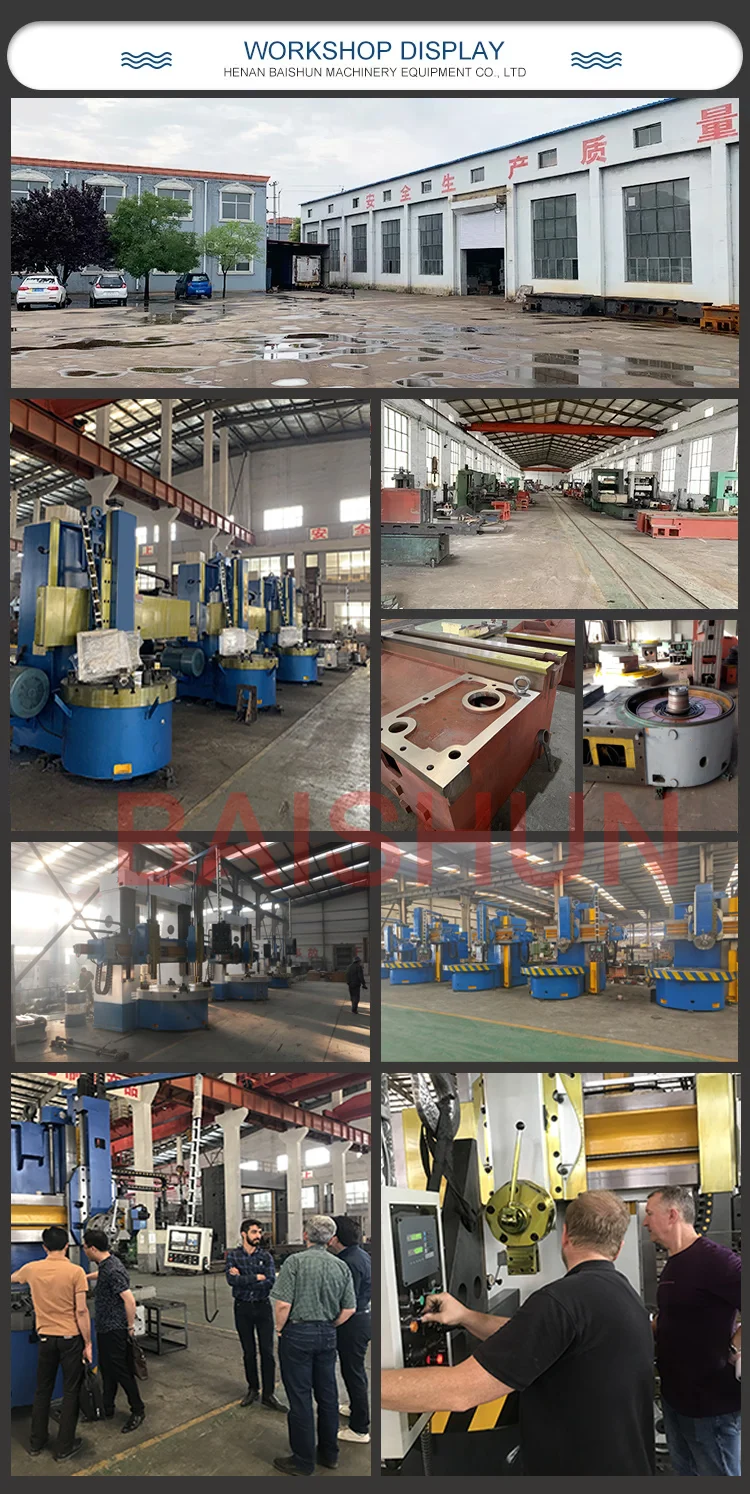

  .jpg










Packing&delivery


delivery lathe.jpgdelivery.jpg





Our Services


Our Services


We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.





Our advantage:


1: With CE, ISO certification.


2: Full production tracking.


3: Professional engineers can guarantee the highest quality.


4: More suppliers as alternatives, guarantee your lowest and competitive price.


5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.


6: OEM production is available, to meet customer needs


7. Low MOQ (1 unit) is available.


8. 24 hours technical support.
