Eu Version Solax X3 Hybrid Solar Pv Inverter 48V 20Kw 15kw 15Kva 10kw 8kw 5kw 3Phase Solar Inverter For Home Solar Power System
- Category: >>>
- Supplier: Sunpal Energy Co. Ltd.
Share on (1600827987119):

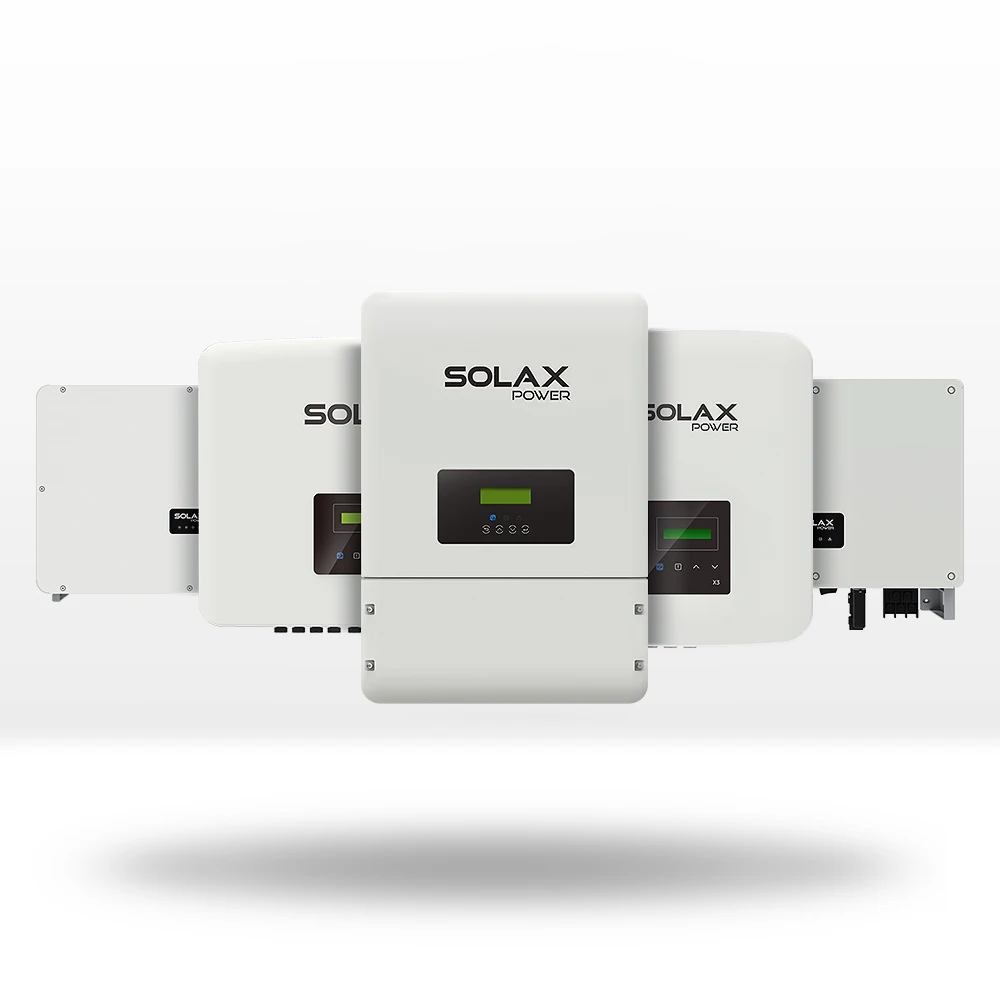

Product Overview
Description

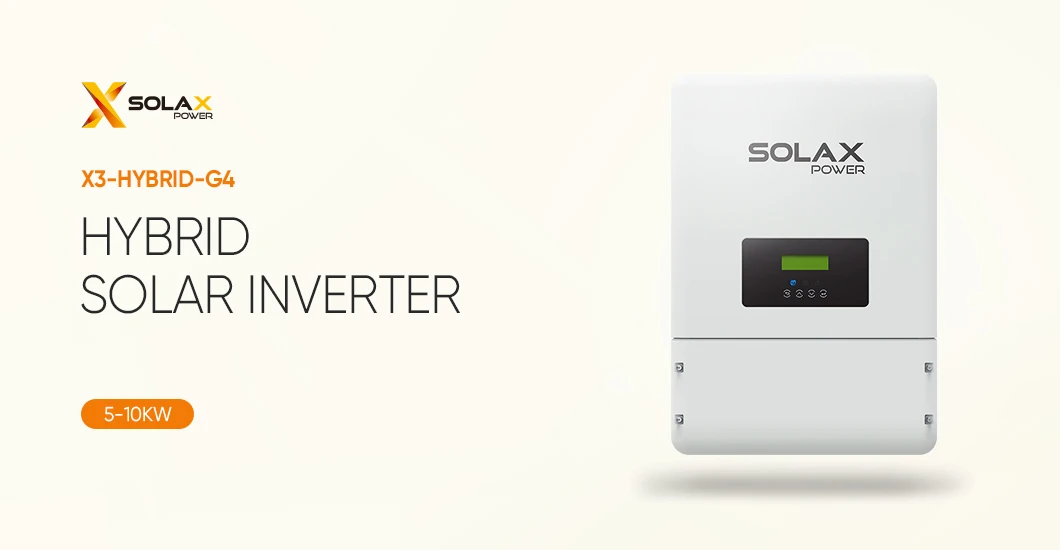

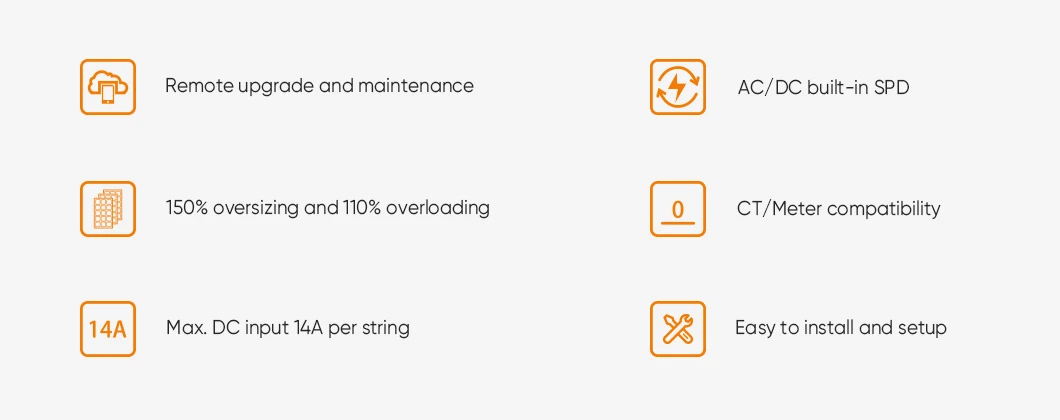

Product Description

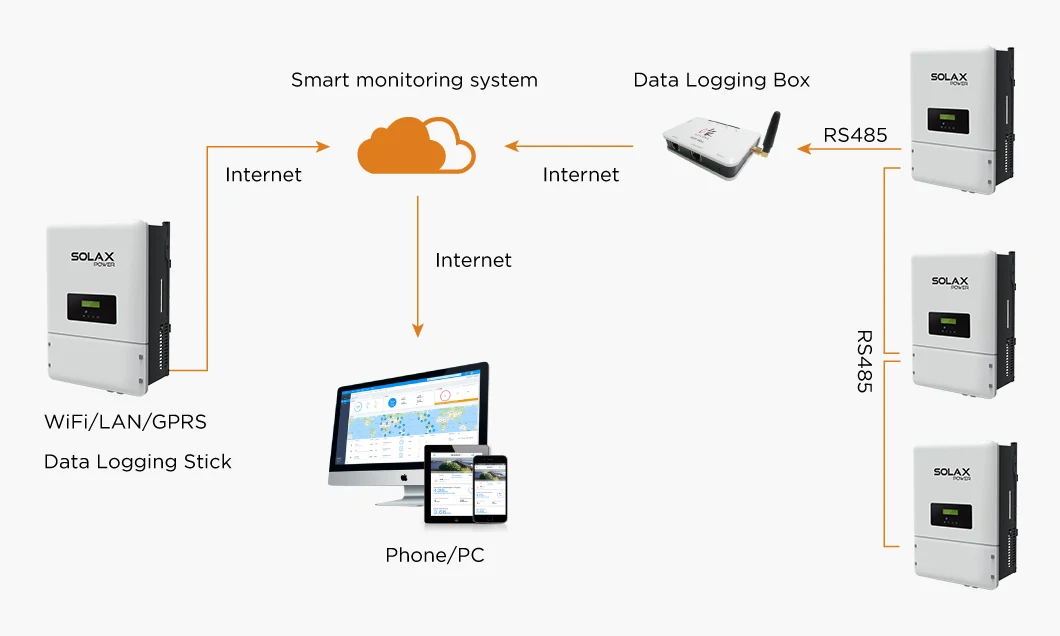

Smart Monitoring System
Technical specifications
Model | X3-HYBRID-5.0/6.0/8.0/10.0T | |||||||
INPUT (DC) | ||||||||
Max.recommended DC power[W] | 6000 | 8000 | 10000 | 13000 | ||||
MaX.DC voltage [V] | 1000 | |||||||
Nominal DC operating voltage [V] | 720 | |||||||
Max.input current [A] | 11/11 | 20/11 | ||||||
Max. short circuit current [A] | 14/14 | 23/14 | ||||||
MPPF voltage range [V] | 230-800 | |||||||
No. of MPP trackers | 2 | |||||||
Strings per MPP tracker | 1 | |||||||
OUTPUT AC | ||||||||
Nominal AC power [VA] | 5000 | 6000 | 8000 | 10000 | ||||
Max. AC power [VA] | 5000 | 6000 | 8000 | 10000 | ||||
Rated grid voltage(AC voltage range) [V] | 400(360 to 440) | |||||||
Rated grid Frequency [Hz] | 50/60 | |||||||
Nominal AC current [A] | 7.6 | 9 | 12'2 | 15 | ||||
Max. AC current [A] | 8.5 | 10 | 13.5 | 16 | ||||
Displacement power factor | 0.8 leading ... 0.8 lagging | |||||||
Total harmonic distortion(THD, rated power) [%] | <2 | |||||||
Parallel operation | Yes | |||||||
Load control | Yes (optional) | |||||||
OUTPUT DC (BATTERY) | ||||||||
Battery voltage range [V] | 200-500 | |||||||
Recommended battery voltage [V] | 200 | 240 | 320 | 400 | ||||
Max.charging/discharging power [W] | 5000 | 6000 | 8000 | 10000 | ||||
Max.charging/discharging current [A] | 25 | |||||||
Communication interfaces | CAN/RS485 | |||||||
Reverse connect protection | No | |||||||
EPS OUTPUT (WITH BATTERY) | ||||||||
EPS rated power [VA] | 5000 | 6000 | 8000 | 10000 | ||||
EPS rated voltage [V], Frequency [Hz] | 400/230, 50/60 | |||||||
EPS rated current [A] | 7.6 | 9 | 12.2 | 15 | ||||
EPS peak power[W];Duration [s] | 10000,60 | 12000,60 | 16000,60 | 16000,60 | ||||
Switch time[s] | <0.5 | |||||||
Total harmonic distortion(THD, linear load) [%] | <2 | |||||||
Parallel operation | Yes | |||||||
EFFICIENCY | ||||||||
MPPT effiffifficiency [%] | 99.90 | |||||||
Euro effiffifficiency [%] | 97.00 | |||||||
Max. effiffifficiency [%] | 97.60 | |||||||
Battery charge/discharge effiffifficiency [%] | 96.00 | |||||||
POWER CONSUMPTION | ||||||||
Internal consumption(night) [W | <7 | |||||||
Idle mode | YES | |||||||
STANDARD | ||||||||
Safety | IEC62109-1-2 / IEC62040/ AS3100 | |||||||
EMC | EN61000-6-1/EN61000-6-2/EN61000-6-3 | |||||||
Certification | VDE0126-1-1 A1:2012/VDE-AR-N4105/G59-3/AS4777/EN50438/CEI 0-21/IEC62040/IEC62619/ISO13849-2/SN29500/IEC615086 | |||||||
ENVIRONMENT LIMIT | ||||||||
Protection class | Ip65 | |||||||
Operating temperature range [℃] | -25 to+60 (derating at+45) | |||||||
Altitude[m] | <2000 | |||||||
Storage temperature[℃] | -20 to+60 | |||||||
Noise emission(typical) [dB] | <30 | |||||||
Over voltage category | III (electric supply side), II (PV side) | |||||||
DIMENSION AND WEIGHT | ||||||||
Dimensions(WxHxD) [mm] | 650*453*222.5 | |||||||
Weight[kg] | 40 | |||||||
Cooling concept | Natural | |||||||
Topology | Transformerless | |||||||
Communication | Ethernet, Meter, WIFI (optional), RF(optional), DRM, USB, ISO alarm, Parallel operation | |||||||
LCD display | Backlight 20*4 character | |||||||
Standard warranty [years] | 5-10 | |||||||

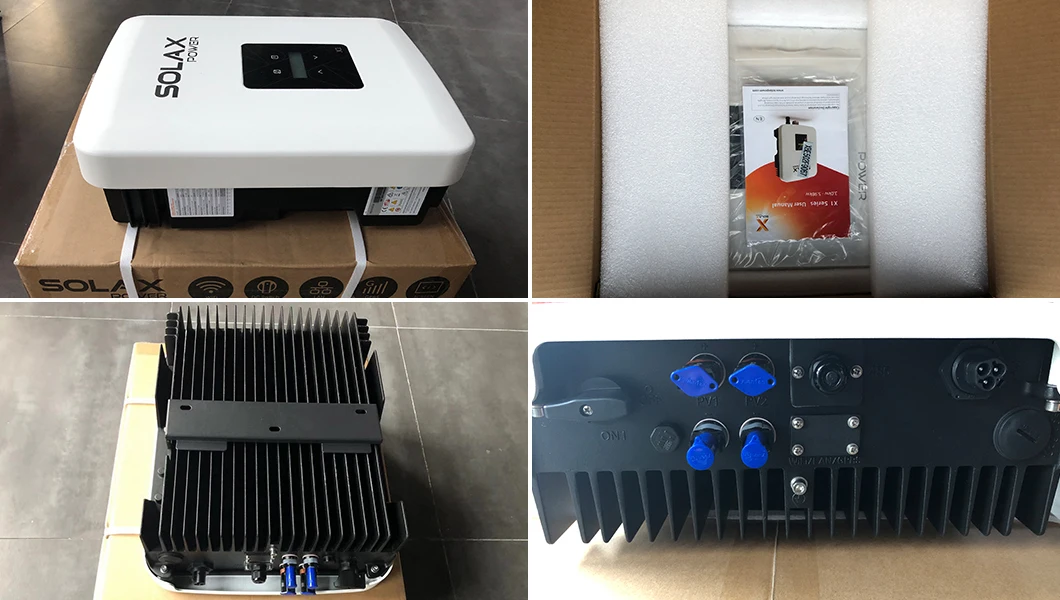

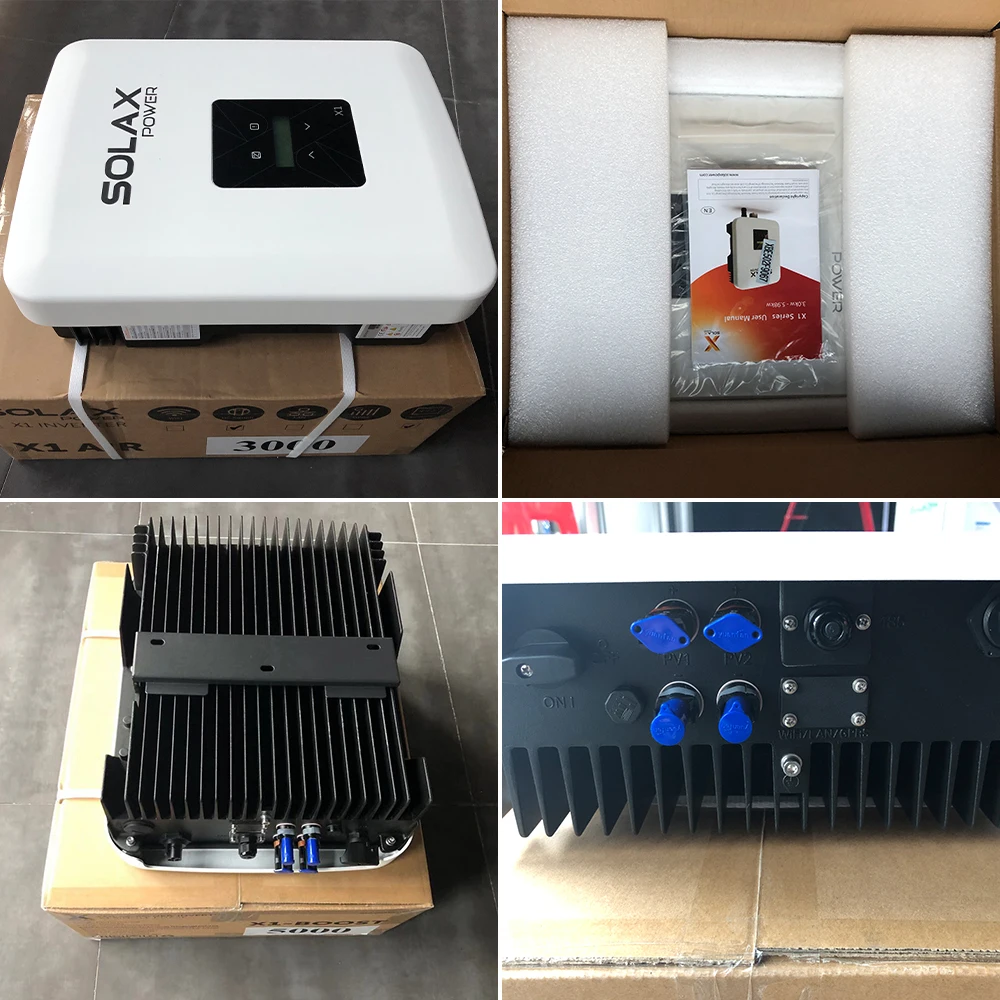

Details Images & Packing

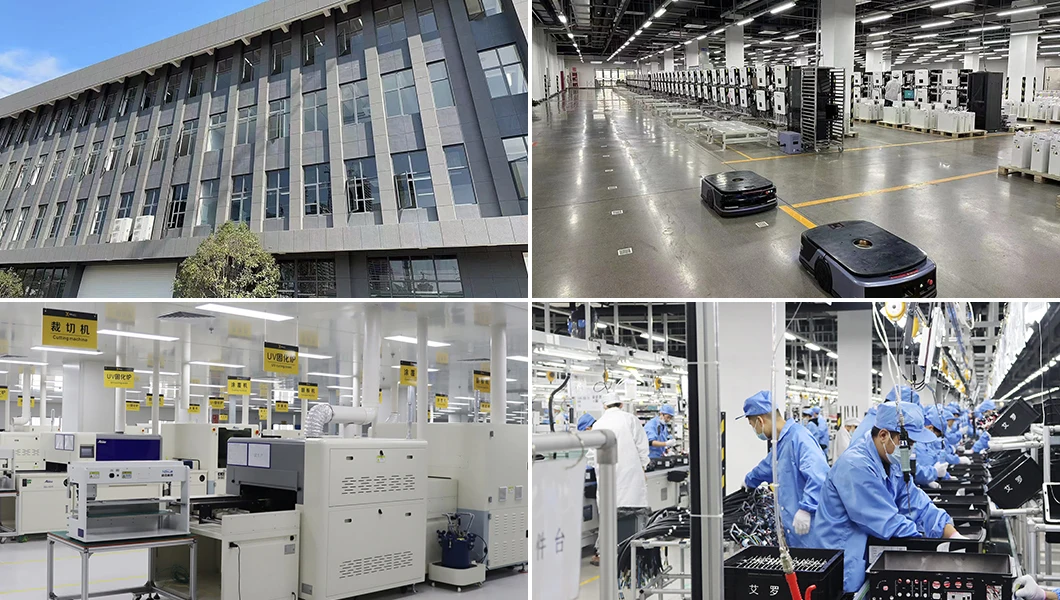

Our Factory

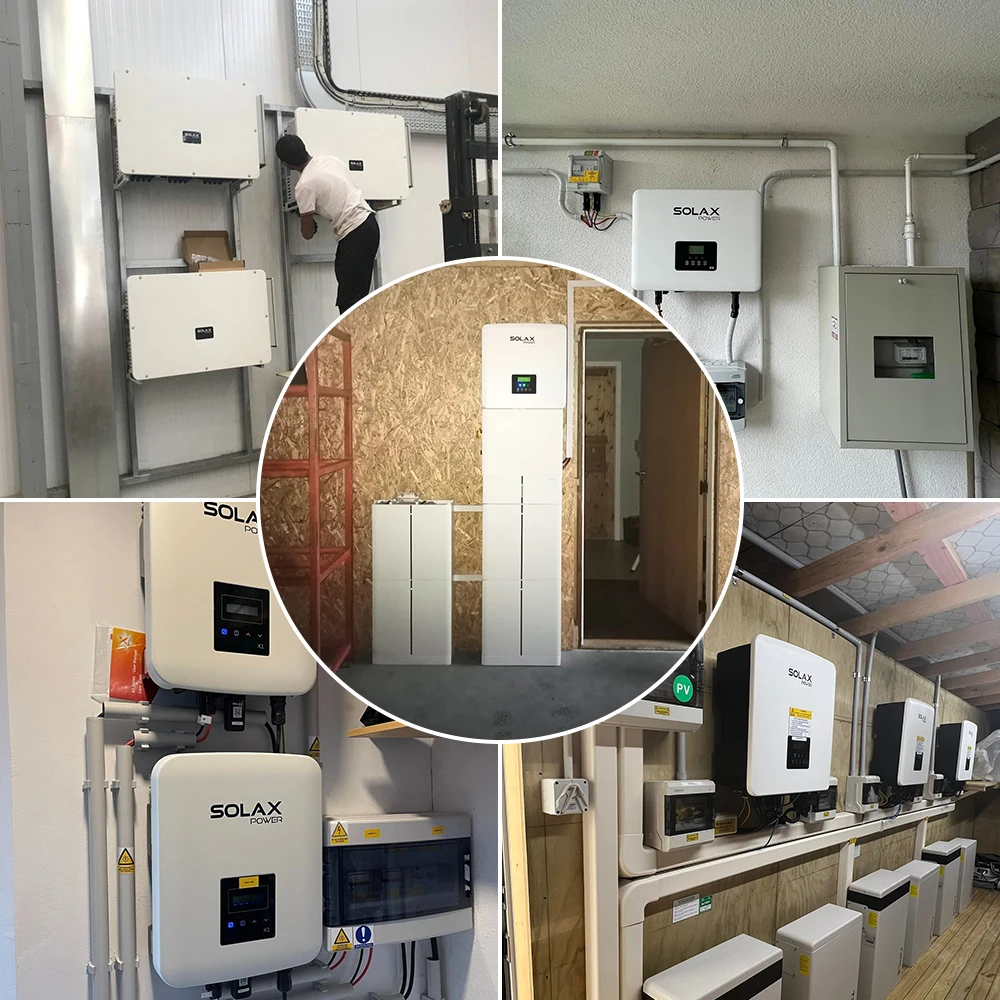

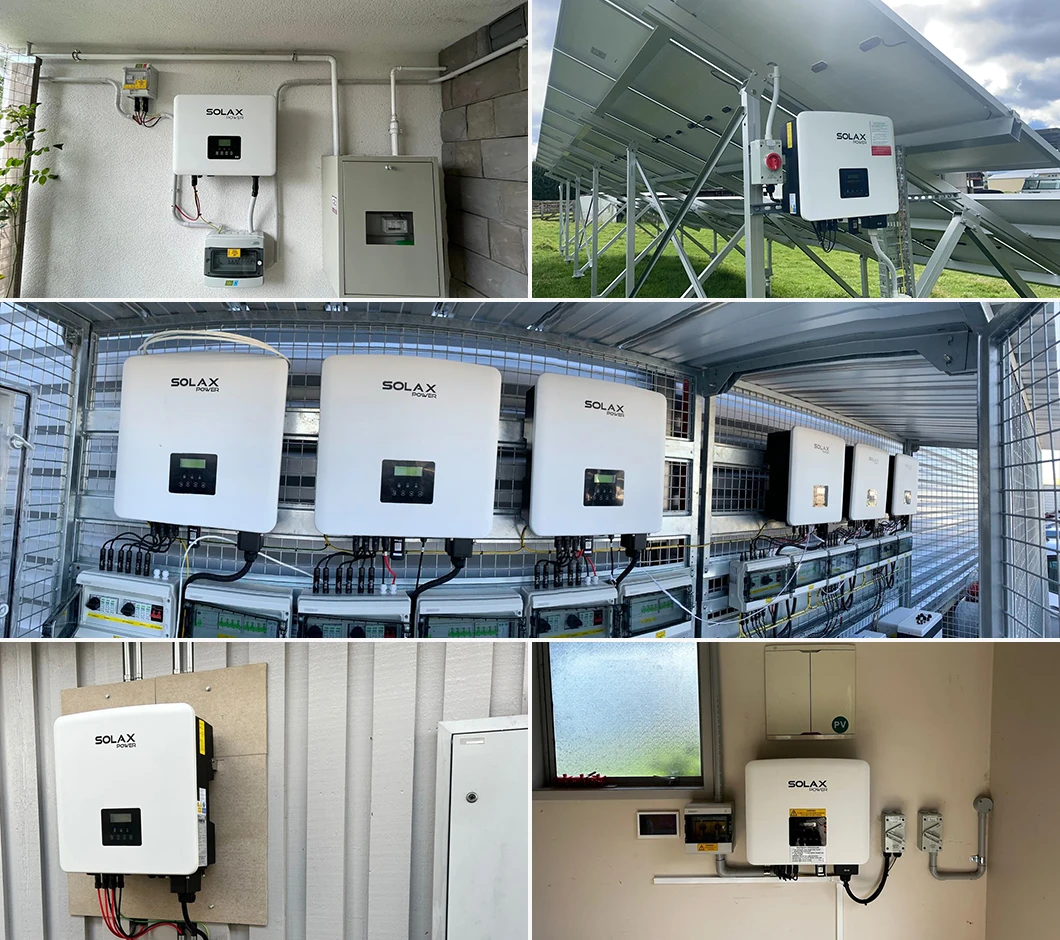

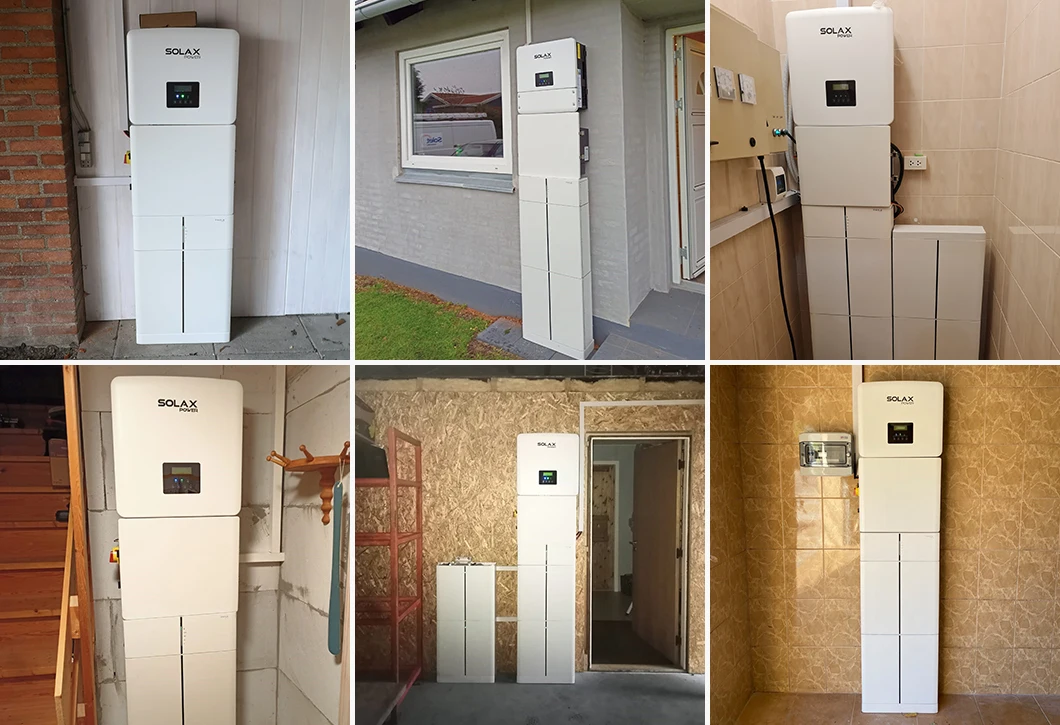

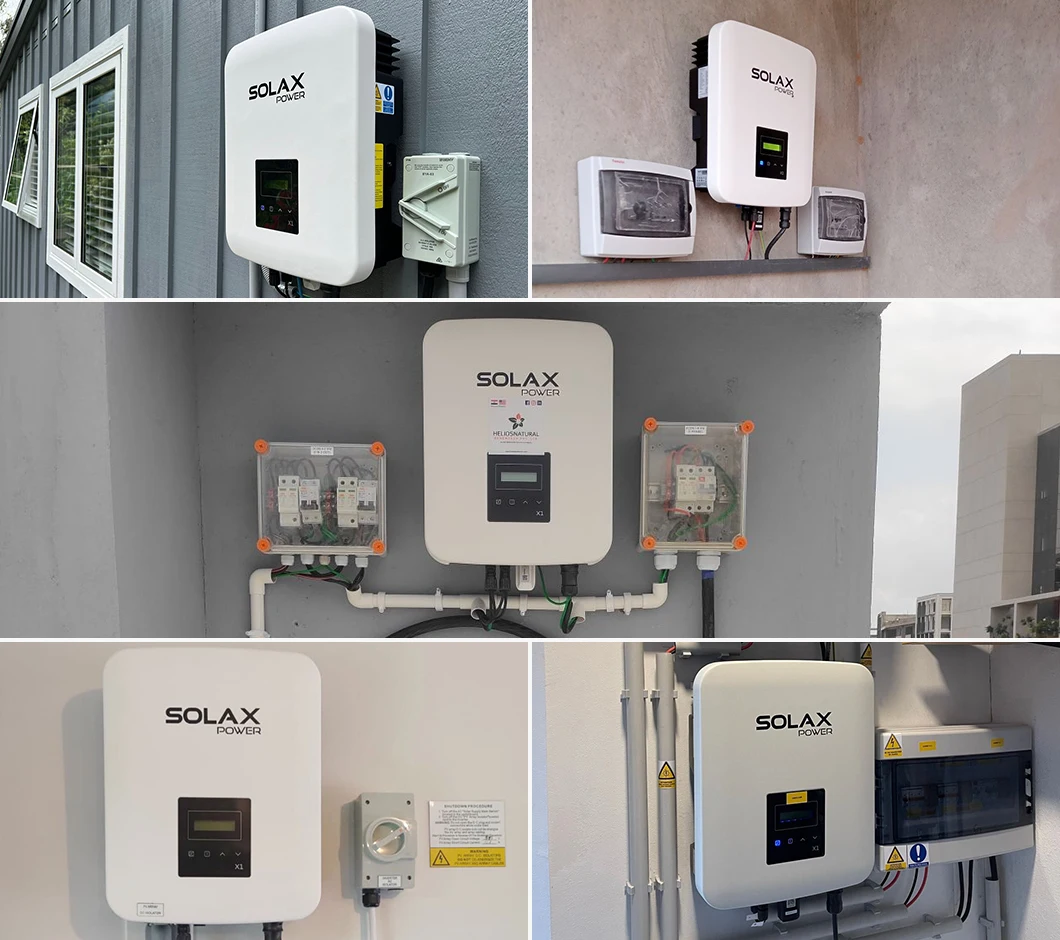

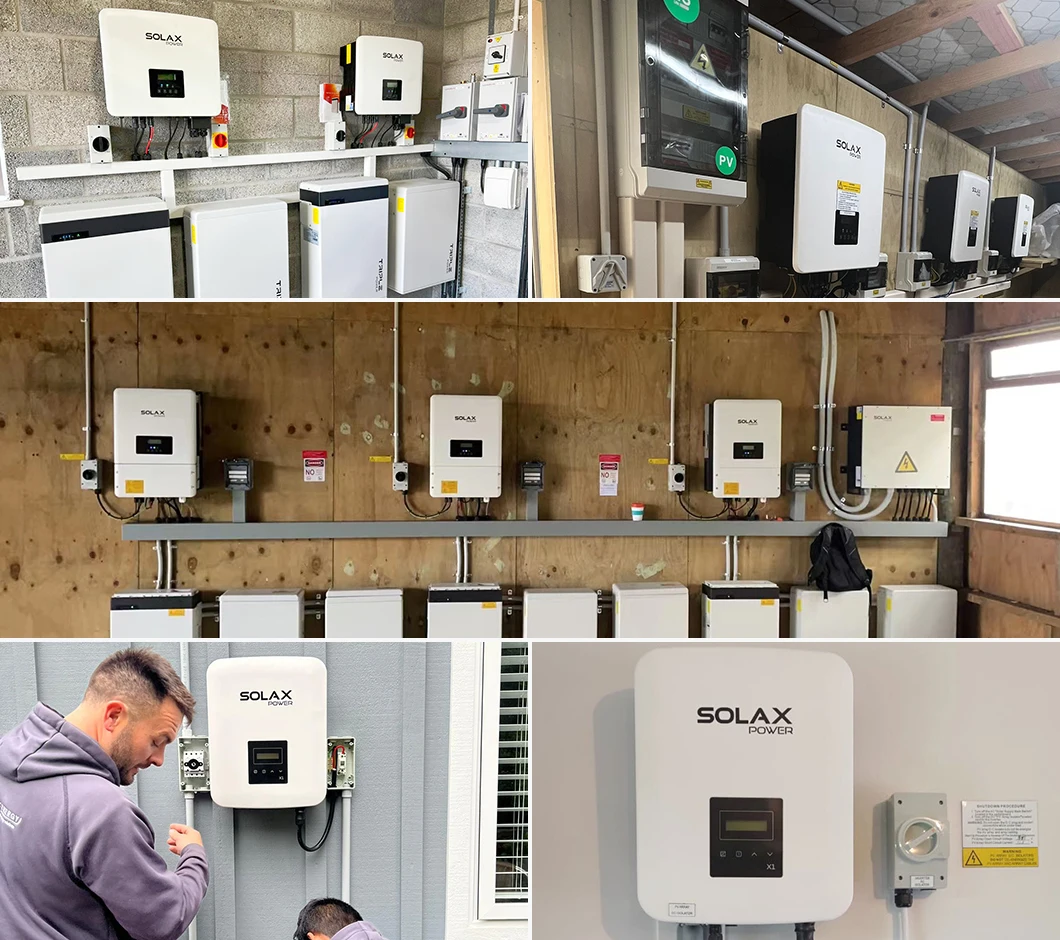

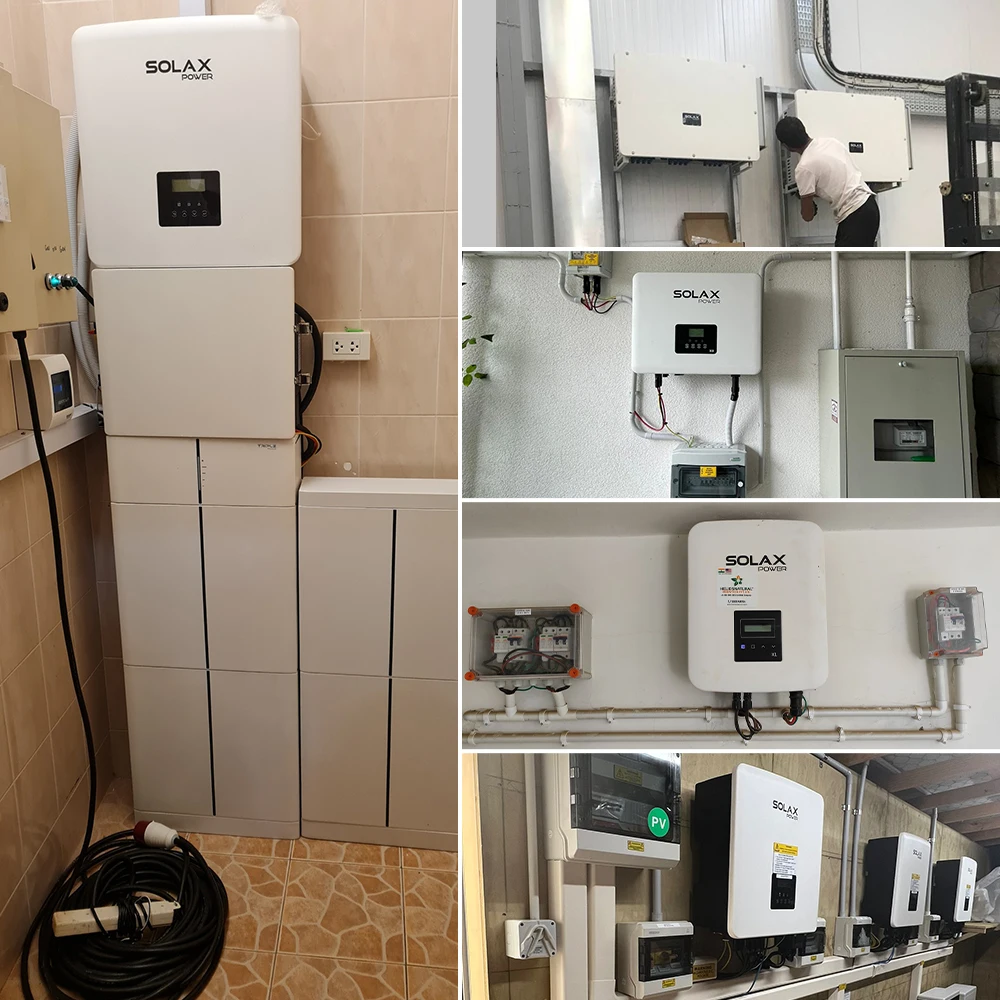

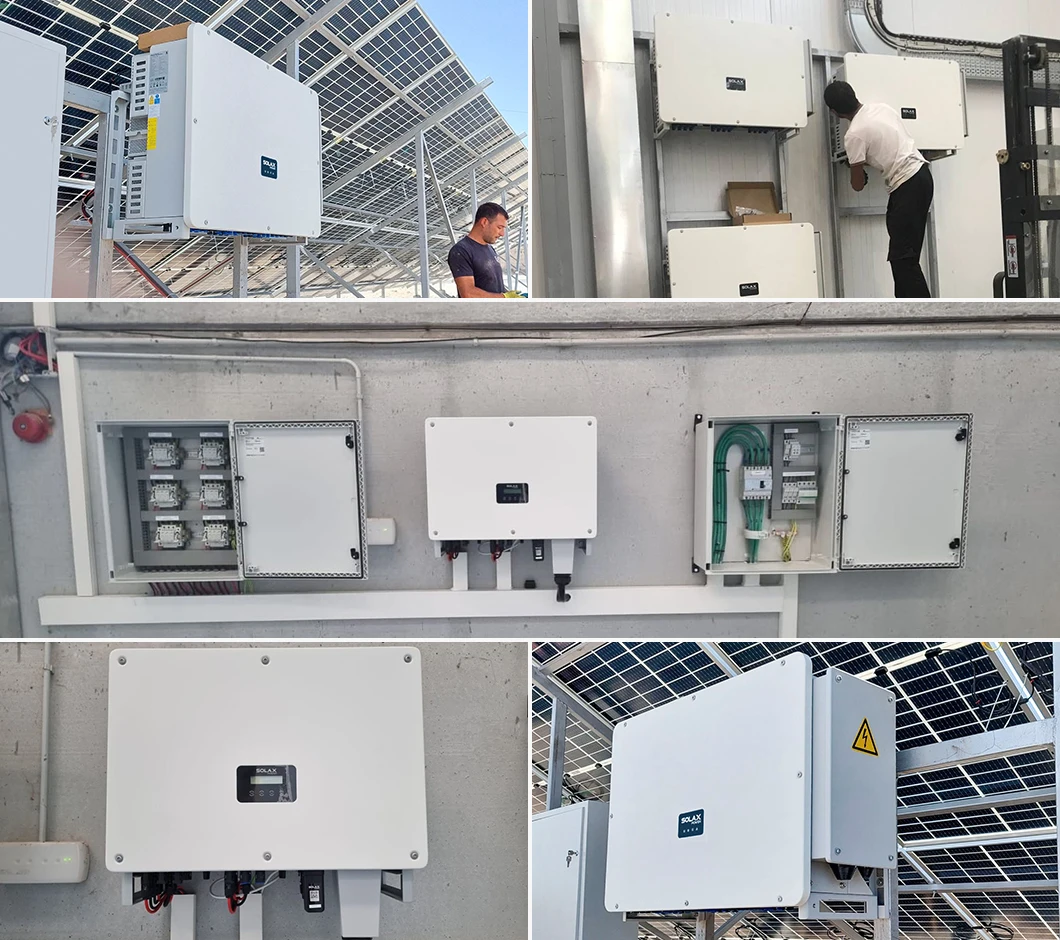

Project Case
