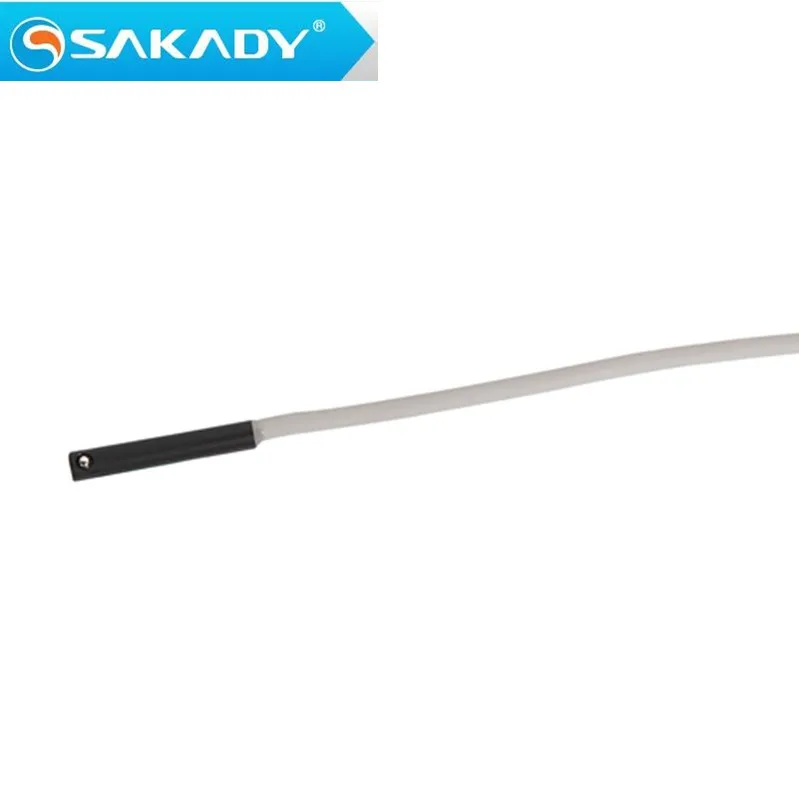

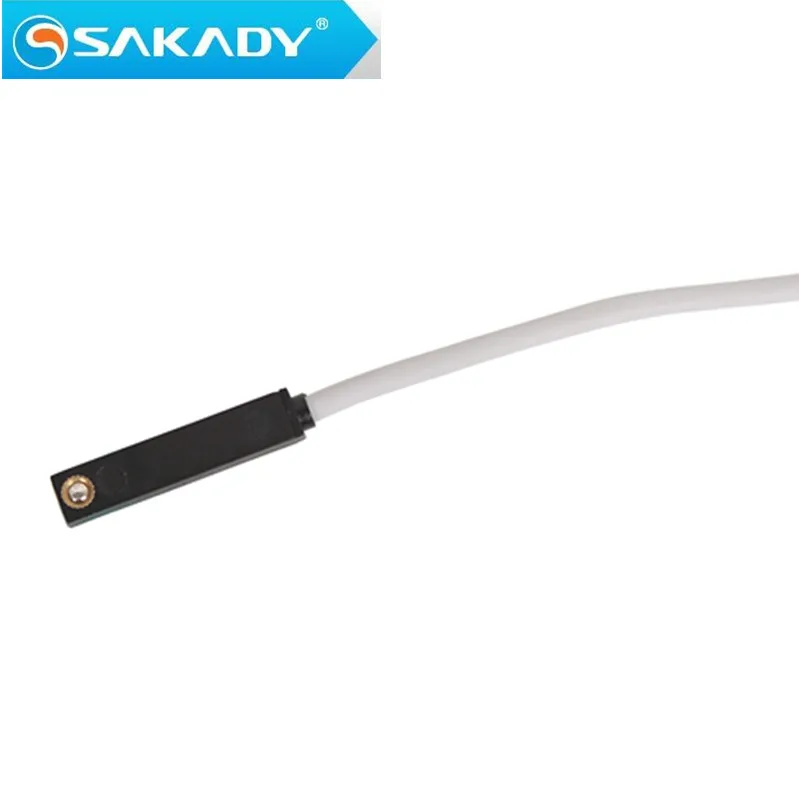

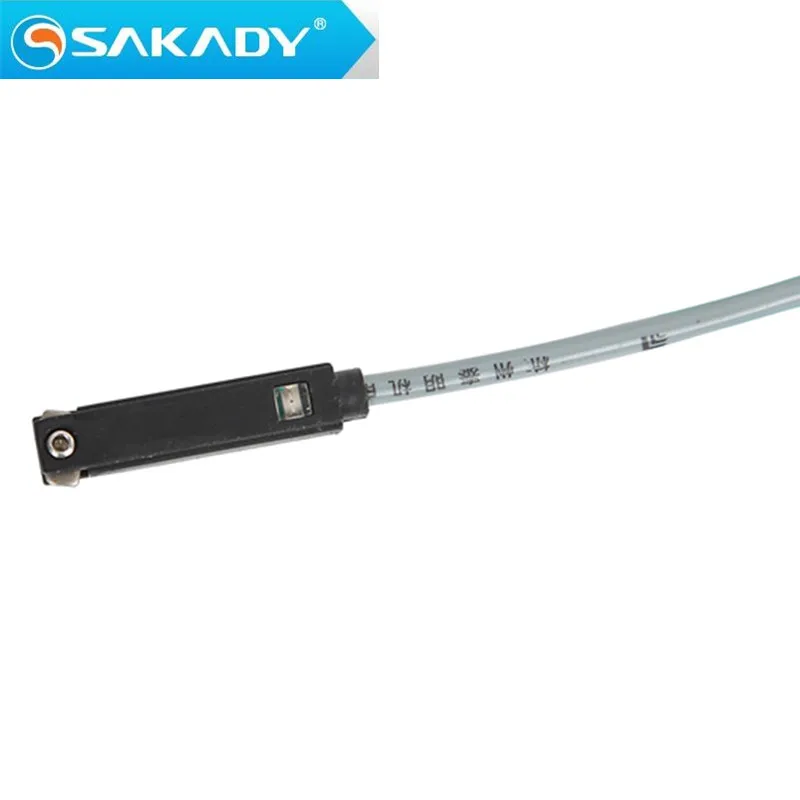

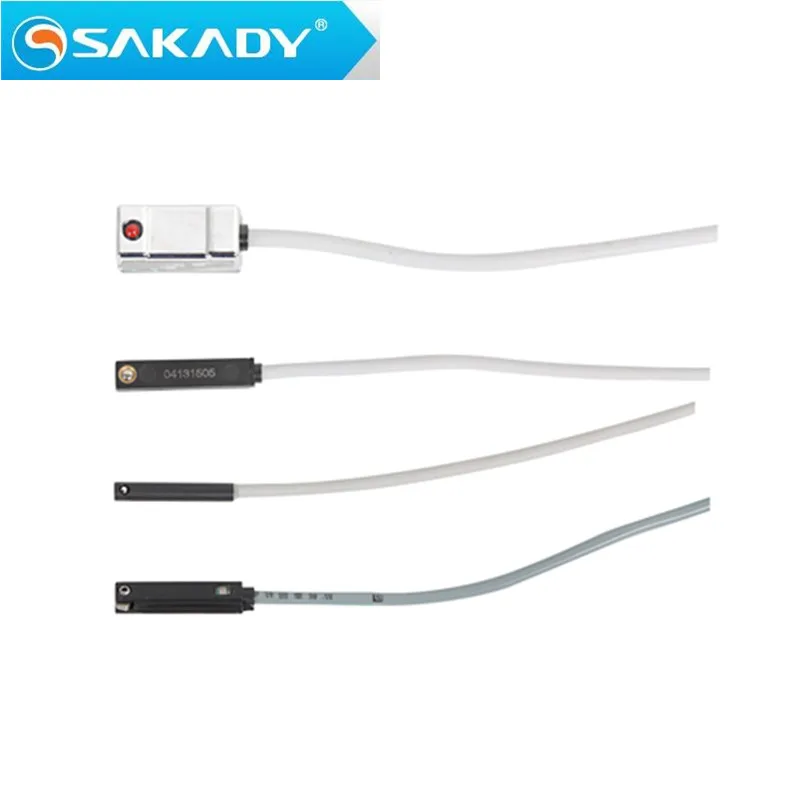

Magnetic Reed Switch Proximity Sensor
Magnetic Reed Switch Proximity Sensor
Magnetic Reed Switch Proximity Sensor
Magnetic Reed Switch Proximity Sensor
Magnetic Reed Switch Proximity Sensor
Magnetic Reed Switch Proximity Sensor

Magnetic Reed Switch Proximity Sensor

Share on (1600827997173):


Price:$4.50 - $5.60

Quantity:


Product Overview

Description



Product Overview




●High sensitivity
●Long life and high reliability
●Reverse polarity protection, overload protection, surge protection function
●It can be used in harsh environment without being affected by pollution, dust, etc


PRODUCT SPECIFICATIONS


Model
CL-52P-Y
CL-52N-Y
CL-52P-Y
Wiring method
2-wire
3-wire
3-wire
Switch logic
Reed tube SPST NO
Reed tube SPST NO
Reed tube SPST NO
Output contact form
Contact connection
Contact connection NPN
Contact connection PNP
Supply voltage
5 ~ 24V DC
5 ~ 24V DC
5 ~ 24V DC
Max. current
100mA MAX.
100mA MAX.
100mA MAX.
Maximum contact capacity
10W MAX.
10W MAX.
10W MAX.
Consumed current
10W MAX.
10mA MAX.
10mA MAX.
Voltage drop
3.7V MAX.
3.7V MAX.
3.7V MAX.
Leakage current
<0.01mA
<0.01mA
<0.01mA
Indicator light
Red LED
Red LED
Red LED
Maximum switching frequency
500Hz
500Hz
500Hz
Ambient temperature
(-10C°~ +70C°
(-10C°~ +70C°
(-10C°~ +70C°
Impact resistance
30G
30G
30G
Resistant to vibration
9G
9G
9G
Protection Grade
IP 67
IP 67
IP 67
Protection circuit
No
No
No
Connection
RVV2 X 0.5mm²2m
0.3m RVV2 X 0.5mm²+M8plug
0.3m RVV2 X 0.5mm²+M8plug


Model
CL-35R-Y
CL-35N-Y
CL-35P-Y
Wiring method
2-wire
3-wire
3-wire
Switch logic
Reed tube SPST NO
Reed tube SPST NO
Reed tube SPST NO
Output contact form
Contact connection
Contact connection NPN
Contact connection PNP
Supply voltage
5 ~ 24V DC
5 ~ 24V DC
5 ~ 24V DC
Max. current
100mA MAX.
100mA MAX.
100mA MAX.
Maximum contact capacity
10W MAX.
10W MAX.
10W MAX.
Consumed current
10mA MAX.
10mA MAX.
10mA MAX.
Voltage drop
3.7V MAX.
3.7V MAX.
3.7V MAX.
Leakage current
<0.01mA
<0.01mA
<0.01mA
Indicator light
Red LED
Red LED
Red LED
Maximum switching frequency
500Hz
500Hz
500Hz
Ambient temperature
(-10C°~ +70C°
(-10C°~ +70C°
(-10C°~ +70C°
Impact resistance
30G
30G
30G
Resistant to vibration
9G
9G
9G
Protection Grade
IP 67
IP 67
IP 67
Protection circuit
No
No
No
Connection
RVV2 X 0.5mm²2m
RVV2 X 0.5mm²2m
RVV2 X 0.5mm²2m


Model
CL-01R-Y
CL-01N-Y
CL-01P-Y
Wiring method
2-wire
3-wire
3-wire
Switch logic
Reed tube SPST NO
Reed tube SPST NO
Reed tube SPST NO
Output contact form
Contact connection
Contact connection NPN
Contact connection PNP
Supply voltage
5 ~ 24V DC
5 ~ 24V DC
5 ~ 24V DC
Max. current
100mA MAX.
100mA MAX.
100mA MAX.
Maximum contact capacity
10W MAX.
10W MAX.
10W MAX.
Consumed current
No
10mA MAX.
10mA MAX.
Voltage drop
3.7V MAX.
0.3V MAX.
0.3V MAX.
Leakage current
<0.01mA
<0.01mA
<0.01mA
Indicator light
Red LED
Red LED
Red LED
Maximum switching frequency
500Hz
500Hz
500Hz
Ambient temperature
(-10C°~ +70C°
(-10C°~ +70C°
(-10C°~ +70C°
Impact resistance
30G
30G
30G
Resistant to vibration
9G
9G
9G
Protection Grade
IP 67
IP 67
IP 67
Protection circuit
No
No
No
Connection
RVV2 X 0.5mm²2m
RVV2 X 0.5mm²2m
RVV2 X 0.5mm²2m


Model
CL-08R-Y
CL-08N-Y
CL-08P-Y
Wiring method
2-wire
3-wire
3-wire
Switch logic
Reed tube SPST NO
Reed tube SPST NO
Reed tube SPST NO
Output contact form
Contact connection
Contact connection NPN
Contact connection PNP
Supply voltage
5 ~ 24V DC
5 ~ 24V DC
5 ~ 24V DC
Max. current
100mA MAX.
100mA MAX.
100mA MAX.
Maximum contact capacity
10W MAX.
10W MAX.
10W MAX.
Consumed current
10mA MAX.
10mA MAX.
10mA MAX.
Voltage drop
3.7V MAX.
3.7V MAX.
3.7V MAX.
Leakage current
<0.01mA
<0.01mA
<0.01mA
Indicator light
Red LED
Red LED
Red LED
Maximum switching frequency
500Hz
500Hz
500Hz
Ambient temperature
(-10C°~ +70C°
(-10C°~ +70C°
(-10C°~ +70C°
Impact resistance
30G
30G
30G
Resistant to vibration
9G
9G
9G
Protection Grade
IP 67
IP 67
IP 67
Protection circuit
No
No
No
Connection
RVV2 X 0.5mm²2m
RVV2 X 0.5mm²2m
RVV2 X 0.5mm²2m


Model
CL-25R-Y
CL-25N-Y
CL-25P-Y
Wiring method
2-wire
3-wire
3-wire
Switch logic
Reed tube SPST NO
Reed tube SPST NO
Reed tube SPST NO
Output contact form
Contact connection
Contact connection NPN
Contact connection PNP
Supply voltage
5 ~ 24V DC
5 ~ 24V DC
5 ~ 24V DC
Max. current
100mA MAX.
100mA MAX.
100mA MAX.
Maximum contact capacity
10W MAX.
10W MAX.
10W MAX.
Consumed current
10mA MAX.
10mA MAX.
10mA MAX.
Voltage drop
3.7V MAX.
3.7V MAX.
3.7V MAX.
Leakage current
<0.01mA
<0.01mA
<0.01mA
Indicator light
Red LED
Red LED
Red LED
Maximum switching frequency
500Hz
500Hz
500Hz
Ambient temperature
(-10C°~ +70C°
(-10C°~ +70C°
(-10C°~ +70C°
Impact resistance
30G
30G
30G
Resistant to vibration
9G
9G
9G
Protection Grade
IP 67
IP 67
IP 67
Protection circuit
No
No
No
Connection
RVV2 X 0.5mm²2m
RVV2 X 0.5mm²2m
RVV2 X 0.5mm²2m


WHY CHOOSE US


COMPANY PROFILE






Sakady is a diversified enterprise integrating R & D, production and sales of sensor industrial control safety equipment,
providing customers with standardized and customized industrial automation safety equipment. The products mainly include safety light curtain, safety carpet, safety edge, safety relay and photoelectric switch, etc.
The company strictly checks every step in the production process. The enterprise has fully passed ISO9000 certification, and the product series has passed CCC , TUV and CE certification. Equipped with a professional R & D team, the company adheres to the road of independent R & D, not only draws on the advanced sensor technology of Germany, but also cooperates with the scientific research institutions of Zhejiang University to gradually form a strong technical and brand advantage.


CERTIFICATION




BUYER COMMENTS




OEM or ODM
product is also our
cusyomized service
25% employess
enganged in R＆D
More than 3000 project
applictions have won
wide reception from
customers


PRODUCT CATEGORIES




PAYMENT
Standard payment terms: T/T 30% DEPOSIT, 70% BALANCE AGAINST B/L COPY or 100% irrevocable LC at sight.
Online trade assurance order, all is up to youMore payment terms could be provided(PAYPAL,WETERN,UNION)
SHIPPING.


TRANSPORT
• Delivery time: Generally 5-10 days if the goods are in stock. 15-20 days if the goods are notin stock. And it is also depend on your quantity.
• Packing: General export packing, or customized packing as your request.• Professional goods shipping forward.


FAQ


Q1:   What is the MOQ?
 A :    1 pcs for our own available designs.
Q2:   Can I put my logo on the product?
A :    Yes, we can print your logo on the items.
Q3:   How about the quality of your products?
A :    Our products have passed TUV, CCC and CE certification.
Q4:   How long is the delivery time of 1000 products ?
A :    7 days
Q5:   Can I get a lower price if I order large quantities?
A :    Yes, Cheaper prices with bigger size orders
Q6:   Can I get a sample?
A :     Of course, but you need to pay the minimum sample fee
Q7:   Can I add or delete items from my order if I change mind?
A :    Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
Q8:    How can you guarantee the production quality?
A :    The quality of our products has passed TUV, CE, CCC, IS09000 certification. We have 15+ years OEM labeling experience with global top sensor brands.
