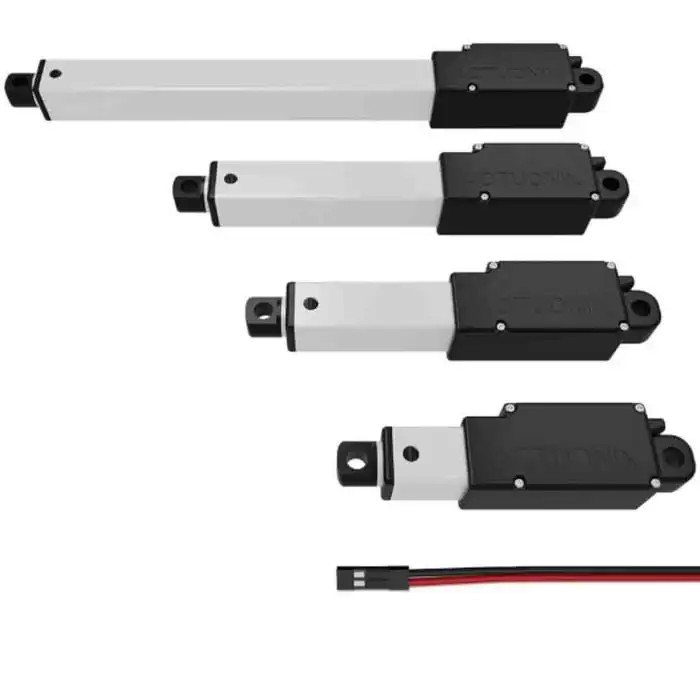

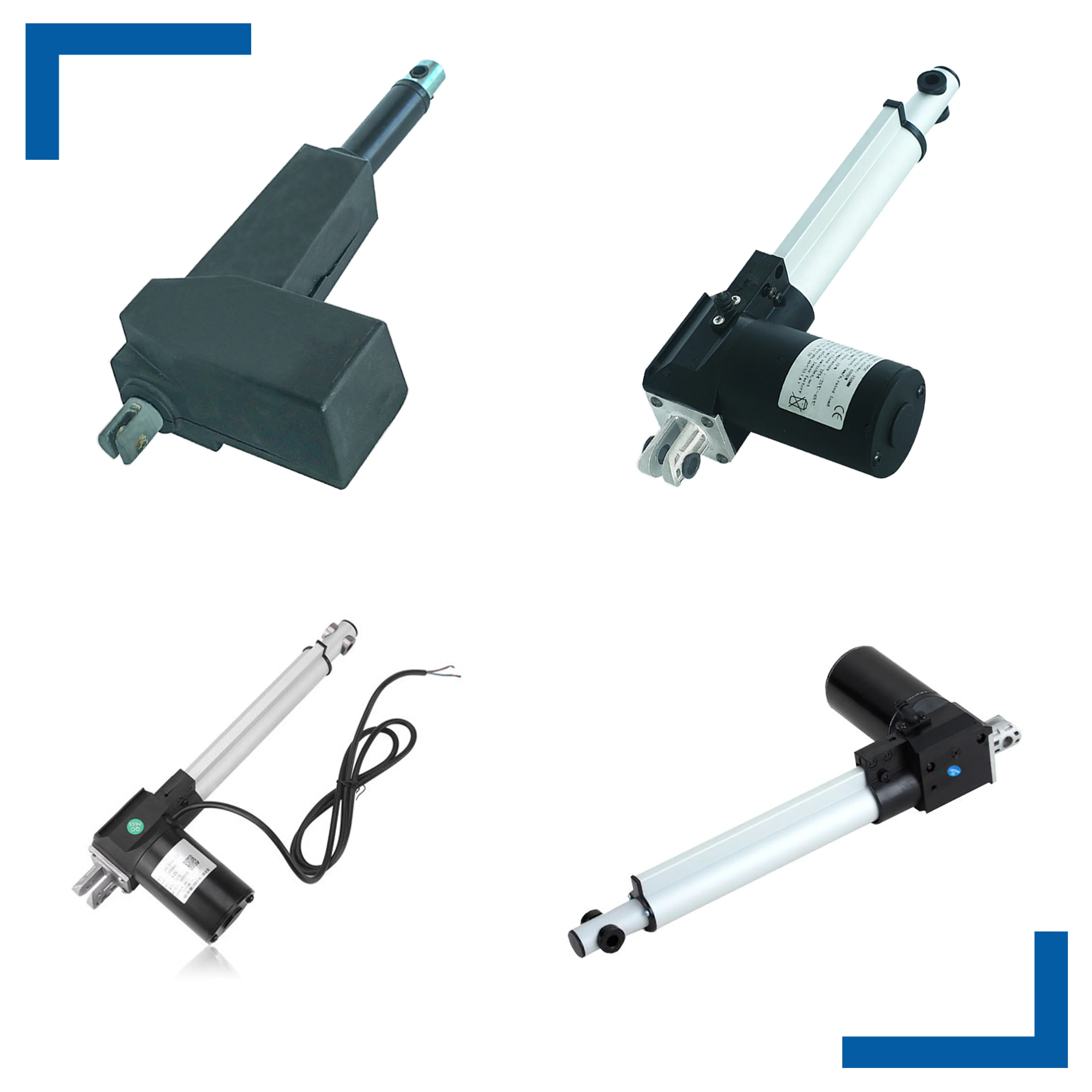

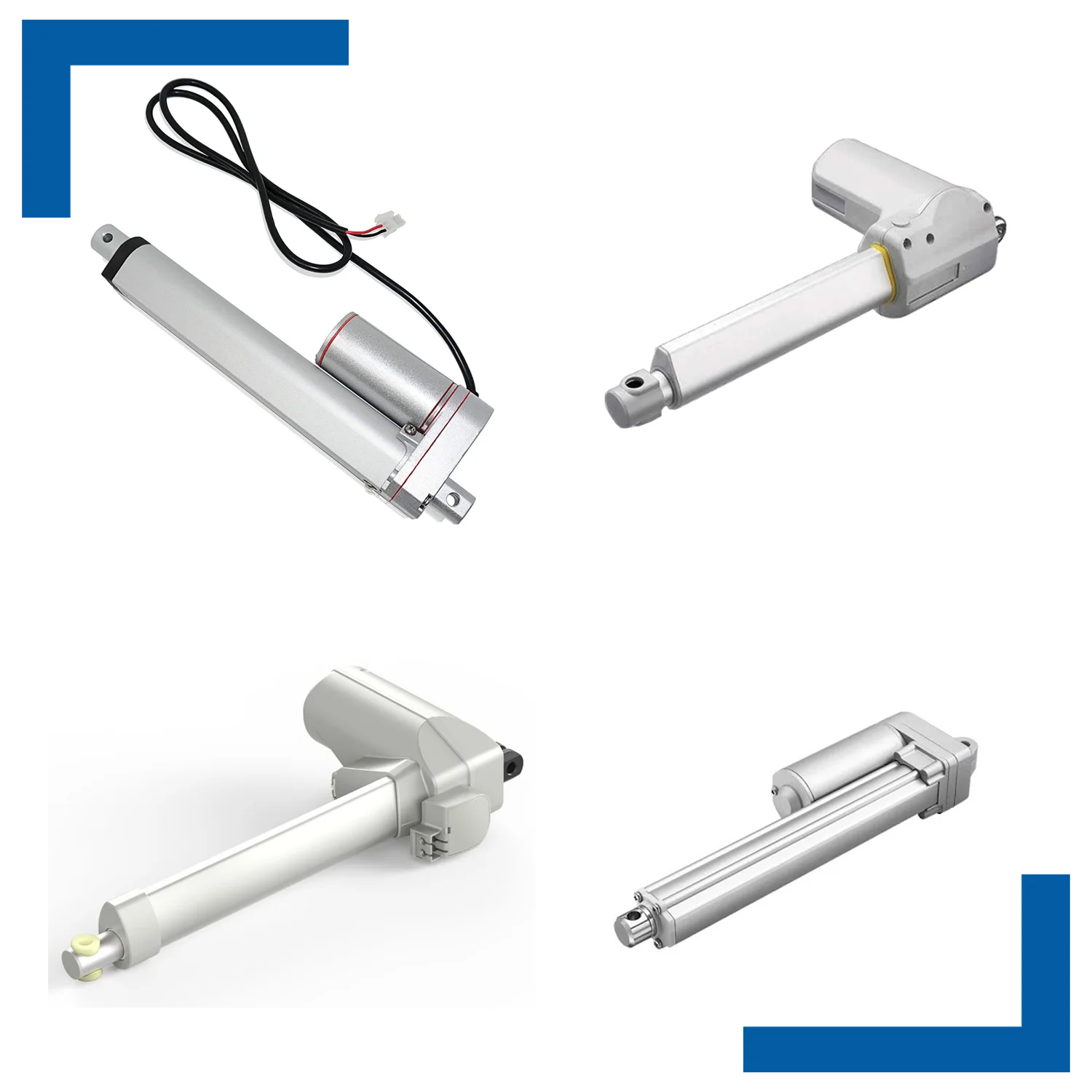

Linear Actuator Motor

Product Name

Type

GTMT01 Serice

Nominal voltage (DCV)

DC12V ; DC6V

Max current (A)

Max current (A)

Max current (A)

6～8，8～15，15～25

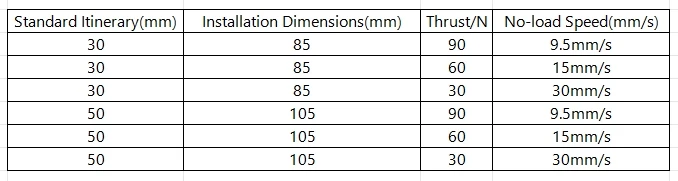

Thrust(N)

60N，40N，20N

No-load speed (db)

≤48dB(A)@500mm (Environment noise≤37 dB(A))

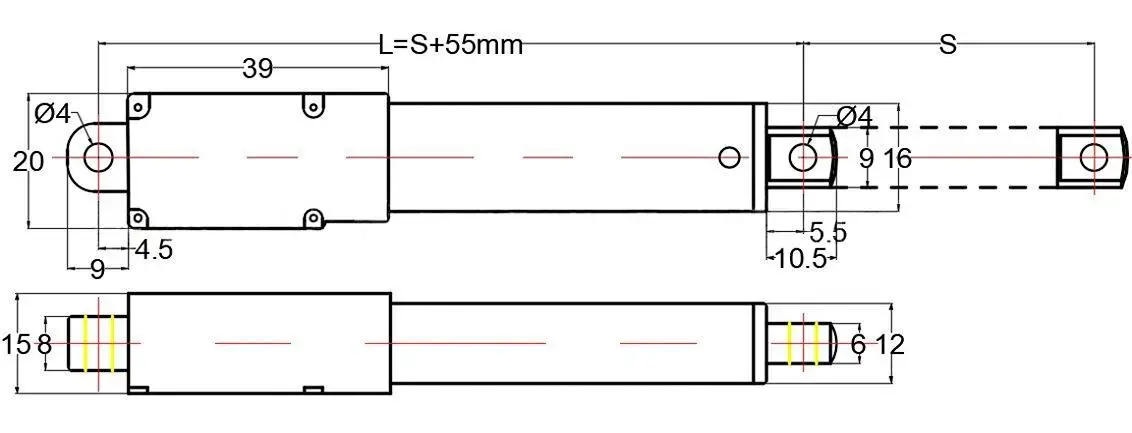

Min installation distance L

S+55mm

Distance S

Distance S

Te number of life

≥10000 times

Working system

10% ，Max.2min./18min.

The level of protection

IP42

Environment temperature

+5℃～+40℃

                                                                                                Application

Electric nursing bed, operating bed, traction bed, massage chair, dental chair, electric wheelchair, electric sofa, electric exhibition stand, electric skylight, human engineering furniture and other occasions that need linear motion actuator are installed very conveniently, which are widely used in medical treatment, fire protection, home furnishing, electric mechanical, chemical industry, sanitary ware, leisure and other fields.
