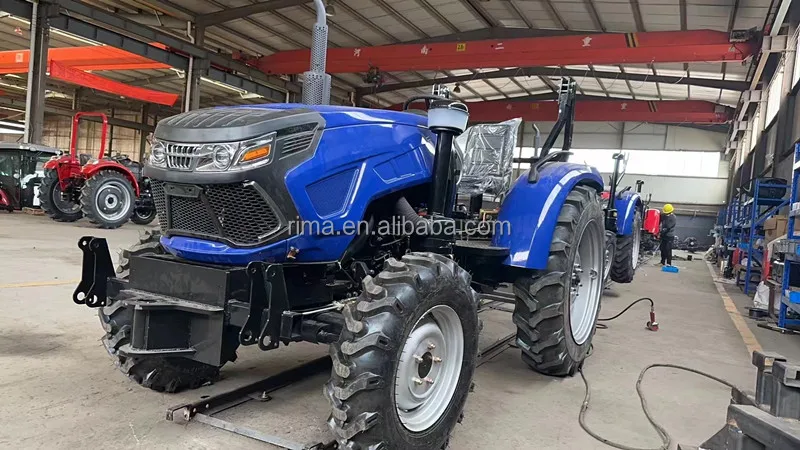

60hp diesel engine agriculture mini wheel tractor china with mower / snow blade /concrete mixer / wood chipper farm accessories

Specification

Tractor

Parameters

Model

504

Drive type

4WD

Overall dimension LXWXH(mm)

3100*1400*1640

Wheel track(mm)

1100

Wheel base(mm)

1950

Min. distance from ground(mm)

310(front drive axle under)

Structure Weight

with ROPs

1650kg

Turning Round Radius(m)

without single break

3.6±0.3

Theoretical
Speed(km/h)

Forward

2.31/31.46(general gear)

0.46-31.46(creeping gear)

Reverse

3.1-10.78(general gear)

0.62-10.78(creeping gear)

Engine
Specifications

Type

Diesel, Vertical put, Four-stroke, water-cooling,
spray directly combustion chamber

Rated Power(km)/Rotation(r/min)

36.8/2400

Diesel Consumption(g/km/h)

≤228

Machine Oil Consumption(g/km/h)

≤1.63

Cylinder no.

4

Drive
System

Clutch

Dual-stage clutch

Gear Box

8F+2R(optional 8F+8R)

Hydraulic

System

Hydraulic Capacity(L)

20

Hydraulic Flow(L)

33.6

Travelling
Mechanism

Tyre Size

Front

650-16

Rear

11.2-24

Steering Gear Type

hydraulic steering

Driver Brake

Disk type

Working
Device

Hydraulic System

System Max. Lift Capacity at 610mm
of Suspension Point(KN)

>11.5

Suspension model

Rear, three-points suspension,Category: I

P.T.O Shaft

Rotating Speed(rpm)

540/720

Spline Size

φ35,6 Rectangular spline
