Original New Hot Standby FX2N-4DA
$10.00-15.00
100% Original PLC Analog Input Module PLC Programming Controller XD3 24T C
- Category: >>>
- Supplier: Yiwu Jianling Import And Export Co. Ltd.Yiwu Ltd.
Share on (1600828102577):
Product Overview
Description
Product Description
Product description：
1. XDH series EtherCAT bus type PLC, including 30 and 60 point specifications.
2. Support Ethernet communication and EtherCAT motion bus
3. Support online download (firmware version V3.7.1 and above)
4. The basic command processing speed is 0.02 us ~0.05us (XDH-60 can reach 0.01us~0.03us), with a larger internal resource space
5. Input type: NPN, PNP
6. Output type: Transistor (T)
7. Power specification: AC220V, DC24V
8. Support high-speed counting (up to 200KHz), 4-axis pulse output (up to 100KHz) and other special functions
9. Standard 2 RJ45 ports (Ethernet*1+EtherCAT*1), 1 232 ports, 1 485 ports
10 Support 1~16 XD series expansion modules, 1 expansion BD board (XDH-30 does not support expansion BD), 1 left expansion ED module.
11. Models with "L" are
1. XDH series EtherCAT bus type PLC, including 30 and 60 point specifications.
2. Support Ethernet communication and EtherCAT motion bus
3. Support online download (firmware version V3.7.1 and above)
4. The basic command processing speed is 0.02 us ~0.05us (XDH-60 can reach 0.01us~0.03us), with a larger internal resource space
5. Input type: NPN, PNP
6. Output type: Transistor (T)
7. Power specification: AC220V, DC24V
8. Support high-speed counting (up to 200KHz), 4-axis pulse output (up to 100KHz) and other special functions
9. Standard 2 RJ45 ports (Ethernet*1+EtherCAT*1), 1 232 ports, 1 485 ports
10 Support 1~16 XD series expansion modules, 1 expansion BD board (XDH-30 does not support expansion BD), 1 left expansion ED module.
11. Models with "L" are

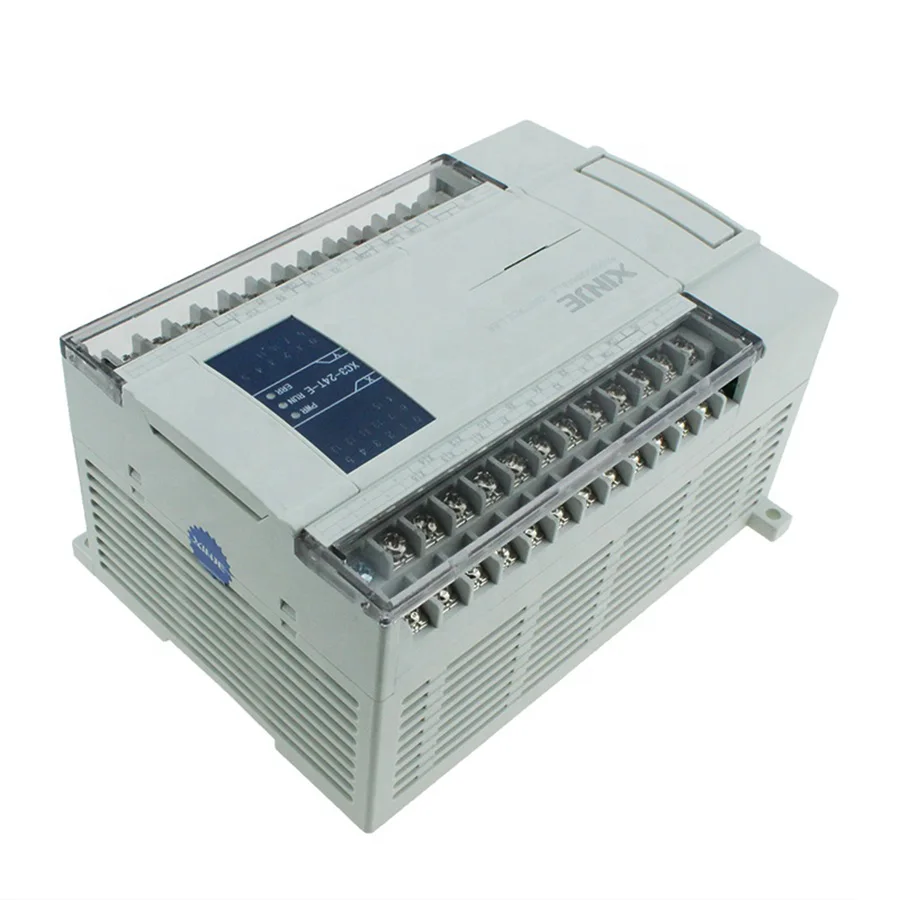

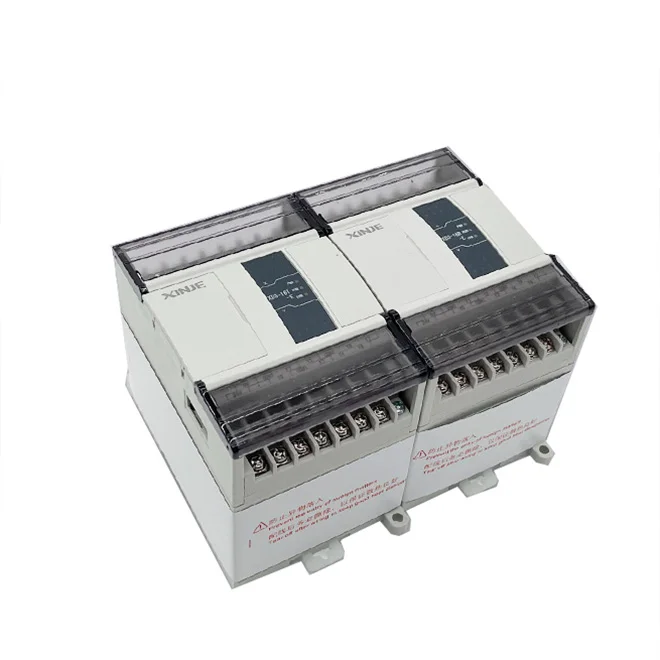

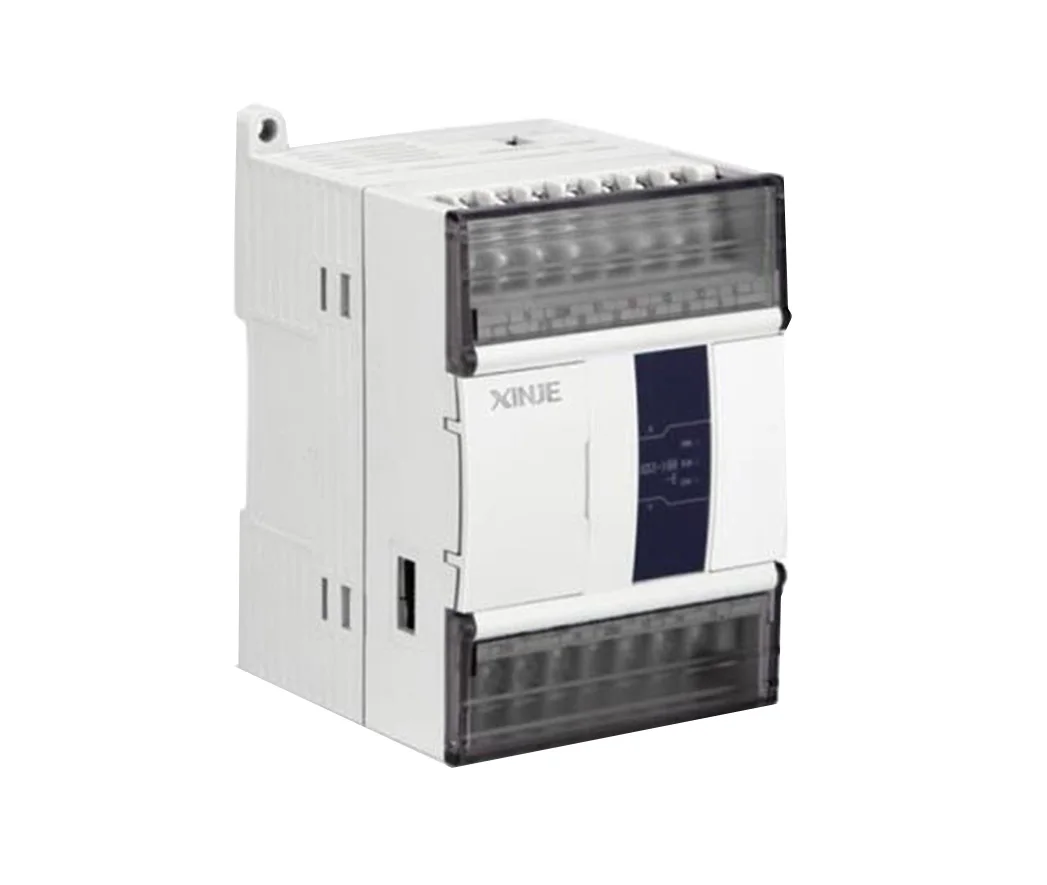

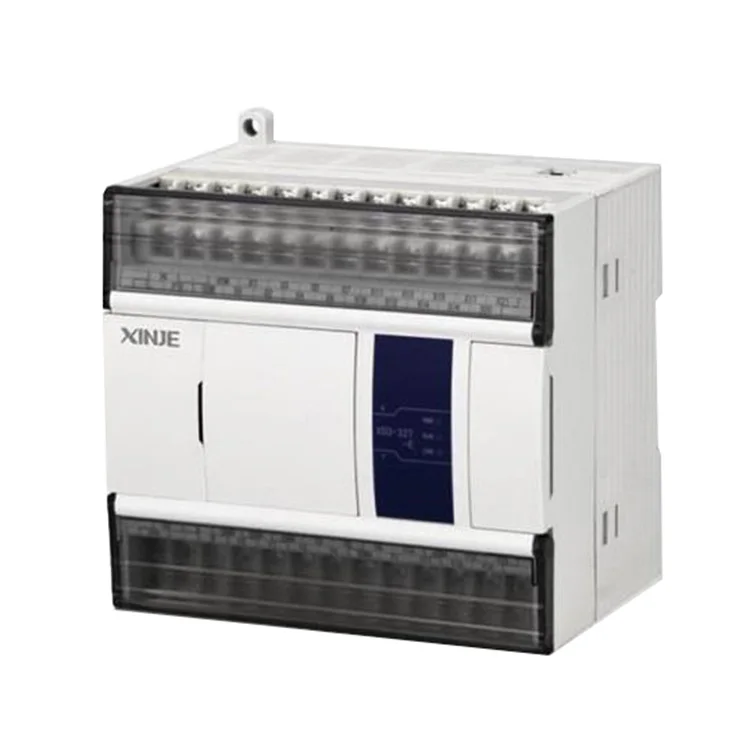

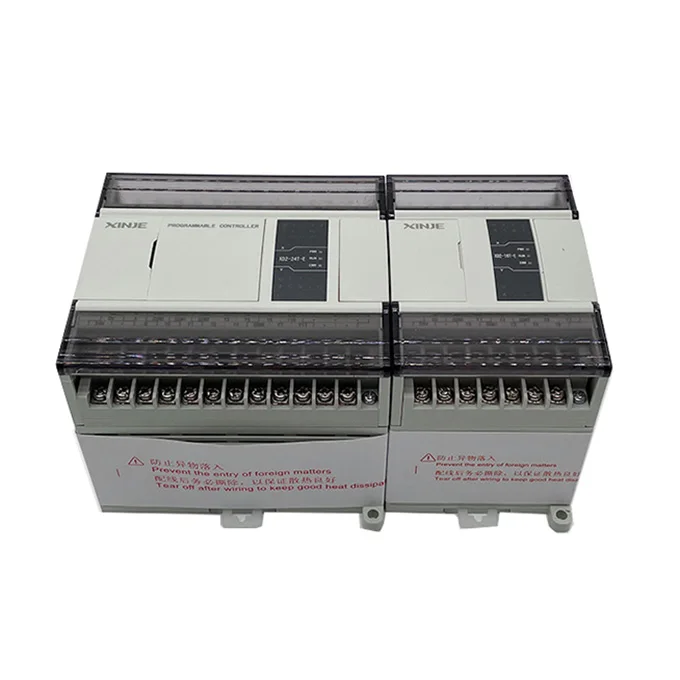

Detailed Images
These models are avaiable：
XD3-series
XD3-16R-E | XD3-16R-C | XD3-16T-E | XD3-16T-C | XD3-16RT-E |
XD3-16RT-C | XD3-24R-E | XD3-24R-C | XD3-24T-E | XD3-24T-C |
XD3-24RT-E | XD3-24RT-C | XD3-32R-E/C | XD3-32T-E/C | XD3-32RT-E/C |
Data Sheet
project | specification |
Insulation voltage | DC 500V 2MΩ or more |
Anti-noise | Noise voltage 1000Vp-p 1us pulse for 1 minute |
air | No corrosive and flammable gas |
Ambient temperature | 0 ℃ ~ 60 ℃ |
environment humidity | 5% ~ 95% (no condensation) |
COM0 port | RS232 (factory default X-NET protocol), connect to PC to download / upload / monitor |
COM1 port | RS232 (factory default MODBUS protocol, connect to upper computer, human-machine interface for programming or debugging |
COM2 port | RS485, connect to smart meters, inverters, etc. |
installation | Can be fixed with M3 screws or directly mounted on the rail |

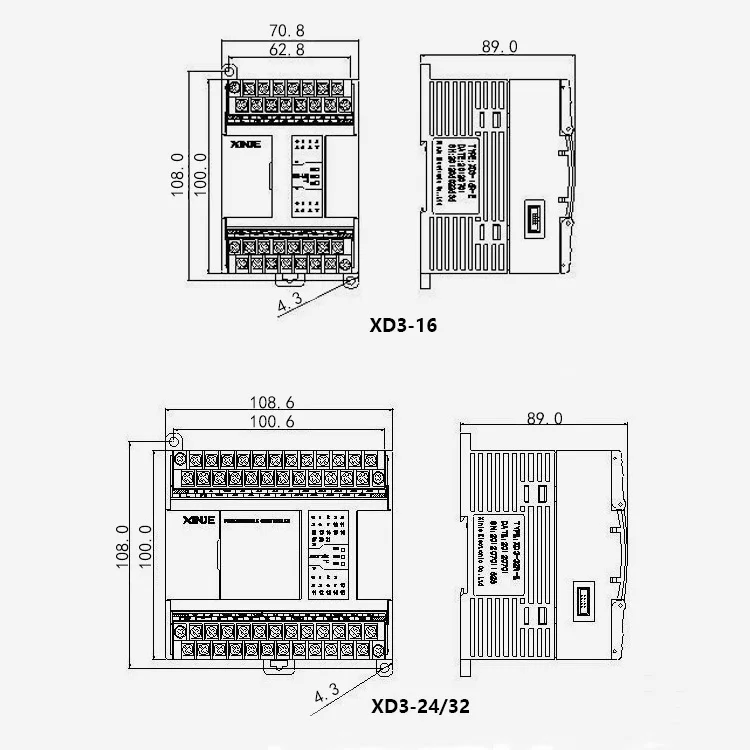

Size Information
Outer Cartoon Size
M：24 * 20 * 11 CM
