HY565 high flexibility PVC sealant high temperature curing weld sealant for seam sealing of car bodies
- Category: >>>
- Supplier: Zhengzhou Huayu Technology Co. Ltd.
Share on (1600828113715):
Product Overview
Description
Product Description
HY560-HY567 serie is a one-component modified polyvinyl chloride sealant, referred to as PVC sealant.
It contains no solvent, no isocyanate, anti-pollution after curing, environmental protection, good flexibility, excellent heat, water,oil resistance and anti-aging ability.
It contains no solvent, no isocyanate, anti-pollution after curing, environmental protection, good flexibility, excellent heat, water,oil resistance and anti-aging ability.

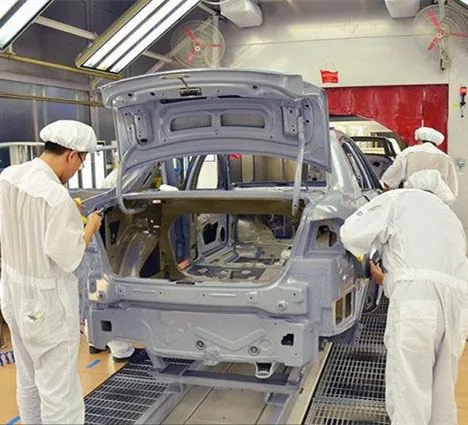

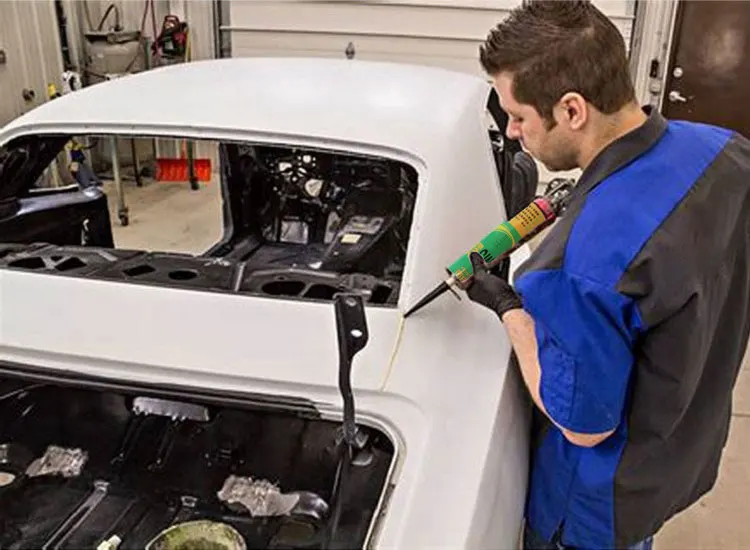

Suitable for seam sealing of car bodies welding seams,Car chassis fender, gutter ec. It can be cured at high temperature, can be painted, and cure along with heating process for painting.
This product meets environmental protection requirements, does not contain harmful substances in GB18583 "Limits of Hazardous Substances in Adhesives for Interior Decoration
Materials", meets the EU ROHS and REACH environmental protection standards, and meets the German environmental protection standards for automotive adhesives.
Materials", meets the EU ROHS and REACH environmental protection standards, and meets the German environmental protection standards for automotive adhesives.
Specification
Part No. | HY560 | HY561 | HY565 | HY566 | HY567 |
Appreance | White/Black paste | White/Black paste | white paste | black paste | white liquid |
sag (≤mm) | 0 | 2 | 3 | 5 | / |
Non volatile content(≥%) | 97 | 98 | 97 | 95 | 97 |
Curing condition | 230℃ ,10 minutes | 160℃, 30 minutes | 160℃, 30 minutes | 160℃, 30 minutes | 160℃, 30 minutes |
Tensile strength(Mpa) | 1.5 | / | 1.0 | 0.8 | 1.0 |
Hardness Shore A | 50±10 | 20~50 | 40-60 | 40-60 | 40-60 |
Application | car welding seam sealing for Powder spray painting process | foam glue, used for bumper, shock absorption | for car welding seam sealing in heating paint process | used for Car chassis fender, and bottom protection | Self-leveling, used for car gutter sealing |
Packing | 310ml tube 800ml soft sausage 25kg barrel, 250kg bucket | 310ml tube 25kg barrel, 250kg bucket | 310ml tube, 25kg barrel | 25kg barrel | 25kg barrel |
Item | Total carbon volatilization | Odor | Atomization value | Formaldehyde | Benzene series |
Standard | VDA277 | VDA270 | DIN75201 | VDA275 | VDA277 |
Standard Value | 50μgC/g | 3.5 Grade | 2mg | 10 μg/g | 5μg/g |

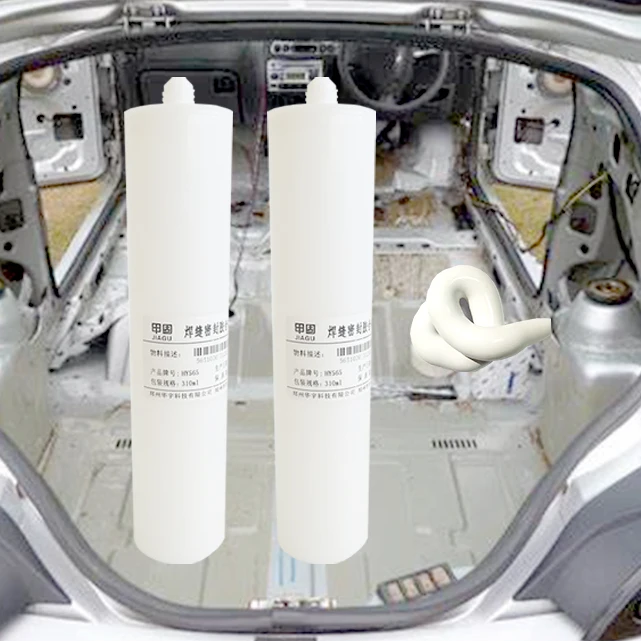

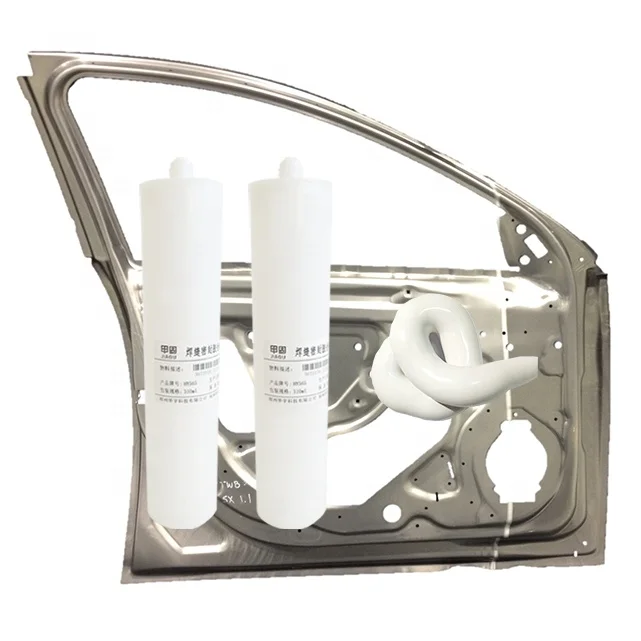

310ml tube
25kg steel barrel
Detailed Images
Features:
1. One-component, easy to use.
2. Excellent flexibility
2. Excellent flexibility
3. Paint applicable, Good compatibility with surface paint
3. Excellent adhesion to painted steel plates
4. Great weather, oil proof feature, anti aging and leakage.
6. complies with GB18583, EU ROHS and REACH Standards.
Application
HY560: used for car welding seam sealing for Powder spray painting process
HY561: foam glue, used for bumper, shock absorption
HY565: for car welding seam sealing in heating paint process
HY566: used for Car chassis fender, and bottom protection
HY567: Self-leveling, used for car gutter sealing

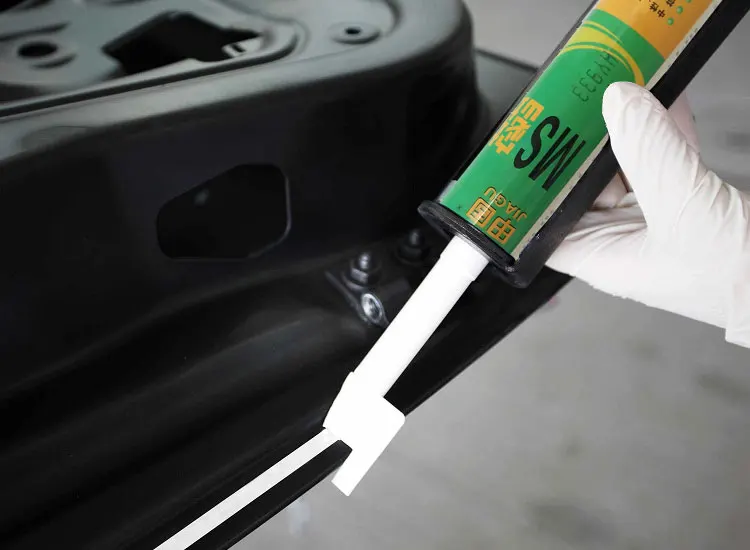

Instruction:
2.Cut off the sealant seal, install the glue nozzle, and put it into the glue gun.
3.Apply the sealant evenly on the joints, the thinnest part is greater than1mm when using the
pneumatic gun,the air pressure is controlled at 0.3~0.5Mpa.
Packing&Shipping
Certificate
We have ISO 9001 Certificate.
We have UL certiticate, CE certificate, REACH and ROHS test.
For each product we provide, we have testing report.
Company Introduction
Zhengzhou Huayu Technology Co., Ltd., founded in 1997, we've been in the adhesive field for more than 20 years.
We are a national high-tech enterprise focusing on the R & D, production, sales and service of adhesives and sealants. Baofeng high tech Zone factory covers an area of more than 30000 square meters and a construction area of more than 40000 square meters. It has an advanced automatic production line and a design annual production capacity of 50000 tons.
Our brand "JIAGU" “RALEAD” has been innovating and developing products cover ten
materials such as silicone, modified silane, polyurethane, epoxy, anaerobic, acrylate, CR, SBS, PVC and ABS, and more than 300 products. Widely use for Industry, vehicle industry, construction industry, electronic industries. Our products served many famous enterprise in China.
materials such as silicone, modified silane, polyurethane, epoxy, anaerobic, acrylate, CR, SBS, PVC and ABS, and more than 300 products. Widely use for Industry, vehicle industry, construction industry, electronic industries. Our products served many famous enterprise in China.
