High Press Sodium Electronic 400w 600w Digital Ballast
US $53.00-$68.00
Electronic ballast for TUV11W TUV16W UV lamp lighting 110V power supply ballast
- Category: >>>
- Supplier: Renownuv Electric Co. Ltd.
Share on (1600828282017):
Product Overview
Description
Electronic ballast for TUV11W TUV16W UV lamp lighting
110V power supply ballast
We are leading UV lamp electronic ballast manufacturer in China.
We have 4w~800w full series ballasts for low and medium pressure UV lamps.
OEM and ODM service offered for discussion.
Please contact us to match you a best ballast model if you are not sure on right models.
Product Description
UV Lamp Ballast Main Technical Data
Ballast Model | Input Voltage(V) | Input Power (W) | Input Current (A) | Power Factor PF | Lamp Current(A) | Weight (kg) | Packing (mm) | Qty ( pcs ) | GW (kg) |
PH12-425-18 | 198~264 | 21.5 | 0.17A@230V | >0.55 | 0.35-0.42 | 0.048 | 460*280*140 | 100 | 6.3 |
PH12-425-18A | 99~132 | 21.5 | 0.33A@120V | >0.55 | 0.35-0.42 | 0.048 | 460*280*140 | 100 | 6.3 |
PH12-180-10 | 198~264 | 10 | 0.08A@230V | >0.5 | 0.15-0.18 | 0.048 | 460*280*140 | 100 | 6.3 |
PH12-180-10A | 99~132 | 10 | 0.15A@120V | >0.5 | 0.15-0.18 | 0.048 | 460*280*140 | 100 | 6.3 |

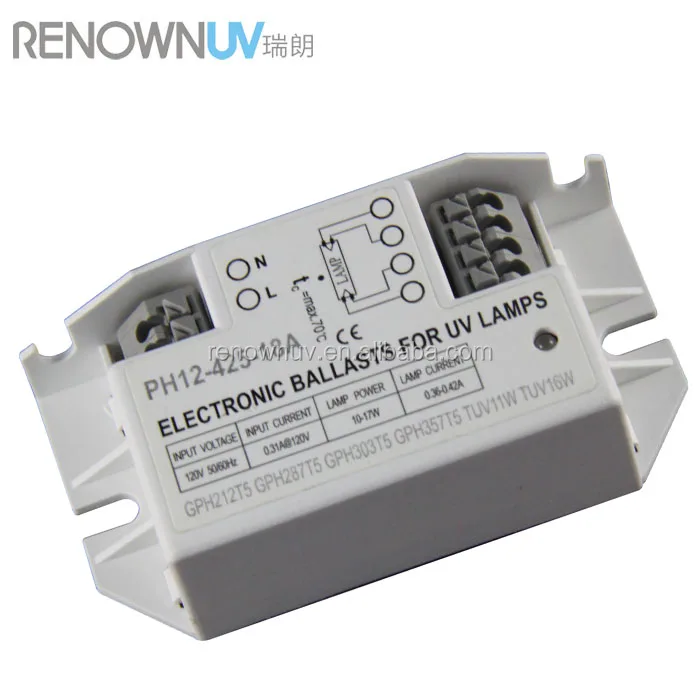

PH12-425-18A UV lamp electronic ballast Application UV Lamp Types
1*Lamp Type: GPH150T5 GPH212T5 GPH287T5 GPH303T5 TUV11W TUV16W
Wiring Diag:A
Electronic Ballast Wiring Diagram
Electronic Ballast Dimension
l Technical specifications
Mains Frequency:50/60Hz
Power Factor: >0. 55
Efficiency: >80%
Operating Frequency: 40-60KHz
Starting:Pre-heat
Dimensions:80*40*22mm
l Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
l Installation Requirement
Wire gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
l Mountion Restriction
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four output.
l Features
Starting:Preheat
l Applications
All areas of applications include UV lamps:
=>Air purification
=>Aquarium
=>Domestic drinking water
Company Information
RENOWNUV, a professional brand established in 1996, is focused on offering complete proposals for air and water UV disinfection treatment. RENOWNUV has advanced purification compounding technology of photochemical reaction and photophysics process and design capability from Europe.

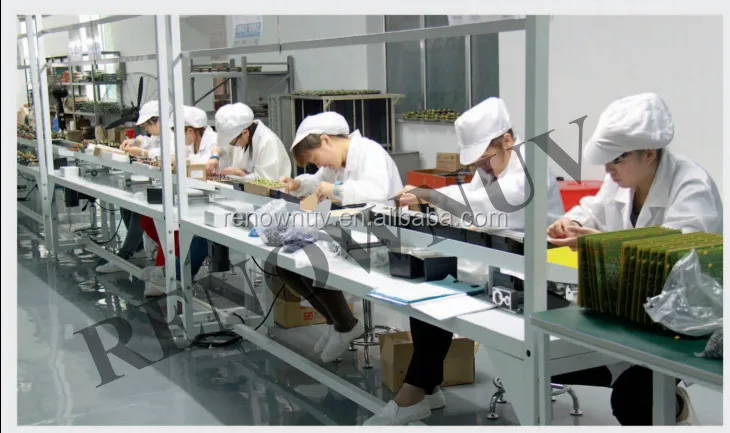

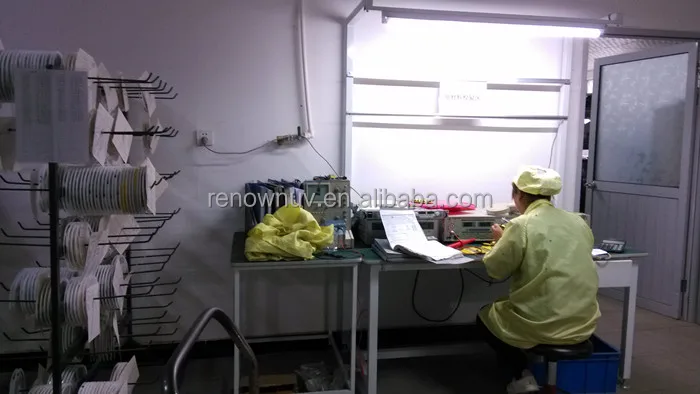

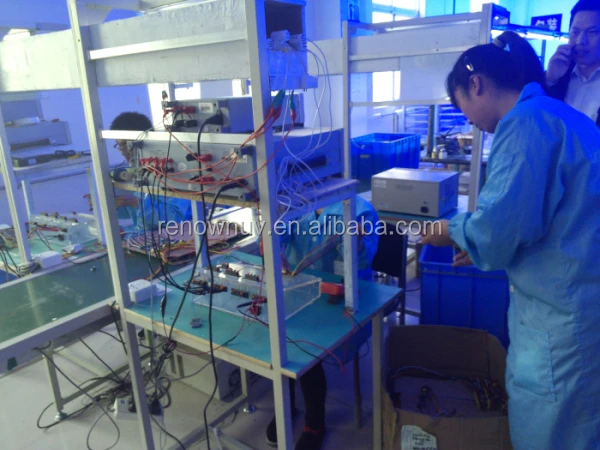

Ballast Workshop
As a professional designer and manufacturer of electronic ballast, RENOWNUV is delicated to develop high-quality electronic ballasts. Products are widely used in the fieds of sewage treatment, water purification, air purification, waste gas treatment, medical, priting and soon. RENOWNUV owns a professional and 10+ years experienced R & D team. Aiming to be “top China electronic ballast expert”, and insisting on meeting the customers requirement as the aim of researching and developing product. RENOWNU owns production line with annual production capacity reach 20 million pieces.

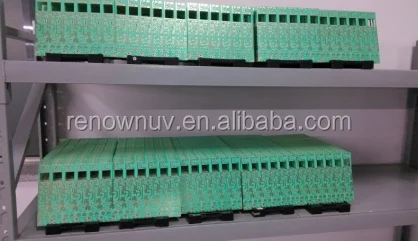

RENOWNUV owns full set of advanced production machines, like full automatic drying machine, automatic printing machine, high speed chip machine, automatic washing machine, off-line AOI visual inspection machine, automatic chain plug-in line and lead-free automatic wave soldering ect.
Ballast Certificates
After years development, we gaind cooperation with many valueable customers by applying them different international certificates to meet different market needs. Till now, we have models of electronic ballast CE, UL, SAA etc certified.
Customers all around the world are welcome to consult us for special electronic ballast design, and certification application.

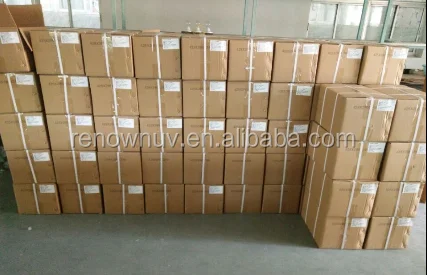

Packaging & Shipping
Our UV lamp electronic ballasts are well packed with cartons. Pallet will be used for large volume goods delivery. We offer multi delivery choices, like express, air shipping and sea shipping, for customers convenience.
