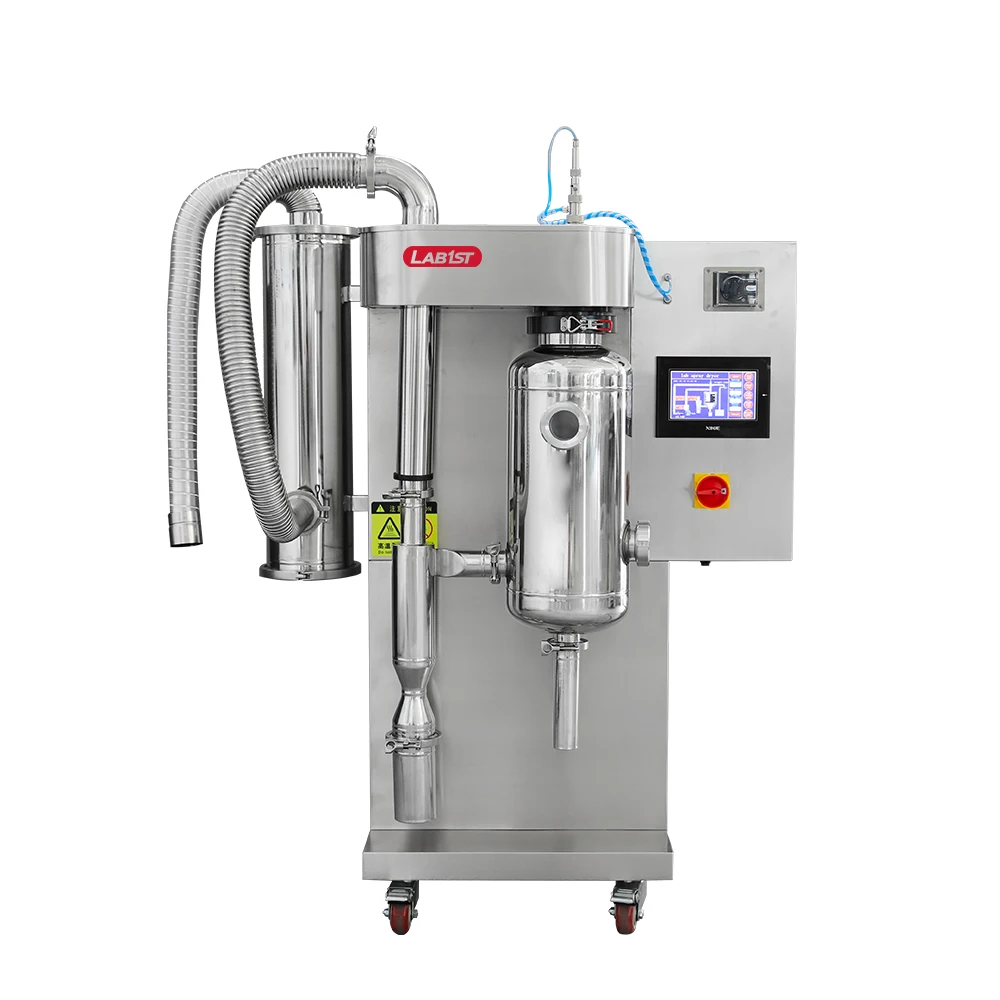

Lab1st Milk Powder Centrifugal Spray Dryer for Laboratory Use
- Category: >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (1600828347805):
Product Overview
Description
About Us

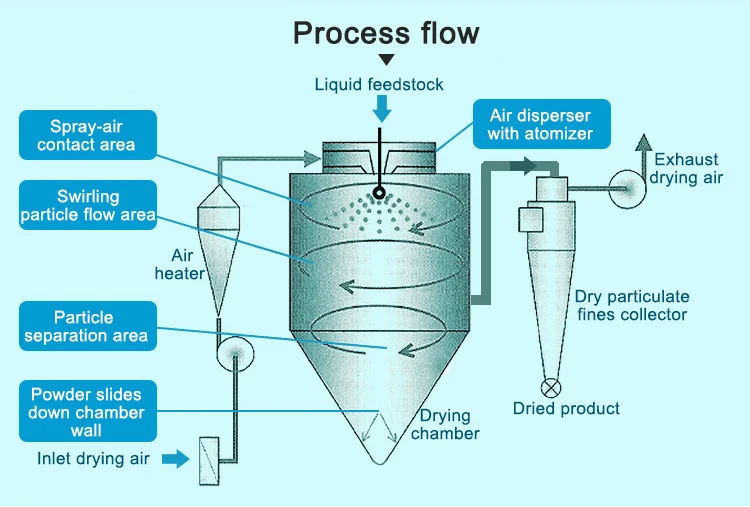

Product Structure
Product Details
Model: SDS-02
Stainless Steel Type
Model: SDG-02
Glass Type
- Drying chamber intake filter;
Product Features

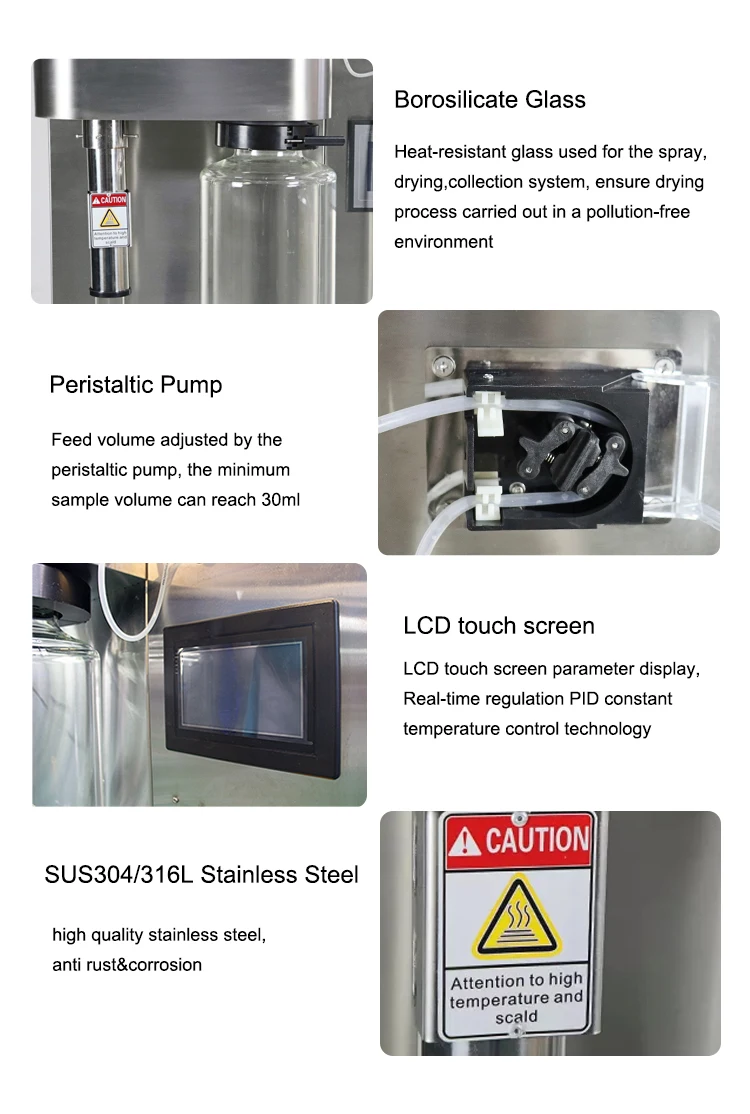

● High-quality borosilicate heat-resistant glass used for the spray,drying,collection system, ensure drying process carried out in a pollution-free environment.
● Software operating system with independent intellectual property rights (software copyright number: 2019SR1071014) powerful, optional 485 communication.

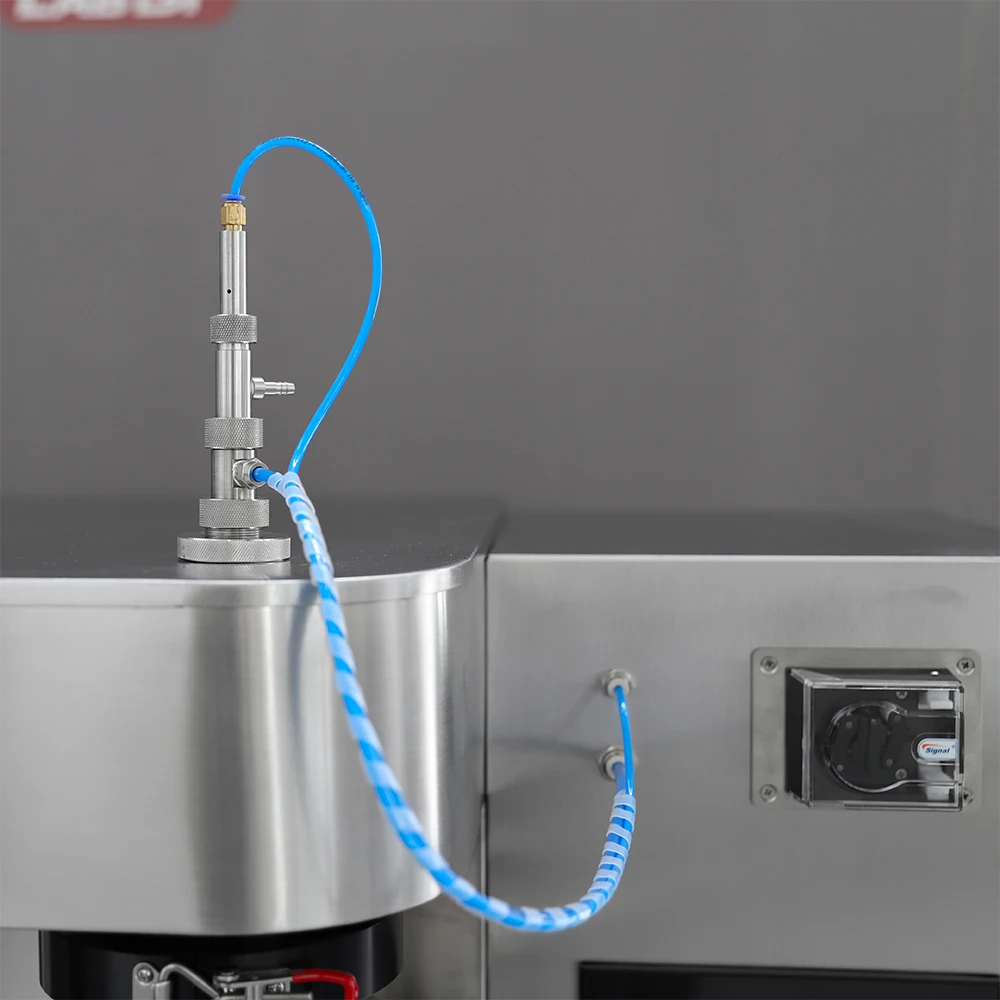

● Stainless steel nozzle with two-fluid spray structure , high efficiency, good atomization effect.

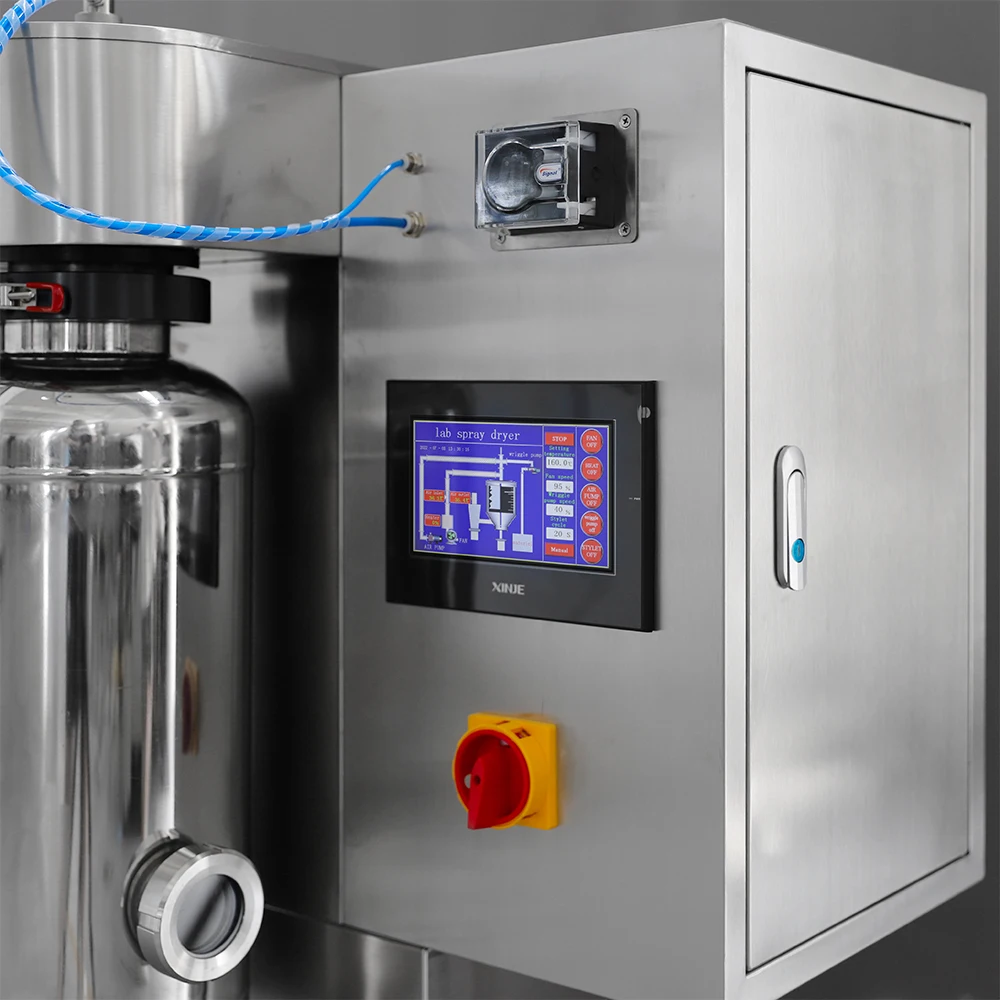

● LCD touch screen parameter display.
● Real-time regulation PID constant temperature control technology.
● Equipped with air inlet filter to keep the sample purity.

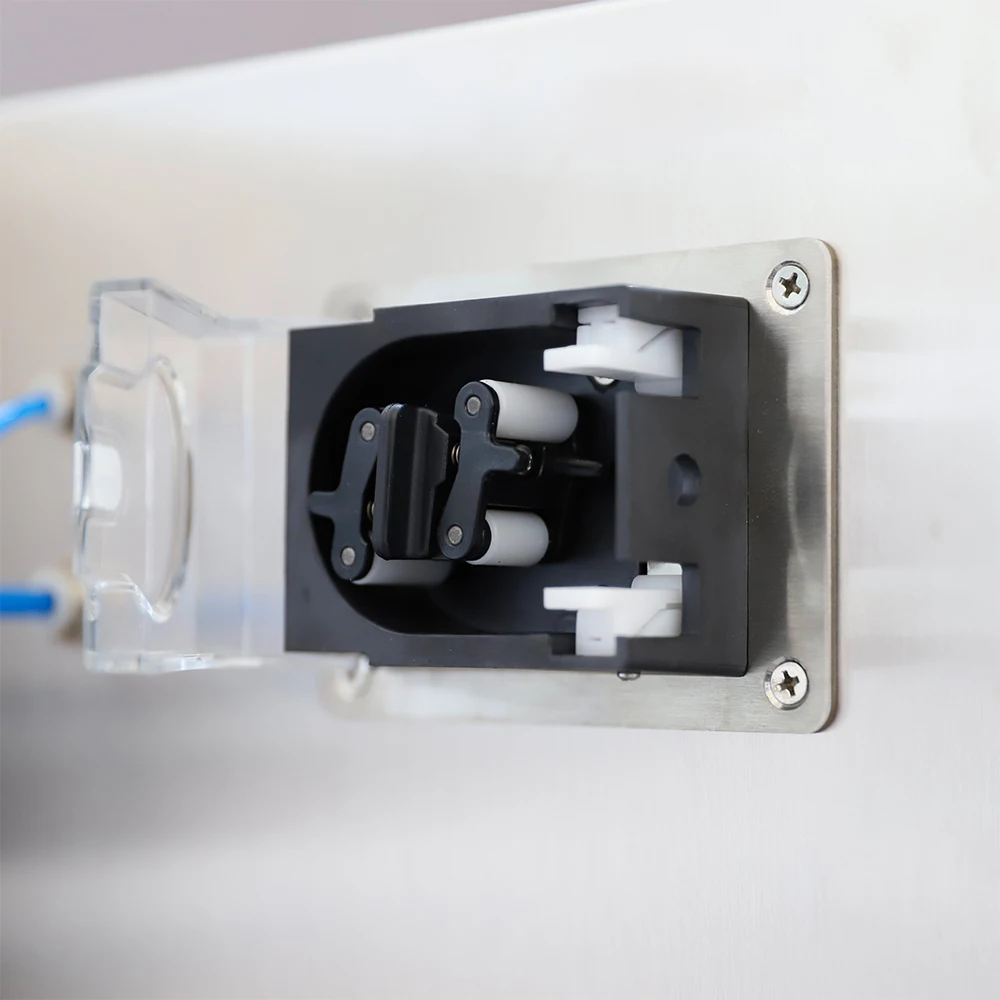

● Feed volume adjusted by theperistaltic pump, the minimum sample volume can reach 30ml.
● Finished dry powder has uniform particle size, >95% dry powder in the same particle size range.
● Equipped with nozzle cleaner (through needle), automatically cleared when the nozzle is blocked.
Specification
Model | SDG-02 | SDS-02 | |
Technical Data | |||
Inlet Temperature [℃] | 30~300; ±1 | 30~300; ±1 | |
Outlet Temperature [℃] | 30~140; ±1 | 30~140; ±1 | |
Nozzle Diameter [mm] | 1 | 1 | |
Optional Nozzle [mm] | 0.5, 1.5, 2.0 | 0.5, 1.5, 2.0 | |
Drying Time [S] | 1.0~1.5 | 1.0~1.5 | |
Evaporation Rate [ml/h] | 1500~2500 | 1500~2500 | |
Total Power [Kw] | 3 | 3 | |
Electrical Requirements | 220V; 1P; 50/60HZ | 220V; 1P; 50/60HZ | |
Material | |||
Drying Chamber | High borosilicate glass | SUS304 [option: SUS316] | |
Separation Chamber | High borosilicate glass | SUS304 [option: SUS316] | |

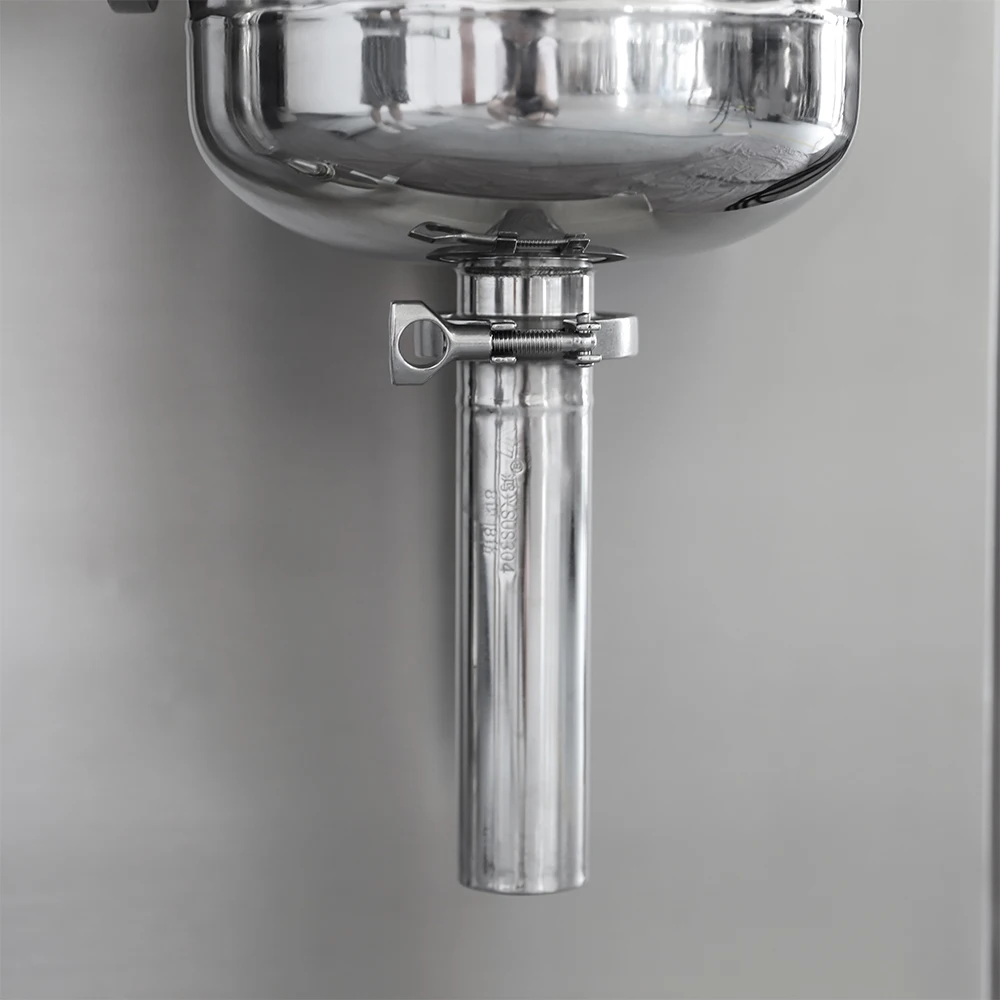

Collector | High borosilicate glass | SUS304 [option: SUS316] | |
Others | SUS304 [option: SUS316] | SUS304 [option: SUS316] | |
Feeding | |||
Feeding Rate [ml/h] | 30~2500 | 30~2500 | |
Feeding Method | Peristaltic pump | Peristaltic pump | |
