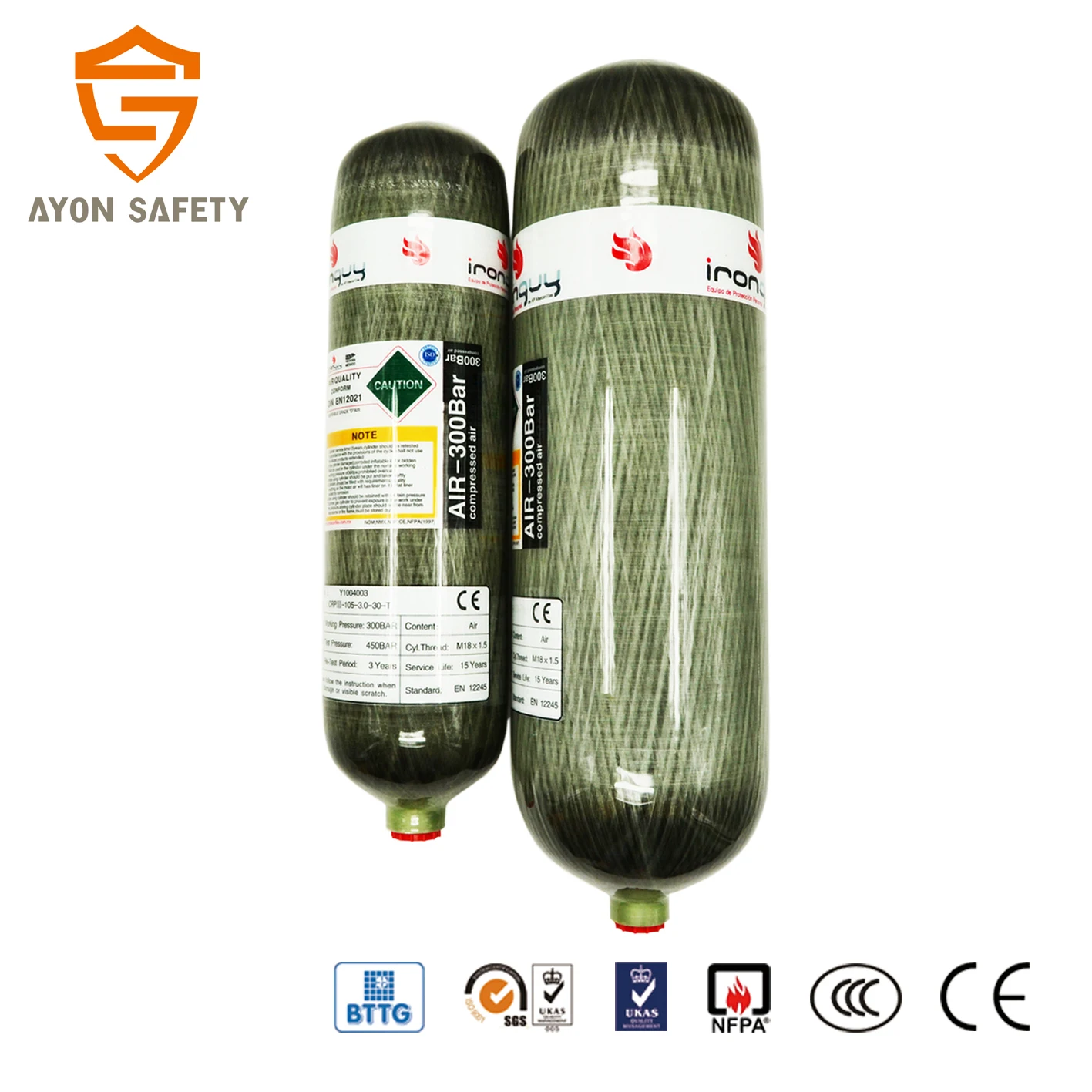

Hot Sale 3L composite gas cylinder carbon fiber cylinder for diving air respirator

Product Overview

Description



  Carbon fiber cylinders







Brief Introduction:





AS SCBA and life support cylinders feature aluminum alloy liner with thin wall and full-wrapped composite material exterior with carbon fiber and glass fiber with are suitable for SCBA, oxygen respirator, fire extinguisher, medical aid and emergency, as well as for use in automobile, space industry, etc.





Detailed Product Description:



Type	3/30		6.8/30		9/30
Filling gas	AIR
Usage time	≥30mins(30L/min during breathing)		≥60mins(30L/min during breathing)		≥90mins(30L/min during breathing)
Total weight	2.1KG		3.9KG		5.3KG
Material	Carbon fiber composite material (Full-wrapped Carbon fiber)
Water Capacity	3L		6.8L		9L
Service pressure	30M Pa
Test pressure	45M Pa
Outer Diameter	114mm	157mm		175mm
Length	446mm	530mm		560mm

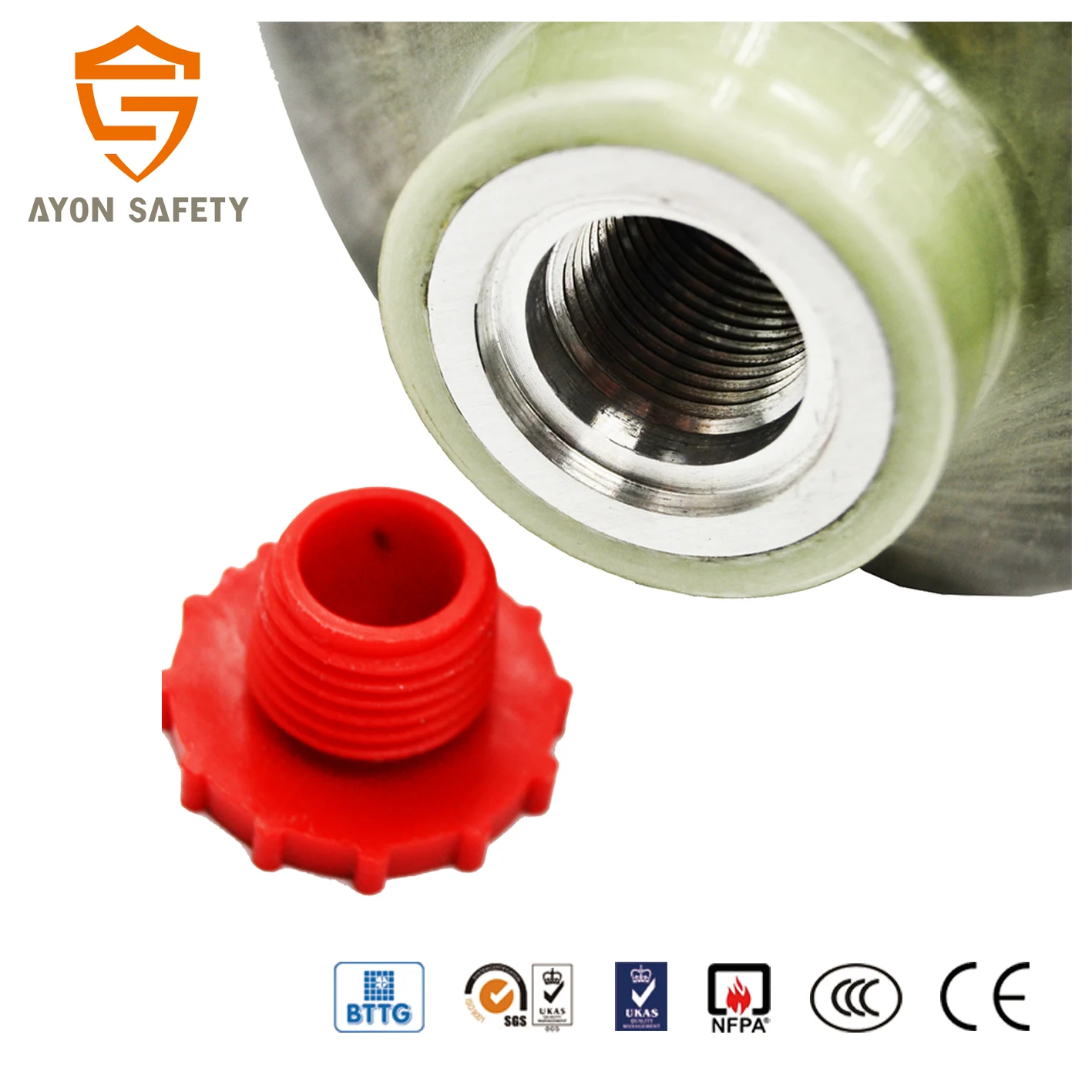

Thread size	M18*1.5mm



































































Characteristics & Features:



AS SCBA and life support cylinders offer the following advantages:

1.Light weight: Up to 30 percent lighter than comparable steel cylinders;

2.Outer layer with full-wrapped superior glass fiber features creep resistance, shock resistance and corrosion resistance, etc.;

3. High pressure resistance;

4. Leakage first before explosion;

5. No splashing fragment in explosion



Applicable scene:
