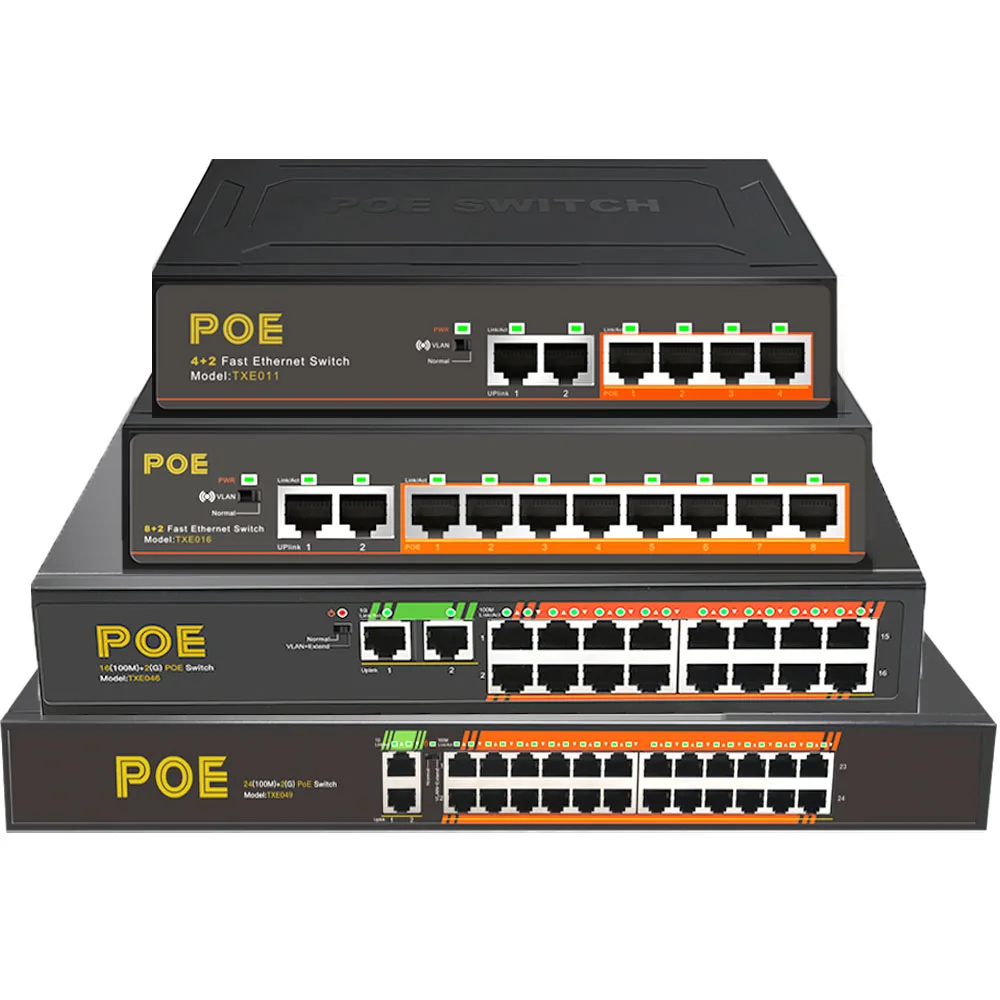

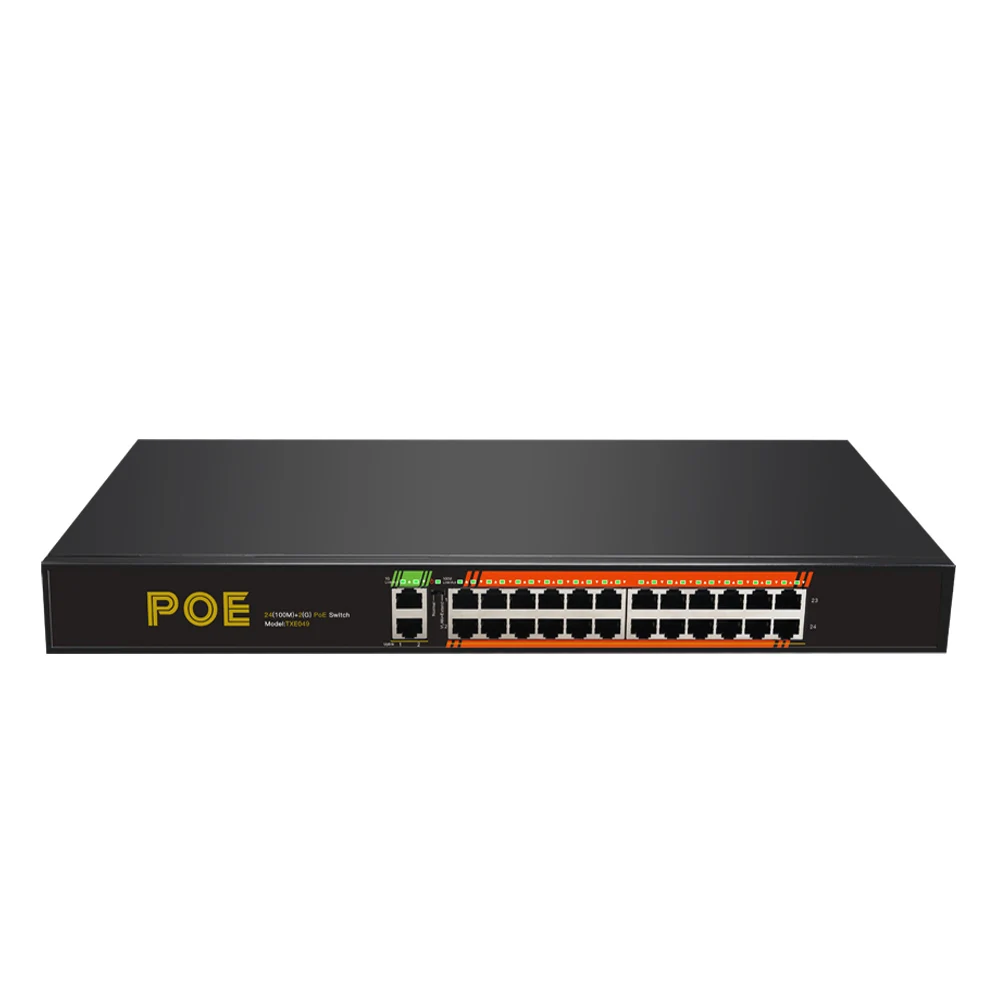

48V mini gigabit ethernet switch 10/100M PoE 2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH
48V mini gigabit ethernet switch 10/100M PoE+2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH
48V mini gigabit ethernet switch 10/100M PoE+2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH
48V mini gigabit ethernet switch 10/100M PoE+2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH
48V mini gigabit ethernet switch 10/100M PoE+2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH
48V mini gigabit ethernet switch 10/100M PoE+2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH
48V mini gigabit ethernet switch 10/100M PoE+2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH
48V mini gigabit ethernet switch 10/100M PoE+2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH

48V mini gigabit ethernet switch 10/100M PoE 2Port Uplink 4CH 8CH 16 port gigabit poe switch 8CH

Share on (1600828440894):


Price:

Quantity:


Product Overview

Description



Specification


8Port 10/100 PoE+2Port Uplink Ethernet Switch
Hardware Specifications
Network Connector
8+2-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
PoE Inject Port
8-port with 802.3af/at PoE injector function (Port 1 to Port 8)
LED Display
System:
Power (Green)
Per PoE port:
PoE (Green, Port 1 to Port 8)
LNK/ACT (Green, Uplink 1 to 2Port )
DIP Switch
Standard mode for 100M
Extend mode for 250m (Based on the cable category)/One-click VLAN port isolation
Switch Architecture
Store and Forward switch architecture
MAC Address Table
2K MAC address table with auto learning function
Switch Fabric
2Gbps
Switch Throughput
1.48Mpps@64 bytes
Maximum Packet Size
1536bytes
Flow Control
Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
Power Requirements
52V2.3A/52V2.3A Built-in power supply (optional)
Power Consumption
Max.120watts,
Dimensions (W x D x H)
200*160*40 mm
Power over Ethernet
PoE Standard
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
PoE Power Supply Type
End-span + mid-span
Power Pin Assignment
1/2(+), 3/6(-),
PoE Power Output
Per Port max. 15.4 watts (IEEE 802.3af)
Per Port. max. 30 watts (IEEE 802.3at)
PoE Power Budget
115 watts
Number of PDs, 7 watts
8
Number of PDs, 15.4 watts
7
Number of PDs, 30 watts
3
Standard Conformance
Standard Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Environment
0 ~ 50 degrees C
Storage Environment
-10 ~ 70 degrees C
Operating Humidity
5 ~ 95%, relative humidity, non-condensing
Storage Humidity
5 ~ 95%, relative humidity, non-condensing
