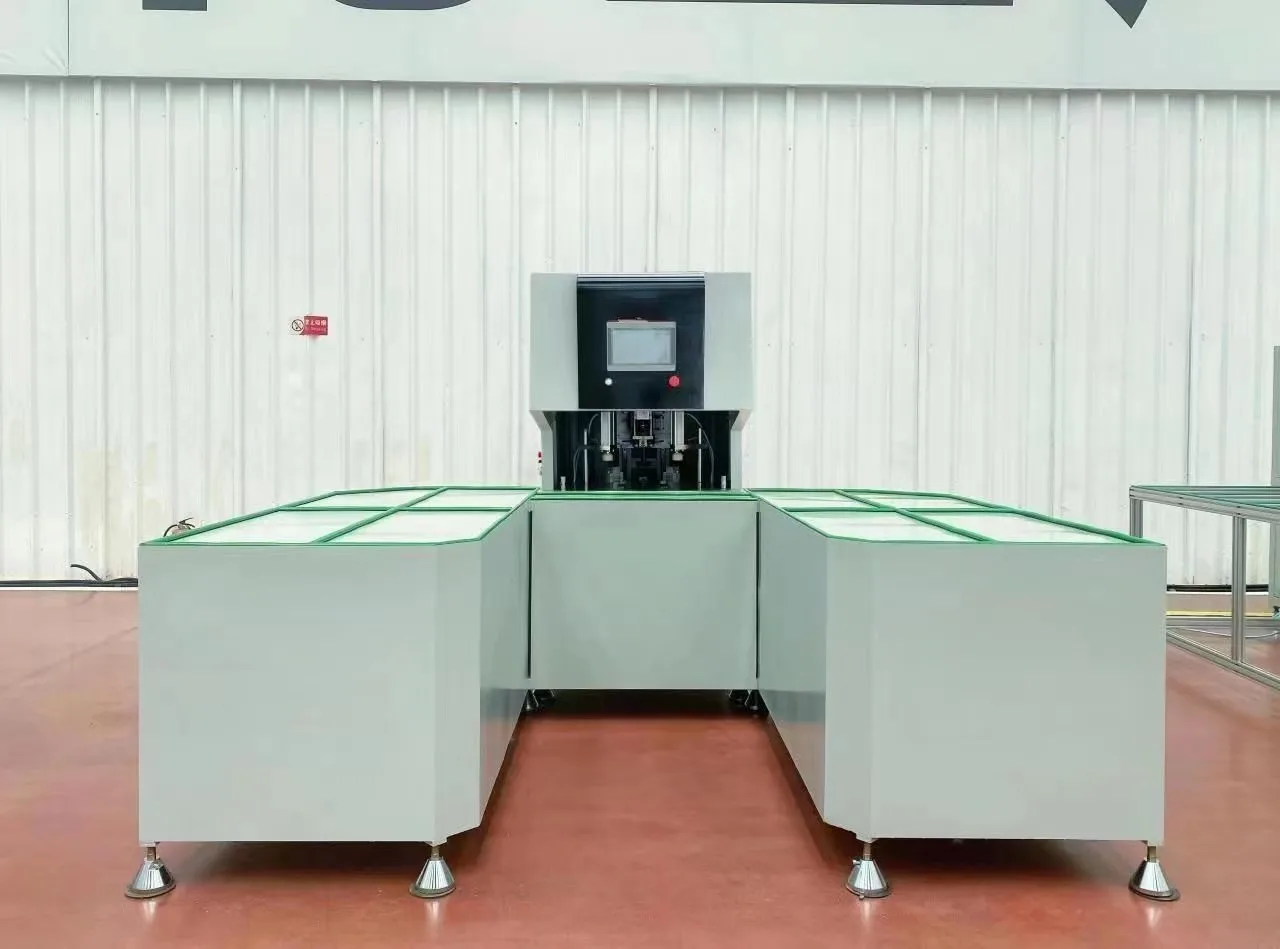

Upvc Pvc Window Cnc Cutting Cleaner Machines For Corner Cleaning Machine profile fabrication

Product Overview

Description

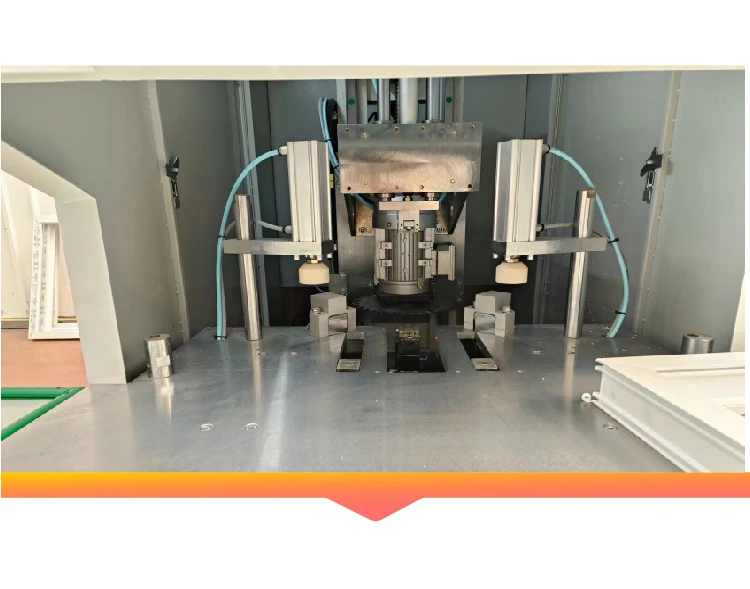

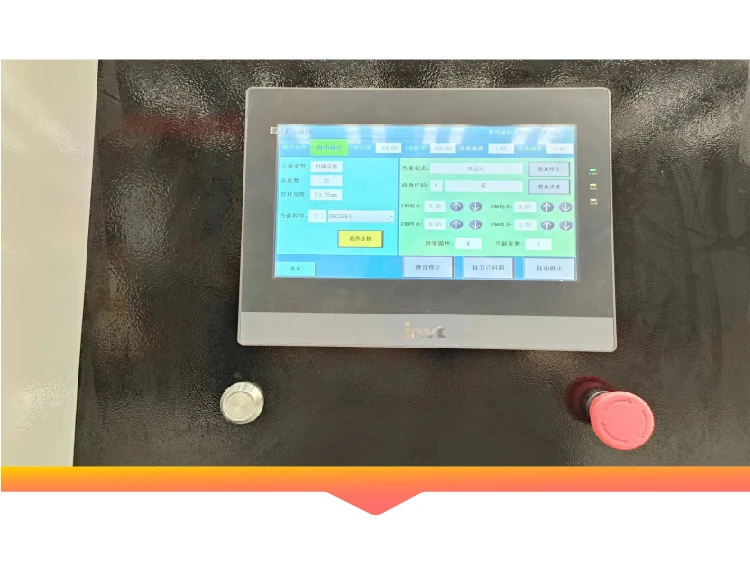

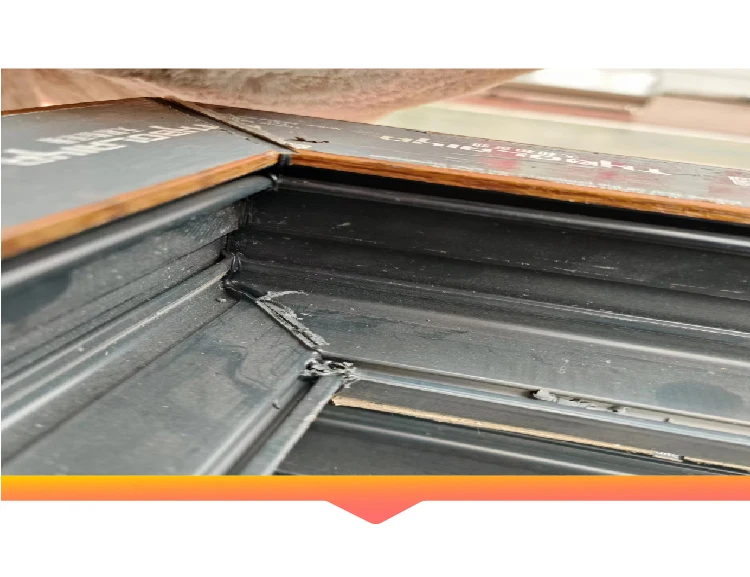

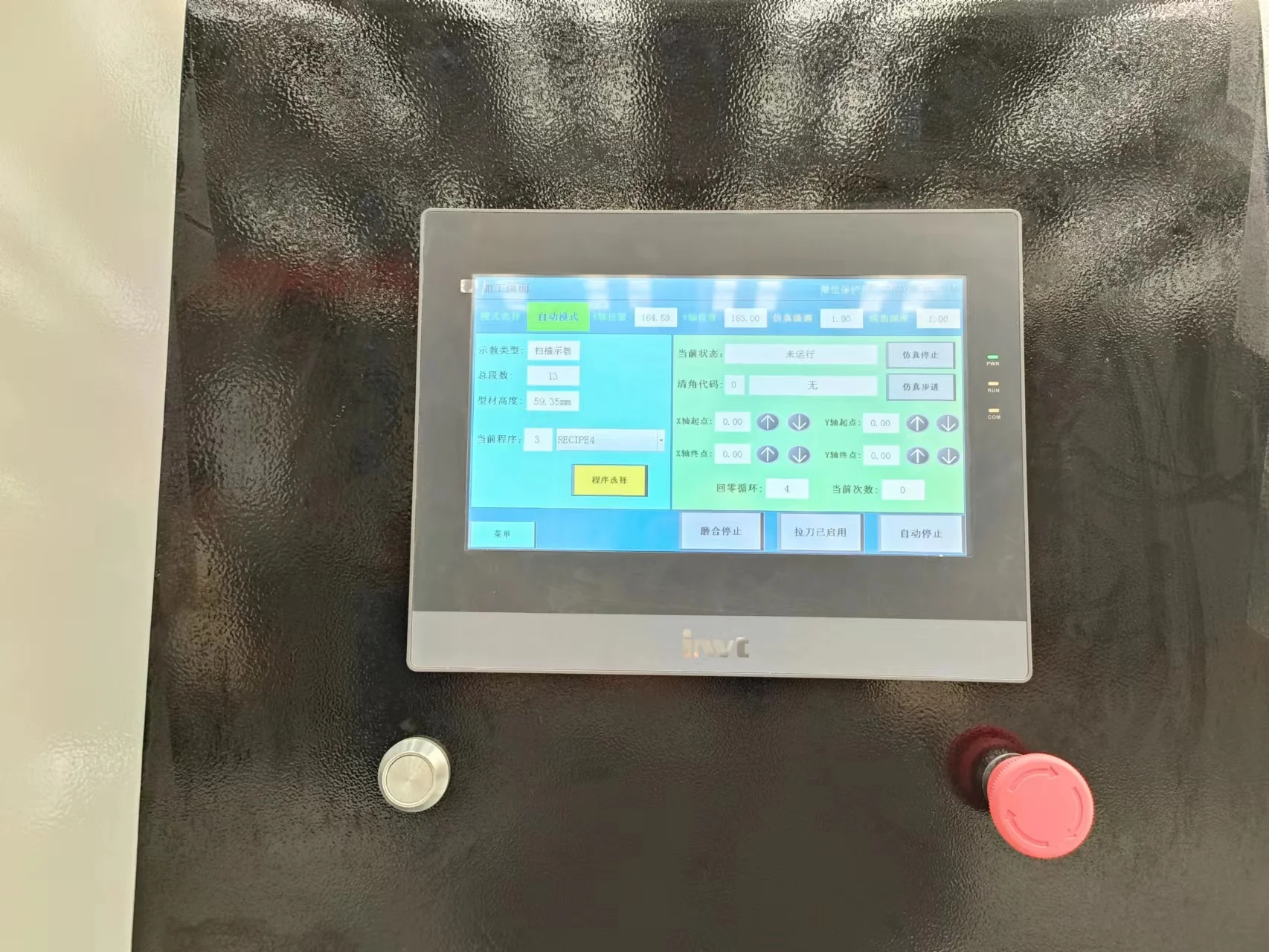

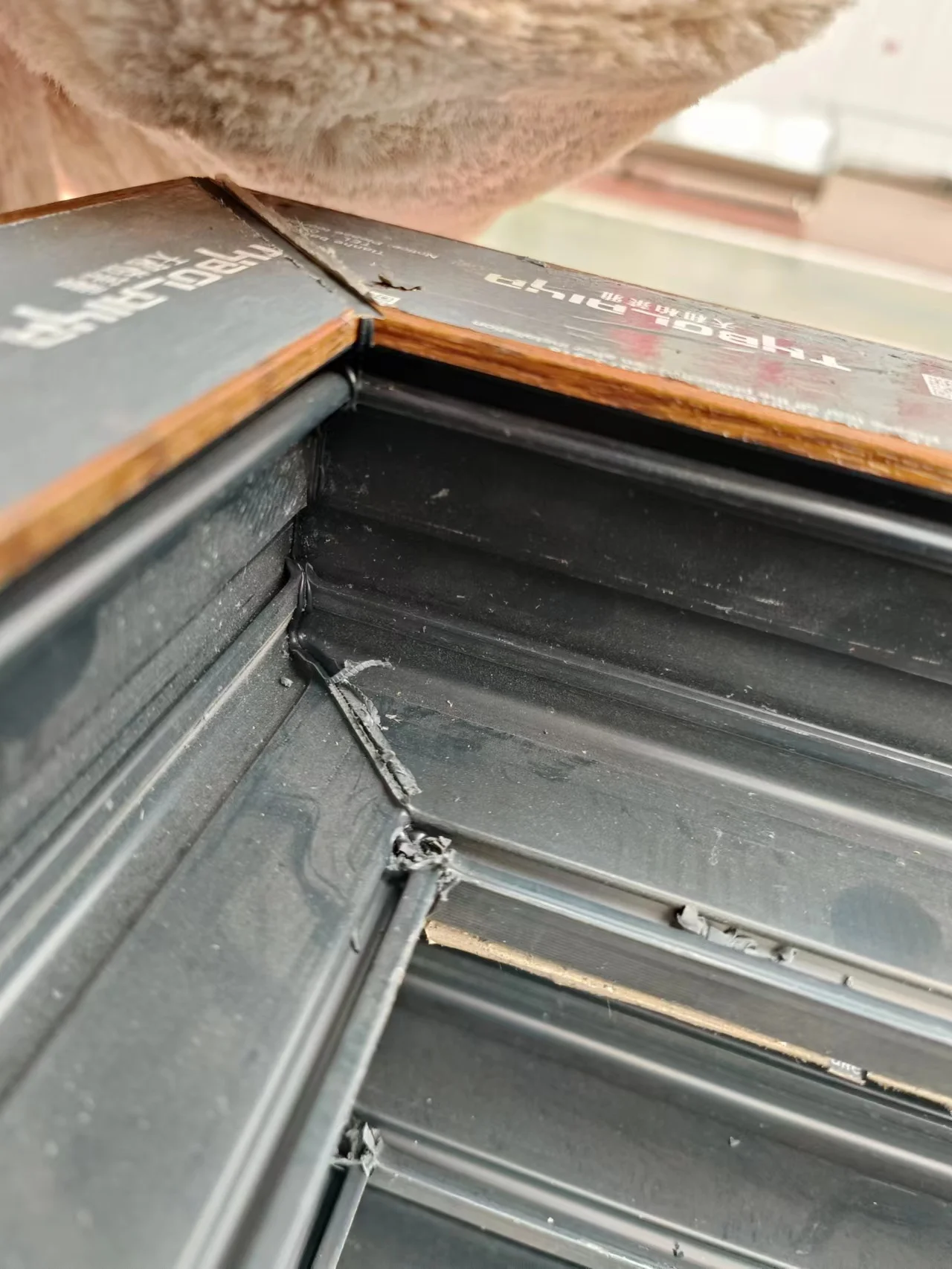

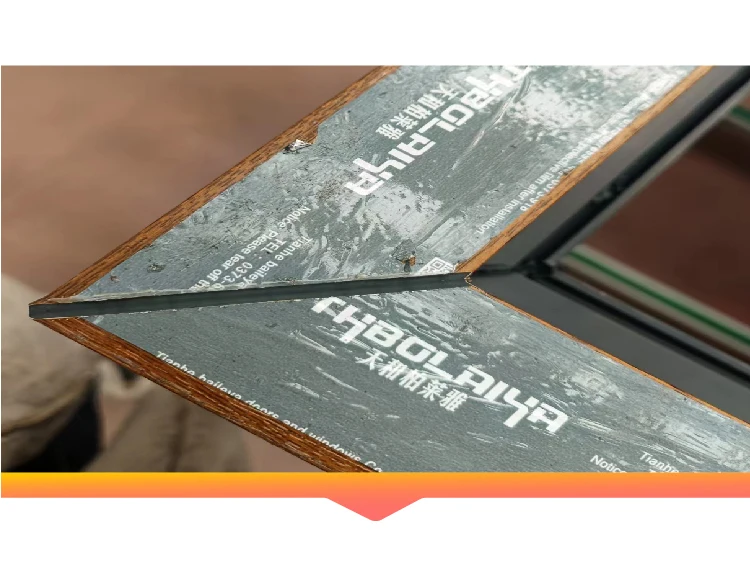

The intelligent CNC corner cleaning machine is a special equipment for cleaning 90-degree angle seam welding slag of upvc doors and windows. The equipment adopts industrial computer as the hardware center and the world's first transparent LED touch screen, and is equipped with special clear angle software developed and produced by our company (the operating system supports Chinese/English bilingual display). "Self-study programming" is easy to operate, easy to learn by looking directly at it, and has complete functions. It can synchronize hand-held welding angles for external elevations, external angle bevels, external angle elliptical arcs, upper, lower and inner angle plane welds, sealing strip grooves and inner plane welds. Comprehensive position cleaning of seam parts. According to different types of materials, 100 levels of storage cabinets can be set. It has the advantages of high concentration, high efficiency, and high degree of autonomy. It is a large and medium-sized PVC plastic door and window processing enterprise.

1. The new corner-cleaning process subverts the traditional broach structure.

2. Fully automatic scanning to generate clear angle data, reducing manual programming.

3. Film-coated or spray-coated profiles will not damage the surface, a must-have product for high-end system doors and windows.

4. Two knives solve all corner-clearing problems, which are easy to maintain and greatly reduce the cost of use.

Comprehensive clearing time	12s	Processing profile width	20-180mm
Processing profile Height	20-180mm	Groove width	3.5mm
Input Voltage	380V/AC	Groove depth	adjustable depth
Air pressure	0.4-0.7Mpa	Air consumption	50L/min
Main milling cutter speed	6000r/min	Weight	500Kg
Dimension	3620mm×2600mm×1810mm
