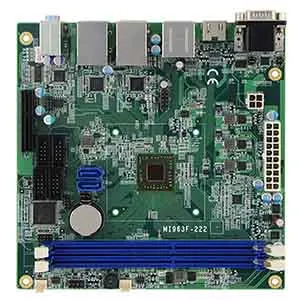

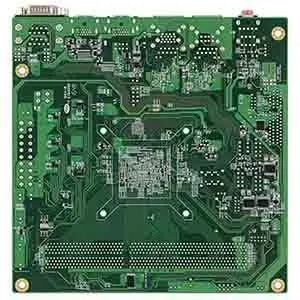

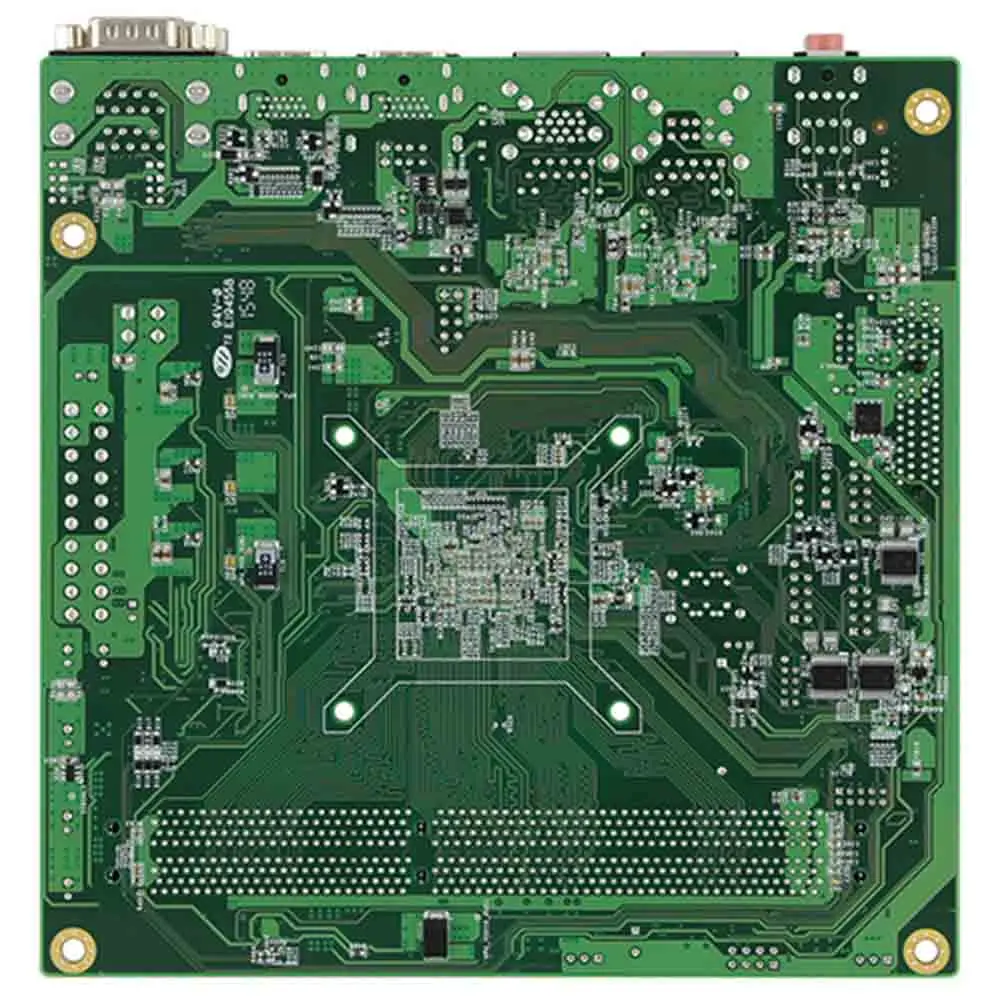

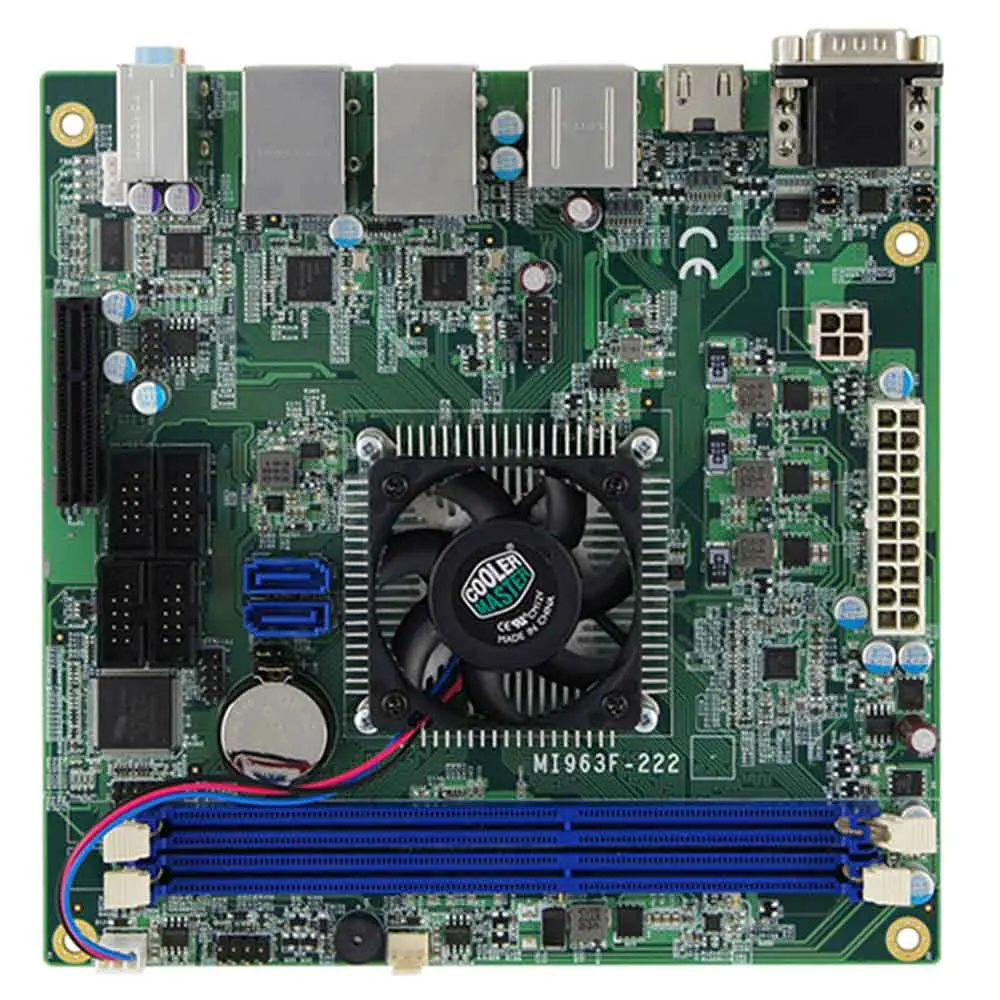

MI963 AMD Embedded G Series GX 424CC SoC, 2.4GHz Mini ITX Motherboard

Product Overview

Description

TEKET INNOVATION founded in year 2003 in Beijing, provides embedded motherboard, industrial PC and related parts (chassis, power supply, RAM, SSD, LCD panel and wireless input device). We also sell VIA / ASUS / ASRock / Gigabyte / MSI industrial motherboards, Intel NUC mini PC and laptop.

Intel,VIA,Asus,Asrock,Gigabyte,MSI and TEKET embedded motherboard Intel,ASUS,Gigabyte,MSI and TEKET mini pc AUO,BOE industrial panel touchscreen and LVDS/eDP cable PC chassis, power supply module, RAM and SSD support Our main target customers are system integrators and equipment manufacturers. In short, we are committed to researching, developing and producing space-saving and energy-saving embedded computer systems, which are usually applied to the fields of embedded industrial automation/control, inquiry machine, VR(virtual reality), medical equipment, education & training, digital signage, digital security & surveillance, soft routing, network security,PFsense,firewall,retail (POS/Kiosk/ATM),HTPC and thin client.



Embedded Computing

MI963
AMD Embedded G-Series Mini-ITX Motherboard

Onboard AMD Embedded G-Series GX-424CC SoC, 2.4GHz
2x DDR3 DIMM, Max. 8GB

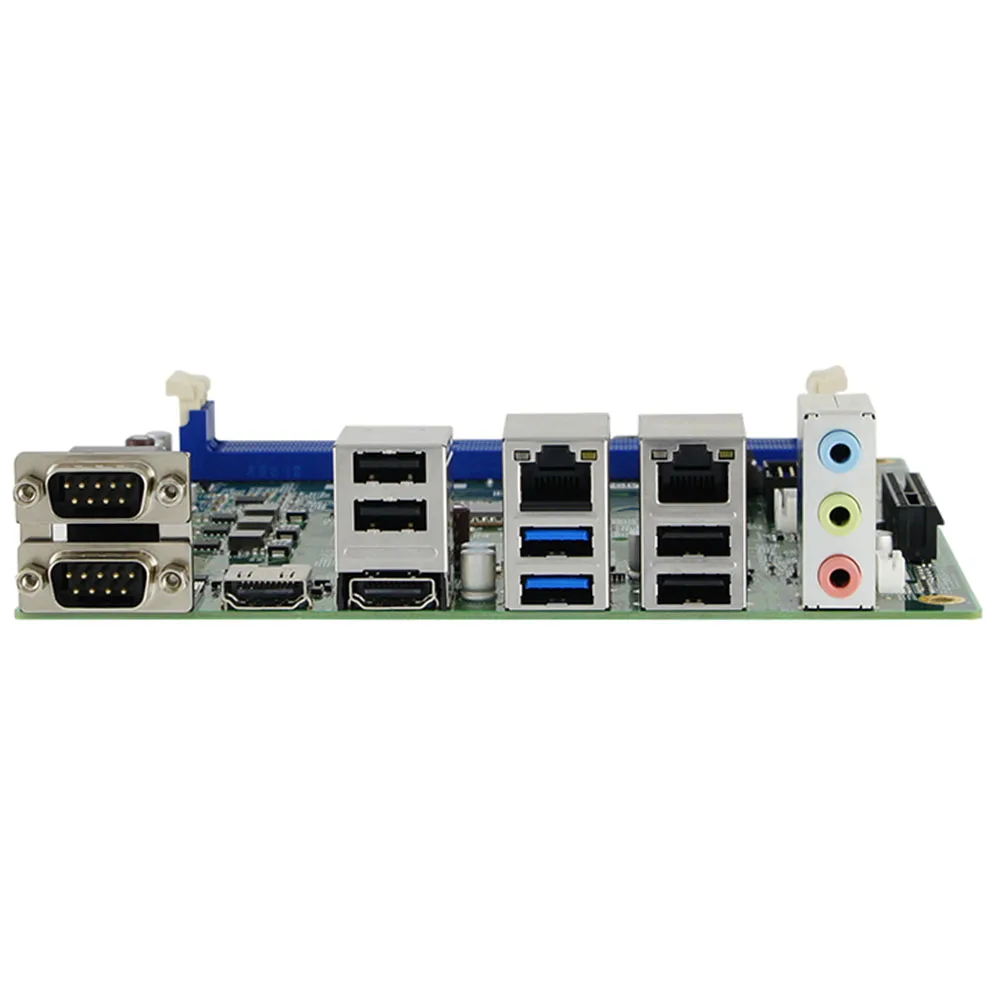

Supports 2x HDMI
2x Intel® PCI-E Gigabit LAN
Watchdog timer, Digital I/O
6x USB 2.0, 2x USB 3.0, 6x COM, 2x SATA III
1x PCI-E(x8) [(x4) Link]

Specification
CPU Socket APU on board
CPU AMD Embedded G-Series GX-424CC SoC (2.4GHz)
PCH Integrated
Memory 2x DDR3 DIMM, Max. 8GB (ECC compatible )
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots 1x PCI-E (x8)[(x4) Link]
1x PCI-E (x1)
Mini Type Slots N/A
Graphics Controller AMD Embedded G-Series SoC built-in GPU (AMD Radeon™ HD8000 series)
Video Output Supports 2x HDMI
Ethernet 2x Intel® I211AT or I210AT Gigabit LAN
I/O Chip Fintek F81846AD-I
Serial Port 5x RS232, 1x RS232/422/485 (jumper-less selection)
USB 2.0 4x USB 2.0 on board
2x USB 2.0 via pin-header
USB 3.X 2x USB 3.0 on board
Serial ATA 2x SATA III
Audio AMD Embedded G-Series SoC built-in HD audio + Realtek ALC888S codec
TPM N/A
Others Digital I/O (4-in/4-out), ATX power connector
Dimensions (L X W) 170mm x 170mm (6.7" x 6.7")
Power Consumption AMD GX-424CC 2.4GHz
w/ 2x DDR3L-1600 8G
+12V: 1.56A; +5V: 1.75A; +5VSB: 0.13A; +3.3V: 0.23A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
