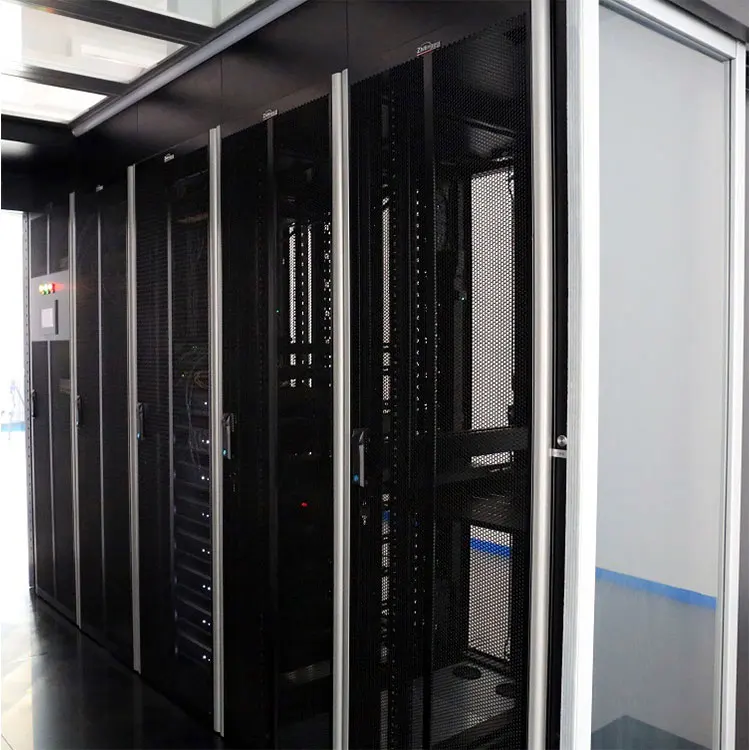

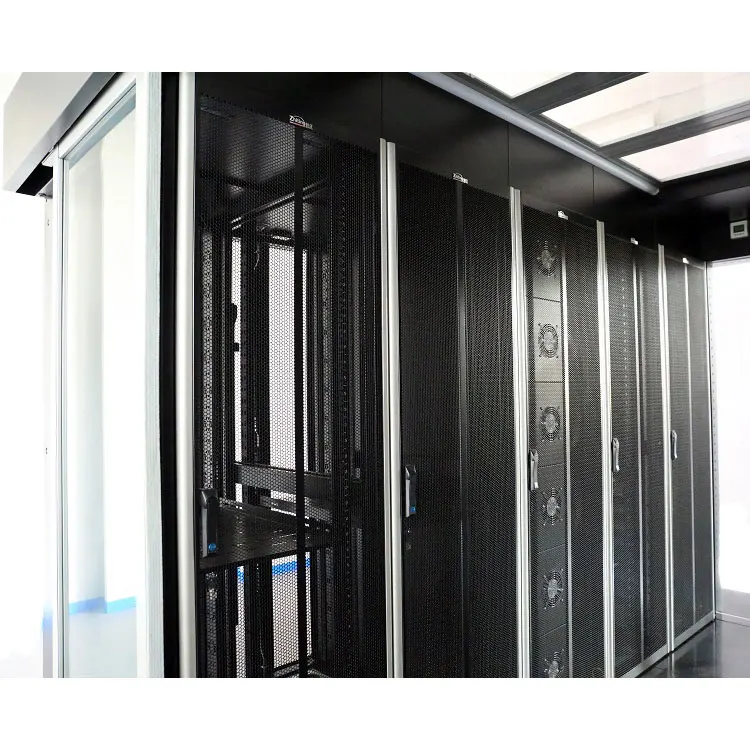

Standard Cold and Hot Aisle Containment Cabinet Data Center Solution Network Cabinet
Standard Cold and Hot Aisle Containment Cabinet Data Center Solution Network Cabinet
Standard Cold and Hot Aisle Containment Cabinet Data Center Solution Network Cabinet
Standard Cold and Hot Aisle Containment Cabinet Data Center Solution Network Cabinet
Standard Cold and Hot Aisle Containment Cabinet Data Center Solution Network Cabinet
Standard Cold and Hot Aisle Containment Cabinet Data Center Solution Network Cabinet
Standard Cold and Hot Aisle Containment Cabinet Data Center Solution Network Cabinet

Standard Cold and Hot Aisle Containment Cabinet Data Center Solution Network Cabinet

Share on (1600828529588):


Price:

Quantity:


Product Overview

Description



VR




Products Description






Nebula Series
Item
Specifications
Micro Module
Dimensions
Single channel (with aisle containment) (L x W x H): L x 2,200 mm x2,300mm L x 2,200 mm x2,400mm L x 2,400 mm x 2,300 mm L x 2,400mm x 2,400 mm Customized
Double channel (with aisle containment) (L x W x H): L x 3,200 x 2,300 mm L x 3,200 x 2,400 mm L x 3,600 x 2,300 mm L x 3,600 x
2,400 mm Customized
Cabinets per module
Single channel ≤ 24 cabinets; dual channel ≤ 48 cabinets
Power supply
208V/380V/400V/415V DC/AC, 50 Hz/60 Hz, 3 Ph + N + PE
Max IT load per module
125 kW (with integrated UPS) / 145 kW (with integrated PDC) / 235kW (with precision PDC)
Cable routing
Routed in/out through the top of cabinets
Installation
Installing on raised floor
Cabinet
Dimensions (H x W x D)
2,000 mm x 600/800 mm x 1,200 mm 2,000 mm x 600/800 mm x 1,100 mm 2,200 mm x 600/800 mm x 1,200 mm
Space available
42U/47U
Protection level
IP20
Air Conditioner
Installation
In-Row or vertical direction of one end
Refrigeration
Direct expansion air cooling, chilled water and cooling water system
In-Row Air Conditioner
Cooling capacity
Optional
Dimensions (H x W x D)
2,000 mm x 300 mm x D 2,000 mm x 600 mm x D
Power supply
208V/380V~ 415V AC, 50 Hz/60 Hz, 3 Ph + N + PE
Refrigerant
R410A R407C
Integrated UPS
Input voltage
208V/380V/400V/415V AC, 50 Hz/60 Hz, 3 Ph + N + PE
Input
250A/400A MCCB
Input power factor
Full load > 0.99, Half load > 0.98
Output power factor
1
Rated capacity
25 kVA~125 kVA
Output
IT: 40A/1P x 24 x 2; A/C: 40A or 63A/3P x 8; lighting: 10A/1P x 3
Efficiency
≥ 96%
Integrated Power Distribution Cabinet (UPS outside)
Input voltage
380V/400V/415V AC, 50Hz/60Hz, 3 Ph + N + PE
Input
IT: 160A/250A MCCB; A/C: 160/250A MCCB
Rated input current
IT: 160A/250A, A/C: 160A/250A IT: 32A/1P x 2 per cabinet; A/C: 40A or 63A/3P per;
Output
lighting: 10A/1P

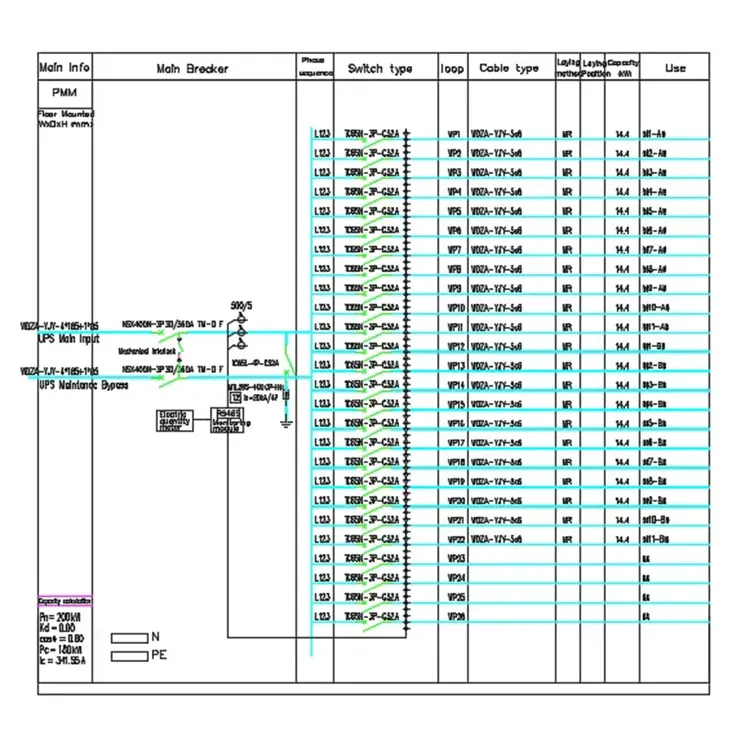

Precision Power Distribution Cabinet(UPS outside)
Input voltage
208V/380V/400V/415V AC, 50 Hz/60 Hz, 3 Ph + N + PE
Input
160A/250A/400A MCCB
Output
32A/1P, maximum 144 routes
Smart Bus bar(UPS outside)
Input voltage
208V/380V/400V/415V AC, 50 Hz/60 Hz, 3 Ph + N + PE
Input
160A/250A MCCB
Output
32A/1P




Customization






Customization
