High Power Pdu 415v 90kw 63a 45kw 208v 415v Power Distribution Unit 63a Power Distribution Unit
- Category: Power Distribution Equipment >>>
- Supplier: Shenzhen,Kls,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Input characteristic | ||||||
Product model | KLS-G12E1-63B13-L3 | |||||
Input voltage | 208V 3 Phase(LNG)to 208V Single Phase Delta | |||||
380V 3Phase(LLLNG) to 220V Single Phase | ||||||
415V 3Phase(LLLNG) to 240V Single Phase | ||||||
480V 3Phase(LLLNG) to 277V Single Phase | ||||||
Input mode | BOX | |||||
Input protection | breaker | |||||
frequency | 50/60Hz | |||||
Total input current | MAX:63A | |||||
Output characteristic | ||||||
Maximum putput current | MAX:63A | |||||
Output voltage | 200-240Vac | |||||
Maximum power output per socket | Under 208V, Max 3328W per Outlet | |||||
Under 220V, Max 3520W per Outlet | ||||||
Under 240V, Max 3840W per Outlet | ||||||
Under 277V, Max 4432W per Outlet | ||||||
Maximum load power consumption | MAX:45KW | |||||
Output protection | breaker | |||||

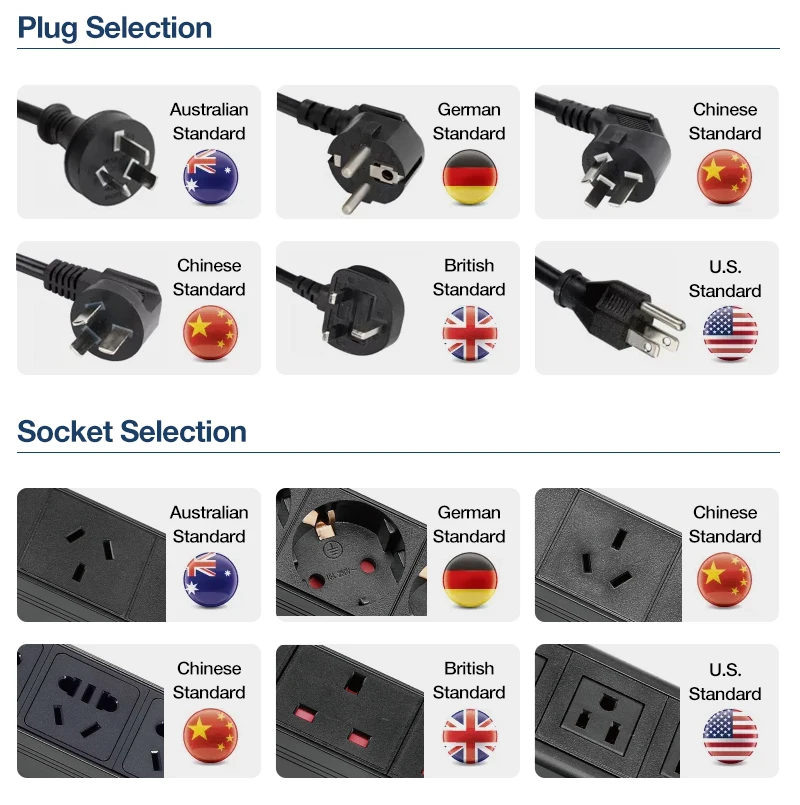

Socket type | IEC320C19/IEC320C13 | |||||
Environment | ||||||
Operating temperature | -40°C~+85°C | |||||
Ambient humidity | 5%-75% | |||||
Protection class | IP20 | |||||
Product size & Color & material | ||||||
Product size | L×W×H=1400×80×80mm | |||||
Product color | Black or custom | |||||
Flame retardant class of plastics | UL94-V0 | |||||

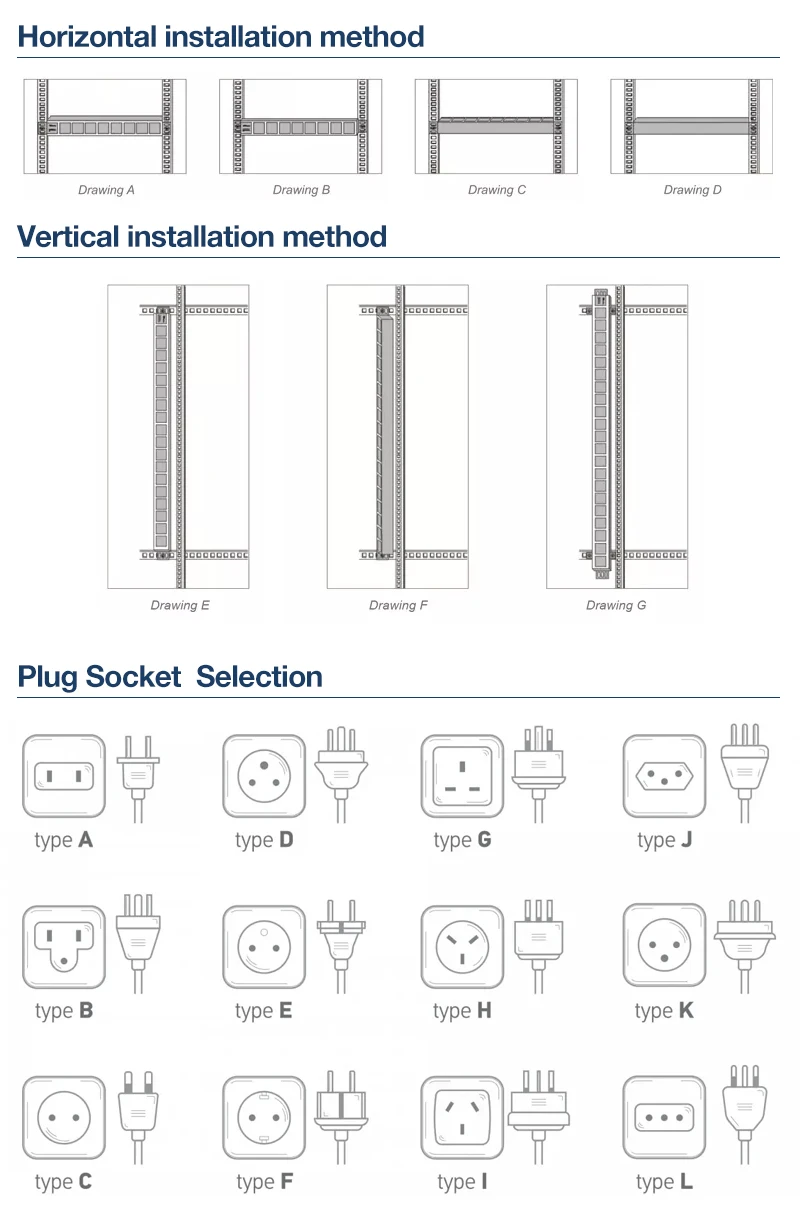

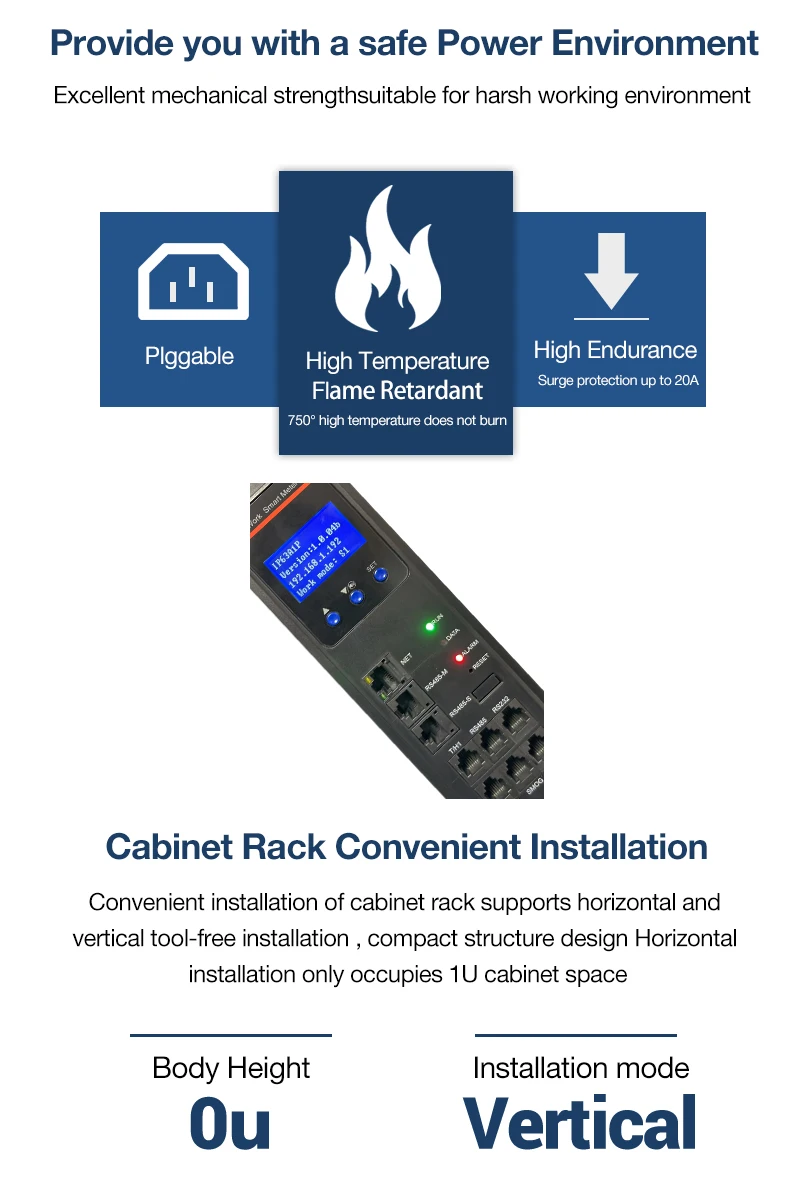

Installation Instructions
Company Profile
Our Advantages

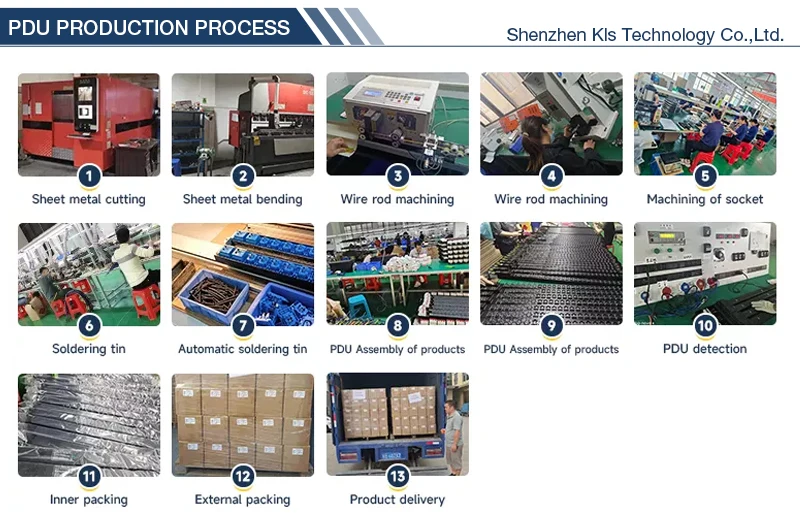

PDU Production Process
Packaging & Transportation
FAQ
1 . Q : Whether to provide customization ?
A : Yes , we have a professional R & D team to customize theproducts you need.
2 . Q : What service can you supply ?
A : We have our brands products and OEM / ODM service
3 . Q : What is your delivery time ?
A : Follow your order quantity todetermine the delivery date.
