Mini Laboratory Spray Dryer for Milk Powder Drying
- Category: >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (1600828622219):
Product Overview
Description
About Us
Our factory
Our Service
We have professional engineers to provide one-stop service.
Certifications
Visits and Exhibitions
Package&Delivery
Client's feedback

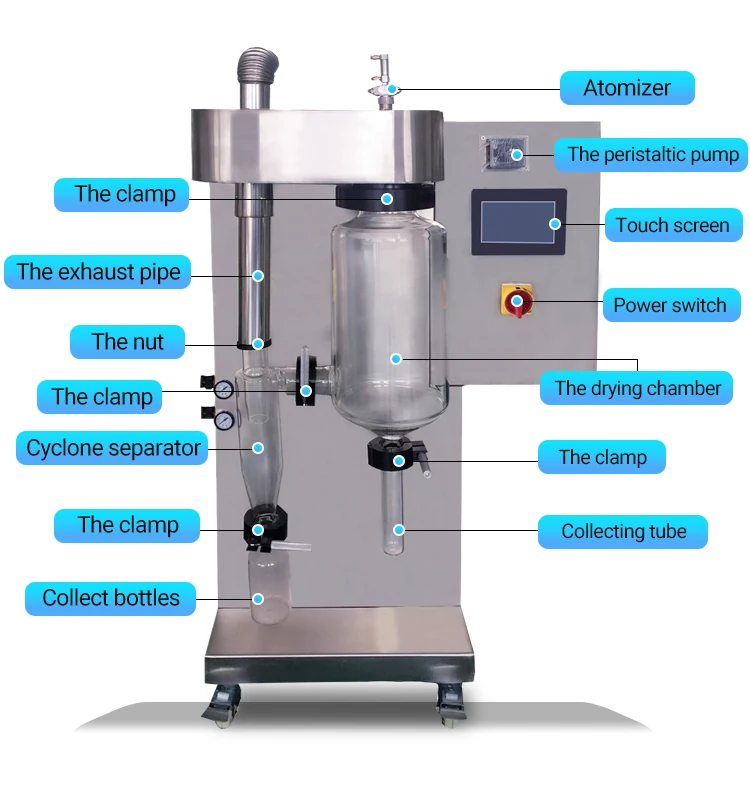

Product Structure
Product Details

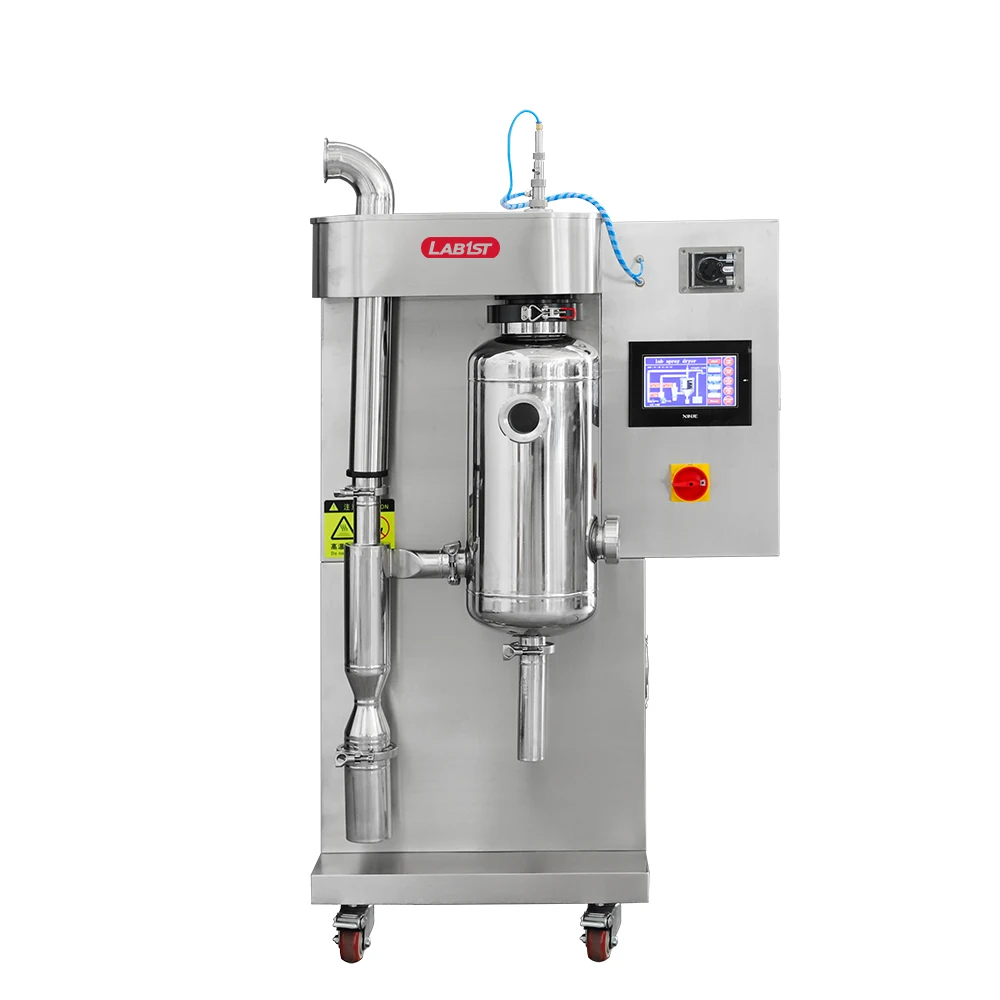

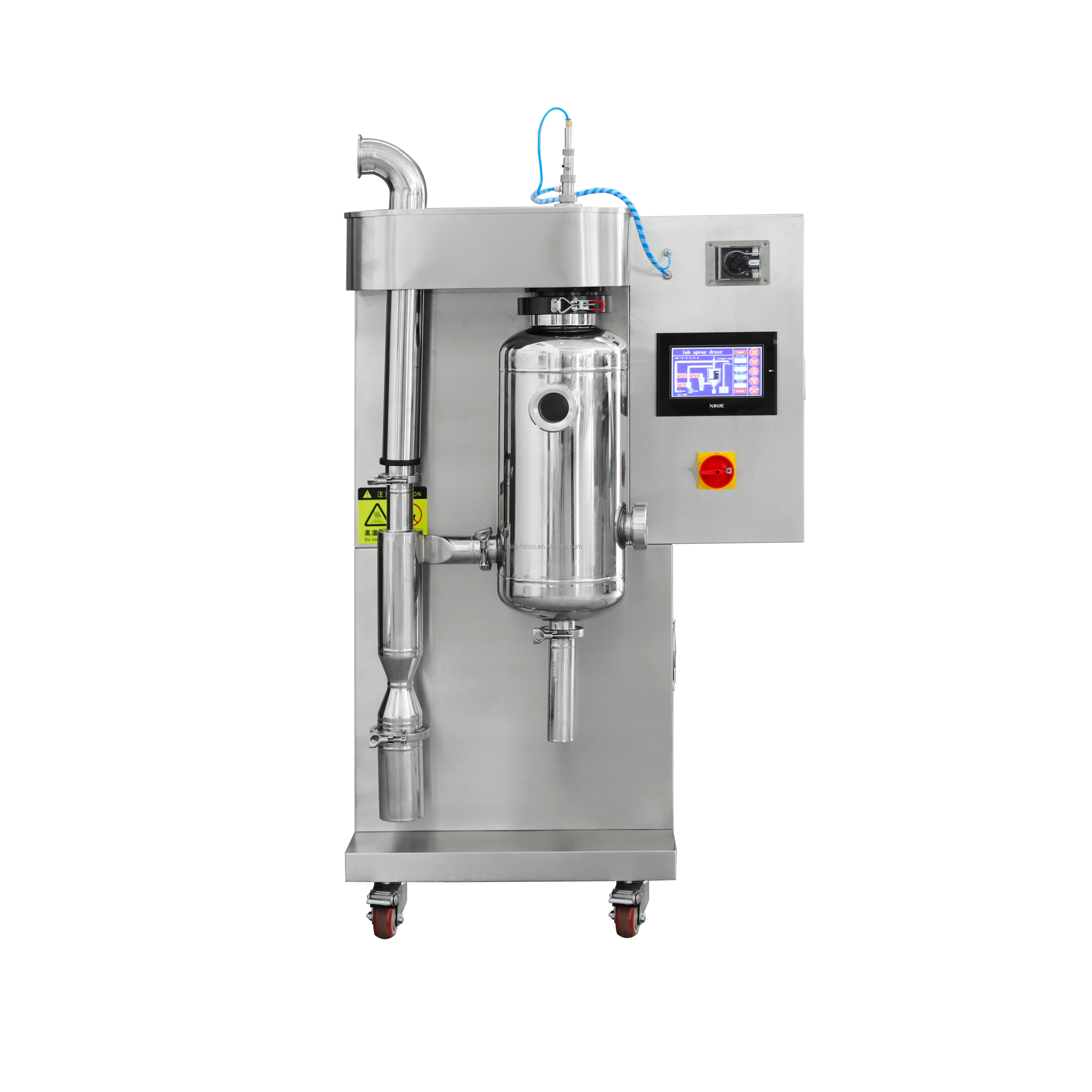

Model: SDS-02

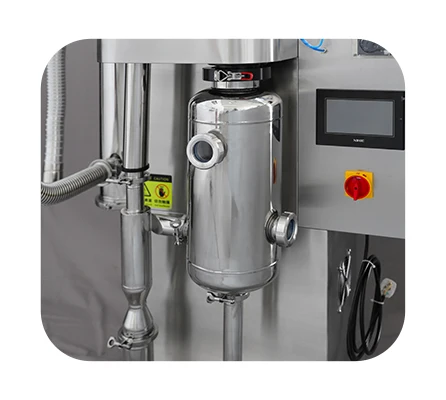

Stainless Steel Type

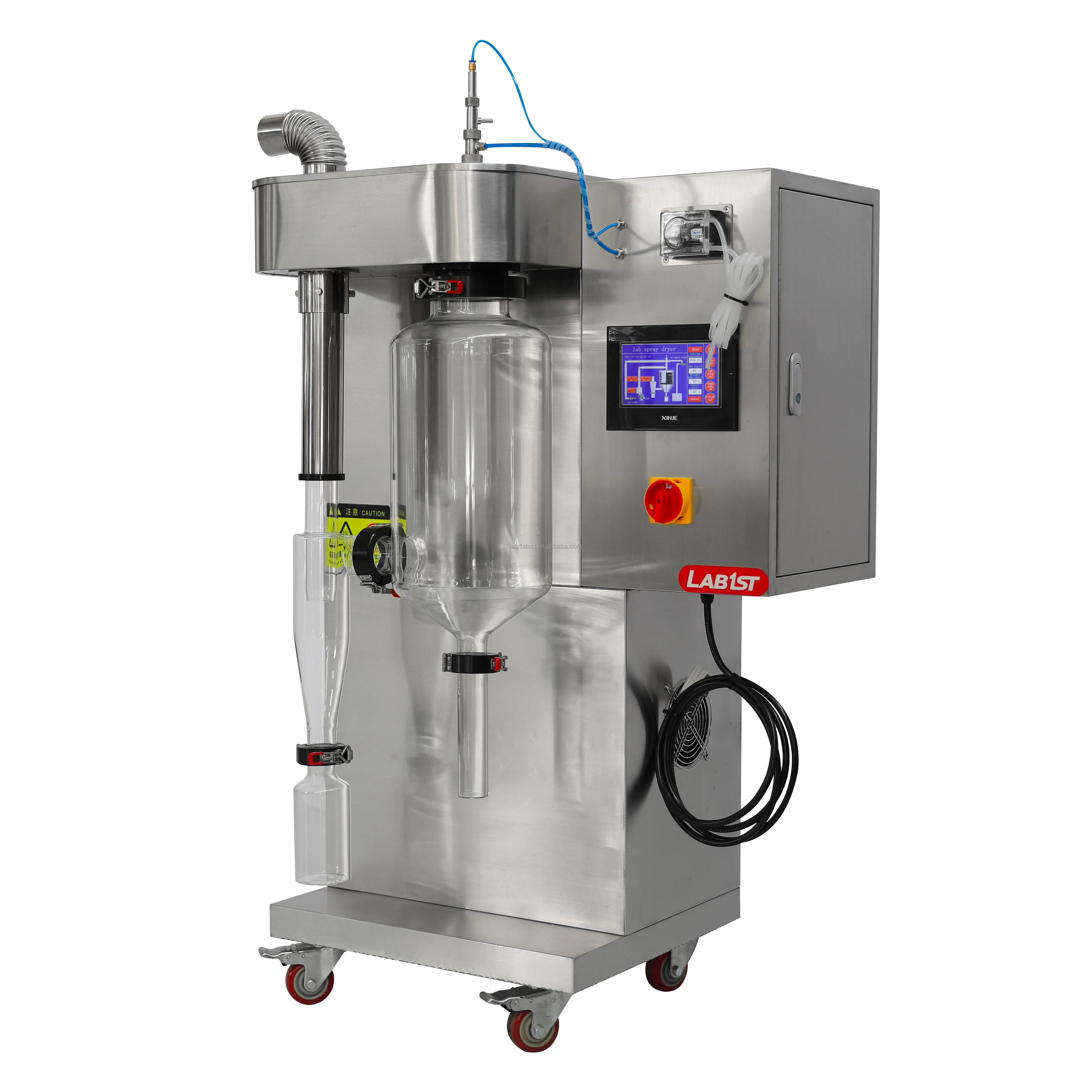

Model: SDG-02
Glass Type
Nozzle
Stainless Steel nozzle with independent intellectual property rights. Nozzel cleaner (through needdle) is equipped, automatically clearing when the nozzle is blocked

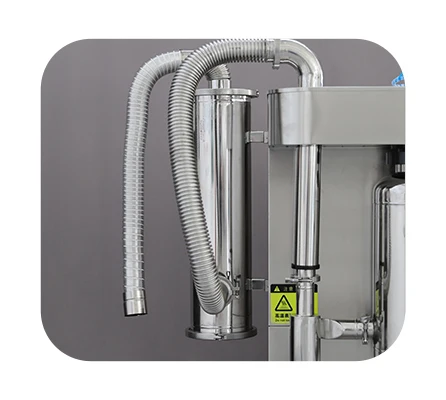

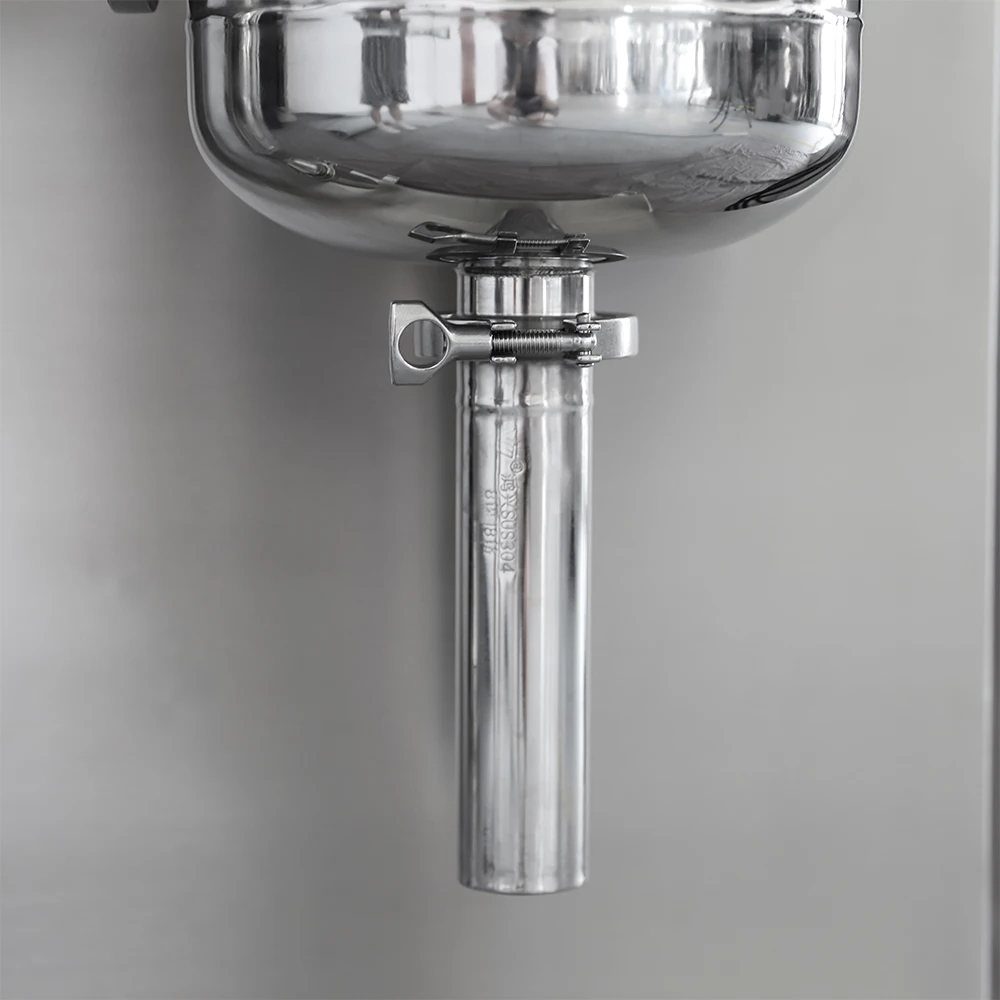

SUS 304/316 Stainless Steel
High-quality stainless steel used for the spray, drying and collection to ensure drying process carried out in a polution-free environment.

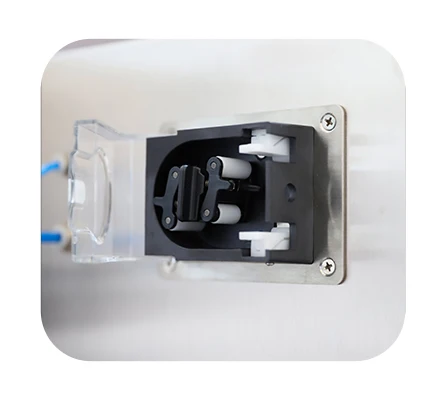

Feed volume adjusted adjusted by the peristalic pump, the minimum sample volume can reach 30ml.

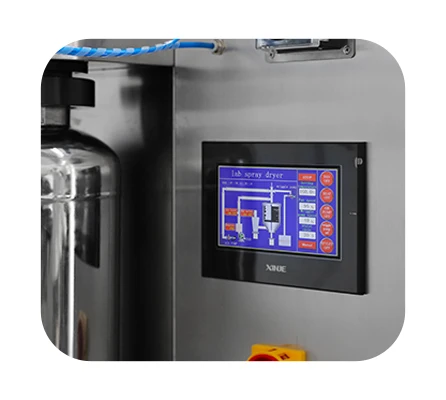

LCD touch screen
LCD touch screen parameter display, real-time regulation PID constant temperature control technology
Specification
Model | SDG-02 | SDS-02 | |
Technical Data | |||
Inlet Temperature [℃] | 30~300; ±1 | 30~300; ±1 | |
Outlet Temperature [℃] | 30~140; ±1 | 30~140; ±1 | |
Nozzle Diameter [mm] | 1 | 1 | |
Optional Nozzle [mm] | 0.5, 1.5, 2.0 | 0.5, 1.5, 2.0 | |
Drying Time [S] | 1.0~1.5 | 1.0~1.5 | |
Evaporation Rate [ml/h] | 1500~2500 | 1500~2500 | |
Total Power [Kw] | 3 | 3 | |
Electrical Requirements | 220V; 1P; 50/60HZ | 220V; 1P; 50/60HZ | |
Material | |||
Drying Chamber | High borosilicate glass | SUS304 [option: SUS316] | |
Separation Chamber | High borosilicate glass | SUS304 [option: SUS316] | |
Collector | High borosilicate glass | SUS304 [option: SUS316] | |
Others | SUS304 [option: SUS316] | SUS304 [option: SUS316] | |
Feeding | |||
Feeding Rate [ml/h] | 30~2500 | 30~2500 | |
Feeding Method | Peristaltic pump | Peristaltic pump | |
