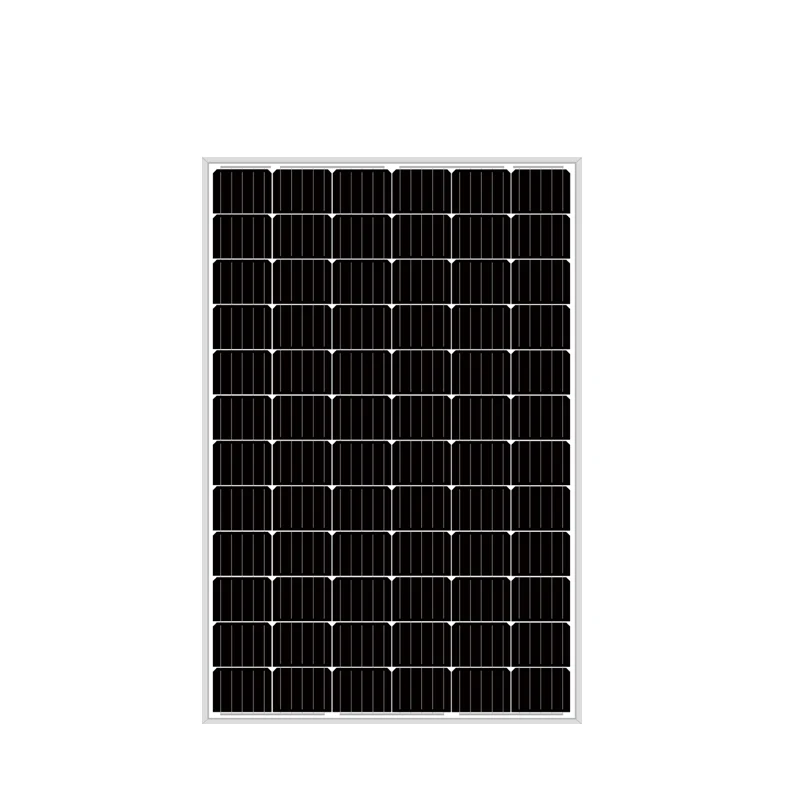

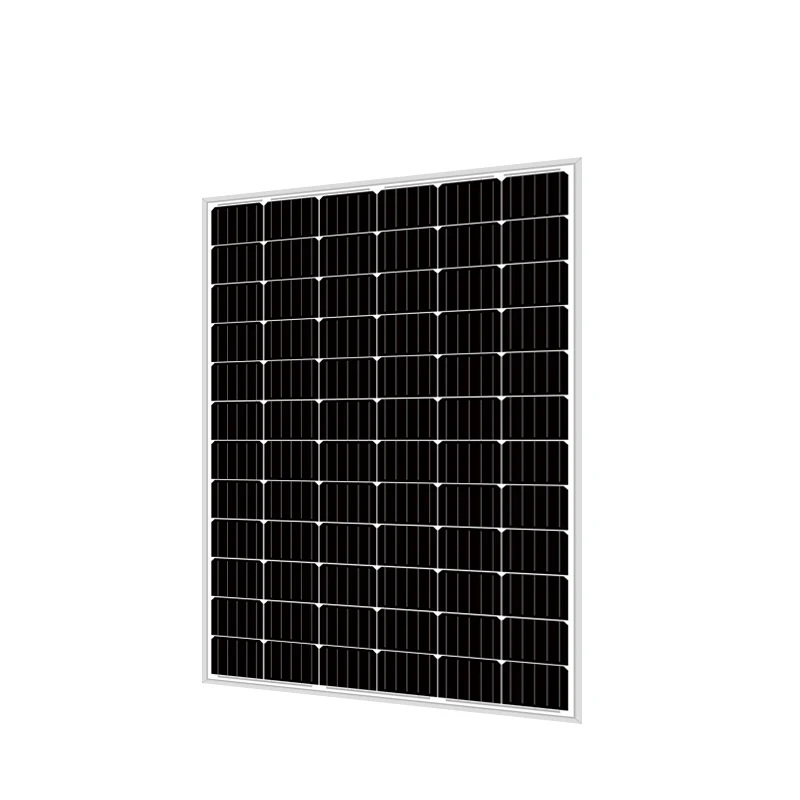

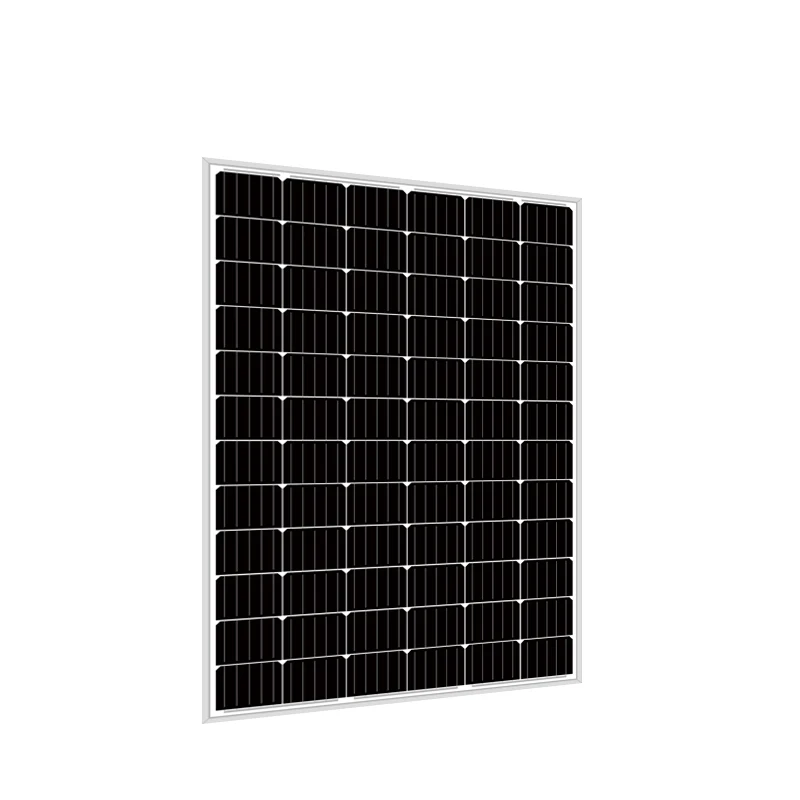

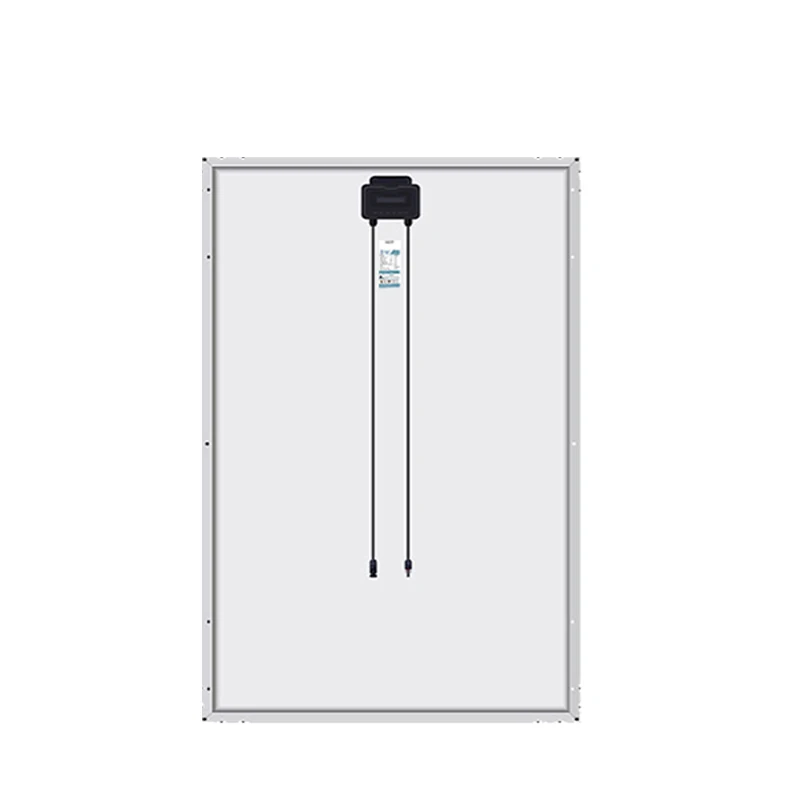

Cheapest 5v 6v 190w 200w 250w 300w Half Cell Watt Mono Photovoltaic Module Power Solar Panel For Philippines price
- Category: >>>
- Supplier: Nantong Sunrising New material Co. Ltd
Share on (1600828629064):
Product Overview
Description
Production Description
Model Type | SR190M-36 | SR195M-36 | SR200M-36 | SR205M-36 | SR210M-36 | |||||
Maximum Power-Pmax(W) | 190 | 195 | 200 | 205 | 210 | |||||
Open Circuit Voltage-Voc(V) | 45 | 45.1 | 45.3 | 45.5 | 23 | |||||
Voltage at Pmax-Vmp(V) | 36.5 | 37 | 37.6 | 37.9 | 18.1 | |||||
Short Circuit Current-Isc(A) | 5.56 | 5.63 | 5.72 | 5.79 | 10.23 | |||||
Current at Pmax-Imp(A) | 5.21 | 5.28 | 5.32 | 5.41 | 5.94 | |||||
Module Efficiency-ηm(%) | 17.32 | 17.58 | 17.82 | 18.01 | 18.09 | |||||
Standard Test Condition(STC) | Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5 | |||||||||
Note:The company reserves the right to change the specifications of this datasheet without prior notice for improving product quality or upgrading relevant technical parameters. Please contact us for the latest product information. | ||||||||||
Detailed images

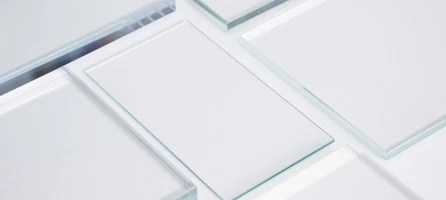

Glass
> Antireflective glass
> Translucency of normal luminance is increased 2%
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years

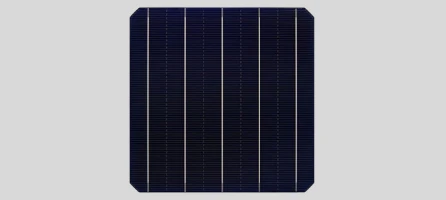

Solar Cell
> High efficiency 5BB/12BB PV cell
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test

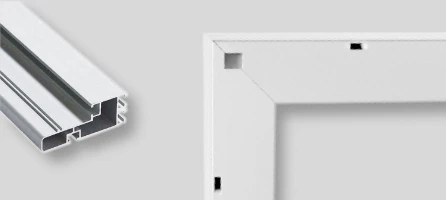

Frame
> Stock-size
> Silvery and black
> thickness 30/35/40mm
> stress test

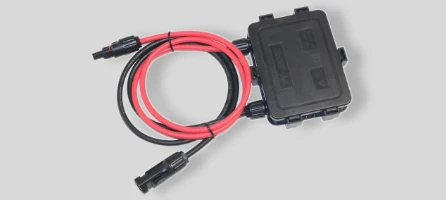

Junction box
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

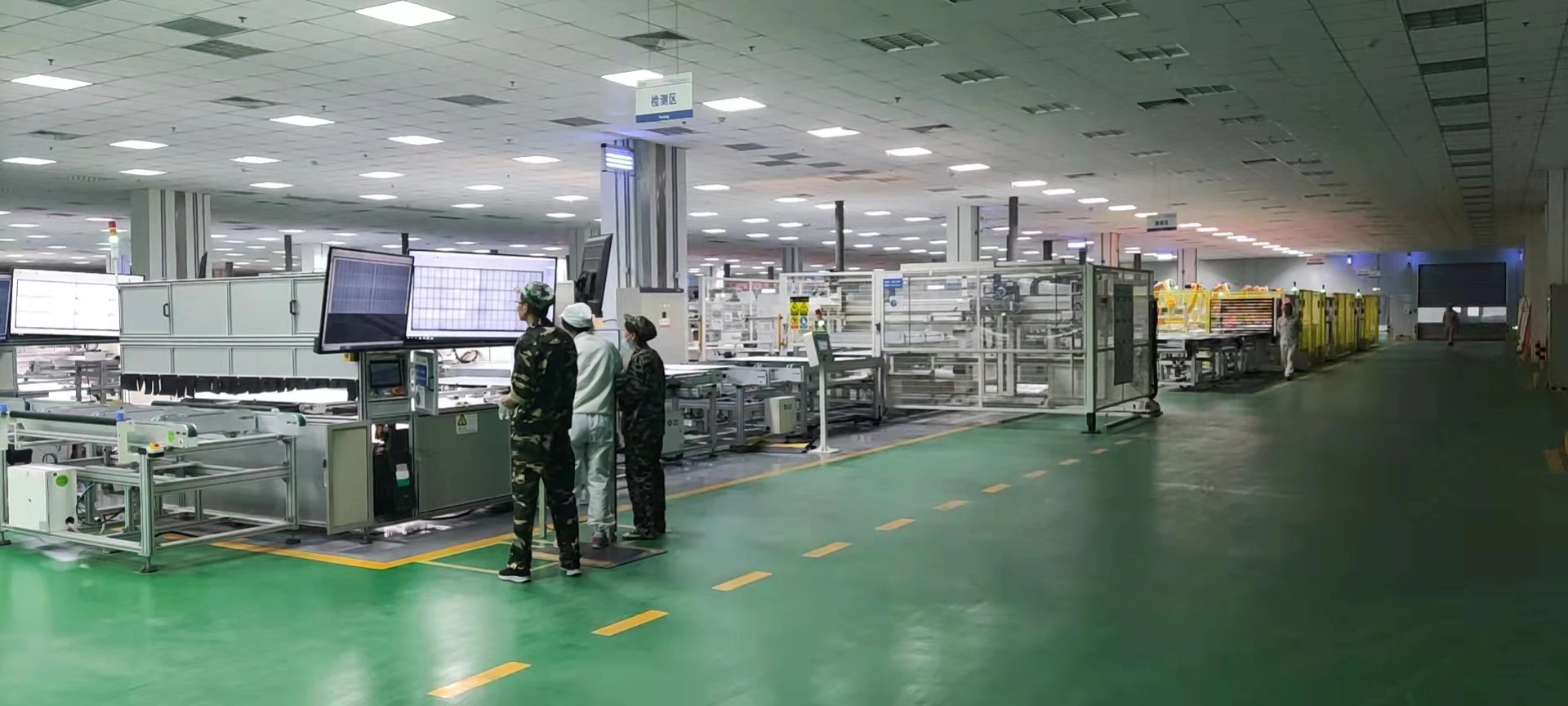

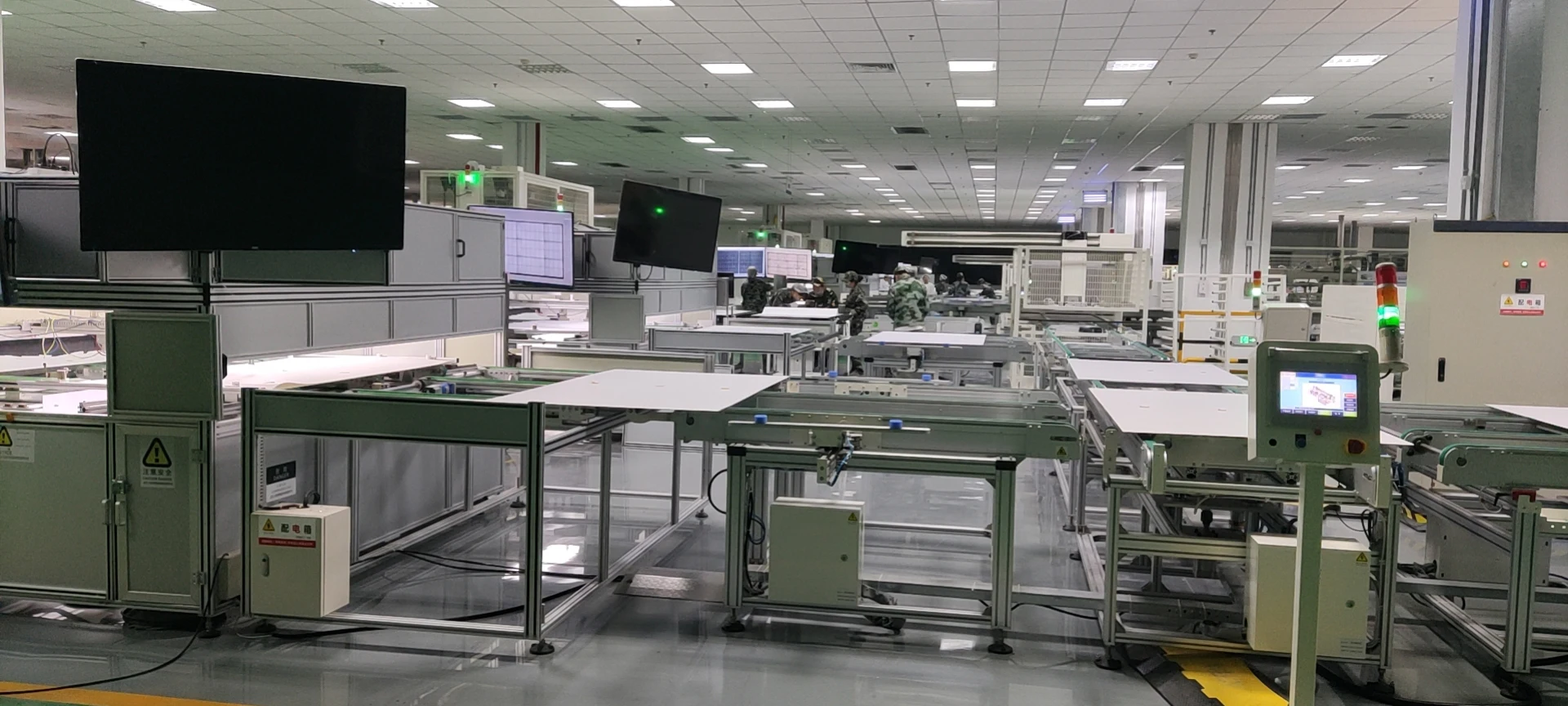

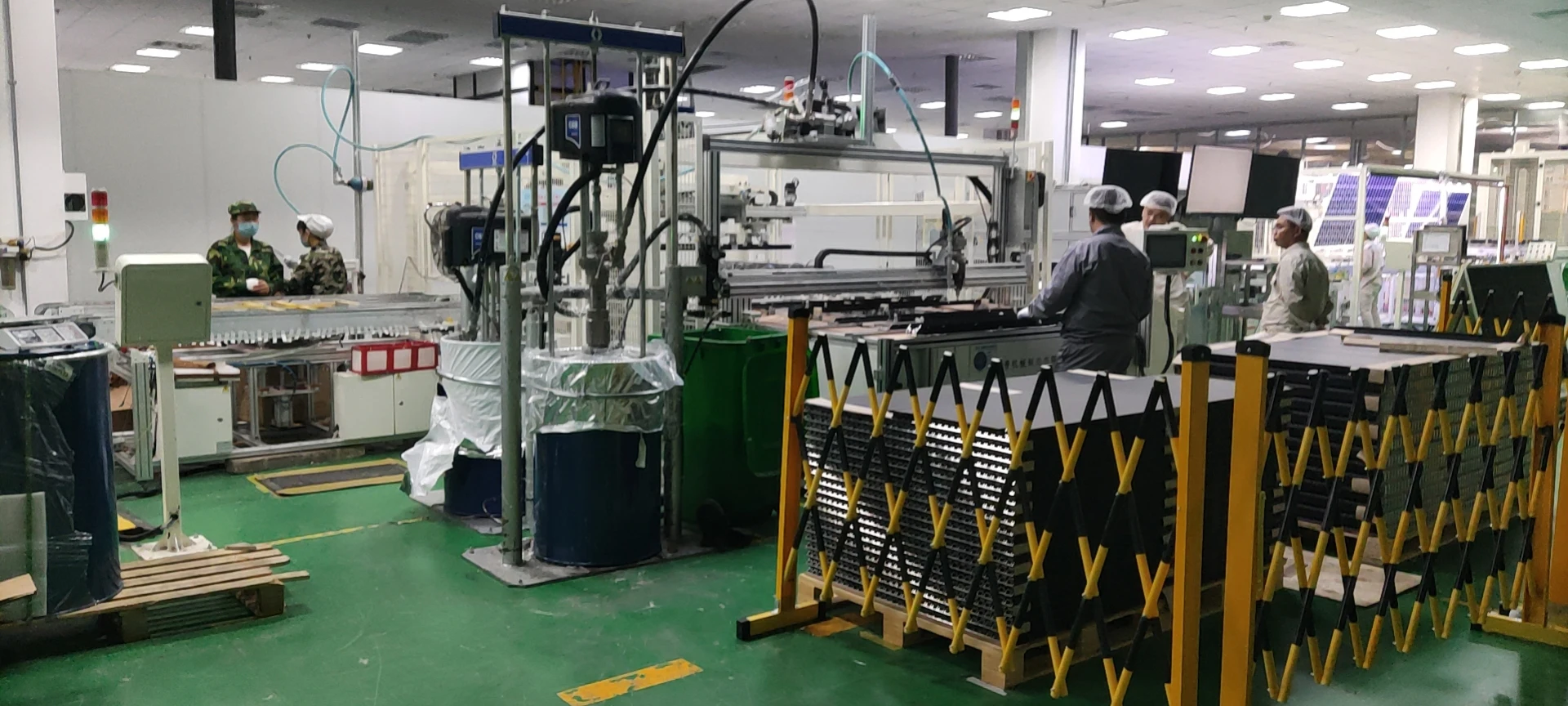

Product Process
Cell Sorting
Cell Welding
Lay-up
EL Test
Lamination
Framing
Clean
IV Test
Packaging

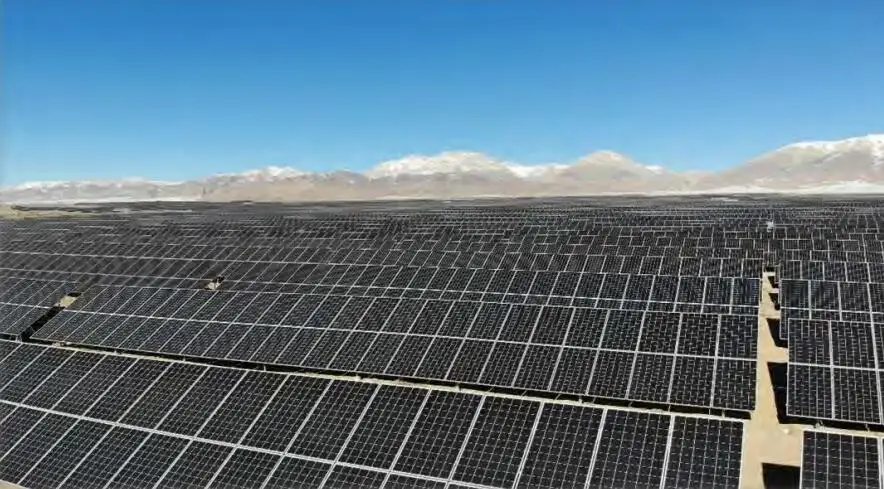

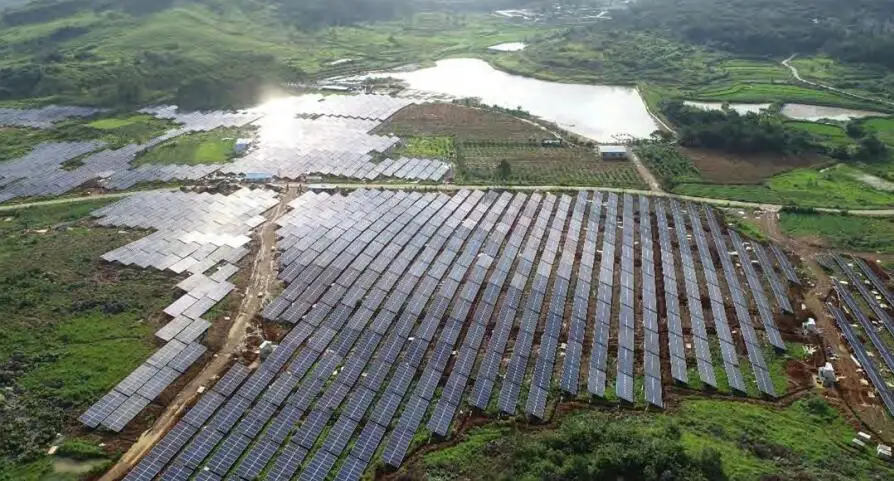

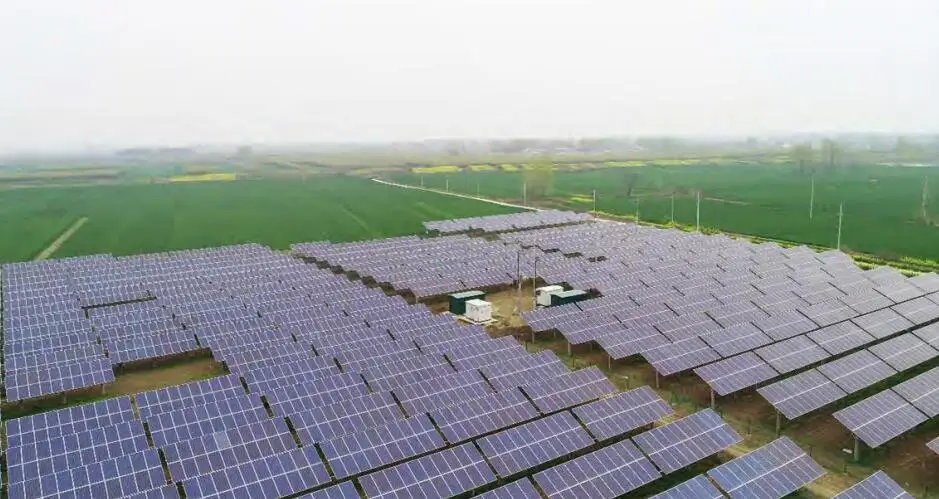

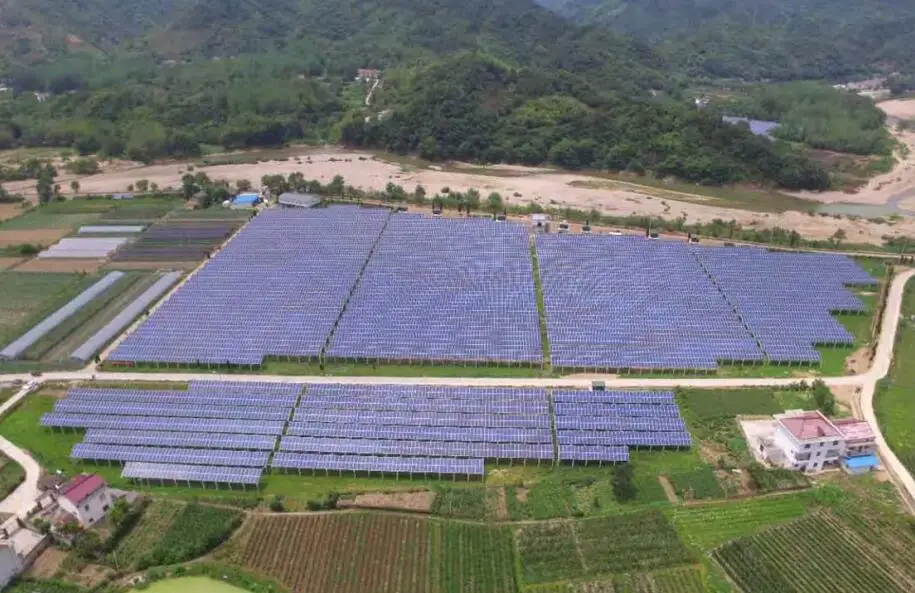

Projects
Packing & Delivery
Certifications
Company Profile
Company Profile
Nantong Sunrising New Energy Technology Co.,Ltd, is focusing on product development , production , system integration , sales and
service . Products include solar cells,photovoltaic modules and systems design , VRLA Battery , Lithium Battery , solar charge controller, solar inverter and so on.We are located in Nantong city Jiangsu Province which is near to Shanghai port The annual production capacity of PV modules has increased 1GW by introducing the world's advanced automatic production line and testing
equipment.
service . Products include solar cells,photovoltaic modules and systems design , VRLA Battery , Lithium Battery , solar charge controller, solar inverter and so on.We are located in Nantong city Jiangsu Province which is near to Shanghai port The annual production capacity of PV modules has increased 1GW by introducing the world's advanced automatic production line and testing
equipment.
