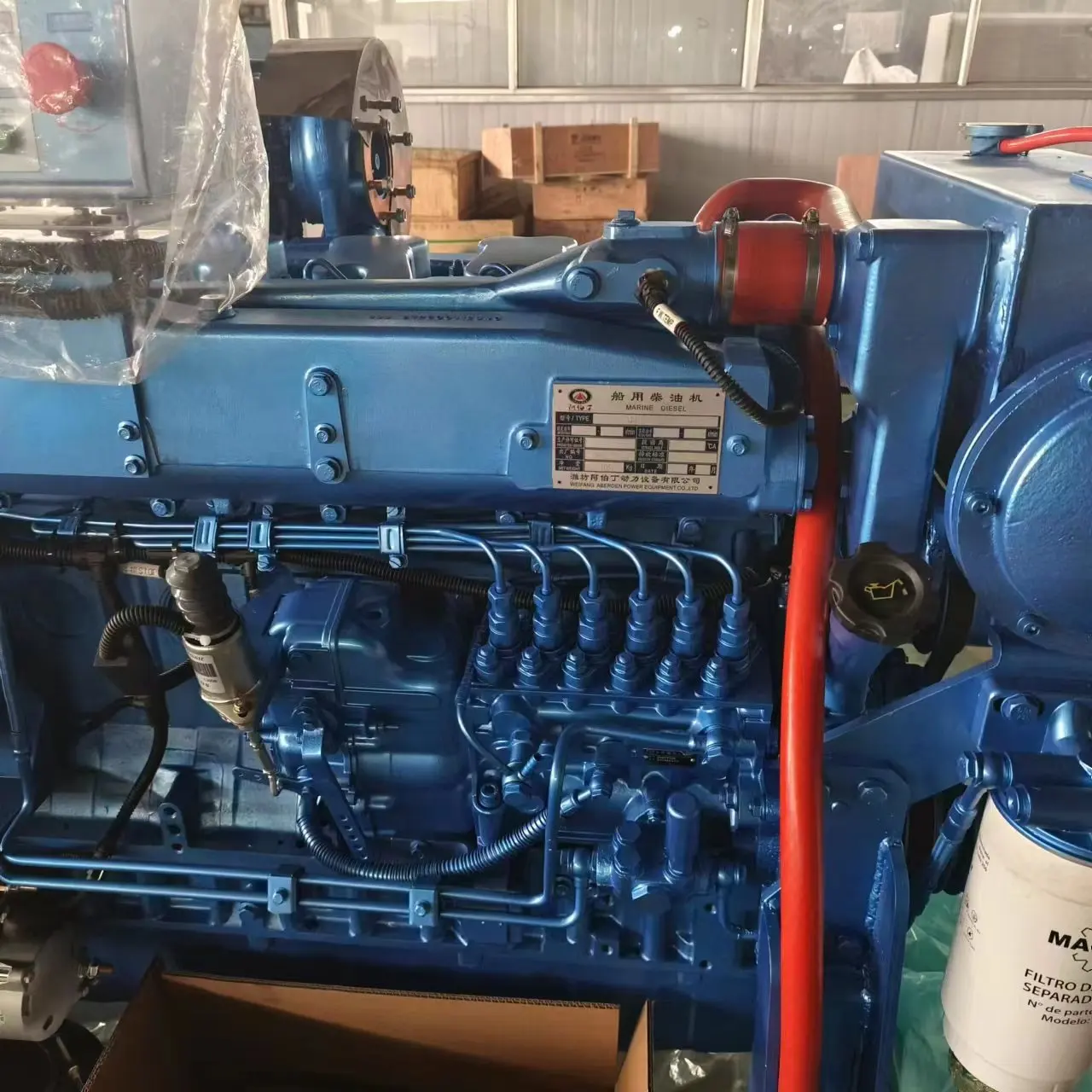

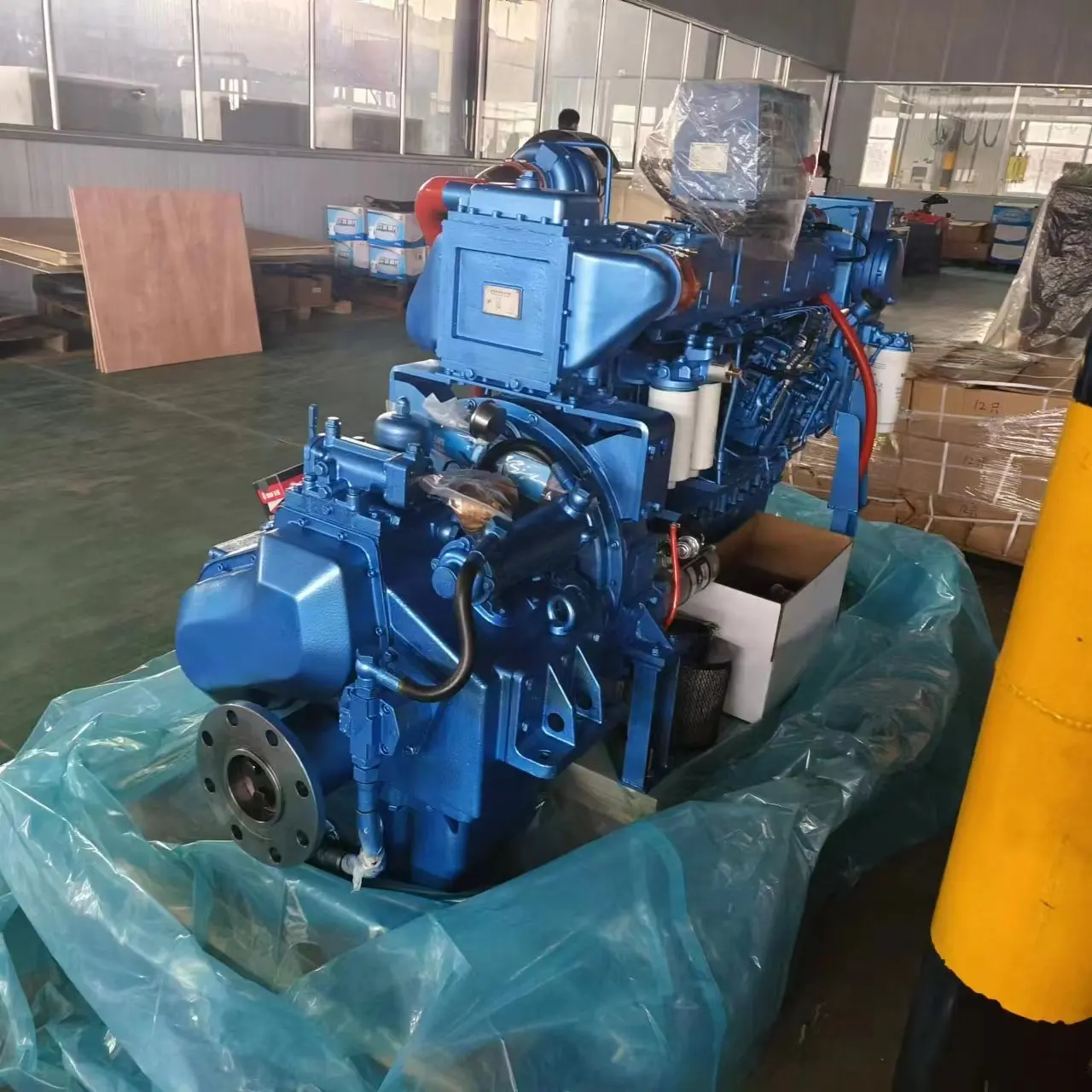

Weichai WD10 326hp Marine gearbox diesel Engine
- Category: >>>
- Supplier: Shandong Aberdeen Power Equipment Co. Ltd.
Share on (1600828804597):
Product Overview
Description
Products Description
WD10/WD615 series marine diesel engine
It has the advantages of compact structure, beautiful appearance, sufficient power, good economy, high reliability, low smoke, low noise, low vibration, high speed, use and maintenance, etc. According to the characteristics and configuration requirements of the ship power club, it is developed through a special optimization design.
The main advantages of diesel engines
A. The frame type main bearing structure has high body rigidity, low vibration and low noise.
B. Indexes such as average effective power and power liter are at the leading level in China.
C. The internal and external double-circulation water cooling method uses fresh water in the inner circulation to cool the diesel engine, and the seawater in the outer circulation cools the fresh water through the sea-fresh water exchanger to increase the service life of the diesel engine. A water jacket drain pipe is selected to reduce the temperature of the engine room.
D. The internal and external double-circulation water cooling method uses fresh water in the inner circulation to cool the diesel engine, and the seawater in the outer circulation cools the fresh water through the sea-fresh water exchanger to increase the service life of the diesel engine. A water jacket drain pipe is selected to reduce the temperature of the engine room.
E. Energy-saving and fuel-saving: The reasonably designed intake fuel supply system widens the operating range of the diesel engine, and can maintain low fuel consumption in the usual working conditions and speed range of the ship.
F. Strong power: large power reserve, maximum output torque of 1500N.m, fast ship speed, high speed. Suitable for high-speed ships and heavy-duty fishing boats.
The main technical parameters
WD10 Product parameter | ||||||
Type | Four-stroke, water-cooled, in-line, dry liner, direct injection | Number of cylinders | 6 | |||
Bore and stroke | 126*130mm | Displacement | 9.726L | |||
Minimum fuel consumption | 195g/kw.h | Oil consumption rate | 0.5g/kw.h | |||
Start method | Electric start | Idle speed | 600±30r/min | |||
Firing order | 1-5-3-6-2-4 | Smoke | ≤1.2Rb | |||
Noise | ≤108dB(A) | Emission Standards | IMO TIER II | |||
Crankshaft rotation direction (Facing the free end) | Clockwise | Diesel engine overhaul period | 6000h | |||
Main product type spectrum
Series | Model | Air intake method | Power(KW) | Rotating speed(rpm) |
WD10 | WD10C170-15 | Supercharge | 125 | 1500 |
WD10C190-15 | Supercharge | 140 | 1500 | |
WD10C218-15 | Turbocharged | 160 | 1500 | |
WD10C240-15 | Turbocharged | 176 | 1500 | |
WD10C258-15 | Turbocharged | 190 | 1500 | |
WD10C278-15 | Turbocharged | 205 | 1500 | |
WD10C190-18 | Supercharge | 140 | 1800 | |
WD10C200-18 | Turbocharged | 147 | 1800 | |
WD10C240-18 | Turbocharged | 176 | 1800 | |
WD10C278-18 | Turbocharged | 205 | 1800 | |
WD10C312-18 | Turbocharged | 230 | 1800 | |
WD10C200-21 | Supercharge | 147 | 2100 | |
WD10C278-21 | Turbocharged | 205 | 2100 | |
WD10C300-21 | Turbocharged | 220 | 2100 | |
WD10C326-21 | Turbocharged | 240 | 2100 |
Outline
Size(mm) and weight(Kg) | ||||||
Model | WD10(Intercooler, water jacket exhaust pipe) | WD10(Intercooled, dry exhaust pipe) | WD10(Supercharge) | |||
L | 1514 | 1895 | 1695 | |||
W | 878 | 948 | 948 | |||
H | 1407 | 1176 | 1176 | |||
H* | 800 | 800 | 800 | |||
Weight | 1056 | 1056 | 1018 | |||
Applications
Ship parameters | Host | ||||
Captain(m) | 13.65 | Model | WD10C278-18 | ||
Ship width(m) | 3.57 | Power (kw) | 204 | ||
Type depth(m) | 1.8 | ||||
Draft(m) | 0.64 | Speed (r/min) | 1800 | ||
Displacement(t) | 10.12 | ||||
Speed(km) | ＞20 | ||||
Marine hydraulic steering control system
Ship propeller shaft
Ship propeller

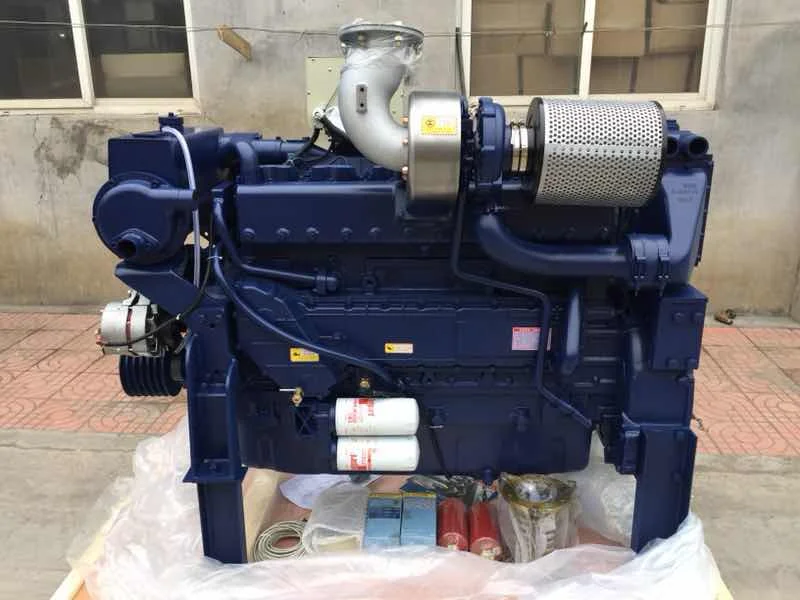

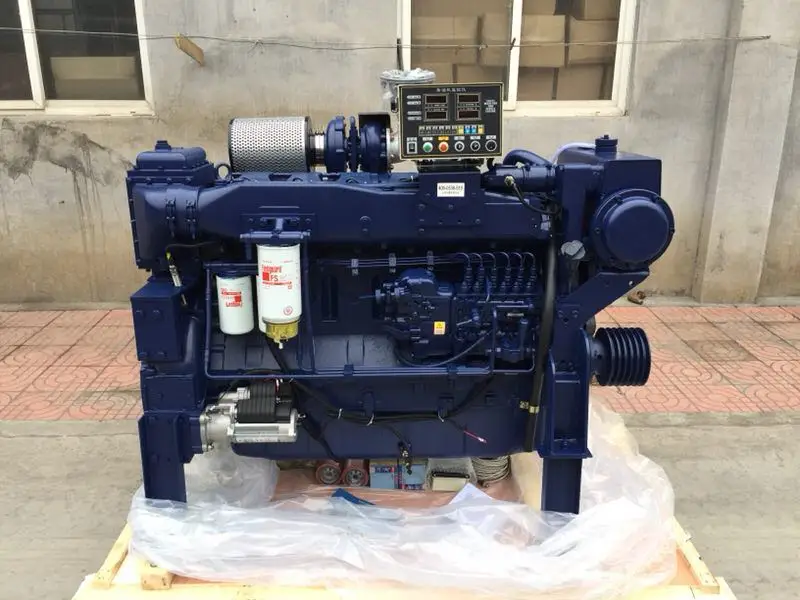

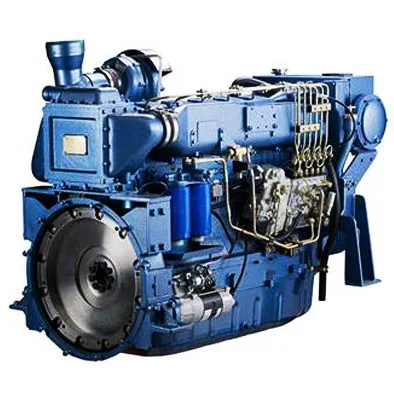

Details Images
Company Profile
The factory is located in China Power City' "Weifang City, Shandong Province", covering an area of 10,000 square meters, with a plant area of 5,000 square meters, and is closely linked to MTU, Cummins, Deutz, Jichai, Weichai, Yuchai, Marathon and Stamford Established a good or relationship.
