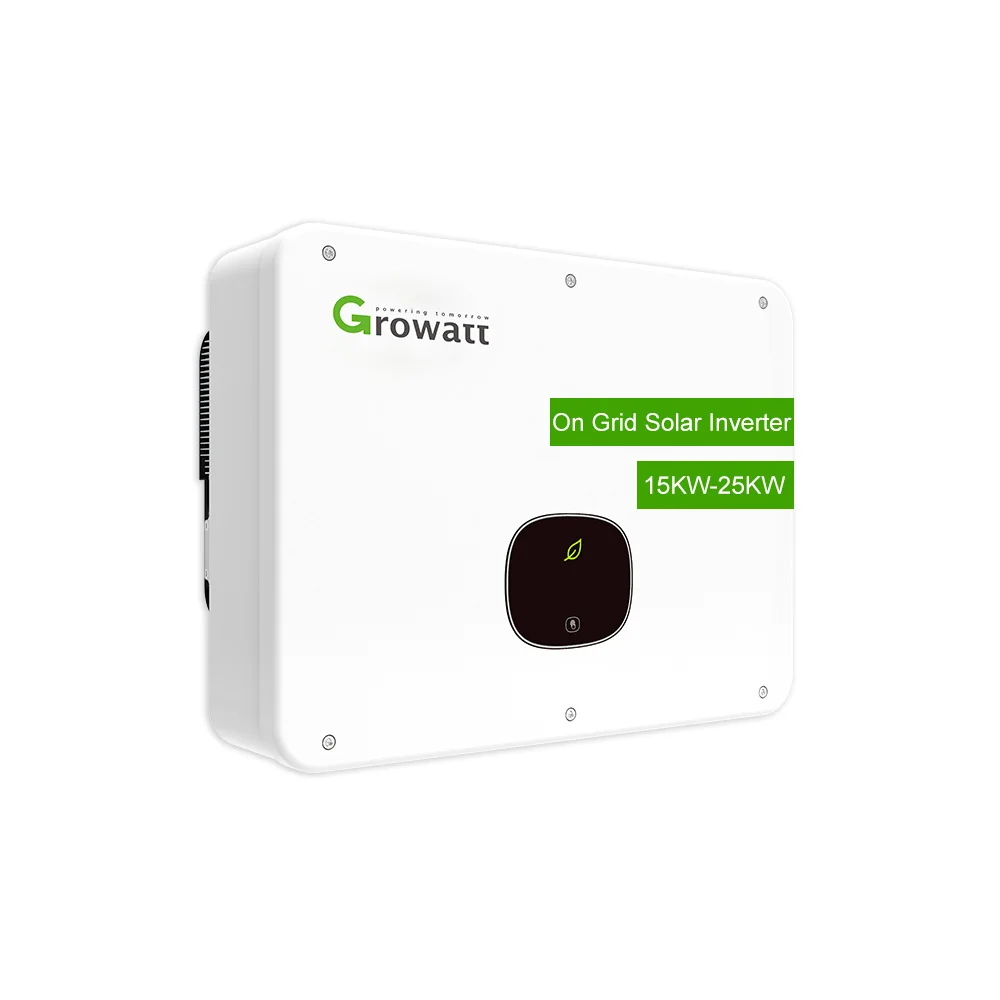

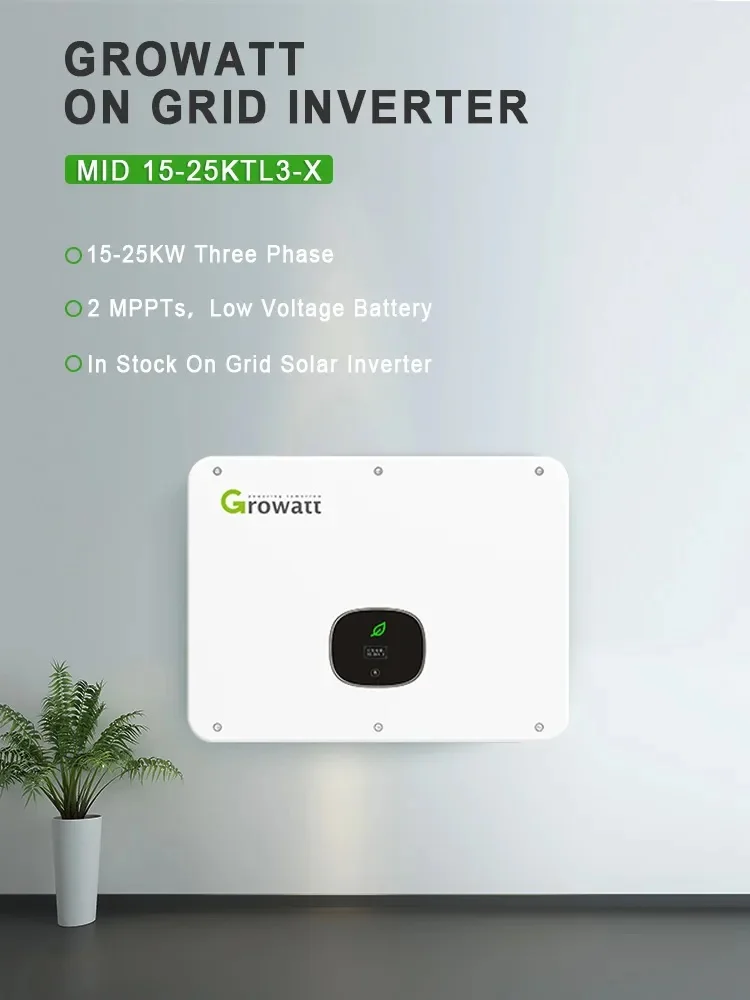

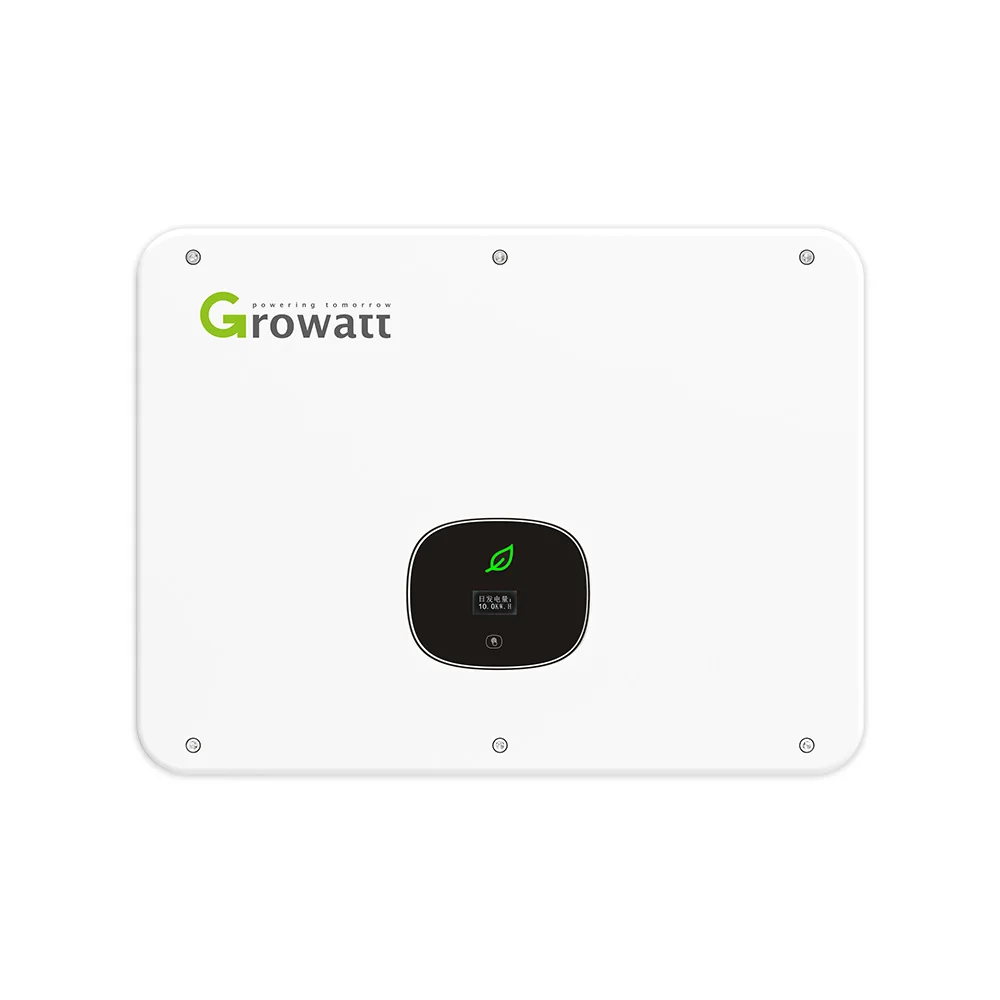

Growatt MID 15KTL3-X,MID 17KTL3-X,MID 20KTL3-X,MID 22KTL3-X,MID 25KTL3-X is the most up-to-date smart inverter solution for rooftop solar systems. It's of compact design and an outstanding efficiency of up to 98.6%. It's ELEGANT YET POWERFUL!
Datasheet |
MID 15KTL3-X |
MID 17KTL3-X |
MID 20KTL3-X |
MID 22KTL3-X |
MID 25KTL3-X |
Input data (DC) |
Max. recommended PV power
(for module STC) |
22500W |
25500W |
30000W |
30000W |
30000W |
Max. DC voltage |
1100V |
Start voltage |
160V |
Nominal voltage |
580V |
MPP voltage range |
140V-1000V |
No. of MPP trackers |
2 |
No. of PV strings per MPP tracker |
1 |
1 |
1/2 |
1/2 |
1/2 |
Max. input current per MPP tracker |
13A |
13A |
13/26A |
13/26A |
13/26A |
Max. short-circuit current per MPP tracker |
16A |
16A |
16/32A |
16/32A |
16/32A |
Output data (AC) |
AC nominal power |
10000W |
11000W |
12000W |
13000W |
15000W |
Max. AC apparent power |
11000VA* |
12100VA |
13200VA |
14300VA |
16500VA |
Nominal AC voltage(range*) |
220V/380V, 230V/400V (340-440V) |
AC grid frequency |
50/60 Hz (45-55Hz/55-65 Hz) |
Max. output current |
16.7A |
18.3A |
20A |
21.7A |
25A |
Adjustable power factor |
0.8leading…0.8lagging |
THDi |
<3% |
AC grid connection type |
3W+N+PE |
Efficiency |
Max.efficiency |
98.6% |
European efficiency |
98.1% |
98.1% |
98.2% |
98.2% |
98.2% |
MPPT efficiency |
99.9% |
Protection devices |
DC reverse polarity protection |
Yes |
DC switch |
Yes |
AC/DC surge protection |
Type II / Type II |
Insulation resistance monitoring |
Yes |
AC short-circuit protection |
Yes |
Ground fault monitoring |
Yes |
Grid monitoring |
Yes |
Anti-islanding protection |
Yes |
Residual-current monitoring unit |
Yes |
String fault monitoring |
Yes |
AFCI protection |
Optional |
General data |
Dimensions (W / H / D) |
425/387/178mm |
Weight |
14kg |
14kg |
16kg |
16kg |
16kg |
Operating temperature range |
–25°C ... +60°C |
Nighttime power consumption |
< 1W |
Topology |
Transformerless |
Cooling |
Natural convection |
Protection degree |
IP66 |
Relative humidity |
0~100% |
Altitude |
4000m |
DC connection |
H4/MC4(Optional) |
AC connection |
Connector |
Display |

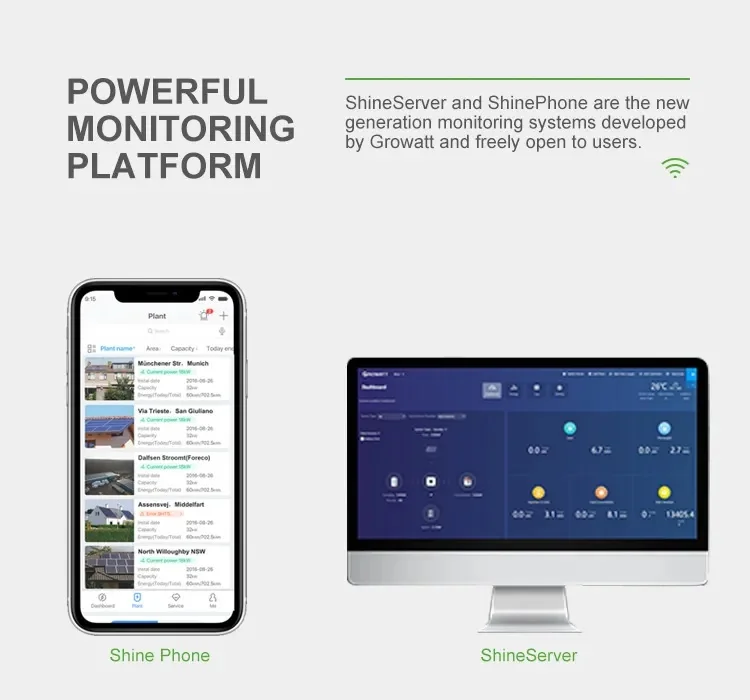

OLED+LED/WIFI+APP |
Warranty: 5 years / 10 years |
Yes /Optional |
Our advantages
|
|
|
 |
|
 |
Years in industry(8) |
Full customization |
ODM services available |
Supplier assessment procedures |
The data is from the latest inspection report assessed by independent third parties |
The data is from past contract of the latest inspection report as assessed by independent third parties. |
The data is from past contract of the latest inspection report as assessed by independent third parties. |
The data is from onsite check of the latest inspection report assessed by independent third parties |
 |
Total trading staff (9) |
Total floorspace (190m2) |
Finished product inspection |
Sample-based customization |
The data is from onsite check of the latest inspection report assessed by independent third parties |
The data is from onsite check of the latest inspection report assessed by independent third parties |
The data is from onsite check of the latest inspection report assessed by independent third parties |
The data is from past contract of the latest inspection report as assessed by independent third parties. |
 |
Minor customization |
Design-based customization |
On-site material inspection |
Cooperated suppliers (125) |
The data is from past contract of the latest inspection report as assessed by independent third parties. (Minor means customized on logo/package/graphic customization) |
The data is from past contract of the latest inspection report as assessed by independent third parties. |
The data is from onsite check of the latest inspection report assessed by independent third parties |
The number of factories the supplier has cooperated with in the past three years, as assessed by independent third parties. |
Our Company
 |

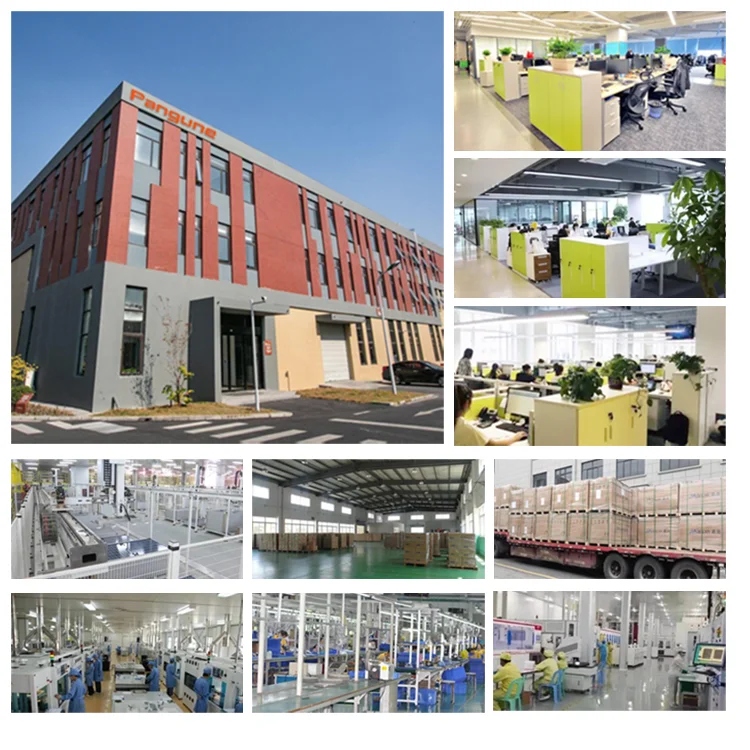

Pangu New Energy (Hangzhou) Co., Ltd, We founded in 2015, is located in Hangzhou, Zhejiang Province, close to Ningbo and Shanghai Port. Our main products are Solar Panels, Solar Inverter, Energy Storage Battery, Home Solar System, Portable Solar System. We have a high-quality and experienced team to provide customers with high-performance products at competitive prices. |
 |
Approved by many international authoritative certificates, including ISO, TUV, CSA, CEC, IEC, CE, INMETRO, RETIE, JP-AC, DEWA, MCS and CQC Solar Product Certificates. |
 |
