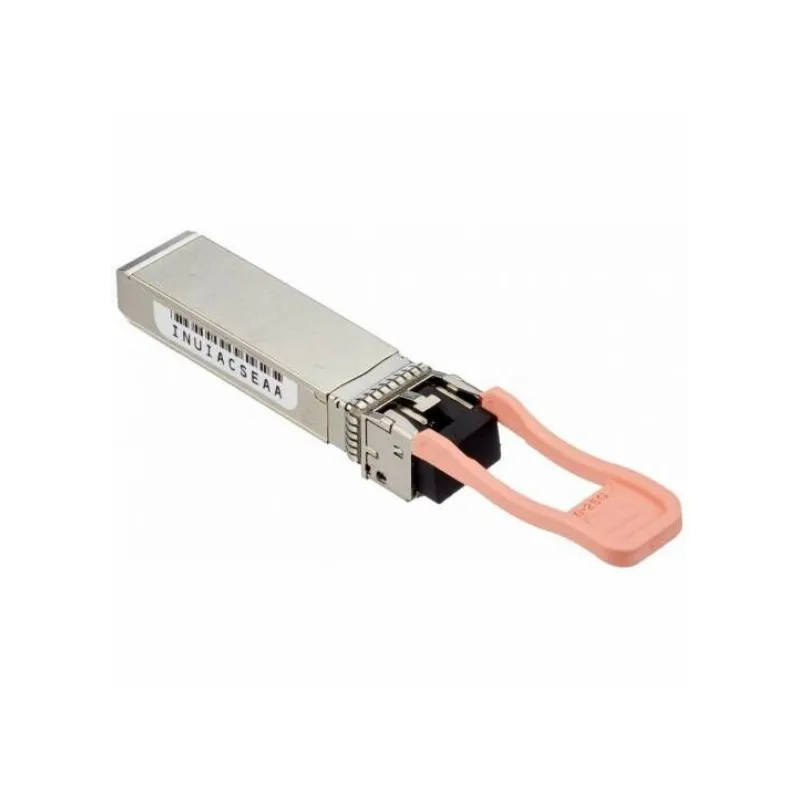

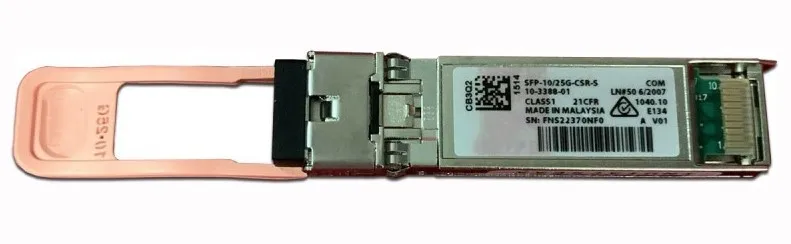

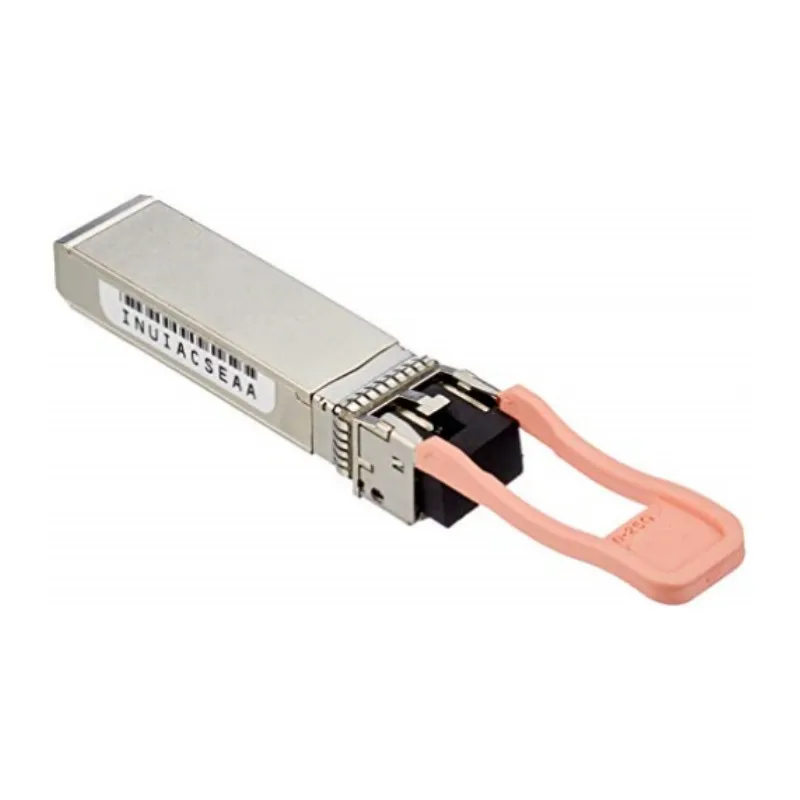

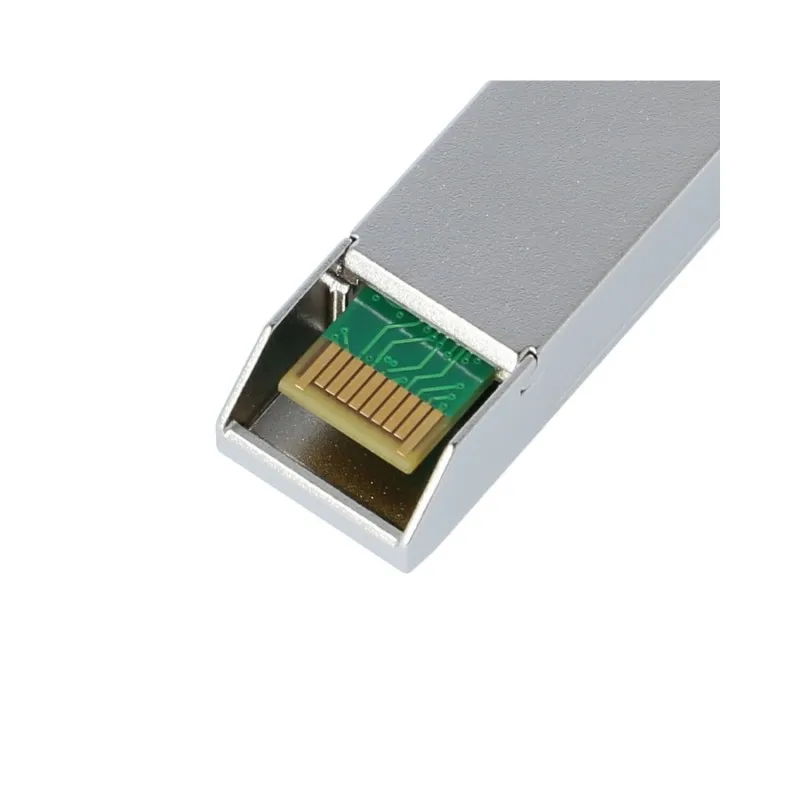

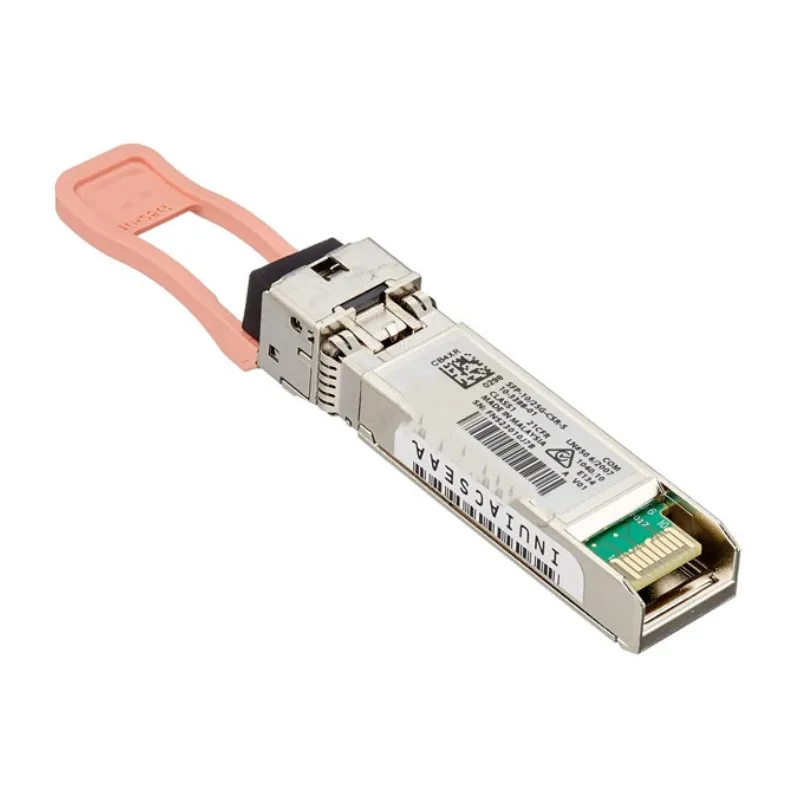

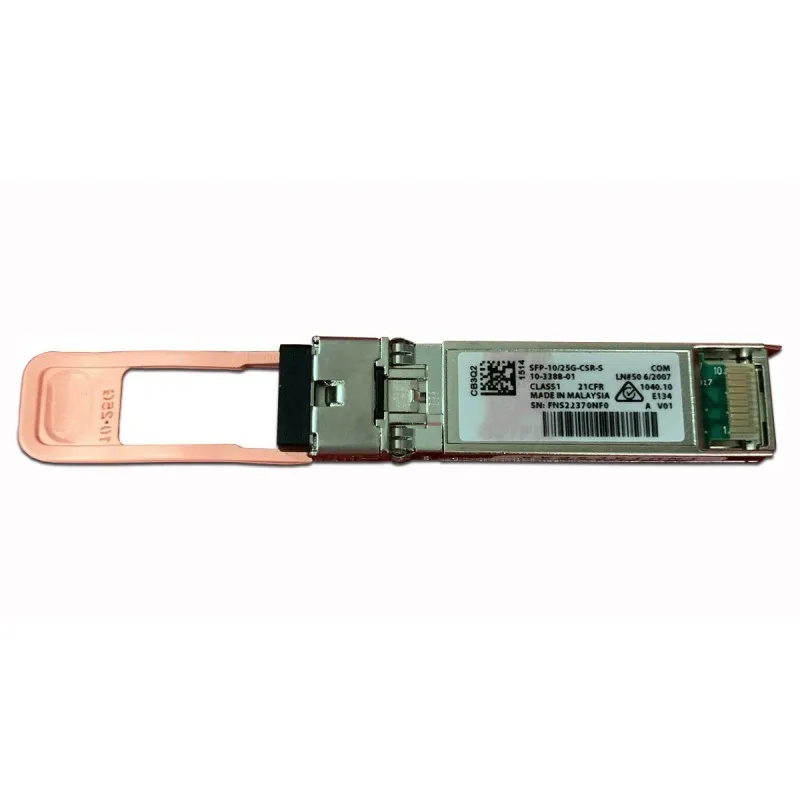

Dual Rate 10/25GBASE CSR SFP Module 25 Gigabit Optical Modules SFP 10/25G CSR S
- Category: >>>
- Supplier: Beijing Lianmai Tongchuang Technology Co. Ltd.
Share on (1600828869872):
Product Overview
Description
Product Description
SFP-10/25G-CSR-S= Overview
The 25GBASE SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.
SFP-10/25G-CSR-S Specification
SFP-10/25G-CSR-S Specification | ||||
Description | 10/25GBASE-CSR SFP28 Module for MMF | |||
25G Port cabling specifications | ||||
Cable Distance | 300/400m (OM3/OM4) | |||
Max Power Consumption (W) | 1.2 | |||
Pull Tab Color | Peach | |||
SFP28 port cabling specifications | ||||
Wavelength (nm) | 850 | |||
Cable Type | MMF | |||
Core Size (Microns) | 50.0 | |||
Modal Bandwidth | 2000 (OM3) 4700 (OM4) | |||
Cable Distance | 300m* 400m* | |||
*Depending upon fiber quality. | ||||
Optical transmit and receive specifications | ||||
Type | Transmit Power (dBm) | Receive Power (dBm) | Transmit and Receive Wavelength (nm) | |
10G | Max:+2.4 Min:-7.3 | Max:+2.4 Min:-9.9 | 840 to 860 | |
25G | Max:+2.4 Min:-6 | Max:+2.4 Min:-8.7 | 840 to 860 | |
Environmental Conditions and Power Requirements | ||||
Commercial temperature | 0 to 70°C (32 to 158°F) | |||
Storage temperature | -40 to 85°C (-40 to 185°F) | |||
