Product Overview
Description
Products Description
Main Features

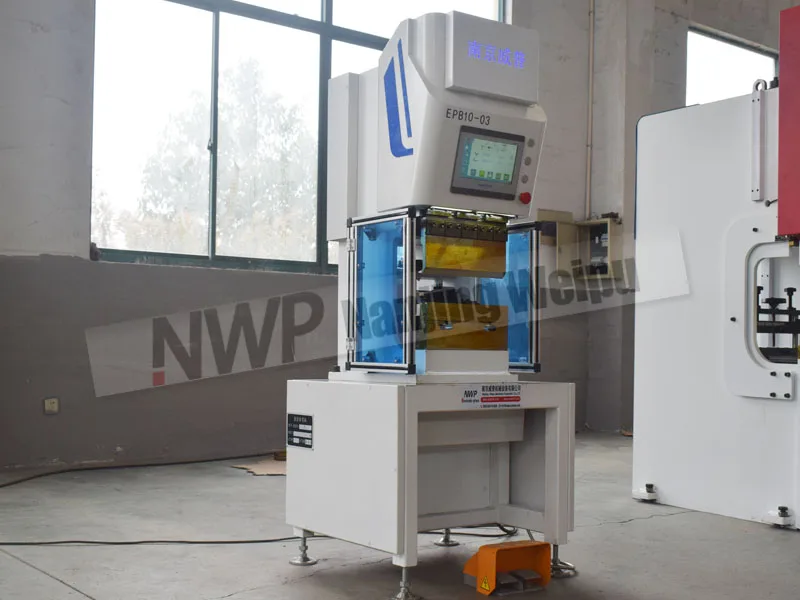

The pure electric servo press brake is a machine tool that is driven by an electric cylinder without the help of hydraulic oil. This can prevent hydraulic oil pollution and oil temperature from affecting the accuracy of the machine tool.
The electric cylinder is driven by a servo motor during bending, and the servo motor consumes less power during rapid descent and return, which has the advantage of energy saving. Compared with the same series of hydraulic bending machines, it can save energy by more than 50%.
The back gear control is the same as the hydraulic press brake, which can be added according to the customer's choice, which greatly reduces the complexity of operation and makes the production easier and more convenient.
Model | Pressure (KN) | Working table (mm) | Bending stroke (mm) | Back gear stroke (mm) | Axis | Main power (KW) | Drop and return speed (mm/s) | Opening height (mm) | Throat depth (mm) |
NP05-03 | 50 | 300 | 120 | 200 | 2 | 4 | 250 | 420 | 150 |
NP10-03 | 100 | 350 | 120 | 200 | 2 | 5.5 | 250 | 420 | 150 |
NP18-05 | 180 | 500 | 120 | 250 | 3 | 7.5 | 200 | 420 | 250 |
NP25-12 | 200 | 1250 | 120 | 300 | 4 | 11 | 200 | 420 | 250 |
NP30-12 | 350 | 1250 | 120 | 300 | 6 | 11 | 200 | 420 | 250 |
NP40-13 | 400 | 1300 | 150 | 500 | 6 | 15 | 200 | 420 | 300 |
NP40-16 | 400 | 1600 | 150 | 500 | 6 | 15 | 200 | 420 | 300 |
NP50-20 | 500 | 1600 | 150 | 500 | 7 | 30 | 250 | 420 | 350 |
NP60-25 | 600 | 2500 | 150 | 500 | 7 | 30 | 200 | 530 | 350 |

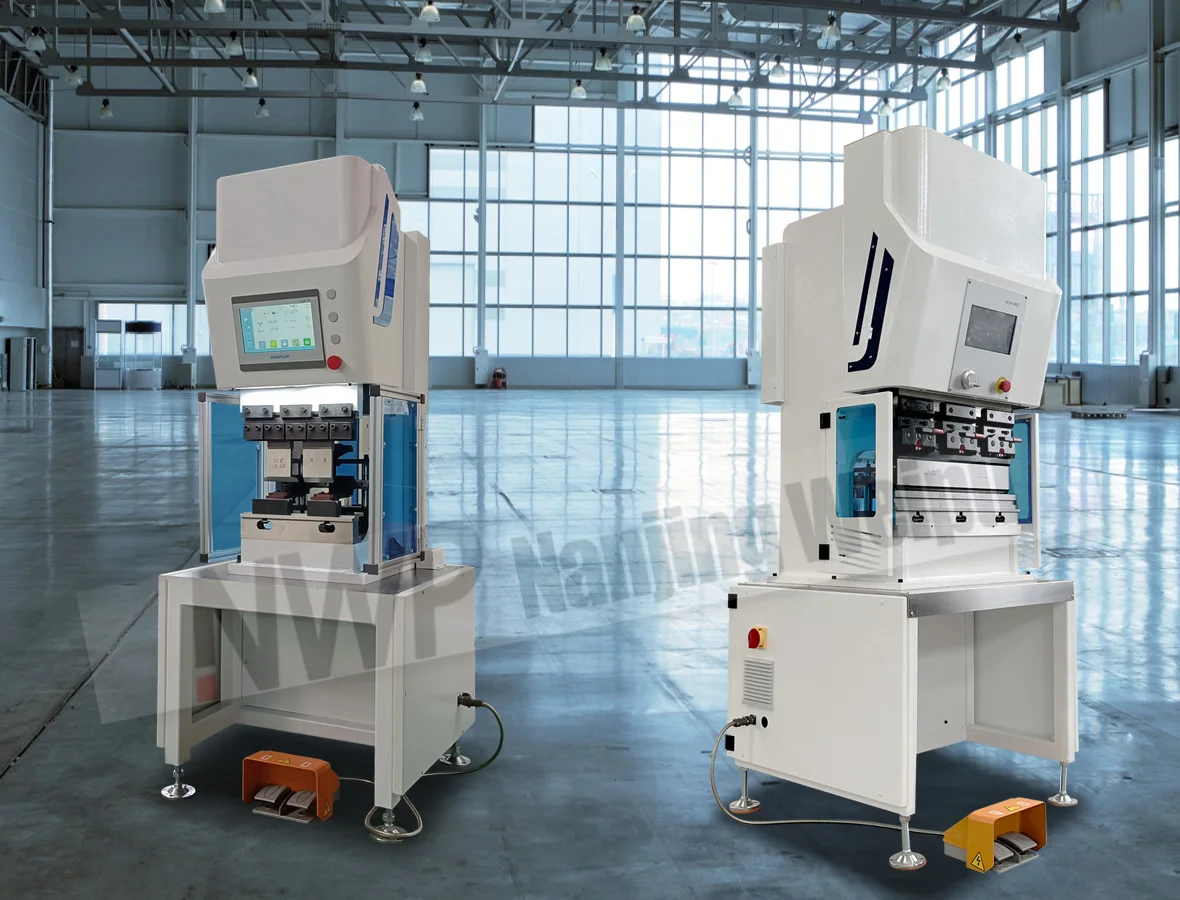

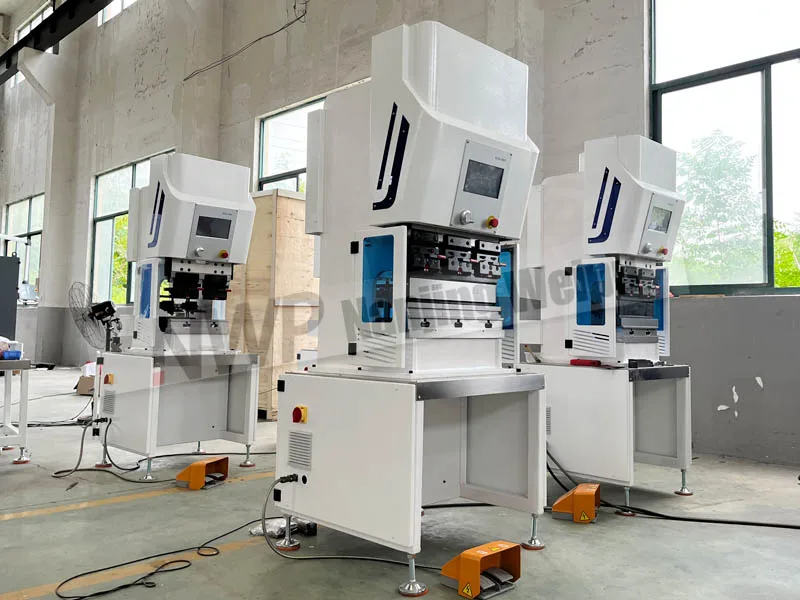

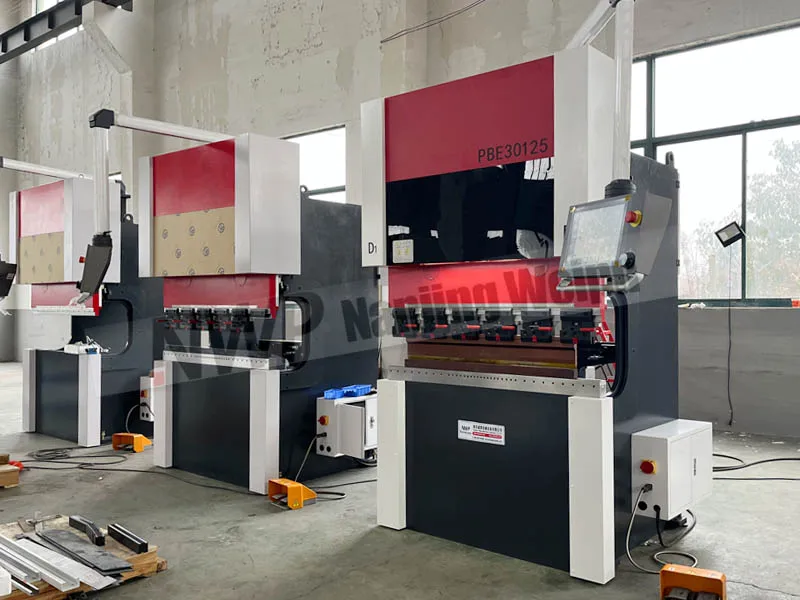

Product Display

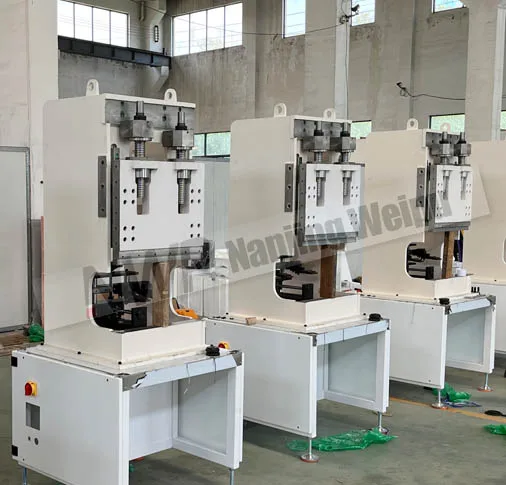

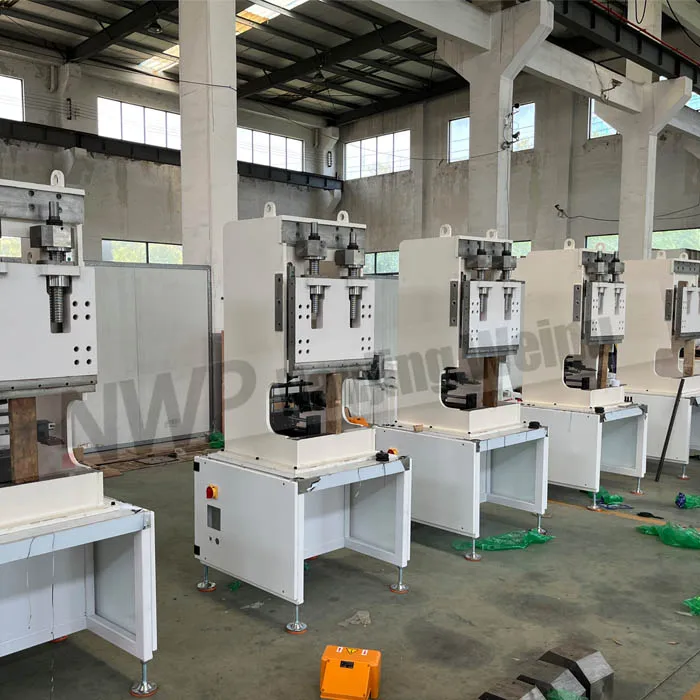

Machine Structural Performance
The overall frame structure of the fuselage. Using energy-saving and environmentally friendly electric cylinder as the power source, high-efficiency work, servo motor drive, low noise and high precision.
There are double-cylinder and single-cylinder drive, smooth operation, optional multi-axle rear gear, suitable for bending of different sheet angles.

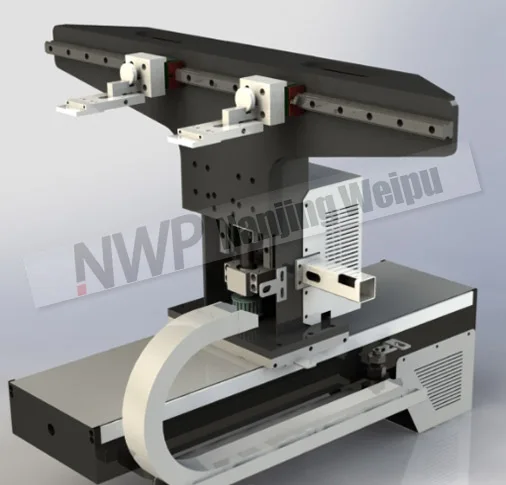

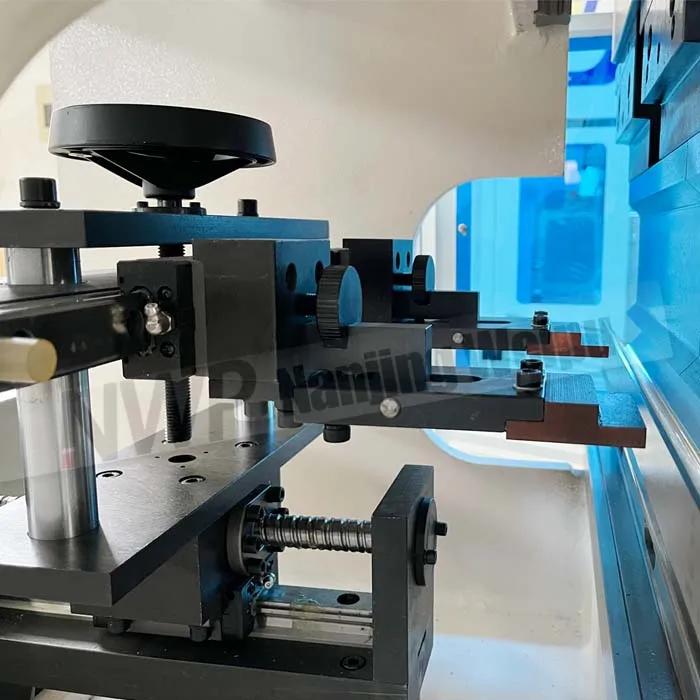

Back gauge device
Adopt high configuration ball screw and linear guide, servo motor. Up and down multi-axis motion can be selected to achieve convenient bending of the sheet.
It has high precision and high efficiency bending effect.

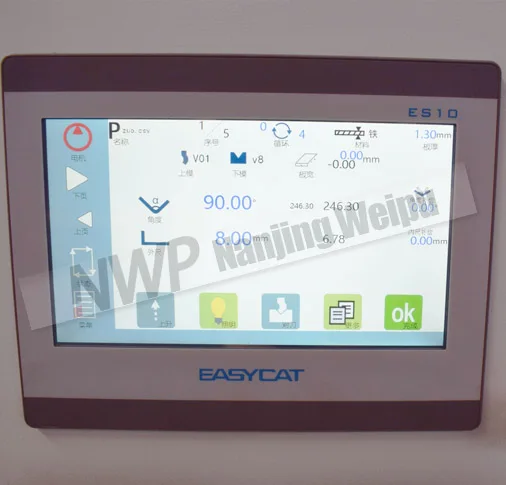

Control System
The ECO series CNC system is mainly used in the field of all-electric servo bending machines. It is a high-end CNC system customized and developed according to market demand. It has powerful functions, rich built-in resources, and features products that are safe, efficient, energy-saving and environmentally friendly. .

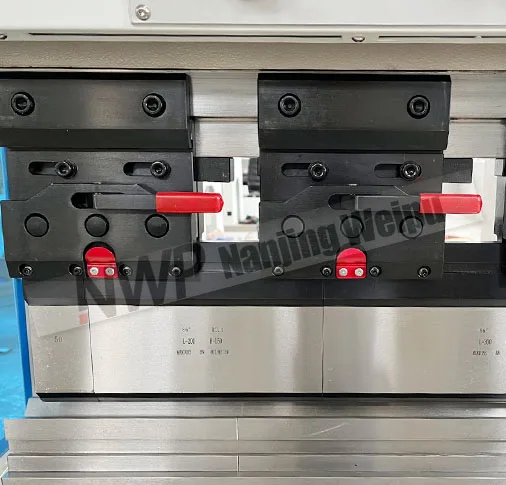

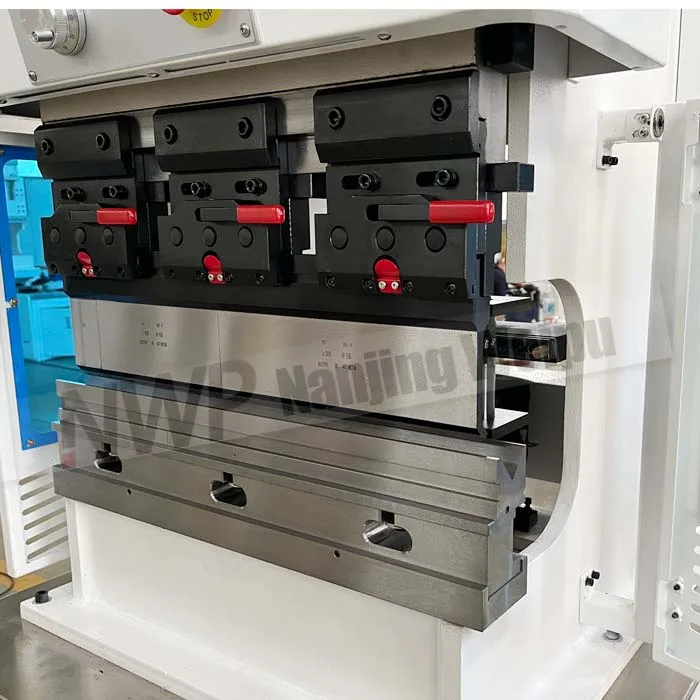

Using high-quality quick clamps, it is convenient to load and unload molds and has a long service life.

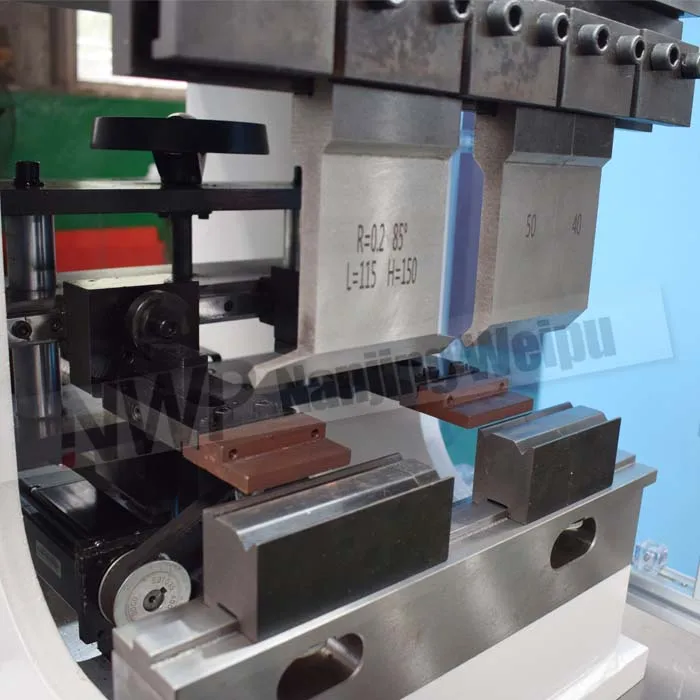

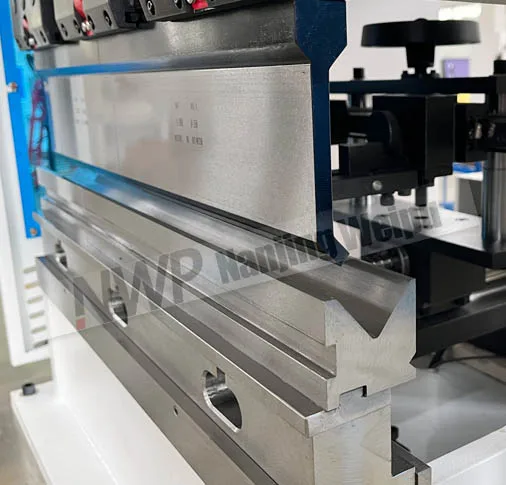

The upper die adopts a straight knife die, and the lower die can choose double V die or single V die for production, which can support die customization.
The mold material is 42CrMo or other high-quality materials.
The mold material is 42CrMo or other high-quality materials.
