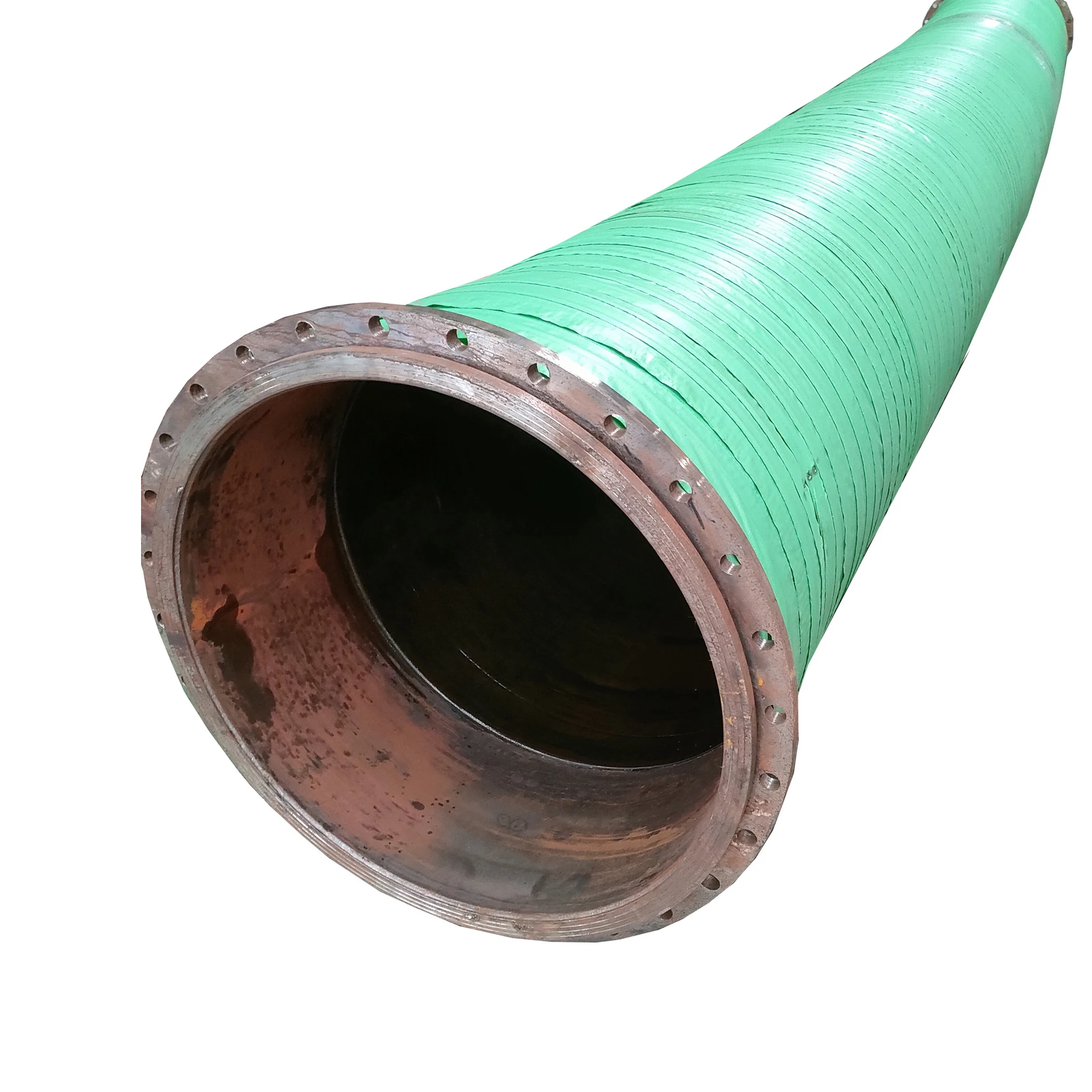

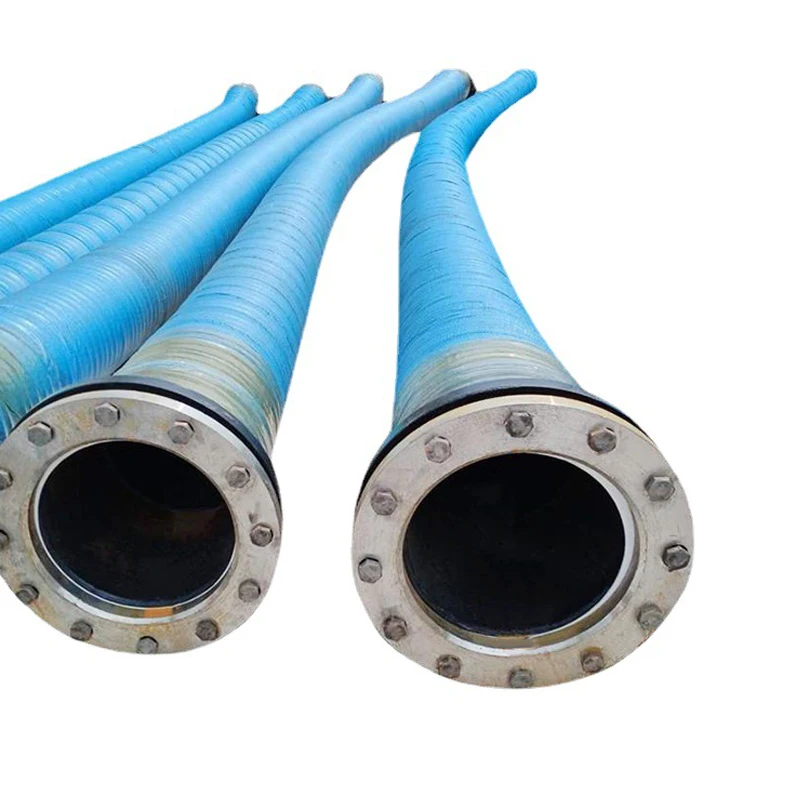

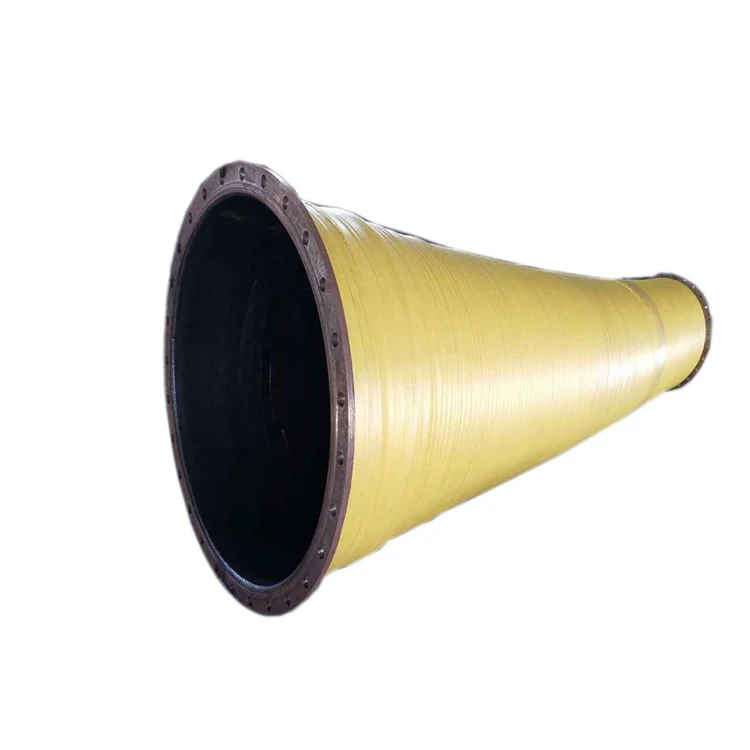

Wear Resistance Flexible Large Diameter Water Suction And Discharge Rubber Hose With Flange

Share on (1600828873754):


Price:

Quantity:


Product Overview

Description





Products Description




ID
OD
WP
BP
vacuum pressure
length
mm
inch
mm
inch
Mpa
bar
Mpa
bar
bar
m
152
6"
182
7-1/4"
1.2
12
2.4
24
0.8
20
203
8"
233
9-1/5"
1.2
12
2.4
24
0.8
20
254
10"
284
11-1/5"
1
12
2
20
0.8
10
304
12"
340
13-2/5"
1
10
2
20
0.8
6-10
350
14"
390
15-2/5"
1
10
2
20
0.8
6-10
450
18"
486
19-1/5"
0.7
10
1.5
15
0.8
6-10
550
22"
590
23-3/5"
0.7
7
1.5
15
0.8
6-10
600
24"
640
25-3/5"
0.7
7
1.5
15
0.8
6-10
700
28"
750
29-3/5"
0.7
7
1.5
15
0.8
6-10
800
32"
850
33-1/2"
0.5
7
1
10
0.8
6-10
1000
40"
1050
41-1/2"
0.5
5
1
10
0.8
6
1200
48"
1250
49-1/5"
0.5
5
1
10
0.8
6
1300
52"
1350
53-1/5"
0.5
5
1
10
0.8
6

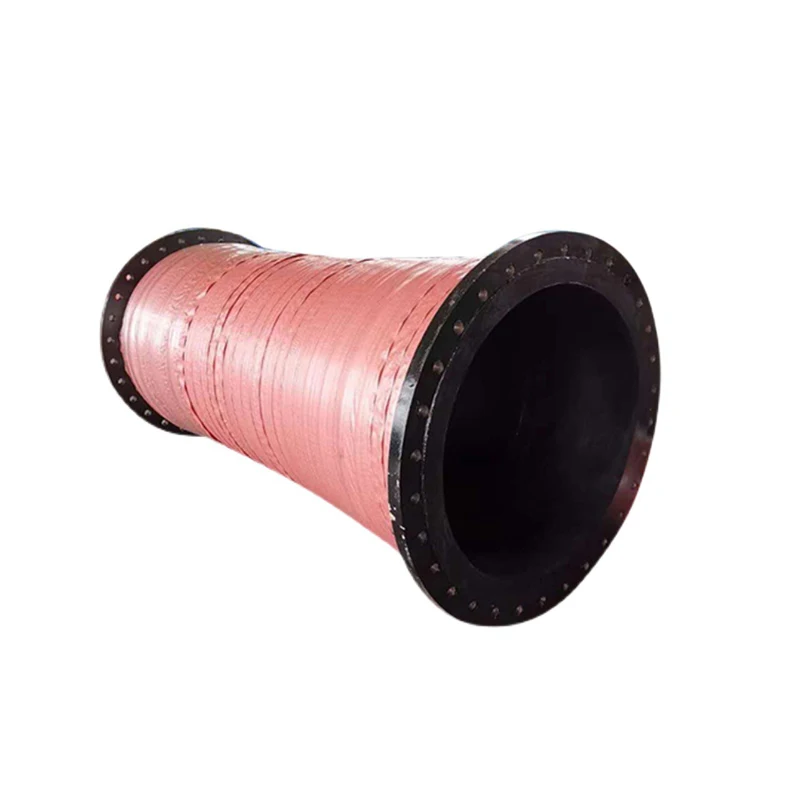

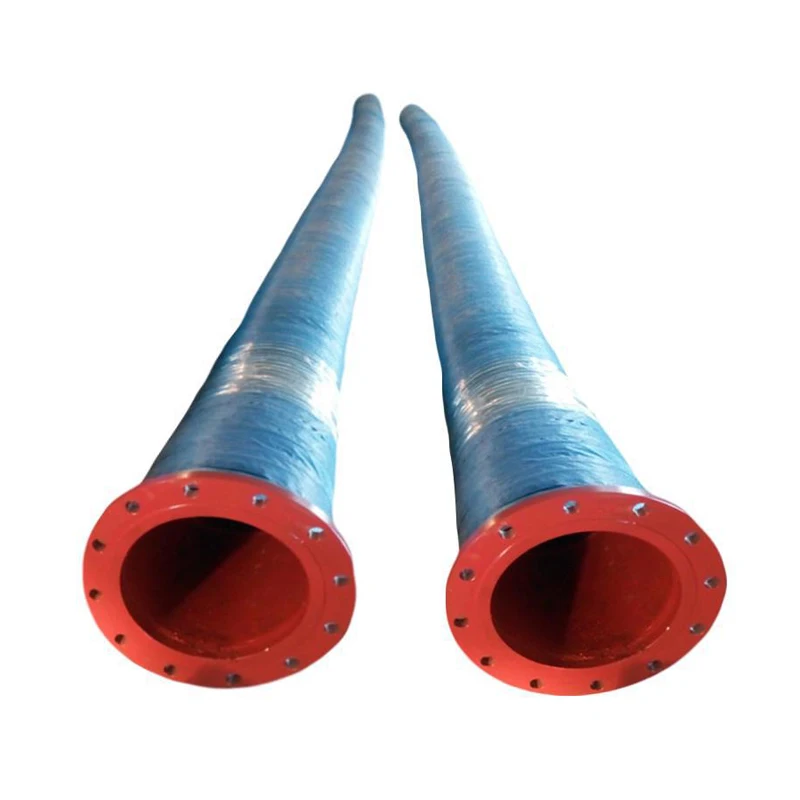

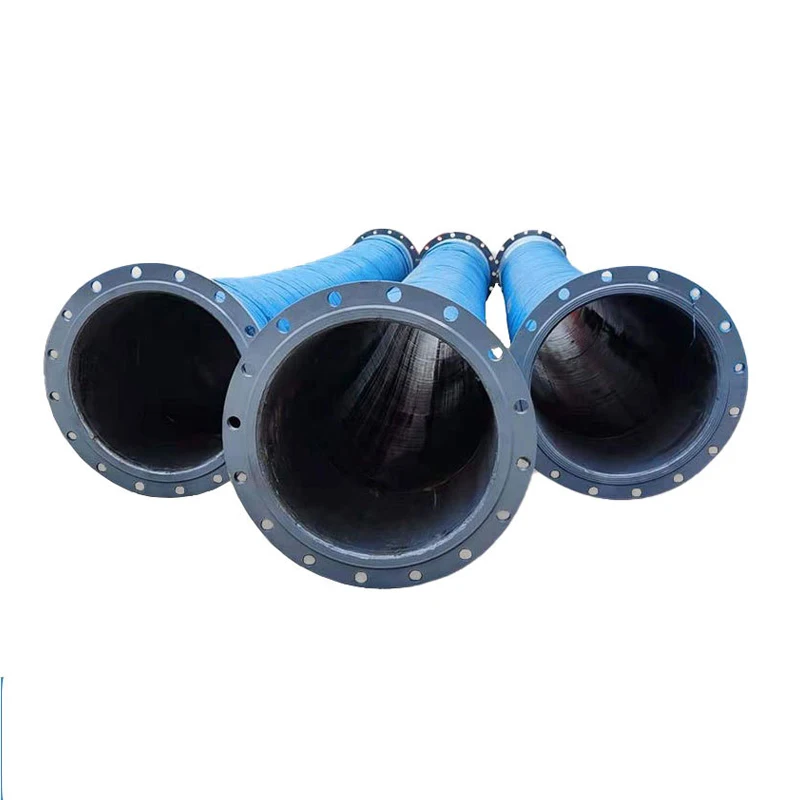

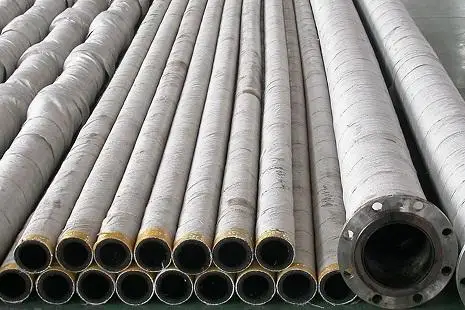

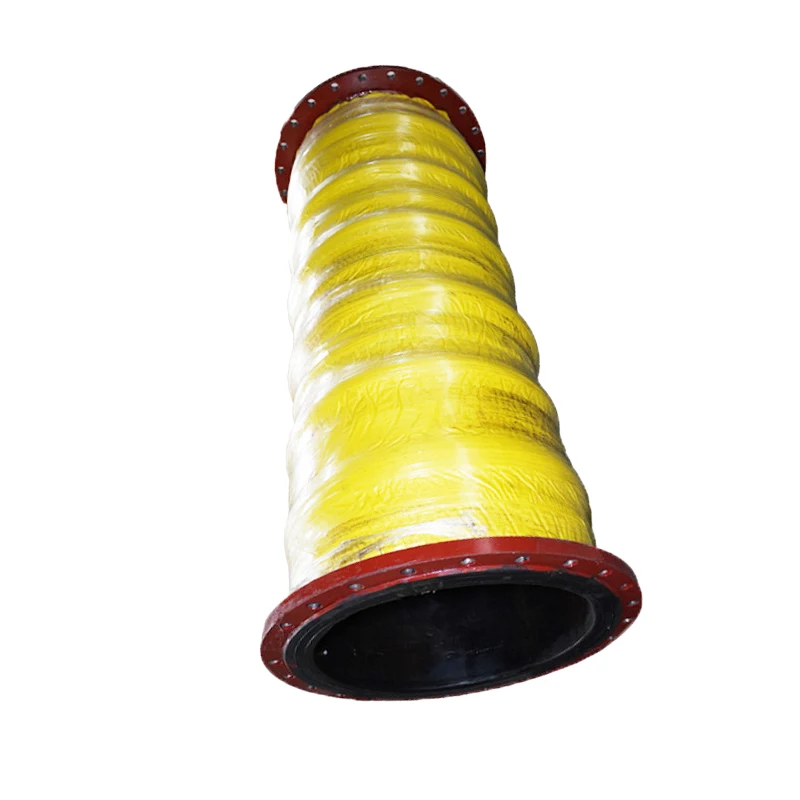

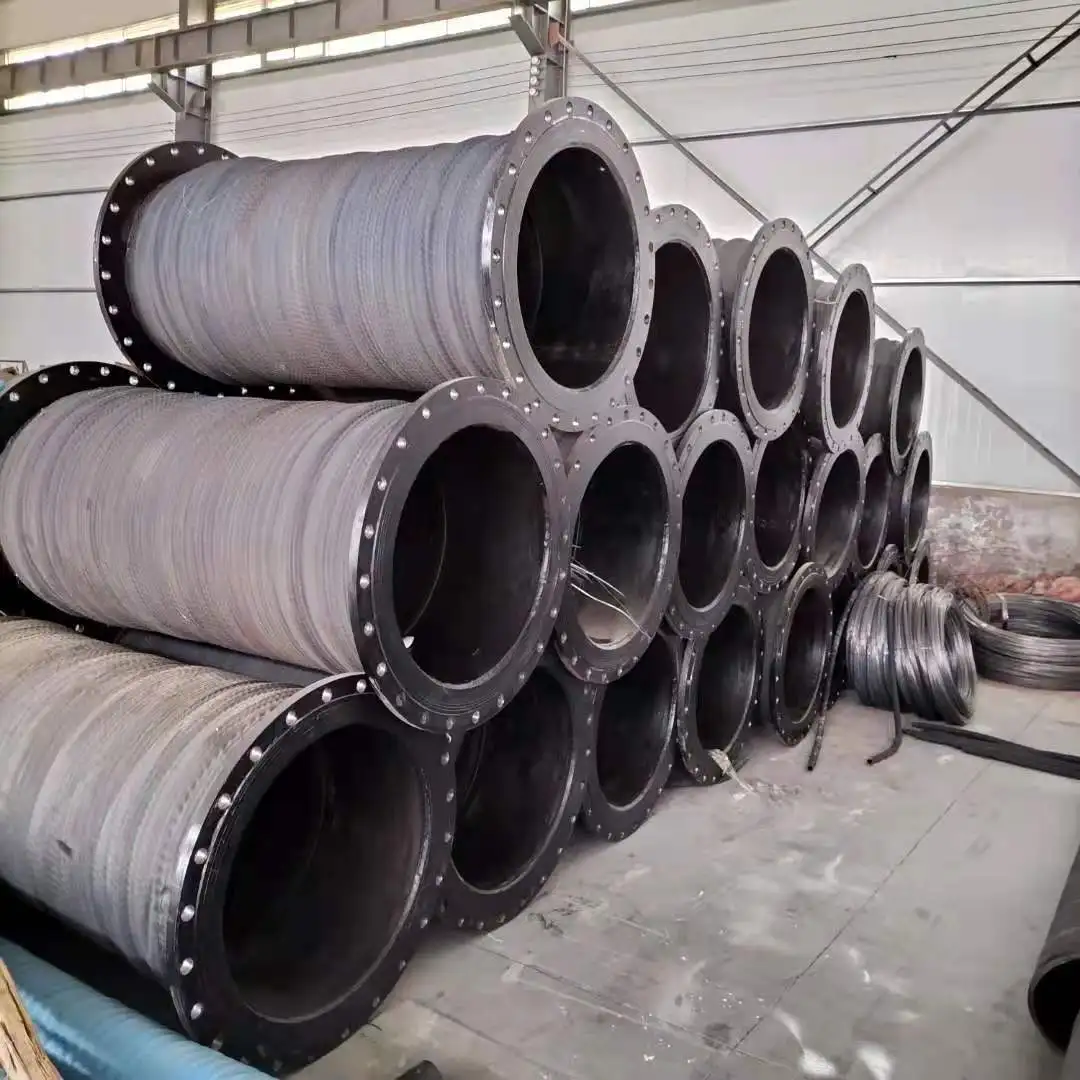

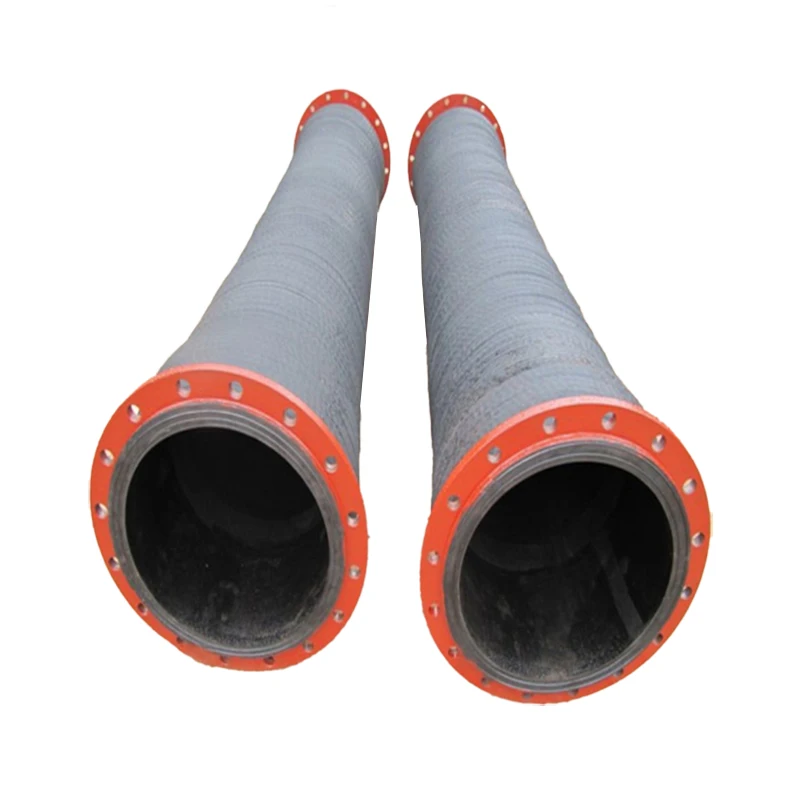

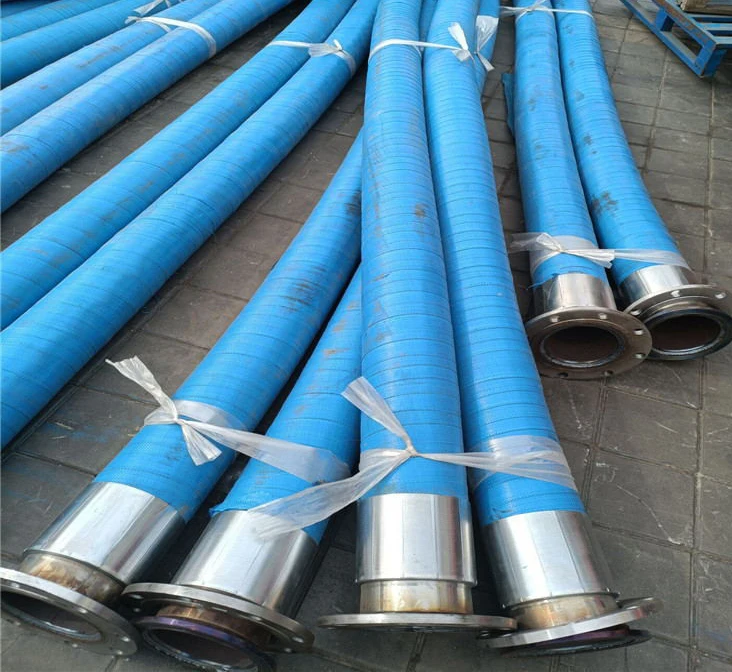

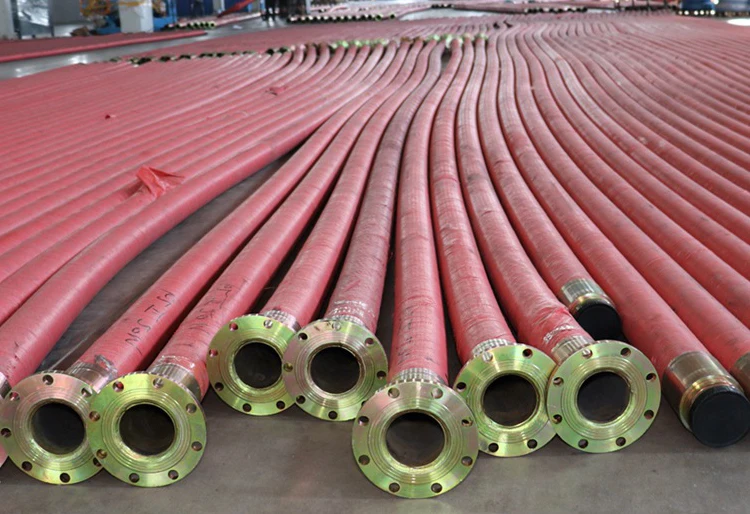

Flanged dredge hose

Material: natural rubber
Conveying medium: used for port, wharf, sea water, silt, river sand, drainage and so on.Service
temperature: -30℃-120℃
Purpose: the dredge hose is easy to be connected with the pipe, which can reduce the wave oscillation.To make the medium in the
pipeline more smooth


Advantage
1.Long lifespan,more than 50 years under normal condition.
2.Good corrosion resistance
3.Good crack growth resistance
4.Little coefficient of friction and low flow resistance
5.Excellent wear resistence, its wear restistance is 4 times higher than steel pipes under normal conditon
6.Good solder ability,its interface strength is higher than the pipe body.
7.Good flexibility and anti-scratch ability
8.Very high impact resistance
9. The unique resistance to low temperature, workable at temperature - 40-60 ° c
10. Light weight, 1/8 weight of steel pipe, easy for transportation and installation
11. Flexible metal flange for connection, easy for installation and disassembly

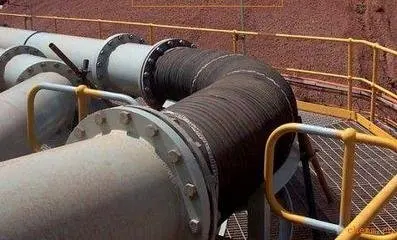

Application


Large Diameter Suction Discharge Dredaing Hoses can be apply to port wharf river ,suitable for delivery silt, sand mud coral stone and others. This hoses are also used for dredging engineering and dredger use.






Specification


item
value
Place of Origin
China
Hebei
Brand Name
Shuangcheng
Model Number
large diameter hose
Processing Service
Moulding, Cutting
Product name
Large Diameter Rubber Hose
Material
rubber
Application
Industrial
Size
Customized Size
Color
Customized Color
Packing
Customized Packing


Why Choose Us


Advanced production equipment




Adequate inventory




Praise from customers




Company Profile




Hebei Shuangcheng Rubber & Plastic Products Co., Ltd. is located in Jingxian County, Hengshui City, Hebei Province. It is a professional manufacturer of rubber products, injection molded parts, metal hoses and metal hose fittings. We have dozens of large-scale production machinery with fast production speed and high product quality. Our products have been exported to many manufacturers at home and abroad.
Our company has a complete and scientific quality management system, and with the spirit of honesty and creation and excellent service, we spare no effort to design excellent and practical products for customers, so that customers can have a comfortable and comfortable environment. The company's integrity and practicality, service follow-up, product quality assurance, has been the industry's praise and recognition. We have established long-term cooperative relations with many enterprises, and warmly welcome friends from all walks of life to visit and negotiate business. Reasonable prices, good service, attracting customers from all directions. All employees will carry forward the spirit of continuous progress, and constantly enhance their core competitiveness, toward a higher goal. The company adheres to the development concept of "reform, innovation, fast and efficient", summarizes the past and looks forward to the future.


Transportation and packaging






FAQ


1. May I have free samples before ordering
Yes, for small amount,free samples can be provided.Freight is collected on customer

2. What''s the MOQ?
No MOQ for standard products.Custom parts can be discussed

3. What is the lead time?
Common items are stocked--3-5 days
Big volume order usually takes about 20-30 days

4. Do you have product warranty?

Yes,12 months warranty.100% inspection on finished products before dispatch.Inferior products can be returned or replaced without excuse. Repair parts could be supplied for replacement

5. Do you acceptable custom?

OEM is welcomed,and we can sign on Non-disclosure Agreement of Commercial Secrets. Custom facbrication is acceptable.

6. Payment method

30% advance payment, 70% payment before delivery (small amount by 100% more economical)
