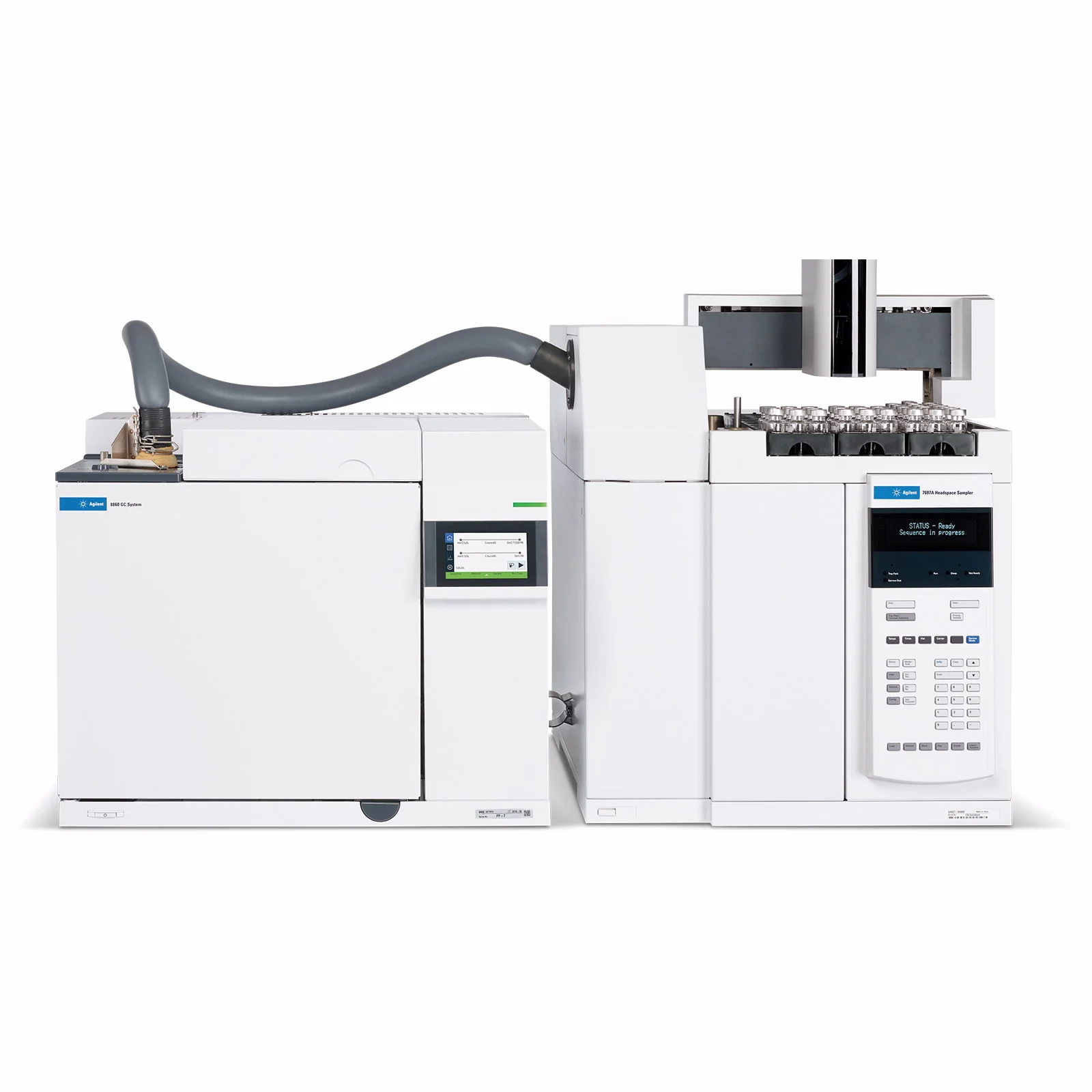

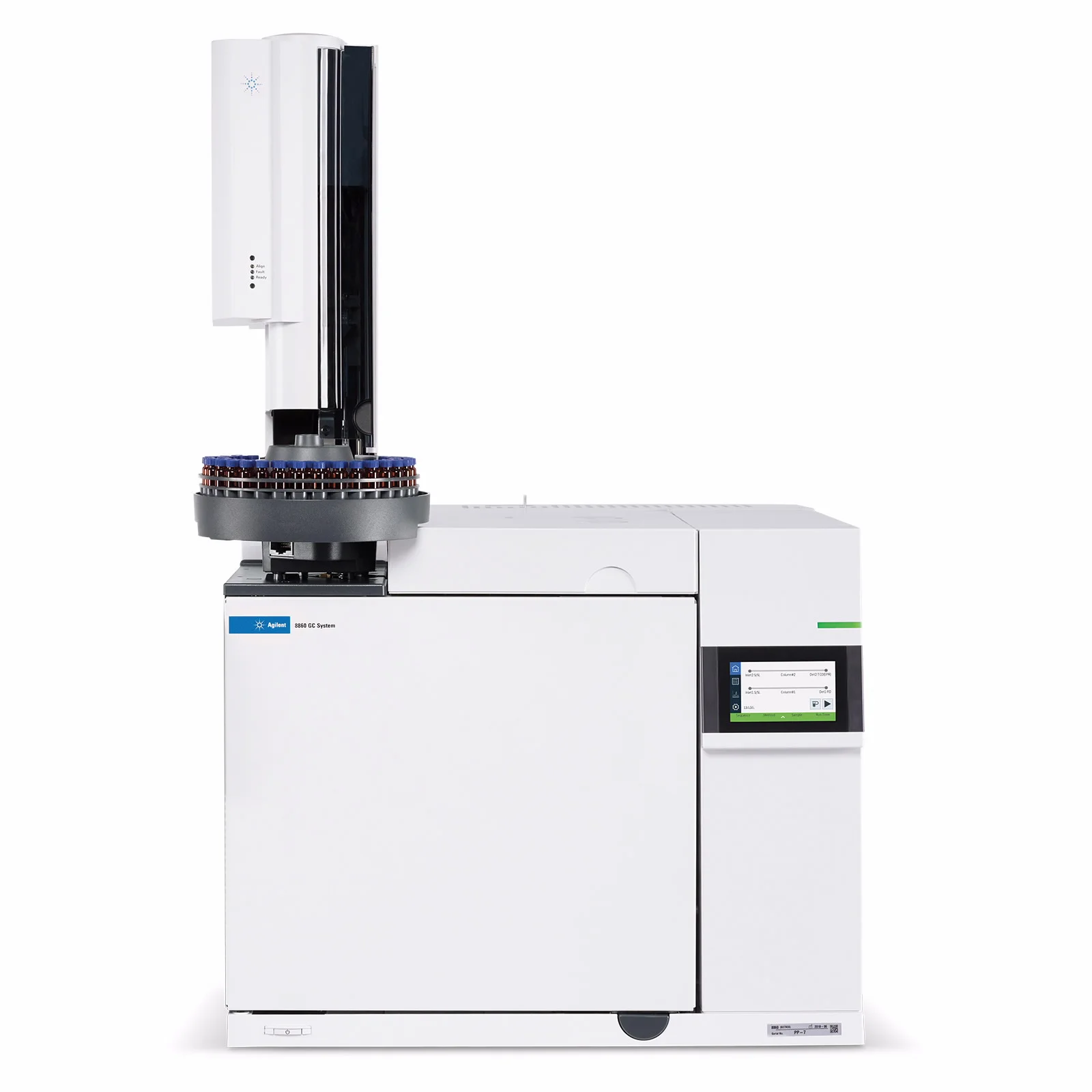

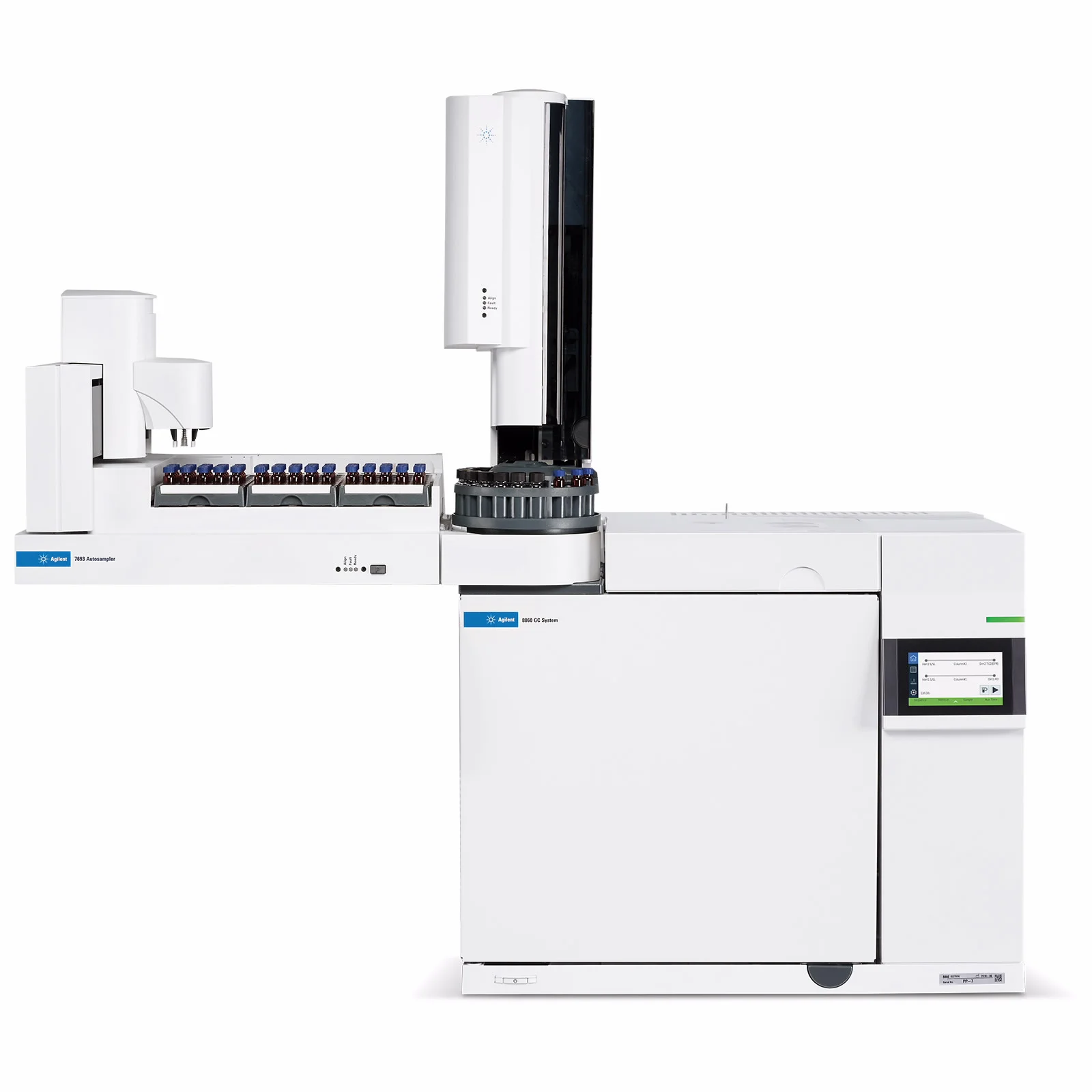

8860 Gas Chromatograph
The 8860 gas chromatography (GC) system is reliable and stable, establishing the standard for conventional gas chromatography analysis. The 8860 GC can be configured with up to two injection ports, three valves and three detectors (including a single quadrupole mass spectrometer) to meet the needs of a variety of conventional gas chromatography applications.
Built-in intelligence, an intuitive touch screen interface, and cost-effective options such as DA Express and Electronic Gas path regulation (EPR) make the 8860 GC ideal for taking conventional gas chromatography to new levels of analytical performance, reliability, and cost effectiveness.
Features:
1.Advanced instrument intelligence for GC diagnosis and maintenance helps lab managers better avoid unplanned outages and minimize misoperations
2.The color touch display allows access to gas chromatographic Settings, status information, configuration, and signal graphs to confirm that the analysis is performing as expected
3.The browser user interface is easily accessible from a PC or tablet for editing methods and sequences, accessing advanced intelligence functions, viewing instrument status, and running diagnostics from anywhere within reach of the laboratory network, even at home
4.The blank run assessment identifies and notifies users of issues such as baseline offset, unexpected peaks, and baseline increases
5.Detector evaluation automatically evaluates GC detector calibration samples and provides a summary report in the diagnostic section
6.The unique sixth-generation microflow EPC architecture offers significant improvements in reliability and service life compared to the previous generation of Agilent gas chromatography designs, as well as other brand gas chromatography designs, resistant to gaseous pollutants such as particles, water vapor and oils
7.The use of full electronic gas path control (EPC) on all injection ports and detectors ensures better retention time and peak area reproducibility, achieving more consistent analysis results and reducing duplication of work
8.Electronic gas circuit control (EPR) options provide significant advantages over manual gas circuit systems by enabling easy manual operation with a high precision digital display of pressure and flow (actual pressure and flow data can be recorded using Agilent OpenLab CDS software)
9.The 8860 EPC and EPR feature ambient temperature and pressure compensation for more stable retention time and detector baselines
10.Optional helium saving modules reduce the amount of helium used and associated costs
11.The optional Hydrogen Sensor Module Series 2 continuously monitors operating conditions with built-in intelligent diagnostics to detect hydrogen leaks early and shut off airflow, requiring calibration only every six months
12.Most Agilent OpenLab CDS software provides a retention time lock (RTL) capability to accurately match the retention time between any Agilent gas chromatography system using the same method and column
13.8860 Gas Chromatography's optional DA Express data analysis software simplifies data analysis, integration, reporting and calibration, especially for users who do not require extensive data processing or compliance software capabilities
14.The flame ionization detector (FID), which can automatically adjust the detection range, has a wide dynamic response range, improves quantitative accuracy, and greatly reduces the requirement for pretreatment of samples with very high or very low compound concentrations
15.The monofilaments thermal conductivity detector (TCD) provides a stable baseline without drift, eliminating the need for a separate reference gas path or manual adjustment of the potentiometer
16.Independent ACT labels provide information about the environmental impact of a product throughout its life cycle
2.The color touch display allows access to gas chromatographic Settings, status information, configuration, and signal graphs to confirm that the analysis is performing as expected
3.The browser user interface is easily accessible from a PC or tablet for editing methods and sequences, accessing advanced intelligence functions, viewing instrument status, and running diagnostics from anywhere within reach of the laboratory network, even at home
4.The blank run assessment identifies and notifies users of issues such as baseline offset, unexpected peaks, and baseline increases
5.Detector evaluation automatically evaluates GC detector calibration samples and provides a summary report in the diagnostic section
6.The unique sixth-generation microflow EPC architecture offers significant improvements in reliability and service life compared to the previous generation of Agilent gas chromatography designs, as well as other brand gas chromatography designs, resistant to gaseous pollutants such as particles, water vapor and oils
7.The use of full electronic gas path control (EPC) on all injection ports and detectors ensures better retention time and peak area reproducibility, achieving more consistent analysis results and reducing duplication of work
8.Electronic gas circuit control (EPR) options provide significant advantages over manual gas circuit systems by enabling easy manual operation with a high precision digital display of pressure and flow (actual pressure and flow data can be recorded using Agilent OpenLab CDS software)
9.The 8860 EPC and EPR feature ambient temperature and pressure compensation for more stable retention time and detector baselines
10.Optional helium saving modules reduce the amount of helium used and associated costs
11.The optional Hydrogen Sensor Module Series 2 continuously monitors operating conditions with built-in intelligent diagnostics to detect hydrogen leaks early and shut off airflow, requiring calibration only every six months
12.Most Agilent OpenLab CDS software provides a retention time lock (RTL) capability to accurately match the retention time between any Agilent gas chromatography system using the same method and column
13.8860 Gas Chromatography's optional DA Express data analysis software simplifies data analysis, integration, reporting and calibration, especially for users who do not require extensive data processing or compliance software capabilities
14.The flame ionization detector (FID), which can automatically adjust the detection range, has a wide dynamic response range, improves quantitative accuracy, and greatly reduces the requirement for pretreatment of samples with very high or very low compound concentrations
15.The monofilaments thermal conductivity detector (TCD) provides a stable baseline without drift, eliminating the need for a separate reference gas path or manual adjustment of the potentiometer
16.Independent ACT labels provide information about the environmental impact of a product throughout its life cycle
Product parameters | ||
Model | 8860 GC | |
GC/MS compatibility | Single quadrupole (stainless steel ion source) | |
Retention time reproducibility | <0.06% | |
Typical pressure control | 0.01 psi | |
Simultaneous injection of two towers | No | |
Dimensions (width x depth x height) | 58 cm x 54 cm x 49 cm | |
Peak area reproducibility | <2% RSD | |
Microplate flow control Technology | ||
Maximum heating rate | 75 °C/min | |
Column temperature tank cooling | From 300 °C to 50 °C in 5.7 minutes (room temperature 25 °C) | |
Detector | 3 | |
Gas chromatography Diagnostics - Leak detection | Standard (Manual cover Septum Purge) | |
Operating temperature range | Above room temperature +8 °C to 425 °C | |
Injection port | 2 | |
Valve | 3 | |
