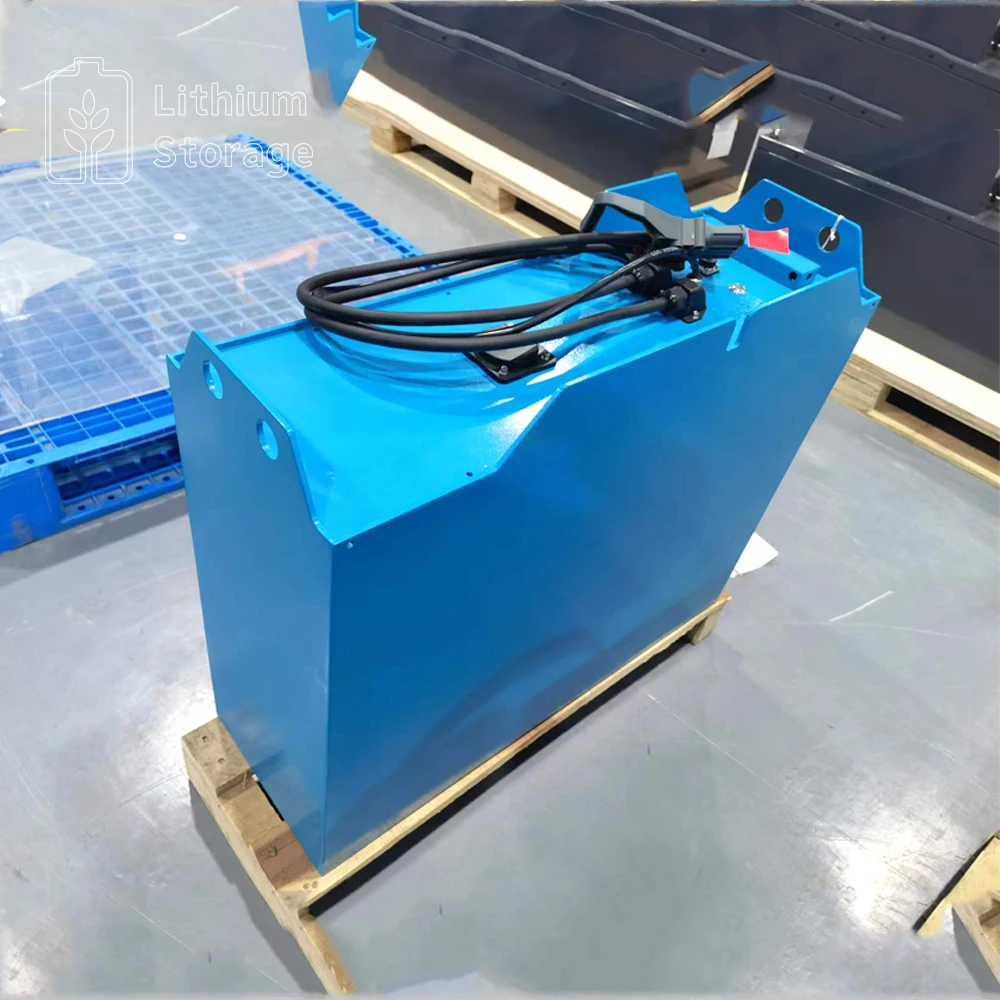

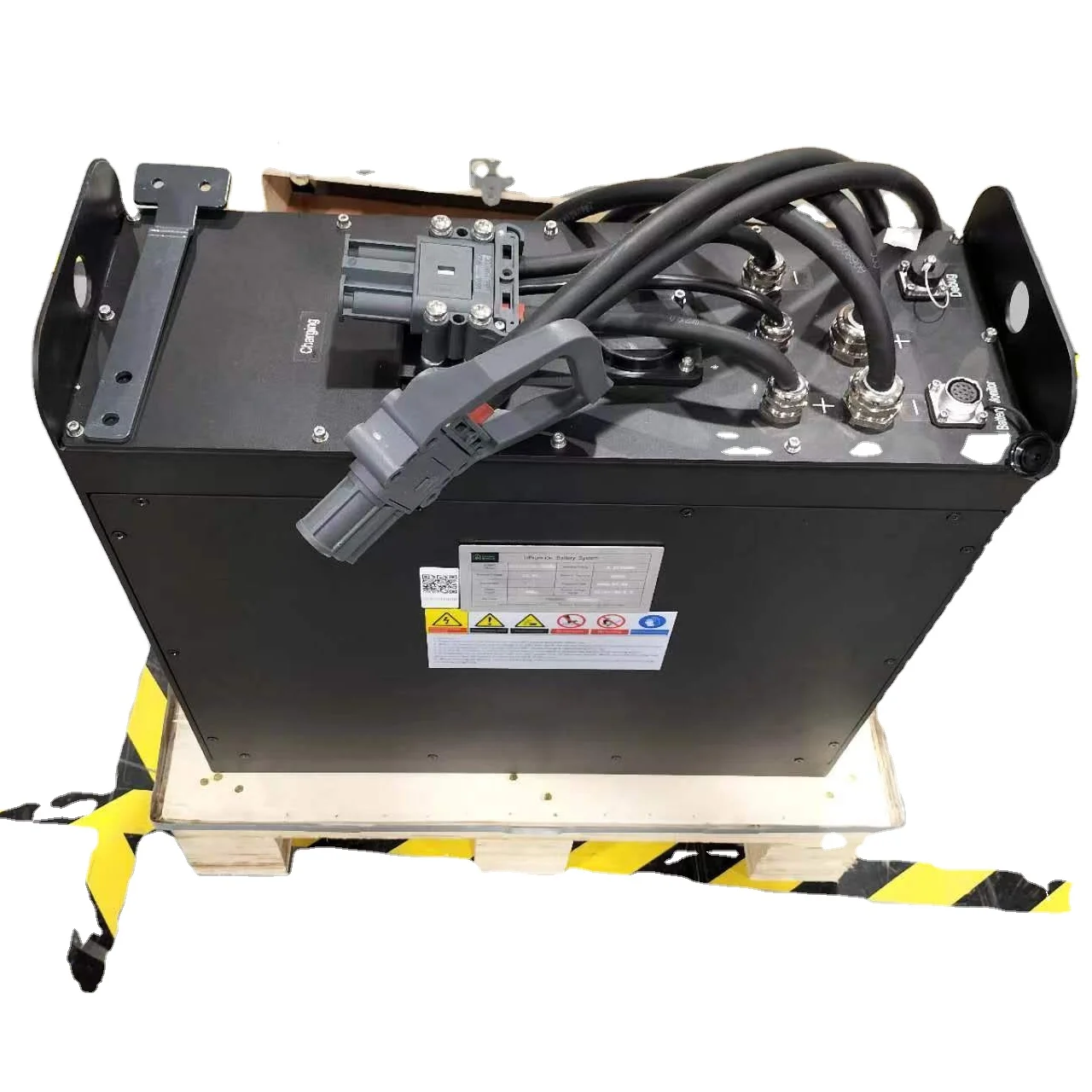

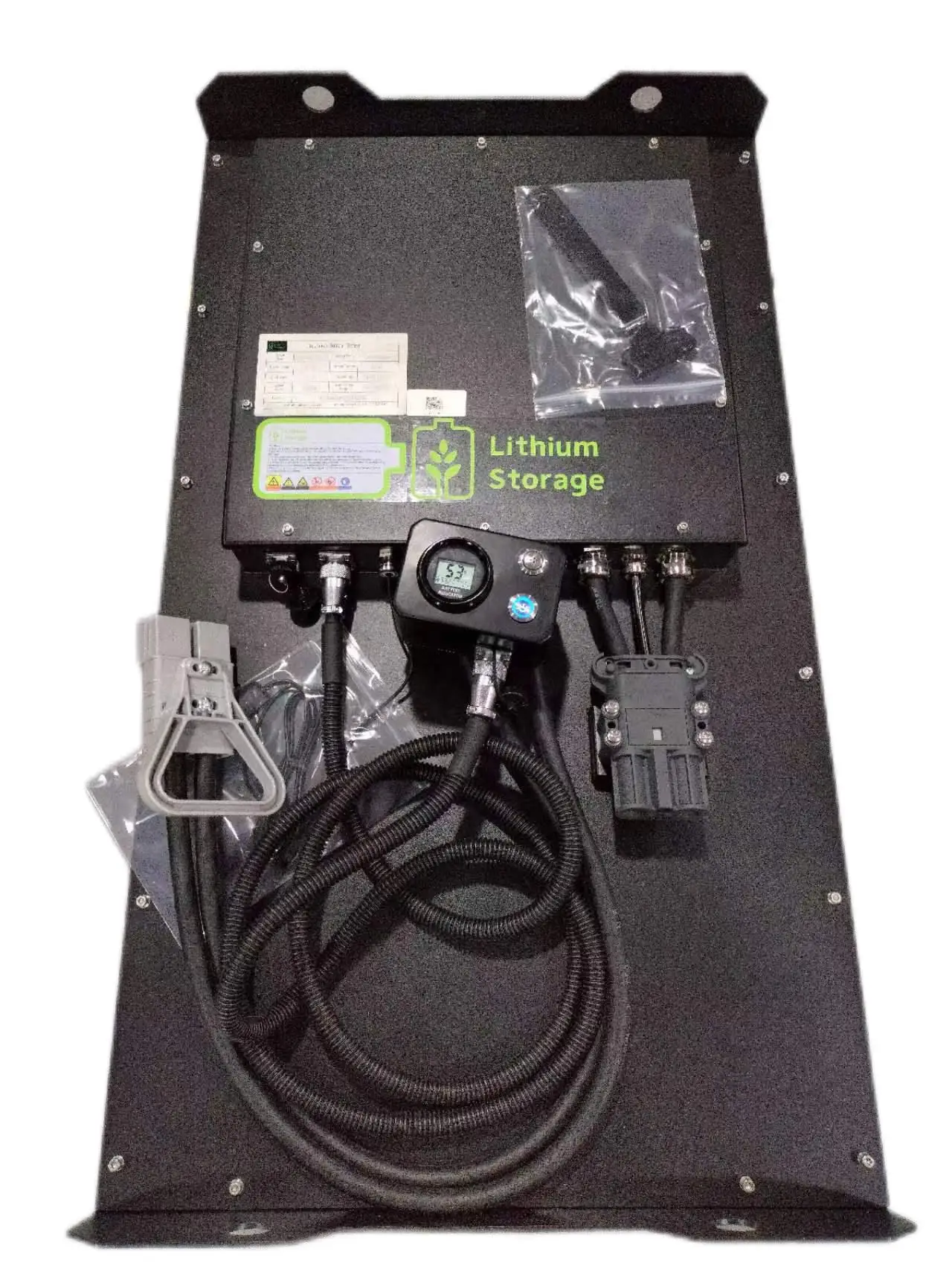

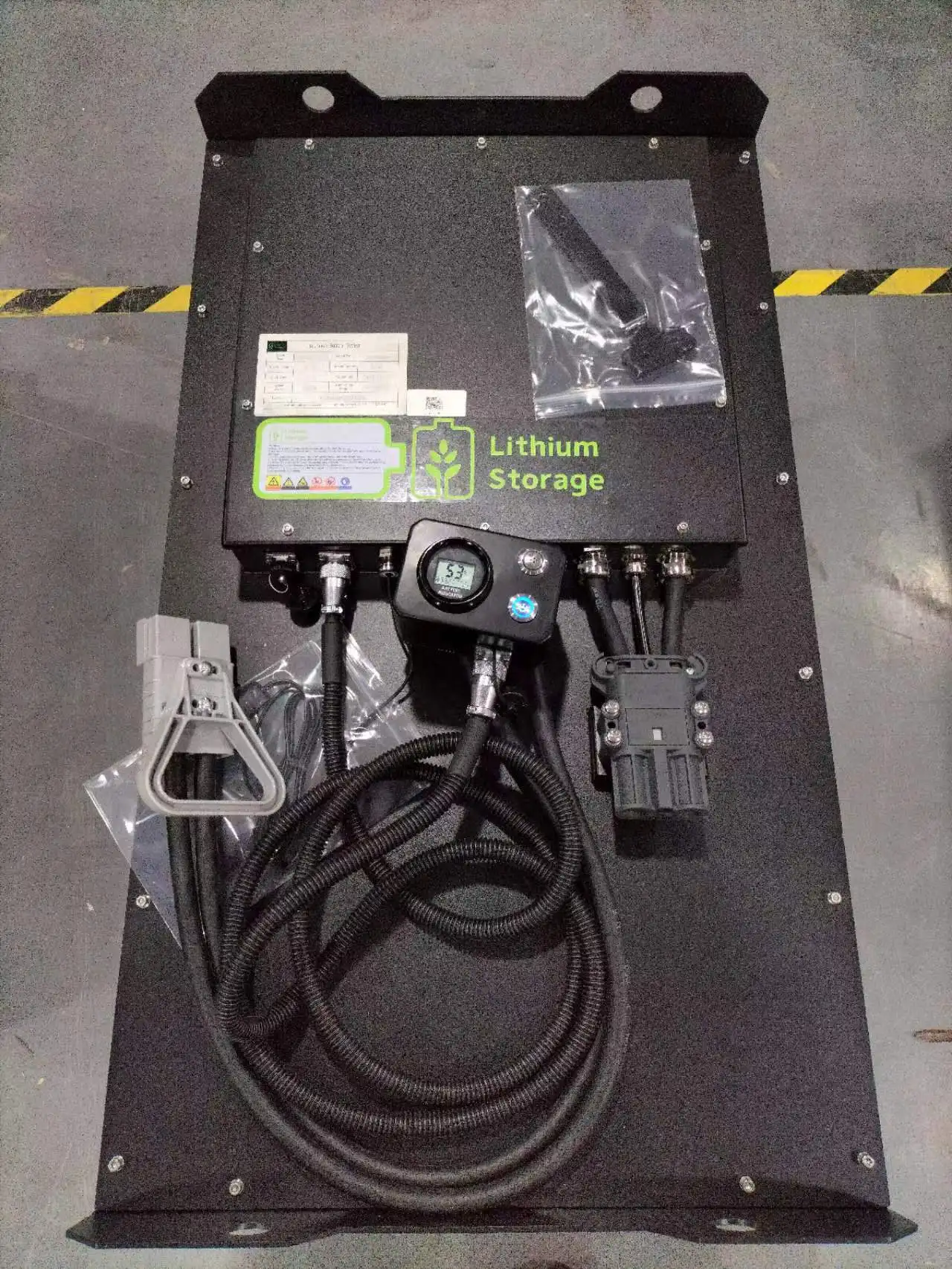

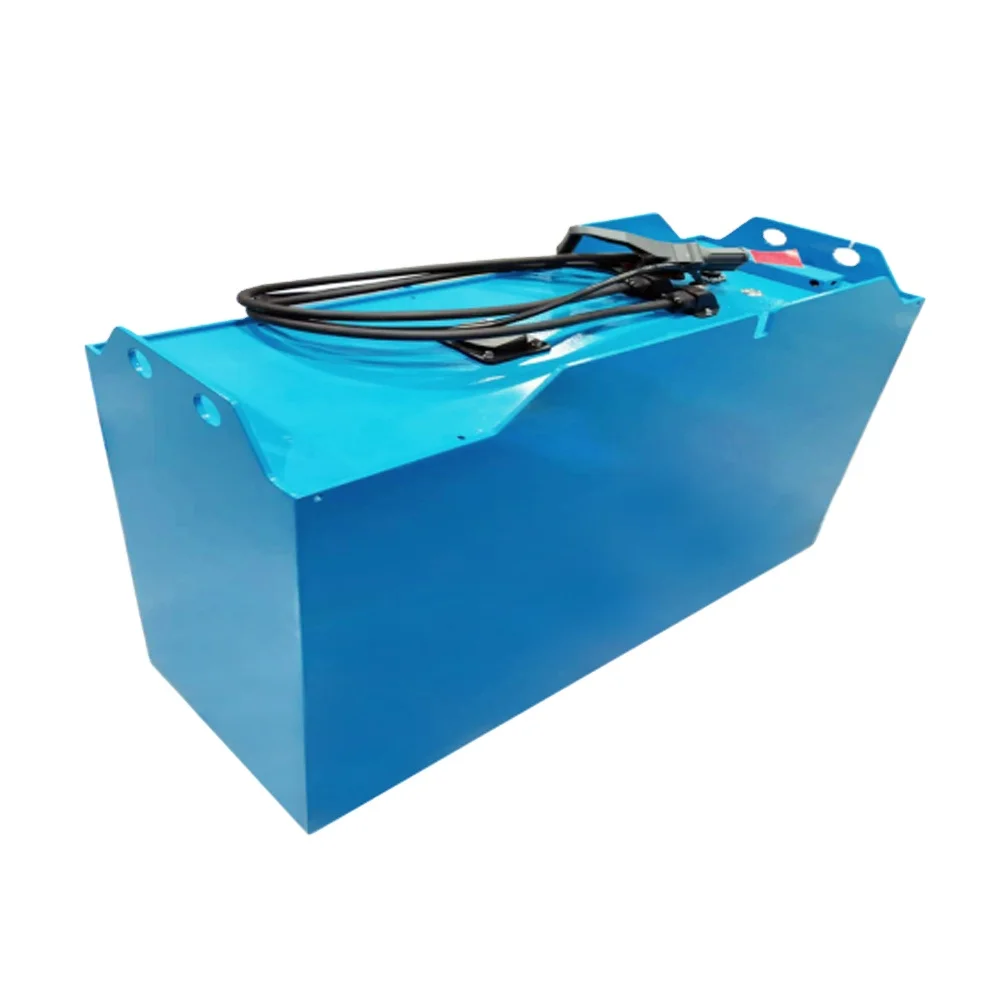

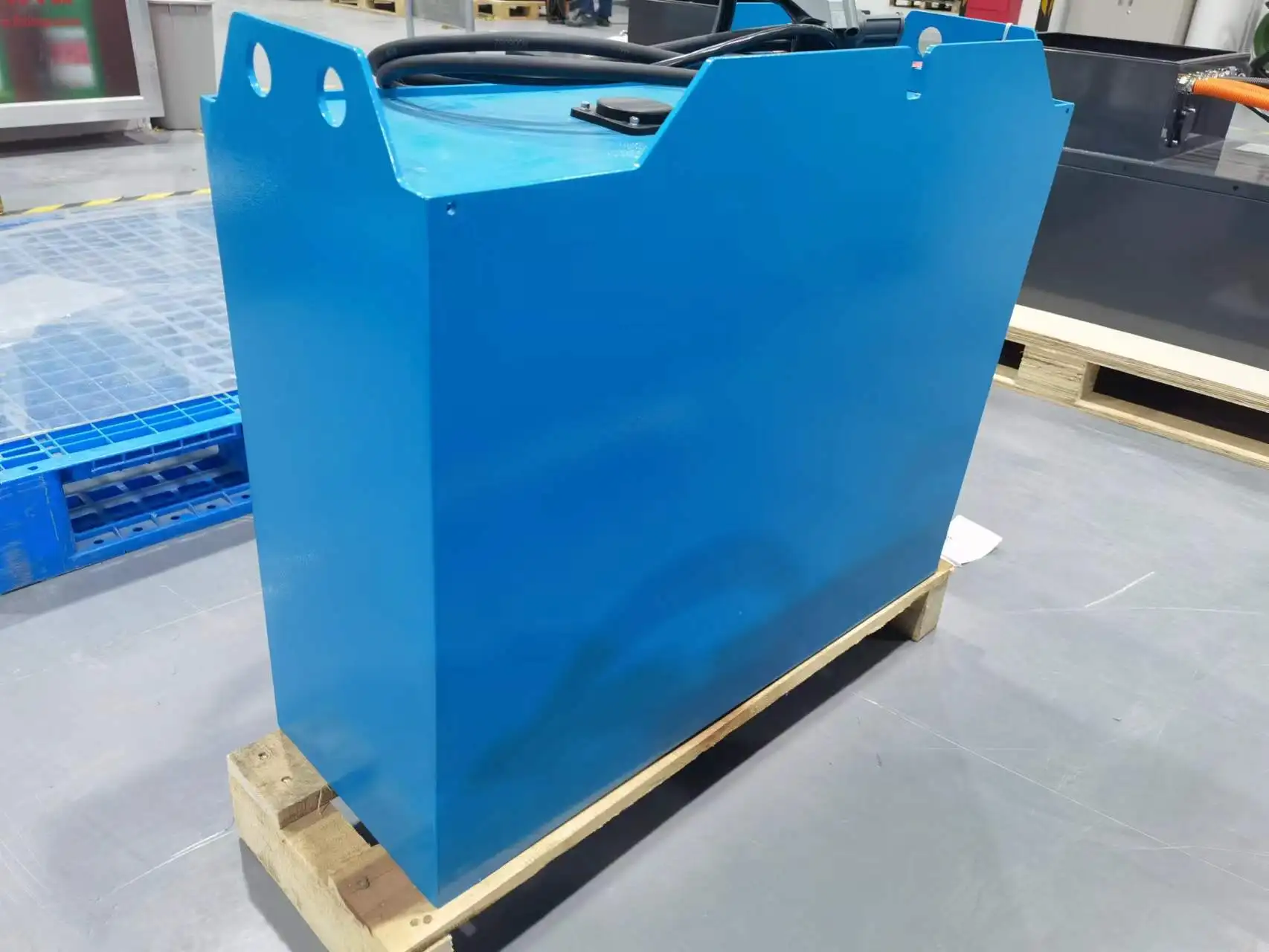

Smart FLT Series: Forklift Lithium Battery 25.6V206Ah | ||||
Items | Parameter | Note | ||
Nominal voltage(V) | 25.6 | |||
Operating voltage(V) Min | 20 | |||
Operating voltage(V) Max | 29.2 | |||
Group mode | 206Ah1P8S | |||
Nominal energy(KWh ) | 5.27 | 25±2℃ | ||
Weight(Kg) | ≈80kg | not additional weight | ||
Nominal capacity(Ah) | 206 | 25±2℃ | ||
Maximum continuous charge current(A) | 100 | 25±2℃ | ||
Maximum continuous discharge current(A) | 160 | 25±2℃ | ||
Maximum pulse discharge current(≤5s)(A) | 300 | 25±2℃ | ||
Shipping consistency(mv) | 30 | Voltage difference between cell <30mV | ||
Charging port | REMA160A(female) | customizable | ||
Discharging port | REMA160A(female) | customizable | ||

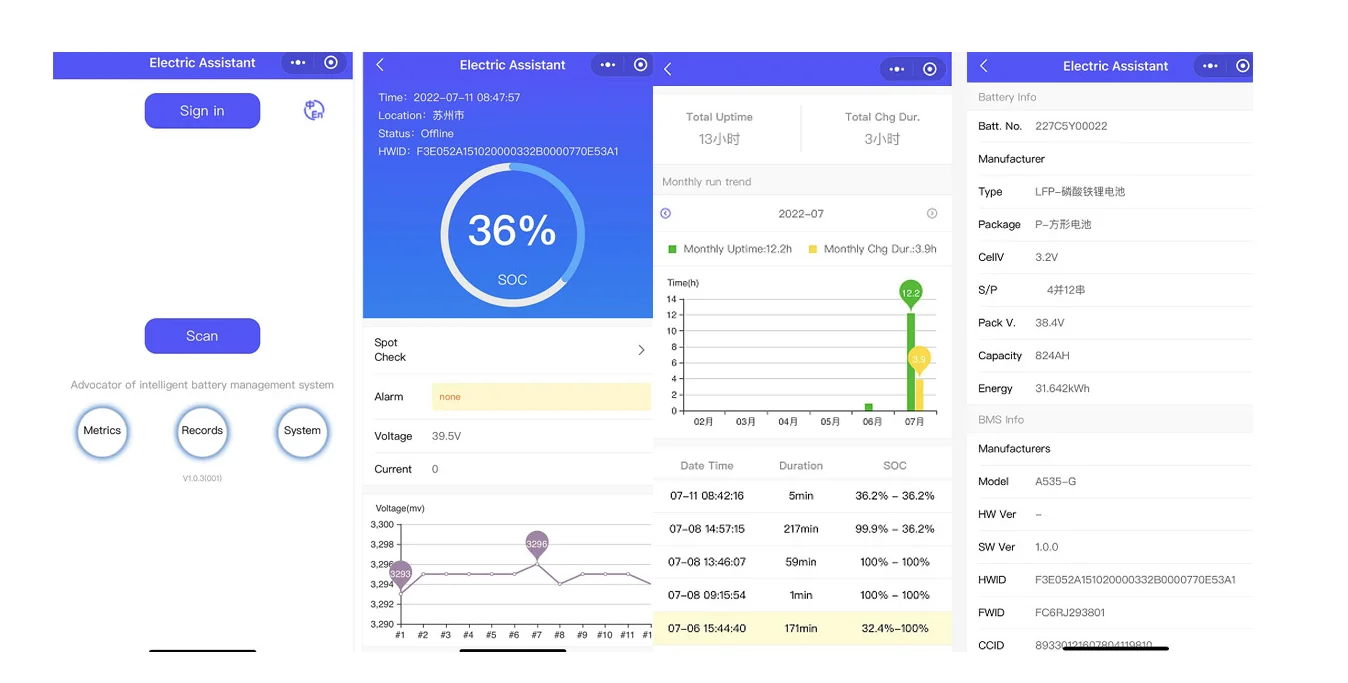

GPRS communication | 4G | optional | ||
SOC operating range(%) | 20~100 | |||
Insulation requirements(MΩ) | ≥20 | 500V DC,High voltage output to battery shell, at the normal temperature and humidity | ||
cooling method | Natural cooling | |||
Shipping capacity | ≈30% | SOC is consistency in the same batch | ||
Dimension L (mm) | 550 | For Crown WP3035-45 Outer box dimension can be costomizable according to the brand and model of forklifts | ||
Dimension W (mm) | 195 | |||
Dimension H (mm) | 520 | |||
Charger | Optional | |||





Charger Option |
24V 100A/ 24V 150A |
48V100A /48V150A / 48V200A |
80V200A / 80V300A |
Lithium Storage can provide lithium battery charger for matching charge communication with our forklift pack. |

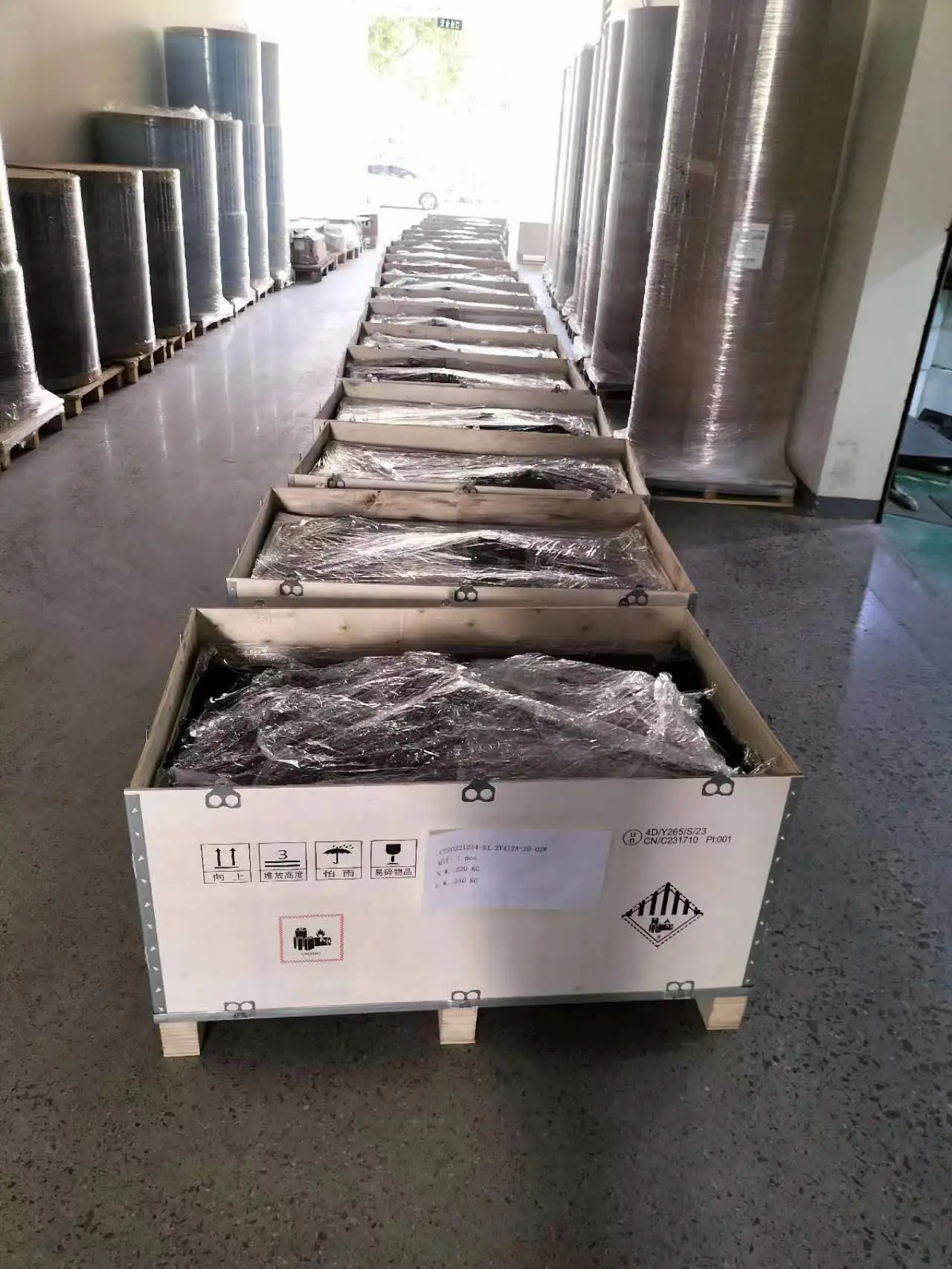

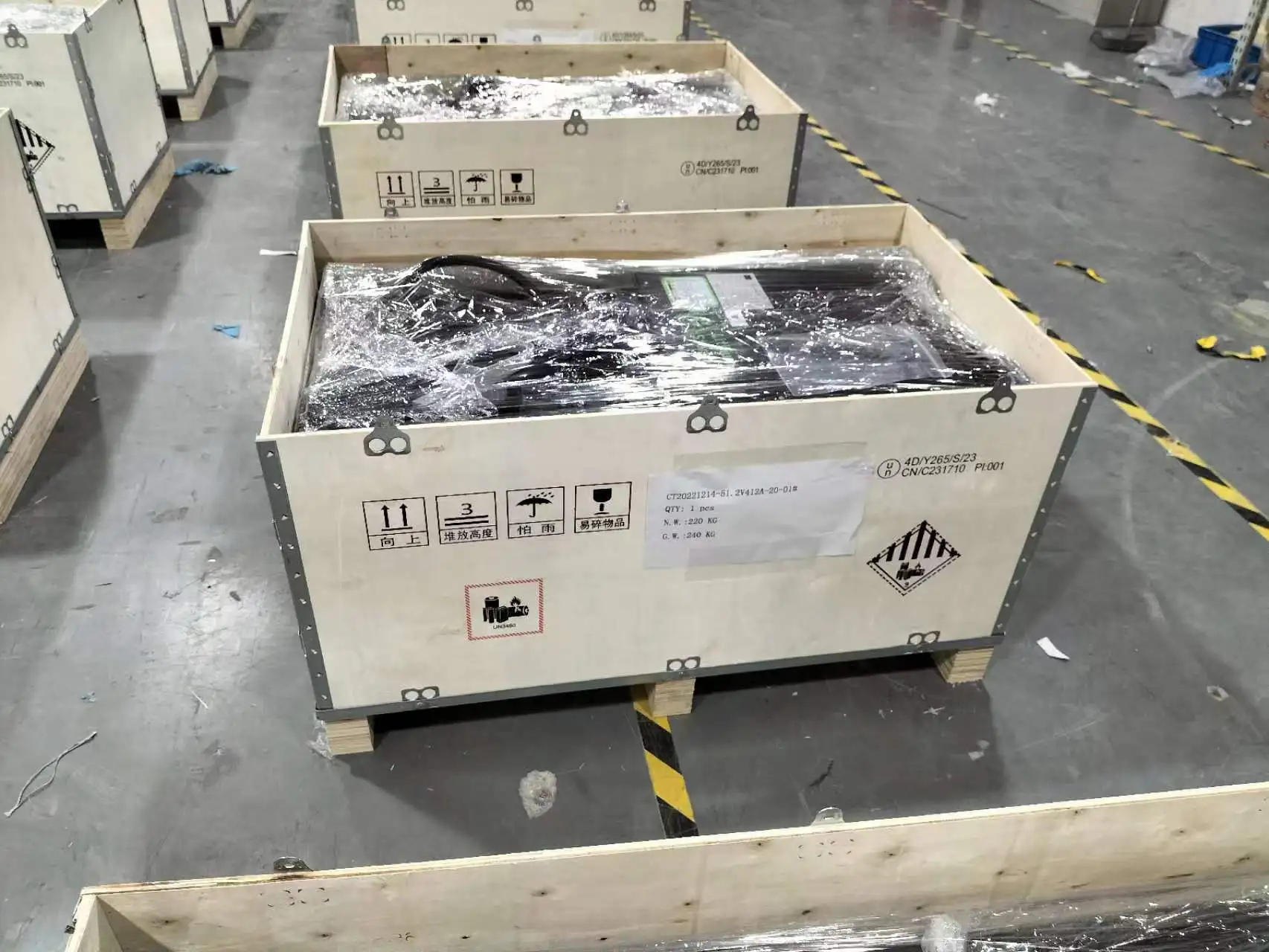

Shipping option | Delivery period | Transportation period |
Air shipment | 5-10 working days | 7-10 days |
Sea shipment | 5-10 working days | 30-35 days |
