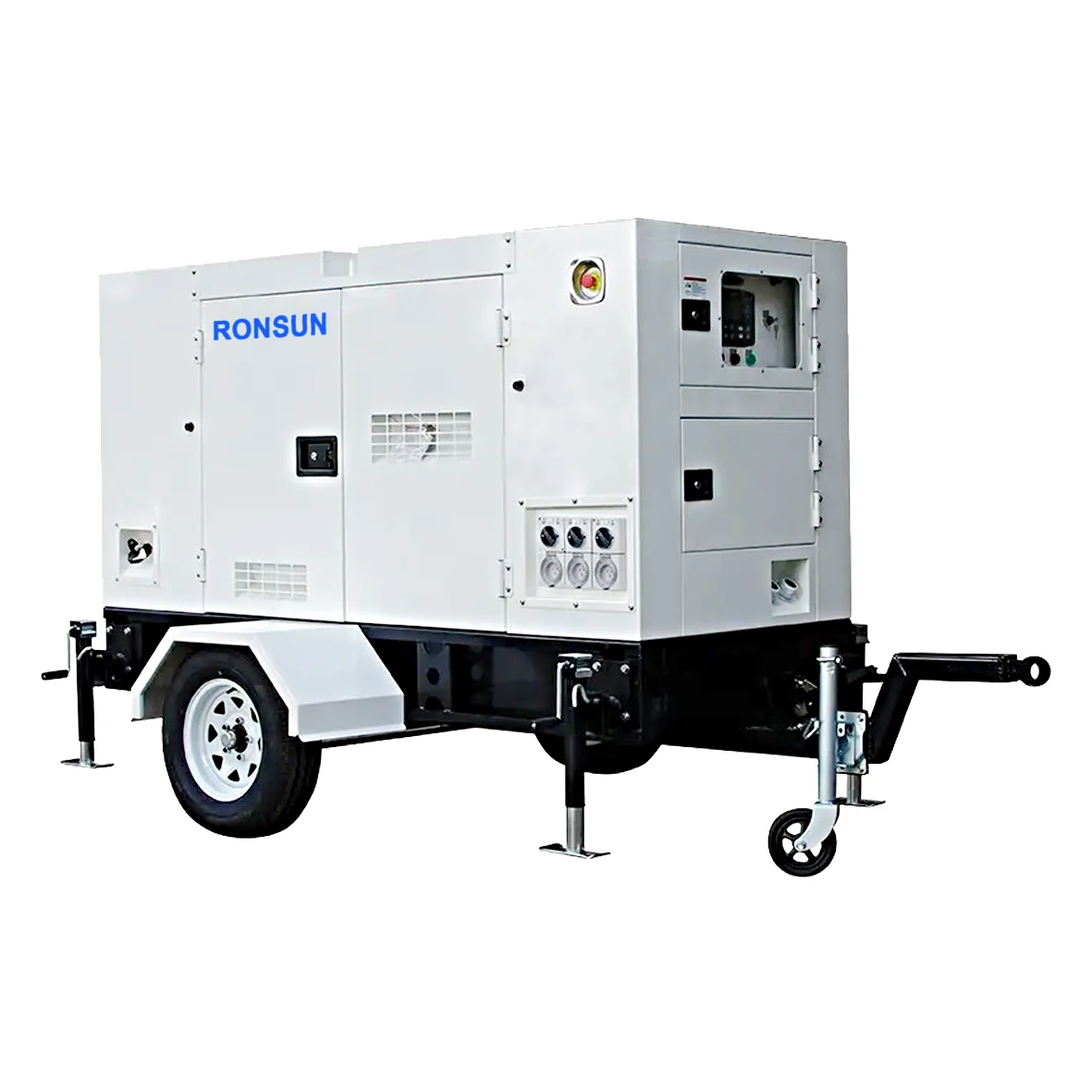

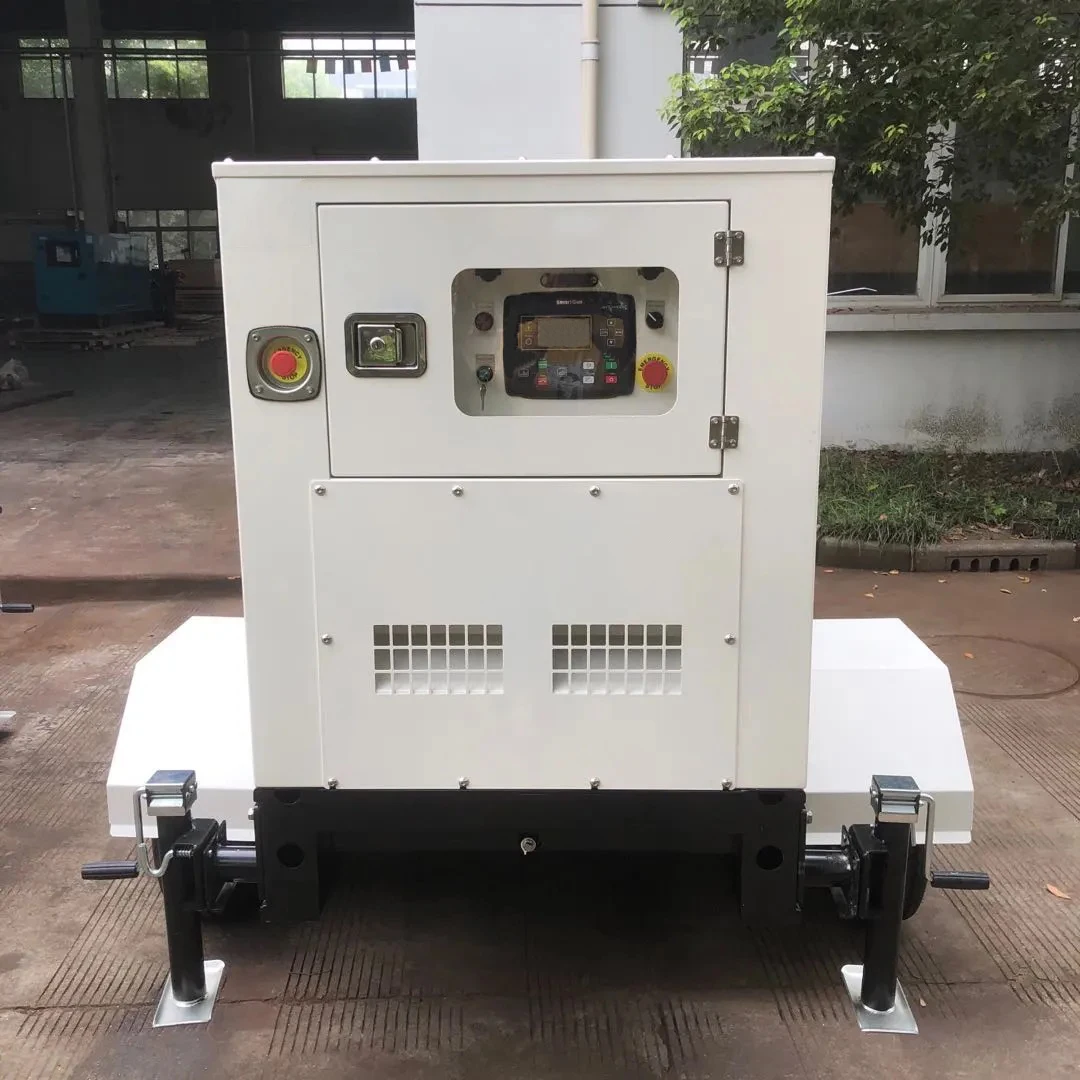

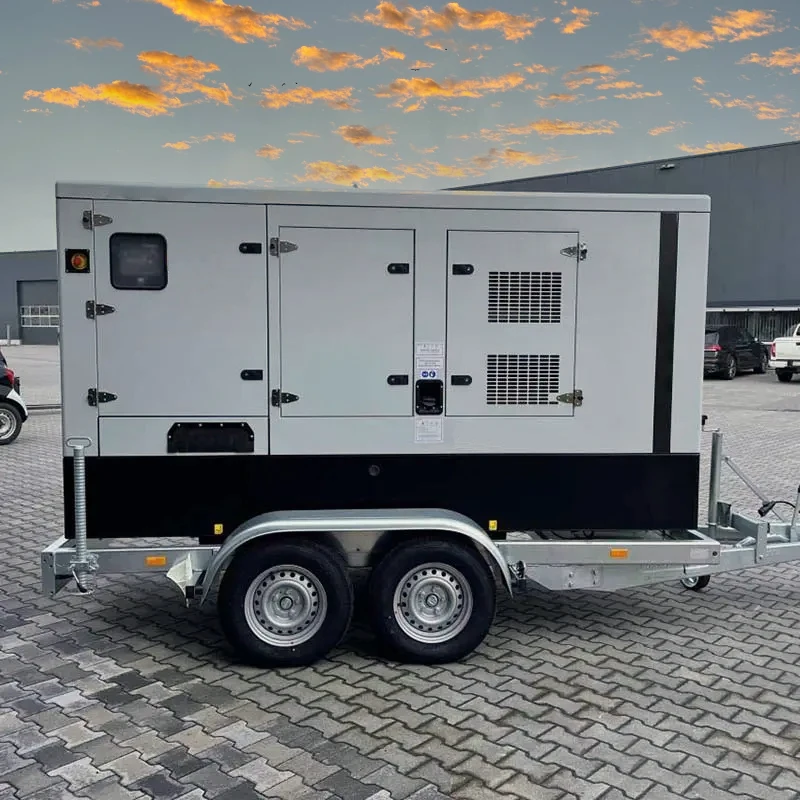

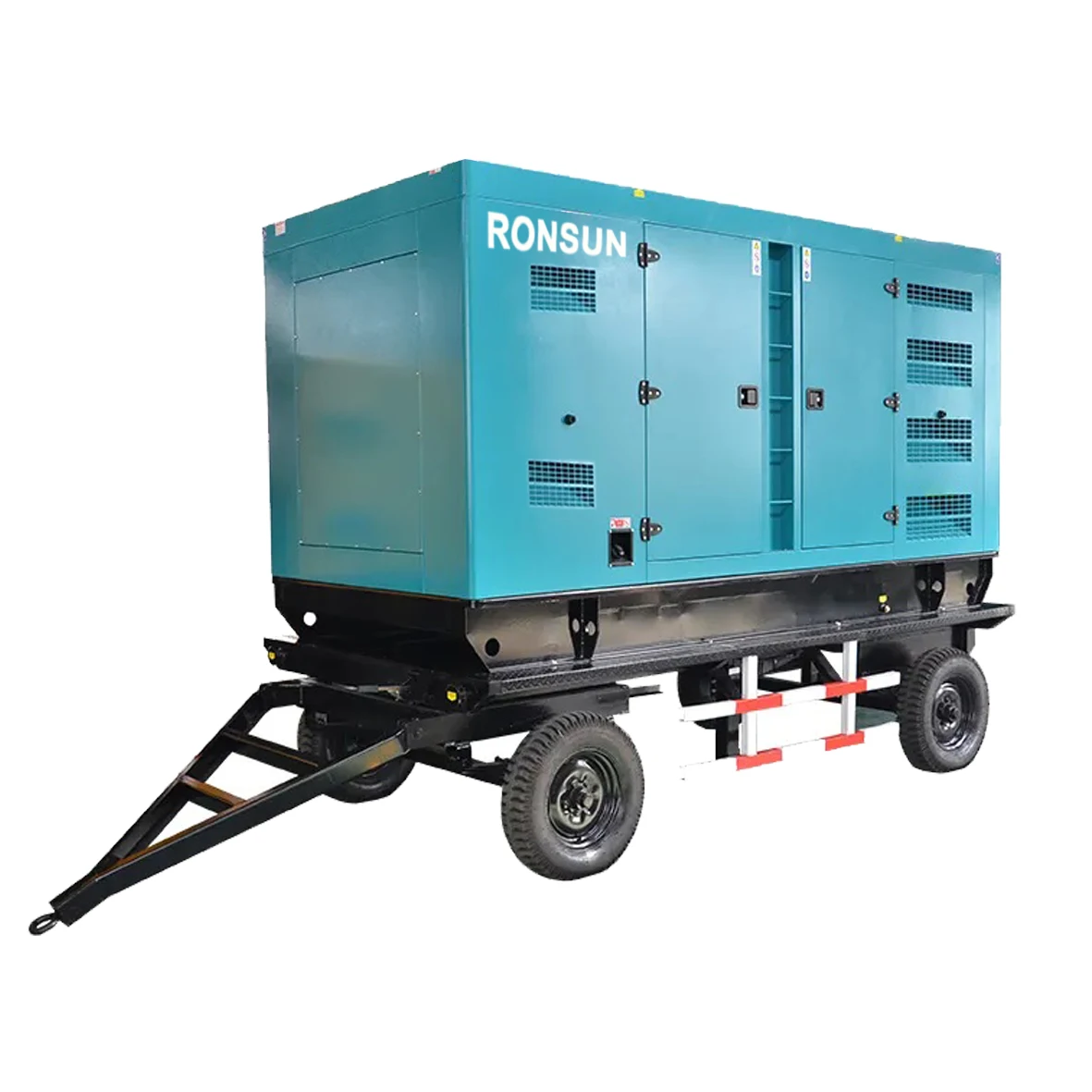

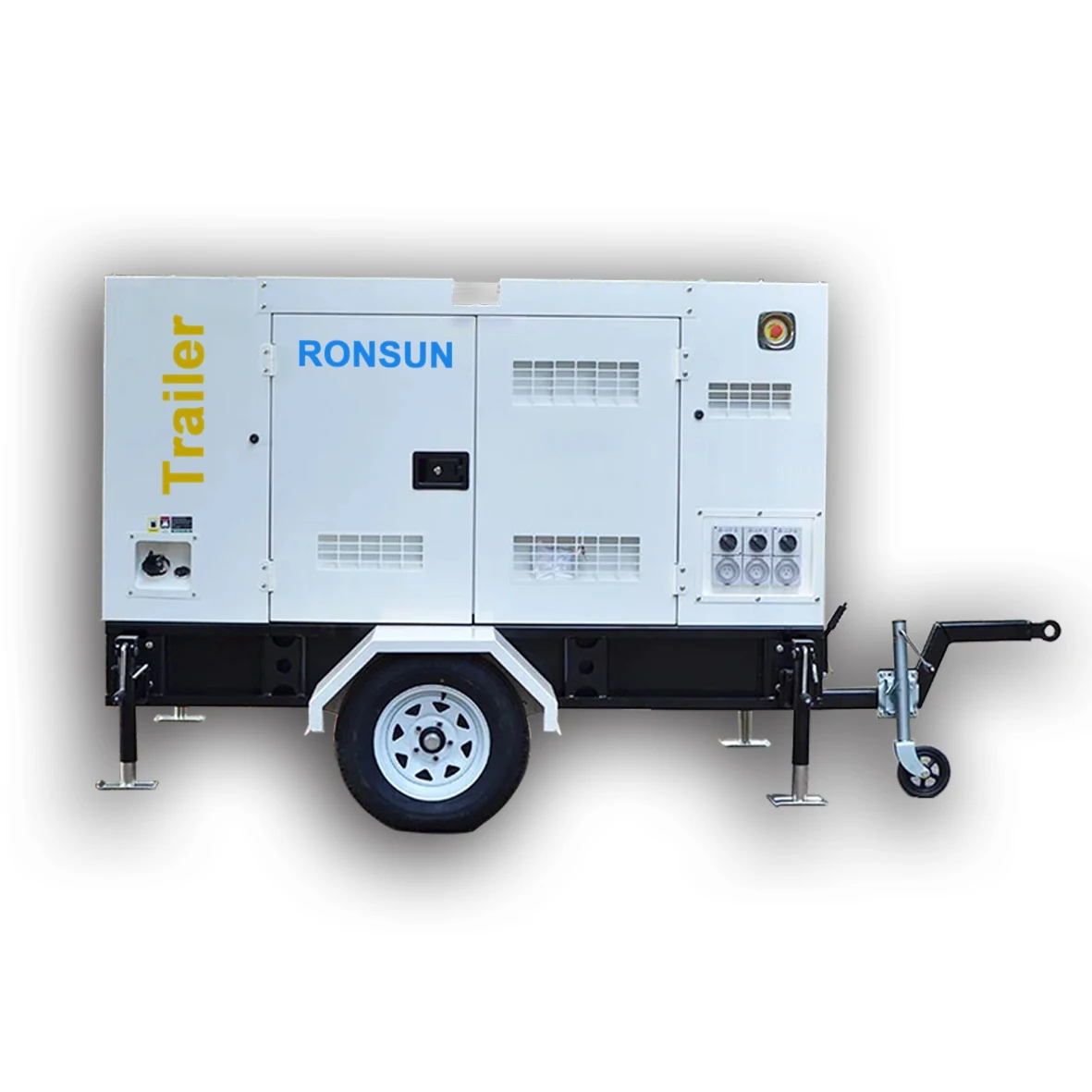

new product weichai diesel generator with trailer type portable diesel generators silent 30kva 30 kva 24kw 24 kw
- Category: >>>
- Supplier: Weifang Ronsun Power Technology Co. Ltd.
Share on (1600828940249):
Product Overview
Description
Certification & Partner
_________________________________________________________________________________________________________________

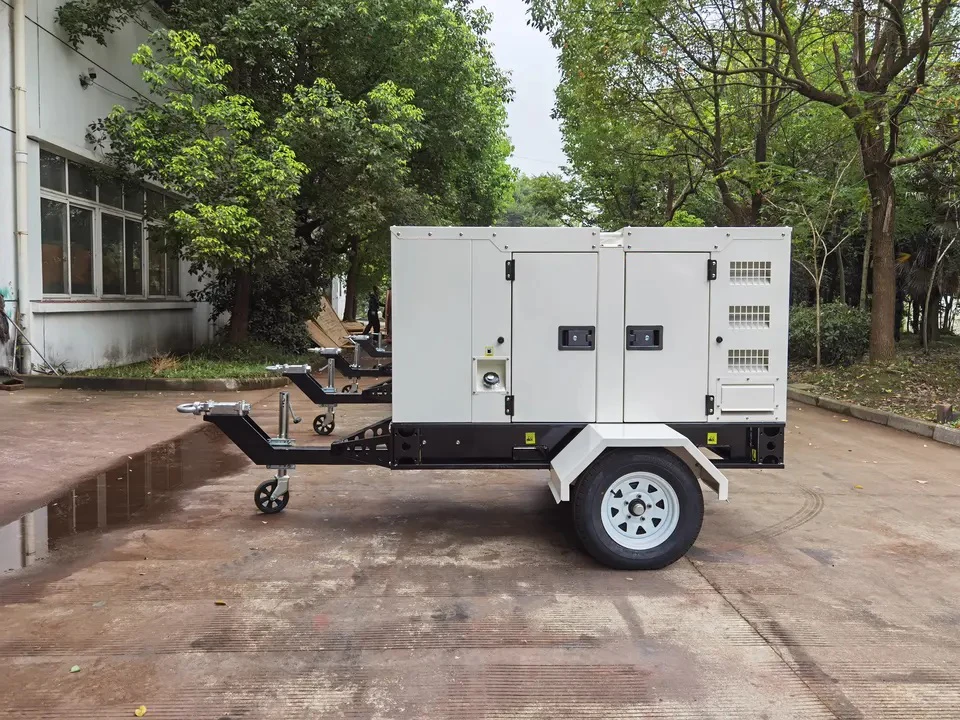

Specifications of Weichai 24kW/30kVA Diesel Generator Trailer
>>> Gen-set
Model | TW24GFS |
Rated Power | 24kW/30kVA |
Standby Power | 26.4kW/33kVA |
Rated Voltage | 230/400V |
Rated Current | 43.2A |
Rated Speed | 1500 RPM |
Rated Frequency | 50Hz |
Size & Weight (Silent Type) | 2100×950×1750mm 1050kg |
>>> Diesel Engine
Engine Brand | WEICHAI |
Engine Model | WP2.3D33E200 |
Prime Power (kW) | 30 |
Standby Power (kW) | 33 |
Type | Water-cooled, 4-stroke, Direct Injection, Wet Cylinder Liner |
Rated Speed (RPM) | 1500 |
Intake Type | Turbocharged |
Number of Cylinder | 4 Cylinders, in Line |
Bore×Stroke (mm) | 89×92 |
Compression Ratio | 17:1 |
Displacement (L) | 2.29 |
Lub Oil Capacity (L) | 5.3 |
Rated Fuel Consumption | ≤4.7L/h @100%Power |
Starting Method | DC 12V Electric Motor |
Governing Type | Mechanical Governor |
Dimension (L×W×H) | 872×694×763 mm |
Dry Weight (kg) | 280 |
>>> Alternator
Brand | RONSUN |
Model | LSA 24 |
Rated Power | 24kW/30kVA |
Voltage Regulation | ≤±1 |
Excitation Type | Brushless Self-excited |
Insulation Class | H |
>>> Control System
Controller Brand | Deepsea |
Model | DSE6120 MKII |
Main Protection Function | Fail to Start |
Low Oil Pressure, Low Voltage, Low Frequency | |
High Speed, High Voltage, High Temperature | |
Over Frequency | |
Main Display Parameter | L-L&L-N Voltage, Load Current, Load Power |
Frequency, Speed | |
Oil Pressure, Coolant Temperature | |
Running Hours, Event logs |
>>> Pictures

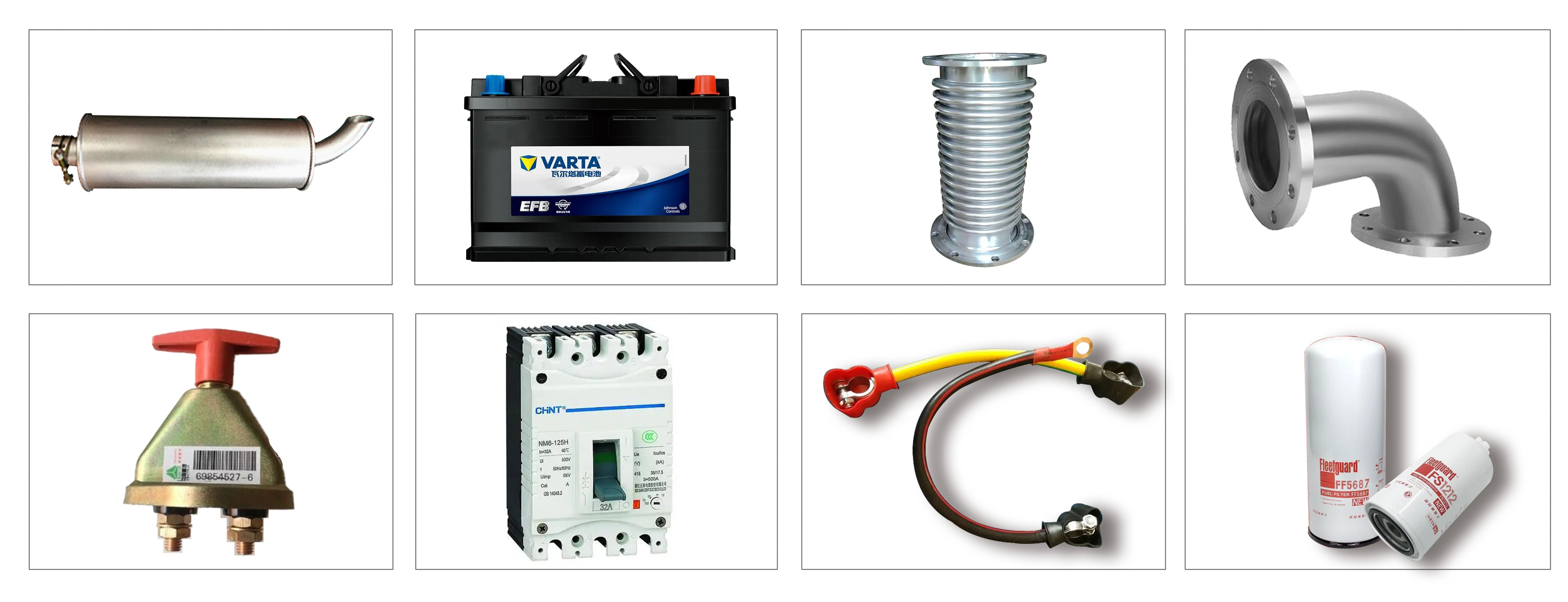

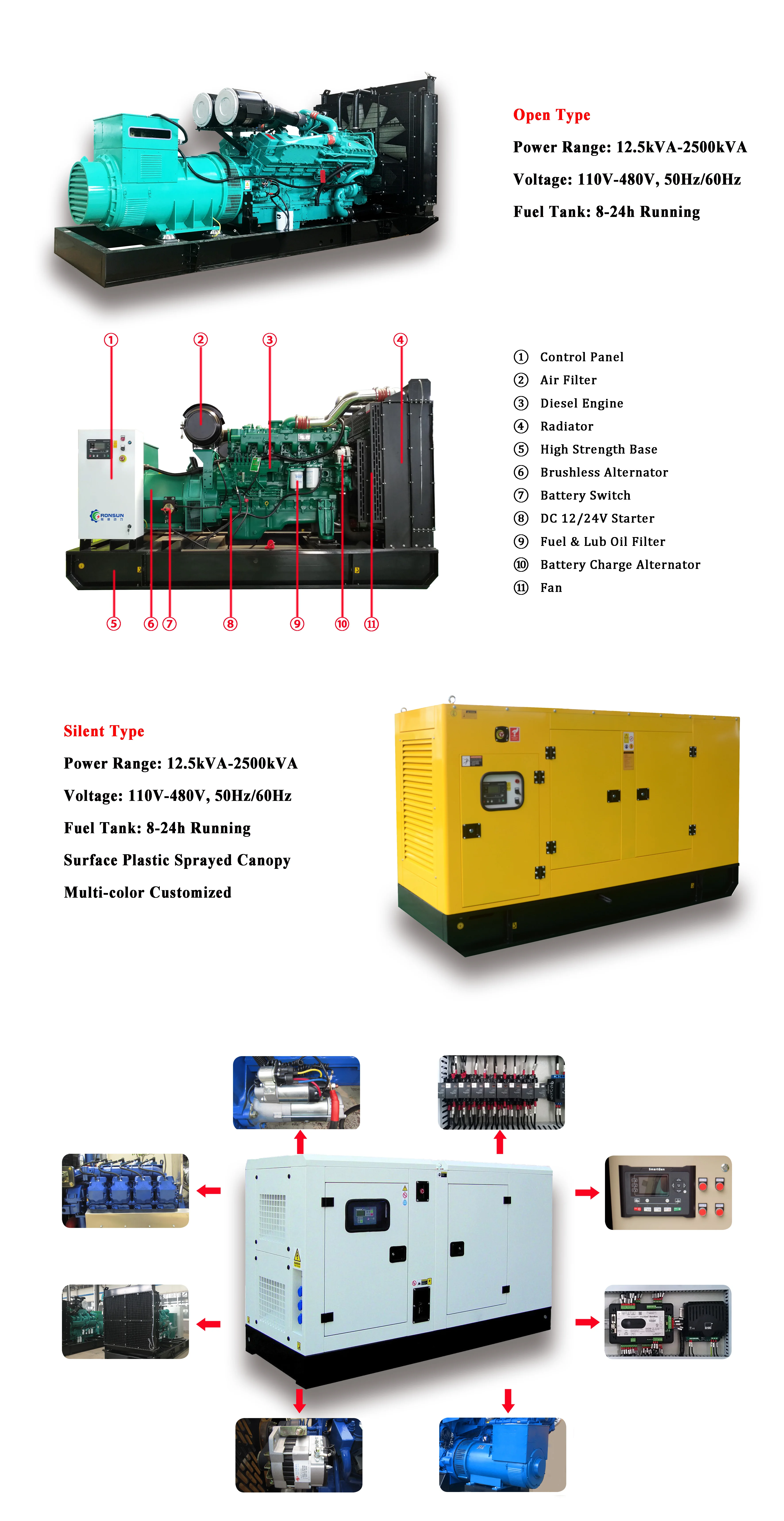

Standard Supply Scope
_____________________________________________________________________________________________________________________________________

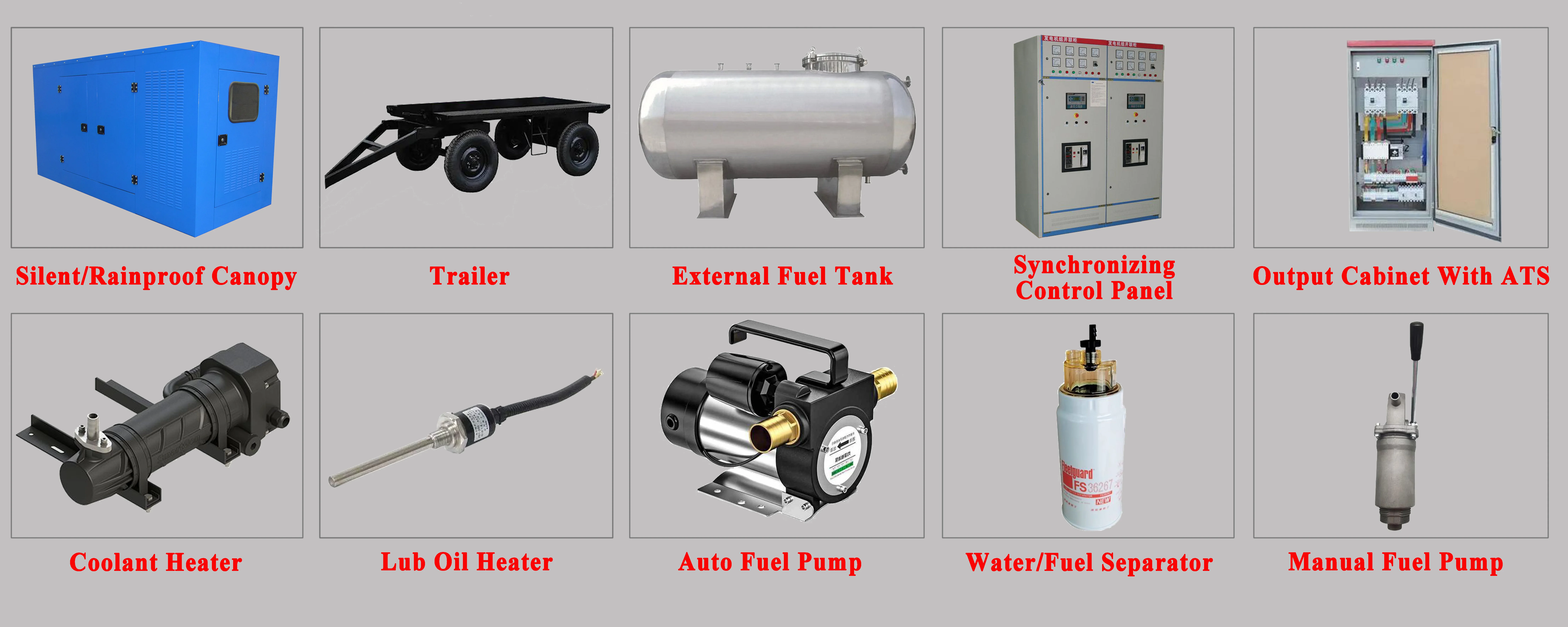

Optional Supply Scope
_________________________________________________________________________________________________________________

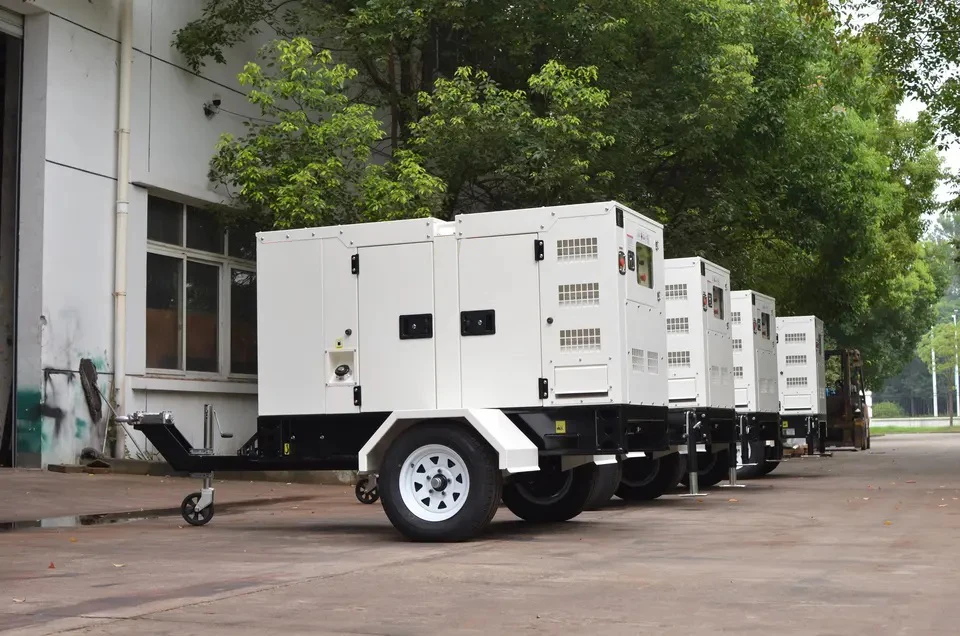

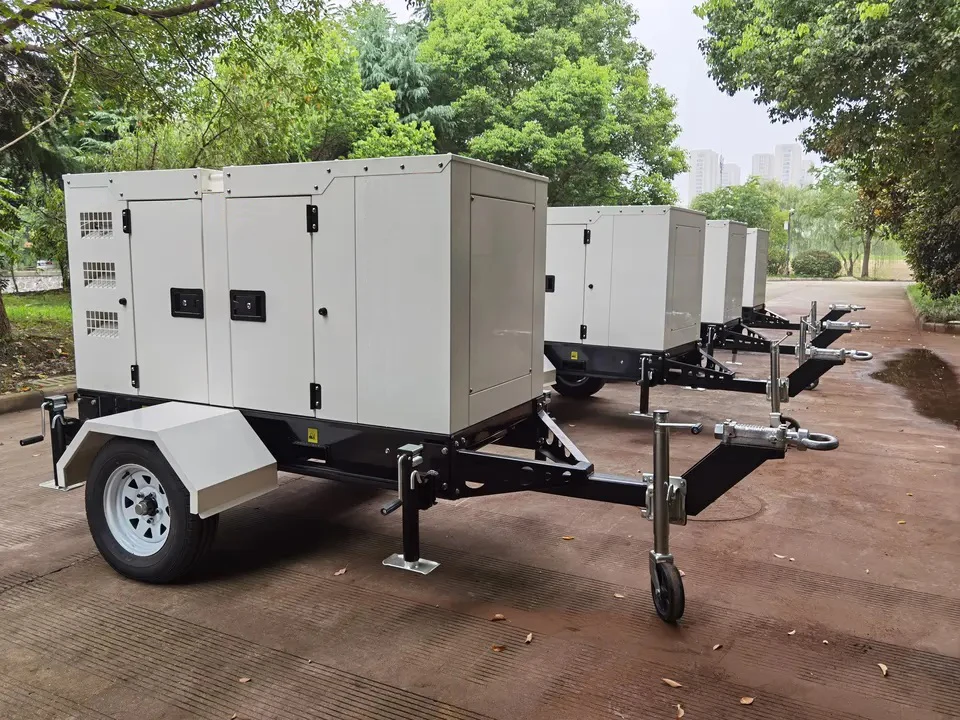

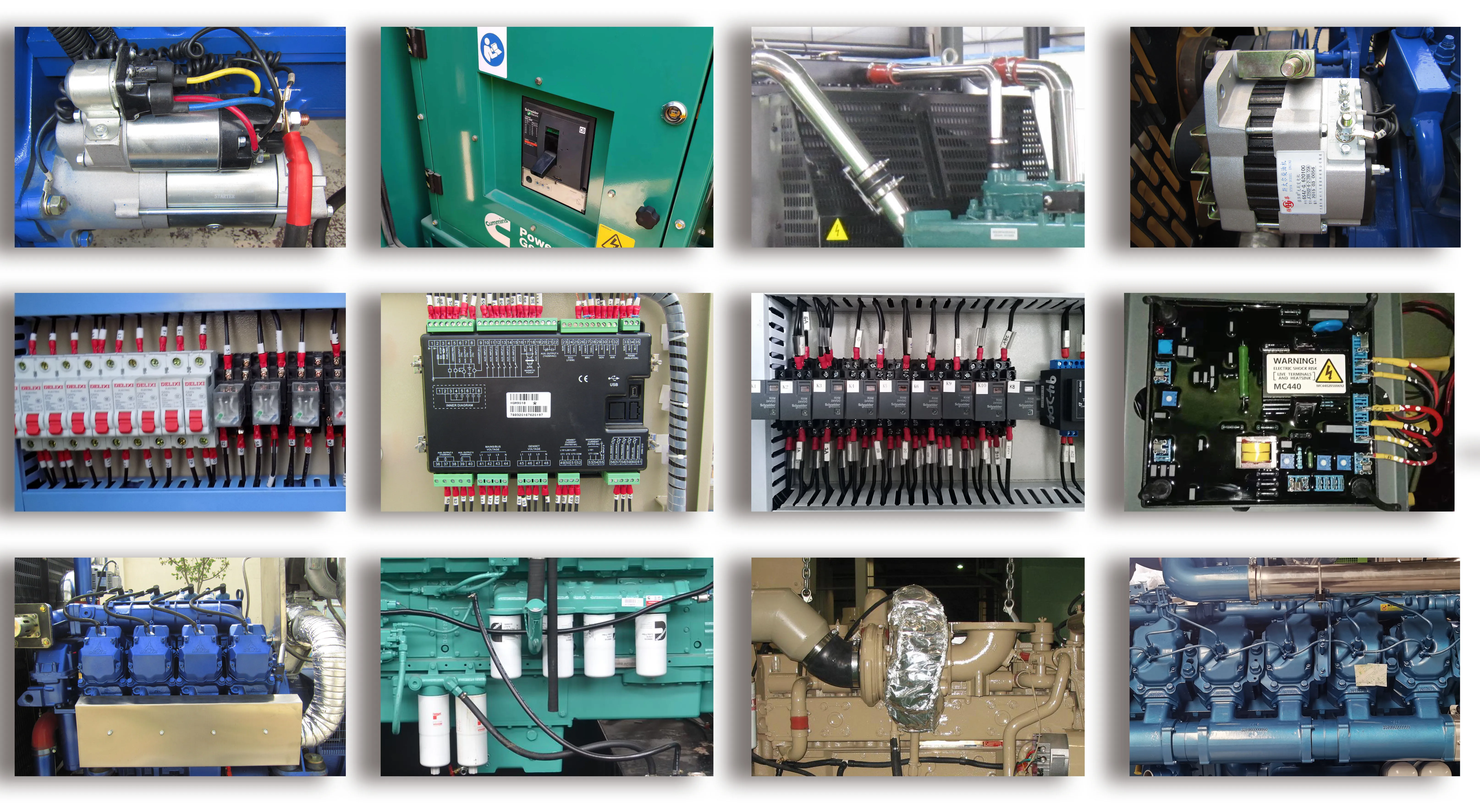

Photo Of Details
_________________________________________________________________________________________________________________
Exhibition & Workshop
_________________________________________________________________________________________________________________
Why Us?
_______________________________________________________________________________________________________________________________________
<<<<Weifang RONSUN Power Technology Co., Ltd.>>>>
1. RONSUN located in Weifang City, it is famous as "Power City of China" and “Kate Capital of the World”.
2. RONSUN have almost 10 years experience in R&D and manufacturing of Diesel and Gas generator sets.
3. RONSUN have a professional after-sales service team with more than 15 technicians.
4. RONSUN factory covers an area of 14,000 square meters. There are 122 skilled workers.
5. RONSUN is maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures like
CUMMINS, Perkins, Weichai, Yuchai, Deutz, Stamford, Leroy Somer, NENJO etc.

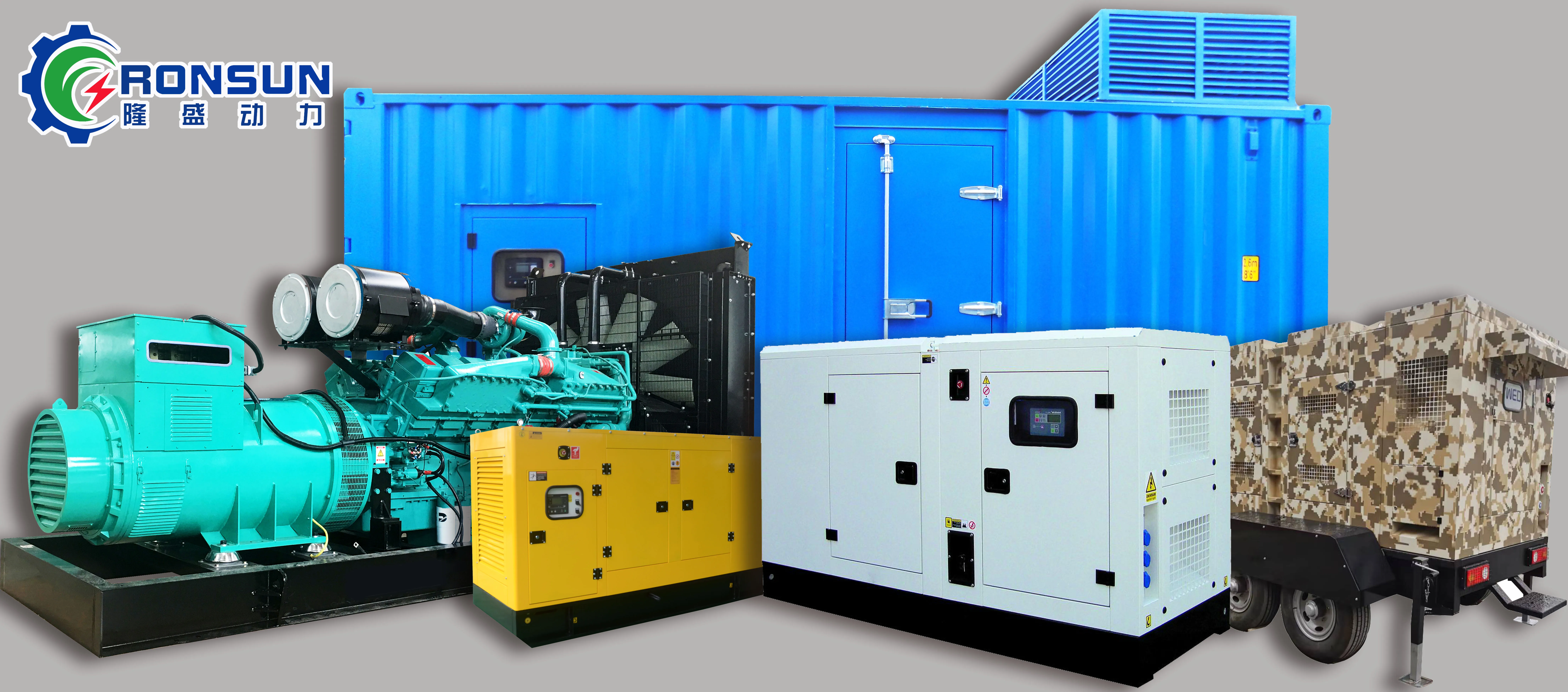

6. We have wide power range products from 10kVA to 3750kVA for diesel generator sets and from 12.5kVA to 1250kVA
for gas generator sets.
7. Multi-types for choose like Rainproof/Soundproof type, container type, trailer type, light tower generator sets.
Regarding to the electrical control systems, it covers Auto control panel, Synchronization panels, ATS etc.
Package and Delivery
_________________________________________________________________________________________________________________
RONSUN Promise
_______________________________________________________________________________________________________________________
1. All RONSUN generator sets will be strickly tested before delivery, only qualified products are allowed to be delivered to
clients.
2. Warranty of all our generator sets is 12 months from BL date or 1,000 running hours, whichever comes first.
3. Service and parts are available from RONSN distributors in your location. RONSUN also provide globle service and spare
2. Warranty of all our generator sets is 12 months from BL date or 1,000 running hours, whichever comes first.
3. Service and parts are available from RONSN distributors in your location. RONSUN also provide globle service and spare
parts supply.
4.All the products from RONSUN is CE marked.
4.All the products from RONSUN is CE marked.
FAQ
__________________________________________________________________________________________________________________________________________
Q1: Are you factory or manufacturer?
A: We are factory.
Q2: How can you guarantee quality?
A: All our gen-sets were tested according to national standards before delivery. All our gen-sets were certificated by CE
Q5: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, Credit Card, Western Union, Cash;
Language Spoken: English, Chinese, Spanish, Russian, Burmase.
A: We are factory.
Q2: How can you guarantee quality?
A: All our gen-sets were tested according to national standards before delivery. All our gen-sets were certificated by CE
and ISO.
Q3: How long is your delivery time?
Q3: How long is your delivery time?
A: Around 2-6 weeks.
Q4: Do you offer OEM service?
A: Yes.
Q4: Do you offer OEM service?
A: Yes.
Q5: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, Credit Card, Western Union, Cash;
Language Spoken: English, Chinese, Spanish, Russian, Burmase.
Q6: What is your warranty peroid?
A: It's 12 Months from BL or 1500 running hours, whichever comes first.
If You Are Interested In RONSUN, Pls Contace Us Freely ,Welcome To Visit Us!!
