M15 Bfg Plate Heat Exchanger Gasket For Refrigeration Replace Gea Vt10 Heat Exchanger Gasket And Plate
- Category: >>>
- Supplier: Shandong State Trillion Import & Export Group Co. Ltd.
Share on (1600828962170):
Product Overview
Description
Product Description

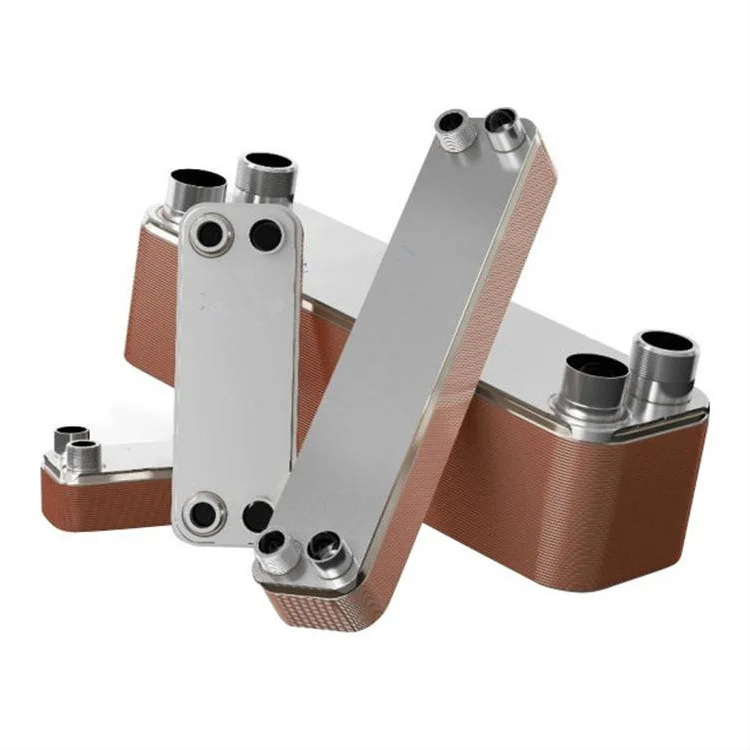

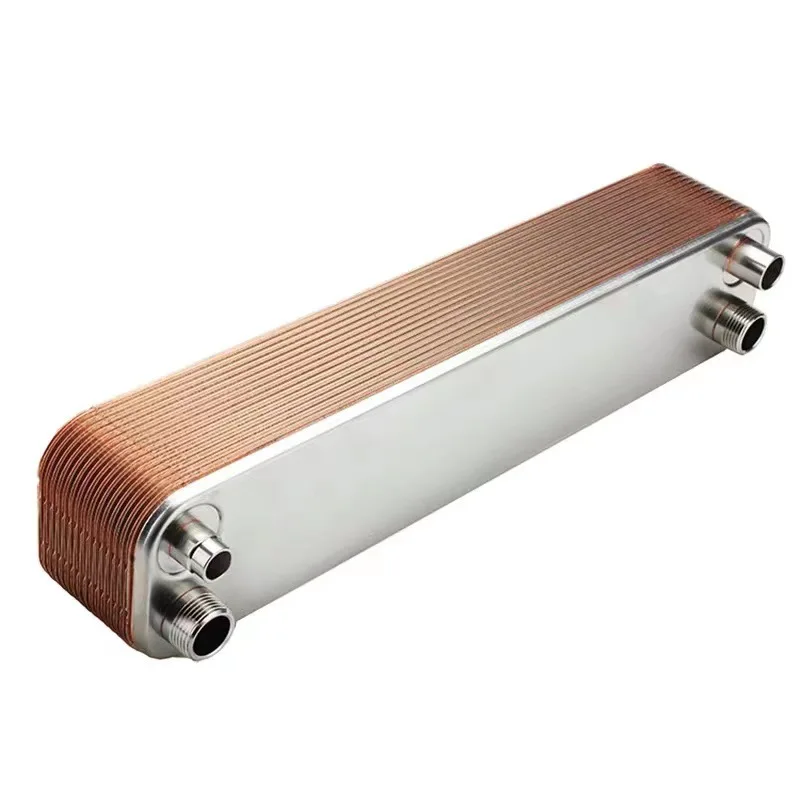

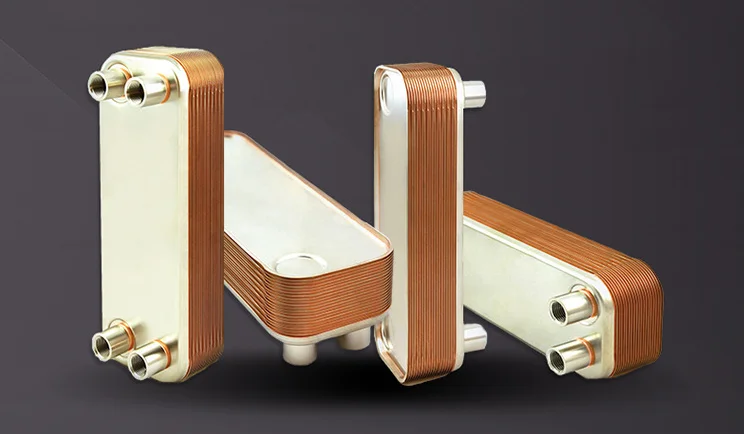

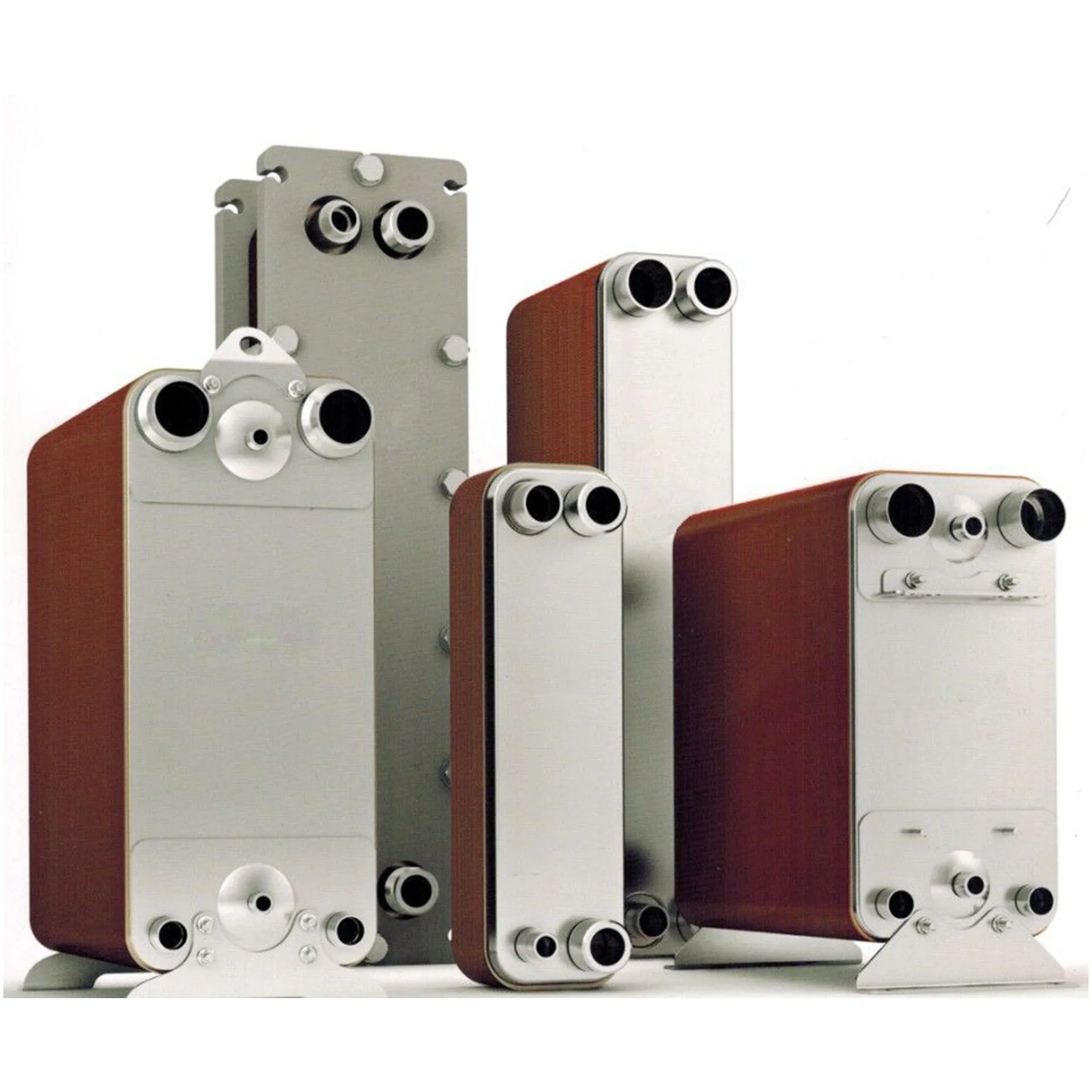

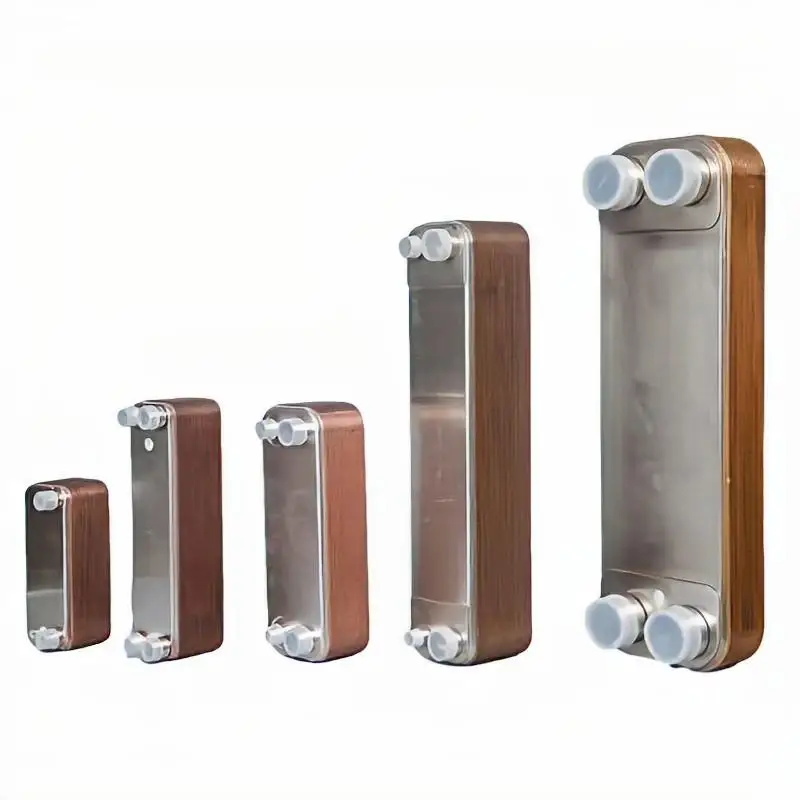

Brazed Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless
steel+99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling,
evaporation and condensing, etc.
steel+99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling,
evaporation and condensing, etc.
* High Thermal Efficiency
* Energy Optimized
* Robust Construction
* Compact Design
* Energy Optimized
* Robust Construction
* Compact Design
Why Choose us?
* Premium Tough Quality
* Incredibly Low Prices
* Fast & Secure Delivery
* 30-Day Free Returns
* 24/7 Attentive Service
* Incredibly Low Prices
* Fast & Secure Delivery
* 30-Day Free Returns
* 24/7 Attentive Service
Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.
Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.
316L Stainless Steel
316L stainless steel applied is highly resistant to corrosion, reliable and long life.
Dedicated BSP FPT/MNPT Ports
Four Thickened 1/2" BSP FPT / MNPT ports for your easier installation.
Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers
greater system design freedom.
greater system design freedom.
Wide Application
The heat exchanger plate is ideal for outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt
systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar heating, and other liquid to liquid
heat transfer applications.
systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar heating, and other liquid to liquid
heat transfer applications.

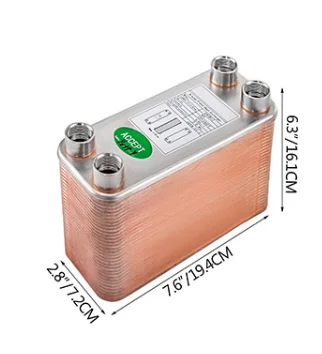

Brazed Plate Heat Exchanger 60 Plate
* Model: 60 Plates
* Material: 316L +99.9% Copper
* Ports: 1/2" BSP FPT
* Plate Quantity: 60
* Design Pressure(Max):3.0 Mpa
* Test Pressure:(Min):4.5 Mpa
* Design Temp.(℃): Max +225
* Design Temp.(℃): Min -196
* Dimension: 7.6"(19.4cm）x 2.8"(7.2cm)x 6.3"(16.1cm)
* Material: 316L +99.9% Copper
* Ports: 1/2" BSP FPT
* Plate Quantity: 60
* Design Pressure(Max):3.0 Mpa
* Test Pressure:(Min):4.5 Mpa
* Design Temp.(℃): Max +225
* Design Temp.(℃): Min -196
* Dimension: 7.6"(19.4cm）x 2.8"(7.2cm)x 6.3"(16.1cm)
Package Content
* 1 x Heat Exchanger
* 1 x A Pair of Hoops
* 1 x Heat Exchanger
* 1 x A Pair of Hoops

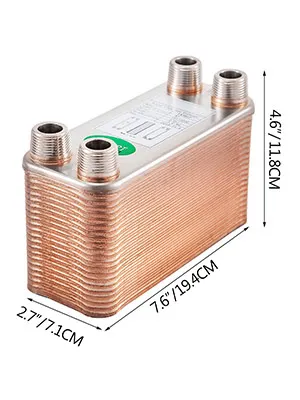

Brazed Plate Heat Exchanger 40 Plate
* Model: 40 Plates
* Material: 316L +99.9% Copper
* Ports: 3/4" MNPT
* Plate Quantity: 40
* Design Pressure(Max):3.0 Mpa
* Test Pressure:(Min):4.5 Mpa
* Design Temp.(℃): Max +225
* Design Temp.(℃): Min -196
* Dimension: 7.6"(19.4cm）x 2.7"(7.1cm)x 4.6"(11.8cm)
* Material: 316L +99.9% Copper
* Ports: 3/4" MNPT
* Plate Quantity: 40
* Design Pressure(Max):3.0 Mpa
* Test Pressure:(Min):4.5 Mpa
* Design Temp.(℃): Max +225
* Design Temp.(℃): Min -196
* Dimension: 7.6"(19.4cm）x 2.7"(7.1cm)x 4.6"(11.8cm)
Package Content
* 1 x Heat Exchanger
* 1 x A Pair of Hoops
* 1 x Heat Exchanger
* 1 x A Pair of Hoops

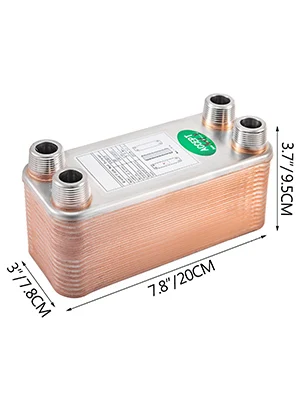

Brazed Plate Heat Exchanger 30 Plate
* Model: 30 Plates
* Material: 316L +99.9% Copper
* Ports: 3/4" MNPT
* Plate Quantity: 30
* Design Pressure(Max):3.0 Mpa
* Test Pressure:(Min):4.5 Mpa
* Design Temp.(℃): Max +225
* Design Temp.(℃): Min -196
* Dimension: 7.8"(20cm）x 3"(7.8cm)x 3.7"(9.5cm)
* Material: 316L +99.9% Copper
* Ports: 3/4" MNPT
* Plate Quantity: 30
* Design Pressure(Max):3.0 Mpa
* Test Pressure:(Min):4.5 Mpa
* Design Temp.(℃): Max +225
* Design Temp.(℃): Min -196
* Dimension: 7.8"(20cm）x 3"(7.8cm)x 3.7"(9.5cm)
Package Content
* 1 x Heat Exchanger
* 1 x A Pair of Hoops
* 1 x Heat Exchanger
* 1 x A Pair of Hoops
Features & Details
* 【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for
superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE.
* 【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
* 【ROBUST CONSTRUCTION】- This 60 plate / 40 plate / 30 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece
that can withstand high pressure and temperature. Four thickened BSP FPT / MNPT ports for your easier installation.
* 【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
* 【HIGHLY VERSATILE】- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE.
* 【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
* 【ROBUST CONSTRUCTION】- This 60 plate / 40 plate / 30 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece
that can withstand high pressure and temperature. Four thickened BSP FPT / MNPT ports for your easier installation.
* 【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
* 【HIGHLY VERSATILE】- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
Applications
•Domestic Hot Water Heating
• Central Heating
• Floor Heating
• Driveway Snow Melting
• Radiator Heating
• Heating and Cooling HVAC Installation
• Solar Heating
• Central Heating
• Floor Heating
• Driveway Snow Melting
• Radiator Heating
• Heating and Cooling HVAC Installation
• Solar Heating
Friendly Note for Installation:
* Vertical installation is recommended to minimize sediment build-up and reduce maintenance.
* For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the unit's lifespan.
* Connect the pipes in a manner where liquids move in a counter-flow direction, which will maximize the heat transfer.
* For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the unit's lifespan.
* Connect the pipes in a manner where liquids move in a counter-flow direction, which will maximize the heat transfer.
Technical parameter | ||
Product name | Brazed Plate Heat Exchanger,CE,ISO9001:2008 | |
Product model | ZG-60/ZG-40/ZG-30 | |
Unit heat exchanging area | 0.006m2 | |
Maximum flowrate | 1m3/h | |
Plate material | 316L or 304 stainless steel | |
Welding material | 99.99% copper | |
Thickness of plate | 0.3mm | |
Volume per channel | 0.008L | |
maximum number of plate | 60 | |
Design pressure | 1.0MPa 3.0MPa | |
Test pressure | 1.5MPa 4.5MPa | |
Design temperature | -196~+225℃ | |
Basic Procedures | A1-> A2 A4-> A3 | |
Application scope | Heating Water Heater, air conditioning economizer, Heat pump evaporator, chiller condenser, etc. | |
