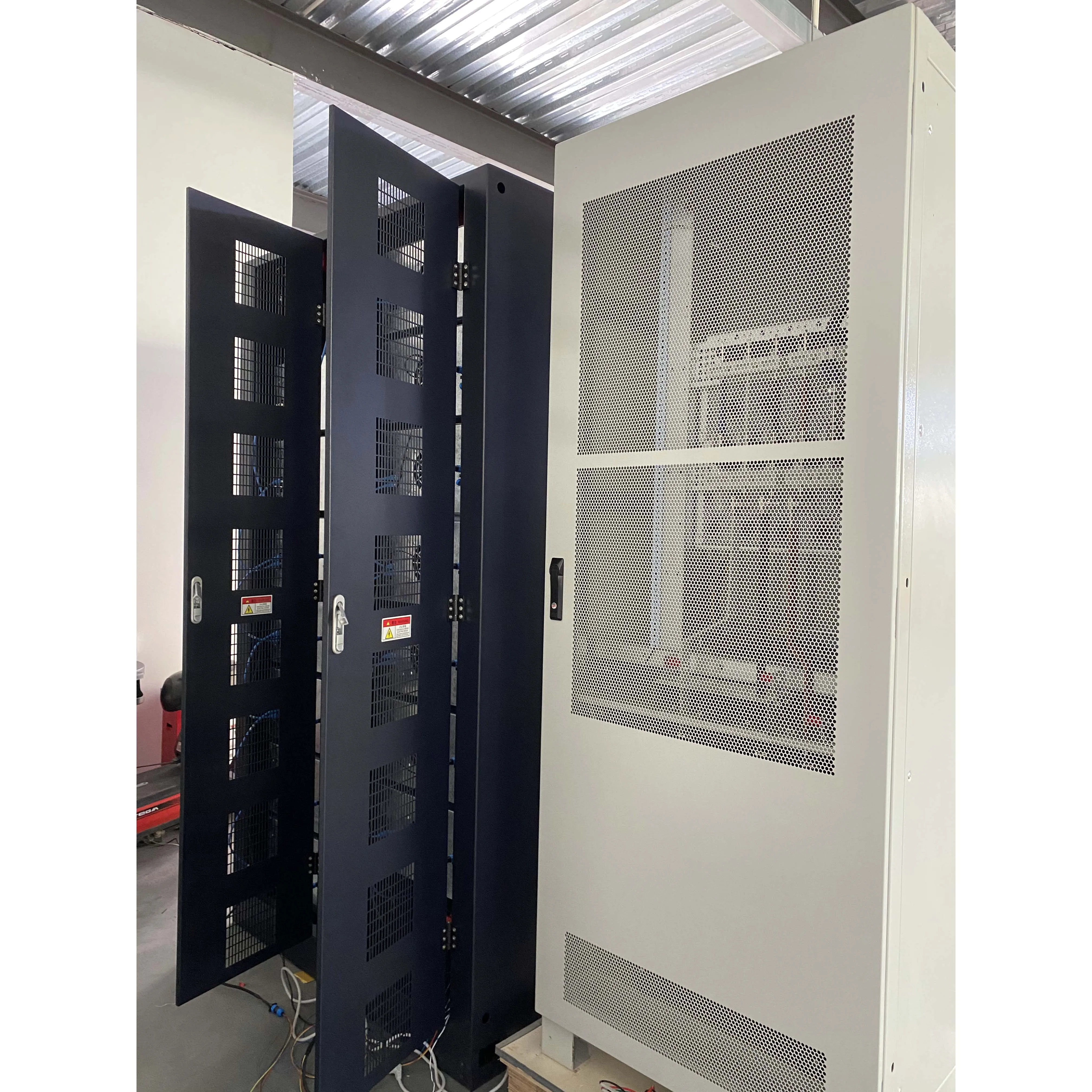

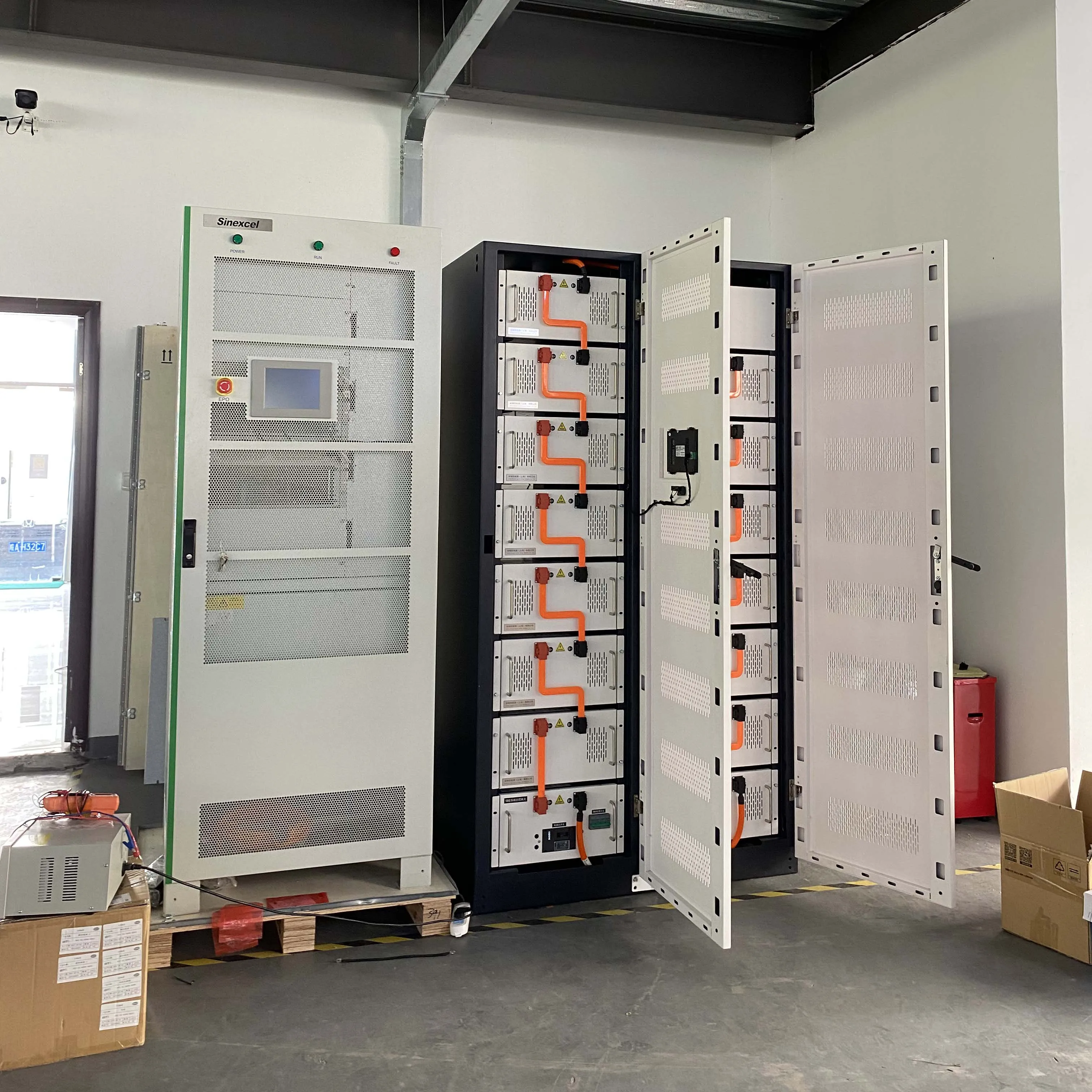

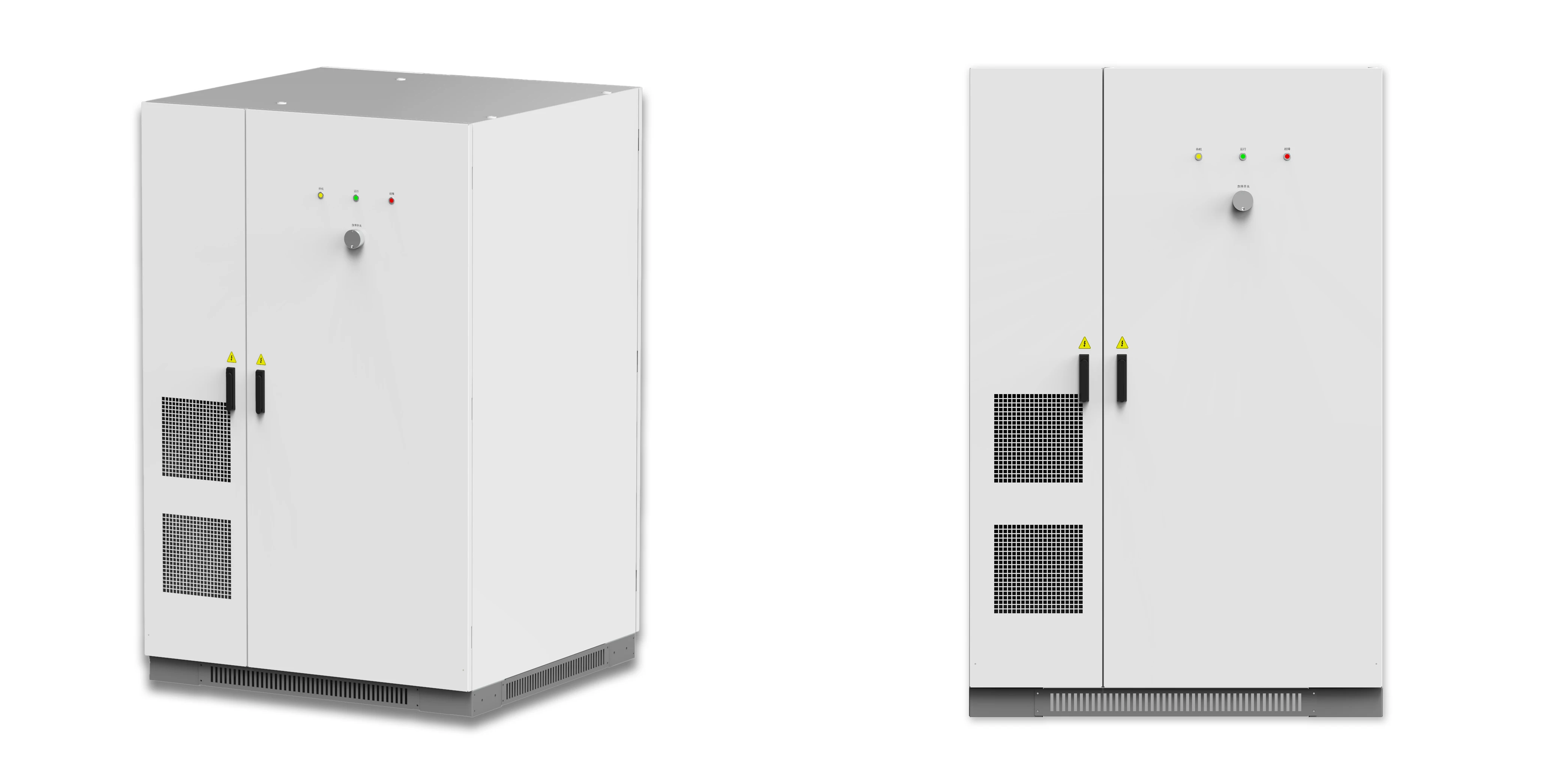

Industrial & Commercial Energy Storage Container Cabinet LiFePO4 Batteries Solar Energy Battery Storage System
- Category: >>>
- Supplier: Shanghai Aijiu Energy Technology Co. Ltd.
Share on (1600829003490):
Product Overview
Description
Battery Parameters
Capacity
233kwh Module Expandable to MWhs
Features
1.Pack Tech
All in one full liquid cooling can be used indoor& outdoor, full liquid cooling technology, IP65 high protection level, 4 layers security protection measure, top brand laser welding equipment, charging and discharge test equipment to provide users with high safety, long cycle life, smart technology.
2.BMS System Self-Developed
BMS system including software and hardware products, BMS principle diagram of the hardware design, software algorithms, all of the core technologies is independent research and development, to achieve more reliable, more flexible and more intelligent battery management system function.

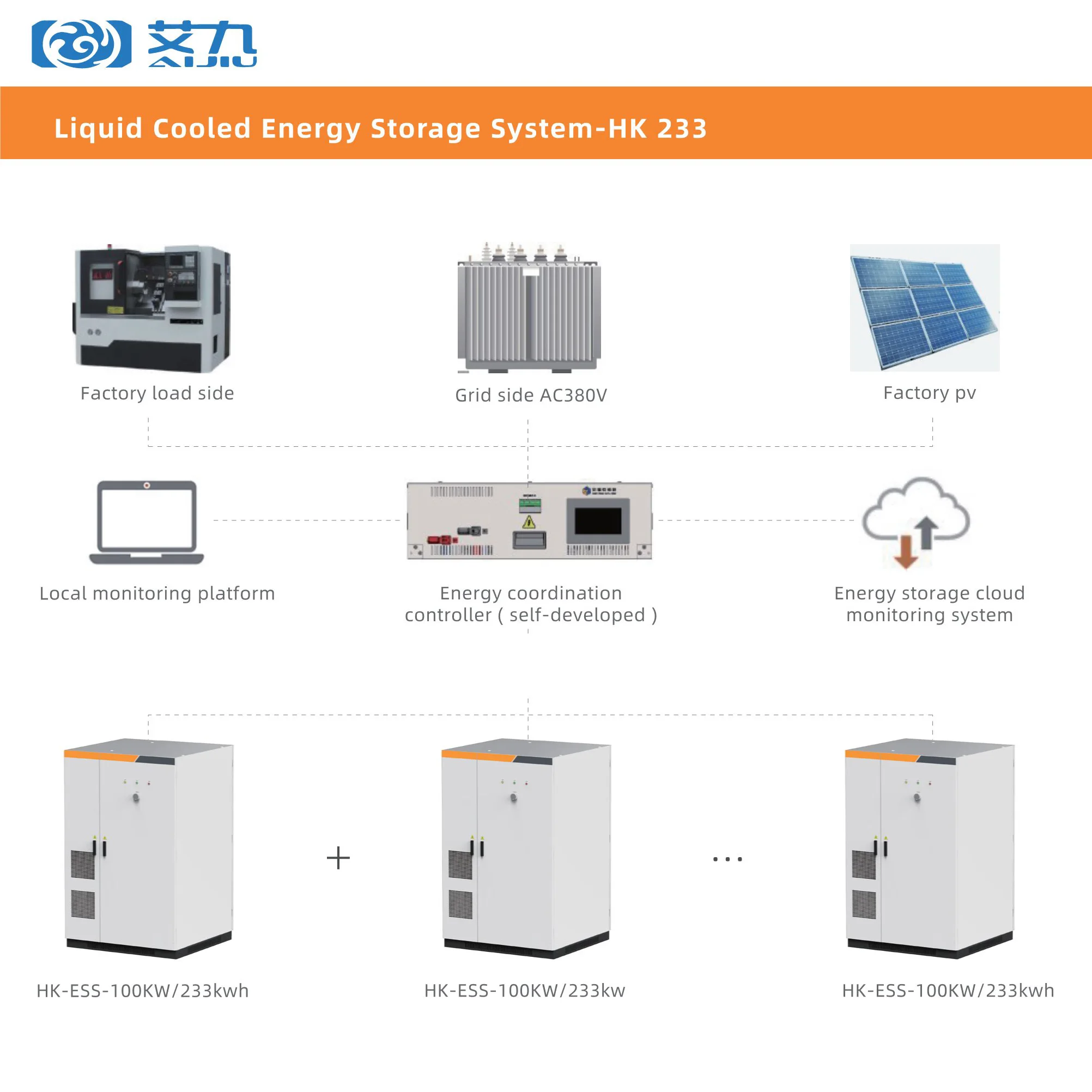

3.EMS System
Smart EMS system including software and hardware Products, the principle diagram of the EMS hardware design, software algorithm and other core technologies are all independent research and development, with a highly integrated BMS system.
4.Smart lOT Cloud
The lOT cloud platform is Independent research and development, to achieve energy storage power station realtime monitoring, comprehensive analysis of energy data, operational service fast response to build more intelligent, efficient and convenient storage management cloud platform.
Grid Side(on/off Grid) | ||
Grid Voltage Range | AC380V士15% | |
Grid Frequency Range | 50Hz/60Hz+5H | |
Grid-connected Output THDi | <3%(LinearLoad) | |
Grid-connected Power Factor | -1~+1 | |
MaximumCharge/DischargePower | 110kWw | |
Charging and switching time | <20ms | |
Battery Terminal | ||
Battery Type | Lithium-ion Battery (LFP) | |
Maximum Charge Capacity | 200kwh | |
Maximumdischargecapacity | 180kwh | |
Maximumcharge/discharge current | 180A | |
Rated charge/discharge power | 100kw | |
Cycles | 6000(100%chargeand discharge,attenuation to 80%) | |
System Efficiency Function | ||
System maximum Efficiency | >90% | |
Dischargemaximum Efficiency | >95% | |
Overall Parameters | ||
System Cabinet Dimension(WxDxH) | 1400*1350*2200mm | |
Weight | ≤2500kg | |
Working Altitude | 3000m(100%ACOutput) | |
Cooling conceptof battery chamber | All Liquid cooling(Battery+PCS) | |
Protection Class | ZIP65 | |

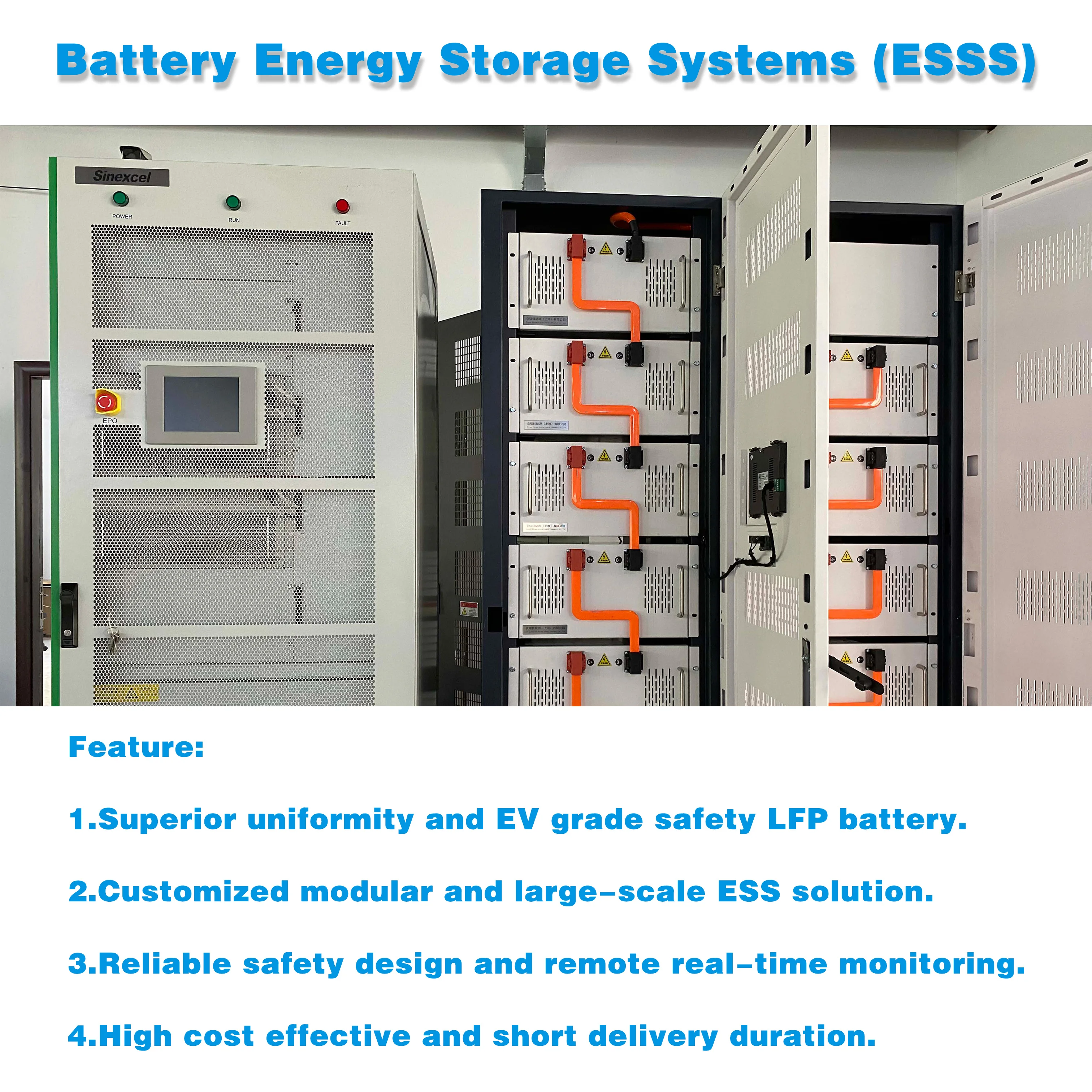

BESS
Which Battery Energy Storage System is right for my project?
Our IOT based and AI powered battery energy storage systems are geared towards helping mid market Commercial, Industrial and Institutional (CII) clients to store electricity and transfer it over time. All our systems use the most reliable and mature lithium iron phosphate technology (LiFePO4), and the modular “Off-The-Shelf” design of these systems can accommodate specific dimensions and capacities; from 100kWh to 10MWh+.

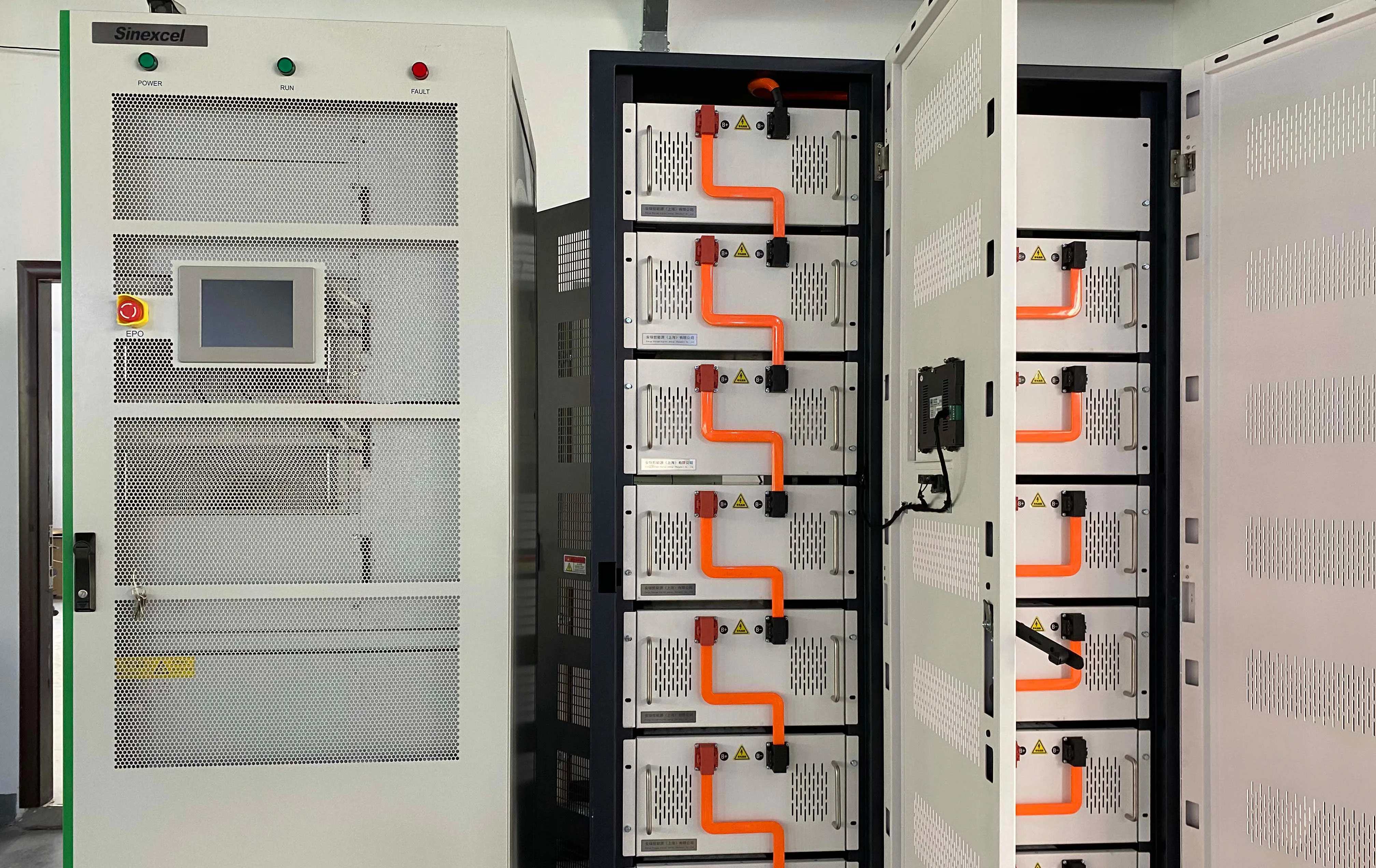

Indoor Cabinet
Our Indoor BESS is the perfect solution for those wanting direct control of their energy indoors.
Our modular system is designed to fit your dynamic needs. Our locker sized BESS contains our stackable battery packs that can be separated to provide energy to different rooms.

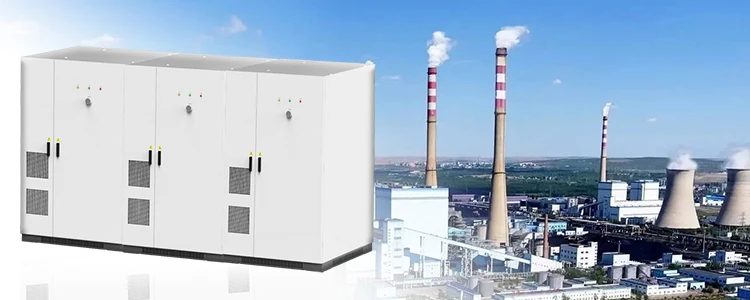

Outdoor Cabinet
Our outdoor BESS is the perfect solution for those wanting to cut costs on their small outdoor projects. Our system is designed to include only the resources you require. Best used for small to medium size projects. For large projects, we recommend our container cabinet.

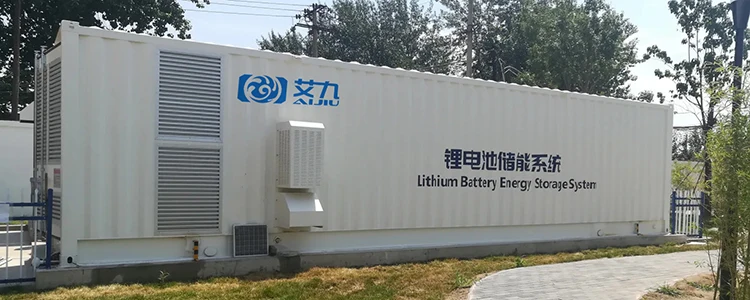

Container Cabinet
Our container is the ultimate solution for those who want to save the biggest costs on their projects. Our customizable container is only limited by your imagination. The container cabinets come in three sizes; 10, 20 and 40 feet and is fire, smoke & water suppressed.
HESS

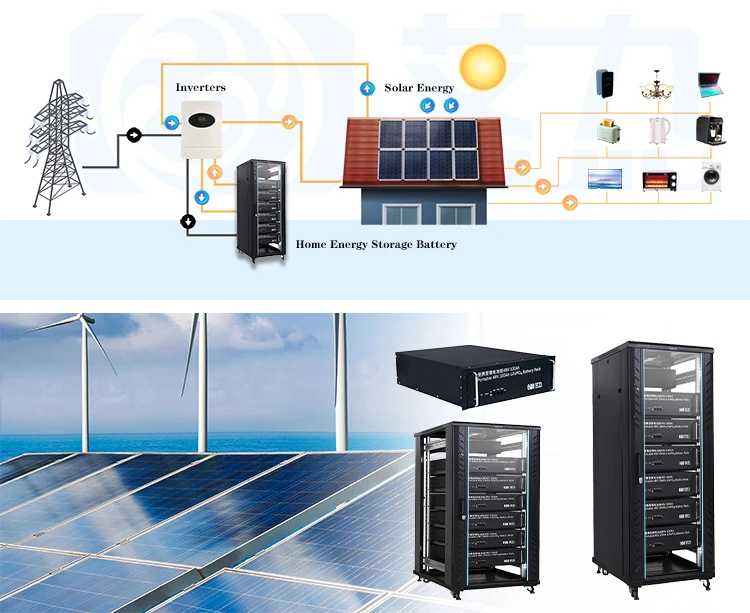

Rack Mount Battery
Rack mount battery can be widely used in all levels of communication rooms and data centers, photovoltaic energy storage and other fields, the energy density of lithium iron phosphate battery is about 2 times higher than that of lead battery, N+1 parallel becomes simple and easy to install and deploy, occupy less space, design life as long as ten years.

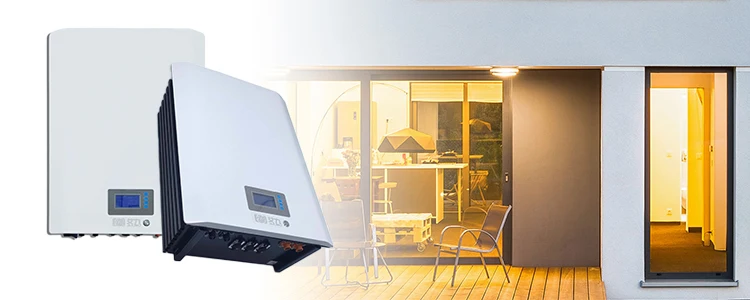

Wall Mount Battery
Aijiu wall mounted lithium battery (LiFePO₄ battery) solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.

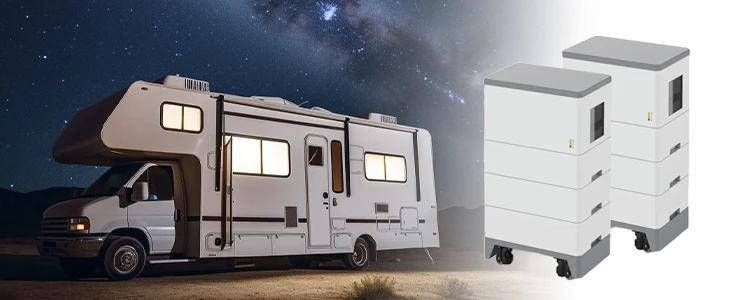

Stacked Battery
Adopting the ALL-IN-ONE design concept, the company has fully integrated high-performance PCS, BMS, EMS and battery PACK developed by itself. With continuous iterative innovation in safety performance, application environment, technical parameters and installation convenience, the company has become a household intelligent energy storage system with complete power segment and leading comprehensive performance in the market.
Company Profile
LiFePO4 Technology
Lithium-ion batteries are a no brainer. They are safer and have a longer lifespan compared to NMC lithium batteries. Lithium-ion batteries mixed with our innovative and efficient battery pack ensures that your BESS can live for over 10 years.
Cloud-based Operation Maintenance
Aijiu battery packs integrate the function of Internet of Things (IoT). We adapt Cloud Technology to do remote monitoring, remote alarms, and remote operation and maintenance, which ensures the safety and efficient operation of the customer’s energy storage system.
Battery Pack Secures Safety
Aijiu proprietary battery packs have passed more than 30 safety tests from two authoritative safety organizations. Those tests include rigorous electrical, mechanical, material, environmental and failure risk tests according to UL and UN/DOT 38.3 compliance standard.
Extreme Conditions Testing
Aijiu batteries have passed more than 30 safety tests. These tests include rigorous electrical, mechanical, material, environmental and failure tests. Two of the most demanding tests AIJIU batteries successfully pass include the heat
spread test and the cell puncture test.
Top-Notch Design Distinguished
Aijiu top-notch design focusing on reliability and safety makes our products very different from
other competitors. These excellent features
include 1C/1Hr design for greater capacity and wider applications, and arc-proof design of the walk-in system and extra layer protection
between BMS and PCS.
