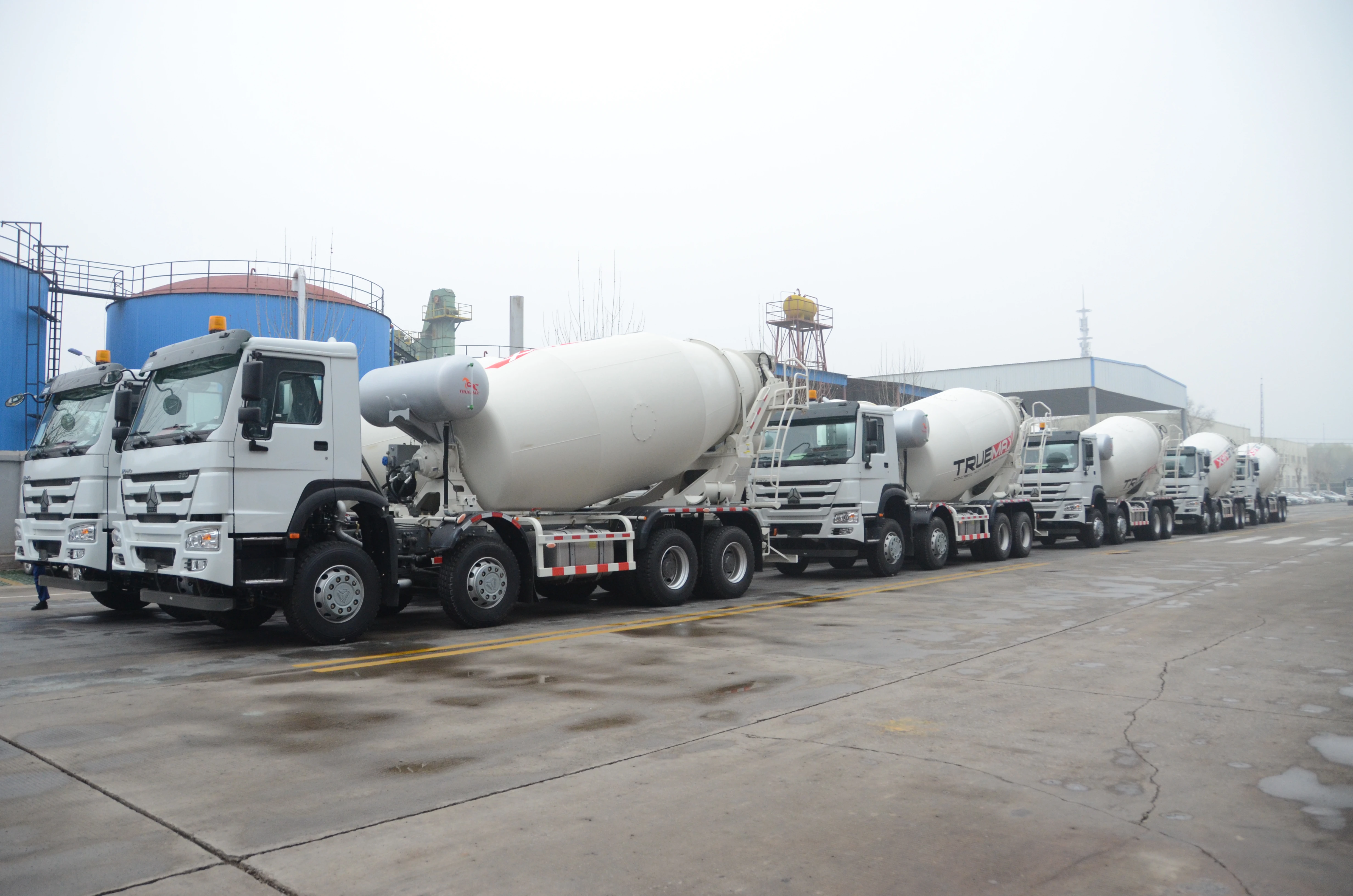

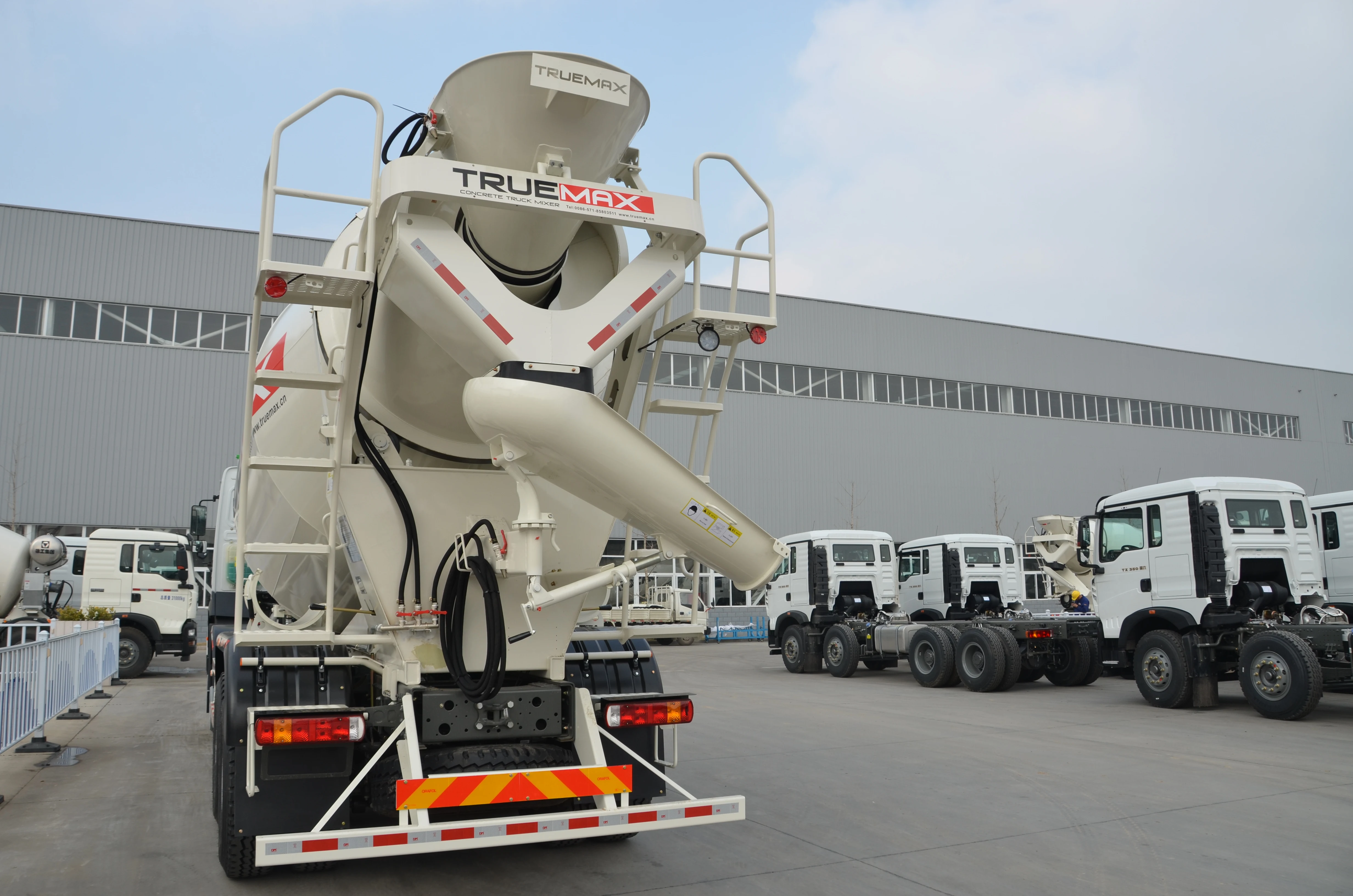

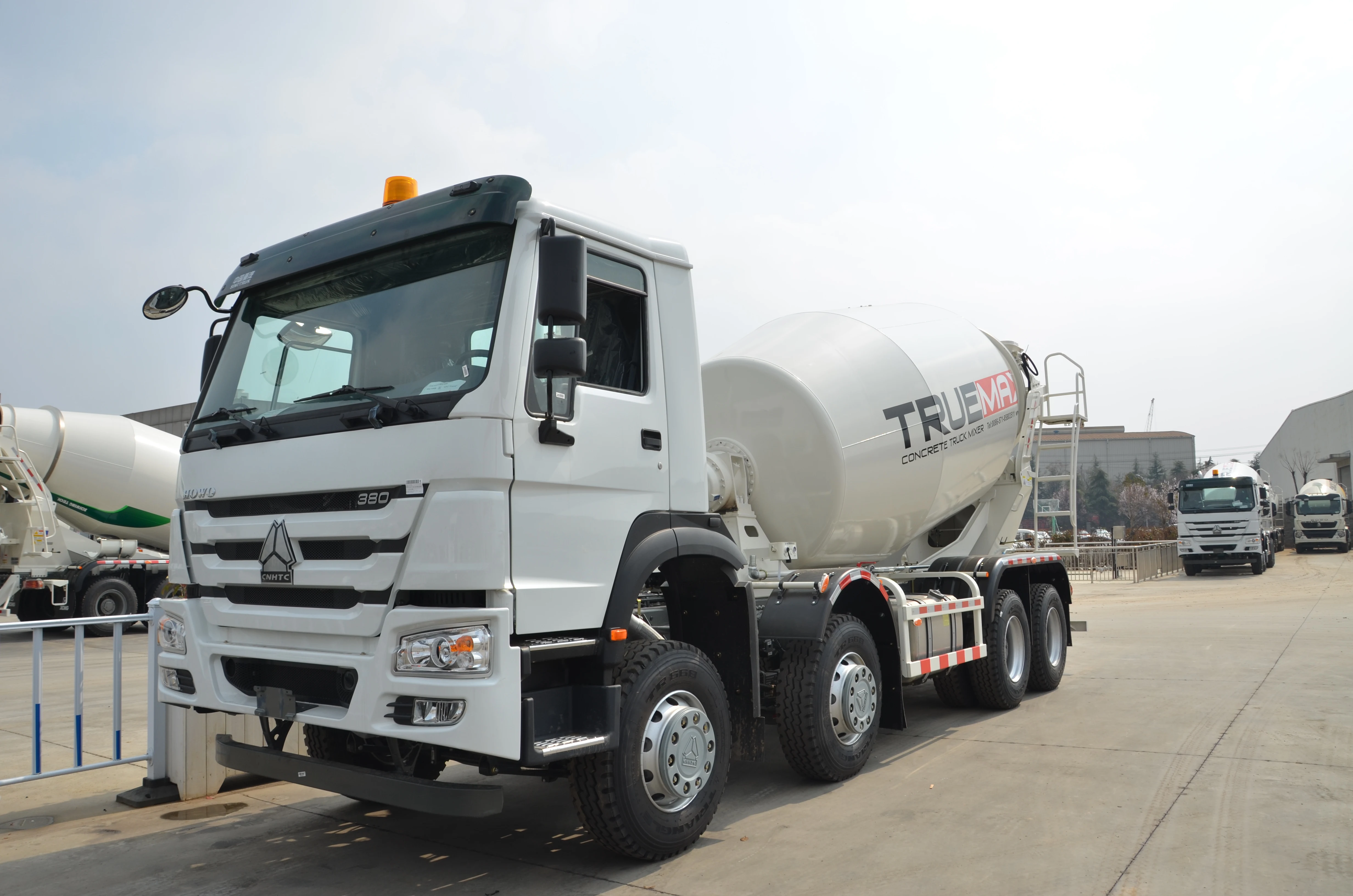

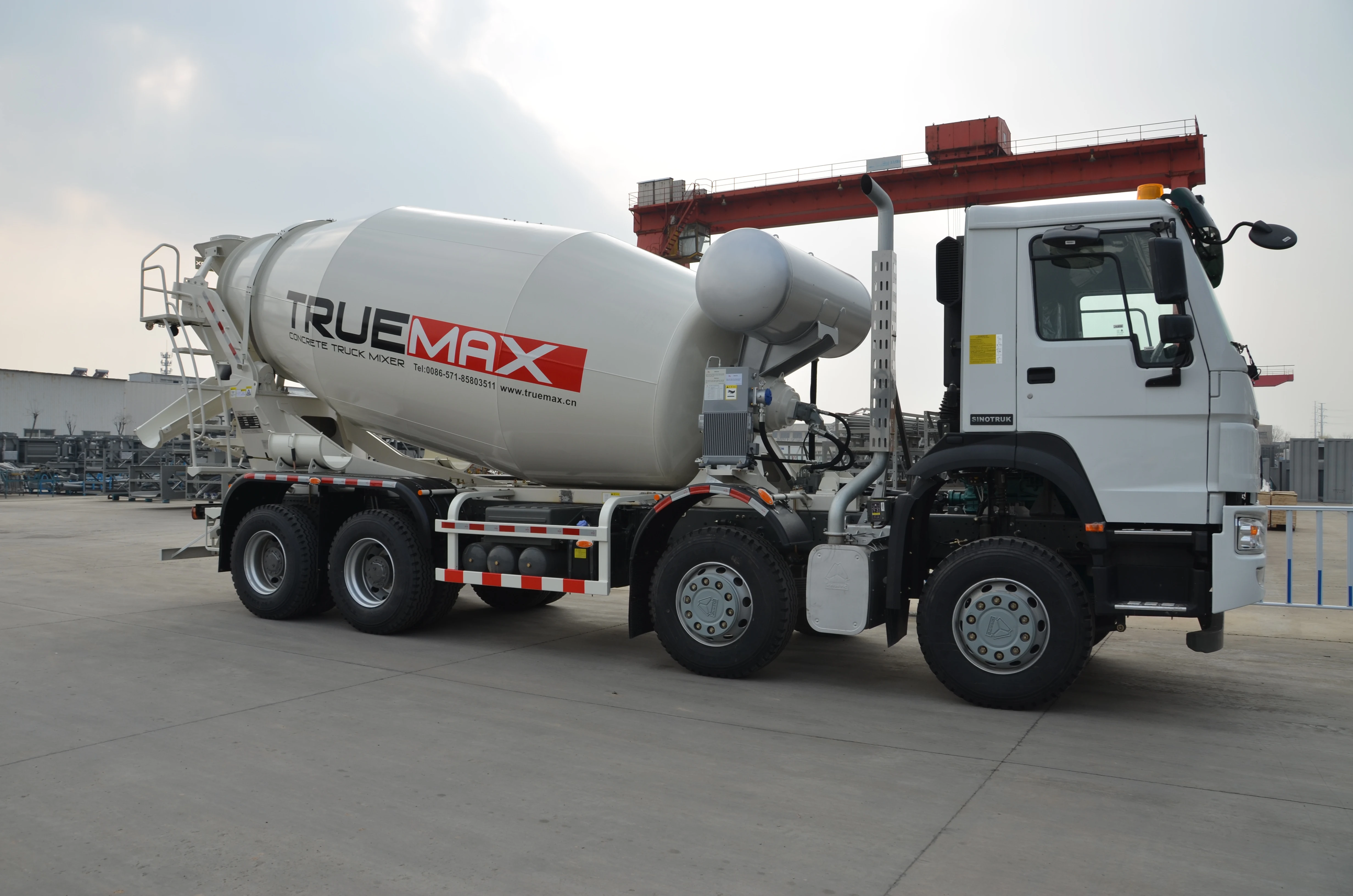

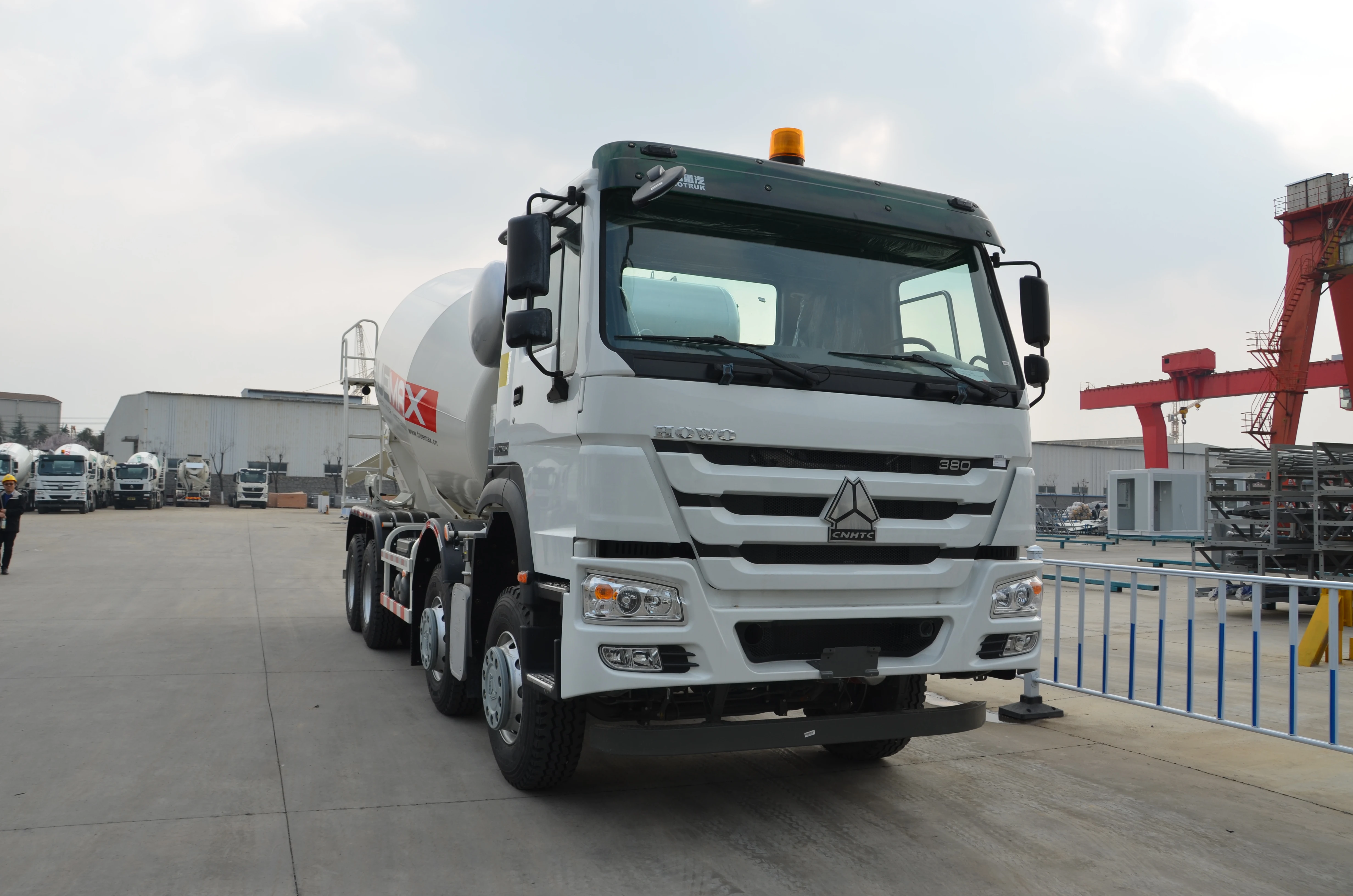

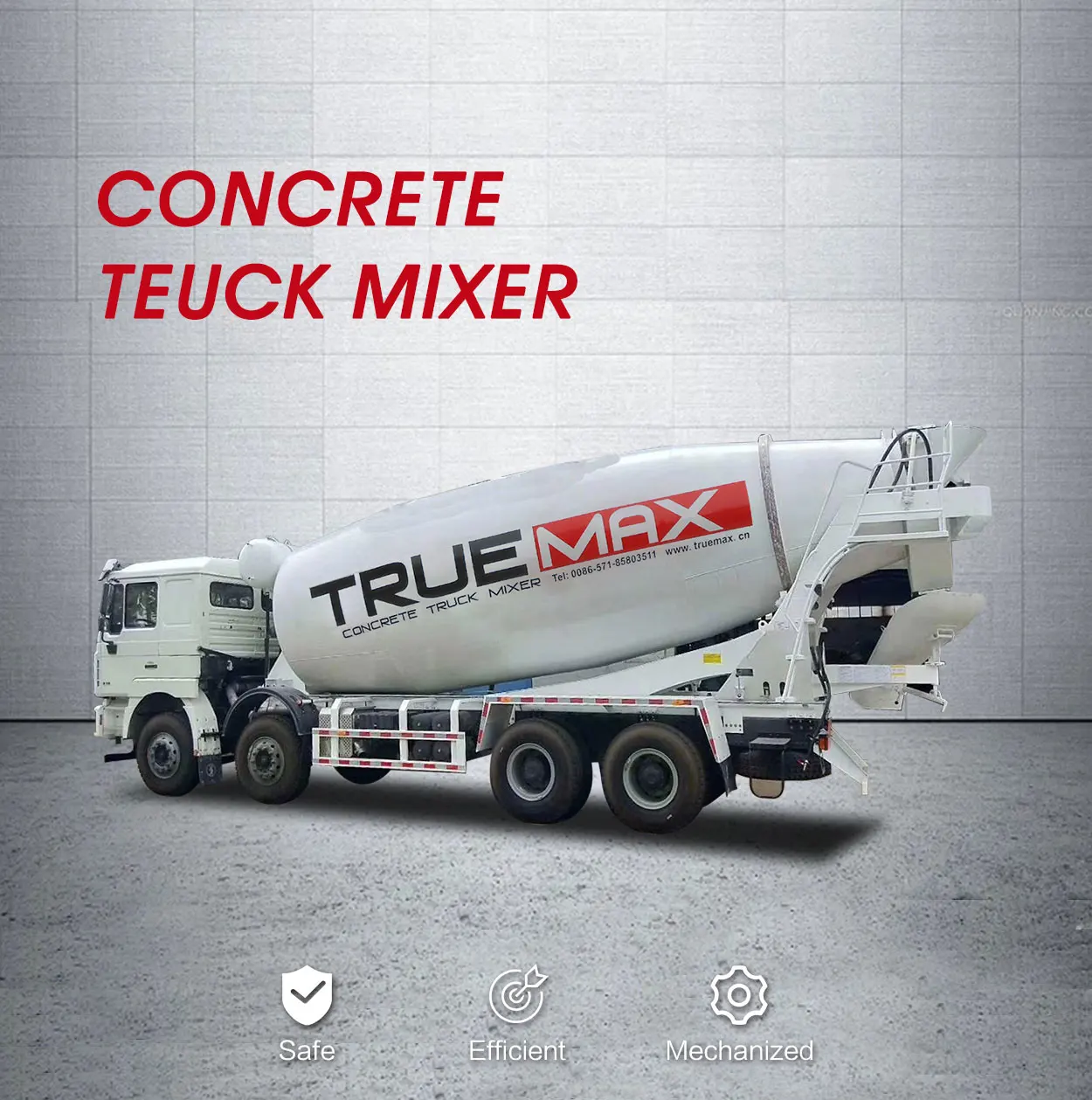

12 cubic concrete mixer truck/ concrete transit mixer
- Category: >>>
- Supplier: Hangzhou Truemax Machinery & Equipment Co. Ltd.
Share on (1600829014516):
Product Overview
Description
Product Information
Economy type factorys prices CTM12 concrete machinery self-loading cement howo concrete transit mixer trucks for sale | ||||||||||||||||
Model | UNIT | 3m³ | 6m³ | 8m³ | 9m³ | 10m³ | 12m³ | 14m³ | ||||||||
Mixer Type | / | Dry/Wet | ||||||||||||||
Geometric Volume of Drum | m³ | 4.45 | 9.6 | 11.8 | 14.4 | 14.4 | 18.4 | 20.4 | ||||||||
Material of Drum&Blades | / | Q345 | ||||||||||||||
Inclination Angle for Drum | / | 16 | 15 | 16 | 13 | 13.5 | 12 | 12 | ||||||||
Padding Rate | % | 67.4 | 63.8 | 67.8 | 62.5 | 69.4 | 65.2 | 68.6 | ||||||||
Residual Rate | % | <0.2 | ||||||||||||||
Charging Speed | m³/min | ≧3 | ||||||||||||||
Discharging Speed | m³/min | >1 | ||||||||||||||
Mixing Speed | r/min | 0-14 | 2-14 | |||||||||||||
Hydraulic Pump | / | Interpump | Rexroth | |||||||||||||
Hydraulic Motor | / | Interpump | Rexroth | |||||||||||||
Reducer | / | Lead374 | ZFP4300 | ZFP5300 | ||||||||||||
Radiator | / | KT18 | ||||||||||||||
Capacity for Water Tank | L | 240 | 350 | 450 | ||||||||||||
Water Supply | / | Air/Elecrtical Pump | ||||||||||||||
Slump Range | mm | 50-210 | ||||||||||||||
Water Supply Pressure | Mpa | 0.2 | 0.3 | |||||||||||||
Overall Dimension(L*W*H) | mm | 3968*1920*2065 | 5414*2400*2446 | 5800*2500*2816 | 6640*2495*2652 | 6190*2600*2696 | 7500*2600*2870 | 8000*2450*2906 | ||||||||
Chassis of concrete truck mixer | ||||||
Vehicle Model | Sinotruk | Sinotruk | Sinotruk | |||
Chassis Model | ZZ5128F3915 | ZZ1257N3841W | ZZ1317N3261W | |||
Tail Gas Exhaust Standard | Euro III - Euro V | Euro II - Euro V | ||||
Engine Model | YC4D140-33 | WD615.69 | WD615.47 | |||
Engine Power (KW) | 102 | 247 | 273 | |||
Rated Load (kg) | 7500-12500 | 15000-35000 | ||||
Drive Type | 4*2 | 6*4 | 8*4 | |||
Max. Travel Speed (km/h) | 90 | |||||
Typre Type | 9.00R20*7 | 11.00-12.00R20 | ||||
Wheelbase (mm) | 3900 | 3825+1350 | 1800+3200+1350 | |||
Applicable to Concrere Truck Mixer (m³) | 3-5 | 6-10 | 10-14 | |||
Overall Dimension (L*W*H) (mm) | 6755*2440*2800 | 9020*2496*3835 | 10611*2496*3990 | |||
Total Weight (kg) | 8755-11500 | 12500-16500 | ||||
Others | Seat with air bag; Air conditioner; Other chassis can be customized | |||||

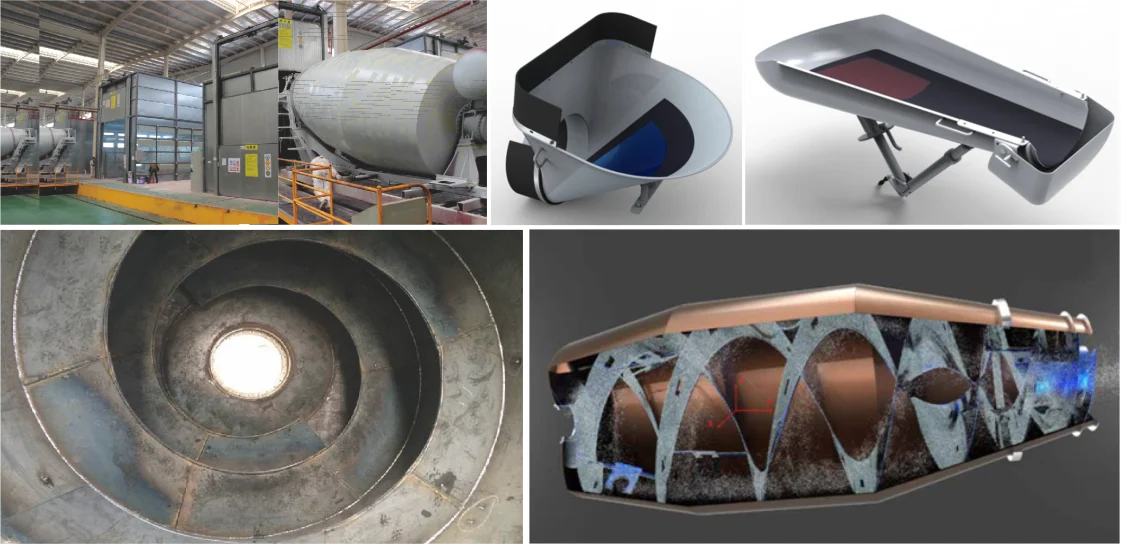

1.Blade’s unique wear-resistance design: Use the samewear-resistant materialas drum body to improve wear resistance; Added wearing
strip in the end to extend service life; Using advanced blade design, the filling rate is higher, and the drum body loading
capacity is increased by 5%.
strip in the end to extend service life; Using advanced blade design, the filling rate is higher, and the drum body loading
capacity is increased by 5%.
2.Advanced drum body production technology and efficient mixing technology: The slump of concrete varies by ≤5% at each stage, and
the residual rate is as low as 0.2%.
3.Multi-layer wear-resistant liners are used in the feeding and discharging chutes, which increase the service life by 50%.
4.The key parts been produced by plasma cutting technology: High precision and productivity.
5.Overall shot blasting derusting technology: Improve painted adhesive force and anti-corrosion.
the residual rate is as low as 0.2%.
3.Multi-layer wear-resistant liners are used in the feeding and discharging chutes, which increase the service life by 50%.
4.The key parts been produced by plasma cutting technology: High precision and productivity.
5.Overall shot blasting derusting technology: Improve painted adhesive force and anti-corrosion.
